3 601 JH9 022
Plain bearing
-
Spare part number: 1 600 200 029
Position: 41
Availability: 1
Price group: 00
567.00 Kz*
Recommended Retail Prices excluding VAT
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 15
Availability: 1
Price group: 00
751.00 Kz*
Recommended Retail Prices excluding VAT
O-Ring 38,0X1,5 MM
-
Spare part number: 1 600 210 038
Position: 62
Availability: 1
Price group: -
-
Stator
-
Spare part number: 1 600 A01 A6N
Position: 2
Availability: 1
Price group: -
-
Rotor
-
Spare part number: 1 600 A01 A6S
Position: 3
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 NC3
Position: 51
Availability: 1
Price group: -
-
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: -
-
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 00
364.00 Kz*
Recommended Retail Prices excluding VAT
Torx Oval-Head Screw 4X25
-
Spare part number: 1 619 P01 066
Position: 55
Availability: 3
Price group: 00
364.00 Kz*
Recommended Retail Prices excluding VAT
O-Ring 44,0X1,0 MM
-
Spare part number: 1 619 P02 820
Position: 33
Availability: 1
Price group: 00
996.00 Kz*
Recommended Retail Prices excluding VAT
-
Please click for futher details
-
Please click for futher details
Grinding Spindle M 14, SW 17
-
Spare part number: 1 619 P06 419
Position: 32
Availability: 1
Price group: 00
2,232.00 Kz*
Recommended Retail Prices excluding VAT
Ball Bearing
-
Spare part number: 1 619 P07 440
Position: 28/1
Availability: 1
Price group: -
-
Cover Disc
-
Spare part number: 1 619 P09 390
Position: 80
Availability: 1
Price group: 00
1,042.00 Kz*
Recommended Retail Prices excluding VAT
Catch Lever
-
Spare part number: 1 619 P11 076
Position: 843
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 1 619 P11 098
Position: 828
Availability: 1
Price group: -
-
Thread-forming tap. Screw
-
Spare part number: 1 619 P11 118
Position: 49
Availability: 4
Price group: -
-
Motor Housing
-
Spare part number: 1 619 P15 044
Position: 1
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 619 P15 044
Position: 1
Availability: 1
Price group: -
-
Adjusting Slide
-
Spare part number: 1 619 P15 050
Position: 20
Availability: 1
Price group: -
-
Fan
-
Spare part number: 1 619 P15 054
Position: 5
Availability: 1
Price group: -
-
Switch Handle
-
Spare part number: 1 619 P15 338
Position: 18
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 619 P15 781
Position: 9
Availability: 1
Price group: -
-
Reverse-Transfer Lever
-
Spare part number: 1 619 P15 795
Position: 60
Availability: 1
Price group: -
-
Torsion Spring
-
Spare part number: 1 619 P15 806
Position: 61
Availability: 1
Price group: -
-
Bevel Gear Shaft
-
Spare part number: 1 619 P16 234
Position: 839
Availability: 1
Price group: -
-
Push Button
-
Spare part number: 1 619 P16 236
Position: 810
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 1 619 P16 237
Position: 821
Availability: 1
Price group: -
-
Gear Unit
-
Spare part number: 1 619 P16 240
Position: 838
Availability: 1
Price group: -
-
Air-Deflector Ring
-
Spare part number: 1 619 P16 509
Position: 6
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 P17 407
Position: 8
Availability: 1
Price group: -
-
Torx Oval-Head Screw 4X30
-
Spare part number: 2 603 490 025
Position: 54
Availability: 1
Price group: -
-
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 50
Availability: 6
Price group: 00
364.00 Kz*
Recommended Retail Prices excluding VAT
Retaining clip DIN 472-32X1,2 MM
-
Spare part number: 2 916 660 013
Position: 28/3
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 651/1
Availability: 1
Price group: -
-
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 650/2
Availability: 1
Price group: 00
3,307.00 Kz*
Recommended Retail Prices excluding VAT
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 00
18,465.00 Kz*
Recommended Retail Prices excluding VAT
-
Please click for futher details
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
Pin-Type Face-Wrench
-
Spare part number: 1 619 P08 927
Position: 650/30
Availability: 1
Price group: 00
1,320.00 Kz*
Recommended Retail Prices excluding VAT
-
Please click for futher details
Protective Cover Ø125 MM SILVER
-
Spare part number: 1 619 P14 539
Position: 651
Availability: 1
Price group: -
-
-
Please click for futher details
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 00
1,726.00 Kz*
Recommended Retail Prices excluding VAT
-
Please click for futher details
-
Please click for futher details
1
2
Spare parts in cart
48 Parts found
Sort by
Description

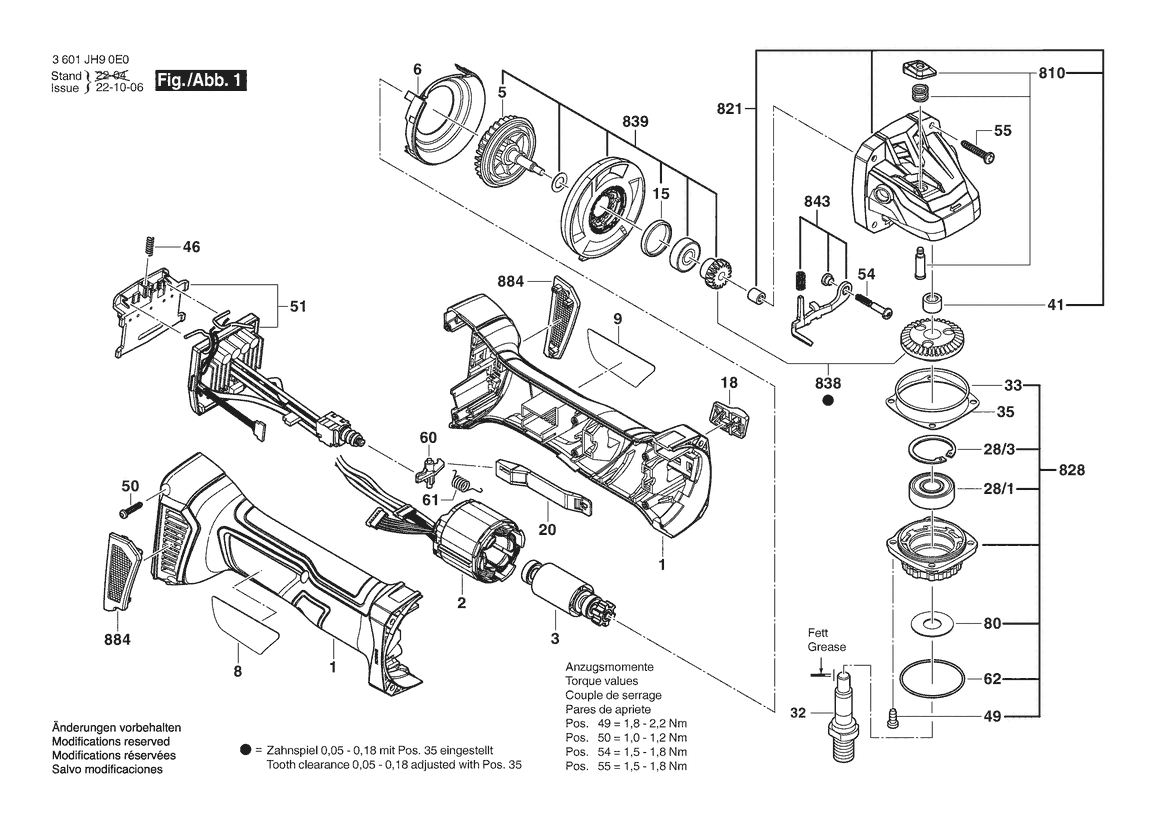

Pos. 1 | Motor Housing
1 619 P15 044
-
Pos. 2 | Stator
1 600 A01 A6N
-
Pos. 3 | Rotor
1 600 A01 A6S
-
Pos. 5 | Fan
1 619 P15 054
-
Pos. 6 | Air-Deflector Ring
1 619 P16 509
-
Pos. 8 | Nameplate
1 619 P17 407
-
Pos. 9 | Manufacturer's nameplate
1 619 P15 781
-
Pos. 15 | Rubber Ring
1 600 206 025
-
*Recommended Retail Prices excluding VAT
Pos. 18 | Switch Handle
1 619 P15 338
-
Pos. 20 | Adjusting Slide
1 619 P15 050
-
Pos. 28/1 | Ball Bearing
1 619 P07 440
-
Pos. 28/3 | Retaining clip DIN 472-32X1,2 MM
2 916 660 013
-
Pos. 32 | Grinding Spindle M 14, SW 17
1 619 P06 419
-
*Recommended Retail Prices excluding VAT
Pos. 33 | O-Ring 44,0X1,0 MM
1 619 P02 820
-
*Recommended Retail Prices excluding VAT
Pos. 35 | Shim 0,1 MM
1 619 P02 821
-
*Recommended Retail Prices excluding VAT
Pos. 35 | Shim 0,2 MM
1 619 P02 822
-
*Recommended Retail Prices excluding VAT
Pos. 41 | Plain bearing
1 600 200 029
-
*Recommended Retail Prices excluding VAT
Pos. 46 | Compression Spring
1 609 280 477
-
*Recommended Retail Prices excluding VAT
Pos. 49 | Thread-forming tap. Screw
1 619 P11 118
-
Pos. 50 | Torx Flat-Head Screw 3X16
2 609 110 201
-
*Recommended Retail Prices excluding VAT
Pos. 51 | Electronics Module
1 600 A01 NC3
-
Pos. 54 | Torx Oval-Head Screw 4X30
2 603 490 025
-
Pos. 55 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
*Recommended Retail Prices excluding VAT
Pos. 60 | Reverse-Transfer Lever
1 619 P15 795
-
Pos. 61 | Torsion Spring
1 619 P15 806
-
Pos. 62 | O-Ring 38,0X1,5 MM
1 600 210 038
-
Pos. 80 | Cover Disc
1 619 P09 390
-
*Recommended Retail Prices excluding VAT

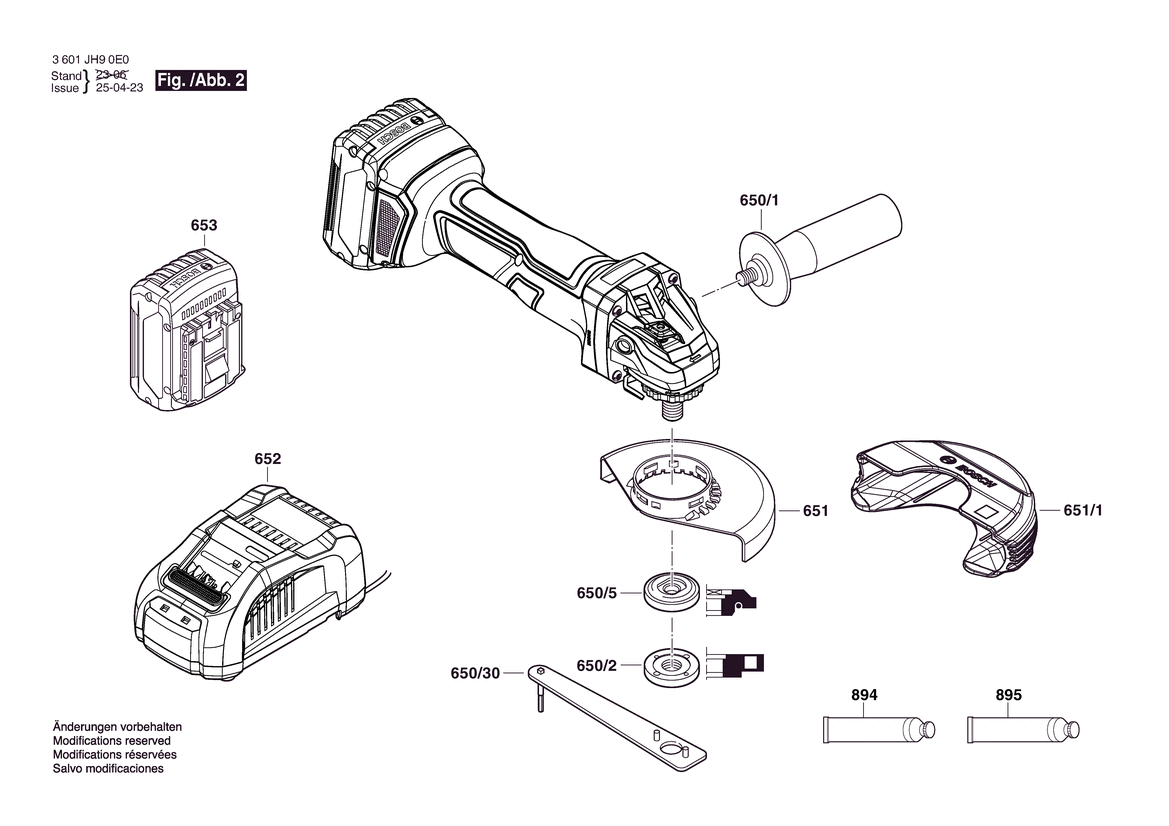

Pos. 650/1 | Auxiliary Handle
1 619 P10 681
-
*Recommended Retail Prices excluding VAT
Pos. 650/1 | Auxiliary Handle
1 619 P16 111
-
Pos. 650/2 | Round Nut M14
1 603 345 043
-
*Recommended Retail Prices excluding VAT
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
*Recommended Retail Prices excluding VAT
Pos. 650/30 | Pin-Type Face-Wrench
1 619 P08 927
-
*Recommended Retail Prices excluding VAT
Pos. 651 | Protective Cover Ø125 MM SILVER
1 619 P14 539
-
Pos. 651/1 | Protective Cover
1 600 A02 1MH
-
Pos. 652 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
*Recommended Retail Prices excluding VAT
Pos. 652 | Fast Charger
2 607 226 251
-
Pos. 653 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MN
-
Pos. 653 | Battery Pack
1 617 S02 0T1
-
Pos. 653 | Battery Pack
1 617 S02 0T2
-
Pos. 810 | Push Button
1 619 P16 236
-
Pos. 821 | Gear Housing
1 619 P16 237
-
Pos. 828 | Bearing Flange
1 619 P11 098
-
Pos. 838 | Gear Unit
1 619 P16 240
-
Pos. 839 | Bevel Gear Shaft
1 619 P16 234
-
Pos. 843 | Catch Lever
1 619 P11 076
-
Pos. 884 | Filter Unit
1 607 000 CA9
-
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
*Recommended Retail Prices excluding VAT
* Recommended Retail Prices excluding VAT
