Blower
GBL 620 | 3 601 J80 5K0 | 230 V / 026 - AS
Lubrication instructions
Product information
Print drawing

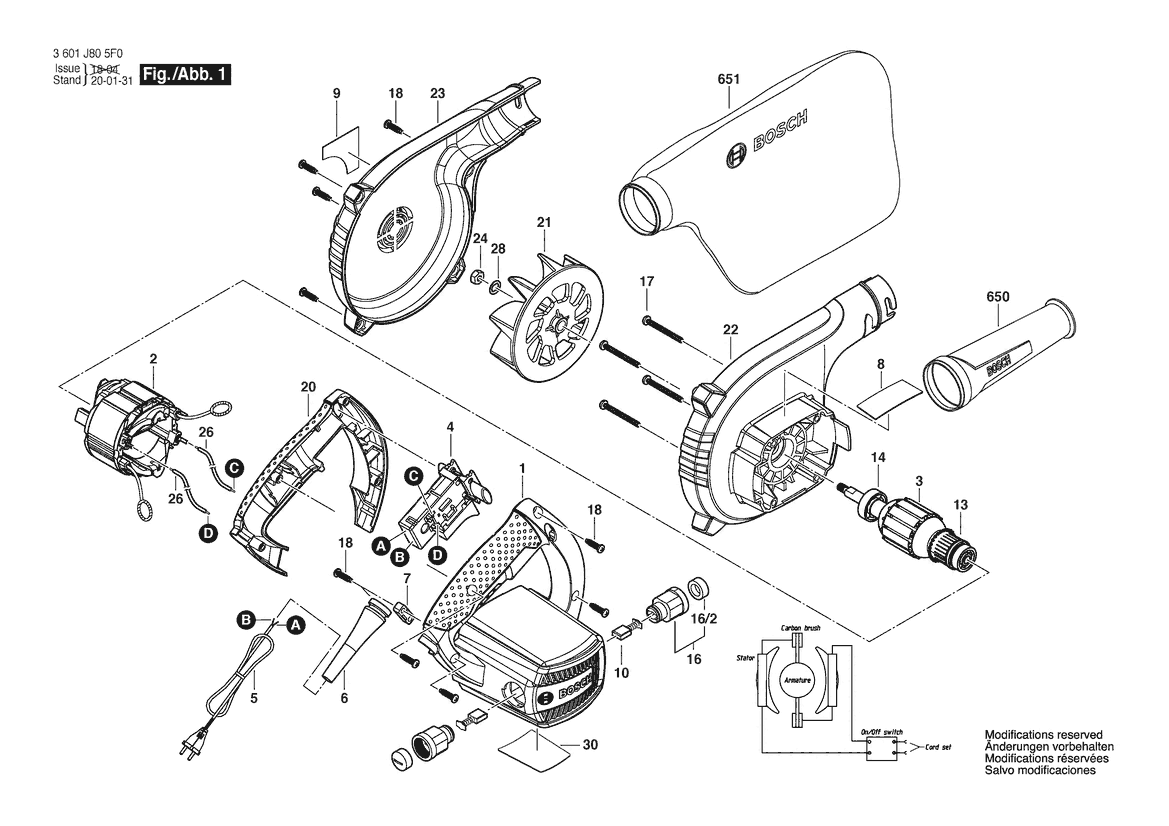

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 J80 5K0
Image 1
Cover Disc
-
Spare part number: 1 600 100 036
Position: 28
Availability: 1
Price group: 10
EGP 0.77*
Prices shown are Recommended Retail Prices including VAT
Fan Housing
-
Spare part number: 1 600 A00 15N
Position: 22
Availability: 1
Price group: 22
EGP 103.55*
Prices shown are Recommended Retail Prices including VAT
Fan Cover
-
Spare part number: 1 600 A00 15P
Position: 23
Availability: 1
Price group: 21
EGP 76.97*
Prices shown are Recommended Retail Prices including VAT
Brush Holder
-
Spare part number: 1 600 A00 187
Position: 16
Availability: 2
Price group: -
-
Connecting Cable
-
Spare part number: 1 600 A00 FT2
Position: 26
Availability: 2
Price group: -
-
Connecting Cable
-
Spare part number: 1 600 A00 FT2
Position: 26
Availability: 2
Price group: -
-
Warning Plate
-
Spare part number: 1 601 118 N89
Position: 30
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 5YA
Position: 8
Availability: 1
Price group: -
-
Label GBL 620
-
Spare part number: 1 601 11C 2A4
Position: 9
Availability: 1
Price group: -
-
Armature
-
Spare part number: 1 604 010 BA6
Position: 3
Availability: 1
Price group: 32
EGP 258.01*
Prices shown are Recommended Retail Prices including VAT
Field
-
Spare part number: 1 604 220 56J
Position: 2
Availability: 1
Price group: 30
EGP 449.66*
Prices shown are Recommended Retail Prices including VAT
Carbon Brush
-
Spare part number: 1 604 321 129
Position: 10
Availability: 1
Price group: 21
EGP 39.43*
Prices shown are Recommended Retail Prices including VAT
Power supply cord EU 230V 4,15M 2X0,75 MM H05VV-F
-
Spare part number: 1 604 460 264
Position: 5
Availability: 1
Price group: 26
EGP 185.65*
Prices shown are Recommended Retail Prices including VAT
Motor Housing
-
Spare part number: 1 605 108 29C
Position: 1
Availability: 1
Price group: 20
EGP 170.55*
Prices shown are Recommended Retail Prices including VAT
Handle
-
Spare part number: 1 605 132 15A
Position: 20
Availability: 1
Price group: -
-
Nozzle
-
Spare part number: 1 605 190 265
Position: 650
Availability: 1
Price group: 23
EGP 56.55*
Prices shown are Recommended Retail Prices including VAT
Dust Bag
-
Spare part number: 1 605 411 034
Position: 651
Availability: 1
Price group: 25
EGP 61.42*
Prices shown are Recommended Retail Prices including VAT
Fan
-
Spare part number: 1 606 610 16T
Position: 21
Availability: 1
Price group: 15
EGP 54.02*
Prices shown are Recommended Retail Prices including VAT
Hex Nut M6
-
Spare part number: 1 613 300 006
Position: 24
Availability: 1
Price group: -
-
Ball Bearing 7X22X7
-
part
Spare part number: 1 900 905 018
Position: 13
Availability: 1
Price group: 28
EGP 31.96*
Prices shown are Recommended Retail Prices including VAT
Ball Bearing 9X26X8
-
part
Spare part number: 1 900 905 025
Position: 14
Availability: 1
Price group: 29
EGP 43.67*
Prices shown are Recommended Retail Prices including VAT
Grommet Ø6,4-Ø7,2X76 MM
-
part
Spare part number: 2 600 703 017
Position: 6
Availability: 1
Price group: 13
EGP 8.17*
Prices shown are Recommended Retail Prices including VAT
Cable Clip
-
Spare part number: 2 601 035 001
Position: 7
Availability: 1
Price group: 11
EGP 1.03*
Prices shown are Recommended Retail Prices including VAT
On-Off Switch
-
part
Spare part number: 2 607 200 637
Position: 4
Availability: 1
Price group: 17
EGP 147.22*
Prices shown are Recommended Retail Prices including VAT
Screw 4X40MM
-
Spare part number: 2 914 201 712
Position: 17
Availability: 4
Price group: -
-
Screw
-
Spare part number: F 002 G31 025
Position: 18
Availability: 10
Price group: 10
EGP 1.00*
Prices shown are Recommended Retail Prices including VAT
Screw
-
Spare part number: F 002 G31 025
Position: 18
Availability: 10
Price group: 10
EGP 1.00*
Prices shown are Recommended Retail Prices including VAT
Screw
-
Spare part number: F 002 G31 025
Position: 18
Availability: 10
Price group: 10
EGP 1.00*
Prices shown are Recommended Retail Prices including VAT
Insulating Cap
-
Spare part number: F 002 G31 065
Position: 16/2
Availability: 2
Price group: 10
EGP 1.78*
Prices shown are Recommended Retail Prices including VAT
1
Spare parts in cart

26 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 605 108 29C
-
EGP 170.55*
*Prices shown are Recommended Retail Prices including VAT
Pos. 2 | Field
1 604 220 56J
-
EGP 449.66*
*Prices shown are Recommended Retail Prices including VAT
Pos. 3 | Armature
1 604 010 BA6
-
EGP 258.01*
*Prices shown are Recommended Retail Prices including VAT
Pos. 4 | On-Off Switch
2 607 200 637
-
EGP 147.22*
*Prices shown are Recommended Retail Prices including VAT
Pos. 5 | Power supply cord EU 230V 4,15M 2X0,75 MM H05VV-F
1 604 460 264
-
EGP 185.65*
*Prices shown are Recommended Retail Prices including VAT
Pos. 6 | Grommet Ø6,4-Ø7,2X76 MM
2 600 703 017
-
EGP 8.17*
*Prices shown are Recommended Retail Prices including VAT
Pos. 7 | Cable Clip
2 601 035 001
-
EGP 1.03*
*Prices shown are Recommended Retail Prices including VAT
Pos. 8 | Nameplate
1 601 11A 5YA
-
-
Pos. 9 | Label GBL 620
1 601 11C 2A4
-
-
Pos. 10 | Carbon Brush
1 604 321 129
-
EGP 39.43*
*Prices shown are Recommended Retail Prices including VAT
Pos. 13 | Ball Bearing 7X22X7
1 900 905 018
-
EGP 31.96*
*Prices shown are Recommended Retail Prices including VAT
Pos. 14 | Ball Bearing 9X26X8
1 900 905 025
-
EGP 43.67*
*Prices shown are Recommended Retail Prices including VAT
Pos. 16 | Brush Holder
1 600 A00 187
-
-
Pos. 16/2 | Insulating Cap
F 002 G31 065
-
EGP 1.78*
*Prices shown are Recommended Retail Prices including VAT
Pos. 17 | Screw 4X40MM
2 914 201 712
-
-
Pos. 18 | Screw
F 002 G31 025
-
EGP 1.00*
*Prices shown are Recommended Retail Prices including VAT
Pos. 20 | Handle
1 605 132 15A
-
-
Pos. 21 | Fan
1 606 610 16T
-
EGP 54.02*
*Prices shown are Recommended Retail Prices including VAT
Pos. 22 | Fan Housing
1 600 A00 15N
-
EGP 103.55*
*Prices shown are Recommended Retail Prices including VAT
Pos. 23 | Fan Cover
1 600 A00 15P
-
EGP 76.97*
*Prices shown are Recommended Retail Prices including VAT
Pos. 24 | Hex Nut M6
1 613 300 006
-
-
Pos. 26 | Connecting Cable
1 600 A00 FT2
-
-
Pos. 28 | Cover Disc
1 600 100 036
-
EGP 0.77*
*Prices shown are Recommended Retail Prices including VAT
Pos. 30 | Warning Plate
1 601 118 N89
-
-
Pos. 650 | Nozzle
1 605 190 265
-
EGP 56.55*
*Prices shown are Recommended Retail Prices including VAT
Pos. 651 | Dust Bag
1 605 411 034
-
EGP 61.42*
*Prices shown are Recommended Retail Prices including VAT
* Prices shown are Recommended Retail Prices including VAT
