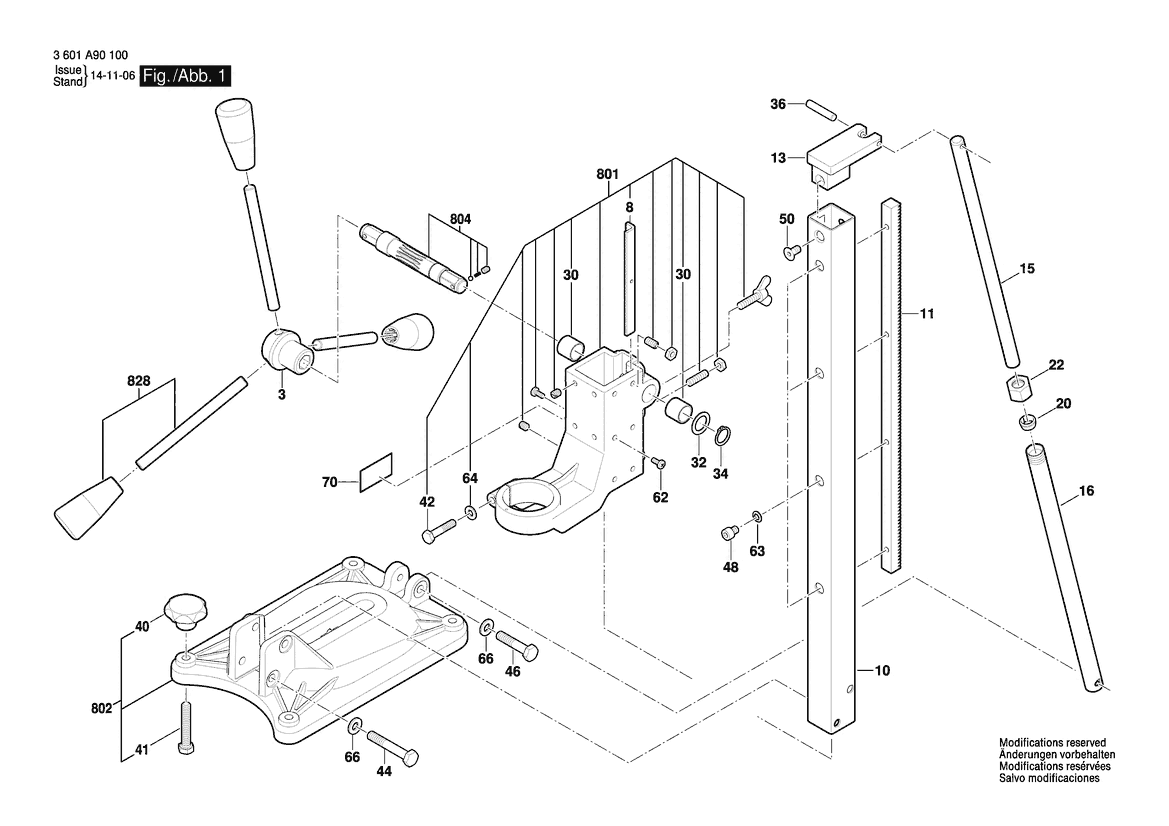

3 601 A90 100
Spring retaining ring
-
Spare part number: 1 600 150 027
Position: 34
Availability: 1
Price group: -
-
Bearing Sleeve
-
Spare part number: 1 600 460 035
Position: 30
Availability: 2
Price group: -
-
Bearing Sleeve
-
Spare part number: 1 600 460 035
Position: 30
Availability: 2
Price group: -
-
Hub
-
Spare part number: 1 600 A00 83C
Position: 3
Availability: 1
Price group: -
-
Guide Angle
-
Spare part number: 1 600 A00 83D
Position: 8
Availability: 4
Price group: -
-
Stator
-
Spare part number: 1 600 A00 83E
Position: 10
Availability: 1
Price group: -
-
Toothed rack
-
Spare part number: 1 600 A00 83F
Position: 11
Availability: 1
Price group: -
-
Head Plate
-
Spare part number: 1 600 A00 83G
Position: 13
Availability: 1
Price group: -
-
Strut
-
Spare part number: 1 600 A00 83J
Position: 15
Availability: 1
Price group: -
-
Support Tube
-
Spare part number: 1 600 A00 83K
Position: 16
Availability: 1
Price group: -
-
Cone Core
-
Spare part number: 1 600 A00 83L
Position: 20
Availability: 1
Price group: -
-
Clamping Nut
-
Spare part number: 1 600 A00 83M
Position: 22
Availability: 1
Price group: -
-
Shim ring
-
Spare part number: 1 600 A00 83P
Position: 32
Availability: 1
Price group: -
-
Straight Pin
-
Spare part number: 1 600 A00 83R
Position: 36
Availability: 1
Price group: -
-
Star Knob
-
Spare part number: 1 600 A00 83S
Position: 40
Availability: 4
Price group: -
-
Hex Socket Head Cap Screw
-
Spare part number: 1 600 A00 83U
Position: 48
Availability: 4
Price group: -
-
Oval-Head Screw
-
Spare part number: 1 600 A00 83V
Position: 62
Availability: 4
Price group: -
-
Locking washer
-
Spare part number: 1 600 A00 83W
Position: 63
Availability: 4
Price group: -
-
Plain Washer
-
Spare part number: 1 600 A00 83X
Position: 64
Availability: 1
Price group: -
-
Plain Washer
-
Spare part number: 1 600 A00 83Y
Position: 66
Availability: 3
Price group: -
-
Plain Washer
-
Spare part number: 1 600 A00 83Y
Position: 66
Availability: 3
Price group: -
-
Stator
-
Spare part number: 1 600 A00 83Z
Position: 802
Availability: 1
Price group: -
-
feeding device
-
Spare part number: 1 600 A00 840
Position: 801
Availability: 1
Price group: -
-
Feed Lever
-
Spare part number: 1 600 A00 8WD
Position: 828
Availability: 3
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 1GA
Position: 70
Availability: 1
Price group: -
-
Hex Screw
-
Spare part number: 1 603 435 07J
Position: 41
Availability: 4
Price group: -
-
Hex Screw
-
Spare part number: 1 603 435 07K
Position: 42
Availability: 1
Price group: -
-
Hex Screw
-
Spare part number: 1 603 435 07L
Position: 44
Availability: 2
Price group: -
-
Hex Screw
-
Spare part number: 1 603 435 07M
Position: 46
Availability: 1
Price group: -
-
Countersunk-Head Screw
-
Spare part number: 1 603 490 A0F
Position: 50
Availability: 2
Price group: -
-
Pinion
-
Spare part number: 1 606 333 2BE
Position: 804
Availability: 1
Price group: -
-
1
Spare parts in cart
29 Parts found
Sort by
Description
Pos. 3 | Hub
1 600 A00 83C
-
Pos. 8 | Guide Angle
1 600 A00 83D
-
Pos. 10 | Stator
1 600 A00 83E
-
Pos. 11 | Toothed rack
1 600 A00 83F
-
Pos. 13 | Head Plate
1 600 A00 83G
-
Pos. 15 | Strut
1 600 A00 83J
-
Pos. 16 | Support Tube
1 600 A00 83K
-
Pos. 20 | Cone Core
1 600 A00 83L
-
Pos. 22 | Clamping Nut
1 600 A00 83M
-
Pos. 30 | Bearing Sleeve
1 600 460 035
-
Pos. 32 | Shim ring
1 600 A00 83P
-
Pos. 34 | Spring retaining ring
1 600 150 027
-
Pos. 36 | Straight Pin
1 600 A00 83R
-
Pos. 40 | Star Knob
1 600 A00 83S
-
Pos. 41 | Hex Screw
1 603 435 07J
-
Pos. 42 | Hex Screw
1 603 435 07K
-
Pos. 44 | Hex Screw
1 603 435 07L
-
Pos. 46 | Hex Screw
1 603 435 07M
-
Pos. 48 | Hex Socket Head Cap Screw
1 600 A00 83U
-
Pos. 50 | Countersunk-Head Screw
1 603 490 A0F
-
Pos. 62 | Oval-Head Screw
1 600 A00 83V
-
Pos. 63 | Locking washer
1 600 A00 83W
-
Pos. 64 | Plain Washer
1 600 A00 83X
-
Pos. 66 | Plain Washer
1 600 A00 83Y
-
Pos. 70 | Nameplate
1 601 11A 1GA
-
Pos. 801 | feeding device
1 600 A00 840
-
Pos. 802 | Stator
1 600 A00 83Z
-
Pos. 804 | Pinion
1 606 333 2BE
-
Pos. 828 | Feed Lever
1 600 A00 8WD
-
