38 Parts found
Sort by
Description

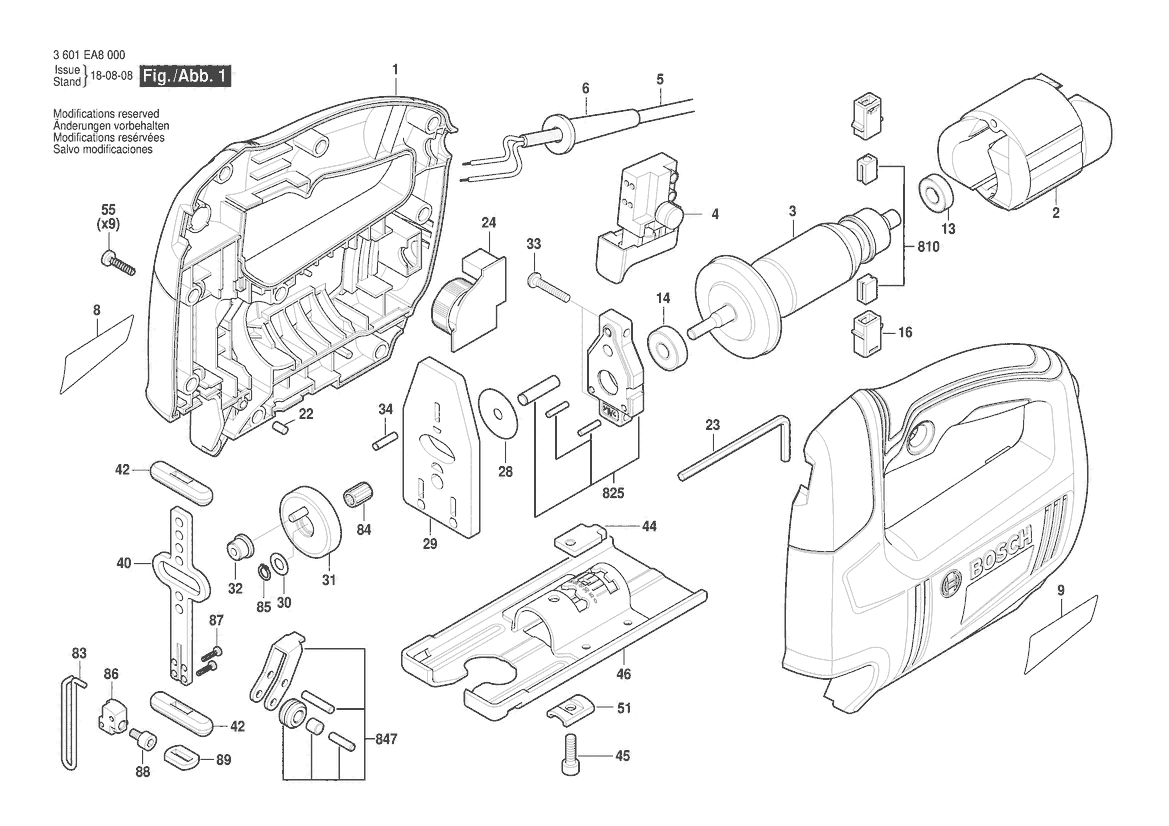

Pos. 1 | Motor Housing
1 605 108 2H9
-
Pos. 2 | Field
1 604 220 575
-
*Prices shown are recommended retail prices including VAT
Pos. 3 | Armature
1 604 010 B9L
-
*Prices shown are recommended retail prices including VAT
Pos. 4 | Switch
1 607 200 35M
-
*Prices shown are recommended retail prices including VAT
Pos. 5 | Power supply cord MAL
1 619 PB3 912
-
Pos. 6 | Grommet
1 600 703 04X
-
Pos. 8 | Nameplate
1 619 PB3 913
-
Pos. 9 | Sticker
1 601 11C 2K0
-
Pos. 13 | Ball Bearing
1 600 900 07U
-
Pos. 14 | Ball Bearing
1 600 900 07V
-
Pos. 16 | Brush Holder
1 600 A01 4KN
-
Pos. 22 | Rubber
1 600 A01 4KL
-
Pos. 23 | Offset Screwdriver
1 600 A01 4UP
-
Pos. 24 | Speed governor
1 607 233 5G5
-
Pos. 28 | Washer
1 600 A01 4KU
-
Pos. 29 | Counter Weight
1 600 A01 4KV
-
Pos. 30 | Spring Lock Washer
1 600 150 035
-
Pos. 31 | Gear
1 600 A01 4KW
-
Pos. 32 | Bushing
1 600 300 11Y
-
Pos. 33 | Screw
1 603 430 05B
-
Pos. 34 | Detent Pin
1 603 123 06P
-
Pos. 40 | Bracket
1 600 A01 4KM
-
Pos. 42 | Bushing
1 600 300 11X
-
Pos. 44 | Nut
1 600 A01 4C9
-
Pos. 45 | Screw
1 603 430 05E
-
Pos. 46 | Base Plate
1 600 A01 4UT
-
Pos. 51 | Bracket
1 600 A01 4CD
-
Pos. 55 | Screw
1 603 430 05F
-
Pos. 83 | Clip
1 600 A01 4UR
-
Pos. 84 | Needle bearing
1 600 A01 4KR
-
Pos. 85 | Spring Lock Washer
1 600 150 036
-
Pos. 86 | Blade Holder
1 600 A01 4CC
-
Pos. 87 | Screw
1 603 430 05C
-
Pos. 88 | Screw
1 603 430 05D
-
Pos. 89 | Seal
1 600 A01 4US
-
Pos. 810 | Carbon-Brush Set
1 619 PB3 118
-
*Prices shown are recommended retail prices including VAT
Pos. 825 | Intermediate Bearing
1 619 PB3 162
-
Pos. 847 | Bracket
1 619 PB3 166
-
* Prices shown are recommended retail prices including VAT
