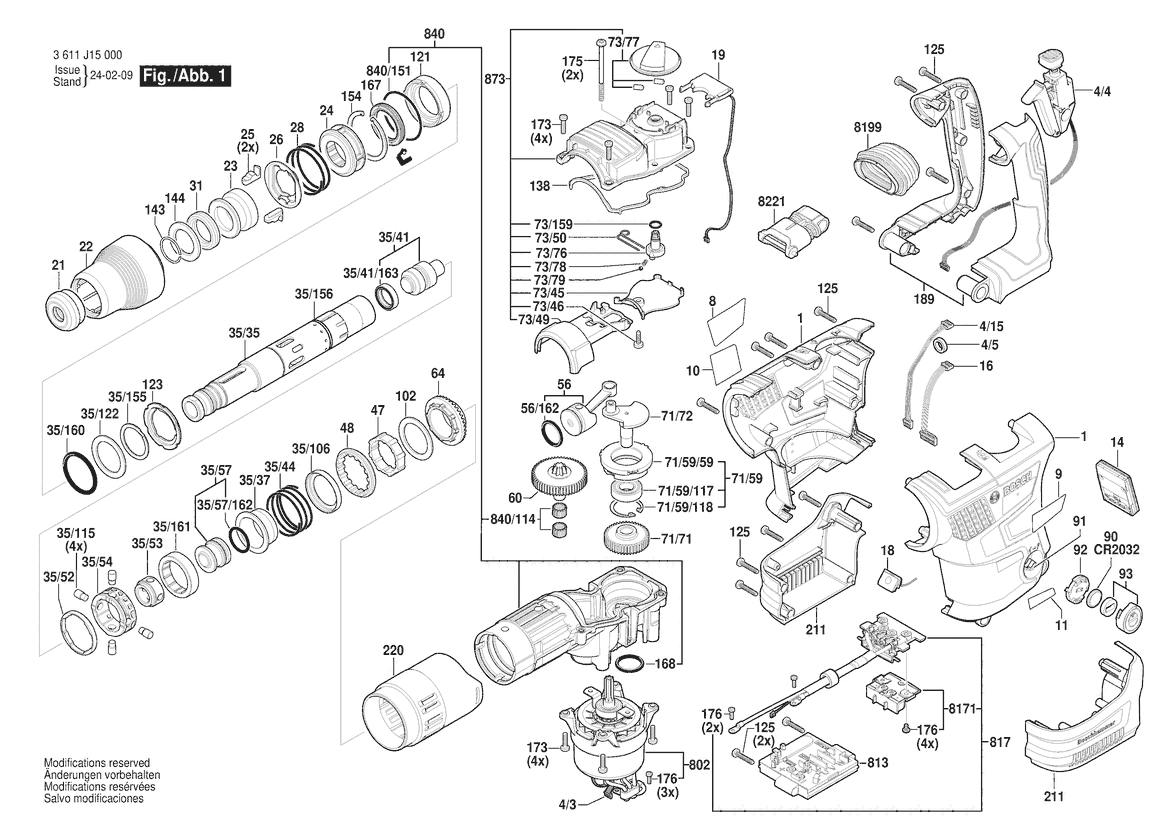

3 611 J15 080
Spring retaining ring
-
Spare part number: 1 600 150 02X
Position: 154
Availability: 1
Price group: -
-
Spring retaining ring
-
Spare part number: 1 600 150 02Y
Position: 35/155
Availability: 1
Price group: -
-
Damping Ring
-
Spare part number: 1 600 210 05S
Position: 35/160
Availability: 1
Price group: -
-
Retaining ring
-
Spare part number: 1 600 210 05V
Position: 35/156
Availability: 1
Price group: -
-
O-Ring
-
Spare part number: 1 600 210 060
Position: 840/151
Availability: 1
Price group: -
-
O-Ring
-
Spare part number: 1 600 210 096
Position: 56/162
Availability: 1
Price group: -
-
O-Ring
-
Spare part number: 1 600 210 096
Position: 35/57/162
Availability: 1
Price group: -
-
Protection Sleeve
-
Spare part number: 1 600 A00 2YF
Position: 22
Availability: 1
Price group: -
-
Headed Bush
-
Spare part number: 1 600 A00 2YG
Position: 24
Availability: 1
Price group: -
-
Stop Disc
-
Spare part number: 1 600 A00 305
Position: 35/122
Availability: 1
Price group: -
-
Support Disc
-
Spare part number: 1 600 A00 307
Position: 123
Availability: 1
Price group: -
-
Shaft Seal
-
Spare part number: 1 600 A00 308
Position: 167
Availability: 1
Price group: -
-
Stop Bushing
-
Spare part number: 1 600 A00 30F
Position: 35/53
Availability: 1
Price group: -
-
Retaining snap ring
-
Spare part number: 1 600 A00 30G
Position: 35/52
Availability: 1
Price group: -
-
Spacer Tube
-
Spare part number: 1 600 A00 30J
Position: 35/54
Availability: 1
Price group: -
-
Damping Ring
-
Spare part number: 1 600 A00 30L
Position: 35/161
Availability: 1
Price group: -
-
Control Bushing
-
Spare part number: 1 600 A00 30R
Position: 35/37
Availability: 1
Price group: -
-
Supporting Disc
-
Spare part number: 1 600 A00 30W
Position: 35/106
Availability: 1
Price group: -
-
Coupling
-
Spare part number: 1 600 A00 33N
Position: 60
Availability: 1
Price group: -
-
Crown Gear
-
Spare part number: 1 600 A00 39T
Position: 64
Availability: 1
Price group: -
-
Control Fork
-
Spare part number: 1 600 A00 3YK
Position: 73/49
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Gear Sleeve
-
Spare part number: 1 600 A00 48K
Position: 47
Availability: 1
Price group: -
-
Sealing Frame
-
Spare part number: 1 600 A00 4DH
Position: 138
Availability: 1
Price group: -
-
Hammer Pipe
-
Spare part number: 1 600 A00 DH4
Position: 35/35
Availability: 1
Price group: -
-
Eccentric Cog Wheel
-
Spare part number: 1 600 A01 1GY
Position: 71/71
Availability: 1
Price group: -
-
Cover Pipe
-
Spare part number: 1 600 A01 2MV
Position: 220
Availability: 1
Price group: -
-
Eccentric Shaft
-
Spare part number: 1 600 A01 2RS
Position: 71/72
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 3WF
Position: 92
Availability: 1
Price group: 34
Rp 337,838.00*
Prices shown are net prices excluding VAT
Shift Curve
-
Spare part number: 1 600 A01 4A7
Position: 73/76
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 6CZ
Position: 91
Availability: 1
Price group: 22
Rp 68,288.00*
Prices shown are net prices excluding VAT
Clutch Sleeve
-
Spare part number: 1 600 A01 9TP
Position: 48
Availability: 1
Price group: -
-
Indexing Disk
-
Spare part number: 1 600 A01 9WL
Position: 26
Availability: 1
Price group: 13
Rp 10,991.00*
Prices shown are net prices excluding VAT
Support Plate
-
Spare part number: 1 600 A01 9XJ
Position: 73/45
Availability: 1
Price group: -
-
Bearing Pedestal
-
Spare part number: 1 600 A01 B36
Position: 71/59
Availability: 1
Price group: -
-
Bearing Pedestal
-
Spare part number: 1 600 A01 B36
Position: 71/59/59
Availability: 1
Price group: -
-
Hammer Piston
-
Spare part number: 1 600 A01 B3C
Position: 56
Availability: 1
Price group: -
-
Striker Pin
-
Spare part number: 1 600 A01 B3E
Position: 35/41
Availability: 1
Price group: -
-
Striker
-
Spare part number: 1 600 A01 B3F
Position: 35/57
Availability: 1
Price group: -
-
Plain bearing
-
Spare part number: 1 600 A01 B3G
Position: 121
Availability: 1
Price group: -
-
Housing Cover
-
Spare part number: 1 600 A01 E0A
Position: 873
Availability: 1
Price group: -
-
Torx socket button screw
-
Spare part number: 1 600 A01 N0N
Position: 175
Availability: 2
Price group: -
-
Needle-Roller Assembly
-
Spare part number: 1 600 A01 N8S
Position: 840/114
Availability: 2
Price group: -
-
Ferrite
-
Spare part number: 1 600 A02 4AU
Position: 4/5
Availability: 1
Price group: -
-
Ferrite
-
Spare part number: 1 600 A02 4AU
Position: 3
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 3H5
Position: 8
Availability: 1
Price group: -
-
Sticker
-
Spare part number: 1 601 11C 322
Position: 11
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 324
Position: 9
Availability: 1
Price group: -
-
Reference Plate
-
Spare part number: 1 601 11C 327
Position: 10
Availability: 1
Price group: -
-
Clamp Handle
-
Spare part number: 1 602 026 10B
Position: 73/77
Availability: 1
Price group: -
-
Driving Pin
-
Spare part number: 1 603 123 04B
Position: 35/115
Availability: 4
Price group: -
-
Screw
-
Spare part number: 1 603 430 03T
Position: 176
Availability: 9
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Screw
-
Spare part number: 1 603 430 03T
Position: 176
Availability: 9
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Screw
-
Spare part number: 1 603 430 03T
Position: 176
Availability: 9
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
Spare part number: 1 603 435 08V
Position: 73/46
Availability: 1
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 091
Position: 173
Availability: 8
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 091
Position: 173
Availability: 8
Price group: -
-
Compression Spring
-
Spare part number: 1 604 612 00N
Position: 35/44
Availability: 1
Price group: -
-
Coiled Spring
-
Spare part number: 1 604 651 01F
Position: 73/50
Availability: 1
Price group: -
-
Cover Plate
-
Spare part number: 1 605 108 2HP
Position: 211
Availability: 1
Price group: -
-
Cover Plate
-
Spare part number: 1 605 108 2HP
Position: 211
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 605 132 18X
Position: 189
Availability: 1
Price group: -
-
Cover
-
Spare part number: 1 605 500 2GJ
Position: 93
Availability: 1
Price group: -
-
Housing Section
-
Spare part number: 1 605 806 5LW
Position: 1
Availability: 1
Price group: -
-
Housing Section
-
Spare part number: 1 605 806 5LW
Position: 1
Availability: 1
Price group: -
-
DC motor
-
Spare part number: 1 607 000 DL7
Position: 802
Availability: 1
Price group: -
-
Contact retainer
-
Spare part number: 1 607 000 DL8
Position: 8171
Availability: 1
Price group: -
-
Impact Mechanism Housing
-
Spare part number: 1 607 000 DL9
Position: 840
Availability: 1
Price group: -
-
Contact retainer
-
Spare part number: 1 607 000 DN0
Position: 817
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 000 DN1
Position: 813
Availability: 1
Price group: -
-
Decoupling Element
-
Spare part number: 1 607 000 E60
Position: 8221
Availability: 1
Price group: -
-
Boot
-
Spare part number: 1 607 000 E61
Position: 8199
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 607 233 5EH
Position: 19
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 233 5EP
Position: 14
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 607 233 5FP
Position: 18
Availability: 1
Price group: -
-

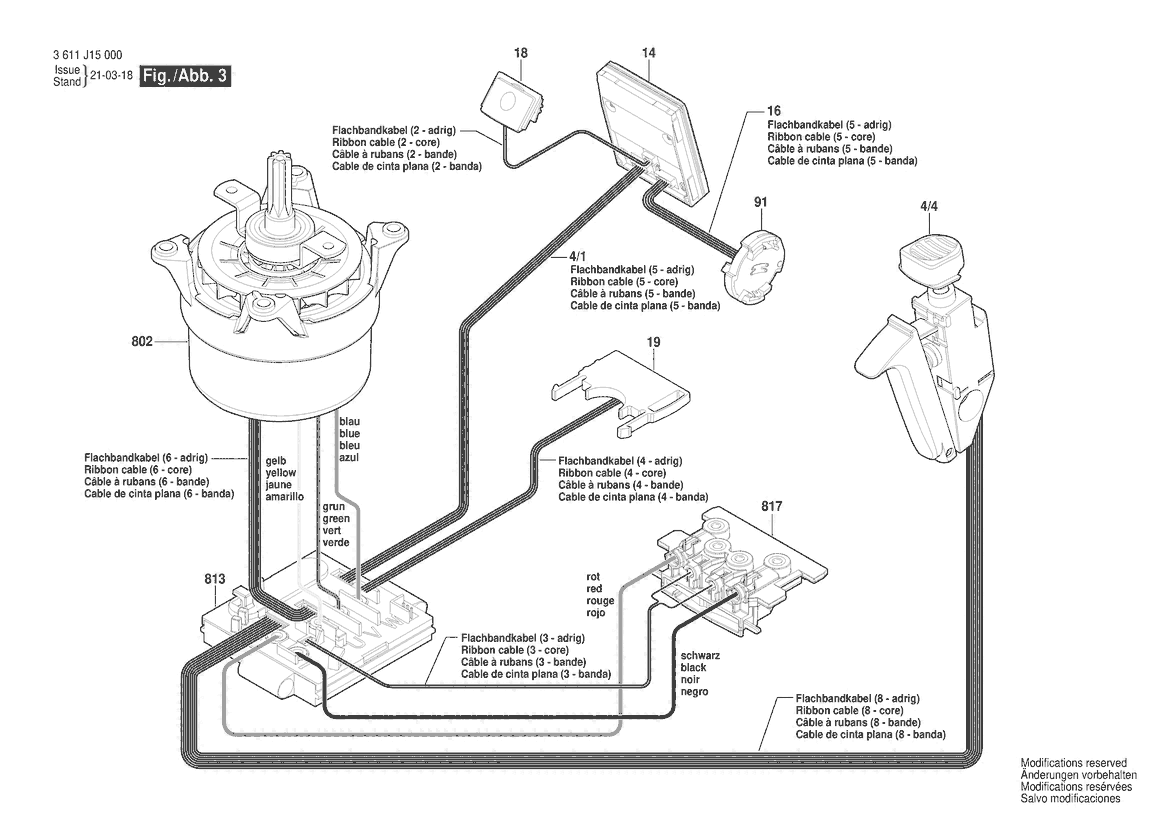

Ribbon cable
-
Spare part number: 1 607 503 565
Position: 4/3
Availability: 1
Price group: -
-
Ribbon cable
-
Spare part number: 1 607 503 566
Position: 4/15
Availability: 1
Price group: -
-
Ribbon cable
-
Spare part number: 1 607 503 567
Position: 16
Availability: 1
Price group: -
-
Supporting Disc
-
Spare part number: 1 610 103 025
Position: 144
Availability: 1
Price group: 15
Rp 10,946.00*
Prices shown are net prices excluding VAT
O-Ring 9,0X3,0 MM
-
Spare part number: 1 610 210 198
Position: 73/159
Availability: 1
Price group: -
-
Rotary shaft lip seal
-
Spare part number: 1 610 283 047
Position: 168
Availability: 1
Price group: 24
Rp 25,315.00*
Prices shown are net prices excluding VAT
Seal Ring
-
Spare part number: 1 610 290 065
Position: 35/41/163
Availability: 1
Price group: 20
Rp 41,577.00*
Prices shown are net prices excluding VAT
Damping Ring
-
Spare part number: 1 610 290 129
Position: 31
Availability: 1
Price group: 18
Rp 20,270.00*
Prices shown are net prices excluding VAT
Protective Cap
-
Spare part number: 1 610 508 038
Position: 21
Availability: 1
Price group: 18
Rp 20,270.00*
Prices shown are net prices excluding VAT
Stop Sleeve
-
Spare part number: 1 610 520 006
Position: 23
Availability: 1
Price group: 27
Rp 55,496.00*
Prices shown are net prices excluding VAT
Stopping Device
-
Spare part number: 1 612 300 027
Position: 25
Availability: 2
Price group: 23
Rp 48,468.00*
Prices shown are net prices excluding VAT
Retaining ring DIN 7993-28X2
-
Spare part number: 1 614 601 021
Position: 143
Availability: 1
Price group: 18
Rp 25,315.00*
Prices shown are net prices excluding VAT
Compression Spring
-
Spare part number: 1 614 611 024
Position: 73/78
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 614 621 010
Position: 28
Availability: 1
Price group: 14
Rp 10,946.00*
Prices shown are net prices excluding VAT
groove ball bearing 15X32X9
-
Spare part number: 1 900 905 162
Position: 71/59/117
Availability: 1
Price group: 28
Rp 41,577.00*
Prices shown are net prices excluding VAT
Ball DIN 5401-4 MM-III-ST
-
Spare part number: 1 903 230 007
Position: 73/79
Availability: 1
Price group: 11
Rp 6,622.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 125
Availability: 16
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 125
Availability: 16
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 125
Availability: 16
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 125
Availability: 16
Price group: 10
Rp 5,946.00*
Prices shown are net prices excluding VAT
Switch
-
Spare part number: 2 607 202 360
Position: 4/4
Availability: 1
Price group: -
-
Screw
-
Spare part number: 2 609 110 834
Position: 657/2
Availability: 1
Price group: 11
Rp 6,622.00*
Prices shown are net prices excluding VAT
Clip
-
Spare part number: 2 609 111 584
Position: 657/1
Availability: 1
Price group: 15
Rp 14,685.00*
Prices shown are net prices excluding VAT
Retaining clip DIN 472-32X1,2 MM
-
Spare part number: 2 916 660 013
Position: 71/59/118
Availability: 1
Price group: 12
Rp 6,712.00*
Prices shown are net prices excluding VAT
Coupling
-
Spare part number: 1 600 A00 33N
Position: 60
Availability: 1
Price group: -
-
Support clamp
-
Spare part number: 1 600 A01 C3T
Position: 240/241
Availability: 1
Price group: -
-
Clamping Band
-
Spare part number: 1 600 A01 E9C
Position: 240/244
Availability: 1
Price group: -
-
Needle-Roller Assembly
-
Spare part number: 1 600 A01 N8S
Position: 840/114
Availability: 2
Price group: -
-
Auxiliary Handle
-
Spare part number: 1 602 025 09C
Position: 240/240
Availability: 1
Price group: 17
Rp 21,712.00*
Prices shown are net prices excluding VAT
Cover Plate
-
Spare part number: 1 605 108 2HP
Position: 211
Availability: 1
Price group: -
-
Carrying Case
-
Spare part number: 1 605 438 1G2
Position: 691
Availability: 1
Price group: -
-
Battery Pack
-
Spare part number: 1 607 A35 0AT
Position: 653
Availability: 1
Price group: -
-
Charger EU GAL 1880 CV 230/14,4-18V
-
Spare part number: 2 607 225 921
Position: 654
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 3WF
Position: 92
Availability: 1
Price group: 34
Rp 337,838.00*
Prices shown are net prices excluding VAT
Electronics Module
-
Spare part number: 1 600 A01 6CZ
Position: 91
Availability: 1
Price group: 22
Rp 68,288.00*
Prices shown are net prices excluding VAT
DC motor
-
Spare part number: 1 607 000 DL7
Position: 802
Availability: 1
Price group: -
-
Contact retainer
-
Spare part number: 1 607 000 DN0
Position: 817
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 000 DN1
Position: 813
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 607 233 5EH
Position: 19
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 233 5EP
Position: 14
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 607 233 5FP
Position: 18
Availability: 1
Price group: -
-
Ribbon cable
-
Spare part number: 1 607 503 567
Position: 16
Availability: 1
Price group: -
-
Switch
-
Spare part number: 2 607 202 360
Position: 4/4
Availability: 1
Price group: -
-
1
2
3
Spare parts in cart
96 Parts found
Sort by
Description
Pos. 1 | Housing Section
1 605 806 5LW
-
Pos. 4/3 | Ribbon cable
1 607 503 565
-
Pos. 4/4 | Switch
2 607 202 360
-
Pos. 4/5 | Ferrite
1 600 A02 4AU
-
Pos. 4/15 | Ribbon cable
1 607 503 566
-
Pos. 8 | Nameplate
1 601 11A 3H5
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 324
-
Pos. 10 | Reference Plate
1 601 11C 327
-
Pos. 11 | Sticker
1 601 11C 322
-
Pos. 14 | Electronic Module
1 607 233 5EP
-
Pos. 16 | Ribbon cable
1 607 503 567
-
Pos. 18 | Electronics Module
1 607 233 5FP
-
Pos. 19 | Electronics Module
1 607 233 5EH
-
Pos. 21 | Protective Cap
1 610 508 038
-
*Prices shown are net prices excluding VAT
Pos. 22 | Protection Sleeve
1 600 A00 2YF
-
Pos. 23 | Stop Sleeve
1 610 520 006
-
*Prices shown are net prices excluding VAT
Pos. 24 | Headed Bush
1 600 A00 2YG
-
Pos. 25 | Stopping Device
1 612 300 027
-
*Prices shown are net prices excluding VAT
Pos. 26 | Indexing Disk
1 600 A01 9WL
-
*Prices shown are net prices excluding VAT
Pos. 28 | Compression Spring
1 614 621 010
-
*Prices shown are net prices excluding VAT
Pos. 31 | Damping Ring
1 610 290 129
-
*Prices shown are net prices excluding VAT
Pos. 35/35 | Hammer Pipe
1 600 A00 DH4
-
Pos. 35/37 | Control Bushing
1 600 A00 30R
-
Pos. 35/41 | Striker Pin
1 600 A01 B3E
-
Pos. 35/41/163 | Seal Ring
1 610 290 065
-
*Prices shown are net prices excluding VAT
Pos. 35/44 | Compression Spring
1 604 612 00N
-
Pos. 35/52 | Retaining snap ring
1 600 A00 30G
-
Pos. 35/53 | Stop Bushing
1 600 A00 30F
-
Pos. 35/54 | Spacer Tube
1 600 A00 30J
-
Pos. 35/57 | Striker
1 600 A01 B3F
-
Pos. 35/106 | Supporting Disc
1 600 A00 30W
-
Pos. 35/115 | Driving Pin
1 603 123 04B
-
Pos. 35/122 | Stop Disc
1 600 A00 305
-
Pos. 35/155 | Spring retaining ring
1 600 150 02Y
-
Pos. 35/156 | Retaining ring
1 600 210 05V
-
Pos. 35/160 | Damping Ring
1 600 210 05S
-
Pos. 35/161 | Damping Ring
1 600 A00 30L
-
Pos. 47 | Gear Sleeve
1 600 A00 48K
-
Pos. 48 | Clutch Sleeve
1 600 A01 9TP
-
Pos. 56 | Hammer Piston
1 600 A01 B3C
-
Pos. 56/162 | O-Ring
1 600 210 096
-

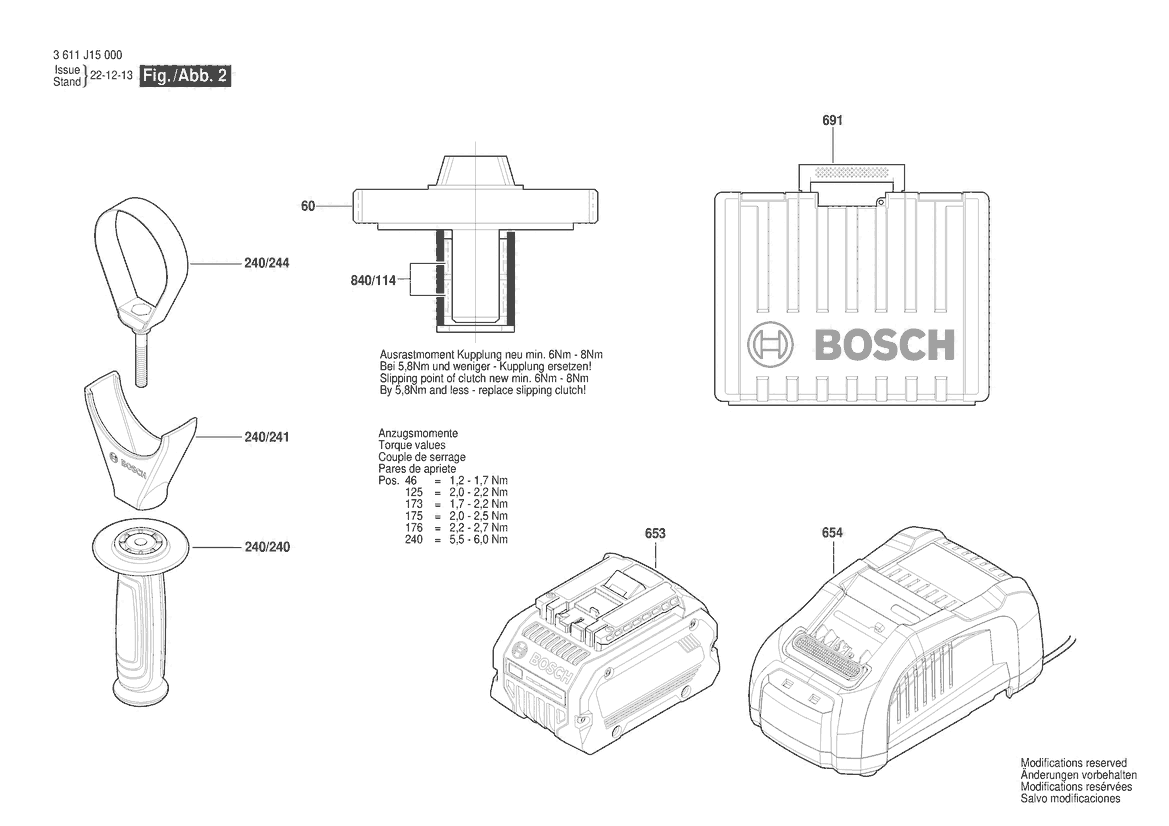

Pos. 60 | Coupling
1 600 A00 33N
-
Pos. 64 | Crown Gear
1 600 A00 39T
-
Pos. 71/59 | Bearing Pedestal
1 600 A01 B36
-
Pos. 71/59/117 | groove ball bearing 15X32X9
1 900 905 162
-
*Prices shown are net prices excluding VAT
Pos. 71/59/118 | Retaining clip DIN 472-32X1,2 MM
2 916 660 013
-
*Prices shown are net prices excluding VAT
Pos. 71/71 | Eccentric Cog Wheel
1 600 A01 1GY
-
Pos. 71/72 | Eccentric Shaft
1 600 A01 2RS
-
Pos. 73/45 | Support Plate
1 600 A01 9XJ
-
Pos. 73/46 | Thread-forming tap. Screw
1 603 435 08V
-
Pos. 73/49 | Control Fork
1 600 A00 3YK
-
Pos. 73/50 | Coiled Spring
1 604 651 01F
-
Pos. 73/76 | Shift Curve
1 600 A01 4A7
-
Pos. 73/77 | Clamp Handle
1 602 026 10B
-
Pos. 73/78 | Compression Spring
1 614 611 024
-
Pos. 73/79 | Ball DIN 5401-4 MM-III-ST
1 903 230 007
-
*Prices shown are net prices excluding VAT
Pos. 73/159 | O-Ring 9,0X3,0 MM
1 610 210 198
-
Pos. 91 | Electronics Module
1 600 A01 6CZ
-
*Prices shown are net prices excluding VAT
Pos. 92 | Electronics Module
1 600 A01 3WF
-
*Prices shown are net prices excluding VAT
Pos. 93 | Cover
1 605 500 2GJ
-
Pos. 102 | Shim ring 1.6 MM
1 600 A00 48F
-
Pos. 102 | Shim ring 1.5 MM
1 600 A00 48G
-
Pos. 102 | Shim ring 1.4 MM
1 600 A00 48H
-
Pos. 121 | Plain bearing
1 600 A01 B3G
-
Pos. 123 | Support Disc
1 600 A00 307
-
Pos. 125 | Torx Oval-Head Screw 4X20
2 603 490 023
-
*Prices shown are net prices excluding VAT
Pos. 138 | Sealing Frame
1 600 A00 4DH
-
Pos. 143 | Retaining ring DIN 7993-28X2
1 614 601 021
-
*Prices shown are net prices excluding VAT
Pos. 144 | Supporting Disc
1 610 103 025
-
*Prices shown are net prices excluding VAT
Pos. 154 | Spring retaining ring
1 600 150 02X
-
Pos. 167 | Shaft Seal
1 600 A00 308
-
Pos. 168 | Rotary shaft lip seal
1 610 283 047
-
*Prices shown are net prices excluding VAT
Pos. 173 | Torx Oval-Head Screw
1 603 435 091
-
Pos. 175 | Torx socket button screw
1 600 A01 N0N
-
Pos. 176 | Screw
1 603 430 03T
-
*Prices shown are net prices excluding VAT
Pos. 189 | Handle
1 605 132 18X
-
Pos. 211 | Cover Plate
1 605 108 2HP
-
Pos. 220 | Cover Pipe
1 600 A01 2MV
-
Pos. 240/240 | Auxiliary Handle
1 602 025 09C
-
*Prices shown are net prices excluding VAT
Pos. 240/241 | Support clamp
1 600 A01 C3T
-
Pos. 240/244 | Clamping Band
1 600 A01 E9C
-
Pos. 653 | Battery Pack
1 607 A35 0AT
-
Pos. 654 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
Pos. 657/1 | Clip
2 609 111 584
-
*Prices shown are net prices excluding VAT
Pos. 657/2 | Screw
2 609 110 834
-
*Prices shown are net prices excluding VAT
Pos. 691 | Carrying Case
1 605 438 1G2
-
Pos. 802 | DC motor
1 607 000 DL7
-
Pos. 813 | Electronic Module
1 607 000 DN1
-
Pos. 817 | Contact retainer
1 607 000 DN0
-
Pos. 840 | Impact Mechanism Housing
1 607 000 DL9
-
Pos. 840/114 | Needle-Roller Assembly
1 600 A01 N8S
-
Pos. 840/151 | O-Ring
1 600 210 060
-
Pos. 873 | Housing Cover
1 600 A01 E0A
-
Pos. 8171 | Contact retainer
1 607 000 DL8
-
Pos. 8199 | Boot
1 607 000 E61
-
Pos. 8221 | Decoupling Element
1 607 000 E60
-
* Prices shown are net prices excluding VAT
