3 601 CA6 222
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
Rp 6,953.00*
Prices shown are net prices excluding VAT
-
Please click for futher details
-
Please click for futher details
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
Rp 14,426.00*
Prices shown are net prices excluding VAT
Rotary shaft lip seal
-
Spare part number: 1 600 290 016
Position: 37
Availability: 1
Price group: 12
Rp 21,284.00*
Prices shown are net prices excluding VAT
Grommet
-
Spare part number: 1 600 703 039
Position: 6
Availability: 1
Price group: -
-
Needle bearing Ø8XØ12X8 MM
-
Spare part number: 1 600 910 018
Position: 41
Availability: 1
Price group: 17
Rp 24,926.00*
Prices shown are net prices excluding VAT
Brush Holder
-
Spare part number: 1 600 A00 RG1
Position: 16
Availability: 2
Price group: -
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
Rp 6,480.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
Rp 11,493.00*
Prices shown are net prices excluding VAT
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: -
-
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 17
Availability: 2
Price group: 11
Rp 6,480.00*
Prices shown are net prices excluding VAT
Catch Lever
-
Spare part number: 1 607 000 742
Position: 843
Availability: 1
Price group: 20
Rp 50,892.00*
Prices shown are net prices excluding VAT
Switch
-
Spare part number: 1 607 200 31S
Position: 4
Availability: 1
Price group: 19
Rp 85,845.00*
Prices shown are net prices excluding VAT
Speed governor
-
Spare part number: 1 607 233 5S6
Position: 51
Availability: 1
Price group: -
-
Torx Oval-Head Screw 4X20
-
Spare part number: 1 619 P00 105
Position: 50
Availability: 1
Price group: 11
Rp 6,953.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 3X10
-
Spare part number: 1 619 P00 220
Position: 48
Availability: 2
Price group: 10
Rp 7,709.00*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 P00 987
Position: 36
Availability: 1
Price group: 10
Rp 6,953.00*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X25
-
Spare part number: 1 619 P01 066
Position: 55
Availability: 3
Price group: 10
Rp 6,953.00*
Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 P09 955
Position: 14
Availability: 1
Price group: 18
Rp 21,284.00*
Prices shown are net prices excluding VAT
O-Ring
-
Spare part number: 1 619 P14 427
Position: 33
Availability: 1
Price group: 10
Rp 6,338.00*
Prices shown are net prices excluding VAT
Grinding Spindle M14
-
Spare part number: 1 619 P15 210
Position: 32
Availability: 1
Price group: -
-
Hex Nut
-
Spare part number: 1 619 P16 897
Position: 45
Availability: 1
Price group: 10
Rp 6,622.00*
Prices shown are net prices excluding VAT
Air-Deflector Ring
-
Spare part number: 1 619 P20 938
Position: 29
Availability: 1
Price group: -
-
Air Distributor
-
Spare part number: 1 619 P20 939
Position: 30
Availability: 1
Price group: -
-
Field
-
Spare part number: 1 619 P21 170
Position: 802
Availability: 1
Price group: -
-
Armature
-
Spare part number: 1 619 P21 171
Position: 803
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 619 P21 172
Position: 810
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 1 619 P21 174
Position: 828
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 1 619 P21 176
Position: 831
Availability: 1
Price group: -
-
Push-Button
-
Spare part number: 1 619 P21 177
Position: 840
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 1 619 P21 178
Position: 838
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 619 P21 279
Position: 1
Availability: 1
Price group: -
-
Cap
-
Spare part number: 1 619 P21 281
Position: 21
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 P21 294
Position: 8
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 619 P21 295
Position: 9
Availability: 1
Price group: -
-
Housing Cover
-
Spare part number: 1 619 P21 510
Position: 825
Availability: 1
Price group: -
-
Power supply cord
-
Spare part number: 2 604 460 197
Position: 5
Availability: 1
Price group: -
-
Special Screw
-
Spare part number: 2 609 110 052
Position: 47
Availability: 1
Price group: 10
Rp 6,480.00*
Prices shown are net prices excluding VAT
Retaining ring
-
Spare part number: 2 916 540 007
Position: 69
Availability: 1
Price group: -
-
Cover Disc
-
Spare part number: 3 600 150 038
Position: 70
Availability: 1
Price group: -
-
Cover Disc
-
Spare part number: 3 600 150 038
Position: 70
Availability: 1
Price group: -
-
O-Ring 47,0X1,5 MM
-
Spare part number: 3 600 210 109
Position: 62
Availability: 1
Price group: 12
Rp 9,554.00*
Prices shown are net prices excluding VAT
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 652
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: -
-

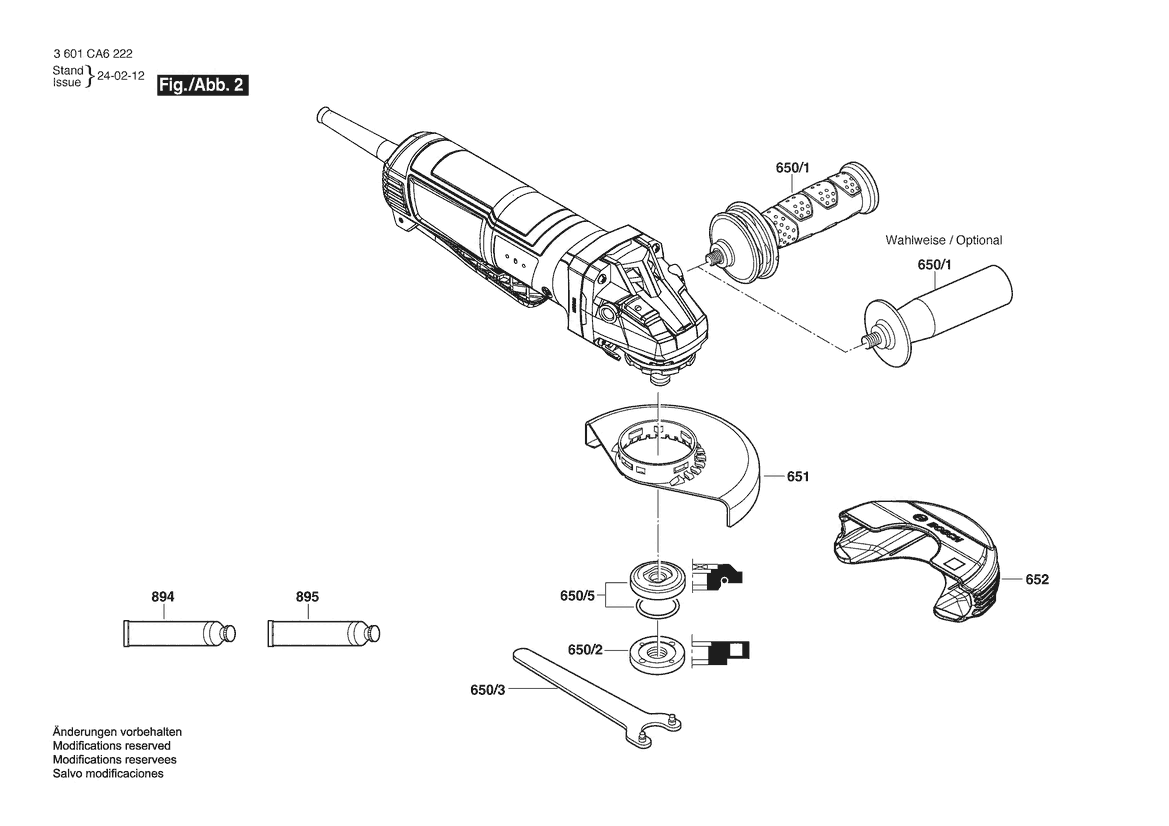

Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
Rp 63,851.00*
Prices shown are net prices excluding VAT
Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
Rp 63,851.00*
Prices shown are net prices excluding VAT
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 650/2
Availability: 1
Price group: 21
Rp 21,284.00*
Prices shown are net prices excluding VAT
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 34
Rp 294,520.00*
Prices shown are net prices excluding VAT
Pin-Type Face-Wrench
-
Spare part number: 1 607 950 052
Position: 650/3
Availability: 1
Price group: 15
Rp 11,493.00*
Prices shown are net prices excluding VAT
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: -
-
Cover Disc
-
Spare part number: 1 619 P09 390
Position: 80
Availability: 1
Price group: 12
Rp 14,426.00*
Prices shown are net prices excluding VAT
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: 20
Rp 43,655.00*
Prices shown are net prices excluding VAT
1
2
Spare parts in cart
51 Parts found
Sort by
Description

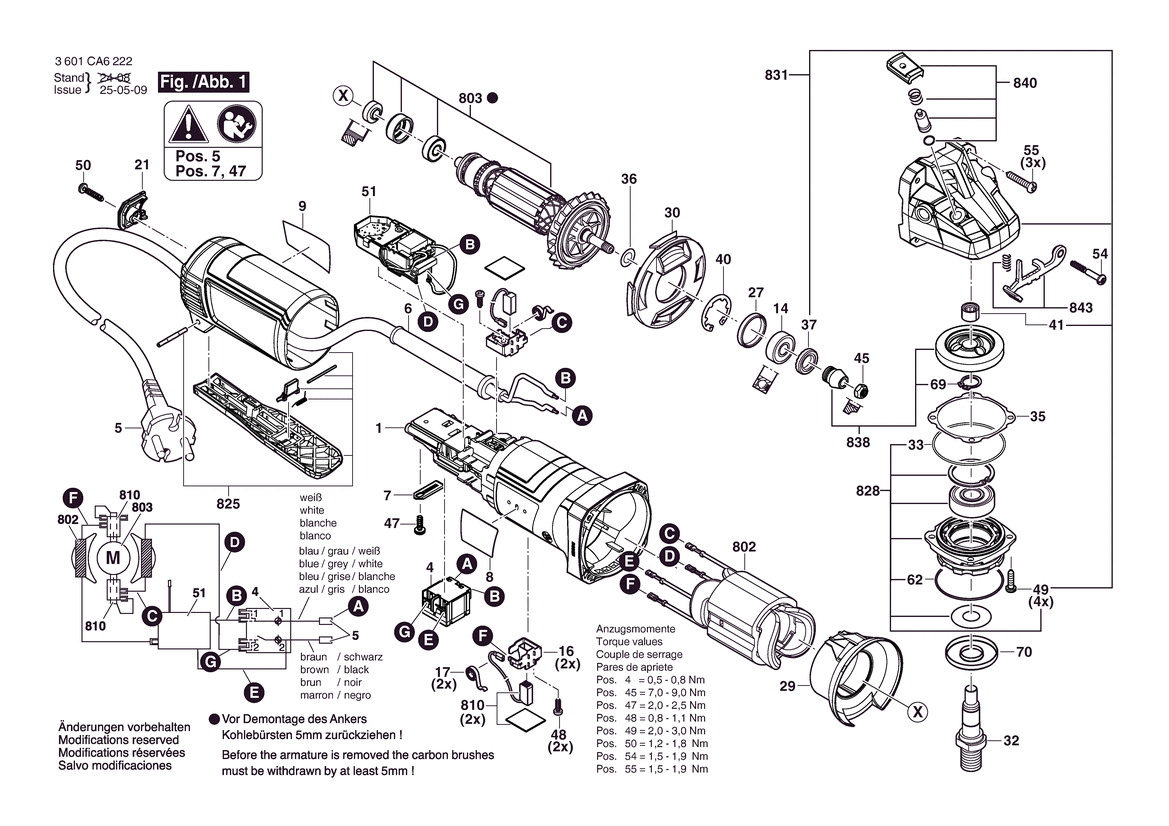

Pos. 1 | Motor Housing
1 619 P21 279
-
Pos. 4 | Switch
1 607 200 31S
-
*Prices shown are net prices excluding VAT
Pos. 5 | Power supply cord
2 604 460 197
-
Pos. 6 | Grommet
1 600 703 039
-
Pos. 7 | Fastening Clamp
1 601 302 017
-
*Prices shown are net prices excluding VAT
Pos. 8 | Nameplate
1 619 P21 294
-
Pos. 9 | Manufacturer's nameplate
1 619 P21 295
-
Pos. 14 | groove ball bearing
1 619 P09 955
-
*Prices shown are net prices excluding VAT
Pos. 16 | Brush Holder
1 600 A00 RG1
-
Pos. 17 | Spiral Spring
1 604 652 013
-
*Prices shown are net prices excluding VAT
Pos. 21 | Cap
1 619 P21 281
-
Pos. 27 | Rubber Ring
1 600 206 025
-
*Prices shown are net prices excluding VAT
Pos. 29 | Air-Deflector Ring
1 619 P20 938
-
Pos. 30 | Air Distributor
1 619 P20 939
-
Pos. 32 | Grinding Spindle M14
1 619 P15 210
-
Pos. 33 | O-Ring
1 619 P14 427
-
*Prices shown are net prices excluding VAT
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
*Prices shown are net prices excluding VAT
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
*Prices shown are net prices excluding VAT
Pos. 36 | Washer
1 619 P00 987
-
*Prices shown are net prices excluding VAT
Pos. 37 | Rotary shaft lip seal
1 600 290 016
-
*Prices shown are net prices excluding VAT
Pos. 40 | Retaining clip
1 600 119 011
-
*Prices shown are net prices excluding VAT
Pos. 41 | Needle bearing Ø8XØ12X8 MM
1 600 910 018
-
*Prices shown are net prices excluding VAT
Pos. 45 | Hex Nut
1 619 P16 897
-
*Prices shown are net prices excluding VAT
Pos. 47 | Special Screw
2 609 110 052
-
*Prices shown are net prices excluding VAT
Pos. 48 | Torx Oval-Head Screw 3X10
1 619 P00 220
-
*Prices shown are net prices excluding VAT
Pos. 49 | Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
1 603 435 08X
-
Pos. 50 | Torx Oval-Head Screw 4X20
1 619 P00 105
-
*Prices shown are net prices excluding VAT
Pos. 51 | Speed governor
1 607 233 5S6
-
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
*Prices shown are net prices excluding VAT
Pos. 55 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
*Prices shown are net prices excluding VAT
Pos. 62 | O-Ring 47,0X1,5 MM
3 600 210 109
-
*Prices shown are net prices excluding VAT
Pos. 69 | Retaining ring
2 916 540 007
-
Pos. 70 | Cover Disc
3 600 150 038
-
Pos. 80 | Cover Disc
1 619 P09 390
-
*Prices shown are net prices excluding VAT
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
*Prices shown are net prices excluding VAT
Pos. 650/2 | Round Nut M14
1 603 345 043
-
*Prices shown are net prices excluding VAT
Pos. 650/3 | Pin-Type Face-Wrench
1 607 950 052
-
*Prices shown are net prices excluding VAT
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
*Prices shown are net prices excluding VAT
Pos. 651 | Protective Cover
1 600 A02 5XR
-
Pos. 652 | Protective Cover
1 600 A02 1MH
-
Pos. 802 | Field
1 619 P21 170
-
Pos. 803 | Armature
1 619 P21 171
-
Pos. 810 | Carbon-Brush Set
1 619 P21 172
-
Pos. 825 | Housing Cover
1 619 P21 510
-
Pos. 828 | Bearing Flange
1 619 P21 174
-
Pos. 831 | Gear Housing
1 619 P21 176
-
Pos. 838 | Bevel Gear Set
1 619 P21 178
-
Pos. 840 | Push-Button
1 619 P21 177
-
Pos. 843 | Catch Lever
1 607 000 742
-
*Prices shown are net prices excluding VAT
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
*Prices shown are net prices excluding VAT
* Prices shown are net prices excluding VAT
