29 Parts found
Sort by
Description

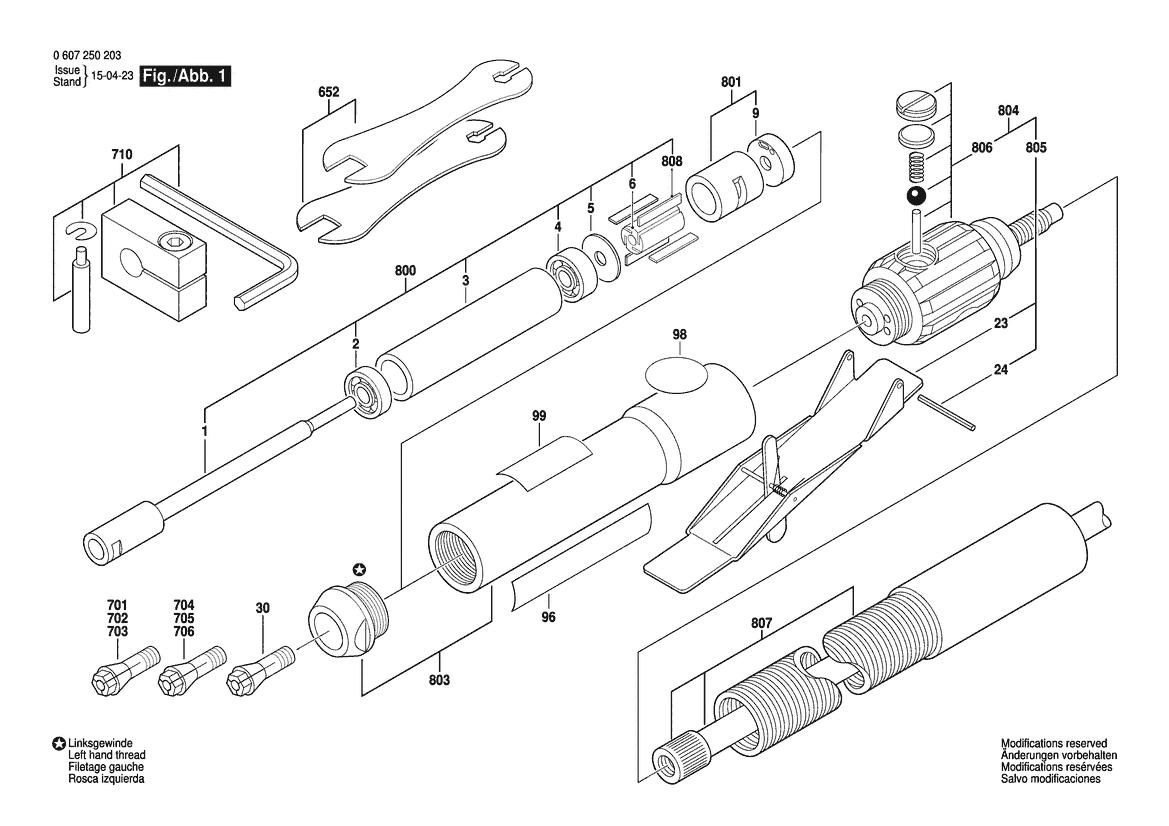

Pos. 1 | Spindle
3 609 202 293
-
Pos. 2 | groove ball bearing
3 609 202 294
-
*Prices shown are net prices excluding GST
Pos. 3 | Pipe
3 609 202 301
-
Pos. 4 | groove ball bearing
3 609 202 295
-
Pos. 5 | Plate
3 609 202 296
-
Pos. 6 | Rotor
3 609 202 297
-
Pos. 9 | Plate
3 609 202 298
-
*Prices shown are net prices excluding GST
Pos. 23 | Lever
3 609 202 299
-
Pos. 24 | Slotted Spring Pin
3 609 202 300
-
Pos. 30 | Collet Ø 3,0 MM
2 609 200 158
-

*Prices shown are net prices excluding GST
Pos. 96 | Manufacturer's nameplate
3 601 119 055
-
Pos. 98 | Reference Plate
3 601 119 244
-
Pos. 99 | Reference Plate
3 601 119 236
-

*Prices shown are net prices excluding GST
Pos. 652 | Set Of Keys
3 607 950 022
-
Pos. 701 | Collet Ø 1,0 MM
3 609 201 185
-
Pos. 702 | Collet Ø 1,5 MM
3 609 201 186
-
Pos. 703 | Collet Ø 2,0 MM
3 609 201 187
-
Pos. 704 | Collet Ø 2,5 MM
3 609 201 188
-
Pos. 705 | Collet Ø 3/32 "
3 609 201 189
-
Pos. 706 | Collet Ø 1/8 "
3 609 201 190
-
Pos. 710 | Assembly Of Service Parts
3 609 201 212
-
Pos. 800 | Assembly Of Service Parts
3 609 201 191
-
Pos. 801 | Assembly Of Service Parts
3 609 201 192
-
Pos. 803 | Assembly Of Service Parts
3 609 201 194
-
Pos. 804 | Assembly Of Service Parts
3 609 201 195
-
Pos. 805 | Assembly Of Service Parts
3 609 201 196
-
Pos. 806 | Assembly Of Service Parts
3 609 201 197
-
*Prices shown are net prices excluding GST
Pos. 807 | Assembly Of Service Parts
3 609 201 198
-
Pos. 808 | Set Of Clutch Plates
3 609 201 580
-
*Prices shown are net prices excluding GST
