Bench Grinder
GBG 60-20 | 3 601 B7A 4F0 | 220 V / 041 - IN
Lubrication instructions
Product information
Print drawing

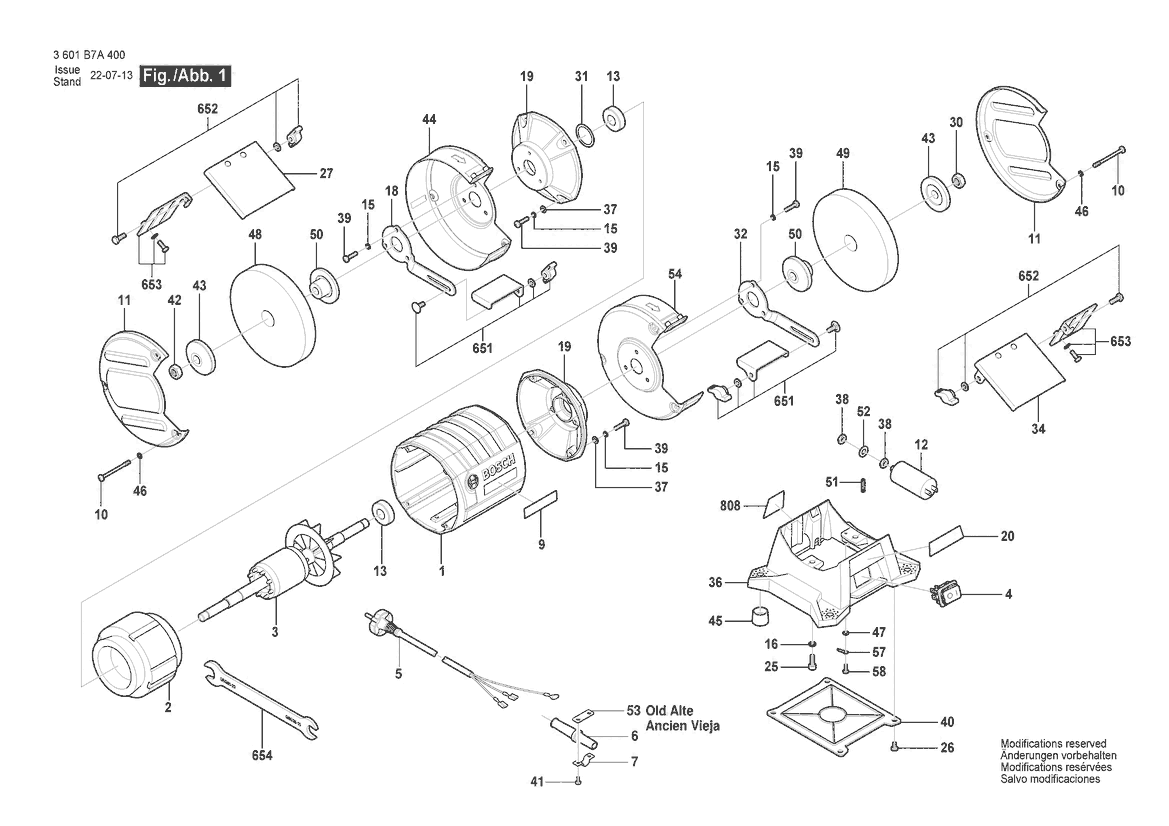

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 B7A 4F0
Image 1
Grinding Wheel 200MM 24#
-
part
Spare part number: 1 619 PB1 447
Position: 48
Availability: 1
Price group: 00
₹  1,080.00 *
Prices shown are net prices excluding GST
Grinding Wheel 200MM 60#
-
part
Spare part number: 1 619 PB1 449
Position: 49
Availability: 1
Price group: 00
₹  1,080.00 *
Prices shown are net prices excluding GST
Motor Housing
-
Spare part number: 1 619 PB1 467
Position: 1
Availability: 1
Price group: 00
₹  1,634.00 *
Prices shown are net prices excluding GST
Field assembly
-
part
Spare part number: 1 619 PB1 469
Position: 2
Availability: 1
Price group: 00
₹  5,443.00 *
Prices shown are net prices excluding GST
Armature
-
Spare part number: 1 619 PB1 471
Position: 3
Availability: 1
Price group: 00
₹  3,266.00 *
Prices shown are net prices excluding GST
Switch
-
Spare part number: 1 619 PB1 472
Position: 4
Availability: 1
Price group: 00
₹  251.00 *
Prices shown are net prices excluding GST
Power supply cord
-
Spare part number: 1 619 PB1 474
Position: 5
Availability: 1
Price group: 00
₹  440.00 *
Prices shown are net prices excluding GST
Grommet
-
Spare part number: 1 619 PB1 480
Position: 6
Availability: 1
Price group: 00
₹  65.00 *
Prices shown are net prices excluding GST
Clip
-
Spare part number: 1 619 PB1 481
Position: 7
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Manufacturer's nameplate GBG60-20
-
Spare part number: 1 619 PB1 499
Position: 9
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 PB1 501
Position: 10
Availability: 6
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 501
Position: 10
Availability: 6
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Lateral Guard
-
part
Spare part number: 1 619 PB1 503
Position: 11
Availability: 2
Price group: 00
₹  1,014.00 *
Prices shown are net prices excluding GST
Lateral Guard
-
part
Spare part number: 1 619 PB1 503
Position: 11
Availability: 2
Price group: 00
₹  1,014.00 *
Prices shown are net prices excluding GST
Suppression Capacitor
-
Spare part number: 1 619 PB1 505
Position: 12
Availability: 1
Price group: 00
₹  414.00 *
Prices shown are net prices excluding GST
groove ball bearing
-
part
Spare part number: 1 619 PB1 507
Position: 13
Availability: 2
Price group: 00
₹  236.00 *
Prices shown are net prices excluding GST
groove ball bearing
-
part
Spare part number: 1 619 PB1 507
Position: 13
Availability: 2
Price group: 00
₹  236.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 509
Position: 16
Availability: 2
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Support Plate
-
Spare part number: 1 619 PB1 512
Position: 18
Availability: 1
Price group: 00
₹  173.00 *
Prices shown are net prices excluding GST
End Shield
-
Spare part number: 1 619 PB1 514
Position: 19
Availability: 2
Price group: 00
₹  939.00 *
Prices shown are net prices excluding GST
End Shield
-
Spare part number: 1 619 PB1 514
Position: 19
Availability: 2
Price group: 00
₹  939.00 *
Prices shown are net prices excluding GST
Warning Label
-
Spare part number: 1 619 PB1 516
Position: 20
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 PB1 521
Position: 25
Availability: 2
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 522
Position: 26
Availability: 4
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Protective Glass
-
Spare part number: 1 619 PB1 523
Position: 27
Availability: 1
Price group: 00
₹  103.00 *
Prices shown are net prices excluding GST
Hex Nut
-
part
Spare part number: 1 619 PB1 526
Position: 30
Availability: 1
Price group: 00
₹  41.00 *
Prices shown are net prices excluding GST
Corrugated Washer
-
Spare part number: 1 619 PB1 528
Position: 31
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 530
Position: 32
Availability: 1
Price group: 00
₹  161.00 *
Prices shown are net prices excluding GST
Protective Glass
-
part
Spare part number: 1 619 PB1 532
Position: 34
Availability: 1
Price group: 00
₹  103.00 *
Prices shown are net prices excluding GST
Base
-
part
Spare part number: 1 619 PB1 535
Position: 36
Availability: 1
Price group: 00
₹  989.00 *
Prices shown are net prices excluding GST
Plain Washer
-
Spare part number: 1 619 PB1 536
Position: 37
Availability: 8
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Plain Washer
-
Spare part number: 1 619 PB1 536
Position: 37
Availability: 8
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Hex thin nut
-
Spare part number: 1 619 PB1 537
Position: 38
Availability: 2
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Hex thin nut
-
Spare part number: 1 619 PB1 537
Position: 38
Availability: 2
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Base Plate
-
Spare part number: 1 619 PB1 540
Position: 40
Availability: 1
Price group: 00
₹  114.00 *
Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 541
Position: 41
Availability: 2
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Hex Nut
-
Spare part number: 1 619 PB1 542
Position: 42
Availability: 1
Price group: 00
₹  41.00 *
Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 544
Position: 43
Availability: 2
Price group: 00
₹  405.00 *
Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 544
Position: 43
Availability: 2
Price group: 00
₹  405.00 *
Prices shown are net prices excluding GST
Protective Cover
-
part
Spare part number: 1 619 PB1 546
Position: 44
Availability: 1
Price group: 00
₹  824.00 *
Prices shown are net prices excluding GST
Supporting foot
-
Spare part number: 1 619 PB1 547
Position: 45
Availability: 4
Price group: 00
₹  74.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 548
Position: 46
Availability: 6
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 548
Position: 46
Availability: 6
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Toothed lock washer
-
Spare part number: 1 619 PB1 549
Position: 47
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 551
Position: 50
Availability: 1
Price group: 00
₹  609.00 *
Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 551
Position: 50
Availability: 1
Price group: 00
₹  609.00 *
Prices shown are net prices excluding GST
Terminal Screw
-
Spare part number: 1 619 PB1 552
Position: 51
Availability: 1
Price group: 00
₹  55.00 *
Prices shown are net prices excluding GST
Toothed lock washer
-
Spare part number: 1 619 PB1 553
Position: 52
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Support Plate
-
Spare part number: 1 619 PB1 554
Position: 53
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Protective Cover
-
Spare part number: 1 619 PB1 556
Position: 54
Availability: 1
Price group: 00
₹  844.00 *
Prices shown are net prices excluding GST
Assembly Wrench
-
Spare part number: 1 619 PB1 581
Position: 654
Availability: 1
Price group: 00
₹  125.00 *
Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 668
Position: 57
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 780
Position: 58
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 781
Position: 651
Availability: 1
Price group: 00
₹  480.00 *
Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 781
Position: 651
Availability: 1
Price group: 00
₹  480.00 *
Prices shown are net prices excluding GST
Screw
-
part
Spare part number: 1 619 PB1 782
Position: 652
Availability: 1
Price group: 00
₹  103.00 *
Prices shown are net prices excluding GST
Screw
-
part
Spare part number: 1 619 PB1 782
Position: 652
Availability: 1
Price group: 00
₹  103.00 *
Prices shown are net prices excluding GST
Guard Plate
-
part
Spare part number: 1 619 PB1 783
Position: 653
Availability: 1
Price group: 00
₹  238.00 *
Prices shown are net prices excluding GST
Guard Plate
-
part
Spare part number: 1 619 PB1 783
Position: 653
Availability: 1
Price group: 00
₹  238.00 *
Prices shown are net prices excluding GST
Nameplate
-
Spare part number: 1 619 PB2 025
Position: 808
Availability: 1
Price group: -
-
1
Spare parts in cart

50 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 619 PB1 467
-
₹  1,634.00 *
*Prices shown are net prices excluding GST
Pos. 2 | Field assembly
1 619 PB1 469
-
₹  5,443.00 *
*Prices shown are net prices excluding GST
Pos. 3 | Armature
1 619 PB1 471
-
₹  3,266.00 *
*Prices shown are net prices excluding GST
Pos. 4 | Switch
1 619 PB1 472
-
₹  251.00 *
*Prices shown are net prices excluding GST
Pos. 5 | Power supply cord
1 619 PB1 474
-
₹  440.00 *
*Prices shown are net prices excluding GST
Pos. 6 | Grommet
1 619 PB1 480
-
₹  65.00 *
*Prices shown are net prices excluding GST
Pos. 7 | Clip
1 619 PB1 481
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 9 | Manufacturer's nameplate GBG60-20
1 619 PB1 499
-
-
Pos. 10 | Screw
1 619 PB1 501
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 11 | Lateral Guard
1 619 PB1 503
-
₹  1,014.00 *
*Prices shown are net prices excluding GST
Pos. 12 | Suppression Capacitor
1 619 PB1 505
-
₹  414.00 *
*Prices shown are net prices excluding GST
Pos. 13 | groove ball bearing
1 619 PB1 507
-
₹  236.00 *
*Prices shown are net prices excluding GST
Pos. 15 | Spring Washer
1 619 PB1 508
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 16 | Spring Washer
1 619 PB1 509
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 18 | Support Plate
1 619 PB1 512
-
₹  173.00 *
*Prices shown are net prices excluding GST
Pos. 19 | End Shield
1 619 PB1 514
-
₹  939.00 *
*Prices shown are net prices excluding GST
Pos. 20 | Warning Label
1 619 PB1 516
-
-
Pos. 25 | Screw
1 619 PB1 521
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 26 | Pan head screw
1 619 PB1 522
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 27 | Protective Glass
1 619 PB1 523
-
₹  103.00 *
*Prices shown are net prices excluding GST
Pos. 30 | Hex Nut
1 619 PB1 526
-
₹  41.00 *
*Prices shown are net prices excluding GST
Pos. 31 | Corrugated Washer
1 619 PB1 528
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 32 | Support Plate
1 619 PB1 530
-
₹  161.00 *
*Prices shown are net prices excluding GST
Pos. 34 | Protective Glass
1 619 PB1 532
-
₹  103.00 *
*Prices shown are net prices excluding GST
Pos. 36 | Base
1 619 PB1 535
-
₹  989.00 *
*Prices shown are net prices excluding GST
Pos. 37 | Plain Washer
1 619 PB1 536
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 38 | Hex thin nut
1 619 PB1 537
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 39 | Screw
1 619 PB1 538
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 40 | Base Plate
1 619 PB1 540
-
₹  114.00 *
*Prices shown are net prices excluding GST
Pos. 41 | Pan head screw
1 619 PB1 541
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 42 | Hex Nut
1 619 PB1 542
-
₹  41.00 *
*Prices shown are net prices excluding GST
Pos. 43 | Clamping Flange
1 619 PB1 544
-
₹  405.00 *
*Prices shown are net prices excluding GST
Pos. 44 | Protective Cover
1 619 PB1 546
-
₹  824.00 *
*Prices shown are net prices excluding GST
Pos. 45 | Supporting foot
1 619 PB1 547
-
₹  74.00 *
*Prices shown are net prices excluding GST
Pos. 46 | Spring Washer
1 619 PB1 548
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 47 | Toothed lock washer
1 619 PB1 549
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 48 | Grinding Wheel 200MM 24#
1 619 PB1 447
-
₹  1,080.00 *
*Prices shown are net prices excluding GST
Pos. 49 | Grinding Wheel 200MM 60#
1 619 PB1 449
-
₹  1,080.00 *
*Prices shown are net prices excluding GST
Pos. 50 | Clamping Flange
1 619 PB1 551
-
₹  609.00 *
*Prices shown are net prices excluding GST
Pos. 51 | Terminal Screw
1 619 PB1 552
-
₹  55.00 *
*Prices shown are net prices excluding GST
Pos. 52 | Toothed lock washer
1 619 PB1 553
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 53 | Support Plate
1 619 PB1 554
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 54 | Protective Cover
1 619 PB1 556
-
₹  844.00 *
*Prices shown are net prices excluding GST
Pos. 57 | Spring Washer
1 619 PB1 668
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 58 | Pan head screw
1 619 PB1 780
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 651 | Support Plate
1 619 PB1 781
-
₹  480.00 *
*Prices shown are net prices excluding GST
Pos. 652 | Screw
1 619 PB1 782
-
₹  103.00 *
*Prices shown are net prices excluding GST
Pos. 653 | Guard Plate
1 619 PB1 783
-
₹  238.00 *
*Prices shown are net prices excluding GST
Pos. 654 | Assembly Wrench
1 619 PB1 581
-
₹  125.00 *
*Prices shown are net prices excluding GST
Pos. 808 | Nameplate
1 619 PB2 025
-
-
* Prices shown are net prices excluding GST
Turn the device for 90 degrees.
3 601 B7A 4F0
Image 1
Grinding Wheel 200MM 24#
-
part
Spare part number: 1 619 PB1 447
Position: 48
Availability: 1
Price group: 00
₹  1,080.00 *

Prices shown are net prices excluding GST
Grinding Wheel 200MM 60#
-
part
Spare part number: 1 619 PB1 449
Position: 49
Availability: 1
Price group: 00
₹  1,080.00 *

Prices shown are net prices excluding GST
Motor Housing
-
Spare part number: 1 619 PB1 467
Position: 1
Availability: 1
Price group: 00
₹  1,634.00 *

Prices shown are net prices excluding GST
Field assembly
-
part
Spare part number: 1 619 PB1 469
Position: 2
Availability: 1
Price group: 00
₹  5,443.00 *

Prices shown are net prices excluding GST
Armature
-
Spare part number: 1 619 PB1 471
Position: 3
Availability: 1
Price group: 00
₹  3,266.00 *

Prices shown are net prices excluding GST
Switch
-
Spare part number: 1 619 PB1 472
Position: 4
Availability: 1
Price group: 00
₹  251.00 *

Prices shown are net prices excluding GST
Power supply cord
-
Spare part number: 1 619 PB1 474
Position: 5
Availability: 1
Price group: 00
₹  440.00 *

Prices shown are net prices excluding GST
Grommet
-
Spare part number: 1 619 PB1 480
Position: 6
Availability: 1
Price group: 00
₹  65.00 *

Prices shown are net prices excluding GST
Clip
-
Spare part number: 1 619 PB1 481
Position: 7
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Manufacturer's nameplate GBG60-20
-
Spare part number: 1 619 PB1 499
Position: 9
Availability: 1
Price group: -
-

Screw
-
Spare part number: 1 619 PB1 501
Position: 10
Availability: 6
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 501
Position: 10
Availability: 6
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Lateral Guard
-
part
Spare part number: 1 619 PB1 503
Position: 11
Availability: 2
Price group: 00
₹  1,014.00 *

Prices shown are net prices excluding GST
Lateral Guard
-
part
Spare part number: 1 619 PB1 503
Position: 11
Availability: 2
Price group: 00
₹  1,014.00 *

Prices shown are net prices excluding GST
Suppression Capacitor
-
Spare part number: 1 619 PB1 505
Position: 12
Availability: 1
Price group: 00
₹  414.00 *

Prices shown are net prices excluding GST
groove ball bearing
-
part
Spare part number: 1 619 PB1 507
Position: 13
Availability: 2
Price group: 00
₹  236.00 *

Prices shown are net prices excluding GST
groove ball bearing
-
part
Spare part number: 1 619 PB1 507
Position: 13
Availability: 2
Price group: 00
₹  236.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 508
Position: 15
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 509
Position: 16
Availability: 2
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Support Plate
-
Spare part number: 1 619 PB1 512
Position: 18
Availability: 1
Price group: 00
₹  173.00 *

Prices shown are net prices excluding GST
End Shield
-
Spare part number: 1 619 PB1 514
Position: 19
Availability: 2
Price group: 00
₹  939.00 *

Prices shown are net prices excluding GST
End Shield
-
Spare part number: 1 619 PB1 514
Position: 19
Availability: 2
Price group: 00
₹  939.00 *

Prices shown are net prices excluding GST
Warning Label
-
Spare part number: 1 619 PB1 516
Position: 20
Availability: 1
Price group: -
-

Screw
-
Spare part number: 1 619 PB1 521
Position: 25
Availability: 2
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 522
Position: 26
Availability: 4
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Protective Glass
-
Spare part number: 1 619 PB1 523
Position: 27
Availability: 1
Price group: 00
₹  103.00 *

Prices shown are net prices excluding GST
Hex Nut
-
part
Spare part number: 1 619 PB1 526
Position: 30
Availability: 1
Price group: 00
₹  41.00 *

Prices shown are net prices excluding GST
Corrugated Washer
-
Spare part number: 1 619 PB1 528
Position: 31
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 530
Position: 32
Availability: 1
Price group: 00
₹  161.00 *

Prices shown are net prices excluding GST
Protective Glass
-
part
Spare part number: 1 619 PB1 532
Position: 34
Availability: 1
Price group: 00
₹  103.00 *

Prices shown are net prices excluding GST
Base
-
part
Spare part number: 1 619 PB1 535
Position: 36
Availability: 1
Price group: 00
₹  989.00 *

Prices shown are net prices excluding GST
Plain Washer
-
Spare part number: 1 619 PB1 536
Position: 37
Availability: 8
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Plain Washer
-
Spare part number: 1 619 PB1 536
Position: 37
Availability: 8
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Hex thin nut
-
Spare part number: 1 619 PB1 537
Position: 38
Availability: 2
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Hex thin nut
-
Spare part number: 1 619 PB1 537
Position: 38
Availability: 2
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 PB1 538
Position: 39
Availability: 14
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Base Plate
-
Spare part number: 1 619 PB1 540
Position: 40
Availability: 1
Price group: 00
₹  114.00 *

Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 541
Position: 41
Availability: 2
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Hex Nut
-
Spare part number: 1 619 PB1 542
Position: 42
Availability: 1
Price group: 00
₹  41.00 *

Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 544
Position: 43
Availability: 2
Price group: 00
₹  405.00 *

Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 544
Position: 43
Availability: 2
Price group: 00
₹  405.00 *

Prices shown are net prices excluding GST
Protective Cover
-
part
Spare part number: 1 619 PB1 546
Position: 44
Availability: 1
Price group: 00
₹  824.00 *

Prices shown are net prices excluding GST
Supporting foot
-
Spare part number: 1 619 PB1 547
Position: 45
Availability: 4
Price group: 00
₹  74.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 548
Position: 46
Availability: 6
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 548
Position: 46
Availability: 6
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Toothed lock washer
-
Spare part number: 1 619 PB1 549
Position: 47
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 551
Position: 50
Availability: 1
Price group: 00
₹  609.00 *

Prices shown are net prices excluding GST
Clamping Flange
-
Spare part number: 1 619 PB1 551
Position: 50
Availability: 1
Price group: 00
₹  609.00 *

Prices shown are net prices excluding GST
Terminal Screw
-
Spare part number: 1 619 PB1 552
Position: 51
Availability: 1
Price group: 00
₹  55.00 *

Prices shown are net prices excluding GST
Toothed lock washer
-
Spare part number: 1 619 PB1 553
Position: 52
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Support Plate
-
Spare part number: 1 619 PB1 554
Position: 53
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Protective Cover
-
Spare part number: 1 619 PB1 556
Position: 54
Availability: 1
Price group: 00
₹  844.00 *

Prices shown are net prices excluding GST
Assembly Wrench
-
Spare part number: 1 619 PB1 581
Position: 654
Availability: 1
Price group: 00
₹  125.00 *

Prices shown are net prices excluding GST
Spring Washer
-
Spare part number: 1 619 PB1 668
Position: 57
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Pan head screw
-
Spare part number: 1 619 PB1 780
Position: 58
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 781
Position: 651
Availability: 1
Price group: 00
₹  480.00 *

Prices shown are net prices excluding GST
Support Plate
-
part
Spare part number: 1 619 PB1 781
Position: 651
Availability: 1
Price group: 00
₹  480.00 *

Prices shown are net prices excluding GST
Screw
-
part
Spare part number: 1 619 PB1 782
Position: 652
Availability: 1
Price group: 00
₹  103.00 *

Prices shown are net prices excluding GST
Screw
-
part
Spare part number: 1 619 PB1 782
Position: 652
Availability: 1
Price group: 00
₹  103.00 *

Prices shown are net prices excluding GST
Guard Plate
-
part
Spare part number: 1 619 PB1 783
Position: 653
Availability: 1
Price group: 00
₹  238.00 *

Prices shown are net prices excluding GST
Guard Plate
-
part
Spare part number: 1 619 PB1 783
Position: 653
Availability: 1
Price group: 00
₹  238.00 *

Prices shown are net prices excluding GST
Nameplate
-
Spare part number: 1 619 PB2 025
Position: 808
Availability: 1
Price group: -
-

1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
