0 601 193 003
Nameplate
-
Spare part number: 1 601 11A 3H3
Position: 808
Availability: 1
Price group: -
-
Hex Socket Head Cap Screw DIN 912-M6X20-8.8
-
Spare part number: 2 910 141 201
Position: 13
Availability: 2
Price group: 00
₹ 80.00 *
Prices shown are net prices excluding GST
Hex Socket Head Cap Screw DIN 912-M6X25-8.8
-
Spare part number: 2 910 141 203
Position: 19
Availability: 2
Price group: -
-
Hex Socket Head Cap Screw DIN 912-M6X60-8.8
-
Spare part number: 2 910 141 217
Position: 22
Availability: 1
Price group: 00
₹ 153.00 *
Prices shown are net prices excluding GST
Hex Socket Head Cap Screw DIN 912-M6X16-8.8
-
Spare part number: 2 910 145 197
Position: 24
Availability: 7
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Hex Socket Head Cap Screw DIN 912-M6X16-8.8
-
Spare part number: 2 910 145 197
Position: 24
Availability: 7
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Hex Socket Head Cap Screw DIN 912-M6X16-8.8
-
Spare part number: 2 910 145 197
Position: 24
Availability: 7
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Raised counters head scre DIN 966-M4X6-4.8
-
Spare part number: 2 910 891 116
Position: 33
Availability: 8
Price group: 00
₹ 59.00 *
Prices shown are net prices excluding GST
Raised counters head scre DIN 966-M4X6-4.8
-
Spare part number: 2 910 891 116
Position: 33
Availability: 8
Price group: 00
₹ 59.00 *
Prices shown are net prices excluding GST
Raised counters head scre DIN 966-M4X12-4.8
-
Spare part number: 2 910 891 122
Position: 41
Availability: 4
Price group: -
-
Raised counters head scre DIN 966-M6X16-8.8
-
Spare part number: 2 910 901 197
Position: 31
Availability: 1
Price group: -
-
Hex Screw ISO 4017-M8X35-8.8-A
-
Spare part number: 2 911 061 248
Position: 4
Availability: 4
Price group: -
-
Set screw DIN 913-M5X22
-
Spare part number: 2 912 040 163
Position: 7
Availability: 6
Price group: 00
₹ 474.00 *
Prices shown are net prices excluding GST
Hex Nut DIN 934-M 5-M-8
-
Spare part number: 2 915 011 006
Position: 6
Availability: 6
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Spring Lock Washer M6
-
Spare part number: 2 916 690 005
Position: 12
Availability: 4
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Spring Lock Washer M6
-
Spare part number: 2 916 690 005
Position: 12
Availability: 4
Price group: 00
₹ 39.00 *
Prices shown are net prices excluding GST
Spring Lock Washer DIN 128-A8-FST
-
Spare part number: 2 916 690 007
Position: 5
Availability: 4
Price group: -
-
Straight Pin 6X16 MM
-
Spare part number: 2 917 891 147
Position: 21
Availability: 1
Price group: -
-
Housing
-
Spare part number: 3 609 201 501
Position: 1
Availability: 1
Price group: 00
₹ 30,524.00 *
Prices shown are net prices excluding GST
Clamping Tape
-
Spare part number: 3 609 201 502
Position: 2
Availability: 1
Price group: 00
₹ 1,074.00 *
Prices shown are net prices excluding GST
Plain bearing
-
Spare part number: 3 609 201 503
Position: 3
Availability: 2
Price group: 00
₹ 2,044.00 *
Prices shown are net prices excluding GST
Plain bearing
-
Spare part number: 3 609 201 503
Position: 3
Availability: 2
Price group: 00
₹ 2,044.00 *
Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 3 609 201 504
Position: 9
Availability: 1
Price group: -
-
Magnetic Base
-
Spare part number: 3 609 201 505
Position: 10
Availability: 1
Price group: 00
₹ 21,686.00 *
Prices shown are net prices excluding GST
Retaining Bracket
-
Spare part number: 3 609 201 506
Position: 11
Availability: 1
Price group: 00
₹ 3,433.00 *
Prices shown are net prices excluding GST
Ball Thrust Screw
-
Spare part number: 3 609 201 507
Position: 14
Availability: 1
Price group: -
-
Cover
-
Spare part number: 3 609 201 508
Position: 15
Availability: 1
Price group: -
-
Guide Block
-
Spare part number: 3 609 201 509
Position: 16
Availability: 1
Price group: 00
₹ 284.00 *
Prices shown are net prices excluding GST
Toothed rack
-
Spare part number: 3 609 201 510
Position: 17
Availability: 1
Price group: 00
₹ 5,841.00 *
Prices shown are net prices excluding GST
Motor Cradle
-
Spare part number: 3 609 201 511
Position: 20
Availability: 1
Price group: 00
₹ 9,480.00 *
Prices shown are net prices excluding GST
Bolt
-
Spare part number: 3 609 201 512
Position: 23
Availability: 1
Price group: 00
₹ 514.00 *
Prices shown are net prices excluding GST
Side Holder
-
Spare part number: 3 609 201 513
Position: 25
Availability: 1
Price group: -
-
Screw
-
Spare part number: 3 609 201 514
Position: 27
Availability: 1
Price group: 00
₹ 367.00 *
Prices shown are net prices excluding GST
Pinion Shaft
-
Spare part number: 3 609 201 515
Position: 28
Availability: 1
Price group: 00
₹ 9,337.00 *
Prices shown are net prices excluding GST
Rotary Handle
-
Spare part number: 3 609 201 516
Position: 29
Availability: 3
Price group: -
-
Rotary Handle
-
Spare part number: 3 609 201 516
Position: 29
Availability: 3
Price group: -
-
Rotary Handle
-
Spare part number: 3 609 201 516
Position: 29
Availability: 3
Price group: -
-
Cover Disc
-
Spare part number: 3 609 201 517
Position: 30
Availability: 1
Price group: -
-
Rear Panel
-
Spare part number: 3 609 201 518
Position: 32
Availability: 1
Price group: 00
₹ 2,283.00 *
Prices shown are net prices excluding GST
Cord guard
-
Spare part number: 3 609 201 519
Position: 34
Availability: 1
Price group: -
-
Cord guard
-
Spare part number: 3 609 201 519
Position: 34
Availability: 1
Price group: -
-
Power supply cord
-
Spare part number: 3 609 201 520
Position: 35
Availability: 1
Price group: 00
₹ 968.00 *
Prices shown are net prices excluding GST
Socket-Outlet Unit
-
Spare part number: 3 609 201 521
Position: 36
Availability: 1
Price group: 00
₹ 2,614.00 *
Prices shown are net prices excluding GST
Set Of Eartling Material
-
Spare part number: 3 609 201 522
Position: 37
Availability: 1
Price group: -
-
Set Of Eartling Material
-
Spare part number: 3 609 201 522
Position: 37
Availability: 1
Price group: -
-
Switch Housing
-
Spare part number: 3 609 201 523
Position: 38
Availability: 1
Price group: 00
₹ 1,314.00 *
Prices shown are net prices excluding GST
Control Unit
-
Spare part number: 3 609 201 524
Position: 39
Availability: 1
Price group: 00
₹ 14,916.00 *
Prices shown are net prices excluding GST
Fuse
-
Spare part number: 3 609 201 525
Position: 40
Availability: 1
Price group: 00
₹ 126.00 *
Prices shown are net prices excluding GST
Motor Protection Switch
-
Spare part number: 3 609 201 526
Position: 42
Availability: 1
Price group: 00
₹ 3,523.00 *
Prices shown are net prices excluding GST
Motor Protection Switch
-
Spare part number: 3 609 201 526
Position: 42
Availability: 1
Price group: 00
₹ 3,523.00 *
Prices shown are net prices excluding GST
On-Off Switch
-
Spare part number: 3 609 201 527
Position: 43
Availability: 1
Price group: 00
₹ 1,107.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 3 609 201 528
Position: 44
Availability: 1
Price group: 00
₹ 170.00 *
Prices shown are net prices excluding GST
Cable Cleat
-
Spare part number: 3 609 201 533
Position: 45
Availability: 1
Price group: 00
₹ 587.00 *
Prices shown are net prices excluding GST
1
2
Spare parts in cart
47 Parts found
Sort by
Description

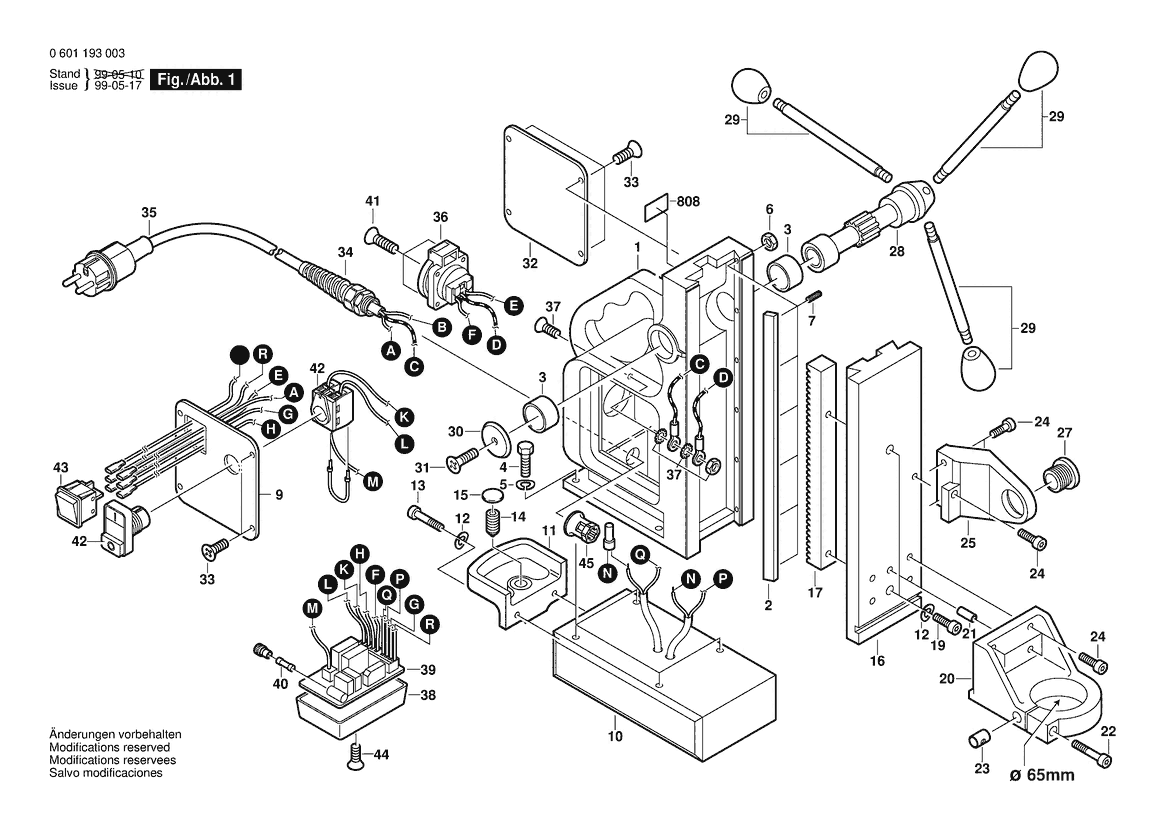

Pos. 1 | Housing
3 609 201 501
-
*Prices shown are net prices excluding GST
Pos. 2 | Clamping Tape
3 609 201 502
-
*Prices shown are net prices excluding GST
Pos. 3 | Plain bearing
3 609 201 503
-
*Prices shown are net prices excluding GST
Pos. 4 | Hex Screw ISO 4017-M8X35-8.8-A
2 911 061 248
-
Pos. 5 | Spring Lock Washer DIN 128-A8-FST
2 916 690 007
-
Pos. 6 | Hex Nut DIN 934-M 5-M-8
2 915 011 006
-
*Prices shown are net prices excluding GST
Pos. 7 | Set screw DIN 913-M5X22
2 912 040 163
-
*Prices shown are net prices excluding GST
Pos. 9 | Manufacturer's nameplate
3 609 201 504
-
Pos. 10 | Magnetic Base
3 609 201 505
-
*Prices shown are net prices excluding GST
Pos. 11 | Retaining Bracket
3 609 201 506
-
*Prices shown are net prices excluding GST
Pos. 12 | Spring Lock Washer M6
2 916 690 005
-
*Prices shown are net prices excluding GST
Pos. 13 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8
2 910 141 201
-
*Prices shown are net prices excluding GST
Pos. 14 | Ball Thrust Screw
3 609 201 507
-
Pos. 15 | Cover
3 609 201 508
-
Pos. 16 | Guide Block
3 609 201 509
-
*Prices shown are net prices excluding GST
Pos. 17 | Toothed rack
3 609 201 510
-
*Prices shown are net prices excluding GST
Pos. 19 | Hex Socket Head Cap Screw DIN 912-M6X25-8.8
2 910 141 203
-
Pos. 20 | Motor Cradle
3 609 201 511
-
*Prices shown are net prices excluding GST
Pos. 21 | Straight Pin 6X16 MM
2 917 891 147
-
Pos. 22 | Hex Socket Head Cap Screw DIN 912-M6X60-8.8
2 910 141 217
-
*Prices shown are net prices excluding GST
Pos. 23 | Bolt
3 609 201 512
-
*Prices shown are net prices excluding GST
Pos. 24 | Hex Socket Head Cap Screw DIN 912-M6X16-8.8
2 910 145 197
-
*Prices shown are net prices excluding GST
Pos. 25 | Side Holder
3 609 201 513
-
Pos. 27 | Screw
3 609 201 514
-
*Prices shown are net prices excluding GST
Pos. 28 | Pinion Shaft
3 609 201 515
-
*Prices shown are net prices excluding GST
Pos. 29 | Rotary Handle
3 609 201 516
-
Pos. 30 | Cover Disc
3 609 201 517
-
Pos. 31 | Raised counters head scre DIN 966-M6X16-8.8
2 910 901 197
-
Pos. 32 | Rear Panel
3 609 201 518
-
*Prices shown are net prices excluding GST
Pos. 33 | Raised counters head scre DIN 966-M4X6-4.8
2 910 891 116
-
*Prices shown are net prices excluding GST
Pos. 34 | Cord guard
3 609 201 519
-
Pos. 35 | Power supply cord
3 609 201 520
-
*Prices shown are net prices excluding GST
Pos. 36 | Socket-Outlet Unit
3 609 201 521
-
*Prices shown are net prices excluding GST
Pos. 37 | Set Of Eartling Material
3 609 201 522
-
Pos. 38 | Switch Housing
3 609 201 523
-
*Prices shown are net prices excluding GST
Pos. 39 | Control Unit
3 609 201 524
-
*Prices shown are net prices excluding GST
Pos. 40 | Fuse
3 609 201 525
-
*Prices shown are net prices excluding GST
Pos. 41 | Raised counters head scre DIN 966-M4X12-4.8
2 910 891 122
-
Pos. 42 | Motor Protection Switch
3 609 201 526
-
*Prices shown are net prices excluding GST
Pos. 43 | On-Off Switch
3 609 201 527
-
*Prices shown are net prices excluding GST
Pos. 44 | Screw
3 609 201 528
-
*Prices shown are net prices excluding GST
Pos. 45 | Cable Cleat
3 609 201 533
-
*Prices shown are net prices excluding GST

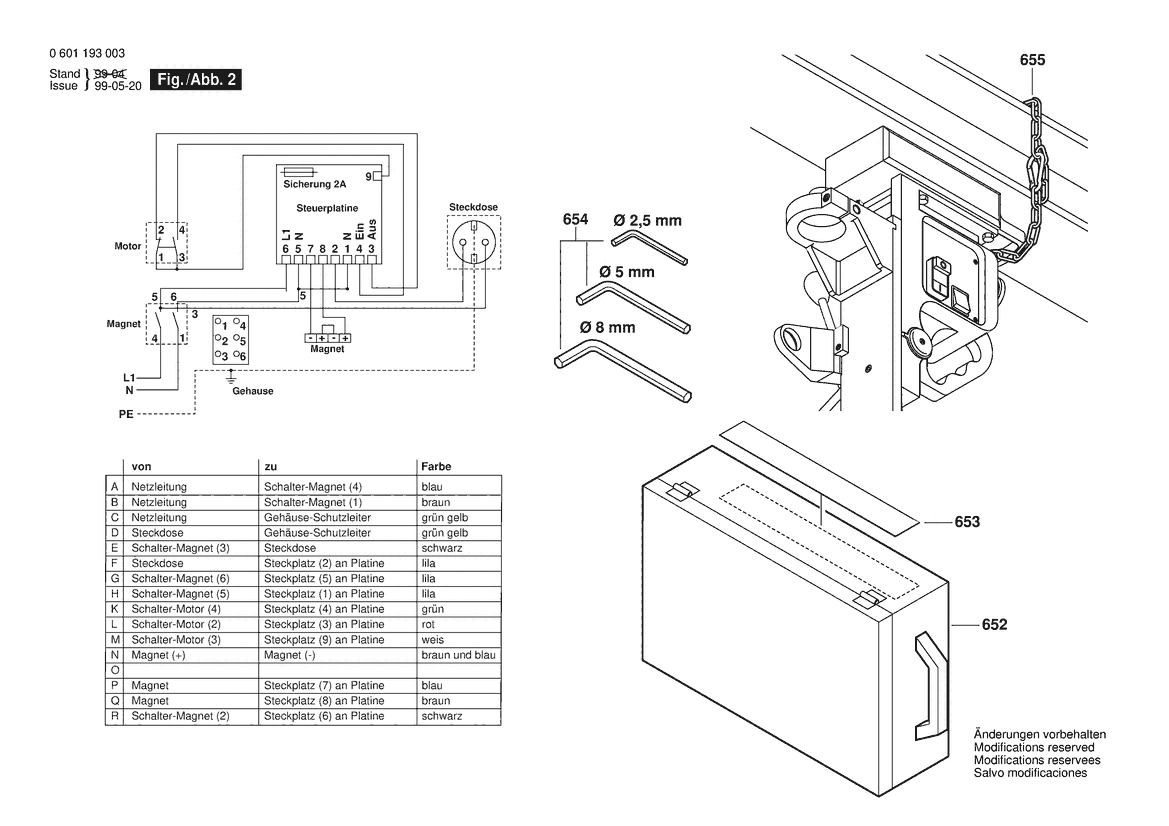

Pos. 652 | Carrying Case
3 609 201 529
-
Pos. 653 | Sticker
3 609 201 530
-
Pos. 654 | Hexagon Socket Screw Key
3 609 201 532
-
Pos. 655 | Chain
3 609 201 531
-
Pos. 808 | Nameplate
1 601 11A 3H3
-
* Prices shown are net prices excluding GST
