Universal Angle Polisher
GPO 11-180 S | 3 601 CA2 3F0 | 230 V / ----
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 CA2 3F0

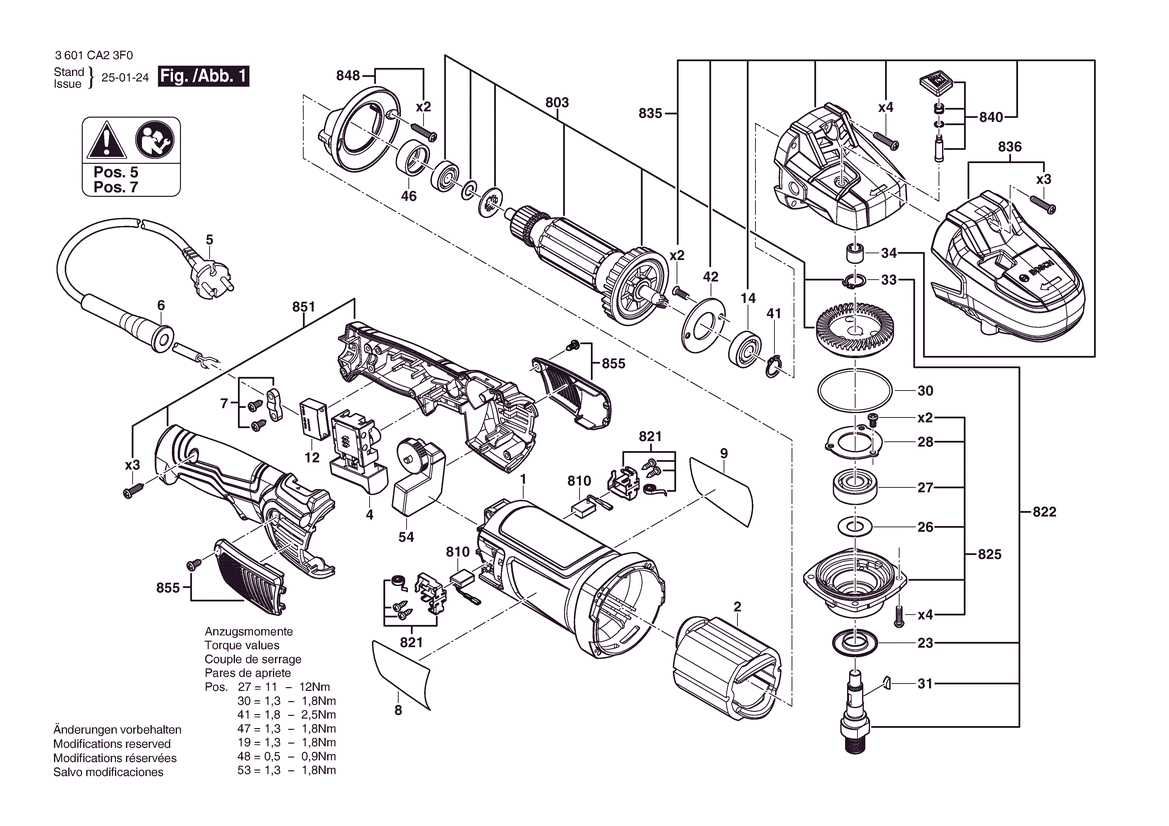

Image 1
Cord guard
-
Spare part number: 1 619 PC0 258
Position: 6
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
Capacitor
-
Spare part number: 1 619 PC0 265
Position: 12
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
Washer
-
Spare part number: 1 619 PC0 278
Position: 26
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
Needle bearing
-
Spare part number: 1 619 PC0 282
Position: 34
Availability: 1
Price group: 00
₹  38.00 *
Prices shown are net prices excluding GST
Switch
-
Spare part number: 1 619 PS0 692
Position: 4
Availability: 1
Price group: 00
₹  383.00 *
Prices shown are net prices excluding GST
Housing
-
Spare part number: 1 619 PS2 171
Position: 1
Availability: 1
Price group: 00
₹  231.00 *
Prices shown are net prices excluding GST
Field
-
Spare part number: 1 619 PS2 172
Position: 2
Availability: 1
Price group: 00
₹  821.00 *
Prices shown are net prices excluding GST
Fastening Clamp
-
Spare part number: 1 619 PS2 176
Position: 7
Availability: 1
Price group: 00
₹  61.00 *
Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PS2 178
Position: 9
Availability: 1
Price group: -
-
groove ball bearing
-
Spare part number: 1 619 PS2 179
Position: 14
Availability: 1
Price group: 00
₹  95.00 *
Prices shown are net prices excluding GST
Washer
-
Spare part number: 1 619 PS2 181
Position: 23
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
groove ball bearing
-
Spare part number: 1 619 PS2 183
Position: 27
Availability: 1
Price group: 00
₹  95.00 *
Prices shown are net prices excluding GST
Plate
-
Spare part number: 1 619 PS2 184
Position: 28
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
O-Ring
-
Spare part number: 1 619 PS2 186
Position: 30
Availability: 1
Price group: 00
₹  33.00 *
Prices shown are net prices excluding GST
Woodruff Key
-
Spare part number: 1 619 PS2 187
Position: 31
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
Retaining ring
-
Spare part number: 1 619 PS2 188
Position: 33
Availability: 1
Price group: 00
₹  42.00 *
Prices shown are net prices excluding GST
Retaining ring
-
Spare part number: 1 619 PS2 190
Position: 41
Availability: 1
Price group: 00
₹  41.00 *
Prices shown are net prices excluding GST
Plate
-
Spare part number: 1 619 PS2 191
Position: 42
Availability: 1
Price group: 00
₹  25.00 *
Prices shown are net prices excluding GST
Bearing Bushing
-
Spare part number: 1 619 PS2 192
Position: 46
Availability: 1
Price group: 00
₹  40.00 *
Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS2 194
Position: 48
Availability: 1
Price group: 00
₹  60.00 *
Prices shown are net prices excluding GST
Speed governor
-
Spare part number: 1 619 PS2 199
Position: 54
Availability: 1
Price group: 00
₹  1,217.00 *
Prices shown are net prices excluding GST
Power supply cord
-
Spare part number: 1 619 PS2 218
Position: 5
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 PS2 229
Position: 8
Availability: 1
Price group: -
-
Armature assembly
-
Spare part number: 1 619 PS2 234
Position: 803
Availability: 1
Price group: 00
₹  1,618.00 *
Prices shown are net prices excluding GST
Carbon-Brush Set
-
Spare part number: 1 619 PS2 235
Position: 810
Availability: 1
Price group: 00
₹  140.00 *
Prices shown are net prices excluding GST
Carbon-Brush Set
-
Spare part number: 1 619 PS2 235
Position: 810
Availability: 1
Price group: 00
₹  140.00 *
Prices shown are net prices excluding GST
Carbon Brush Holder
-
Spare part number: 1 619 PS2 236
Position: 821
Availability: 1
Price group: 00
₹  55.00 *
Prices shown are net prices excluding GST
Carbon Brush Holder
-
Spare part number: 1 619 PS2 236
Position: 821
Availability: 1
Price group: 00
₹  55.00 *
Prices shown are net prices excluding GST
Output Shaft
-
Spare part number: 1 619 PS2 237
Position: 822
Availability: 1
Price group: 00
₹  130.00 *
Prices shown are net prices excluding GST
Push-Button
-
Spare part number: 1 619 PS2 240
Position: 840
Availability: 1
Price group: 00
₹  91.00 *
Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS3 143
Position: 848
Availability: 1
Price group: 00
₹  62.00 *
Prices shown are net prices excluding GST
Cover
-
Spare part number: 1 619 PS3 144
Position: 836
Availability: 1
Price group: 00
₹  210.00 *
Prices shown are net prices excluding GST
Brush-Cover
-
Spare part number: 1 619 PS3 146
Position: 855
Availability: 1
Price group: 00
₹  38.00 *
Prices shown are net prices excluding GST
Brush-Cover
-
Spare part number: 1 619 PS3 146
Position: 855
Availability: 1
Price group: 00
₹  38.00 *
Prices shown are net prices excluding GST
Handle
-
Spare part number: 1 619 PS3 148
Position: 851
Availability: 1
Price group: 00
₹  126.00 *
Prices shown are net prices excluding GST
Gear Housing
-
Spare part number: 1 619 PS3 149
Position: 835
Availability: 1
Price group: 00
₹  959.00 *
Prices shown are net prices excluding GST
Bearing Flange
-
Spare part number: 1 619 PS3 150
Position: 825
Availability: 1
Price group: 00
₹  417.00 *
Prices shown are net prices excluding GST

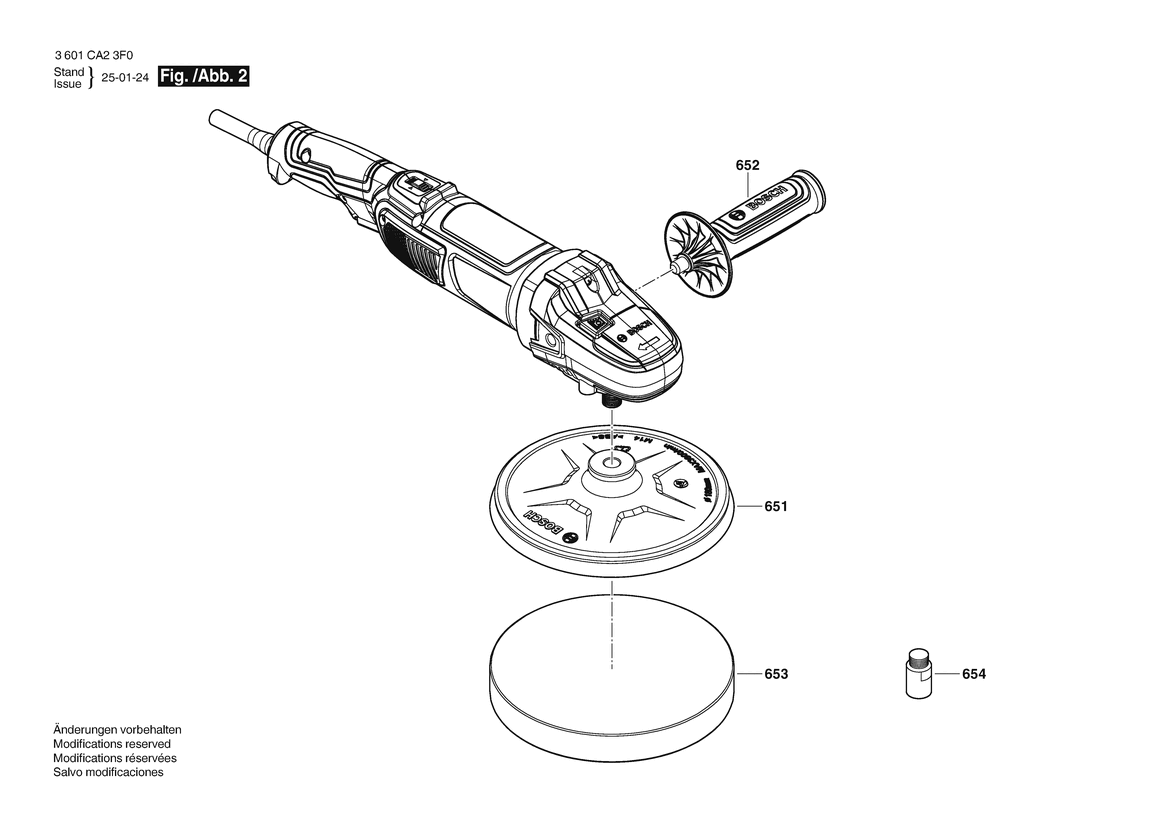

Image 1
Auxiliary Handle
-
Spare part number: 1 619 PS2 203
Position: 652
Availability: 1
Price group: 00
₹  112.00 *
Prices shown are net prices excluding GST
Backing Pad
-
Spare part number: 1 619 PS2 204
Position: 651
Availability: 1
Price group: 00
₹  321.00 *
Prices shown are net prices excluding GST
Polishing Sponge
-
Spare part number: 1 619 PS2 206
Position: 653
Availability: 1
Price group: 00
₹  241.00 *
Prices shown are net prices excluding GST
Adjustable Adaptor
-
Spare part number: 1 619 PS2 207
Position: 654
Availability: 1
Price group: 00
₹  93.00 *
Prices shown are net prices excluding GST
1
2
Spare parts in cart

38 Parts found

Sort by
Description
Pos. 1 | Housing
1 619 PS2 171
-
₹  231.00 *
*Prices shown are net prices excluding GST
Pos. 2 | Field
1 619 PS2 172
-
₹  821.00 *
*Prices shown are net prices excluding GST
Pos. 4 | Switch
1 619 PS0 692
-
₹  383.00 *
*Prices shown are net prices excluding GST
Pos. 5 | Power supply cord
1 619 PS2 218
-
-
Pos. 6 | Cord guard
1 619 PC0 258
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 7 | Fastening Clamp
1 619 PS2 176
-
₹  61.00 *
*Prices shown are net prices excluding GST
Pos. 8 | Nameplate
1 619 PS2 229
-
-
Pos. 9 | Manufacturer's nameplate
1 619 PS2 178
-
-
Pos. 12 | Capacitor
1 619 PC0 265
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 14 | groove ball bearing
1 619 PS2 179
-
₹  95.00 *
*Prices shown are net prices excluding GST
Pos. 23 | Washer
1 619 PS2 181
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 26 | Washer
1 619 PC0 278
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 27 | groove ball bearing
1 619 PS2 183
-
₹  95.00 *
*Prices shown are net prices excluding GST
Pos. 28 | Plate
1 619 PS2 184
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 30 | O-Ring
1 619 PS2 186
-
₹  33.00 *
*Prices shown are net prices excluding GST
Pos. 31 | Woodruff Key
1 619 PS2 187
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 33 | Retaining ring
1 619 PS2 188
-
₹  42.00 *
*Prices shown are net prices excluding GST
Pos. 34 | Needle bearing
1 619 PC0 282
-
₹  38.00 *
*Prices shown are net prices excluding GST
Pos. 41 | Retaining ring
1 619 PS2 190
-
₹  41.00 *
*Prices shown are net prices excluding GST
Pos. 42 | Plate
1 619 PS2 191
-
₹  25.00 *
*Prices shown are net prices excluding GST
Pos. 46 | Bearing Bushing
1 619 PS2 192
-
₹  40.00 *
*Prices shown are net prices excluding GST
Pos. 48 | Air-Deflector Ring
1 619 PS2 194
-
₹  60.00 *
*Prices shown are net prices excluding GST
Pos. 54 | Speed governor
1 619 PS2 199
-
₹  1,217.00 *
*Prices shown are net prices excluding GST
Pos. 651 | Backing Pad
1 619 PS2 204
-
₹  321.00 *
*Prices shown are net prices excluding GST
Pos. 652 | Auxiliary Handle
1 619 PS2 203
-
₹  112.00 *
*Prices shown are net prices excluding GST
Pos. 653 | Polishing Sponge
1 619 PS2 206
-
₹  241.00 *
*Prices shown are net prices excluding GST
Pos. 654 | Adjustable Adaptor
1 619 PS2 207
-
₹  93.00 *
*Prices shown are net prices excluding GST
Pos. 803 | Armature assembly
1 619 PS2 234
-
₹  1,618.00 *
*Prices shown are net prices excluding GST
Pos. 810 | Carbon-Brush Set
1 619 PS2 235
-
₹  140.00 *
*Prices shown are net prices excluding GST
Pos. 821 | Carbon Brush Holder
1 619 PS2 236
-
₹  55.00 *
*Prices shown are net prices excluding GST
Pos. 822 | Output Shaft
1 619 PS2 237
-
₹  130.00 *
*Prices shown are net prices excluding GST
Pos. 825 | Bearing Flange
1 619 PS3 150
-
₹  417.00 *
*Prices shown are net prices excluding GST
Pos. 835 | Gear Housing
1 619 PS3 149
-
₹  959.00 *
*Prices shown are net prices excluding GST
Pos. 836 | Cover
1 619 PS3 144
-
₹  210.00 *
*Prices shown are net prices excluding GST
Pos. 840 | Push-Button
1 619 PS2 240
-
₹  91.00 *
*Prices shown are net prices excluding GST
Pos. 848 | Air-Deflector Ring
1 619 PS3 143
-
₹  62.00 *
*Prices shown are net prices excluding GST
Pos. 851 | Handle
1 619 PS3 148
-
₹  126.00 *
*Prices shown are net prices excluding GST
Pos. 855 | Brush-Cover
1 619 PS3 146
-
₹  38.00 *
*Prices shown are net prices excluding GST
* Prices shown are net prices excluding GST
Turn the device for 90 degrees.
3 601 CA2 3F0
Image 1
Cord guard
-
Spare part number: 1 619 PC0 258
Position: 6
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
Capacitor
-
Spare part number: 1 619 PC0 265
Position: 12
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
Washer
-
Spare part number: 1 619 PC0 278
Position: 26
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
Needle bearing
-
Spare part number: 1 619 PC0 282
Position: 34
Availability: 1
Price group: 00
₹  38.00 *

Prices shown are net prices excluding GST
Switch
-
Spare part number: 1 619 PS0 692
Position: 4
Availability: 1
Price group: 00
₹  383.00 *

Prices shown are net prices excluding GST
Housing
-
Spare part number: 1 619 PS2 171
Position: 1
Availability: 1
Price group: 00
₹  231.00 *

Prices shown are net prices excluding GST
Field
-
Spare part number: 1 619 PS2 172
Position: 2
Availability: 1
Price group: 00
₹  821.00 *

Prices shown are net prices excluding GST
Fastening Clamp
-
Spare part number: 1 619 PS2 176
Position: 7
Availability: 1
Price group: 00
₹  61.00 *

Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PS2 178
Position: 9
Availability: 1
Price group: -
-

groove ball bearing
-
Spare part number: 1 619 PS2 179
Position: 14
Availability: 1
Price group: 00
₹  95.00 *

Prices shown are net prices excluding GST
Washer
-
Spare part number: 1 619 PS2 181
Position: 23
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
groove ball bearing
-
Spare part number: 1 619 PS2 183
Position: 27
Availability: 1
Price group: 00
₹  95.00 *

Prices shown are net prices excluding GST
Plate
-
Spare part number: 1 619 PS2 184
Position: 28
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
O-Ring
-
Spare part number: 1 619 PS2 186
Position: 30
Availability: 1
Price group: 00
₹  33.00 *

Prices shown are net prices excluding GST
Woodruff Key
-
Spare part number: 1 619 PS2 187
Position: 31
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
Retaining ring
-
Spare part number: 1 619 PS2 188
Position: 33
Availability: 1
Price group: 00
₹  42.00 *

Prices shown are net prices excluding GST
Retaining ring
-
Spare part number: 1 619 PS2 190
Position: 41
Availability: 1
Price group: 00
₹  41.00 *

Prices shown are net prices excluding GST
Plate
-
Spare part number: 1 619 PS2 191
Position: 42
Availability: 1
Price group: 00
₹  25.00 *

Prices shown are net prices excluding GST
Bearing Bushing
-
Spare part number: 1 619 PS2 192
Position: 46
Availability: 1
Price group: 00
₹  40.00 *

Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS2 194
Position: 48
Availability: 1
Price group: 00
₹  60.00 *

Prices shown are net prices excluding GST
Speed governor
-
Spare part number: 1 619 PS2 199
Position: 54
Availability: 1
Price group: 00
₹  1,217.00 *

Prices shown are net prices excluding GST
Power supply cord
-
Spare part number: 1 619 PS2 218
Position: 5
Availability: 1
Price group: -
-

Nameplate
-
Spare part number: 1 619 PS2 229
Position: 8
Availability: 1
Price group: -
-

Armature assembly
-
Spare part number: 1 619 PS2 234
Position: 803
Availability: 1
Price group: 00
₹  1,618.00 *

Prices shown are net prices excluding GST
Carbon-Brush Set
-
Spare part number: 1 619 PS2 235
Position: 810
Availability: 1
Price group: 00
₹  140.00 *

Prices shown are net prices excluding GST
Carbon-Brush Set
-
Spare part number: 1 619 PS2 235
Position: 810
Availability: 1
Price group: 00
₹  140.00 *

Prices shown are net prices excluding GST
Carbon Brush Holder
-
Spare part number: 1 619 PS2 236
Position: 821
Availability: 1
Price group: 00
₹  55.00 *

Prices shown are net prices excluding GST
Carbon Brush Holder
-
Spare part number: 1 619 PS2 236
Position: 821
Availability: 1
Price group: 00
₹  55.00 *

Prices shown are net prices excluding GST
Output Shaft
-
Spare part number: 1 619 PS2 237
Position: 822
Availability: 1
Price group: 00
₹  130.00 *

Prices shown are net prices excluding GST
Push-Button
-
Spare part number: 1 619 PS2 240
Position: 840
Availability: 1
Price group: 00
₹  91.00 *

Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS3 143
Position: 848
Availability: 1
Price group: 00
₹  62.00 *

Prices shown are net prices excluding GST
Cover
-
Spare part number: 1 619 PS3 144
Position: 836
Availability: 1
Price group: 00
₹  210.00 *

Prices shown are net prices excluding GST
Brush-Cover
-
Spare part number: 1 619 PS3 146
Position: 855
Availability: 1
Price group: 00
₹  38.00 *

Prices shown are net prices excluding GST
Brush-Cover
-
Spare part number: 1 619 PS3 146
Position: 855
Availability: 1
Price group: 00
₹  38.00 *

Prices shown are net prices excluding GST
Handle
-
Spare part number: 1 619 PS3 148
Position: 851
Availability: 1
Price group: 00
₹  126.00 *

Prices shown are net prices excluding GST
Gear Housing
-
Spare part number: 1 619 PS3 149
Position: 835
Availability: 1
Price group: 00
₹  959.00 *

Prices shown are net prices excluding GST
Bearing Flange
-
Spare part number: 1 619 PS3 150
Position: 825
Availability: 1
Price group: 00
₹  417.00 *

Prices shown are net prices excluding GST
Image 1
Auxiliary Handle
-
Spare part number: 1 619 PS2 203
Position: 652
Availability: 1
Price group: 00
₹  112.00 *

Prices shown are net prices excluding GST
Backing Pad
-
Spare part number: 1 619 PS2 204
Position: 651
Availability: 1
Price group: 00
₹  321.00 *

Prices shown are net prices excluding GST
Polishing Sponge
-
Spare part number: 1 619 PS2 206
Position: 653
Availability: 1
Price group: 00
₹  241.00 *

Prices shown are net prices excluding GST
Adjustable Adaptor
-
Spare part number: 1 619 PS2 207
Position: 654
Availability: 1
Price group: 00
₹  93.00 *

Prices shown are net prices excluding GST
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
