GSH 500 - 3 611 C38 7F0 | Product Detail Page | Power Tools

₹ 681.00 *

*Prices shown are net prices excluding GST

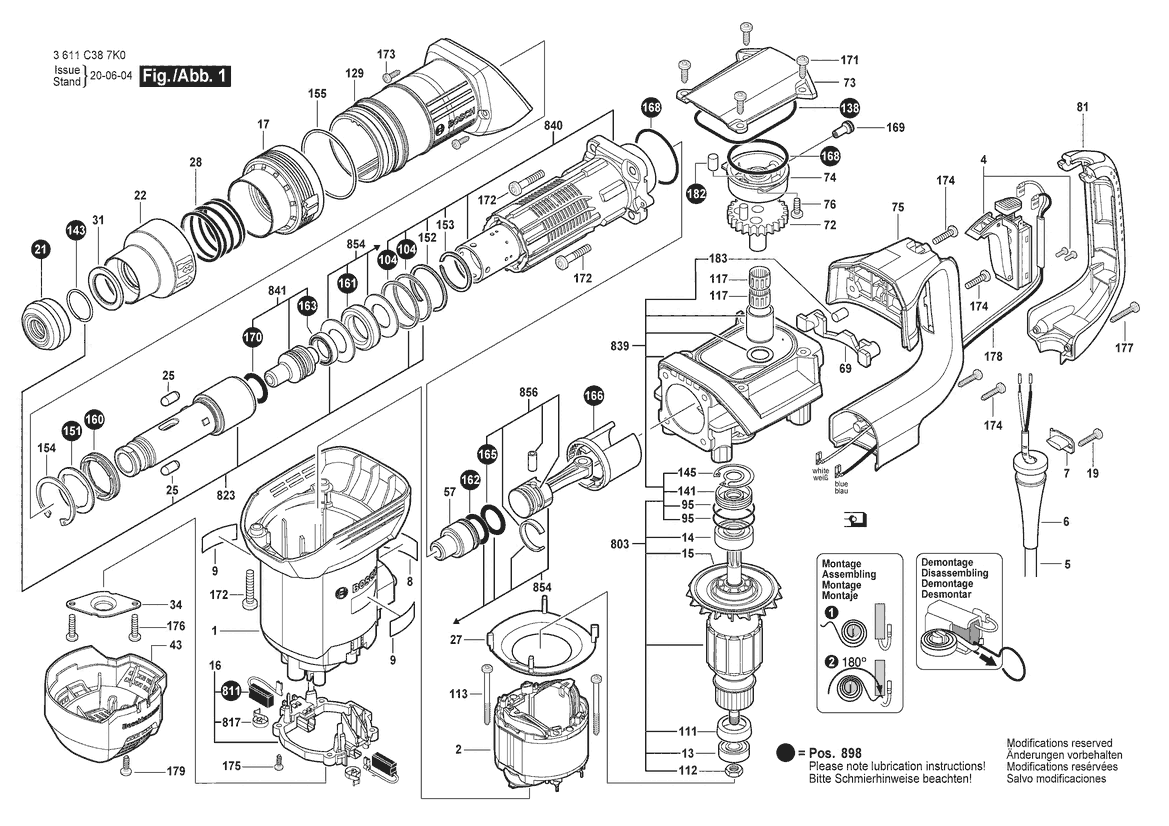

Pos. 2

Pos. 2 | Field 220V

1 619 P14 777

Field 220V

1 619 P14 777

₹ 1,190.00 *

Availability 1

Price group: 00

₹ 1,190.00 *

*Prices shown are net prices excluding GST

Pos. 4

Pos. 4 | Switch

1 607 200 365

Switch

1 607 200 365

₹ 488.00 *

Availability 1

Price group: 00

₹ 488.00 *

*Prices shown are net prices excluding GST

Pos. 5

Pos. 5 | Power supply cord

1 604 460 7AA

Power supply cord

1 604 460 7AA

Availability 1

Price group: -

Pos. 5

Pos. 5 | Power supply cord 230V 4,15M 2 X 1,0MM H07 RN-F

1 619 P15 735

Power supply cord 230V 4,15M 2 X 1,0MM H07 RN-F

1 619 P15 735

₹ 1,052.00 *

Availability 1

Price group: 00

₹ 1,052.00 *

*Prices shown are net prices excluding GST

Pos. 6

Pos. 6 | Grommet Ø9,7-Ø12X89 MM

1 610 703 053

Grommet Ø9,7-Ø12X89 MM

1 610 703 053

₹ 67.00 *

Availability 1

Price group: 00

₹ 67.00 *

*Prices shown are net prices excluding GST

Pos. 7

Pos. 7 | Fastening Clamp

1 601 302 019

Fastening Clamp

1 601 302 019

₹ 65.00 *

Availability 1

Price group: 00

₹ 65.00 *

*Prices shown are net prices excluding GST

Pos. 8

Pos. 8 | Nameplate

1 619 P15 620

Nameplate

1 619 P15 620

Availability 1

Price group: -

Pos. 9

Pos. 9 | Manufacturer's nameplate GSH 500

1 619 P13 299

Manufacturer's nameplate GSH 500

1 619 P13 299

Availability 2

Price group: -

Pos. 13

Pos. 13 | groove ball bearing 8X24X8

1 610 900 026

groove ball bearing 8X24X8

1 610 900 026

₹ 220.00 *

Availability 1

Price group: 00

₹ 220.00 *

*Prices shown are net prices excluding GST

Pos. 14

Pos. 14 | groove ball bearing 12X32X10

1 610 905 041

groove ball bearing 12X32X10

1 610 905 041

₹ 231.00 *

Availability 1

Price group: 00

₹ 231.00 *

*Prices shown are net prices excluding GST

Pos. 15

Pos. 15 | Fan

1 616 610 085

Fan

1 616 610 085

₹ 144.00 *

Availability 1

Price group: 00

₹ 144.00 *

*Prices shown are net prices excluding GST

Pos. 16

Pos. 16 | Brush Holder

1 619 P14 465

Brush Holder

1 619 P14 465

₹ 656.00 *

Availability 1

Price group: 00

₹ 656.00 *

*Prices shown are net prices excluding GST

Pos. 17

Pos. 17 | Ratchet Sleeve

1 619 P15 392

Ratchet Sleeve

1 619 P15 392

₹ 437.00 *

Availability 1

Price group: 00

₹ 437.00 *

*Prices shown are net prices excluding GST

Pos. 19

Pos. 19 | Tapping Screw DIN 7971-ST3,9X16-F

2 910 211 019

Tapping Screw DIN 7971-ST3,9X16-F

2 910 211 019

₹ 32.00 *

Availability 1

Price group: 00

₹ 32.00 *

*Prices shown are net prices excluding GST

Pos. 21

Pos. 21 | Protective Cap

1 610 508 038

Protective Cap

1 610 508 038

₹ 102.00 *

Availability 1

Price group: 00

₹ 102.00 *

*Prices shown are net prices excluding GST

Pos. 22

Pos. 22 | Protection Sleeve

1 619 P15 321

Protection Sleeve

1 619 P15 321

₹ 408.00 *

Availability 1

Price group: 00

₹ 408.00 *

*Prices shown are net prices excluding GST

Pos. 25

Pos. 25 | Stopping Device

1 612 300 034

Stopping Device

1 612 300 034

₹ 82.00 *

Availability 2

Price group: 00

₹ 82.00 *

*Prices shown are net prices excluding GST

Pos. 27

Pos. 27 | Air-Deflector Ring

1 619 P09 017

Air-Deflector Ring

1 619 P09 017

₹ 67.00 *

Availability 1

Price group: 00

₹ 67.00 *

*Prices shown are net prices excluding GST

Pos. 28

Pos. 28 | Compression Spring

1 619 P15 323

Compression Spring

1 619 P15 323

₹ 58.00 *

Availability 1

Price group: 00

₹ 58.00 *

*Prices shown are net prices excluding GST

Pos. 31

Pos. 31 | Supporting Disc

1 610 251 006

Supporting Disc

1 610 251 006

₹ 161.00 *

Availability 1

Price group: 00

₹ 161.00 *

*Prices shown are net prices excluding GST

Pos. 34

Pos. 34 | Flange

1 610 516 013

Flange

1 610 516 013

₹ 65.00 *

Availability 1

Price group: 00

₹ 65.00 *

*Prices shown are net prices excluding GST

Pos. 43

Pos. 43 | Fan Cover

1 619 P08 767

Fan Cover

1 619 P08 767

₹ 286.00 *

Availability 1

Price group: 00

₹ 286.00 *

*Prices shown are net prices excluding GST

Pos. 57

Pos. 57 | Striker

1 619 P17 992

Striker

1 619 P17 992

₹ 170.00 *

Availability 1

Price group: 00

₹ 170.00 *

*Prices shown are net prices excluding GST

Pos. 69

Pos. 69 | Retaining Bracket

1 610 099 004

Retaining Bracket

1 610 099 004

₹ 118.00 *

Availability 1

Price group: 00

₹ 118.00 *

*Prices shown are net prices excluding GST

Pos. 72

Pos. 72 | Eccentric Cog Wheel

1 619 PS0 830

Eccentric Cog Wheel

1 619 PS0 830

₹ 714.00 *

Availability 1

Price group: 00

₹ 714.00 *

*Prices shown are net prices excluding GST

Pos. 73

Pos. 73 | Housing Cover

1 619 P14 241

Housing Cover

1 619 P14 241

₹ 305.00 *

Availability 1

Price group: 00

₹ 305.00 *

*Prices shown are net prices excluding GST

Pos. 74

Pos. 74 | Holding-Down-Appliance

1 619 P14 481

Holding-Down-Appliance

1 619 P14 481

₹ 73.00 *

Availability 1

Price group: 00

₹ 73.00 *

*Prices shown are net prices excluding GST

Pos. 75

Pos. 75 | Handle

1 619 P08 778

Handle

1 619 P08 778

₹ 388.00 *

Availability 1

Price group: 00

₹ 388.00 *

*Prices shown are net prices excluding GST

Pos. 76

Pos. 76 | Torx Oval-Head Screw M5X12-TORX,T25 SILVER

1 613 435 015

Torx Oval-Head Screw M5X12-TORX,T25 SILVER

1 613 435 015

₹ 54.00 *

Availability 1

Price group: 00

₹ 54.00 *

*Prices shown are net prices excluding GST

Pos. 81

Pos. 81 | Handle Cover

1 619 P08 780

Handle Cover

1 619 P08 780

₹ 185.00 *

Availability 1

Price group: 00

₹ 185.00 *

*Prices shown are net prices excluding GST

Pos. 84

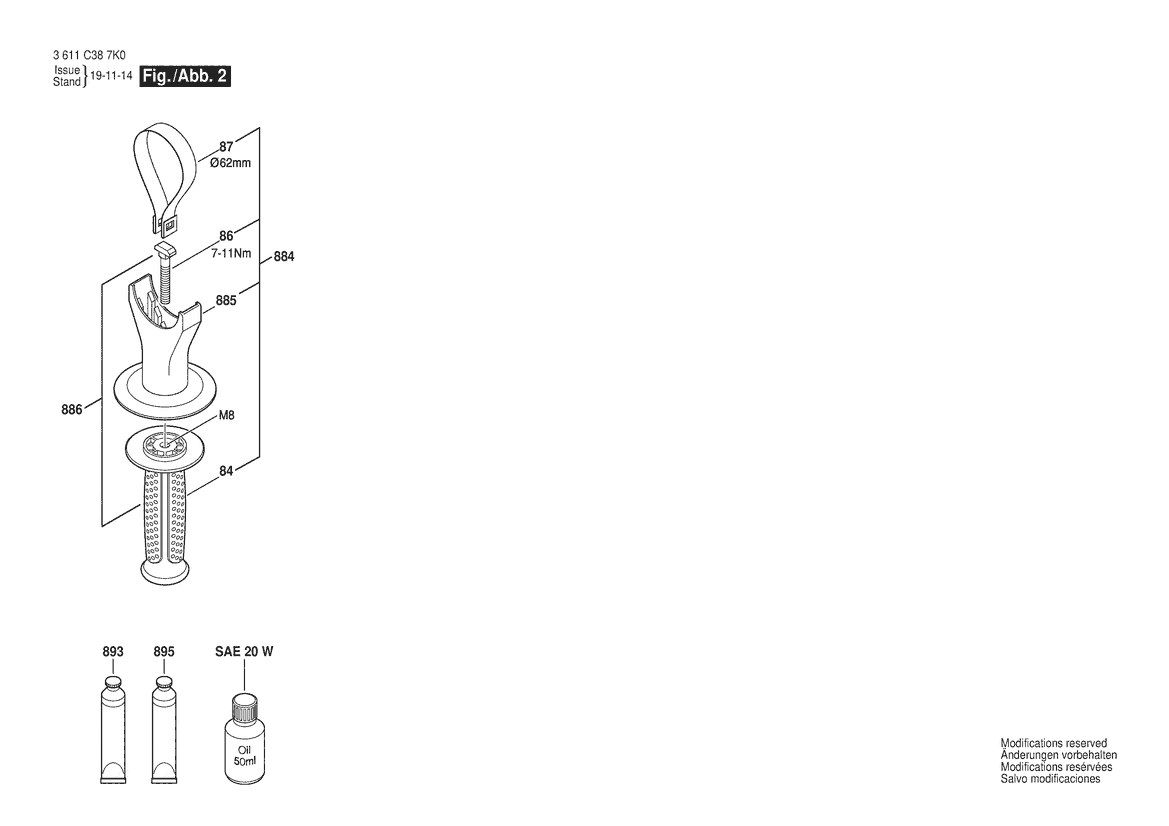

Pos. 84 | Auxiliary Handle M8 BLACK

1 612 025 060

Auxiliary Handle M8 BLACK

1 612 025 060

₹ 227.00 *

Availability 1

Price group: 00

₹ 227.00 *

*Prices shown are net prices excluding GST

Pos. 86

Pos. 86 | T-Head Bolt M8X40 MM

1 613 490 002

T-Head Bolt M8X40 MM

1 613 490 002

₹ 76.00 *

Availability 1

Price group: 00

₹ 76.00 *

*Prices shown are net prices excluding GST

Pos. 87

Pos. 87 | Clamping Band Ø62 MM

1 611 316 019

Clamping Band Ø62 MM

1 611 316 019

₹ 123.00 *

Availability 1

Price group: 00

₹ 123.00 *

*Prices shown are net prices excluding GST

Pos. 95

Pos. 95 | O-Ring 32,0X1,5 MM

1 610 210 173

O-Ring 32,0X1,5 MM

1 610 210 173

₹ 48.00 *

Availability 2

Price group: 00

₹ 48.00 *

*Prices shown are net prices excluding GST

Pos. 104

Pos. 104 | Seal Ring

1 619 P08 783

Seal Ring

1 619 P08 783

₹ 58.00 *

Availability 2

Price group: 00

₹ 58.00 *

*Prices shown are net prices excluding GST

Pos. 111

Pos. 111 | Bushing

1 610 290 064

Bushing

1 610 290 064

₹ 50.00 *

Availability 1

Price group: 00

₹ 50.00 *

*Prices shown are net prices excluding GST

Pos. 112

Pos. 112 | Hex Nut DIN 936-M8X1-8

1 613 300 008

Hex Nut DIN 936-M8X1-8

1 613 300 008

₹ 49.00 *

Availability 1

Price group: 00

₹ 49.00 *

*Prices shown are net prices excluding GST

Pos. 113

Pos. 113 | Tapping Screw ST-4,8X57,5-TORX,T20

1 613 435 009

Tapping Screw ST-4,8X57,5-TORX,T20

1 613 435 009

₹ 52.00 *

Availability 2

Price group: 00

₹ 52.00 *

*Prices shown are net prices excluding GST

Pos. 117

Pos. 117 | Needle-Roller Assembly

1 619 P07 713

Needle-Roller Assembly

1 619 P07 713

₹ 74.00 *

Availability 2

Price group: 00

₹ 74.00 *

*Prices shown are net prices excluding GST

Pos. 129

Pos. 129 | Cover Sleeve

1 619 P15 396

Cover Sleeve

1 619 P15 396

₹ 285.00 *

Availability 1

Price group: 00

₹ 285.00 *

*Prices shown are net prices excluding GST

Pos. 138

Pos. 138 | Sealing Frame

1 619 P08 785

Sealing Frame

1 619 P08 785

₹ 58.00 *

Availability 1

Price group: 00

₹ 58.00 *

*Prices shown are net prices excluding GST

Pos. 141

Pos. 141 | Rotary shaft lip seal

1 610 290 066

Rotary shaft lip seal

1 610 290 066

₹ 257.00 *

Availability 1

Price group: 00

₹ 257.00 *

*Prices shown are net prices excluding GST

Pos. 143

Pos. 143 | Retaining ring DIN 7993-28X2

1 614 601 021

Retaining ring DIN 7993-28X2

1 614 601 021

₹ 58.00 *

Availability 1

Price group: 00

₹ 58.00 *

*Prices shown are net prices excluding GST

Pos. 145

Pos. 145 | Spring retaining ring

1 610 119 012

Spring retaining ring

1 610 119 012

₹ 52.00 *

Availability 1

Price group: 00

₹ 52.00 *

*Prices shown are net prices excluding GST

Pos. 151

Pos. 151 | Stop Disc

1 619 P14 464

Stop Disc

1 619 P14 464

₹ 73.00 *

Availability 1

Price group: 00

₹ 73.00 *

*Prices shown are net prices excluding GST

Pos. 152

Pos. 152 | Retaining ring

1 619 P14 463

Retaining ring

1 619 P14 463

₹ 67.00 *

Availability 1

Price group: 00

₹ 67.00 *

*Prices shown are net prices excluding GST

Pos. 153

Pos. 153 | Retaining ring

1 614 601 030

Retaining ring

1 614 601 030

₹ 72.00 *

Availability 1

Price group: 00

₹ 72.00 *

*Prices shown are net prices excluding GST

Pos. 154

Pos. 154 | Spring retaining ring DIN 472-42X1,75MM

2 916 660 019

Spring retaining ring DIN 472-42X1,75MM

2 916 660 019

₹ 80.00 *

Availability 1

Price group: 00

₹ 80.00 *

*Prices shown are net prices excluding GST

Pos. 155

Pos. 155 | Retaining ring

1 619 P15 397

Retaining ring

1 619 P15 397

₹ 58.00 *

Availability 1

Price group: 00

₹ 58.00 *

*Prices shown are net prices excluding GST

Pos. 160

Pos. 160 | Damping Ring

1 619 P08 787

Damping Ring

1 619 P08 787

₹ 34.00 *

Availability 1

Price group: 00

₹ 34.00 *

*Prices shown are net prices excluding GST

Pos. 161

Pos. 161 | Damping Ring

1 619 P14 753

Damping Ring

1 619 P14 753

₹ 49.00 *

Availability 1

Price group: 00

₹ 49.00 *

*Prices shown are net prices excluding GST

Pos. 162

Pos. 162 | O-Ring 22,0X3,5 MM

1 610 210 163

O-Ring 22,0X3,5 MM

1 610 210 163

₹ 71.00 *

Availability 1

Price group: 00

₹ 71.00 *

*Prices shown are net prices excluding GST

Pos. 163

Pos. 163 | Seal Ring

1 610 290 065

Seal Ring

1 610 290 065

₹ 185.00 *

Availability 1

Price group: 00

₹ 185.00 *

*Prices shown are net prices excluding GST

Pos. 165

Pos. 165 | O-Ring 22,0X4,0 MM

1 610 210 079

O-Ring 22,0X4,0 MM

1 610 210 079

₹ 89.00 *

Availability 1

Price group: 00

₹ 89.00 *

*Prices shown are net prices excluding GST

Pos. 166

Pos. 166 | Sealing Ring

1 619 P14 462

Sealing Ring

1 619 P14 462

₹ 49.00 *

Availability 1

Price group: 00

₹ 49.00 *

*Prices shown are net prices excluding GST

Pos. 168

Pos. 168 | O-Ring

1 619 P08 792

O-Ring

1 619 P08 792

₹ 38.00 *

Availability 2

Price group: 00

₹ 38.00 *

*Prices shown are net prices excluding GST

Pos. 169

Pos. 169 | Rubber Plug

1 619 P14 461

Rubber Plug

1 619 P14 461

₹ 31.00 *

Availability 1

Price group: 00

₹ 31.00 *

*Prices shown are net prices excluding GST

Pos. 170

Pos. 170 | O-Ring 22,0X3,0 MM

1 610 210 144

O-Ring 22,0X3,0 MM

1 610 210 144

₹ 50.00 *

Availability 1

Price group: 00

₹ 50.00 *

*Prices shown are net prices excluding GST

Pos. 171

Pos. 171 | Torx Oval-Head Screw M5X16-TORX,T25 SILVER

1 613 435 014

Torx Oval-Head Screw M5X16-TORX,T25 SILVER

1 613 435 014

₹ 50.00 *

Availability 4

Price group: 00

₹ 50.00 *

*Prices shown are net prices excluding GST

Pos. 172

Pos. 172 | Torx Oval-Head Screw M6X30-TORX,T30 SILVER

1 613 435 013

Torx Oval-Head Screw M6X30-TORX,T30 SILVER

1 613 435 013

₹ 48.00 *

Availability 8

Price group: 00

₹ 48.00 *

*Prices shown are net prices excluding GST

Pos. 173

Pos. 173 | Screw 4X14

1 619 P01 380

Screw 4X14

1 619 P01 380

₹ 29.00 *

Availability 2

Price group: 00

₹ 29.00 *

*Prices shown are net prices excluding GST

Pos. 174

Pos. 174 | Torx Oval-Head Screw M4,8X25-TORX,T25 SILVER

1 613 435 012

Torx Oval-Head Screw M4,8X25-TORX,T25 SILVER

1 613 435 012

₹ 48.00 *

Availability 4

Price group: 00

₹ 48.00 *

*Prices shown are net prices excluding GST

Pos. 175

Pos. 175 | Screw

1 619 P00 228

Screw

1 619 P00 228

₹ 111.00 *

Availability 4

Price group: 00

₹ 111.00 *

*Prices shown are net prices excluding GST

Pos. 177

Pos. 177 | Tapping Screw ST3,9X32 SILVER

1 603 435 051

Tapping Screw ST3,9X32 SILVER

1 603 435 051

₹ 47.00 *

Availability 2

Price group: 00

₹ 47.00 *

*Prices shown are net prices excluding GST

Pos. 178

Pos. 178 | Connecting Cable

1 619 P15 164

Connecting Cable

1 619 P15 164

₹ 185.00 *

Availability 1

Price group: 00

₹ 185.00 *

*Prices shown are net prices excluding GST

Pos. 179

Pos. 179 | Screw

1 619 P07 815

Screw

1 619 P07 815

₹ 37.00 *

Availability 2

Price group: 00

₹ 37.00 *

*Prices shown are net prices excluding GST

Pos. 183

Pos. 183 | Felt Seal

1 619 P09 862

Felt Seal

1 619 P09 862

₹ 38.00 *

Availability 1

Price group: 00

₹ 38.00 *

*Prices shown are net prices excluding GST

Pos. 803

Pos. 803 | Armature 220V

1 619 P15 112

Armature 220V

1 619 P15 112

₹ 2,707.00 *

Availability 1

Price group: 00

₹ 2,707.00 *

*Prices shown are net prices excluding GST

Pos. 811

Pos. 811 | Carbon-Brush Set

1 617 014 138

Carbon-Brush Set

1 617 014 138

₹ 367.00 *

Availability 1

Price group: 00

₹ 367.00 *

*Prices shown are net prices excluding GST

Pos. 817

Pos. 817 | Spiral Spring

1 614 652 004

Spiral Spring

1 614 652 004

₹ 294.00 *

Availability 2

Price group: 00

₹ 294.00 *

*Prices shown are net prices excluding GST

Pos. 823

Pos. 823 | Toolholder

1 619 P15 816

Toolholder

1 619 P15 816

₹ 1,554.00 *

Availability 1

Price group: 00

₹ 1,554.00 *

*Prices shown are net prices excluding GST

Pos. 839

Pos. 839 | Gear Housing

1 619 P14 924

Gear Housing

1 619 P14 924

₹ 1,311.00 *

Availability 1

Price group: 00

₹ 1,311.00 *

*Prices shown are net prices excluding GST

Pos. 840

Pos. 840 | Impact Mechanism Housing

1 619 P15 817

Impact Mechanism Housing

1 619 P15 817

₹ 2,836.00 *

Availability 1

Price group: 00

₹ 2,836.00 *

*Prices shown are net prices excluding GST

Pos. 841

Pos. 841 | Striker Pin

1 619 P15 818

Striker Pin

1 619 P15 818

₹ 826.00 *

Availability 1

Price group: 00

₹ 826.00 *

*Prices shown are net prices excluding GST

Pos. 854

Pos. 854 | Stop Disc

1 619 P14 929

Stop Disc

1 619 P14 929

₹ 280.00 *

Availability 1

Price group: 00

₹ 280.00 *

*Prices shown are net prices excluding GST

Pos. 856

Pos. 856 | Hammer Piston

1 619 P14 930

Hammer Piston

1 619 P14 930

₹ 389.00 *

Availability 1

Price group: 00

₹ 389.00 *

*Prices shown are net prices excluding GST

Pos. 884

Pos. 884 | Auxiliary Handle

1 619 P14 935

Auxiliary Handle

1 619 P14 935

₹ 389.00 *

Availability 1

Price group: 00

₹ 389.00 *

*Prices shown are net prices excluding GST

Pos. 885

Pos. 885 | Support clamp

1 618 040 074

Support clamp

1 618 040 074

₹ 160.00 *

Availability 1

Price group: 00

₹ 160.00 *

*Prices shown are net prices excluding GST

Pos. 886

Pos. 886 | Auxiliary Handle M8 BLACK

1 617 000 459

Auxiliary Handle M8 BLACK

1 617 000 459

₹ 431.00 *

Availability 1

Price group: 00

₹ 431.00 *

*Prices shown are net prices excluding GST

Pos. 893

Pos. 893 | Grease Tube 225 ML

1 615 430 002

Grease Tube 225 ML

1 615 430 002

₹ 2,864.00 *

Availability 1

Price group: 00

₹ 2,864.00 *

*Prices shown are net prices excluding GST

Pos. 895

Pos. 895 | Grease Tube 225 ML

1 615 430 015

Grease Tube 225 ML

1 615 430 015

₹ 1,075.00 *

Availability 1

Price group: 00

₹ 1,075.00 *

*Prices shown are net prices excluding GST

Pos. 898

Pos. 898 | Wear and Tear Part Set

1 619 P15 819

Wear and Tear Part Set

1 619 P15 819

₹ 2,134.00 *

Availability 1

Price group: 00
