Cordless Angle Grinder
GWS 18V-15 S | 3 601 JM6 002 | / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JM6 002

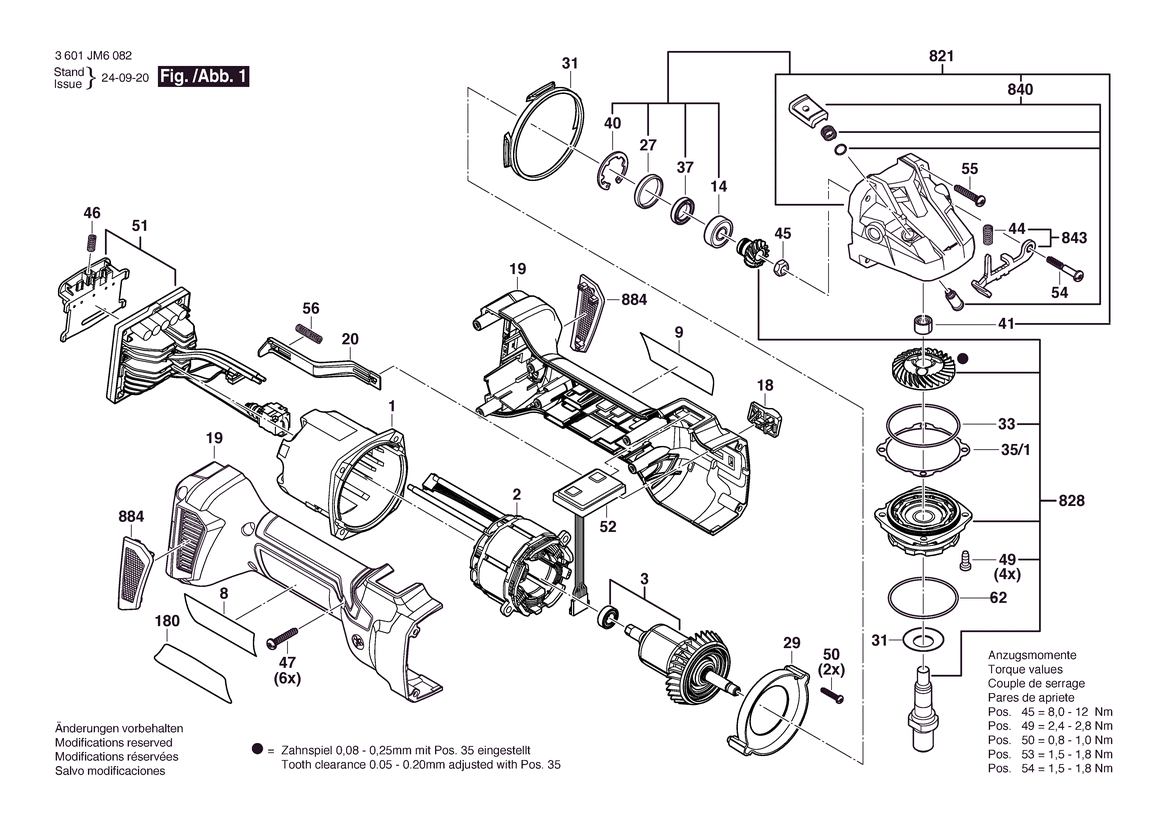

Image 1
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 00
₹  52.00 *
Prices shown are net prices excluding GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Plain bearing
-
part
Spare part number: 1 600 200 029
Position: 41
Availability: 1
Price group: 00
₹  31.00 *
Prices shown are net prices excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 00
₹  29.00 *
Prices shown are net prices excluding GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 37
Availability: 1
Price group: 00
₹  48.00 *
Prices shown are net prices excluding GST
Switch Handle
-
part
Spare part number: 1 600 A01 6PW
Position: 18
Availability: 1
Price group: 00
₹  80.00 *
Prices shown are net prices excluding GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 00
₹  39.00 *
Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 44
Availability: 1
Price group: 00
₹  32.00 *
Prices shown are net prices excluding GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 843
Availability: 1
Price group: 00
₹  254.00 *
Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 00
₹  51.00 *
Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 P00 106
Position: 47
Availability: 6
Price group: 00
₹  29.00 *
Prices shown are net prices excluding GST
Torx Oval-Head Screw 4X25
-
part
Spare part number: 1 619 P01 066
Position: 55
Availability: 3
Price group: 00
₹  31.00 *
Prices shown are net prices excluding GST
groove ball bearing
-
Spare part number: 1 619 P09 955
Position: 14
Availability: 1
Price group: 00
₹  82.00 *
Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 619 P11 487
Position: 56
Availability: 1
Price group: 00
₹  54.00 *
Prices shown are net prices excluding GST
O-Ring
-
Spare part number: 1 619 P14 427
Position: 33
Availability: 1
Price group: 00
₹  56.00 *
Prices shown are net prices excluding GST
Push Button
-
Spare part number: 1 619 P17 077
Position: 840
Availability: 1
Price group: 00
₹  240.00 *
Prices shown are net prices excluding GST
Hex Nut
-
Spare part number: 1 619 P17 544
Position: 45
Availability: 1
Price group: 00
₹  41.00 *
Prices shown are net prices excluding GST
Gear Housing
-
Spare part number: 1 619 PS1 123
Position: 821
Availability: 1
Price group: 00
₹  817.00 *
Prices shown are net prices excluding GST
Filter
-
part
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: 00
₹  176.00 *
Prices shown are net prices excluding GST
Filter
-
part
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: 00
₹  176.00 *
Prices shown are net prices excluding GST
Housing Cover
-
Spare part number: 1 619 PS1 136
Position: 19
Availability: 1
Price group: 00
₹  492.00 *
Prices shown are net prices excluding GST
Housing Cover
-
Spare part number: 1 619 PS1 136
Position: 19
Availability: 1
Price group: 00
₹  492.00 *
Prices shown are net prices excluding GST
Motor Housing
-
Spare part number: 1 619 PS1 137
Position: 1
Availability: 1
Price group: 00
₹  174.00 *
Prices shown are net prices excluding GST
Stator
-
Spare part number: 1 619 PS1 138
Position: 2
Availability: 1
Price group: 00
₹  2,166.00 *
Prices shown are net prices excluding GST
Rotor
-
Spare part number: 1 619 PS1 139
Position: 3
Availability: 1
Price group: 00
₹  1,307.00 *
Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS1 140
Position: 29
Availability: 1
Price group: 00
₹  82.00 *
Prices shown are net prices excluding GST
Electronic Module
-
Spare part number: 1 619 PS1 141
Position: 51
Availability: 1
Price group: 00
₹  5,036.00 *
Prices shown are net prices excluding GST
Electronic Module
-
Spare part number: 1 619 PS1 142
Position: 52
Availability: 1
Price group: 00
₹  1,180.00 *
Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PS1 144
Position: 9
Availability: 1
Price group: -
-
Adjusting Slide
-
Spare part number: 1 619 PS1 145
Position: 20
Availability: 1
Price group: 00
₹  84.00 *
Prices shown are net prices excluding GST
Cover Ring
-
Spare part number: 1 619 PS1 146
Position: 31
Availability: 1
Price group: 00
₹  94.00 *
Prices shown are net prices excluding GST
Cover Ring
-
Spare part number: 1 619 PS1 146
Position: 31
Availability: 1
Price group: 00
₹  94.00 *
Prices shown are net prices excluding GST
Bearing Flange
-
Spare part number: 1 619 PS1 512
Position: 828
Availability: 1
Price group: 00
₹  1,294.00 *
Prices shown are net prices excluding GST
Sticker
-
Spare part number: 1 619 PS1 522
Position: 180
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 PS1 526
Position: 8
Availability: 1
Price group: -
-
Torx Flat-Head Screw 3X16
-
part
Spare part number: 2 609 110 201
Position: 50
Availability: 2
Price group: 00
₹  29.00 *
Prices shown are net prices excluding GST
Thread-forming tap. Screw M4X16
-
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 00
₹  32.00 *
Prices shown are net prices excluding GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 62
Availability: 1
Price group: 00
₹  52.00 *
Prices shown are net prices excluding GST

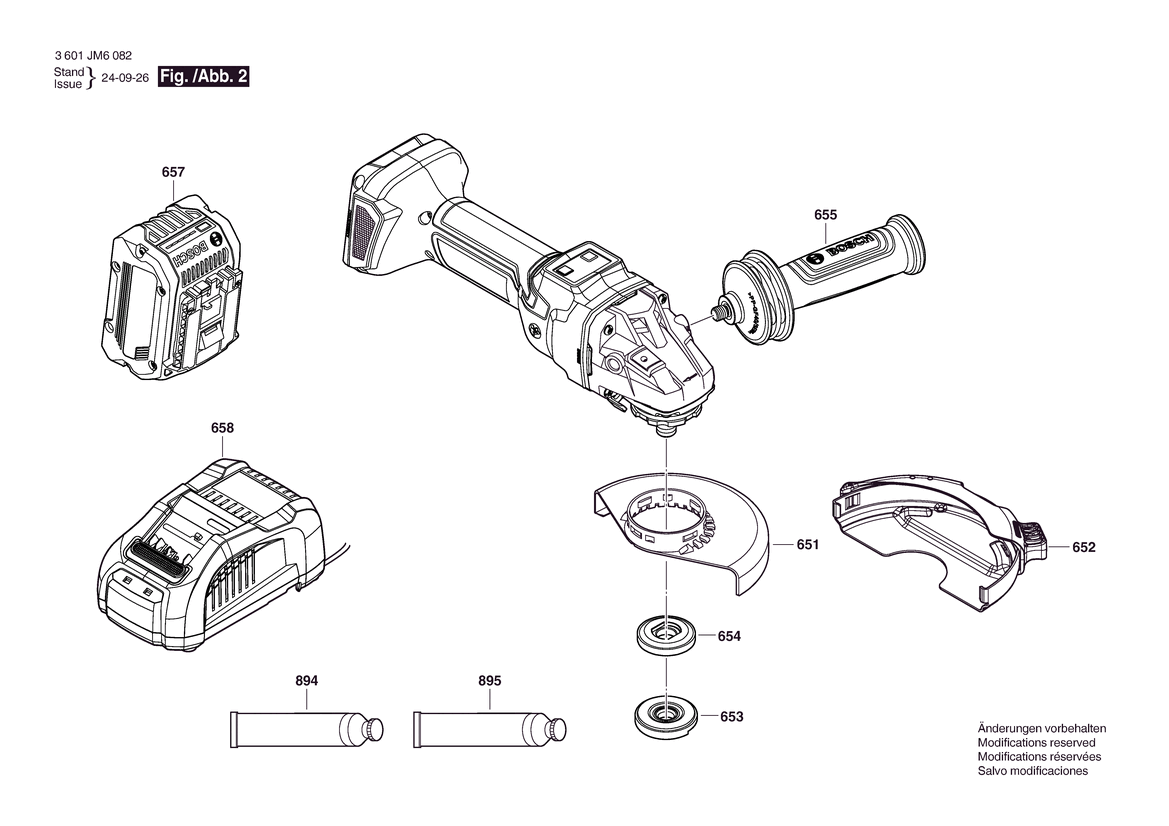

Image 1
Protective Cover
-
part
Spare part number: 1 600 A00 XK9
Position: 651
Availability: 1
Price group: 00
₹  559.00 *
Prices shown are net prices excluding GST
Quick Acting Flange
-
part
Spare part number: 1 600 A01 6DN
Position: 653
Availability: 1
Price group: 00
₹  396.00 *
Prices shown are net prices excluding GST
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 652
Availability: 1
Price group: 00
₹  274.00 *
Prices shown are net prices excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 655
Availability: 1
Price group: 00
₹  806.00 *
Prices shown are net prices excluding GST
Grease Tube 225 ML
-
part
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 00
₹  1,633.00 *
Prices shown are net prices excluding GST
Battery Pack
-
Spare part number: 1 607 A35 0ZU
Position: 657
Availability: 1
Price group: -
-
Grease Tube 225 ML
-
part
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 00
₹  1,512.00 *
Prices shown are net prices excluding GST
Clamping Flange Ø22,3XØ42 MM
-
part
Spare part number: 2 605 703 014
Position: 654
Availability: 1
Price group: 00
₹  108.00 *
Prices shown are net prices excluding GST
Charger EU GAL 1880 CV 230/14,4-18V
-
part
Spare part number: 2 607 225 921
Position: 658
Availability: 1
Price group: 00
₹  5,258.00 *
Prices shown are net prices excluding GST
1
2
Spare parts in cart

46 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 619 PS1 137
-
₹  174.00 *
*Prices shown are net prices excluding GST
Pos. 2 | Stator
1 619 PS1 138
-
₹  2,166.00 *
*Prices shown are net prices excluding GST
Pos. 3 | Rotor
1 619 PS1 139
-
₹  1,307.00 *
*Prices shown are net prices excluding GST
Pos. 8 | Nameplate
1 619 PS1 526
-
-
Pos. 9 | Manufacturer's nameplate
1 619 PS1 144
-
-
Pos. 14 | groove ball bearing
1 619 P09 955
-
₹  82.00 *
*Prices shown are net prices excluding GST
Pos. 18 | Switch Handle
1 600 A01 6PW
-
₹  80.00 *
*Prices shown are net prices excluding GST
Pos. 19 | Housing Cover
1 619 PS1 136
-
₹  492.00 *
*Prices shown are net prices excluding GST
Pos. 20 | Adjusting Slide
1 619 PS1 145
-
₹  84.00 *
*Prices shown are net prices excluding GST
Pos. 27 | Rubber Ring
1 600 206 025
-
₹  29.00 *
*Prices shown are net prices excluding GST
Pos. 29 | Air-Deflector Ring
1 619 PS1 140
-
₹  82.00 *
*Prices shown are net prices excluding GST
Pos. 31 | Cover Ring
1 619 PS1 146
-
₹  94.00 *
*Prices shown are net prices excluding GST
Pos. 33 | O-Ring
1 619 P14 427
-
₹  56.00 *
*Prices shown are net prices excluding GST
Pos. 35/1 | Shim 0,1 MM THICK
1 600 136 013
-
₹  74.00 *
*Prices shown are net prices excluding GST
Pos. 35/1 | Shim 0,2 MM THICK
1 600 136 014
-
₹  74.00 *
*Prices shown are net prices excluding GST
Pos. 35/1 | Shim 0,3 MM THICK
1 600 136 015
-
₹  71.00 *
*Prices shown are net prices excluding GST
Pos. 37 | Holder
1 600 A00 P17
-
₹  48.00 *
*Prices shown are net prices excluding GST
Pos. 40 | Retaining clip
1 600 119 011
-
₹  52.00 *
*Prices shown are net prices excluding GST
Pos. 41 | Plain bearing
1 600 200 029
-
₹  31.00 *
*Prices shown are net prices excluding GST
Pos. 44 | Compression Spring
1 604 611 042
-
₹  32.00 *
*Prices shown are net prices excluding GST
Pos. 45 | Hex Nut
1 619 P17 544
-
₹  41.00 *
*Prices shown are net prices excluding GST
Pos. 46 | Compression Spring
1 609 280 477
-
₹  51.00 *
*Prices shown are net prices excluding GST
Pos. 47 | Screw
1 619 P00 106
-
₹  29.00 *
*Prices shown are net prices excluding GST
Pos. 49 | Thread-forming tap. Screw M4X16
2 914 491 410
-
₹  32.00 *
*Prices shown are net prices excluding GST
Pos. 50 | Torx Flat-Head Screw 3X16
2 609 110 201
-
₹  29.00 *
*Prices shown are net prices excluding GST
Pos. 51 | Electronic Module
1 619 PS1 141
-
₹  5,036.00 *
*Prices shown are net prices excluding GST
Pos. 52 | Electronic Module
1 619 PS1 142
-
₹  1,180.00 *
*Prices shown are net prices excluding GST
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
₹  39.00 *
*Prices shown are net prices excluding GST
Pos. 55 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
₹  31.00 *
*Prices shown are net prices excluding GST
Pos. 56 | Compression Spring
1 619 P11 487
-
₹  54.00 *
*Prices shown are net prices excluding GST
Pos. 62 | O-Ring 47,0X1,5 MM
3 600 210 109
-
₹  52.00 *
*Prices shown are net prices excluding GST
Pos. 180 | Sticker
1 619 PS1 522
-
-
Pos. 651 | Protective Cover
1 600 A00 XK9
-
₹  559.00 *
*Prices shown are net prices excluding GST
Pos. 652 | Protective Cover
1 600 A02 059
-
₹  274.00 *
*Prices shown are net prices excluding GST
Pos. 653 | Quick Acting Flange
1 600 A01 6DN
-
₹  396.00 *
*Prices shown are net prices excluding GST
Pos. 654 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
₹  108.00 *
*Prices shown are net prices excluding GST
Pos. 655 | Auxiliary Handle
1 602 025 0A0
-
₹  806.00 *
*Prices shown are net prices excluding GST
Pos. 657 | Battery Pack
1 607 A35 0ZU
-
-
Pos. 658 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
₹  5,258.00 *
*Prices shown are net prices excluding GST
Pos. 821 | Gear Housing
1 619 PS1 123
-
₹  817.00 *
*Prices shown are net prices excluding GST
Pos. 828 | Bearing Flange
1 619 PS1 512
-
₹  1,294.00 *
*Prices shown are net prices excluding GST
Pos. 840 | Push Button
1 619 P17 077
-
₹  240.00 *
*Prices shown are net prices excluding GST
Pos. 843 | Catch Lever
1 607 000 742
-
₹  254.00 *
*Prices shown are net prices excluding GST
Pos. 884 | Filter
1 619 PS1 128
-
₹  176.00 *
*Prices shown are net prices excluding GST
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
₹  1,512.00 *
*Prices shown are net prices excluding GST
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
₹  1,633.00 *
*Prices shown are net prices excluding GST
* Prices shown are net prices excluding GST
Turn the device for 90 degrees.
3 601 JM6 002
Image 1
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 00
₹  52.00 *

Prices shown are net prices excluding GST
-

Please click for futher details

Plain bearing
-
part
Spare part number: 1 600 200 029
Position: 41
Availability: 1
Price group: 00
₹  31.00 *

Prices shown are net prices excluding GST
Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 00
₹  29.00 *

Prices shown are net prices excluding GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 37
Availability: 1
Price group: 00
₹  48.00 *

Prices shown are net prices excluding GST
Switch Handle
-
part
Spare part number: 1 600 A01 6PW
Position: 18
Availability: 1
Price group: 00
₹  80.00 *

Prices shown are net prices excluding GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 00
₹  39.00 *

Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 44
Availability: 1
Price group: 00
₹  32.00 *

Prices shown are net prices excluding GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 843
Availability: 1
Price group: 00
₹  254.00 *

Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 00
₹  51.00 *

Prices shown are net prices excluding GST
Screw
-
Spare part number: 1 619 P00 106
Position: 47
Availability: 6
Price group: 00
₹  29.00 *

Prices shown are net prices excluding GST
Torx Oval-Head Screw 4X25
-
part
Spare part number: 1 619 P01 066
Position: 55
Availability: 3
Price group: 00
₹  31.00 *

Prices shown are net prices excluding GST
groove ball bearing
-
Spare part number: 1 619 P09 955
Position: 14
Availability: 1
Price group: 00
₹  82.00 *

Prices shown are net prices excluding GST
Compression Spring
-
part
Spare part number: 1 619 P11 487
Position: 56
Availability: 1
Price group: 00
₹  54.00 *

Prices shown are net prices excluding GST
O-Ring
-
Spare part number: 1 619 P14 427
Position: 33
Availability: 1
Price group: 00
₹  56.00 *

Prices shown are net prices excluding GST
Push Button
-
Spare part number: 1 619 P17 077
Position: 840
Availability: 1
Price group: 00
₹  240.00 *

Prices shown are net prices excluding GST
Hex Nut
-
Spare part number: 1 619 P17 544
Position: 45
Availability: 1
Price group: 00
₹  41.00 *

Prices shown are net prices excluding GST
Gear Housing
-
Spare part number: 1 619 PS1 123
Position: 821
Availability: 1
Price group: 00
₹  817.00 *

Prices shown are net prices excluding GST
Filter
-
part
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: 00
₹  176.00 *

Prices shown are net prices excluding GST
Filter
-
part
Spare part number: 1 619 PS1 128
Position: 884
Availability: 1
Price group: 00
₹  176.00 *

Prices shown are net prices excluding GST
Housing Cover
-
Spare part number: 1 619 PS1 136
Position: 19
Availability: 1
Price group: 00
₹  492.00 *

Prices shown are net prices excluding GST
Housing Cover
-
Spare part number: 1 619 PS1 136
Position: 19
Availability: 1
Price group: 00
₹  492.00 *

Prices shown are net prices excluding GST
Motor Housing
-
Spare part number: 1 619 PS1 137
Position: 1
Availability: 1
Price group: 00
₹  174.00 *

Prices shown are net prices excluding GST
Stator
-
Spare part number: 1 619 PS1 138
Position: 2
Availability: 1
Price group: 00
₹  2,166.00 *

Prices shown are net prices excluding GST
Rotor
-
Spare part number: 1 619 PS1 139
Position: 3
Availability: 1
Price group: 00
₹  1,307.00 *

Prices shown are net prices excluding GST
Air-Deflector Ring
-
Spare part number: 1 619 PS1 140
Position: 29
Availability: 1
Price group: 00
₹  82.00 *

Prices shown are net prices excluding GST
Electronic Module
-
Spare part number: 1 619 PS1 141
Position: 51
Availability: 1
Price group: 00
₹  5,036.00 *

Prices shown are net prices excluding GST
Electronic Module
-
Spare part number: 1 619 PS1 142
Position: 52
Availability: 1
Price group: 00
₹  1,180.00 *

Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PS1 144
Position: 9
Availability: 1
Price group: -
-

Adjusting Slide
-
Spare part number: 1 619 PS1 145
Position: 20
Availability: 1
Price group: 00
₹  84.00 *

Prices shown are net prices excluding GST
Cover Ring
-
Spare part number: 1 619 PS1 146
Position: 31
Availability: 1
Price group: 00
₹  94.00 *

Prices shown are net prices excluding GST
Cover Ring
-
Spare part number: 1 619 PS1 146
Position: 31
Availability: 1
Price group: 00
₹  94.00 *

Prices shown are net prices excluding GST
Bearing Flange
-
Spare part number: 1 619 PS1 512
Position: 828
Availability: 1
Price group: 00
₹  1,294.00 *

Prices shown are net prices excluding GST
Sticker
-
Spare part number: 1 619 PS1 522
Position: 180
Availability: 1
Price group: -
-

Nameplate
-
Spare part number: 1 619 PS1 526
Position: 8
Availability: 1
Price group: -
-

Torx Flat-Head Screw 3X16
-
part
Spare part number: 2 609 110 201
Position: 50
Availability: 2
Price group: 00
₹  29.00 *

Prices shown are net prices excluding GST
Thread-forming tap. Screw M4X16
-
part
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: 00
₹  32.00 *

Prices shown are net prices excluding GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 62
Availability: 1
Price group: 00
₹  52.00 *

Prices shown are net prices excluding GST
Image 1
Protective Cover
-
part
Spare part number: 1 600 A00 XK9
Position: 651
Availability: 1
Price group: 00
₹  559.00 *

Prices shown are net prices excluding GST
Quick Acting Flange
-
part
Spare part number: 1 600 A01 6DN
Position: 653
Availability: 1
Price group: 00
₹  396.00 *

Prices shown are net prices excluding GST
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 652
Availability: 1
Price group: 00
₹  274.00 *

Prices shown are net prices excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 655
Availability: 1
Price group: 00
₹  806.00 *

Prices shown are net prices excluding GST
Grease Tube 225 ML
-
part
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 00
₹  1,633.00 *

Prices shown are net prices excluding GST
Battery Pack
-
Spare part number: 1 607 A35 0ZU
Position: 657
Availability: 1
Price group: -
-

Grease Tube 225 ML
-
part
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 00
₹  1,512.00 *

Prices shown are net prices excluding GST
Clamping Flange Ø22,3XØ42 MM
-
part
Spare part number: 2 605 703 014
Position: 654
Availability: 1
Price group: 00
₹  108.00 *

Prices shown are net prices excluding GST
Charger EU GAL 1880 CV 230/14,4-18V
-
part
Spare part number: 2 607 225 921
Position: 658
Availability: 1
Price group: 00
₹  5,258.00 *

Prices shown are net prices excluding GST
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
