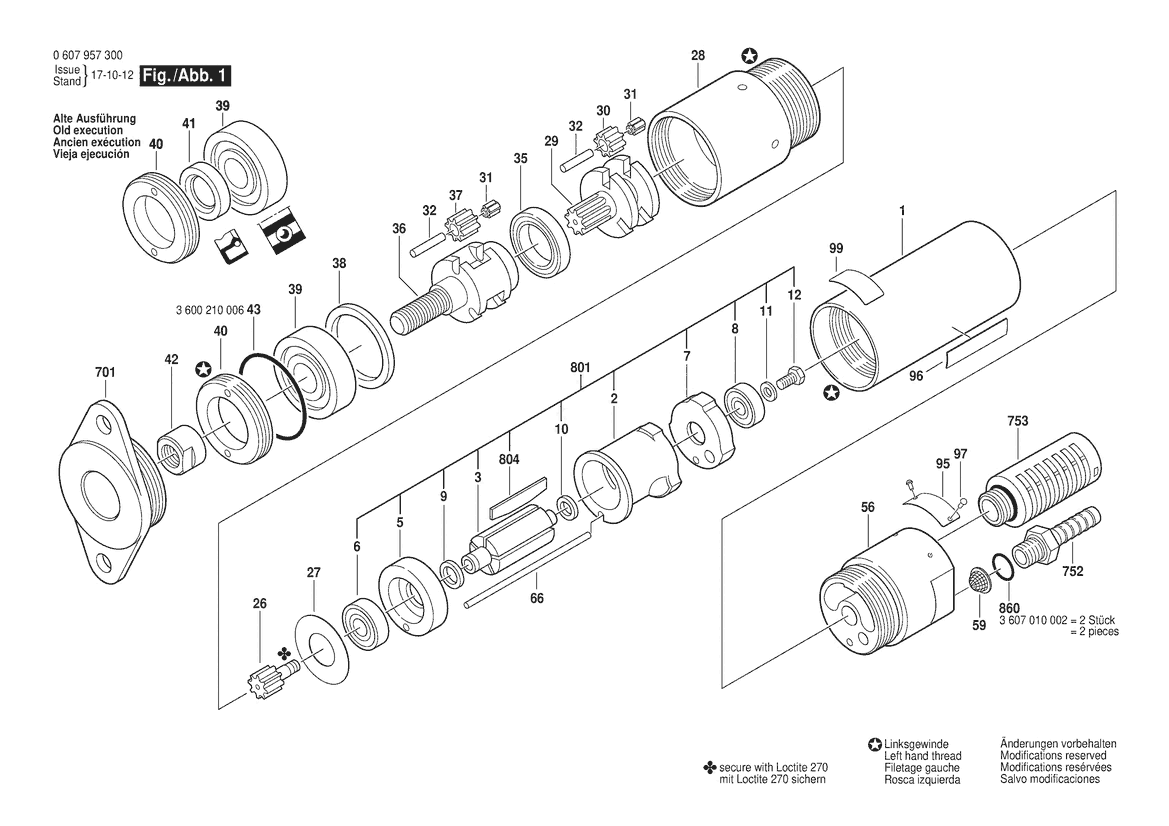

0 607 957 300
Nameplate
-
Spare part number: 1 601 11A 3HF
Position: 95
Availability: 1
Price group: -
-
groove ball bearing 10X26X8
-
Spare part number: 1 900 905 127
Position: 6
Availability: 1
Price group: 00
₹ 707.00 *
Prices shown are net prices excluding GST
Spacer Ring
-
Spare part number: 2 600 200 007
Position: 9
Availability: 1
Price group: -
-
groove ball bearing 8X22X7
-
Spare part number: 2 600 905 052
Position: 8
Availability: 1
Price group: 00
₹ 221.00 *
Prices shown are net prices excluding GST
Hose fitting
-
Spare part number: 2 603 386 002
Position: 752
Availability: 1
Price group: 00
₹ 153.00 *
Prices shown are net prices excluding GST
Hex Screw DIN 933-M5X8-8.8
-
Spare part number: 2 911 061 150
Position: 12
Availability: 1
Price group: -
-
Plain Washer DIN 125-A5,3-ST
-
Spare part number: 2 916 011 012
Position: 11
Availability: 1
Price group: -
-
Strainer
-
Spare part number: 3 600 002 000
Position: 59
Availability: 1
Price group: 00
₹ 74.00 *
Prices shown are net prices excluding GST
Stop Disc
-
Spare part number: 3 600 101 004
Position: 27
Availability: 1
Price group: -
-
Stop Disc
-
Spare part number: 3 600 101 005
Position: 38
Availability: 1
Price group: -
-
Spacer Ring
-
Spare part number: 3 600 202 004
Position: 10
Availability: 1
Price group: -
-
O-Ring 41,0X1,78 MM
-
Spare part number: 3 600 210 006
Position: 43
Availability: 1
Price group: 00
₹ 49.00 *
Prices shown are net prices excluding GST
Threaded Sleeve
-
Spare part number: 3 600 390 004
Position: 42
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 3 600 760 013
Position: 1
Availability: 1
Price group: -
-
groove ball bearing 25X37X7
-
Spare part number: 3 600 905 001
Position: 35
Availability: 1
Price group: -
-
groove ball bearing
-
Spare part number: 3 600 905 025
Position: 39
Availability: 1
Price group: 00
₹ 635.00 *
Prices shown are net prices excluding GST
Needle-Roller Assembly
-
Spare part number: 3 600 910 000
Position: 31
Availability: 6
Price group: 00
₹ 130.00 *
Prices shown are net prices excluding GST
Needle-Roller Assembly
-
Spare part number: 3 600 910 000
Position: 31
Availability: 6
Price group: 00
₹ 130.00 *
Prices shown are net prices excluding GST
Manufacturer's nameplate
-
Spare part number: 3 601 110 331
Position: 96
Availability: 1
Price group: -
-
Reference Plate
-
Spare part number: 3 601 119 236
Position: 99
Availability: 1
Price group: 00
₹ 107.00 *
Prices shown are net prices excluding GST
Grooved Nail
-
Spare part number: 3 603 133 000
Position: 97
Availability: 2
Price group: -
-
Needle Roller
-
Spare part number: 3 603 201 005
Position: 32
Availability: 6
Price group: 00
₹ 46.00 *
Prices shown are net prices excluding GST
Needle Roller
-
Spare part number: 3 603 201 005
Position: 32
Availability: 6
Price group: 00
₹ 46.00 *
Prices shown are net prices excluding GST
Threaded Ring
-
Spare part number: 3 603 344 001
Position: 40
Availability: 1
Price group: -
-
Stator 740W
-
Spare part number: 3 604 090 022
Position: 2
Availability: 1
Price group: -
-
Rotor
-
Spare part number: 3 604 220 021
Position: 3
Availability: 1
Price group: -
-
Straight Pin
-
Spare part number: 3 604 710 006
Position: 66
Availability: 1
Price group: -
-
Connection Housing
-
Spare part number: 3 605 190 051
Position: 56
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 3 605 700 010
Position: 7
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 3 605 700 014
Position: 5
Availability: 1
Price group: -
-
Fastening Flange
-
Spare part number: 3 605 700 046
Position: 701
Availability: 1
Price group: 00
₹ 4,944.00 *
Prices shown are net prices excluding GST
Pinion
-
Spare part number: 3 606 300 156
Position: 26
Availability: 1
Price group: -
-
Cylindrical Gear Z=16
-
Spare part number: 3 606 316 091
Position: 37
Availability: 3
Price group: -
-
Cylindrical Gear
-
Spare part number: 3 606 316 102
Position: 30
Availability: 3
Price group: -
-
Ring Gear Z=46
-
Spare part number: 3 606 334 002
Position: 28
Availability: 1
Price group: -
-
Planetary-Gear Carrier
-
Spare part number: 3 606 337 010
Position: 29
Availability: 1
Price group: -
-
Planetary-Gear Carrier
-
Spare part number: 3 606 337 012
Position: 36
Availability: 1
Price group: -
-
Silencer
-
Spare part number: 3 607 000 073
Position: 753
Availability: 1
Price group: 00
₹ 560.00 *
Prices shown are net prices excluding GST
Parts Set 10 PIECE
-
Spare part number: 3 607 010 022
Position: 860
Availability: 1
Price group: -
-
Parts Set 5 PIECE
-
Spare part number: 3 607 030 254
Position: 804
Availability: 1
Price group: 00
₹ 1,251.00 *
Prices shown are net prices excluding GST
Motor Spare Parts Set
-
Spare part number: 3 607 031 097
Position: 801
Availability: 1
Price group: -
-
1
Spare parts in cart
39 Parts found
Sort by
Description
Pos. 1 | Motor Housing
3 600 760 013
-
Pos. 2 | Stator 740W
3 604 090 022
-
Pos. 3 | Rotor
3 604 220 021
-
Pos. 5 | Bearing Flange
3 605 700 014
-
Pos. 6 | groove ball bearing 10X26X8
1 900 905 127
-
*Prices shown are net prices excluding GST
Pos. 7 | Bearing Flange
3 605 700 010
-
Pos. 8 | groove ball bearing 8X22X7
2 600 905 052
-
*Prices shown are net prices excluding GST
Pos. 9 | Spacer Ring
2 600 200 007
-
Pos. 10 | Spacer Ring
3 600 202 004
-
Pos. 11 | Plain Washer DIN 125-A5,3-ST
2 916 011 012
-
Pos. 12 | Hex Screw DIN 933-M5X8-8.8
2 911 061 150
-
Pos. 26 | Pinion
3 606 300 156
-
Pos. 27 | Stop Disc
3 600 101 004
-
Pos. 28 | Ring Gear Z=46
3 606 334 002
-
Pos. 29 | Planetary-Gear Carrier
3 606 337 010
-
Pos. 30 | Cylindrical Gear
3 606 316 102
-
Pos. 31 | Needle-Roller Assembly
3 600 910 000
-
*Prices shown are net prices excluding GST
Pos. 32 | Needle Roller
3 603 201 005
-
*Prices shown are net prices excluding GST
Pos. 35 | groove ball bearing 25X37X7
3 600 905 001
-
Pos. 36 | Planetary-Gear Carrier
3 606 337 012
-
Pos. 37 | Cylindrical Gear Z=16
3 606 316 091
-
Pos. 38 | Stop Disc
3 600 101 005
-
Pos. 39 | groove ball bearing
3 600 905 025
-
*Prices shown are net prices excluding GST
Pos. 40 | Threaded Ring
3 603 344 001
-
Pos. 42 | Threaded Sleeve
3 600 390 004
-
Pos. 43 | O-Ring 41,0X1,78 MM
3 600 210 006
-
*Prices shown are net prices excluding GST
Pos. 56 | Connection Housing
3 605 190 051
-
Pos. 59 | Strainer
3 600 002 000
-
*Prices shown are net prices excluding GST
Pos. 66 | Straight Pin
3 604 710 006
-
Pos. 95 | Nameplate
1 601 11A 3HF
-
Pos. 96 | Manufacturer's nameplate
3 601 110 331
-
Pos. 97 | Grooved Nail
3 603 133 000
-
Pos. 99 | Reference Plate
3 601 119 236
-
*Prices shown are net prices excluding GST
Pos. 701 | Fastening Flange
3 605 700 046
-
*Prices shown are net prices excluding GST
Pos. 752 | Hose fitting
2 603 386 002
-
*Prices shown are net prices excluding GST
Pos. 753 | Silencer
3 607 000 073
-
*Prices shown are net prices excluding GST
Pos. 801 | Motor Spare Parts Set
3 607 031 097
-
Pos. 804 | Parts Set 5 PIECE
3 607 030 254
-
*Prices shown are net prices excluding GST
Pos. 860 | Parts Set 10 PIECE
3 607 010 022
-
* Prices shown are net prices excluding GST
