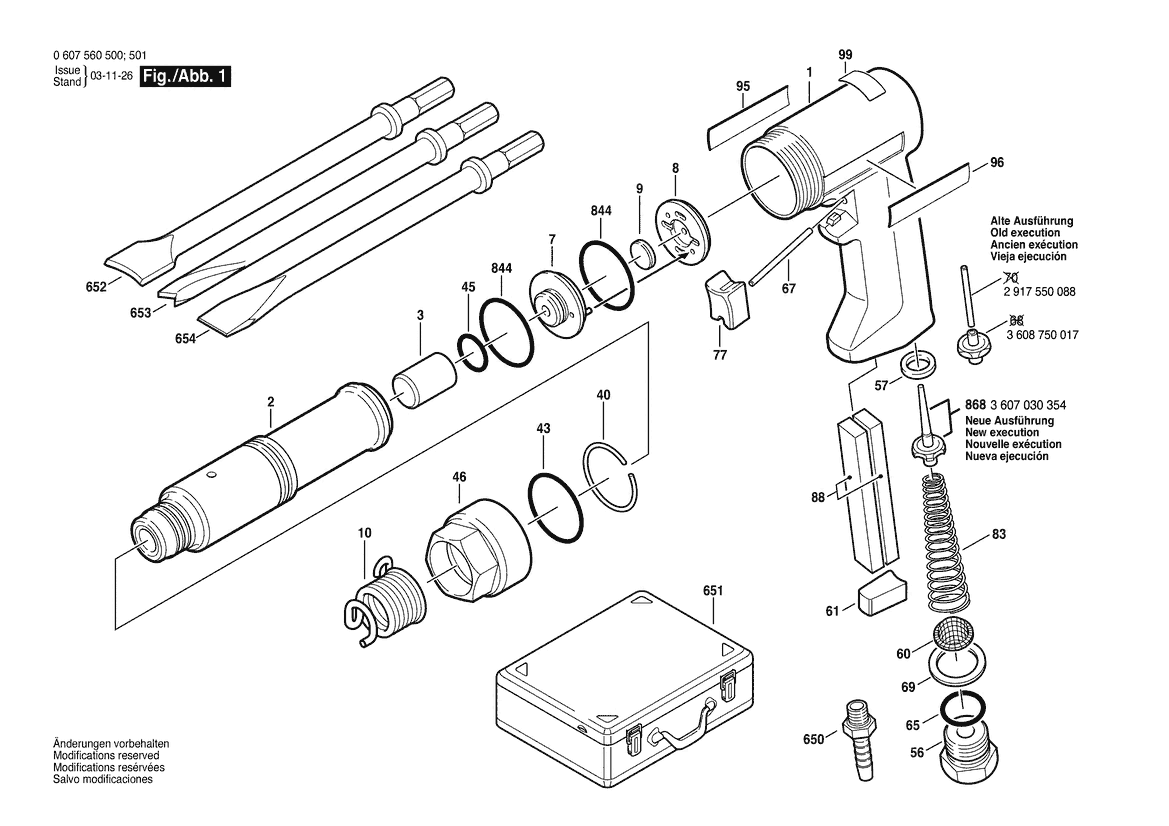

0 607 560 500
Nameplate
-
Spare part number: 1 601 11A 3HF
Position: 95
Availability: 1
Price group: -
-
O-Ring 12X3 MM
-
Spare part number: 1 900 210 111
Position: 45
Availability: 1
Price group: -
-
O-Ring 15X2 MM
-
Spare part number: 1 900 210 112
Position: 65
Availability: 1
Price group: 00
₹ 77.00 *
Prices shown are net prices excluding GST
O-Ring 30X2,5 MM
-
Spare part number: 1 900 210 131
Position: 43
Availability: 1
Price group: 00
₹ 107.00 *
Prices shown are net prices excluding GST
Silencer
-
Spare part number: 2 607 000 179
Position: 61
Availability: 1
Price group: 00
₹ 254.00 *
Prices shown are net prices excluding GST
Shearing chisel
-
Spare part number: 2 609 390 013
Position: 652
Availability: 1
Price group: -
-
Shearing chisel
-
Spare part number: 2 609 390 014
Position: 653
Availability: 1
Price group: 00
₹ 795.00 *
Prices shown are net prices excluding GST
Wide chisel
-
Spare part number: 2 609 390 015
Position: 654
Availability: 1
Price group: 00
₹ 879.00 *
Prices shown are net prices excluding GST
Retaining ring 35 DIN 9045
-
Spare part number: 2 916 600 018
Position: 40
Availability: 1
Price group: -
-
Strainer
-
Spare part number: 3 600 002 006
Position: 60
Availability: 1
Price group: 00
₹ 89.00 *
Prices shown are net prices excluding GST
Valve Plate
-
Spare part number: 3 600 009 001
Position: 9
Availability: 1
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Shim washer
-
Spare part number: 3 600 105 001
Position: 69
Availability: 1
Price group: 00
₹ 47.00 *
Prices shown are net prices excluding GST
Valve Bushing
-
Spare part number: 3 600 209 004
Position: 57
Availability: 1
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Silencer
-
Spare part number: 3 601 010 001
Position: 88
Availability: 2
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Reference Plate
-
Spare part number: 3 601 110 574
Position: 99
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 3 601 119 055
Position: 96
Availability: 1
Price group: -
-
Push-Button
-
Spare part number: 3 602 053 003
Position: 77
Availability: 1
Price group: 00
₹ 74.00 *
Prices shown are net prices excluding GST
Striker
-
Spare part number: 3 603 200 007
Position: 3
Availability: 1
Price group: 00
₹ 192.00 *
Prices shown are net prices excluding GST
Straight Pin
-
Spare part number: 3 603 201 043
Position: 67
Availability: 1
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Union Nut
-
Spare part number: 3 603 313 007
Position: 46
Availability: 1
Price group: -
-
Hose fitting
-
Spare part number: 3 603 386 068
Position: 650
Availability: 1
Price group: -
-
Fitting
-
Spare part number: 3 603 462 019
Position: 56
Availability: 1
Price group: -
-
Compression Spring BLUE
-
Spare part number: 3 604 643 012
Position: 83
Availability: 1
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Holding Spring
-
Spare part number: 3 604 650 000
Position: 10
Availability: 1
Price group: 00
₹ 343.00 *
Prices shown are net prices excluding GST
Motor Housing BLUE
-
Spare part number: 3 605 108 040
Position: 1
Availability: 1
Price group: 00
₹ 686.00 *
Prices shown are net prices excluding GST
Impact Mechanism Housing
-
Spare part number: 3 605 190 199
Position: 2
Availability: 1
Price group: -
-
Valve Plate
-
Spare part number: 3 605 500 025
Position: 7
Availability: 1
Price group: 00
₹ 62.00 *
Prices shown are net prices excluding GST
Valve Plate
-
Spare part number: 3 605 500 026
Position: 8
Availability: 1
Price group: 00
₹ 86.00 *
Prices shown are net prices excluding GST
Parts Set 10 PIECE
-
Spare part number: 3 607 010 026
Position: 844
Availability: 1
Price group: 00
₹ 187.00 *
Prices shown are net prices excluding GST
Parts Set 10 PIECE
-
Spare part number: 3 607 010 026
Position: 844
Availability: 1
Price group: 00
₹ 187.00 *
Prices shown are net prices excluding GST
Valve Cone
-
Spare part number: 3 607 030 354
Position: 868
Availability: 1
Price group: 00
₹ 389.00 *
Prices shown are net prices excluding GST
1
Spare parts in cart
30 Parts found
Sort by
Description
Pos. 1 | Motor Housing BLUE
3 605 108 040
-
*Prices shown are net prices excluding GST
Pos. 2 | Impact Mechanism Housing
3 605 190 199
-
Pos. 3 | Striker
3 603 200 007
-
*Prices shown are net prices excluding GST
Pos. 7 | Valve Plate
3 605 500 025
-
*Prices shown are net prices excluding GST
Pos. 8 | Valve Plate
3 605 500 026
-
*Prices shown are net prices excluding GST
Pos. 9 | Valve Plate
3 600 009 001
-
*Prices shown are net prices excluding GST
Pos. 10 | Holding Spring
3 604 650 000
-
*Prices shown are net prices excluding GST
Pos. 40 | Retaining ring 35 DIN 9045
2 916 600 018
-
Pos. 43 | O-Ring 30X2,5 MM
1 900 210 131
-
*Prices shown are net prices excluding GST
Pos. 45 | O-Ring 12X3 MM
1 900 210 111
-
Pos. 46 | Union Nut
3 603 313 007
-
Pos. 56 | Fitting
3 603 462 019
-
Pos. 57 | Valve Bushing
3 600 209 004
-
*Prices shown are net prices excluding GST
Pos. 60 | Strainer
3 600 002 006
-
*Prices shown are net prices excluding GST
Pos. 61 | Silencer
2 607 000 179
-
*Prices shown are net prices excluding GST
Pos. 65 | O-Ring 15X2 MM
1 900 210 112
-
*Prices shown are net prices excluding GST
Pos. 67 | Straight Pin
3 603 201 043
-
*Prices shown are net prices excluding GST
Pos. 69 | Shim washer
3 600 105 001
-
*Prices shown are net prices excluding GST
Pos. 77 | Push-Button
3 602 053 003
-
*Prices shown are net prices excluding GST
Pos. 83 | Compression Spring BLUE
3 604 643 012
-
*Prices shown are net prices excluding GST
Pos. 88 | Silencer
3 601 010 001
-
*Prices shown are net prices excluding GST
Pos. 95 | Nameplate
1 601 11A 3HF
-
Pos. 96 | Manufacturer's nameplate
3 601 119 055
-
Pos. 99 | Reference Plate
3 601 110 574
-
Pos. 650 | Hose fitting
3 603 386 068
-
Pos. 652 | Shearing chisel
2 609 390 013
-
Pos. 653 | Shearing chisel
2 609 390 014
-
*Prices shown are net prices excluding GST
Pos. 654 | Wide chisel
2 609 390 015
-
*Prices shown are net prices excluding GST
Pos. 844 | Parts Set 10 PIECE
3 607 010 026
-
*Prices shown are net prices excluding GST
Pos. 868 | Valve Cone
3 607 030 354
-
*Prices shown are net prices excluding GST
* Prices shown are net prices excluding GST
