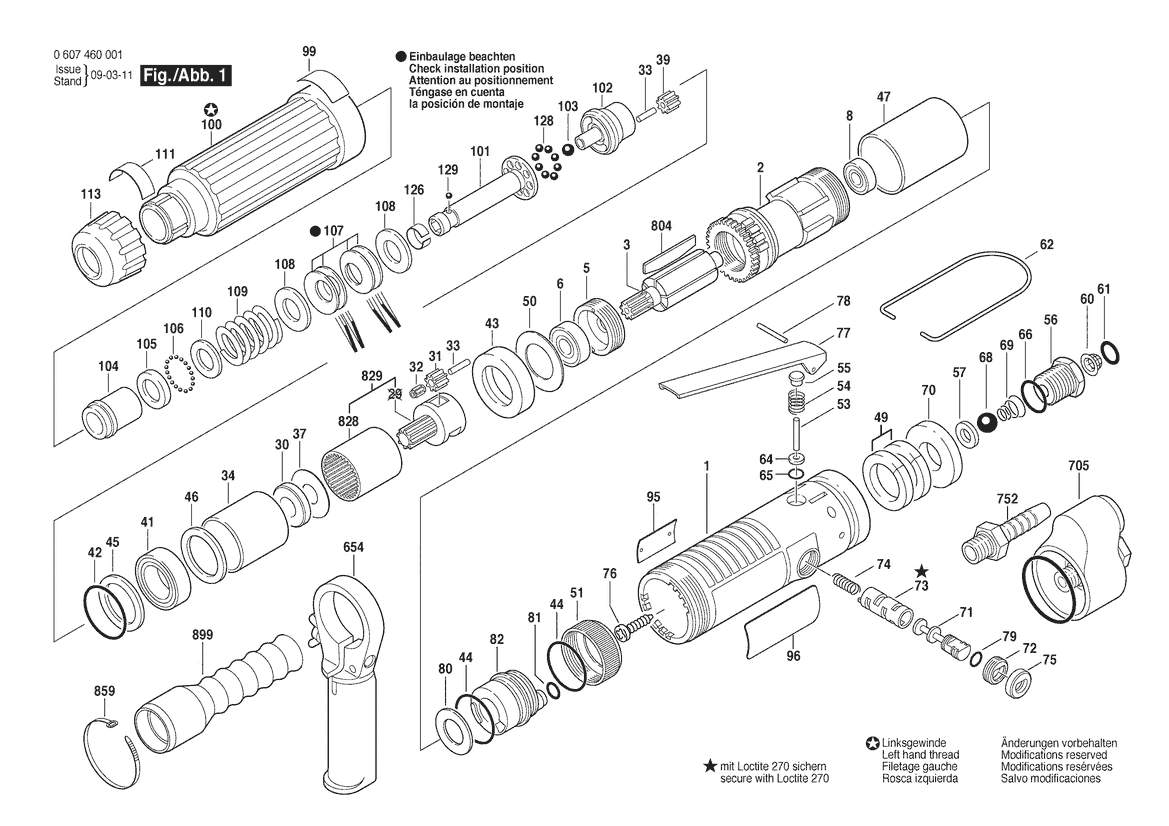

0 607 460 001
Shim 0,5 MM THICK
-
Spare part number: 1 600 100 617
Position: 61
Availability: 2
Price group: 00
₹ 52.00 *
Prices shown are net prices excluding GST
Shim 0,3 MM THICK
-
Spare part number: 1 600 101 618
Position: 37
Availability: 1
Price group: 00
₹ 47.00 *
Prices shown are net prices excluding GST
Nameplate
-
Spare part number: 1 601 11A 3HF
Position: 95
Availability: 1
Price group: -
-
O-Ring 8,0X1,5 MM
-
Spare part number: 1 900 210 103
Position: 81
Availability: 1
Price group: 00
₹ 54.00 *
Prices shown are net prices excluding GST
O-Ring 28X2 MM
-
Spare part number: 1 900 210 327
Position: 42
Availability: 1
Price group: -
-
groove ball bearing 7X17X5
-
Spare part number: 1 900 905 028
Position: 8
Availability: 1
Price group: 00
₹ 1,264.00 *
Prices shown are net prices excluding GST
Ball DIN 5401-2,5MM-III-ST
-
Spare part number: 1 903 230 003
Position: 129
Availability: 1
Price group: 00
₹ 30.00 *
Prices shown are net prices excluding GST
Ball DIN 5401-3 MM-III-ST
-
Spare part number: 1 903 230 004
Position: 106
Availability: 17
Price group: 00
₹ 30.00 *
Prices shown are net prices excluding GST
Ball DIN 5401-5 G28
-
Spare part number: 1 903 230 009
Position: 128
Availability: 8
Price group: 00
₹ 66.00 *
Prices shown are net prices excluding GST
Ball DIN 5401-8 MM III-ST
-
Spare part number: 1 903 230 014
Position: 103
Availability: 1
Price group: 00
₹ 31.00 *
Prices shown are net prices excluding GST
Ball DIN 5401-9,5MM-III-ST
-
Spare part number: 1 903 230 528
Position: 68
Availability: 1
Price group: 00
₹ 50.00 *
Prices shown are net prices excluding GST
Shim
-
Spare part number: 2 600 102 036
Position: 46
Availability: 1
Price group: -
-
Shim
-
Spare part number: 2 600 102 036
Position: 45
Availability: 1
Price group: -
-
Supporting Disc
-
Spare part number: 2 600 103 015
Position: 108
Availability: 2
Price group: -
-
Supporting Disc
-
Spare part number: 2 600 103 015
Position: 108
Availability: 2
Price group: -
-
O-Ring 2,4X1,9 MM
-
Spare part number: 2 600 210 007
Position: 65
Availability: 1
Price group: 00
₹ 49.00 *
Prices shown are net prices excluding GST
O-Ring 26,0X1,5 MM
-
Spare part number: 2 600 210 018
Position: 44
Availability: 2
Price group: 00
₹ 77.00 *
Prices shown are net prices excluding GST
O-Ring 26,0X1,5 MM
-
Spare part number: 2 600 210 018
Position: 44
Availability: 2
Price group: 00
₹ 77.00 *
Prices shown are net prices excluding GST
Retaining snap ring
-
Spare part number: 2 600 501 031
Position: 105
Availability: 1
Price group: -
-
Disc Spring
-
Spare part number: 2 600 550 018
Position: 107
Availability: 4
Price group: 00
₹ 49.00 *
Prices shown are net prices excluding GST
Leaf Spring
-
Spare part number: 2 601 250 001
Position: 126
Availability: 1
Price group: 00
₹ 49.00 *
Prices shown are net prices excluding GST
Compression Spring
-
Spare part number: 2 604 619 009
Position: 109
Availability: 1
Price group: -
-
Tapping Screw DIN 7981-ST2,9X13-C-H
-
Spare part number: 2 910 611 006
Position: 76
Availability: 1
Price group: 00
₹ 33.00 *
Prices shown are net prices excluding GST
Plain Washer DIN 125-A3,2-ST
-
Spare part number: 2 916 011 006
Position: 64
Availability: 1
Price group: 00
₹ 30.00 *
Prices shown are net prices excluding GST
Grooved Pin DIN 1475-2X18-ST
-
Spare part number: 2 917 700 040
Position: 78
Availability: 1
Price group: 00
₹ 49.00 *
Prices shown are net prices excluding GST
Strainer
-
Spare part number: 3 600 002 000
Position: 60
Availability: 1
Price group: 00
₹ 74.00 *
Prices shown are net prices excluding GST
Sealing Plate
-
Spare part number: 3 600 054 004
Position: 80
Availability: 1
Price group: 00
₹ 65.00 *
Prices shown are net prices excluding GST
Supporting Disc
-
Spare part number: 3 600 100 031
Position: 110
Availability: 1
Price group: -
-
Retaining Washer
-
Spare part number: 3 600 101 036
Position: 50
Availability: 1
Price group: 00
₹ 124.00 *
Prices shown are net prices excluding GST
Silencer
-
Spare part number: 3 600 105 002
Position: 70
Availability: 1
Price group: 00
₹ 267.00 *
Prices shown are net prices excluding GST
Retaining snap ring
-
Spare part number: 3 600 202 012
Position: 75
Availability: 1
Price group: 00
₹ 278.00 *
Prices shown are net prices excluding GST
Sealing disk
-
Spare part number: 3 600 206 006
Position: 57
Availability: 1
Price group: 00
₹ 83.00 *
Prices shown are net prices excluding GST
Spacer Ring
-
Spare part number: 3 600 209 003
Position: 30
Availability: 1
Price group: -
-
O-Ring 16X1,25 MM
-
Spare part number: 3 600 210 036
Position: 66
Availability: 1
Price group: 00
₹ 67.00 *
Prices shown are net prices excluding GST
O-Ring 9,0X1,2 MM
-
Spare part number: 3 600 210 038
Position: 79
Availability: 1
Price group: 00
₹ 67.00 *
Prices shown are net prices excluding GST
Bushing
-
Spare part number: 3 600 300 021
Position: 104
Availability: 1
Price group: -
-
Valve Bushing
-
Spare part number: 3 600 340 005
Position: 73
Availability: 1
Price group: 00
₹ 1,967.00 *
Prices shown are net prices excluding GST
Retaining snap ring
-
Spare part number: 3 600 400 008
Position: 34
Availability: 1
Price group: -
-
Adjusting Nut
-
Spare part number: 3 600 460 004
Position: 113
Availability: 1
Price group: -
-
Spigot
-
Spare part number: 3 600 700 032
Position: 47
Availability: 1
Price group: 00
₹ 1,882.00 *
Prices shown are net prices excluding GST
groove ball bearing
-
Spare part number: 3 600 900 011
Position: 41
Availability: 1
Price group: -
-
groove ball bearing 9X24X7 MM
-
Spare part number: 3 600 905 039
Position: 6
Availability: 1
Price group: 00
₹ 345.00 *
Prices shown are net prices excluding GST
Needle-Roller Assembly INA K3X5X7
-
Spare part number: 3 600 913 000
Position: 32
Availability: 3
Price group: 00
₹ 130.00 *
Prices shown are net prices excluding GST
Silencer
-
Spare part number: 3 601 010 006
Position: 49
Availability: 3
Price group: 00
₹ 46.00 *
Prices shown are net prices excluding GST
Sticker
-
Spare part number: 3 601 110 030
Position: 111
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 3 601 110 039
Position: 96
Availability: 1
Price group: -
-
Reference Plate
-
Spare part number: 3 601 110 574
Position: 97
Availability: 1
Price group: -
-
Reference Plate
-
Spare part number: 3 601 119 236
Position: 99
Availability: 1
Price group: 00
₹ 107.00 *
Prices shown are net prices excluding GST
Control Lever
-
Spare part number: 3 601 902 001
Position: 77
Availability: 1
Price group: 00
₹ 161.00 *
Prices shown are net prices excluding GST
Auxiliary Handle Ø48 MM
-
Spare part number: 3 602 025 007
Position: 654
Availability: 1
Price group: -
-
Valve Cone
-
Spare part number: 3 603 132 000
Position: 55
Availability: 1
Price group: 00
₹ 67.00 *
Prices shown are net prices excluding GST
Needle Roller
-
Spare part number: 3 603 201 000
Position: 33
Availability: 6
Price group: 00
₹ 47.00 *
Prices shown are net prices excluding GST
Needle Roller
-
Spare part number: 3 603 201 000
Position: 33
Availability: 6
Price group: 00
₹ 47.00 *
Prices shown are net prices excluding GST
Needle Roller
-
Spare part number: 3 603 201 050
Position: 53
Availability: 1
Price group: 00
₹ 50.00 *
Prices shown are net prices excluding GST
Union Nut
-
Spare part number: 3 603 313 001
Position: 51
Availability: 1
Price group: 00
₹ 492.00 *
Prices shown are net prices excluding GST
Threaded Ring
-
Spare part number: 3 603 344 023
Position: 72
Availability: 1
Price group: 00
₹ 1,047.00 *
Prices shown are net prices excluding GST
Hose fitting
-
Spare part number: 3 603 386 068
Position: 752
Availability: 1
Price group: -
-
Fitting
-
Spare part number: 3 603 458 010
Position: 56
Availability: 1
Price group: 00
₹ 519.00 *
Prices shown are net prices excluding GST
Stator 320-400W
-
Spare part number: 3 604 090 044
Position: 2
Availability: 1
Price group: 00
₹ 3,054.00 *
Prices shown are net prices excluding GST
Rotor
-
Spare part number: 3 604 220 085
Position: 3
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 3 604 611 006
Position: 74
Availability: 1
Price group: 00
₹ 48.00 *
Prices shown are net prices excluding GST
Compression Spring
-
Spare part number: 3 604 611 006
Position: 54
Availability: 1
Price group: 00
₹ 48.00 *
Prices shown are net prices excluding GST
Compression Spring
-
Spare part number: 3 604 616 008
Position: 69
Availability: 1
Price group: 00
₹ 50.00 *
Prices shown are net prices excluding GST
Holding Belt BLACK
-
Spare part number: 3 604 710 062
Position: 859
Availability: 1
Price group: 00
₹ 31.00 *
Prices shown are net prices excluding GST
Suspension Loop
-
Spare part number: 3 604 720 004
Position: 62
Availability: 1
Price group: 00
₹ 86.00 *
Prices shown are net prices excluding GST
Motor Housing
-
Spare part number: 3 605 108 072
Position: 1
Availability: 1
Price group: 00
₹ 1,272.00 *
Prices shown are net prices excluding GST
Bearing Housing
-
Spare part number: 3 605 125 051
Position: 100
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 3 605 700 076
Position: 5
Availability: 1
Price group: 00
₹ 990.00 *
Prices shown are net prices excluding GST
Cylindrical Gear Z=14
-
Spare part number: 3 606 316 073
Position: 39
Availability: 3
Price group: -
-
Cylindrical Gear Z=14
-
Spare part number: 3 606 316 093
Position: 31
Availability: 3
Price group: 00
₹ 57.00 *
Prices shown are net prices excluding GST
Ring Gear Z=42/54
-
Spare part number: 3 606 334 021
Position: 828
Availability: 1
Price group: -
-
Clutch Element
-
Spare part number: 3 606 334 081
Position: 43
Availability: 1
Price group: -
-
Drive Shaft
-
Spare part number: 3 606 490 004
Position: 102
Availability: 1
Price group: -
-
Clutch Element
-
Spare part number: 3 606 490 005
Position: 101
Availability: 1
Price group: -
-
Air Hose
-
Spare part number: 3 607 000 027
Position: 899
Availability: 1
Price group: 00
₹ 2,947.00 *
Prices shown are net prices excluding GST
Air Hose Set
-
Spare part number: 3 607 030 024
Position: 705
Availability: 1
Price group: -
-
Rotor Lamella 5 PIECE
-
Spare part number: 3 607 030 030
Position: 804
Availability: 1
Price group: 00
₹ 934.00 *
Prices shown are net prices excluding GST
Assembly Of Service Parts
-
Spare part number: 3 607 031 322
Position: 829
Availability: 1
Price group: -
-
Control Piston
-
Spare part number: 3 608 750 023
Position: 71
Availability: 1
Price group: 00
₹ 1,307.00 *
Prices shown are net prices excluding GST
Intermediate Piece
-
Spare part number: 3 608 750 027
Position: 82
Availability: 1
Price group: 00
₹ 502.00 *
Prices shown are net prices excluding GST
1
Spare parts in cart
75 Parts found
Sort by
Description
Pos. 1 | Motor Housing
3 605 108 072
-
*Prices shown are net prices excluding GST
Pos. 2 | Stator 320-400W
3 604 090 044
-
*Prices shown are net prices excluding GST
Pos. 3 | Rotor
3 604 220 085
-
Pos. 5 | Bearing Flange
3 605 700 076
-
*Prices shown are net prices excluding GST
Pos. 6 | groove ball bearing 9X24X7 MM
3 600 905 039
-
*Prices shown are net prices excluding GST
Pos. 8 | groove ball bearing 7X17X5
1 900 905 028
-
*Prices shown are net prices excluding GST
Pos. 30 | Spacer Ring
3 600 209 003
-
Pos. 31 | Cylindrical Gear Z=14
3 606 316 093
-
*Prices shown are net prices excluding GST
Pos. 32 | Needle-Roller Assembly INA K3X5X7
3 600 913 000
-
*Prices shown are net prices excluding GST
Pos. 33 | Needle Roller
3 603 201 000
-
*Prices shown are net prices excluding GST
Pos. 34 | Retaining snap ring
3 600 400 008
-
Pos. 37 | Shim 0,3 MM THICK
1 600 101 618
-
*Prices shown are net prices excluding GST
Pos. 39 | Cylindrical Gear Z=14
3 606 316 073
-
Pos. 41 | groove ball bearing
3 600 900 011
-
Pos. 42 | O-Ring 28X2 MM
1 900 210 327
-
Pos. 43 | Clutch Element
3 606 334 081
-
Pos. 44 | O-Ring 26,0X1,5 MM
2 600 210 018
-
*Prices shown are net prices excluding GST
Pos. 46 | Shim
2 600 102 036
-
Pos. 47 | Spigot
3 600 700 032
-
*Prices shown are net prices excluding GST
Pos. 49 | Silencer
3 601 010 006
-
*Prices shown are net prices excluding GST
Pos. 50 | Retaining Washer
3 600 101 036
-
*Prices shown are net prices excluding GST
Pos. 51 | Union Nut
3 603 313 001
-
*Prices shown are net prices excluding GST
Pos. 53 | Needle Roller
3 603 201 050
-
*Prices shown are net prices excluding GST
Pos. 55 | Valve Cone
3 603 132 000
-
*Prices shown are net prices excluding GST
Pos. 56 | Fitting
3 603 458 010
-
*Prices shown are net prices excluding GST
Pos. 57 | Sealing disk
3 600 206 006
-
*Prices shown are net prices excluding GST
Pos. 60 | Strainer
3 600 002 000
-
*Prices shown are net prices excluding GST
Pos. 61 | Shim 0,5 MM THICK
1 600 100 617
-
*Prices shown are net prices excluding GST
Pos. 62 | Suspension Loop
3 604 720 004
-
*Prices shown are net prices excluding GST
Pos. 64 | Plain Washer DIN 125-A3,2-ST
2 916 011 006
-
*Prices shown are net prices excluding GST
Pos. 65 | O-Ring 2,4X1,9 MM
2 600 210 007
-
*Prices shown are net prices excluding GST
Pos. 66 | O-Ring 16X1,25 MM
3 600 210 036
-
*Prices shown are net prices excluding GST
Pos. 68 | Ball DIN 5401-9,5MM-III-ST
1 903 230 528
-
*Prices shown are net prices excluding GST
Pos. 69 | Compression Spring
3 604 616 008
-
*Prices shown are net prices excluding GST
Pos. 70 | Silencer
3 600 105 002
-
*Prices shown are net prices excluding GST
Pos. 71 | Control Piston
3 608 750 023
-
*Prices shown are net prices excluding GST
Pos. 72 | Threaded Ring
3 603 344 023
-
*Prices shown are net prices excluding GST
Pos. 73 | Valve Bushing
3 600 340 005
-
*Prices shown are net prices excluding GST
Pos. 74 | Compression Spring
3 604 611 006
-
*Prices shown are net prices excluding GST
Pos. 75 | Retaining snap ring
3 600 202 012
-
*Prices shown are net prices excluding GST
Pos. 76 | Tapping Screw DIN 7981-ST2,9X13-C-H
2 910 611 006
-
*Prices shown are net prices excluding GST
Pos. 77 | Control Lever
3 601 902 001
-
*Prices shown are net prices excluding GST
Pos. 78 | Grooved Pin DIN 1475-2X18-ST
2 917 700 040
-
*Prices shown are net prices excluding GST
Pos. 79 | O-Ring 9,0X1,2 MM
3 600 210 038
-
*Prices shown are net prices excluding GST
Pos. 80 | Sealing Plate
3 600 054 004
-
*Prices shown are net prices excluding GST
Pos. 81 | O-Ring 8,0X1,5 MM
1 900 210 103
-
*Prices shown are net prices excluding GST
Pos. 82 | Intermediate Piece
3 608 750 027
-
*Prices shown are net prices excluding GST
Pos. 95 | Nameplate
1 601 11A 3HF
-
Pos. 96 | Manufacturer's nameplate
3 601 110 039
-
Pos. 97 | Reference Plate
3 601 110 574
-
Pos. 99 | Reference Plate
3 601 119 236
-
*Prices shown are net prices excluding GST
Pos. 100 | Bearing Housing
3 605 125 051
-
Pos. 101 | Clutch Element
3 606 490 005
-
Pos. 102 | Drive Shaft
3 606 490 004
-
Pos. 103 | Ball DIN 5401-8 MM III-ST
1 903 230 014
-
*Prices shown are net prices excluding GST
Pos. 104 | Bushing
3 600 300 021
-
Pos. 105 | Retaining snap ring
2 600 501 031
-
Pos. 106 | Ball DIN 5401-3 MM-III-ST
1 903 230 004
-
*Prices shown are net prices excluding GST
Pos. 107 | Disc Spring
2 600 550 018
-
*Prices shown are net prices excluding GST
Pos. 108 | Supporting Disc
2 600 103 015
-
Pos. 109 | Compression Spring
2 604 619 009
-
Pos. 110 | Supporting Disc
3 600 100 031
-
Pos. 111 | Sticker
3 601 110 030
-
Pos. 113 | Adjusting Nut
3 600 460 004
-
Pos. 126 | Leaf Spring
2 601 250 001
-
*Prices shown are net prices excluding GST
Pos. 128 | Ball DIN 5401-5 G28
1 903 230 009
-
*Prices shown are net prices excluding GST
Pos. 129 | Ball DIN 5401-2,5MM-III-ST
1 903 230 003
-
*Prices shown are net prices excluding GST
Pos. 654 | Auxiliary Handle Ø48 MM
3 602 025 007
-
Pos. 705 | Air Hose Set
3 607 030 024
-
Pos. 752 | Hose fitting
3 603 386 068
-
Pos. 804 | Rotor Lamella 5 PIECE
3 607 030 030
-
*Prices shown are net prices excluding GST
Pos. 828 | Ring Gear Z=42/54
3 606 334 021
-
Pos. 829 | Assembly Of Service Parts
3 607 031 322
-
Pos. 859 | Holding Belt BLACK
3 604 710 062
-
*Prices shown are net prices excluding GST
Pos. 899 | Air Hose
3 607 000 027
-
*Prices shown are net prices excluding GST
* Prices shown are net prices excluding GST
