Nutrunner
3/8" RATSCHE | 0 607 450 794 | /
Lubrication instructions
Product information
Print drawing

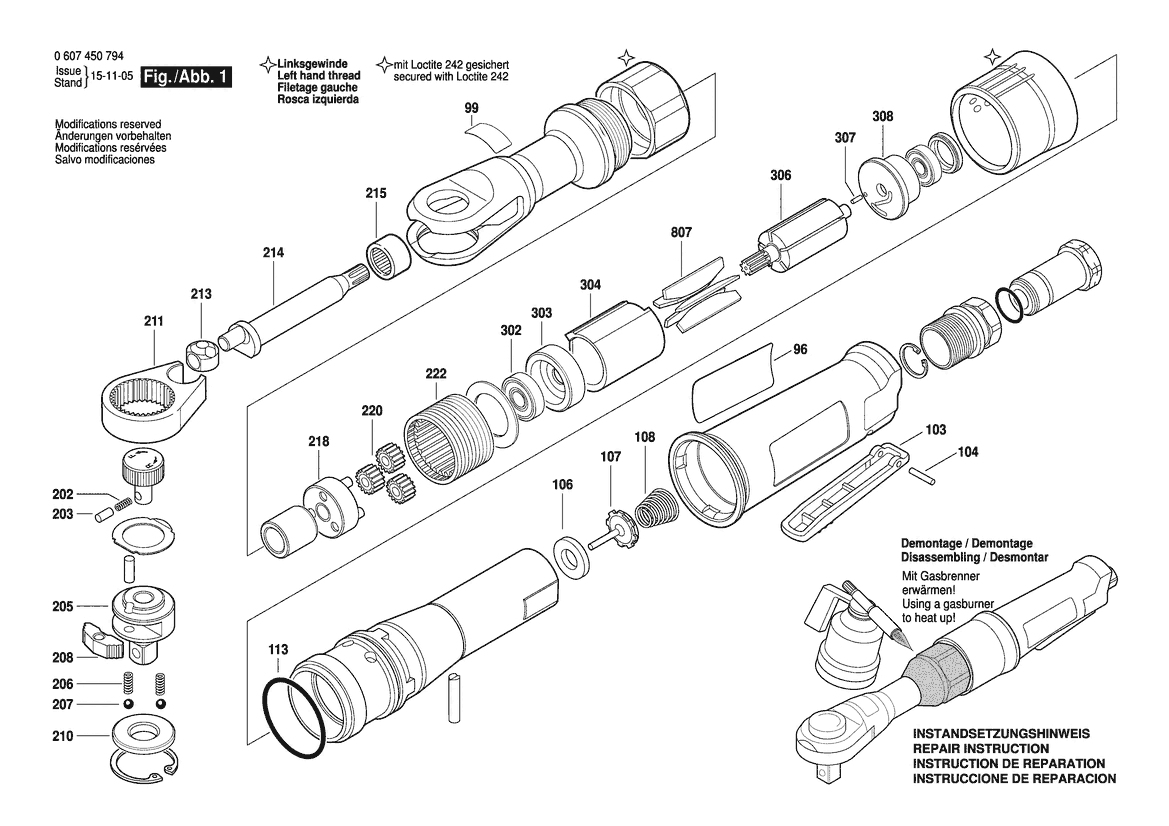

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
0 607 450 794
Image 1
Spring
-
Spare part number: 1 619 PA9 726
Position: 202
Availability: 1
Price group: 00
₹  33.00 *
Prices shown are net prices excluding GST
Pin
-
Spare part number: 1 619 PA9 727
Position: 203
Availability: 1
Price group: 00
₹  73.00 *
Prices shown are net prices excluding GST
Sticker
-
part
Spare part number: 3 601 110 562
Position: 99
Availability: 1
Price group: -
-
Ball
-
Spare part number: 3 603 230 016
Position: 207
Availability: 2
Price group: 00
₹  33.00 *
Prices shown are net prices excluding GST
Ball Bearing
-
part
Spare part number: 3 609 202 946
Position: 302
Availability: 1
Price group: 00
₹  455.00 *
Prices shown are net prices excluding GST
Nameplate
-
Spare part number: 3 609 202 A09
Position: 96
Availability: 1
Price group: -
-
Set Of Clutch Plates
-
Spare part number: 3 609 202 A11
Position: 807
Availability: 1
Price group: 00
₹  315.00 *
Prices shown are net prices excluding GST
Tappet
-
Spare part number: 3 609 202 A54
Position: 107
Availability: 1
Price group: -
-
Housing
-
Spare part number: 3 609 202 A55
Position: 218
Availability: 1
Price group: 00
₹  461.00 *
Prices shown are net prices excluding GST
Spring
-
part
Spare part number: 3 609 202 A56
Position: 108
Availability: 1
Price group: -
-
Lever
-
Spare part number: 3 609 202 A65
Position: 103
Availability: 1
Price group: -
-
Housing Cover
-
part
Spare part number: 3 609 202 A67
Position: 303
Availability: 1
Price group: 00
₹  199.00 *
Prices shown are net prices excluding GST
Rotor
-
Spare part number: 3 609 202 A70
Position: 306
Availability: 1
Price group: -
-
Stator
-
Spare part number: 3 609 202 A72
Position: 304
Availability: 1
Price group: -
-
Connection plate
-
Spare part number: 3 609 202 A74
Position: 308
Availability: 1
Price group: 00
₹  1,761.00 *
Prices shown are net prices excluding GST
Seal
-
Spare part number: 3 609 202 A75
Position: 106
Availability: 1
Price group: -
-
Ring Gear
-
Spare part number: 3 609 202 A76
Position: 222
Availability: 1
Price group: -
-
Toothed Gear
-
part
Spare part number: 3 609 202 A77
Position: 220
Availability: 1
Price group: 00
₹  97.00 *
Prices shown are net prices excluding GST
Drive Element
-
Spare part number: 3 609 202 A78
Position: 213
Availability: 1
Price group: 00
₹  233.00 *
Prices shown are net prices excluding GST
Swivelling Lever
-
Spare part number: 3 609 202 A79
Position: 211
Availability: 1
Price group: 00
₹  858.00 *
Prices shown are net prices excluding GST
Spindle
-
Spare part number: 3 609 202 A80
Position: 205
Availability: 1
Price group: 00
₹  1,303.00 *
Prices shown are net prices excluding GST
Camshaft
-
Spare part number: 3 609 202 A81
Position: 208
Availability: 1
Price group: 00
₹  314.00 *
Prices shown are net prices excluding GST
Switch-Pawl
-
Spare part number: 3 609 202 A82
Position: 214
Availability: 1
Price group: 00
₹  800.00 *
Prices shown are net prices excluding GST
Spring retaining ring
-
Spare part number: 3 609 202 A83
Position: 210
Availability: 1
Price group: 00
₹  264.00 *
Prices shown are net prices excluding GST
Dowel pin
-
Spare part number: 3 609 202 A85
Position: 307
Availability: 1
Price group: -
-
Dowel pin
-
Spare part number: 3 609 202 A86
Position: 104
Availability: 1
Price group: -
-
O-Ring
-
Spare part number: 3 609 202 A88
Position: 113
Availability: 1
Price group: 00
₹  88.00 *
Prices shown are net prices excluding GST
Needle-Roller Bearing
-
Spare part number: 3 609 202 A93
Position: 215
Availability: 1
Price group: 00
₹  1,037.00 *
Prices shown are net prices excluding GST
Compression Spring
-
Spare part number: 3 609 202 B92
Position: 206
Availability: 2
Price group: 00
₹  33.00 *
Prices shown are net prices excluding GST
1
Spare parts in cart

29 Parts found

Sort by
Description
Pos. 96 | Nameplate
3 609 202 A09
-
-
Pos. 99 | Sticker
3 601 110 562
-
-
Pos. 103 | Lever
3 609 202 A65
-
-
Pos. 104 | Dowel pin
3 609 202 A86
-
-
Pos. 106 | Seal
3 609 202 A75
-
-
Pos. 107 | Tappet
3 609 202 A54
-
-
Pos. 108 | Spring
3 609 202 A56
-
-
Pos. 113 | O-Ring
3 609 202 A88
-
₹  88.00 *
*Prices shown are net prices excluding GST
Pos. 202 | Spring
1 619 PA9 726
-
₹  33.00 *
*Prices shown are net prices excluding GST
Pos. 203 | Pin
1 619 PA9 727
-
₹  73.00 *
*Prices shown are net prices excluding GST
Pos. 205 | Spindle
3 609 202 A80
-
₹  1,303.00 *
*Prices shown are net prices excluding GST
Pos. 206 | Compression Spring
3 609 202 B92
-
₹  33.00 *
*Prices shown are net prices excluding GST
Pos. 207 | Ball
3 603 230 016
-
₹  33.00 *
*Prices shown are net prices excluding GST
Pos. 208 | Camshaft
3 609 202 A81
-
₹  314.00 *
*Prices shown are net prices excluding GST
Pos. 210 | Spring retaining ring
3 609 202 A83
-
₹  264.00 *
*Prices shown are net prices excluding GST
Pos. 211 | Swivelling Lever
3 609 202 A79
-
₹  858.00 *
*Prices shown are net prices excluding GST
Pos. 213 | Drive Element
3 609 202 A78
-
₹  233.00 *
*Prices shown are net prices excluding GST
Pos. 214 | Switch-Pawl
3 609 202 A82
-
₹  800.00 *
*Prices shown are net prices excluding GST
Pos. 215 | Needle-Roller Bearing
3 609 202 A93
-
₹  1,037.00 *
*Prices shown are net prices excluding GST
Pos. 218 | Housing
3 609 202 A55
-
₹  461.00 *
*Prices shown are net prices excluding GST
Pos. 220 | Toothed Gear
3 609 202 A77
-
₹  97.00 *
*Prices shown are net prices excluding GST
Pos. 222 | Ring Gear
3 609 202 A76
-
-
Pos. 302 | Ball Bearing
3 609 202 946
-
₹  455.00 *
*Prices shown are net prices excluding GST
Pos. 303 | Housing Cover
3 609 202 A67
-
₹  199.00 *
*Prices shown are net prices excluding GST
Pos. 304 | Stator
3 609 202 A72
-
-
Pos. 306 | Rotor
3 609 202 A70
-
-
Pos. 307 | Dowel pin
3 609 202 A85
-
-
Pos. 308 | Connection plate
3 609 202 A74
-
₹  1,761.00 *
*Prices shown are net prices excluding GST
Pos. 807 | Set Of Clutch Plates
3 609 202 A11
-
₹  315.00 *
*Prices shown are net prices excluding GST
* Prices shown are net prices excluding GST
