GKF600 - 3 601 F0A 102 | Product Detail Page | Power Tools

105.52 MAD*

*All prices are recommended retail prices including VAT

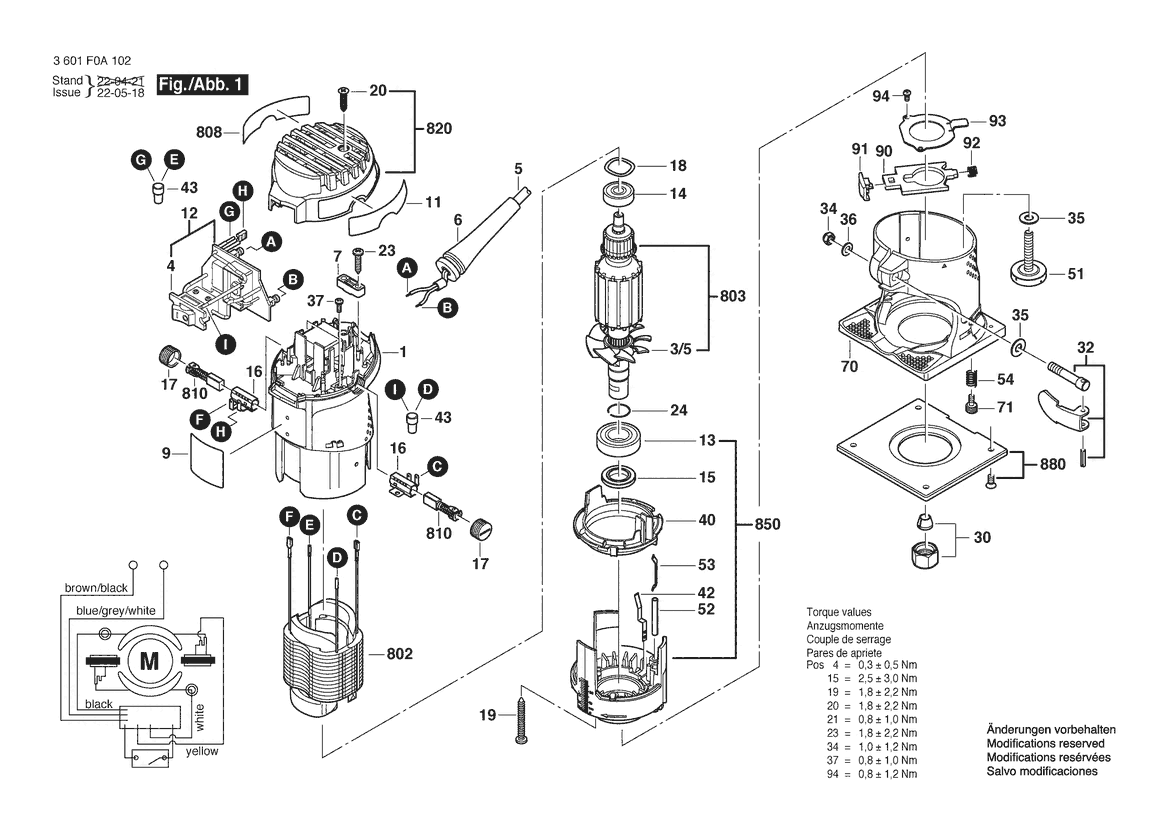

Pos. 3/5

Pos. 3/5 | Fan

2 609 100 246

Fan

2 609 100 246

12.64 MAD*

Availability 1

Price group: 12

12.64 MAD*

*All prices are recommended retail prices including VAT

Pos. 4

Pos. 4 | Switch

2 609 120 274

Switch

2 609 120 274

25.52 MAD*

Availability 1

Price group: 25

25.52 MAD*

*All prices are recommended retail prices including VAT

Pos. 5

Pos. 5 | Power supply cord

2 609 120 278

Power supply cord

2 609 120 278

66.36 MAD*

Availability 1

Price group: 26

66.36 MAD*

*All prices are recommended retail prices including VAT

Pos. 6

Pos. 6 | Grommet Ø7,3-Ø8,6X76 MM

2 600 703 018

Grommet Ø7,3-Ø8,6X76 MM

2 600 703 018

8.47 MAD*

Availability 1

Price group: 13

8.47 MAD*

*All prices are recommended retail prices including VAT

Pos. 7

Pos. 7 | Cable Clip

2 601 035 001

Cable Clip

2 601 035 001

10.34 MAD*

Availability 1

Price group: 11

10.34 MAD*

*All prices are recommended retail prices including VAT

Pos. 9

Pos. 9 | Manufacturer's nameplate

2 609 131 379

Manufacturer's nameplate

2 609 131 379

14.86 MAD*

Availability 1

Price group: 12

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 11

Pos. 11 | Nameplate

2 609 131 380

Nameplate

2 609 131 380

14.86 MAD*

Availability 1

Price group: 13

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 12

Pos. 12 | Control Unit

1 600 A02 7YK

Control Unit

1 600 A02 7YK

Availability 1

Price group: -

Pos. 13

Pos. 13 | groove ball bearing

2 609 110 435

groove ball bearing

2 609 110 435

23.78 MAD*

Availability 1

Price group: 20

23.78 MAD*

*All prices are recommended retail prices including VAT

Pos. 14

Pos. 14 | groove ball bearing

2 609 110 436

groove ball bearing

2 609 110 436

40.91 MAD*

Availability 1

Price group: 19

40.91 MAD*

*All prices are recommended retail prices including VAT

Pos. 15

Pos. 15 | Self-locking nut

2 609 110 253

Self-locking nut

2 609 110 253

17.59 MAD*

Availability 1

Price group: 14

17.59 MAD*

*All prices are recommended retail prices including VAT

Pos. 16

Pos. 16 | Brush Holder

2 609 110 217

Brush Holder

2 609 110 217

8.00 MAD*

Availability 2

Price group: 11

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 17

Pos. 17 | Brush-Cover

2 609 100 203

Brush-Cover

2 609 100 203

8.00 MAD*

Availability 2

Price group: 10

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 18

Pos. 18 | Spring Washer

2 609 110 294

Spring Washer

2 609 110 294

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 19

Pos. 19 | Tapping Screw

2 910 611 093

Tapping Screw

2 910 611 093

5.45 MAD*

Availability 3

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 20

Pos. 20 | Tapping Screw

2 609 110 490

Tapping Screw

2 609 110 490

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 23

Pos. 23 | Tapping Screw DIN 7981-ST3,9X19-C-H

2 910 611 020

Tapping Screw DIN 7981-ST3,9X19-C-H

2 910 611 020

9.41 MAD*

Availability 2

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 24

Pos. 24 | Retaining clip DIN 471-15X1-FST

2 916 650 006

Retaining clip DIN 471-15X1-FST

2 916 650 006

9.41 MAD*

Availability 1

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 30

Pos. 30 | contour sleeve 8,0 Ø

2 609 199 145

contour sleeve 8,0 Ø

2 609 199 145

131.76 MAD*

Availability 1

Price group: 29

131.76 MAD*

*All prices are recommended retail prices including VAT

Pos. 32

Pos. 32 | Clamping Lever

2 609 199 041

Clamping Lever

2 609 199 041

30.96 MAD*

Availability 1

Price group: 17

30.96 MAD*

*All prices are recommended retail prices including VAT

Pos. 34

Pos. 34 | Hex Nut

2 609 110 289

Hex Nut

2 609 110 289

8.00 MAD*

Availability 1

Price group: 10

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Conical Spring Washer

2 609 110 282

Conical Spring Washer

2 609 110 282

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 36

Pos. 36 | Washer

2 609 110 290

Washer

2 609 110 290

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 37

Pos. 37 | Torx Oval-Head Screw 3X10

2 603 490 017

Torx Oval-Head Screw 3X10

2 603 490 017

5.45 MAD*

Availability 2

Price group: 12

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 40

Pos. 40 | Air-Deflector Ring

2 609 100 247

Air-Deflector Ring

2 609 100 247

14.86 MAD*

Availability 1

Price group: 13

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 42

Pos. 42 | Contact Strap

2 609 110 297

Contact Strap

2 609 110 297

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 43

Pos. 43 | End cap

2 609 120 173

End cap

2 609 120 173

9.41 MAD*

Availability 2

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 51

Pos. 51 | Screw

2 609 110 241

Screw

2 609 110 241

14.86 MAD*

Availability 1

Price group: 15

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 52

Pos. 52 | Pressure Spindle

2 609 110 245

Pressure Spindle

2 609 110 245

9.41 MAD*

Availability 1

Price group: 10

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 53

Pos. 53 | Spring Plate

2 609 110 246

Spring Plate

2 609 110 246

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 54

Pos. 54 | Compression Spring DIN 17223, 2076 GRADE B

2 609 110 306

Compression Spring DIN 17223, 2076 GRADE B

2 609 110 306

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 70

Pos. 70 | Base Plate

2 609 110 307

Base Plate

2 609 110 307

165.73 MAD*

Availability 1

Price group: 32

165.73 MAD*

*All prices are recommended retail prices including VAT

Pos. 71

Pos. 71 | Bolt

2 609 110 283

Bolt

2 609 110 283

12.64 MAD*

Availability 1

Price group: 12

12.64 MAD*

*All prices are recommended retail prices including VAT

Pos. 90

Pos. 90 | Plate

2 609 110 741

Plate

2 609 110 741

12.22 MAD*

Availability 1

Price group: 14

12.22 MAD*

*All prices are recommended retail prices including VAT

Pos. 91

Pos. 91 | Button

2 609 100 248

Button

2 609 100 248

9.41 MAD*

Availability 1

Price group: 10

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 92

Pos. 92 | Compression Spring

2 609 110 255

Compression Spring

2 609 110 255

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 93

Pos. 93 | Cover Plate

2 609 110 480

Cover Plate

2 609 110 480

9.41 MAD*

Availability 1

Price group: 10

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 94

Pos. 94 | Screw M 3X6

2 609 110 367

Screw M 3X6

2 609 110 367

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

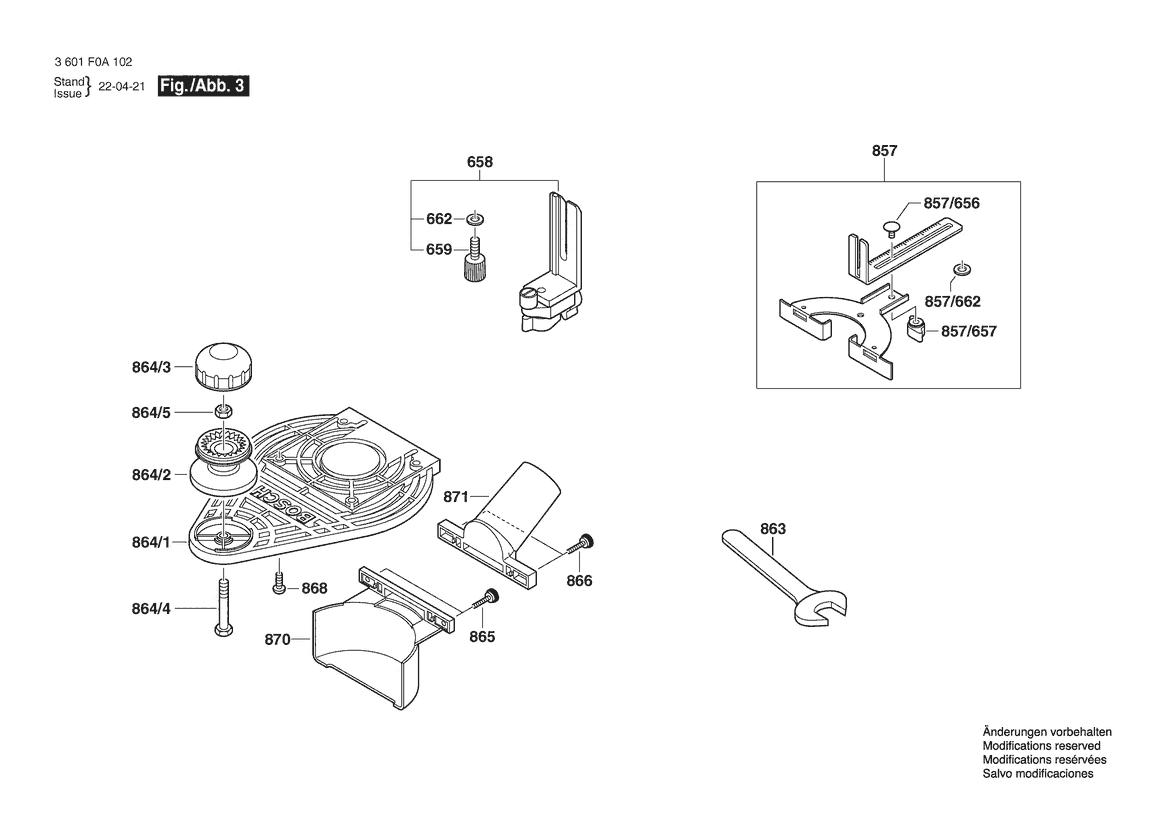

Pos. 658

Pos. 658 | Edge Guide

2 610 008 117

Edge Guide

2 610 008 117

Availability 1

Price group: -

Pos. 659

Pos. 659 | Knurled Thumbscrew

2 609 100 568

Knurled Thumbscrew

2 609 100 568

17.59 MAD*

Availability 1

Price group: 14

17.59 MAD*

*All prices are recommended retail prices including VAT

Pos. 802

Pos. 802 | Stator 230V

2 609 120 169

Stator 230V

2 609 120 169

216.96 MAD*

Availability 1

Price group: 35

216.96 MAD*

*All prices are recommended retail prices including VAT

Pos. 803

Pos. 803 | Armature 230V

2 609 120 316

Armature 230V

2 609 120 316

306.30 MAD*

Availability 1

Price group: 40

306.30 MAD*

*All prices are recommended retail prices including VAT

Pos. 808

Pos. 808 | Nameplate

1 605 A00 17M

Nameplate

1 605 A00 17M

Availability 1

Price group: -

Pos. 810

Pos. 810 | Carbon-Brush Set

2 609 120 149

Carbon-Brush Set

2 609 120 149

50.28 MAD*

Availability 1

Price group: 22

50.28 MAD*

*All prices are recommended retail prices including VAT

Pos. 820

Pos. 820 | Housing Cover BLUE

2 609 199 109

Housing Cover BLUE

2 609 199 109

54.30 MAD*

Availability 1

Price group: 21

54.30 MAD*

*All prices are recommended retail prices including VAT

Pos. 850

Pos. 850 | Bearing Flange

2 610 008 123

Bearing Flange

2 610 008 123

234.11 MAD*

Availability 1

Price group: 33

234.11 MAD*

*All prices are recommended retail prices including VAT

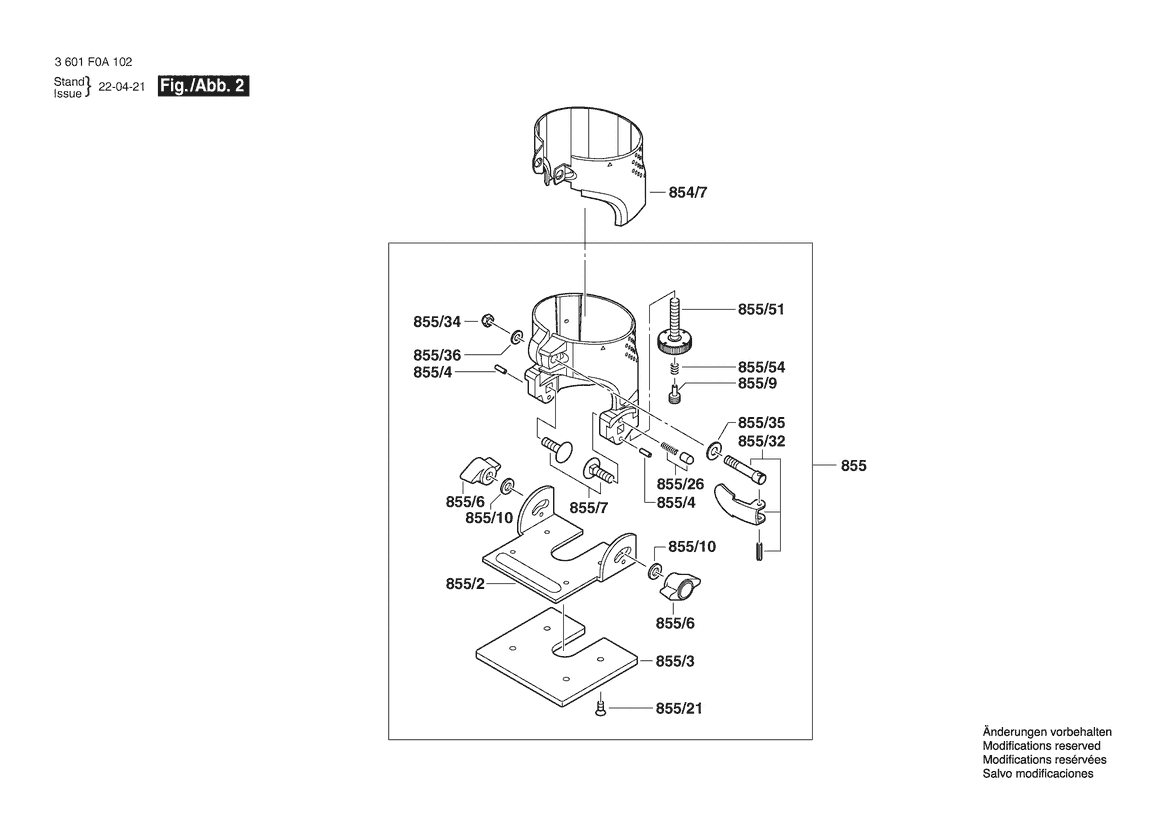

Pos. 854/7

Pos. 854/7 | Cover

2 609 100 386

Cover

2 609 100 386

31.61 MAD*

Availability 2

Price group: 21

31.61 MAD*

*All prices are recommended retail prices including VAT

Pos. 855

Pos. 855 | Base

2 610 008 115

Base

2 610 008 115

594.72 MAD*

Availability 1

Price group: 43

594.72 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/2

Pos. 855/2 | Base Plate

2 609 110 372

Base Plate

2 609 110 372

34.19 MAD*

Availability 1

Price group: 18

34.19 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/3

Pos. 855/3 | Base

2 609 100 381

Base

2 609 100 381

39.13 MAD*

Availability 1

Price group: 19

39.13 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/4

Pos. 855/4 | Pin

2 609 110 455

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/6

Pos. 855/6 | Wing Nut

2 609 199 008

Wing Nut

2 609 199 008

9.41 MAD*

Availability 2

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/7

Pos. 855/7 | Round-Head Bolt DIN 603-M6X20

2 910 281 201

Round-Head Bolt DIN 603-M6X20

2 910 281 201

8.00 MAD*

Availability 2

Price group: 10

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/9

Pos. 855/9 | Pin

2 609 110 483

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/10

Pos. 855/10 | Plain Washer DIN 125-A 6,4-ST

2 916 011 014

Plain Washer DIN 125-A 6,4-ST

2 916 011 014

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/21

Pos. 855/21 | Screw

2 609 110 347

Screw

2 609 110 347

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 855/26

Pos. 855/26 | Ratchet Cap

2 600 590 006

Ratchet Cap

2 600 590 006

9.41 MAD*

Availability 1

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 857

Pos. 857 | Edge Guide

2 610 008 113

Edge Guide

2 610 008 113

137.96 MAD*

Availability 1

Price group: 29

137.96 MAD*

*All prices are recommended retail prices including VAT

Pos. 857/656

Pos. 857/656 | Screw

2 609 110 364

Screw

2 609 110 364

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 863

Pos. 863 | Single-Head Eng. Wrench SW 17

2 609 110 438

Single-Head Eng. Wrench SW 17

2 609 110 438

34.19 MAD*

Availability 1

Price group: 18

34.19 MAD*

*All prices are recommended retail prices including VAT

Pos. 864/1

Pos. 864/1 | Base Plate

2 609 100 383

Base Plate

2 609 100 383

137.96 MAD*

Availability 1

Price group: 29

137.96 MAD*

*All prices are recommended retail prices including VAT

Pos. 864/2

Pos. 864/2 | Handle

2 609 100 423

Handle

2 609 100 423

21.79 MAD*

Availability 1

Price group: 15

21.79 MAD*

*All prices are recommended retail prices including VAT

Pos. 864/3

Pos. 864/3 | Cap-Handle

2 609 100 140

Cap-Handle

2 609 100 140

38.94 MAD*

Availability 1

Price group: 17

38.94 MAD*

*All prices are recommended retail prices including VAT

Pos. 864/4

Pos. 864/4 | Screw

2 609 110 607

Screw

2 609 110 607

12.64 MAD*

Availability 1

Price group: 12

12.64 MAD*

*All prices are recommended retail prices including VAT

Pos. 864/5

Pos. 864/5 | Nut

2 609 110 548

Nut

2 609 110 548

Availability 1

Price group: -

Pos. 865

Pos. 865 | Knurled Thumbscrew

2 609 199 114

Knurled Thumbscrew

2 609 199 114

52.26 MAD*

Availability 2

Price group: 21

52.26 MAD*

*All prices are recommended retail prices including VAT

Pos. 866

Pos. 866 | Screw

2 609 199 100

Screw

2 609 199 100

9.41 MAD*

Availability 2

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 868

Pos. 868 | Screw

2 609 110 553

Screw

2 609 110 553

5.45 MAD*

Availability 4

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 870

Pos. 870 | Dust Chamber

2 609 100 384

Dust Chamber

2 609 100 384

45.58 MAD*

Availability 1

Price group: 20

45.58 MAD*

*All prices are recommended retail prices including VAT

Pos. 871

Pos. 871 | Suction Socket

2 609 100 385

Suction Socket

2 609 100 385

52.26 MAD*

Availability 1

Price group: 21

52.26 MAD*

*All prices are recommended retail prices including VAT

Pos. 880

Pos. 880 | Base Plate

2 610 008 124

Base Plate

2 610 008 124

68.36 MAD*

Availability 1

Price group: 23
