GWS 17-125 CIE - 3 601 G9H 000 | Product Detail Page | Power Tools

85.00 MAD*

*All prices are recommended retail prices including VAT

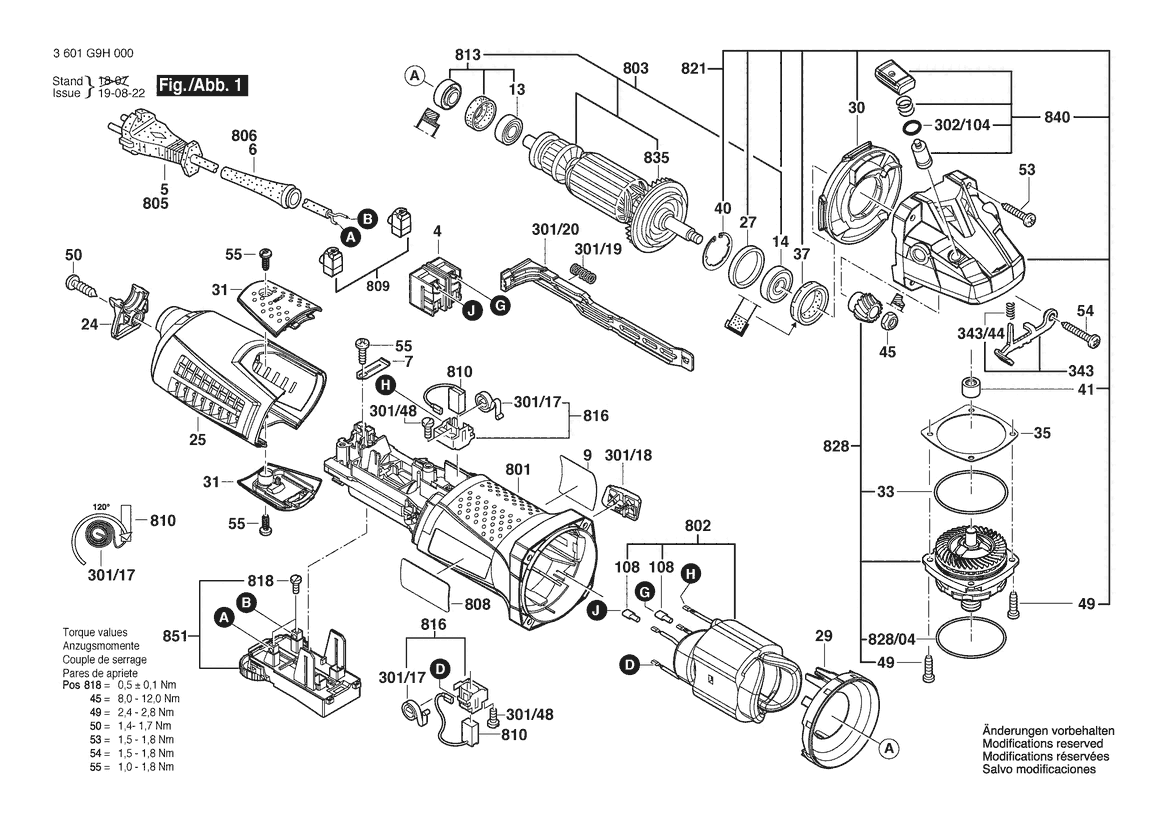

Pos. 6

Pos. 6 | Grommet

1 600 703 043

Grommet

1 600 703 043

8.00 MAD*

Availability 1

Price group: 13

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 7

Pos. 7 | Fastening Clamp

1 601 302 017

Fastening Clamp

1 601 302 017

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 9

Pos. 9 | Manufacturer's nameplate

1 601 11C 1CJ

Manufacturer's nameplate

1 601 11C 1CJ

Availability 1

Price group: -

Pos. 13

Pos. 13 | Ball Bearing 7X19X6

2 600 905 032

Ball Bearing 7X19X6

2 600 905 032

24.67 MAD*

Availability 1

Price group: 17

24.67 MAD*

*All prices are recommended retail prices including VAT

Pos. 14

Pos. 14 | groove ball bearing 8X22X7

1 600 905 032

groove ball bearing 8X22X7

1 600 905 032

50.00 MAD*

Availability 1

Price group: 18

50.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 24

Pos. 24 | Cover

1 605 500 275

Cover

1 605 500 275

17.59 MAD*

Availability 1

Price group: 14

17.59 MAD*

*All prices are recommended retail prices including VAT

Pos. 25

Pos. 25 | Housing Cover

1 605 500 276

Housing Cover

1 605 500 276

52.26 MAD*

Availability 1

Price group: 21

52.26 MAD*

*All prices are recommended retail prices including VAT

Pos. 27

Pos. 27 | Rubber Ring

1 600 206 025

Rubber Ring

1 600 206 025

9.50 MAD*

Availability 1

Price group: 12

9.50 MAD*

*All prices are recommended retail prices including VAT

Pos. 29

Pos. 29 | Air-Deflector Ring

1 600 591 047

Air-Deflector Ring

1 600 591 047

8.00 MAD*

Availability 1

Price group: 12

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 30

Pos. 30 | Air Distributor

1 600 591 048

Air Distributor

1 600 591 048

17.59 MAD*

Availability 1

Price group: 13

17.59 MAD*

*All prices are recommended retail prices including VAT

Pos. 31

Pos. 31 | Brush-Cover

1 600 A01 M0M

Brush-Cover

1 600 A01 M0M

Availability 2

Price group: -

Pos. 33

Pos. 33 | O-Ring 46,0X1,1 MM

1 600 210 035

O-Ring 46,0X1,1 MM

1 600 210 035

9.41 MAD*

Availability 1

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Shim 0,1 MM THICK

1 600 136 013

Shim 0,1 MM THICK

1 600 136 013

9.89 MAD*

Availability 1

Price group: 13

9.89 MAD*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Shim 0,2 MM THICK

1 600 136 014

Shim 0,2 MM THICK

1 600 136 014

14.86 MAD*

Availability 1

Price group: 13

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Shim 0,3 MM THICK

1 600 136 015

Shim 0,3 MM THICK

1 600 136 015

14.86 MAD*

Availability 1

Price group: 13

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Shim 0,15 MM THICK

1 600 136 020

Shim 0,15 MM THICK

1 600 136 020

14.86 MAD*

Availability 1

Price group: 15

14.86 MAD*

*All prices are recommended retail prices including VAT

Pos. 37

Pos. 37 | Rotary shaft lip seal

1 600 290 016

Rotary shaft lip seal

1 600 290 016

12.22 MAD*

Availability 1

Price group: 13

12.22 MAD*

*All prices are recommended retail prices including VAT

Pos. 40

Pos. 40 | Retaining clip

1 600 119 011

Retaining clip

1 600 119 011

9.41 MAD*

Availability 1

Price group: 12

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 41

Pos. 41 | Plain bearing

1 600 200 029

Plain bearing

1 600 200 029

12.55 MAD*

Availability 1

Price group: 16

12.55 MAD*

*All prices are recommended retail prices including VAT

Pos. 45

Pos. 45 | Hex Nut M7, SW10

1 603 300 016

Hex Nut M7, SW10

1 603 300 016

8.00 MAD*

Availability 1

Price group: 11

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 49

Pos. 49 | Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3

1 603 435 08X

Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3

1 603 435 08X

Availability 4

Price group: -

Pos. 50

Pos. 50 | Torx Oval-Head Screw 4X20

2 603 490 023

Torx Oval-Head Screw 4X20

2 603 490 023

8.00 MAD*

Availability 1

Price group: 10

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 53

Pos. 53 | Torx Oval-Head Screw

1 603 435 078

Torx Oval-Head Screw

1 603 435 078

5.45 MAD*

Availability 3

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 54

Pos. 54 | Torx Oval-Head Screw 4X30

1 603 414 026

Torx Oval-Head Screw 4X30

1 603 414 026

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 55

Pos. 55 | Torx Oval-Head Screw 4X12

2 603 490 021

Torx Oval-Head Screw 4X12

2 603 490 021

5.45 MAD*

Availability 3

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 108

Pos. 108 | Insulating Part

1 600 712 030

Insulating Part

1 600 712 030

8.00 MAD*

Availability 2

Price group: 11

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 301/17

Pos. 301/17 | Spiral Spring

1 604 652 021

Spiral Spring

1 604 652 021

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 301/18

Pos. 301/18 | Switch Handle

1 602 026 091

Switch Handle

1 602 026 091

8.00 MAD*

Availability 1

Price group: 10

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 301/19

Pos. 301/19 | Compression Spring

1 604 611 031

Compression Spring

1 604 611 031

8.00 MAD*

Availability 1

Price group: 14

8.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 301/20

Pos. 301/20 | Adjusting Slide

1 602 319 026

Adjusting Slide

1 602 319 026

9.41 MAD*

Availability 1

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

Pos. 301/48

Pos. 301/48 | Lens Head Screw 3X10 ST

1 613 435 034

Lens Head Screw 3X10 ST

1 613 435 034

5.45 MAD*

Availability 2

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 302/104

Pos. 302/104 | O-Ring 4,5X1,0 MM BLUE

1 600 210 044

O-Ring 4,5X1,0 MM BLUE

1 600 210 044

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 343

Pos. 343 | Catch Lever

1 607 000 742

Catch Lever

1 607 000 742

39.13 MAD*

Availability 1

Price group: 20

39.13 MAD*

*All prices are recommended retail prices including VAT

Pos. 343/44

Pos. 343/44 | Compression Spring

1 604 611 042

Compression Spring

1 604 611 042

9.41 MAD*

Availability 1

Price group: 11

9.41 MAD*

*All prices are recommended retail prices including VAT

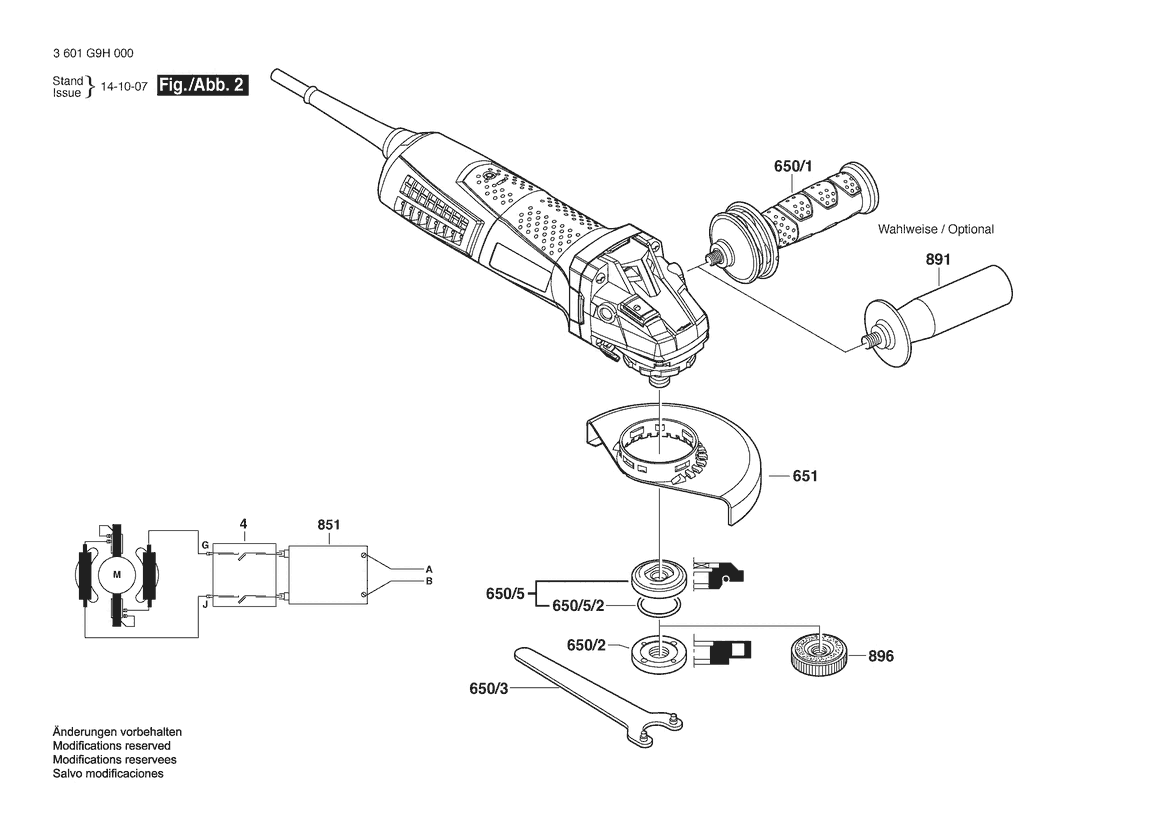

Pos. 650/1

Pos. 650/1 | Auxiliary Handle

1 602 025 0A0

Auxiliary Handle

1 602 025 0A0

Availability 1

Price group: -

Pos. 650/2

Pos. 650/2 | Round Nut M14

1 603 345 043

Round Nut M14

1 603 345 043

41.83 MAD*

Availability 1

Price group: 21

41.83 MAD*

*All prices are recommended retail prices including VAT

Pos. 650/3

Pos. 650/3 | Pin-Type Face-Wrench

1 607 950 052

Pin-Type Face-Wrench

1 607 950 052

21.79 MAD*

Availability 1

Price group: 15

21.79 MAD*

*All prices are recommended retail prices including VAT

Pos. 650/5/2

Pos. 650/5/2 | O-Ring 20,35X1,78 MM

1 600 210 039

O-Ring 20,35X1,78 MM

1 600 210 039

5.45 MAD*

Availability 1

Price group: 12

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 650/5

Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM

2 605 703 014

Clamping Flange Ø22,3XØ42 MM

2 605 703 014

38.22 MAD*

Availability 1

Price group: 20

38.22 MAD*

*All prices are recommended retail prices including VAT

Pos. 651

Pos. 651 | Protective Cover

1 600 A02 5XR

Protective Cover

1 600 A02 5XR

Availability 1

Price group: -

Pos. 801

Pos. 801 | Motor Housing

1 607 000 CY2

Motor Housing

1 607 000 CY2

Availability 1

Price group: -

Pos. 802

Pos. 802 | Field assembly 220-230V

1 604 220 532

Field assembly 220-230V

1 604 220 532

150.00 MAD*

Availability 1

Price group: 31

150.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 803

Pos. 803 | Armature With Fan 230V

1 607 000 V35

Armature With Fan 230V

1 607 000 V35

360.00 MAD*

Availability 1

Price group: 40

360.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 805

Pos. 805 | Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F

1 607 000 392

Power supply cord EU 4,15M 2 X 1,0MM H07 RN-F

1 607 000 392

164.81 MAD*

Availability 1

Price group: 29

164.81 MAD*

*All prices are recommended retail prices including VAT

Pos. 808

Pos. 808 | Nameplate

1 601 11A 57J

Nameplate

1 601 11A 57J

Availability 1

Price group: -

Pos. 809

Pos. 809 | Seal

1 607 000 D9C

Seal

1 607 000 D9C

Availability 1

Price group: -

Pos. 810

Pos. 810 | Carbon-Brush Set

1 607 000 V37

Carbon-Brush Set

1 607 000 V37

59.00 MAD*

Availability 1

Price group: 26

59.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 813

Pos. 813 | groove ball bearing

1 607 000 V38

groove ball bearing

1 607 000 V38

39.34 MAD*

Availability 1

Price group: 20

39.34 MAD*

*All prices are recommended retail prices including VAT

Pos. 816

Pos. 816 | Brush Holder

1 607 000 V43

Brush Holder

1 607 000 V43

13.07 MAD*

Availability 2

Price group: 15

13.07 MAD*

*All prices are recommended retail prices including VAT

Pos. 818

Pos. 818 | Pan head screw

1 607 000 V42

Pan head screw

1 607 000 V42

5.45 MAD*

Availability 1

Price group: 10

5.45 MAD*

*All prices are recommended retail prices including VAT

Pos. 821

Pos. 821 | Gear Housing

1 607 000 V40

Gear Housing

1 607 000 V40

240.68 MAD*

Availability 1

Price group: 31

240.68 MAD*

*All prices are recommended retail prices including VAT

Pos. 828

Pos. 828 | Bearing Flange

1 607 000 D62

Bearing Flange

1 607 000 D62

150.00 MAD*

Availability 1

Price group: 33

150.00 MAD*

*All prices are recommended retail prices including VAT

Pos. 828/04

Pos. 828/04 | O-Ring 47,0X1,5 MM

3 600 210 109

O-Ring 47,0X1,5 MM

3 600 210 109

12.64 MAD*

Availability 1

Price group: 12

12.64 MAD*

*All prices are recommended retail prices including VAT

Pos. 835

Pos. 835 | Fan

1 606 610 132

Fan

1 606 610 132

12.64 MAD*

Availability 1

Price group: 12

12.64 MAD*

*All prices are recommended retail prices including VAT

Pos. 840

Pos. 840 | Push-Button

1 607 000 V41

Push-Button

1 607 000 V41

16.15 MAD*

Availability 1

Price group: 16

16.15 MAD*

*All prices are recommended retail prices including VAT

Pos. 851

Pos. 851 | Speed governor

1 607 000 DA2

Speed governor

1 607 000 DA2

388.88 MAD*

Availability 1

Price group: 38

388.88 MAD*

*All prices are recommended retail prices including VAT

Pos. 891

Pos. 891 | Auxiliary Handle

1 602 025 09T

Auxiliary Handle

1 602 025 09T

Availability 1

Price group: -

Pos. 896

Pos. 896 | Fast Locking Flange

1 600 A01 6PP

Fast Locking Flange

1 600 A01 6PP

Availability 1

Price group: -
