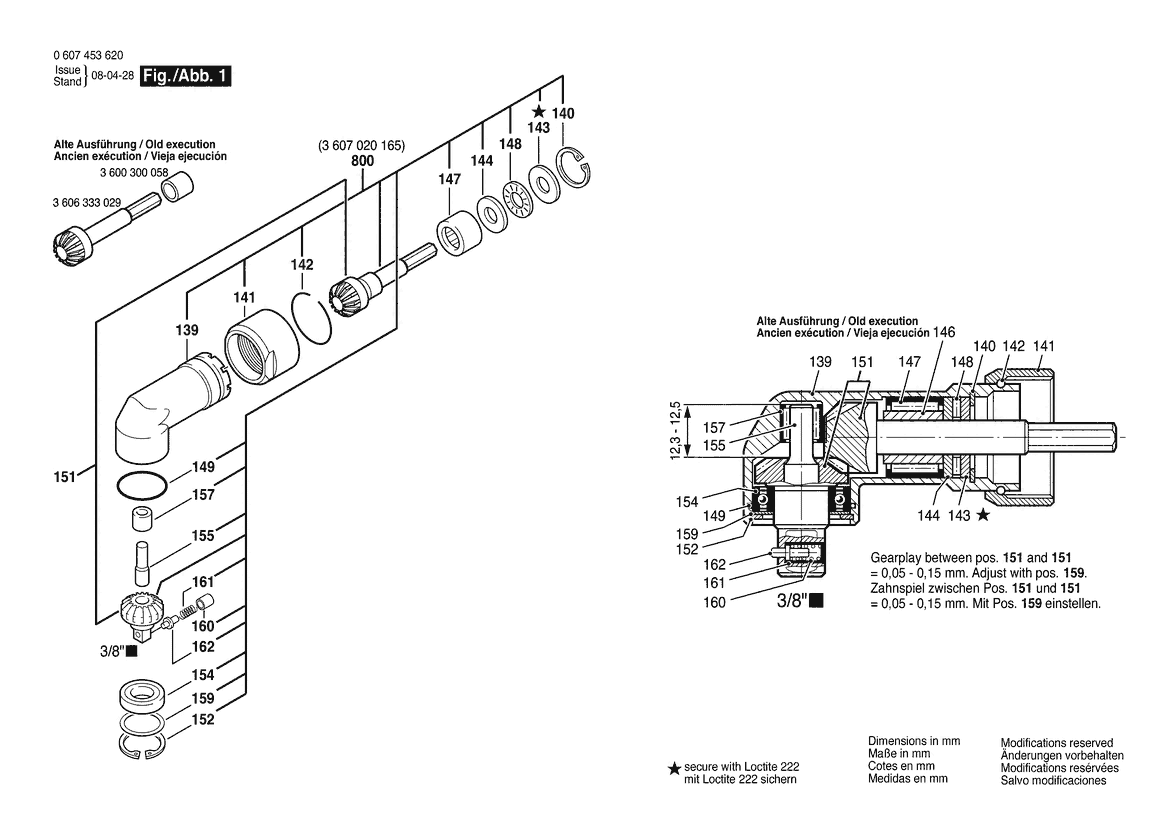

0 607 453 620
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Pressure Spindle
-
Spare part number: 1 603 124 060
Position: 162
Availability: 1
Price group: -
-
Pressure Spindle
-
Spare part number: 1 603 124 060
Position: 162
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 604 611 004
Position: 161
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 604 611 004
Position: 161
Availability: 1
Price group: -
-
Retaining ring DIN 9045-24
-
Spare part number: 2 916 600 013
Position: 142
Availability: 1
Price group: -
-
Retaining ring DIN 9045-24
-
Spare part number: 2 916 600 013
Position: 142
Availability: 1
Price group: -
-
Spring retaining ring 18X1MM, DIN 472
-
Spare part number: 2 916 660 004
Position: 140
Availability: 1
Price group: -
-
Spring retaining ring 18X1MM, DIN 472
-
Spare part number: 2 916 660 004
Position: 140
Availability: 1
Price group: -
-
Spring retaining ring DIN 472-21X1MM
-
Spare part number: 2 916 660 045
Position: 152
Availability: 1
Price group: -
-
Spring retaining ring DIN 472-21X1MM
-
Spare part number: 2 916 660 045
Position: 152
Availability: 1
Price group: -
-
Support Disc
-
Spare part number: 3 600 100 094
Position: 143
Availability: 1
Price group: -
-
Support Disc
-
Spare part number: 3 600 100 094
Position: 143
Availability: 1
Price group: -
-
Support Disc
-
Spare part number: 3 600 100 095
Position: 144
Availability: 1
Price group: -
-
Support Disc
-
Spare part number: 3 600 100 095
Position: 144
Availability: 1
Price group: -
-
O-Ring 21,0X1,0 MM
-
Spare part number: 3 600 210 127
Position: 149
Availability: 1
Price group: -
-
O-Ring 21,0X1,0 MM
-
Spare part number: 3 600 210 127
Position: 149
Availability: 1
Price group: -
-
Guide Sleeve
-
Spare part number: 3 600 320 016
Position: 160
Availability: 1
Price group: -
-
Guide Sleeve
-
Spare part number: 3 600 320 016
Position: 160
Availability: 1
Price group: -
-
groove ball bearing
-
Spare part number: 3 600 900 018
Position: 154
Availability: 1
Price group: -
-
groove ball bearing
-
Spare part number: 3 600 900 018
Position: 154
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 3 600 917 019
Position: 147
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 3 600 917 019
Position: 147
Availability: 1
Price group: -
-
Roller Thrust Bearing
-
Spare part number: 3 600 929 003
Position: 148
Availability: 1
Price group: -
-
Roller Thrust Bearing
-
Spare part number: 3 600 929 003
Position: 148
Availability: 1
Price group: -
-
Reference Plate
-
Spare part number: 3 601 119 236
Position: 99
Availability: 1
Price group: -
-
Bearing bolt
-
Spare part number: 3 603 120 003
Position: 155
Availability: 1
Price group: -
-
Bearing bolt
-
Spare part number: 3 603 120 003
Position: 155
Availability: 1
Price group: -
-
Union Nut
-
Spare part number: 3 603 342 002
Position: 141
Availability: 1
Price group: -
-
Union Nut
-
Spare part number: 3 603 342 002
Position: 141
Availability: 1
Price group: -
-
Spindle Housing
-
Spare part number: 3 605 106 071
Position: 139
Availability: 1
Price group: -
-
Spindle Housing
-
Spare part number: 3 605 106 071
Position: 139
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Bevel Gear Set
-
Spare part number: 3 606 333 590
Position: 151
Availability: 1
Price group: -
-
Angle Screwdriver Head 3/8"
-
Spare part number: 3 607 020 165
Position: 800
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 9 001 140 359
Position: 157
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 9 001 140 359
Position: 157
Availability: 1
Price group: -
-
1
My Spare parts list
21 Parts found
Sort by
Description
Pos. 99 | Reference Plate
3 601 119 236
-
Pos. 139 | Spindle Housing
3 605 106 071
-
Pos. 140 | Spring retaining ring 18X1MM, DIN 472
2 916 660 004
-
Pos. 141 | Union Nut
3 603 342 002
-
Pos. 142 | Retaining ring DIN 9045-24
2 916 600 013
-
Pos. 143 | Support Disc
3 600 100 094
-
Pos. 144 | Support Disc
3 600 100 095
-
Pos. 147 | Needle bearing
3 600 917 019
-
Pos. 148 | Roller Thrust Bearing
3 600 929 003
-
Pos. 149 | O-Ring 21,0X1,0 MM
3 600 210 127
-
Pos. 151 | Bevel Gear Set
3 606 333 590
-
Pos. 152 | Spring retaining ring DIN 472-21X1MM
2 916 660 045
-
Pos. 154 | groove ball bearing
3 600 900 018
-
Pos. 155 | Bearing bolt
3 603 120 003
-
Pos. 157 | Needle bearing
9 001 140 359
-
Pos. 159 | Shim 0,1 MM THICK
1 600 101 648
-
Pos. 159 | Shim 0,05 MM THICK
1 600 101 650
-
Pos. 160 | Guide Sleeve
3 600 320 016
-
Pos. 161 | Compression Spring
1 604 611 004
-
Pos. 162 | Pressure Spindle
1 603 124 060
-
Pos. 800 | Angle Screwdriver Head 3/8"
3 607 020 165
-
* Prices shown are net prices excluding VAT
