Impact Wrench
GDR 120-LI | 3 601 JF0 0L0 | 12 V / 026 - AS
3 601 JF0 0L0

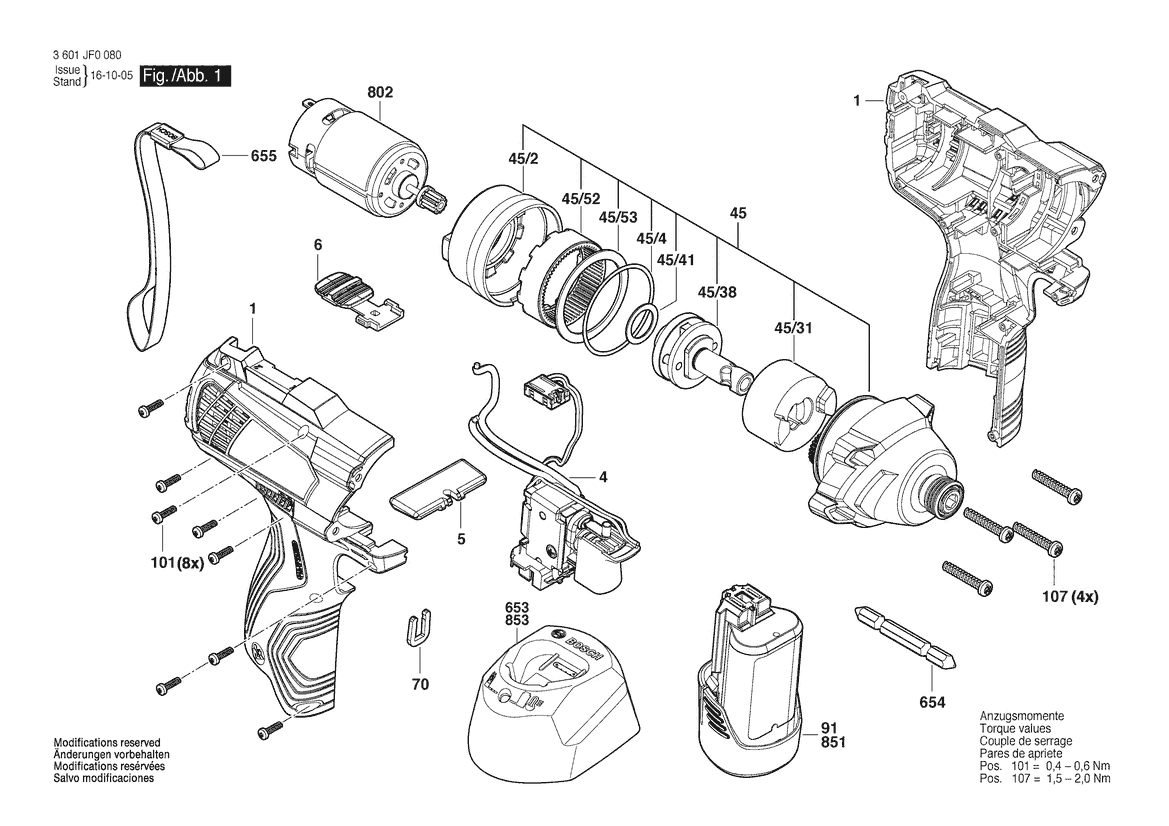

Image 1
Motor assembly
-
part
Spare part number: 1 600 A00 PE3
Position: 802
Availability: 1
Price group: 29
46.00 RM*
Prices shown are net prices excluding VAT
Battery Pack GBA 12V 2.0AH LI SCM
-
part
Spare part number: 1 607 A35 0C5
Position: 91
Availability: 1
Price group: 40
174.00 RM*
Prices shown are net prices excluding VAT
Battery Pack GBA 12V 2.0AH LI SCM
-
part
Spare part number: 1 607 A35 0C5
Position: 851
Availability: 1
Price group: 40
174.00 RM*
Prices shown are net prices excluding VAT
Electronics Module
-
part
Spare part number: 2 607 202 312
Position: 4
Availability: 1
Price group: 32
67.00 RM*
Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Button
-
part
Spare part number: 2 609 100 698
Position: 5
Availability: 1
Price group: 12
4.00 RM*
Prices shown are net prices excluding VAT
Flange Housing
-
Spare part number: 2 609 101 512
Position: 45/2
Availability: 1
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 2 609 101 534
Position: 1
Availability: 1
Price group: 21
17.00 RM*
Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 2 609 101 534
Position: 1
Availability: 1
Price group: 21
17.00 RM*
Prices shown are net prices excluding VAT
Switchover Unit
-
Spare part number: 2 609 101 661
Position: 6
Availability: 1
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Screw
-
Spare part number: 2 609 110 327
Position: 107
Availability: 4
Price group: 11
3.00 RM*
Prices shown are net prices excluding VAT
Screwdriver Blade
-
Spare part number: 2 609 110 342
Position: 654
Availability: 1
Price group: 13
5.00 RM*
Prices shown are net prices excluding VAT
Clip
-
part
Spare part number: 2 609 110 537
Position: 70
Availability: 1
Price group: 11
3.00 RM*
Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 2 609 110 883
Position: 101
Availability: 8
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Striker
-
Spare part number: 2 609 111 531
Position: 45/31
Availability: 1
Price group: 27
35.00 RM*
Prices shown are net prices excluding VAT
Ring Gear
-
Spare part number: 2 609 111 997
Position: 45/52
Availability: 1
Price group: 21
16.00 RM*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 2 609 112 051
Position: 45/53
Availability: 1
Price group: -
-
Washer
-
Spare part number: 2 609 112 071
Position: 45/41
Availability: 1
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Carrying Loop
-
Spare part number: 2 609 170 129
Position: 655
Availability: 1
Price group: 13
5.00 RM*
Prices shown are net prices excluding VAT
Seal
-
Spare part number: 2 609 170 267
Position: 45/4
Availability: 1
Price group: 12
4.00 RM*
Prices shown are net prices excluding VAT
Gear Box
-
part
Spare part number: 2 609 199 824
Position: 45
Availability: 1
Price group: 39
143.00 RM*
Prices shown are net prices excluding VAT
Jack Shaft
-
Spare part number: 2 609 199 865
Position: 45/38
Availability: 1
Price group: 24
24.00 RM*
Prices shown are net prices excluding VAT
1
My Spare parts list

23 Parts found

Description
Pos. 1 | Housing
2 609 101 534
-
17.00 RM*
*Prices shown are net prices excluding VAT
Pos. 4 | Electronics Module
2 607 202 312
-
67.00 RM*
*Prices shown are net prices excluding VAT
Pos. 5 | Button
2 609 100 698
-
4.00 RM*
*Prices shown are net prices excluding VAT
Pos. 6 | Switchover Unit
2 609 101 661
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45 | Gear Box
2 609 199 824
-
143.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/2 | Flange Housing
2 609 101 512
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/4 | Seal
2 609 170 267
-
4.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/31 | Striker
2 609 111 531
-
35.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/38 | Jack Shaft
2 609 199 865
-
24.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/41 | Washer
2 609 112 071
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/52 | Ring Gear
2 609 111 997
-
16.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45/53 | Washer
2 609 112 051
-
-
Pos. 70 | Clip
2 609 110 537
-
3.00 RM*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack GBA 12V 2.0AH LI SCM
1 607 A35 0C5
-
174.00 RM*
*Prices shown are net prices excluding VAT
Pos. 101 | Screw
2 609 110 883
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 107 | Screw
2 609 110 327
-
3.00 RM*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
2 607 226 195
-
-
Pos. 653 | Fast Charger
2 607 226 535
-
-
Pos. 654 | Screwdriver Blade
2 609 110 342
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 655 | Carrying Loop
2 609 170 129
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 802 | Motor assembly
1 600 A00 PE3
-
46.00 RM*
*Prices shown are net prices excluding VAT
Pos. 853 | Fast Charger
2 607 226 187
-
-
Pos. 853 | Fast Charger
2 607 226 189
-
64.00 RM*
*Prices shown are net prices excluding VAT

* Prices shown are net prices excluding VAT
Turn the device for 90 degrees.
3 601 JF0 0L0
Image 1
Motor assembly
-
part
Spare part number: 1 600 A00 PE3
Position: 802
Availability: 1
Price group: 29
46.00 RM*

Prices shown are net prices excluding VAT
Battery Pack GBA 12V 2.0AH LI SCM
-
part
Spare part number: 1 607 A35 0C5
Position: 91
Availability: 1
Price group: 40
174.00 RM*

Prices shown are net prices excluding VAT
Battery Pack GBA 12V 2.0AH LI SCM
-
part
Spare part number: 1 607 A35 0C5
Position: 851
Availability: 1
Price group: 40
174.00 RM*

Prices shown are net prices excluding VAT
Electronics Module
-
part
Spare part number: 2 607 202 312
Position: 4
Availability: 1
Price group: 32
67.00 RM*

Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

Button
-
part
Spare part number: 2 609 100 698
Position: 5
Availability: 1
Price group: 12
4.00 RM*

Prices shown are net prices excluding VAT
Flange Housing
-
Spare part number: 2 609 101 512
Position: 45/2
Availability: 1
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 2 609 101 534
Position: 1
Availability: 1
Price group: 21
17.00 RM*

Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 2 609 101 534
Position: 1
Availability: 1
Price group: 21
17.00 RM*

Prices shown are net prices excluding VAT
Switchover Unit
-
Spare part number: 2 609 101 661
Position: 6
Availability: 1
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Screw
-
Spare part number: 2 609 110 327
Position: 107
Availability: 4
Price group: 11
3.00 RM*

Prices shown are net prices excluding VAT
Screwdriver Blade
-
Spare part number: 2 609 110 342
Position: 654
Availability: 1
Price group: 13
5.00 RM*

Prices shown are net prices excluding VAT
Clip
-
part
Spare part number: 2 609 110 537
Position: 70
Availability: 1
Price group: 11
3.00 RM*

Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 2 609 110 883
Position: 101
Availability: 8
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Striker
-
Spare part number: 2 609 111 531
Position: 45/31
Availability: 1
Price group: 27
35.00 RM*

Prices shown are net prices excluding VAT
Ring Gear
-
Spare part number: 2 609 111 997
Position: 45/52
Availability: 1
Price group: 21
16.00 RM*

Prices shown are net prices excluding VAT
Washer
-
Spare part number: 2 609 112 051
Position: 45/53
Availability: 1
Price group: -
-

Washer
-
Spare part number: 2 609 112 071
Position: 45/41
Availability: 1
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Carrying Loop
-
Spare part number: 2 609 170 129
Position: 655
Availability: 1
Price group: 13
5.00 RM*

Prices shown are net prices excluding VAT
Seal
-
Spare part number: 2 609 170 267
Position: 45/4
Availability: 1
Price group: 12
4.00 RM*

Prices shown are net prices excluding VAT
Gear Box
-
part
Spare part number: 2 609 199 824
Position: 45
Availability: 1
Price group: 39
143.00 RM*

Prices shown are net prices excluding VAT
Jack Shaft
-
Spare part number: 2 609 199 865
Position: 45/38
Availability: 1
Price group: 24
24.00 RM*

Prices shown are net prices excluding VAT
