Laser Level
GLL3-80P | 3 601 K63 300 | / 001 - EU
3 601 K63 300

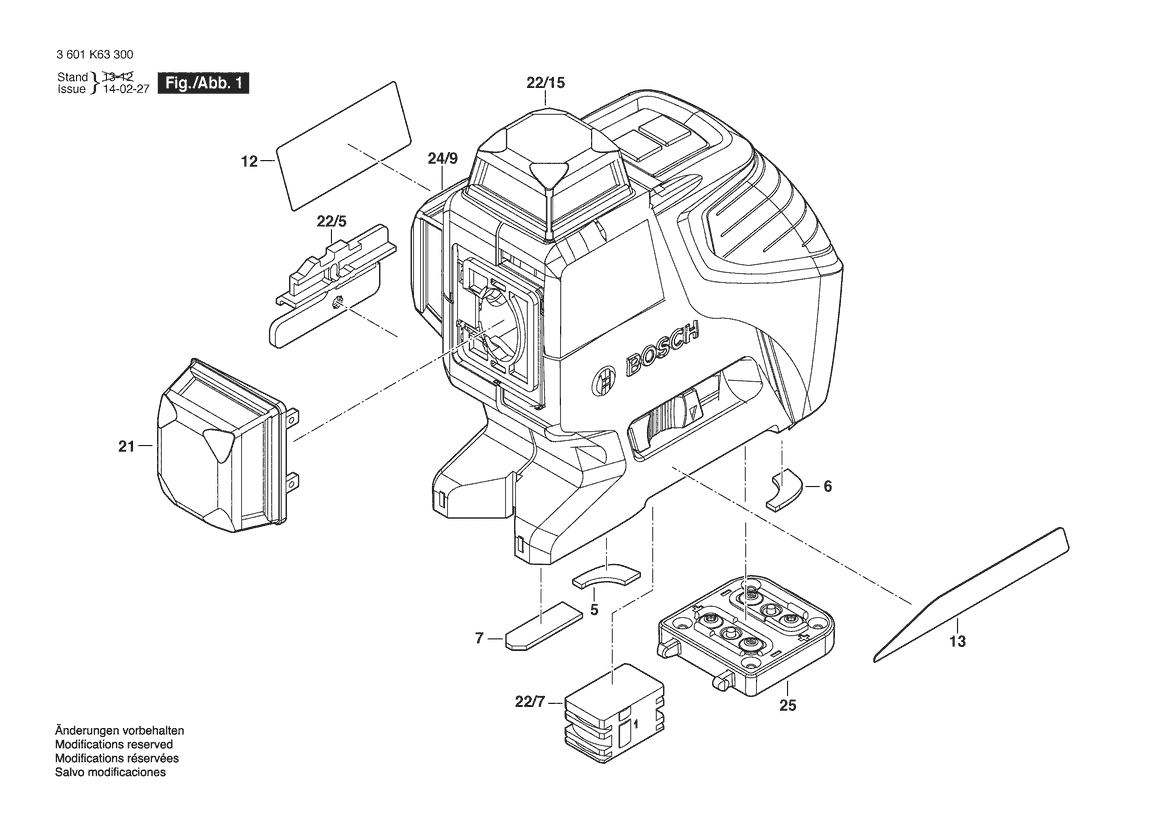

Image 1
Type Label
-
Spare part number: 1 600 A00 X3F
Position: 12
Availability: 1
Price group: -
-
Switch Slide
-
Spare part number: 1 618 C00 12T
Position: 22/5
Availability: 1
Price group: 11
4.00 RM*
Prices shown are net prices excluding VAT
Casing Foot
-
Spare part number: 1 618 C00 325
Position: 5
Availability: 1
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Casing Foot
-
part
Spare part number: 1 618 C00 326
Position: 6
Availability: 1
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Adhesive Label
-
Spare part number: 1 618 C00 354
Position: 13
Availability: 1
Price group: 20
15.00 RM*
Prices shown are net prices excluding VAT
Casing Foot
-
Spare part number: 1 618 C01 699
Position: 7
Availability: 2
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Battery Cover
-
Spare part number: 1 618 C01 707
Position: 25
Availability: 1
Price group: 15
8.00 RM*
Prices shown are net prices excluding VAT
Nut
-
part
Spare part number: 1 618 C01 752
Position: 22/7
Availability: 1
Price group: -
-
Window
-
part
Spare part number: 1 618 C01 773
Position: 22/15
Availability: 1
Price group: -
-
Window
-
Spare part number: 1 618 C01 774
Position: 21
Availability: 1
Price group: -
-
Window
-
Spare part number: 1 618 C01 774
Position: 24/9
Availability: 1
Price group: -
-
1
My Spare parts list

10 Parts found

Description
Pos. 5 | Casing Foot
1 618 C00 325
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 6 | Casing Foot
1 618 C00 326
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 7 | Casing Foot
1 618 C01 699
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 12 | Type Label
1 600 A00 X3F
-
-
Pos. 13 | Adhesive Label
1 618 C00 354
-
15.00 RM*
*Prices shown are net prices excluding VAT
Pos. 21 | Window
1 618 C01 774
-
-
Pos. 22/5 | Switch Slide
1 618 C00 12T
-
4.00 RM*
*Prices shown are net prices excluding VAT
Pos. 22/7 | Nut
1 618 C01 752
-
-
Pos. 22/15 | Window
1 618 C01 773
-
-
Pos. 25 | Battery Cover
1 618 C01 707
-
8.00 RM*
*Prices shown are net prices excluding VAT

* Prices shown are net prices excluding VAT
Turn the device for 90 degrees.
3 601 K63 300
Image 1
Type Label
-
Spare part number: 1 600 A00 X3F
Position: 12
Availability: 1
Price group: -
-

Switch Slide
-
Spare part number: 1 618 C00 12T
Position: 22/5
Availability: 1
Price group: 11
4.00 RM*

Prices shown are net prices excluding VAT
Casing Foot
-
Spare part number: 1 618 C00 325
Position: 5
Availability: 1
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Casing Foot
-
part
Spare part number: 1 618 C00 326
Position: 6
Availability: 1
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Adhesive Label
-
Spare part number: 1 618 C00 354
Position: 13
Availability: 1
Price group: 20
15.00 RM*

Prices shown are net prices excluding VAT
Casing Foot
-
Spare part number: 1 618 C01 699
Position: 7
Availability: 2
Price group: 10
2.00 RM*

Prices shown are net prices excluding VAT
Battery Cover
-
Spare part number: 1 618 C01 707
Position: 25
Availability: 1
Price group: 15
8.00 RM*

Prices shown are net prices excluding VAT
Nut
-
part
Spare part number: 1 618 C01 752
Position: 22/7
Availability: 1
Price group: -
-

Window
-
part
Spare part number: 1 618 C01 773
Position: 22/15
Availability: 1
Price group: -
-

Window
-
Spare part number: 1 618 C01 774
Position: 21
Availability: 1
Price group: -
-

Window
-
Spare part number: 1 618 C01 774
Position: 24/9
Availability: 1
Price group: -
-

1
