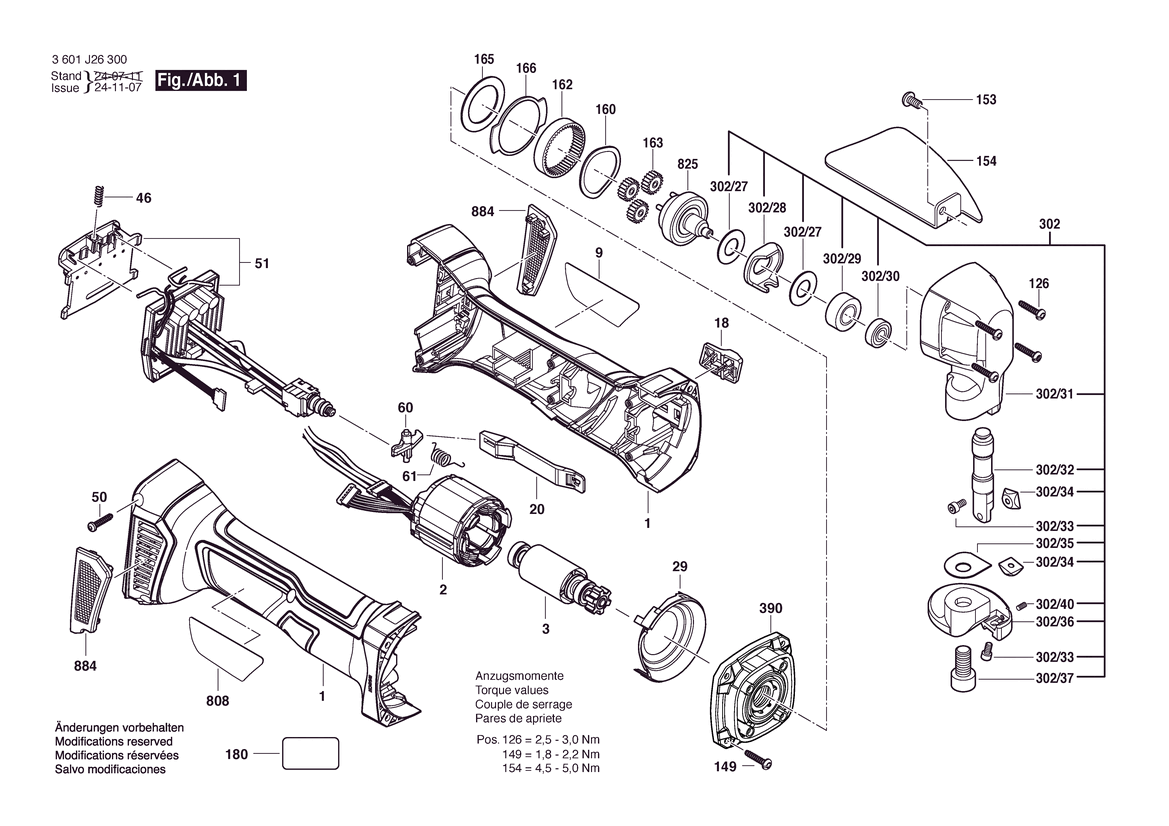

3 601 J26 300
Air-Deflector Ring
-
Spare part number: 1 600 591 065
Position: 29
Availability: 1
Price group: 13
6.00 RM*
Prices shown are net prices excluding VAT
Stator
-
Spare part number: 1 600 A01 A6N
Position: 2
Availability: 1
Price group: 00
88.00 RM*
Prices shown are net prices excluding VAT
Rotor
-
Spare part number: 1 600 A01 A6S
Position: 3
Availability: 1
Price group: 00
91.00 RM*
Prices shown are net prices excluding VAT
Electronics Module
-
Spare part number: 1 600 A01 NC3
Position: 51
Availability: 1
Price group: 00
300.00 RM*
Prices shown are net prices excluding VAT
Assembly kit
-
Spare part number: 1 600 A02 70P
Position: 390
Availability: 1
Price group: -
-
Seal
-
Spare part number: 1 600 A03 5Z4
Position: 166
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 8T2
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 4E4
Position: 9
Availability: 1
Price group: 13
2.00 RM*
Prices shown are net prices excluding VAT
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
20.00 RM*
Prices shown are net prices excluding VAT
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
20.00 RM*
Prices shown are net prices excluding VAT
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
2.00 RM*
Prices shown are net prices excluding VAT
Motor Housing
-
Spare part number: 1 619 P15 044
Position: 1
Availability: 1
Price group: 00
99.00 RM*
Prices shown are net prices excluding VAT
Motor Housing
-
Spare part number: 1 619 P15 044
Position: 1
Availability: 1
Price group: 00
99.00 RM*
Prices shown are net prices excluding VAT
Adjusting Slide
-
Spare part number: 1 619 P15 050
Position: 20
Availability: 1
Price group: 10
6.00 RM*
Prices shown are net prices excluding VAT
Switch Handle
-
Spare part number: 1 619 P15 338
Position: 18
Availability: 1
Price group: 00
10.00 RM*
Prices shown are net prices excluding VAT
Reverse-Transfer Lever
-
Spare part number: 1 619 P15 795
Position: 60
Availability: 1
Price group: 10
5.00 RM*
Prices shown are net prices excluding VAT
Torsion Spring
-
Spare part number: 1 619 P15 806
Position: 61
Availability: 1
Price group: 10
4.00 RM*
Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
Spare part number: 2 603 410 051
Position: 126
Availability: 4
Price group: -
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 149
Availability: 4
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 50
Availability: 6
Price group: 10
2.00 RM*
Prices shown are net prices excluding VAT
Hex Socket Head Cap Screw DIN 912-M4X8-12.9
-
Spare part number: 2 910 401 118
Position: 302/33
Availability: 2
Price group: -
-
Hex Socket Head Cap Screw DIN 912-M4X8-12.9
-
Spare part number: 2 910 401 118
Position: 302/33
Availability: 2
Price group: -
-
Hex Socket Head Cap Screw DIN 912-M10X20-12.9
-
Spare part number: 2 910 401 289
Position: 302/37
Availability: 1
Price group: -
-
Set screw DIN 913-M4X8
-
Spare part number: 2 912 040 118
Position: 302/40
Availability: 1
Price group: -
-
Shim ring
-
Spare part number: 3 600 100 098
Position: 165
Availability: 1
Price group: -
-
Shim ring
-
Spare part number: 3 600 102 049
Position: 302/27
Availability: 2
Price group: -
-
Shim ring
-
Spare part number: 3 600 102 049
Position: 302/27
Availability: 2
Price group: -
-
Spring Washer
-
Spare part number: 3 600 109 019
Position: 160
Availability: 1
Price group: -
-
Ring Gear
-
Spare part number: 3 600 112 006
Position: 162
Availability: 1
Price group: -
-
Track-Supporting Roller
-
Spare part number: 3 600 905 158
Position: 302/29
Availability: 1
Price group: -
-
groove ball bearing
-
Spare part number: 3 600 905 161
Position: 302/30
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
U-Sheet
-
Spare part number: 3 602 311 052
Position: 302/28
Availability: 1
Price group: -
-
Tappet
-
Spare part number: 3 602 317 042
Position: 302/32
Availability: 1
Price group: -
-
Thread-forming tap. Screw DIN 7500-UM5X10-ST
-
Spare part number: 3 603 391 007
Position: 154
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 3 605 106 107
Position: 302/31
Availability: 1
Price group: -
-
Planet Gear
-
Spare part number: 3 606 316 097
Position: 163
Availability: 1
Price group: -
-
Cutting Table
-
Spare part number: 3 606 455 042
Position: 302/36
Availability: 1
Price group: -
-
Gear Unit
-
Spare part number: 3 607 000 114
Position: 302
Availability: 1
Price group: -
-
Eccentric Shaft
-
Spare part number: 3 607 031 860
Position: 825
Availability: 1
Price group: 44
188.00 RM*
Prices shown are net prices excluding VAT
Chip Deflector
-
Spare part number: 3 607 233 026
Position: 153
Availability: 1
Price group: -
-
Knife
-
Spare part number: 3 608 635 009
Position: 302/34
Availability: 2
Price group: 33
77.00 RM*
Prices shown are net prices excluding VAT
Knife
-
Spare part number: 3 608 635 009
Position: 302/34
Availability: 2
Price group: 33
77.00 RM*
Prices shown are net prices excluding VAT
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
20.00 RM*
Prices shown are net prices excluding VAT
-
Please click for futher details
Charger EU GAL 1880 CV 230/14,4-18V
-
Spare part number: 2 607 225 921
Position: 652
Availability: 1
Price group: -
-
-
Please click for futher details
1
2
My Spare parts list
43 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 619 P15 044
-
*Prices shown are net prices excluding VAT
Pos. 2 | Stator
1 600 A01 A6N
-
*Prices shown are net prices excluding VAT
Pos. 3 | Rotor
1 600 A01 A6S
-
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate
1 601 11C 4E4
-
*Prices shown are net prices excluding VAT
Pos. 18 | Switch Handle
1 619 P15 338
-
*Prices shown are net prices excluding VAT
Pos. 20 | Adjusting Slide
1 619 P15 050
-
*Prices shown are net prices excluding VAT
Pos. 29 | Air-Deflector Ring
1 600 591 065
-
*Prices shown are net prices excluding VAT
Pos. 46 | Compression Spring
1 609 280 477
-
*Prices shown are net prices excluding VAT
Pos. 50 | Torx Flat-Head Screw 3X16
2 609 110 201
-
*Prices shown are net prices excluding VAT
Pos. 51 | Electronics Module
1 600 A01 NC3
-
*Prices shown are net prices excluding VAT
Pos. 60 | Reverse-Transfer Lever
1 619 P15 795
-
*Prices shown are net prices excluding VAT
Pos. 61 | Torsion Spring
1 619 P15 806
-
*Prices shown are net prices excluding VAT
Pos. 126 | Thread-forming tap. Screw
2 603 410 051
-
Pos. 149 | Torx Oval-Head Screw 4X20
2 603 490 023
-
*Prices shown are net prices excluding VAT
Pos. 153 | Chip Deflector
3 607 233 026
-
Pos. 154 | Thread-forming tap. Screw DIN 7500-UM5X10-ST
3 603 391 007
-
Pos. 160 | Spring Washer
3 600 109 019
-
Pos. 162 | Ring Gear
3 600 112 006
-
Pos. 163 | Planet Gear
3 606 316 097
-
Pos. 165 | Shim ring
3 600 100 098
-
Pos. 166 | Seal
1 600 A03 5Z4
-
Pos. 302 | Gear Unit
3 607 000 114
-
Pos. 302/27 | Shim ring
3 600 102 049
-
Pos. 302/28 | U-Sheet
3 602 311 052
-
Pos. 302/29 | Track-Supporting Roller
3 600 905 158
-
Pos. 302/30 | groove ball bearing
3 600 905 161
-
Pos. 302/31 | Gear Housing
3 605 106 107
-
Pos. 302/32 | Tappet
3 602 317 042
-
Pos. 302/33 | Hex Socket Head Cap Screw DIN 912-M4X8-12.9
2 910 401 118
-
Pos. 302/34 | Knife
3 608 635 009
-
*Prices shown are net prices excluding VAT
Pos. 302/35 | Plain Washer 0,2 MM
3 602 311 047
-
Pos. 302/35 | Plain Washer 0,4MM
3 602 311 048
-
Pos. 302/35 | Plain Washer 0,6MM
3 602 311 049
-
Pos. 302/36 | Cutting Table
3 606 455 042
-
Pos. 302/37 | Hex Socket Head Cap Screw DIN 912-M10X20-12.9
2 910 401 289
-
Pos. 302/40 | Set screw DIN 913-M4X8
2 912 040 118
-
Pos. 390 | Assembly kit
1 600 A02 70P
-

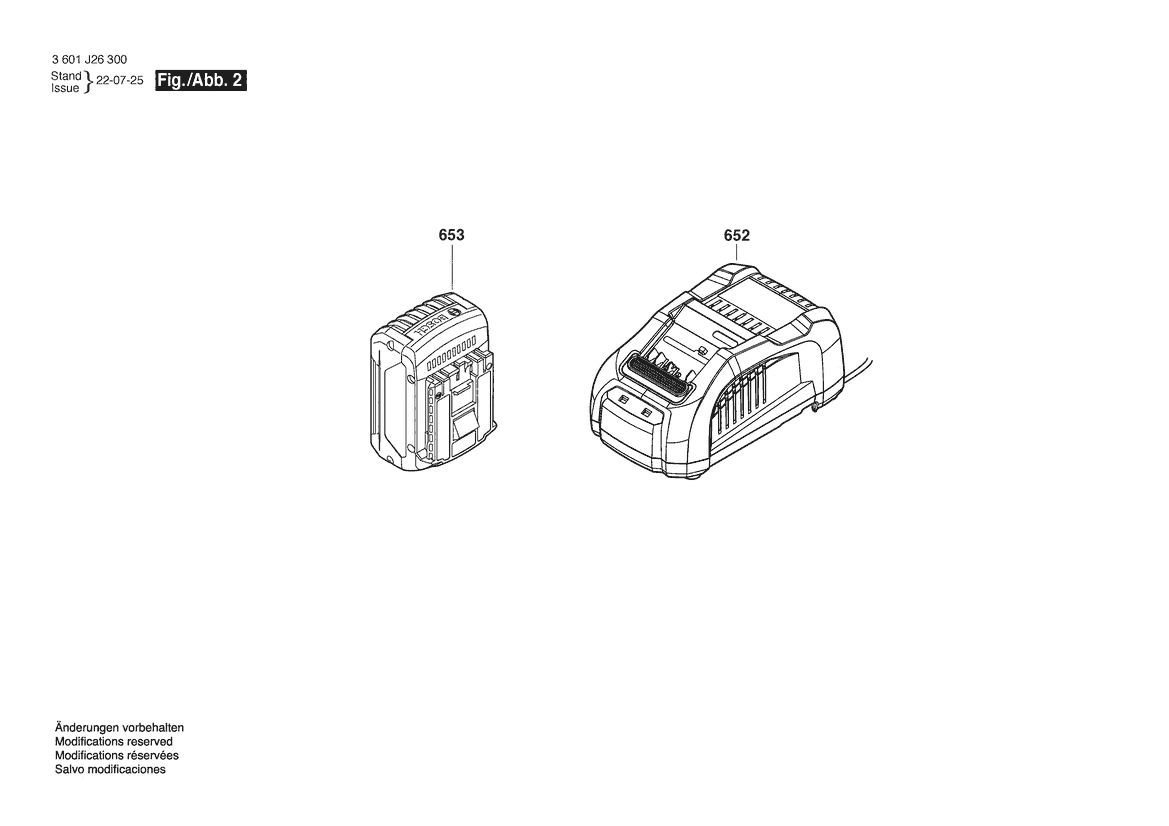

Pos. 652 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
Pos. 653 | Battery Pack
1 617 S01 9K0
-
Pos. 653 | Battery Pack
2 607 337 069
-
*Prices shown are net prices excluding VAT
Pos. 808 | Nameplate
1 601 11A 8T2
-
Pos. 825 | Eccentric Shaft
3 607 031 860
-
*Prices shown are net prices excluding VAT
Pos. 884 | Filter Unit
1 607 000 CA9
-
*Prices shown are net prices excluding VAT
* Prices shown are net prices excluding VAT
