Cordless Drill Driver
GSR 18V-65 | 3 601 JN3 0K0 | 18 V / 026 - AS
3 601 JN3 0K0

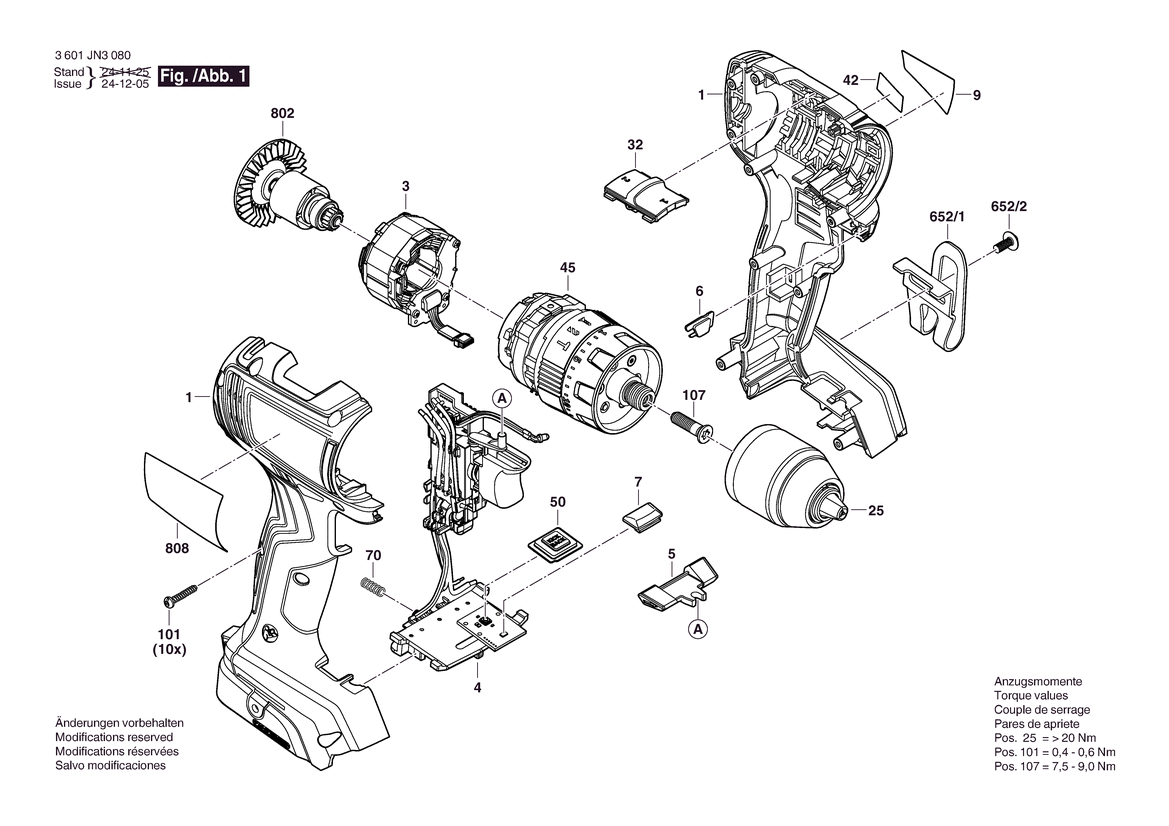

Image 1
Switchover Unit
-
Spare part number: 1 600 A02 477
Position: 32
Availability: 1
Price group: 12
3.00 RM*
Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 601 11A D5Y
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 6A2
Position: 9
Availability: 1
Price group: -
-
Housing
-
Spare part number: 1 605 806 6X1
Position: 1
Availability: 1
Price group: -
-
Housing
-
Spare part number: 1 605 806 6X1
Position: 1
Availability: 1
Price group: -
-
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 70
Availability: 1
Price group: 11
2.00 RM*
Prices shown are net prices excluding VAT
Keyless Chuck
-
part
Spare part number: 1 619 PS1 119
Position: 25
Availability: 1
Price group: 25
42.00 RM*
Prices shown are net prices excluding VAT
Motor Spare Parts Set
-
Spare part number: 1 619 PS1 120
Position: 802
Availability: 1
Price group: 29
77.00 RM*
Prices shown are net prices excluding VAT
Stator
-
part
Spare part number: 1 619 PS1 172
Position: 3
Availability: 1
Price group: 28
64.00 RM*
Prices shown are net prices excluding VAT
Electronics Module
-
part
Spare part number: 1 619 PS1 173
Position: 4
Availability: 1
Price group: 37
118.00 RM*
Prices shown are net prices excluding VAT
-

Please click for futher details

Changeover Lever
-
Spare part number: 1 619 PS1 174
Position: 5
Availability: 1
Price group: 12
6.00 RM*
Prices shown are net prices excluding VAT
-

Please click for futher details

Lens
-
Spare part number: 1 619 PS1 175
Position: 7
Availability: 1
Price group: 12
5.00 RM*
Prices shown are net prices excluding VAT
Lens
-
Spare part number: 1 619 PS1 181
Position: 7
Availability: 1
Price group: 12
6.00 RM*
Prices shown are net prices excluding VAT
Lens
-
Spare part number: 1 619 PS1 181
Position: 22
Availability: 1
Price group: 12
6.00 RM*
Prices shown are net prices excluding VAT
Keyboard
-
Spare part number: 1 619 PS1 182
Position: 50
Availability: 1
Price group: 13
9.00 RM*
Prices shown are net prices excluding VAT
Keyboard
-
Spare part number: 1 619 PS1 182
Position: 23
Availability: 1
Price group: 13
9.00 RM*
Prices shown are net prices excluding VAT
Sticker
-
Spare part number: 1 619 PS1 184
Position: 42
Availability: 1
Price group: 13
5.00 RM*
Prices shown are net prices excluding VAT
Gear Box
-
Spare part number: 1 619 PS1 185
Position: 45
Availability: 1
Price group: 30
84.00 RM*
Prices shown are net prices excluding VAT
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
part
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 11
4.00 RM*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
part
Spare part number: 2 609 110 353
Position: 101
Availability: 1
Price group: 12
5.00 RM*
Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 2 609 110 834
Position: 652/2
Availability: 1
Price group: 11
8.00 RM*
Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 2 609 110 834
Position: 651/2
Availability: 1
Price group: 11
8.00 RM*
Prices shown are net prices excluding VAT
Clip
-
part
Spare part number: 2 609 111 584
Position: 652/1
Availability: 1
Price group: 15
5.00 RM*
Prices shown are net prices excluding VAT
Clip
-
part
Spare part number: 2 609 111 584
Position: 651/1
Availability: 1
Price group: 15
5.00 RM*
Prices shown are net prices excluding VAT

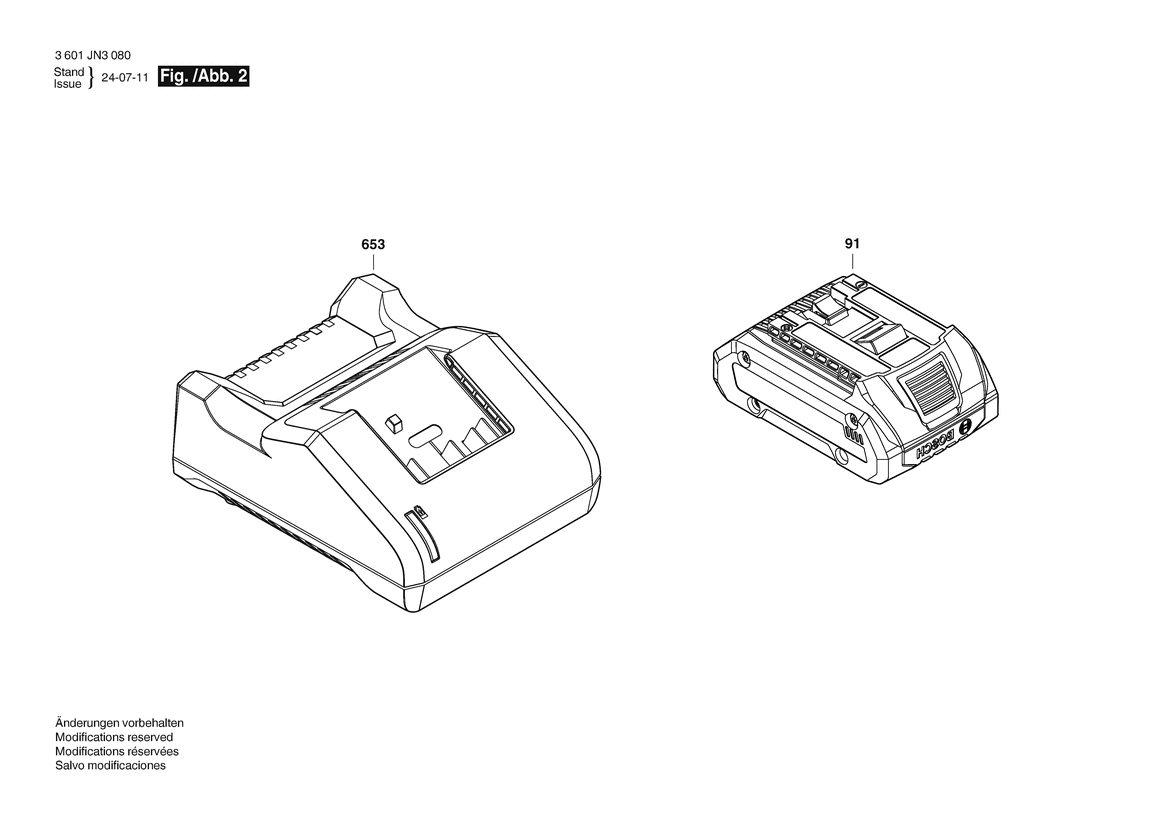

Image 1
Battery Pack GBA 18V 2.0AH
-
Spare part number: 1 607 A35 0MA
Position: 91
Availability: 1
Price group: -
-
-

Please click for futher details

-

Please click for futher details

1
2
My Spare parts list

22 Parts found

Description
Pos. 1 | Housing
1 605 806 6X1
-
-
Pos. 3 | Stator
1 619 PS1 172
-
64.00 RM*
*Prices shown are net prices excluding VAT
Pos. 4 | Electronics Module
1 619 PS1 173
-
118.00 RM*
*Prices shown are net prices excluding VAT
Pos. 6 | Changeover Lever
1 619 PS1 174
-
6.00 RM*
*Prices shown are net prices excluding VAT
Pos. 6 | Lens
1 619 PS1 175
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 7 | Lens
1 619 PS1 181
-
6.00 RM*
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate
1 601 11C 6A2
-
-
Pos. 25 | Keyless Chuck
1 619 PS1 119
-
42.00 RM*
*Prices shown are net prices excluding VAT
Pos. 32 | Switchover Unit
1 600 A02 477
-
3.00 RM*
*Prices shown are net prices excluding VAT
Pos. 42 | Sticker
1 619 PS1 184
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 45 | Gear Box
1 619 PS1 185
-
84.00 RM*
*Prices shown are net prices excluding VAT
Pos. 50 | Keyboard
1 619 PS1 182
-
9.00 RM*
*Prices shown are net prices excluding VAT
Pos. 70 | Compression Spring
1 609 280 477
-
2.00 RM*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MA
-
-
Pos. 101 | Torx Oval-Head Screw
2 609 110 353
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
4.00 RM*
*Prices shown are net prices excluding VAT
Pos. 652/1 | Clip
2 609 111 584
-
5.00 RM*
*Prices shown are net prices excluding VAT
Pos. 652/2 | Screw
2 609 110 834
-
8.00 RM*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger
2 607 226 281
-
-
Pos. 653 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
2 607 226 283
-
95.00 RM*
*Prices shown are net prices excluding VAT
Pos. 802 | Motor Spare Parts Set
1 619 PS1 120
-
77.00 RM*
*Prices shown are net prices excluding VAT
Pos. 808 | Nameplate
1 601 11A D5Y
-
-

* Prices shown are net prices excluding VAT
