Impact Wrench
GDS 18V-1000 | 3 601 JJ8 300 | 18 V / 001 - EU
Lubrication instructions
Product information
Print drawing

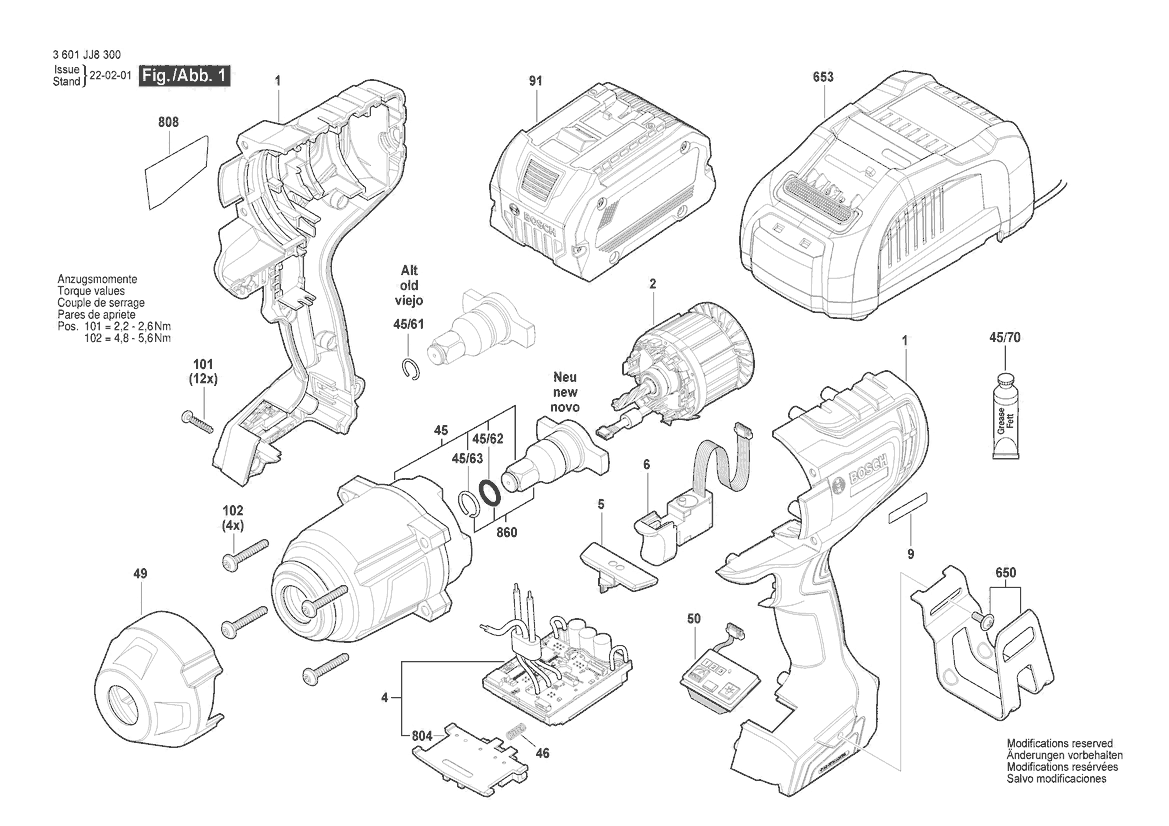

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JJ8 300
Image 1
O-Ring
-
Spare part number: 1 600 210 09U
Position: 45/62
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Grease Tube 45 ML
-
part
Spare part number: 1 600 A00 2NE
Position: 45/70
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Changeover Lever
-
Spare part number: 1 600 A01 P3K
Position: 5
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Cap
-
part
Spare part number: 1 600 A01 R1M
Position: 49
Availability: 1
Price group: 21
NZ$ 13.06 *
Recommended retail price excluding GST
Gear Box
-
Spare part number: 1 600 A01 RJ3
Position: 45
Availability: 1
Price group: 46
NZ$ 210.52 *
Recommended retail price excluding GST
Type Label
-
Spare part number: 1 600 A02 2TL
Position: 808
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Hook
-
part
Spare part number: 1 600 A02 3G7
Position: 650
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Coupling Half
-
Spare part number: 1 600 A02 801
Position: 860
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Manufacturer's nameplate
-
part
Spare part number: 1 601 11C 3U3
Position: 9
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Torx Oval-Head Screw M5X40
-
Spare part number: 1 603 435 098
Position: 102
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 1 604 601 03M
Position: 45/61
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 1 604 601 03V
Position: 45/63
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Housing
-
part
Spare part number: 1 605 806 64U
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Housing
-
part
Spare part number: 1 605 806 64U
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
DC motor
-
Spare part number: 1 607 022 69Z
Position: 2
Availability: 1
Price group: 44
NZ$ 170.33 *
Recommended retail price excluding GST
Electronic Module
-
part
Spare part number: 1 607 233 5LG
Position: 4
Availability: 1
Price group: 46
NZ$ 210.52 *
Recommended retail price excluding GST
Electronic Module
-
part
Spare part number: 1 607 233 5MR
Position: 50
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Contact retainer 18V
-
part
Spare part number: 1 609 280 820
Position: 804
Availability: 1
Price group: 18
NZ$ 9.14 *
Recommended retail price excluding GST
-

Please click for futher details

Torx Oval-Head Screw 4X20
-
part
Spare part number: 2 603 490 023
Position: 101
Availability: 12
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Switch
-
Spare part number: 2 607 202 501
Position: 6
Availability: 1
Price group: 27
NZ$ 26.70 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

1
My spare part list

27 Parts found

Sort by
Description
Pos. 1 | Housing
1 605 806 64U
-
NZ$ 41.56 *
*Recommended retail price excluding GST
Pos. 2 | DC motor
1 607 022 69Z
-
NZ$ 170.33 *
*Recommended retail price excluding GST
Pos. 4 | Electronic Module
1 607 233 5LG
-
NZ$ 210.52 *
*Recommended retail price excluding GST
Pos. 5 | Changeover Lever
1 600 A01 P3K
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 6 | Switch
2 607 202 501
-
NZ$ 26.70 *
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 3U3
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 45 | Gear Box
1 600 A01 RJ3
-
NZ$ 210.52 *
*Recommended retail price excluding GST
Pos. 45/61 | Retaining ring
1 604 601 03M
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 45/62 | O-Ring
1 600 210 09U
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 45/63 | Retaining ring
1 604 601 03V
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 45/70 | Grease Tube 45 ML
1 600 A00 2NE
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 46 | Compression Spring
1 609 280 477
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 49 | Cap
1 600 A01 R1M
-
NZ$ 13.06 *
*Recommended retail price excluding GST
Pos. 50 | Electronic Module
1 607 233 5MR
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack
1 607 A35 0LR
-
NZ$ 359.50 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack
1 607 A35 12Z
-
-
Pos. 91 | Battery Pack
1 617 S01 9K0
-
NZ$ 449.77 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack
2 607 337 069
-
NZ$ 188.25 *
*Recommended retail price excluding GST
Pos. 101 | Torx Oval-Head Screw 4X20
2 603 490 023
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 102 | Torx Oval-Head Screw M5X40
1 603 435 098
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 650 | Hook
1 600 A02 3G7
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 653 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
NZ$ 210.52 *
*Recommended retail price excluding GST
Pos. 653 | Charger
2 607 225 923
-
NZ$ 238.35 *
*Recommended retail price excluding GST
Pos. 653 | Fast Charger
2 607 226 251
-
-
Pos. 804 | Contact retainer 18V
1 609 280 820
-
NZ$ 9.14 *
*Recommended retail price excluding GST
Pos. 808 | Type Label
1 600 A02 2TL
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 860 | Coupling Half
1 600 A02 801
-
NZ$ 52.46 *
*Recommended retail price excluding GST
* Recommended retail price excluding GST
