Random orbital sander
GEX 12V-77 | 3 601 JL2 100 | 12 V / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing

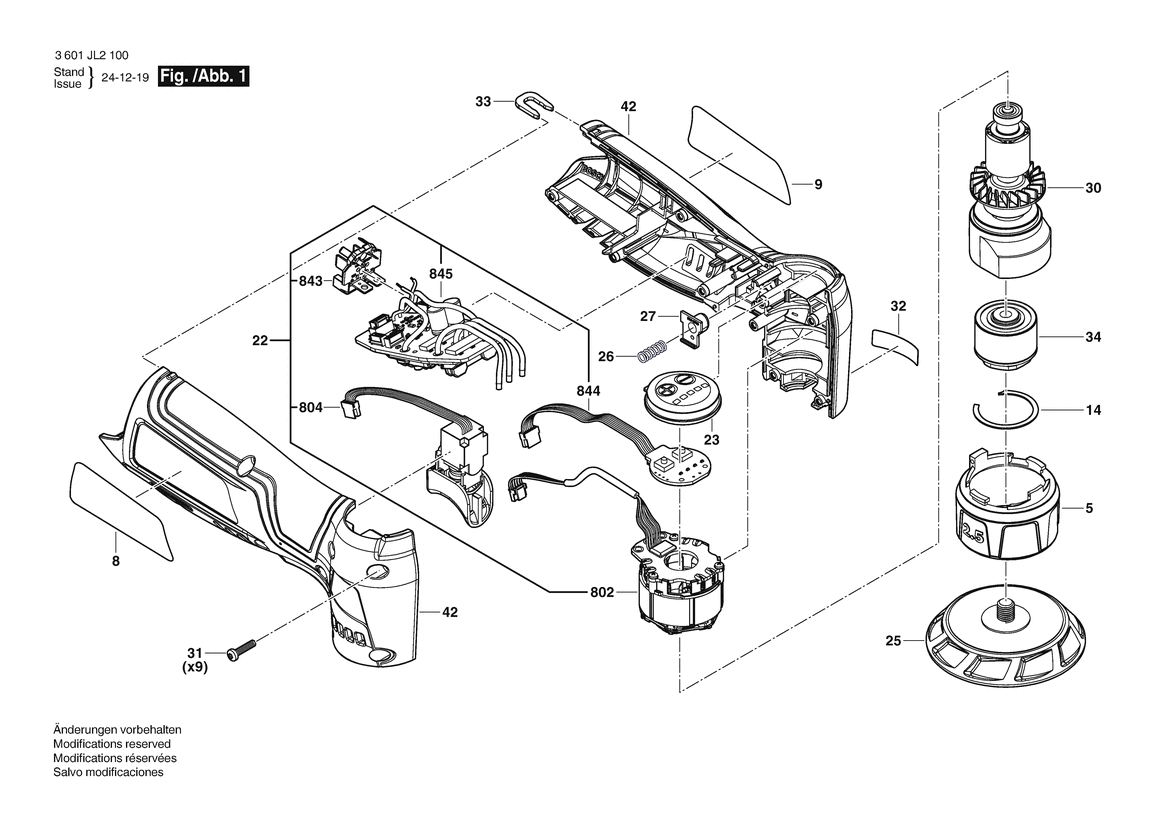

3 601 JL2 100
Image 1
Contact retainer
-
Spare part number: 1 600 A02 DY0
Position: 843
Availability: 1
Price group: 18
NZ$ 9.14 *
Recommended retail price excluding GST
U-shaped clip
-
Spare part number: 1 619 PB5 588
Position: 33
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
HMI Housing
-
Spare part number: 1 619 PB9 667
Position: 23
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Label
-
Spare part number: 1 619 PB9 676
Position: 32
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
operating column
-
Spare part number: 1 619 PB9 677
Position: 844
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Stator
-
Spare part number: 1 619 PS1 243
Position: 802
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Cover
-
Spare part number: 1 619 PS1 271
Position: 5
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 619 PS1 275
Position: 8
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PS1 288
Position: 9
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PS1 308
Position: 26
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
button
-
Spare part number: 1 619 PS1 309
Position: 27
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Rotor
-
Spare part number: 1 619 PS1 319
Position: 30
Availability: 1
Price group: -
-
Electronic Assembly
-
Spare part number: 1 619 PS1 335
Position: 22
Availability: 1
Price group: -
-
Housing
-
Spare part number: 1 619 PS1 336
Position: 42
Availability: 1
Price group: 27
NZ$ 26.70 *
Recommended retail price excluding GST
Housing
-
Spare part number: 1 619 PS1 336
Position: 42
Availability: 1
Price group: 27
NZ$ 26.70 *
Recommended retail price excluding GST
Switch
-
Spare part number: 1 619 PS1 337
Position: 804
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
Backing Pad
-
Spare part number: 1 619 PS1 482
Position: 25
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 1 619 PS1 499
Position: 14
Availability: 1
Price group: 17
NZ$ 7.96 *
Recommended retail price excluding GST
Output Shaft
-
Spare part number: 1 619 PS1 500
Position: 34
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
Screw
-
Spare part number: 1 619 PS1 628
Position: 31
Availability: 9
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Electronic Assembly
-
Spare part number: 1 619 PS1 736
Position: 845
Availability: 1
Price group: 44
NZ$ 170.33 *
Recommended retail price excluding GST

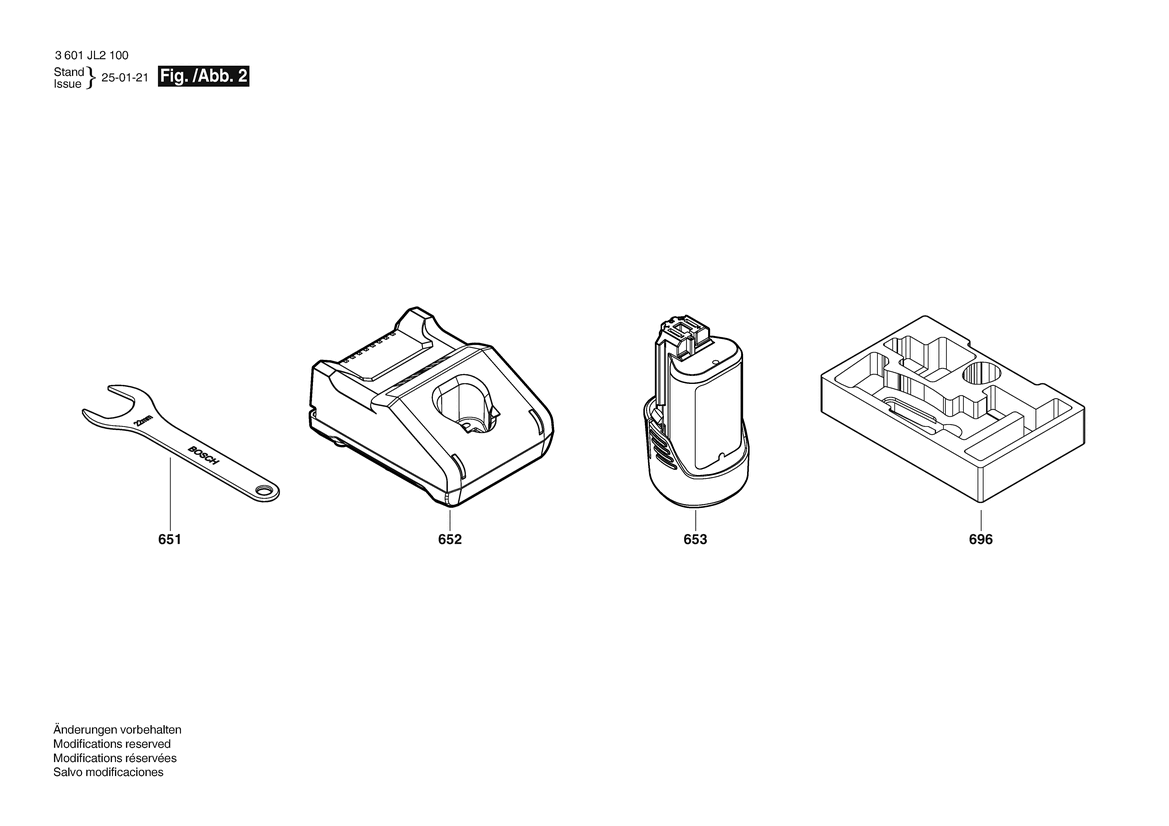

Image 1
Battery Pack
-
part
Spare part number: 1 607 A35 06A
Position: 653
Availability: 1
Price group: 43
NZ$ 153.07 *
Recommended retail price excluding GST
Wrench Attachment
-
Spare part number: 1 619 PS1 489
Position: 651
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Insert
-
Spare part number: 1 619 PS1 768
Position: 696
Availability: 1
Price group: -
-
Fast Charger EU GAL 12V-40
-
part
Spare part number: 2 607 226 219
Position: 652
Availability: 1
Price group: -
-
1
2
My spare part list

24 Parts found

Sort by
Description
Pos. 5 | Cover
1 619 PS1 271
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 8 | Nameplate
1 619 PS1 275
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
1 619 PS1 288
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 14 | Retaining ring
1 619 PS1 499
-
NZ$ 7.96 *
*Recommended retail price excluding GST
Pos. 22 | Electronic Assembly
1 619 PS1 335
-
-
Pos. 23 | HMI Housing
1 619 PB9 667
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 25 | Backing Pad
1 619 PS1 482
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 26 | Compression Spring
1 619 PS1 308
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 27 | button
1 619 PS1 309
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 30 | Rotor
1 619 PS1 319
-
-
Pos. 31 | Screw
1 619 PS1 628
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 32 | Label
1 619 PB9 676
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 33 | U-shaped clip
1 619 PB5 588
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 34 | Output Shaft
1 619 PS1 500
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 42 | Housing
1 619 PS1 336
-
NZ$ 26.70 *
*Recommended retail price excluding GST
Pos. 651 | Wrench Attachment
1 619 PS1 489
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 652 | Fast Charger EU GAL 12V-40
2 607 226 219
-
-
Pos. 653 | Battery Pack
1 607 A35 06A
-
NZ$ 153.07 *
*Recommended retail price excluding GST
Pos. 696 | Insert
1 619 PS1 768
-
-
Pos. 802 | Stator
1 619 PS1 243
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 804 | Switch
1 619 PS1 337
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 843 | Contact retainer
1 600 A02 DY0
-
NZ$ 9.14 *
*Recommended retail price excluding GST
Pos. 844 | operating column
1 619 PB9 677
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 845 | Electronic Assembly
1 619 PS1 736
-
NZ$ 170.33 *
*Recommended retail price excluding GST
* Recommended retail price excluding GST
