Pole Hedge Trimmer
GHE 18V-50 T | 3 600 HD5 000 | 18 V / 000 - UNI
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 600 HD5 000

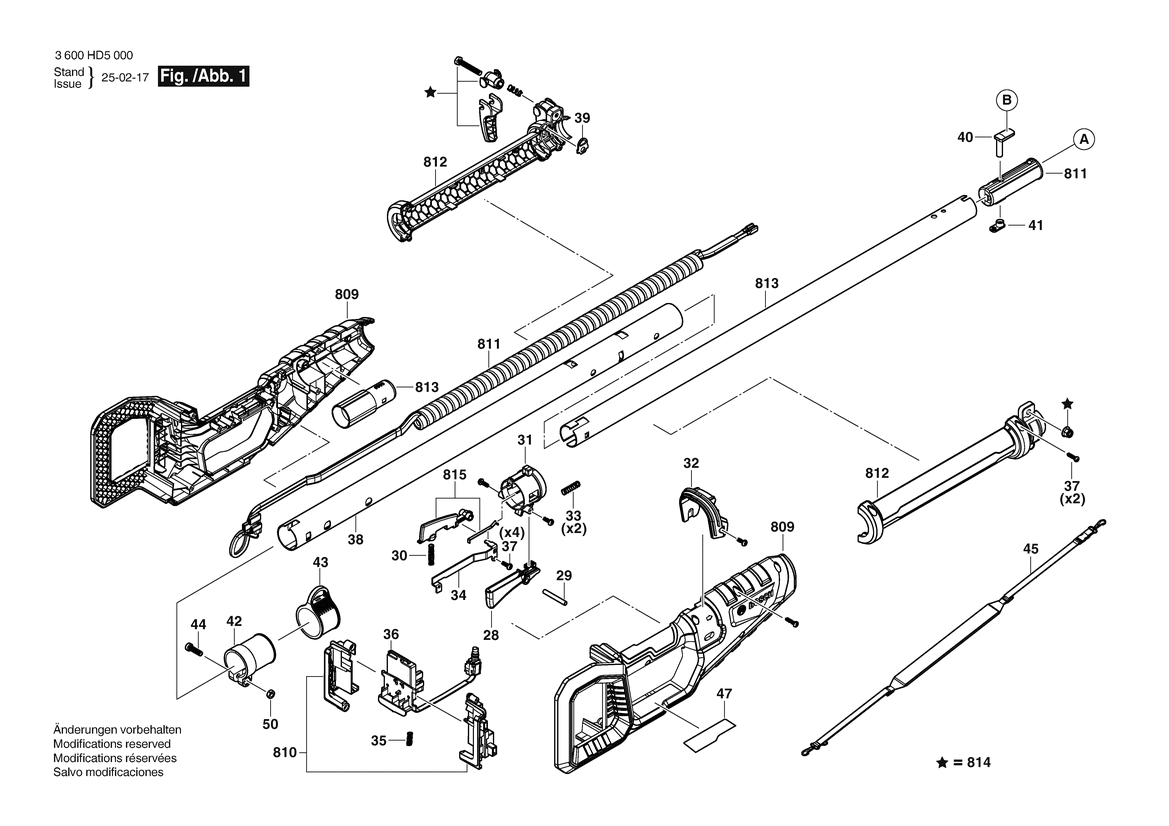

Image 1
Housing Assembly
-
Spare part number: F 016 F06 486
Position: 809
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 486
Position: 809
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Guide Rail
-
Spare part number: F 016 F06 489
Position: 810
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Helical Conductor
-
Spare part number: F 016 F06 492
Position: 811
Availability: 1
Price group: 35
NZ$ 73.70 *
Recommended retail price excluding GST
Helical Conductor
-
Spare part number: F 016 F06 492
Position: 811
Availability: 1
Price group: 35
NZ$ 73.70 *
Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 502
Position: 812
Availability: 1
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 502
Position: 812
Availability: 1
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 505
Position: 813
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 505
Position: 813
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Clamping Lever
-
Spare part number: F 016 F06 508
Position: 814
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 513
Position: 815
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Switch Segment
-
Spare part number: F 016 F06 554
Position: 28
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Straight Pin
-
Spare part number: F 016 F06 555
Position: 29
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 556
Position: 30
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Slide Button
-
Spare part number: F 016 F06 557
Position: 31
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Slide Button
-
Spare part number: F 016 F06 558
Position: 32
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 559
Position: 33
Availability: 2
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
fixing plate
-
Spare part number: F 016 F06 560
Position: 34
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 561
Position: 35
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Electronic Assembly
-
Spare part number: F 016 F06 562
Position: 36
Availability: 1
Price group: 39
NZ$ 111.97 *
Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 564
Position: 37
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 564
Position: 37
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 565
Position: 38
Availability: 1
Price group: 25
NZ$ 21.35 *
Recommended retail price excluding GST
Hanger
-
Spare part number: F 016 F06 566
Position: 39
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Coupling
-
Spare part number: F 016 F06 567
Position: 40
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Coupling
-
Spare part number: F 016 F06 568
Position: 41
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: F 016 F06 570
Position: 42
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Hanger
-
Spare part number: F 016 F06 571
Position: 43
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 572
Position: 44
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Hex Nut
-
Spare part number: F 016 F06 573
Position: 50
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Chest Harness
-
Spare part number: F 016 F06 574
Position: 45
Availability: 1
Price group: 27
NZ$ 26.70 *
Recommended retail price excluding GST
Warning Label
-
Spare part number: F 016 F06 577
Position: 47
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 686
Position: 51
Availability: 1
Price group: -
-

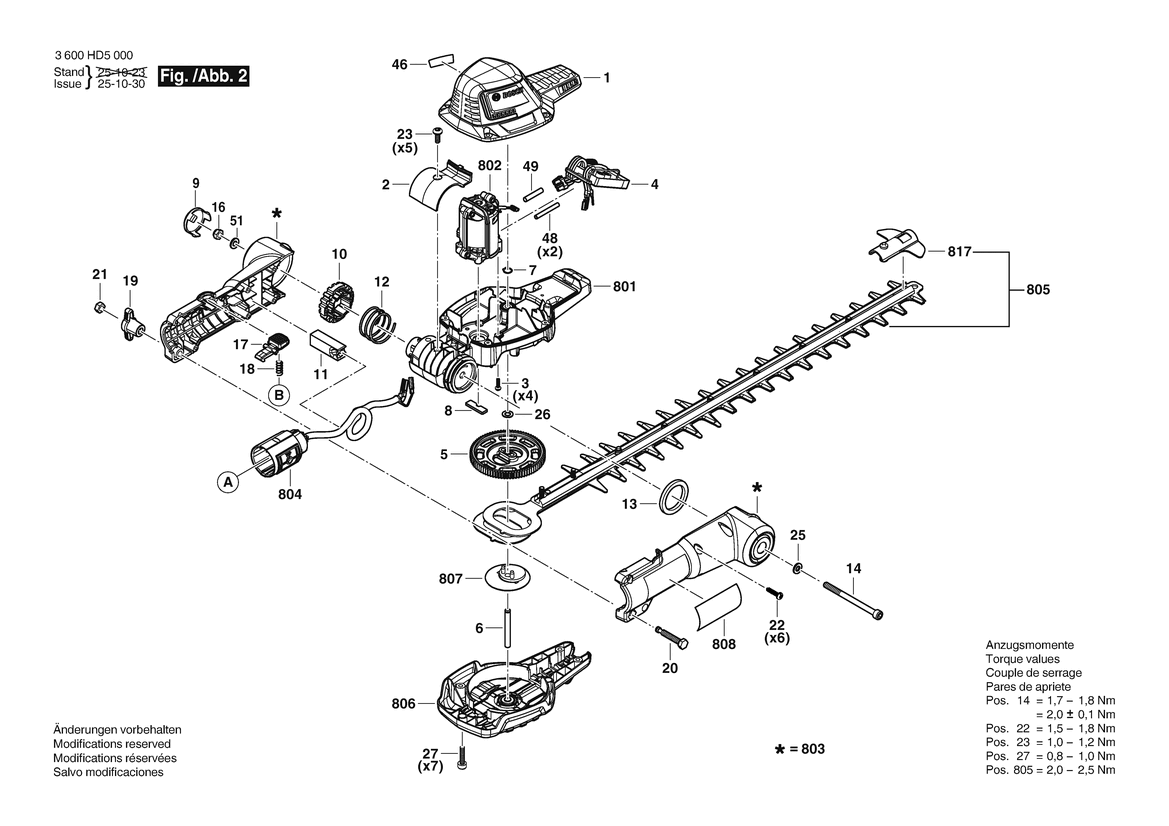

Image 1
Housing Cover
-
Spare part number: F 016 F06 578
Position: 1
Availability: 1
Price group: 22
NZ$ 15.34 *
Recommended retail price excluding GST
Housing Cover
-
Spare part number: F 016 F06 581
Position: 2
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 582
Position: 801
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
Brushless DC motor
-
Spare part number: F 016 F06 583
Position: 802
Availability: 1
Price group: 35
NZ$ 73.70 *
Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 584
Position: 3
Availability: 4
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Electronic Assembly
-
Spare part number: F 016 F06 585
Position: 4
Availability: 1
Price group: 36
NZ$ 81.65 *
Recommended retail price excluding GST
Cylindrical Gear
-
Spare part number: F 016 F06 586
Position: 5
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Axle
-
Spare part number: F 016 F06 587
Position: 6
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Clip
-
Spare part number: F 016 F06 588
Position: 7
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Support
-
Spare part number: F 016 F06 589
Position: 8
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 590
Position: 803
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 591
Position: 9
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Locking Ring
-
Spare part number: F 016 F06 592
Position: 10
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Wire Guide
-
Spare part number: F 016 F06 593
Position: 11
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 594
Position: 12
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Seal Ring
-
Spare part number: F 016 F06 595
Position: 13
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 596
Position: 14
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 597
Position: 25
Availability: 1
Price group: -
-
Nut
-
Spare part number: F 016 F06 598
Position: 16
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 599
Position: 17
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 600
Position: 18
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Adjustment Knob
-
Spare part number: F 016 F06 601
Position: 19
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 602
Position: 20
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Nut
-
Spare part number: F 016 F06 603
Position: 21
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Terminal Block
-
Spare part number: F 016 F06 604
Position: 804
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 605
Position: 22
Availability: 6
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 606
Position: 23
Availability: 5
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Blade
-
Spare part number: F 016 F06 607
Position: 805
Availability: 1
Price group: 38
NZ$ 95.26 *
Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 608
Position: 806
Availability: 1
Price group: 28
NZ$ 31.01 *
Recommended retail price excluding GST
Eccentric Disc
-
Spare part number: F 016 F06 611
Position: 807
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 615
Position: 26
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 616
Position: 27
Availability: 7
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Nameplate
-
Spare part number: F 016 F06 617
Position: 808
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: F 016 F06 618
Position: 46
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: F 016 F07 158
Position: 48
Availability: 2
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: F 016 F07 159
Position: 49
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST

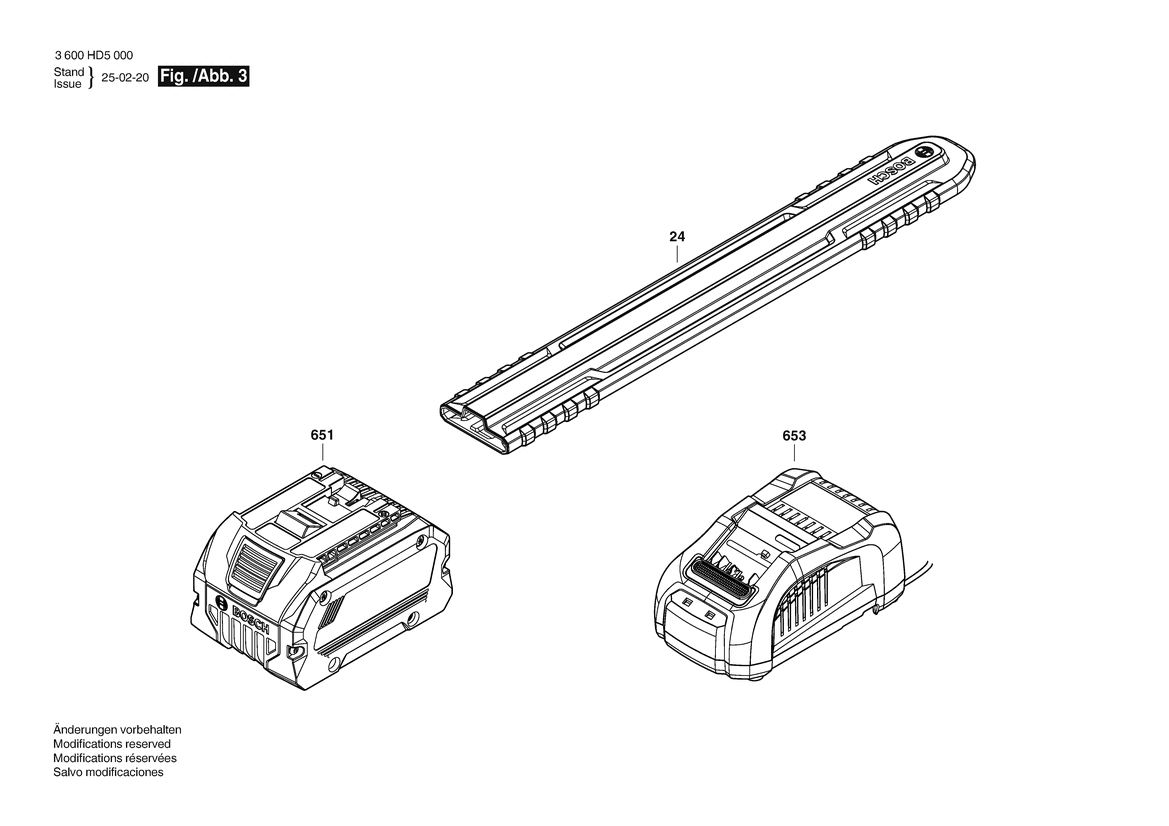

Image 1
Battery Pack
-
part
Spare part number: 1 607 A35 0LR
Position: 651
Availability: 1
Price group: 50
NZ$ 359.50 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

Knife Guard
-
Spare part number: F 016 F06 610
Position: 24
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
1
2
3
My spare part list

68 Parts found

Sort by
Description
Pos. 1 | Housing Cover
F 016 F06 578
-
NZ$ 15.34 *
*Recommended retail price excluding GST
Pos. 2 | Housing Cover
F 016 F06 581
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 3 | Screw
F 016 F06 584
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 4 | Electronic Assembly
F 016 F06 585
-
NZ$ 81.65 *
*Recommended retail price excluding GST
Pos. 5 | Cylindrical Gear
F 016 F06 586
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 6 | Axle
F 016 F06 587
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 7 | Clip
F 016 F06 588
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 8 | Support
F 016 F06 589
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 9 | Button
F 016 F06 591
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 10 | Locking Ring
F 016 F06 592
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 11 | Wire Guide
F 016 F06 593
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 12 | Compression Spring
F 016 F06 594
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 13 | Seal Ring
F 016 F06 595
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 14 | Bolt
F 016 F06 596
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 16 | Nut
F 016 F06 598
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 17 | Button
F 016 F06 599
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 18 | Compression Spring
F 016 F06 600
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 19 | Adjustment Knob
F 016 F06 601
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 20 | Bolt
F 016 F06 602
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 21 | Nut
F 016 F06 603
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 22 | Screw
F 016 F06 605
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 23 | Screw
F 016 F06 606
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 24 | Knife Guard
F 016 F06 610
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 25 | Washer
F 016 F06 597
-
-
Pos. 26 | Washer
F 016 F06 615
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 27 | Bolt
F 016 F06 616
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 28 | Switch Segment
F 016 F06 554
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 29 | Straight Pin
F 016 F06 555
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 30 | Compression Spring
F 016 F06 556
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 31 | Slide Button
F 016 F06 557
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 32 | Slide Button
F 016 F06 558
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 33 | Compression Spring
F 016 F06 559
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 34 | fixing plate
F 016 F06 560
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 35 | Compression Spring
F 016 F06 561
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 36 | Electronic Assembly
F 016 F06 562
-
NZ$ 111.97 *
*Recommended retail price excluding GST
Pos. 37 | Screw
F 016 F06 564
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 38 | Telescope Pipe
F 016 F06 565
-
NZ$ 21.35 *
*Recommended retail price excluding GST
Pos. 39 | Hanger
F 016 F06 566
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 40 | Coupling
F 016 F06 567
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 41 | Coupling
F 016 F06 568
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 42 | Mounting Bracket
F 016 F06 570
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 43 | Hanger
F 016 F06 571
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 44 | Bolt
F 016 F06 572
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 45 | Chest Harness
F 016 F06 574
-
NZ$ 26.70 *
*Recommended retail price excluding GST
Pos. 46 | Manufacturer's nameplate
F 016 F06 618
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 47 | Warning Label
F 016 F06 577
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 48 | Shrinkable Tube
F 016 F07 158
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 49 | Shrinkable Tube
F 016 F07 159
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 50 | Hex Nut
F 016 F06 573
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 51 | Washer
F 016 F06 686
-
-
Pos. 651 | Battery Pack
1 607 A35 0LR
-
NZ$ 359.50 *
*Recommended retail price excluding GST
Pos. 653 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
NZ$ 210.52 *
*Recommended retail price excluding GST
Pos. 653 | Charger
2 607 225 923
-
NZ$ 238.35 *
*Recommended retail price excluding GST
Pos. 801 | Housing Section
F 016 F06 582
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 802 | Brushless DC motor
F 016 F06 583
-
NZ$ 73.70 *
*Recommended retail price excluding GST
Pos. 803 | Housing Section
F 016 F06 590
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 804 | Terminal Block
F 016 F06 604
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 805 | Blade
F 016 F06 607
-
NZ$ 95.26 *
*Recommended retail price excluding GST
Pos. 806 | Housing Section
F 016 F06 608
-
NZ$ 31.01 *
*Recommended retail price excluding GST
Pos. 807 | Eccentric Disc
F 016 F06 611
-
NZ$ 41.56 *
*Recommended retail price excluding GST
Pos. 808 | Nameplate
F 016 F06 617
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 809 | Housing Assembly
F 016 F06 486
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 810 | Guide Rail
F 016 F06 489
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 811 | Helical Conductor
F 016 F06 492
-
NZ$ 73.70 *
*Recommended retail price excluding GST
Pos. 812 | Housing Assembly
F 016 F06 502
-
NZ$ 10.51 *
*Recommended retail price excluding GST
Pos. 813 | Telescope Pipe
F 016 F06 505
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 814 | Clamping Lever
F 016 F06 508
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 815 | Button
F 016 F06 513
-
NZ$ 2.39 *
*Recommended retail price excluding GST
* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 600 HD5 000
Image 1
Housing Assembly
-
Spare part number: F 016 F06 486
Position: 809
Availability: 1
Price group: 32
NZ$ 52.46 *

Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 486
Position: 809
Availability: 1
Price group: 32
NZ$ 52.46 *

Recommended retail price excluding GST
Guide Rail
-
Spare part number: F 016 F06 489
Position: 810
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Helical Conductor
-
Spare part number: F 016 F06 492
Position: 811
Availability: 1
Price group: 35
NZ$ 73.70 *

Recommended retail price excluding GST
Helical Conductor
-
Spare part number: F 016 F06 492
Position: 811
Availability: 1
Price group: 35
NZ$ 73.70 *

Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 502
Position: 812
Availability: 1
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Housing Assembly
-
Spare part number: F 016 F06 502
Position: 812
Availability: 1
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 505
Position: 813
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 505
Position: 813
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Clamping Lever
-
Spare part number: F 016 F06 508
Position: 814
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 513
Position: 815
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Switch Segment
-
Spare part number: F 016 F06 554
Position: 28
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Straight Pin
-
Spare part number: F 016 F06 555
Position: 29
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 556
Position: 30
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Slide Button
-
Spare part number: F 016 F06 557
Position: 31
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Slide Button
-
Spare part number: F 016 F06 558
Position: 32
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 559
Position: 33
Availability: 2
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
fixing plate
-
Spare part number: F 016 F06 560
Position: 34
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 561
Position: 35
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Electronic Assembly
-
Spare part number: F 016 F06 562
Position: 36
Availability: 1
Price group: 39
NZ$ 111.97 *

Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 564
Position: 37
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 564
Position: 37
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Telescope Pipe
-
Spare part number: F 016 F06 565
Position: 38
Availability: 1
Price group: 25
NZ$ 21.35 *

Recommended retail price excluding GST
Hanger
-
Spare part number: F 016 F06 566
Position: 39
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Coupling
-
Spare part number: F 016 F06 567
Position: 40
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Coupling
-
Spare part number: F 016 F06 568
Position: 41
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: F 016 F06 570
Position: 42
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Hanger
-
Spare part number: F 016 F06 571
Position: 43
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 572
Position: 44
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Hex Nut
-
Spare part number: F 016 F06 573
Position: 50
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Chest Harness
-
Spare part number: F 016 F06 574
Position: 45
Availability: 1
Price group: 27
NZ$ 26.70 *

Recommended retail price excluding GST
Warning Label
-
Spare part number: F 016 F06 577
Position: 47
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 686
Position: 51
Availability: 1
Price group: -
-

Image 1
Housing Cover
-
Spare part number: F 016 F06 578
Position: 1
Availability: 1
Price group: 22
NZ$ 15.34 *

Recommended retail price excluding GST
Housing Cover
-
Spare part number: F 016 F06 581
Position: 2
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 582
Position: 801
Availability: 1
Price group: 31
NZ$ 47.12 *

Recommended retail price excluding GST
Brushless DC motor
-
Spare part number: F 016 F06 583
Position: 802
Availability: 1
Price group: 35
NZ$ 73.70 *

Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 584
Position: 3
Availability: 4
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Electronic Assembly
-
Spare part number: F 016 F06 585
Position: 4
Availability: 1
Price group: 36
NZ$ 81.65 *

Recommended retail price excluding GST
Cylindrical Gear
-
Spare part number: F 016 F06 586
Position: 5
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Axle
-
Spare part number: F 016 F06 587
Position: 6
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Clip
-
Spare part number: F 016 F06 588
Position: 7
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Support
-
Spare part number: F 016 F06 589
Position: 8
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 590
Position: 803
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 591
Position: 9
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Locking Ring
-
Spare part number: F 016 F06 592
Position: 10
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Wire Guide
-
Spare part number: F 016 F06 593
Position: 11
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 594
Position: 12
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Seal Ring
-
Spare part number: F 016 F06 595
Position: 13
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 596
Position: 14
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 597
Position: 25
Availability: 1
Price group: -
-

Nut
-
Spare part number: F 016 F06 598
Position: 16
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Button
-
Spare part number: F 016 F06 599
Position: 17
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: F 016 F06 600
Position: 18
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Adjustment Knob
-
Spare part number: F 016 F06 601
Position: 19
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 602
Position: 20
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Nut
-
Spare part number: F 016 F06 603
Position: 21
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Terminal Block
-
Spare part number: F 016 F06 604
Position: 804
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 605
Position: 22
Availability: 6
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Screw
-
Spare part number: F 016 F06 606
Position: 23
Availability: 5
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Blade
-
Spare part number: F 016 F06 607
Position: 805
Availability: 1
Price group: 38
NZ$ 95.26 *

Recommended retail price excluding GST
Housing Section
-
Spare part number: F 016 F06 608
Position: 806
Availability: 1
Price group: 28
NZ$ 31.01 *

Recommended retail price excluding GST
Eccentric Disc
-
Spare part number: F 016 F06 611
Position: 807
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Washer
-
Spare part number: F 016 F06 615
Position: 26
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bolt
-
Spare part number: F 016 F06 616
Position: 27
Availability: 7
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Nameplate
-
Spare part number: F 016 F06 617
Position: 808
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: F 016 F06 618
Position: 46
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: F 016 F07 158
Position: 48
Availability: 2
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: F 016 F07 159
Position: 49
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Image 1
Battery Pack
-
part
Spare part number: 1 607 A35 0LR
Position: 651
Availability: 1
Price group: 50
NZ$ 359.50 *

Recommended retail price excluding GST
-

Please click for futher details

Knife Guard
-
Spare part number: F 016 F06 610
Position: 24
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
1
2
3
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
