Circular saw
GKM 18V-50 | 3 601 FB8 000 | 18 V / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 FB8 000

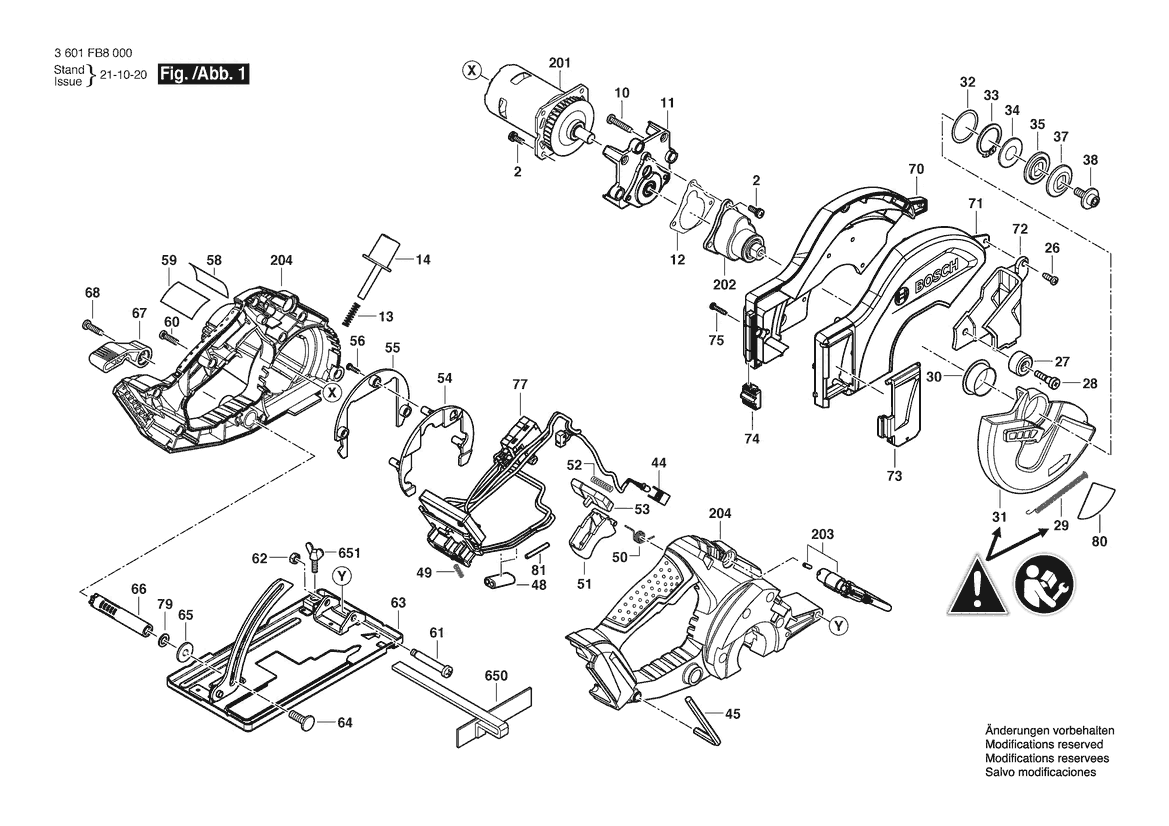

Image 1
Wing Screw
-
part
Spare part number: 1 619 PA9 719
Position: 651
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Parallel-Guide
-
Spare part number: 1 619 PA9 720
Position: 650
Availability: 1
Price group: 16
NZ$ 6.59 *
Recommended retail price excluding GST
Electronics Module
-
Spare part number: 1 619 PB4 911
Position: 77
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Lid Lock
-
Spare part number: 1 619 PB6 951
Position: 74
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Window
-
Spare part number: 1 619 PB6 952
Position: 72
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Upper guard
-
Spare part number: 1 619 PB6 963
Position: 70
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Upper guard
-
Spare part number: 1 619 PB6 964
Position: 71
Availability: 1
Price group: 21
NZ$ 13.06 *
Recommended retail price excluding GST
Cover
-
Spare part number: 1 619 PB6 966
Position: 73
Availability: 1
Price group: 17
NZ$ 7.96 *
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 619 PB6 967
Position: 58
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PB6 970
Position: 59
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Housing Assembly
-
Spare part number: 1 619 PB6 972
Position: 204
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Housing Assembly
-
Spare part number: 1 619 PB6 972
Position: 204
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Washer
-
Spare part number: 1 619 PB6 973
Position: 79
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 1 619 PB6 974
Position: 75
Availability: 5
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: 1 619 PB7 064
Position: 81
Availability: 2
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 2 610 013 564
Position: 49
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Extension Spring
-
part
Spare part number: 2 610 031 712
Position: 29
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Base Plate
-
part
Spare part number: 2 610 033 555
Position: 63
Availability: 1
Price group: 36
NZ$ 81.65 *
Recommended retail price excluding GST
Flap Guard
-
part
Spare part number: 2 610 033 559
Position: 31
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Trigger
-
Spare part number: 2 610 033 560
Position: 51
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Locking Lever
-
Spare part number: 2 610 033 561
Position: 53
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Adjusting Lever
-
Spare part number: 2 610 033 563
Position: 67
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bumper
-
Spare part number: 2 610 033 564
Position: 27
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bearing Housing
-
Spare part number: 2 610 033 566
Position: 11
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Intermediate Flange
-
Spare part number: 2 610 033 571
Position: 35
Availability: 1
Price group: 14
NZ$ 4.66 *
Recommended retail price excluding GST
Washer
-
Spare part number: 2 610 033 572
Position: 37
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Baffle
-
Spare part number: 2 610 033 576
Position: 54
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Baffle
-
Spare part number: 2 610 033 577
Position: 55
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Fastening Rod
-
part
Spare part number: 2 610 033 578
Position: 66
Availability: 1
Price group: 14
NZ$ 4.66 *
Recommended retail price excluding GST
Seal
-
part
Spare part number: 2 610 033 579
Position: 34
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Bushing
-
Spare part number: 2 610 033 580
Position: 30
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 033 581
Position: 38
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
DC motor
-
part
Spare part number: 2 610 034 087
Position: 201
Availability: 1
Price group: 50
NZ$ 359.50 *
Recommended retail price excluding GST
Gear
-
part
Spare part number: 2 610 034 090
Position: 202
Availability: 1
Price group: 37
NZ$ 89.14 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 094
Position: 2
Availability: 7
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 094
Position: 2
Availability: 7
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Knob
-
Spare part number: 2 610 034 095
Position: 14
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Assembly Hook
-
Spare part number: 2 610 034 096
Position: 203
Availability: 1
Price group: 22
NZ$ 15.34 *
Recommended retail price excluding GST
Torsion Spring
-
Spare part number: 2 610 034 103
Position: 50
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 140
Position: 28
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 034 141
Position: 64
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Lens
-
Spare part number: 2 610 034 142
Position: 44
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Gasket
-
part
Spare part number: 2 610 034 143
Position: 12
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 144
Position: 10
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 145
Position: 26
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 034 146
Position: 60
Availability: 8
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Hex Nut
-
Spare part number: 2 610 034 147
Position: 62
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 034 148
Position: 61
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Washer
-
part
Spare part number: 2 610 034 150
Position: 65
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Plain Washer
-
Spare part number: 2 610 034 151
Position: 32
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Retaining ring
-
Spare part number: 2 610 034 153
Position: 33
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 2 610 034 156
Position: 52
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 2 610 034 157
Position: 13
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 158
Position: 56
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 159
Position: 68
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Hexagon Socket Wrench
-
Spare part number: 2 610 034 161
Position: 45
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Ferrite
-
Spare part number: 2 610 035 267
Position: 48
Availability: 2
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Product label
-
Spare part number: 2 610 036 144
Position: 80
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST

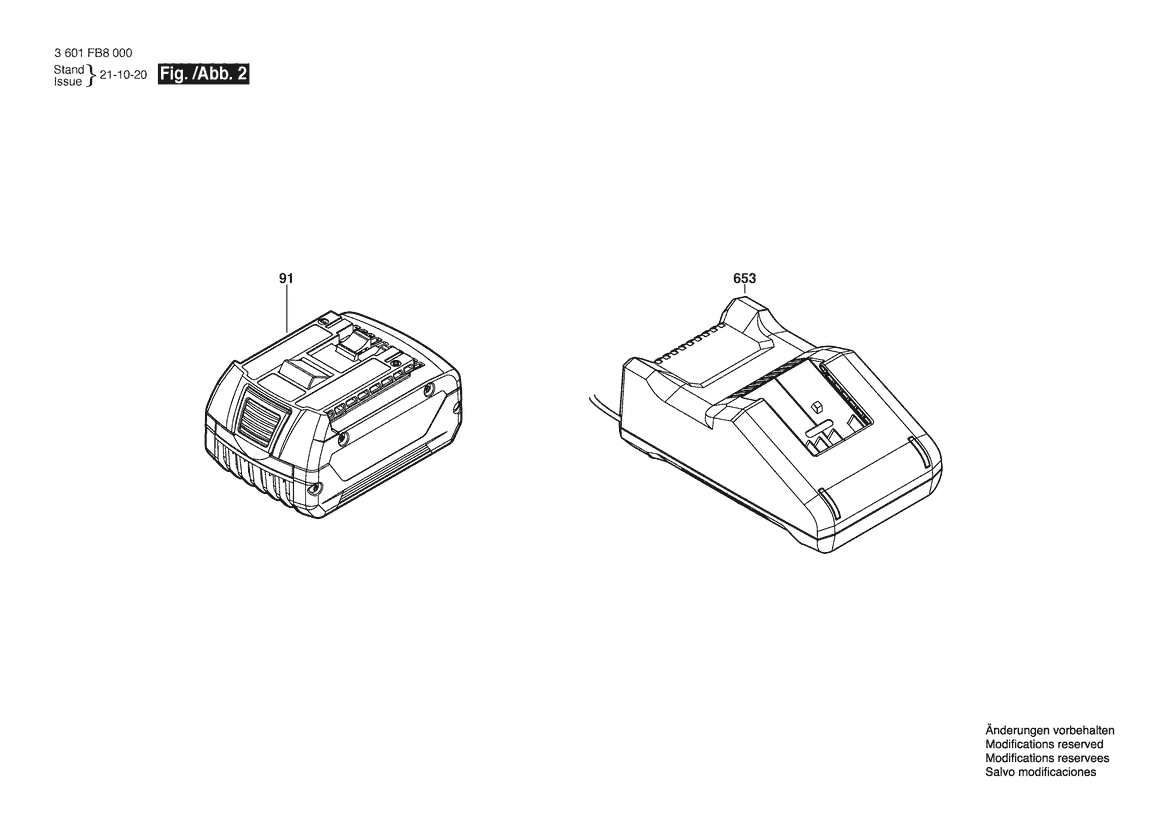

Image 1
Battery Pack
-
Spare part number: 1 617 S02 0T2
Position: 91
Availability: 1
Price group: 45
NZ$ 188.25 *
Recommended retail price excluding GST
Cover
-
Spare part number: 1 619 PB6 966
Position: 73
Availability: 1
Price group: 17
NZ$ 7.96 *
Recommended retail price excluding GST
Fast Charger
-
part
Spare part number: 2 607 226 251
Position: 653
Availability: 1
Price group: -
-
1
2
My spare part list

58 Parts found

Sort by
Description
Pos. 2 | Screw
2 610 034 094
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 10 | Screw
2 610 034 144
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 11 | Bearing Housing
2 610 033 566
-
NZ$ 17.26 *
*Recommended retail price excluding GST
Pos. 12 | Gasket
2 610 034 143
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 13 | Compression Spring
2 610 034 157
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 14 | Knob
2 610 034 095
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 26 | Screw
2 610 034 145
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 27 | Bumper
2 610 033 564
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 28 | Screw
2 610 034 140
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 29 | Extension Spring
2 610 031 712
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 30 | Bushing
2 610 033 580
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 31 | Flap Guard
2 610 033 559
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 32 | Plain Washer
2 610 034 151
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 33 | Retaining ring
2 610 034 153
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 34 | Seal
2 610 033 579
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 35 | Intermediate Flange
2 610 033 571
-
NZ$ 4.66 *
*Recommended retail price excluding GST
Pos. 37 | Washer
2 610 033 572
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 38 | Locking Bolt
2 610 033 581
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 44 | Lens
2 610 034 142
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 45 | Hexagon Socket Wrench
2 610 034 161
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 48 | Ferrite
2 610 035 267
-
NZ$ 10.51 *
*Recommended retail price excluding GST
Pos. 49 | Compression Spring
2 610 013 564
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 50 | Torsion Spring
2 610 034 103
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 51 | Trigger
2 610 033 560
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 52 | Compression Spring
2 610 034 156
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 53 | Locking Lever
2 610 033 561
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 54 | Baffle
2 610 033 576
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 55 | Baffle
2 610 033 577
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 56 | Screw
2 610 034 158
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 58 | Nameplate
1 619 PB6 967
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 59 | Manufacturer's nameplate
1 619 PB6 970
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 60 | Screw
2 610 034 146
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 61 | Locking Bolt
2 610 034 148
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 62 | Hex Nut
2 610 034 147
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 63 | Base Plate
2 610 033 555
-
NZ$ 81.65 *
*Recommended retail price excluding GST
Pos. 64 | Locking Bolt
2 610 034 141
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 65 | Washer
2 610 034 150
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 66 | Fastening Rod
2 610 033 578
-
NZ$ 4.66 *
*Recommended retail price excluding GST
Pos. 67 | Adjusting Lever
2 610 033 563
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 68 | Screw
2 610 034 159
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 70 | Upper guard
1 619 PB6 963
-
NZ$ 17.26 *
*Recommended retail price excluding GST
Pos. 71 | Upper guard
1 619 PB6 964
-
NZ$ 13.06 *
*Recommended retail price excluding GST
Pos. 72 | Window
1 619 PB6 952
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 73 | Cover
1 619 PB6 966
-
NZ$ 7.96 *
*Recommended retail price excluding GST
Pos. 74 | Lid Lock
1 619 PB6 951
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 75 | Screw
1 619 PB6 974
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 77 | Electronics Module
1 619 PB4 911
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 79 | Washer
1 619 PB6 973
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 80 | Product label
2 610 036 144
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 81 | Shrinkable Tube
1 619 PB7 064
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack
1 617 S02 0T2
-
NZ$ 188.25 *
*Recommended retail price excluding GST
Pos. 201 | DC motor
2 610 034 087
-
NZ$ 359.50 *
*Recommended retail price excluding GST
Pos. 202 | Gear
2 610 034 090
-
NZ$ 89.14 *
*Recommended retail price excluding GST
Pos. 203 | Assembly Hook
2 610 034 096
-
NZ$ 15.34 *
*Recommended retail price excluding GST
Pos. 204 | Housing Assembly
1 619 PB6 972
-
NZ$ 41.56 *
*Recommended retail price excluding GST
Pos. 650 | Parallel-Guide
1 619 PA9 720
-
NZ$ 6.59 *
*Recommended retail price excluding GST
Pos. 651 | Wing Screw
1 619 PA9 719
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 653 | Fast Charger
2 607 226 251
-
-
* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 601 FB8 000
Image 1
Wing Screw
-
part
Spare part number: 1 619 PA9 719
Position: 651
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Parallel-Guide
-
Spare part number: 1 619 PA9 720
Position: 650
Availability: 1
Price group: 16
NZ$ 6.59 *

Recommended retail price excluding GST
Electronics Module
-
Spare part number: 1 619 PB4 911
Position: 77
Availability: 1
Price group: 32
NZ$ 52.46 *

Recommended retail price excluding GST
Lid Lock
-
Spare part number: 1 619 PB6 951
Position: 74
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Window
-
Spare part number: 1 619 PB6 952
Position: 72
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Upper guard
-
Spare part number: 1 619 PB6 963
Position: 70
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Upper guard
-
Spare part number: 1 619 PB6 964
Position: 71
Availability: 1
Price group: 21
NZ$ 13.06 *

Recommended retail price excluding GST
Cover
-
Spare part number: 1 619 PB6 966
Position: 73
Availability: 1
Price group: 17
NZ$ 7.96 *

Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 619 PB6 967
Position: 58
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PB6 970
Position: 59
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Housing Assembly
-
Spare part number: 1 619 PB6 972
Position: 204
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Housing Assembly
-
Spare part number: 1 619 PB6 972
Position: 204
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Washer
-
Spare part number: 1 619 PB6 973
Position: 79
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 1 619 PB6 974
Position: 75
Availability: 5
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Shrinkable Tube
-
Spare part number: 1 619 PB7 064
Position: 81
Availability: 2
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: 2 610 013 564
Position: 49
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Extension Spring
-
part
Spare part number: 2 610 031 712
Position: 29
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Base Plate
-
part
Spare part number: 2 610 033 555
Position: 63
Availability: 1
Price group: 36
NZ$ 81.65 *

Recommended retail price excluding GST
Flap Guard
-
part
Spare part number: 2 610 033 559
Position: 31
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Trigger
-
Spare part number: 2 610 033 560
Position: 51
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Locking Lever
-
Spare part number: 2 610 033 561
Position: 53
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Adjusting Lever
-
Spare part number: 2 610 033 563
Position: 67
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bumper
-
Spare part number: 2 610 033 564
Position: 27
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bearing Housing
-
Spare part number: 2 610 033 566
Position: 11
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Intermediate Flange
-
Spare part number: 2 610 033 571
Position: 35
Availability: 1
Price group: 14
NZ$ 4.66 *

Recommended retail price excluding GST
Washer
-
Spare part number: 2 610 033 572
Position: 37
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Baffle
-
Spare part number: 2 610 033 576
Position: 54
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Baffle
-
Spare part number: 2 610 033 577
Position: 55
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Fastening Rod
-
part
Spare part number: 2 610 033 578
Position: 66
Availability: 1
Price group: 14
NZ$ 4.66 *

Recommended retail price excluding GST
Seal
-
part
Spare part number: 2 610 033 579
Position: 34
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Bushing
-
Spare part number: 2 610 033 580
Position: 30
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 033 581
Position: 38
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
DC motor
-
part
Spare part number: 2 610 034 087
Position: 201
Availability: 1
Price group: 50
NZ$ 359.50 *

Recommended retail price excluding GST
Gear
-
part
Spare part number: 2 610 034 090
Position: 202
Availability: 1
Price group: 37
NZ$ 89.14 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 094
Position: 2
Availability: 7
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 094
Position: 2
Availability: 7
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Knob
-
Spare part number: 2 610 034 095
Position: 14
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Assembly Hook
-
Spare part number: 2 610 034 096
Position: 203
Availability: 1
Price group: 22
NZ$ 15.34 *

Recommended retail price excluding GST
Torsion Spring
-
Spare part number: 2 610 034 103
Position: 50
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 140
Position: 28
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 034 141
Position: 64
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Lens
-
Spare part number: 2 610 034 142
Position: 44
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Gasket
-
part
Spare part number: 2 610 034 143
Position: 12
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 144
Position: 10
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 145
Position: 26
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
part
Spare part number: 2 610 034 146
Position: 60
Availability: 8
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Hex Nut
-
Spare part number: 2 610 034 147
Position: 62
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Locking Bolt
-
Spare part number: 2 610 034 148
Position: 61
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Washer
-
part
Spare part number: 2 610 034 150
Position: 65
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Plain Washer
-
Spare part number: 2 610 034 151
Position: 32
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Retaining ring
-
Spare part number: 2 610 034 153
Position: 33
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: 2 610 034 156
Position: 52
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 2 610 034 157
Position: 13
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 158
Position: 56
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Screw
-
Spare part number: 2 610 034 159
Position: 68
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Hexagon Socket Wrench
-
Spare part number: 2 610 034 161
Position: 45
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Ferrite
-
Spare part number: 2 610 035 267
Position: 48
Availability: 2
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Product label
-
Spare part number: 2 610 036 144
Position: 80
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Image 1
Battery Pack
-
Spare part number: 1 617 S02 0T2
Position: 91
Availability: 1
Price group: 45
NZ$ 188.25 *

Recommended retail price excluding GST
Cover
-
Spare part number: 1 619 PB6 966
Position: 73
Availability: 1
Price group: 17
NZ$ 7.96 *

Recommended retail price excluding GST
Fast Charger
-
part
Spare part number: 2 607 226 251
Position: 653
Availability: 1
Price group: -
-

1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
