riveting tool
GRG 18V-16 C | 3 601 JK5 000 | 18 V / 001 - EU
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 JK5 000

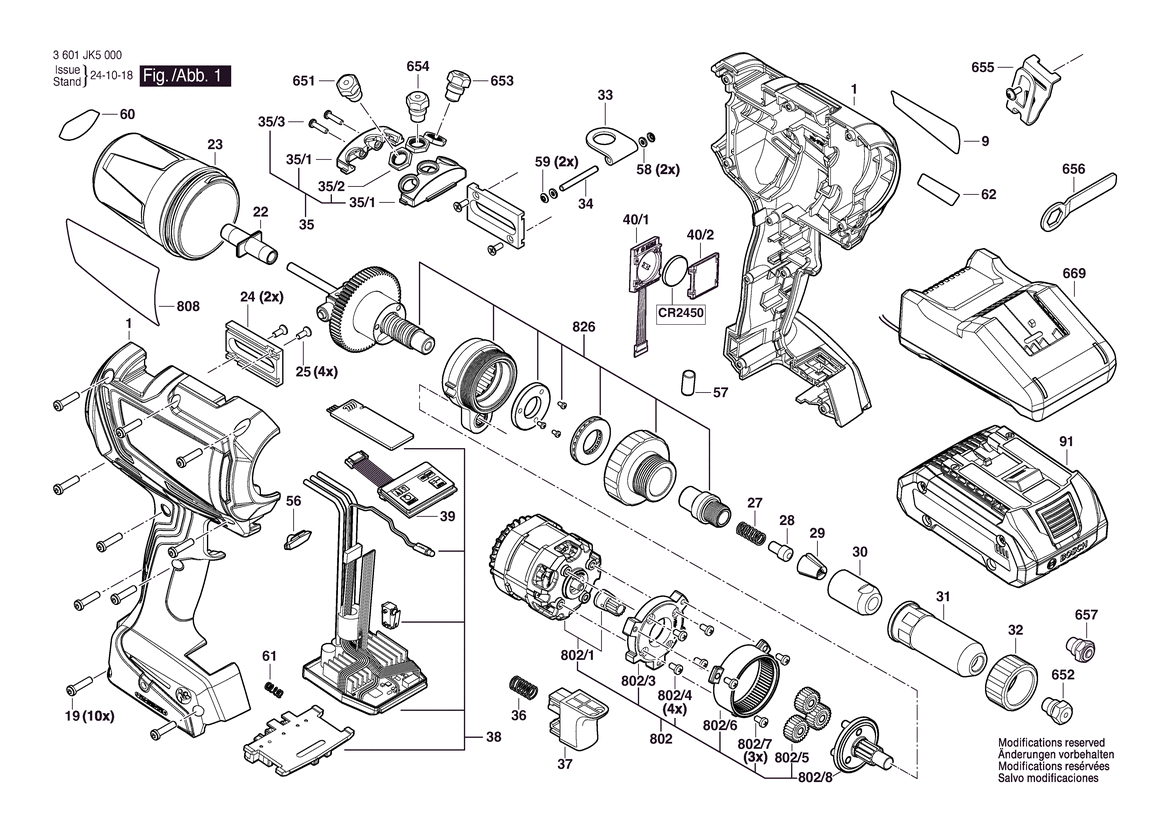

Image 1
Cell Cover
-
Spare part number: 1 600 A02 51J
Position: 40/2
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Electronics Module
-
Spare part number: 1 600 A02 5P4
Position: 40/1
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
Module
-
Spare part number: 1 607 233 5NR
Position: 39
Availability: 1
Price group: 32
NZ$ 52.46 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Electronic Module
-
Spare part number: 1 619 PB6 096
Position: 38
Availability: 1
Price group: 43
NZ$ 153.07 *
Recommended retail price excluding GST
Insulating Housing
-
Spare part number: 1 619 PB8 307
Position: 1
Availability: 1
Price group: 29
NZ$ 37.70 *
Recommended retail price excluding GST
Insulating Housing
-
Spare part number: 1 619 PB8 307
Position: 1
Availability: 1
Price group: 29
NZ$ 37.70 *
Recommended retail price excluding GST
EC motor
-
part
Spare part number: 1 619 PB8 308
Position: 802
Availability: 1
Price group: 43
NZ$ 153.07 *
Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: 1 619 PB8 311
Position: 802/3
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 312
Position: 802/4
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Planetary Gear Train
-
Spare part number: 1 619 PB8 313
Position: 802/5
Availability: 3
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Gear Housing
-
Spare part number: 1 619 PB8 314
Position: 802/6
Availability: 1
Price group: 18
NZ$ 9.14 *
Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 315
Position: 802/7
Availability: 3
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: 1 619 PB8 316
Position: 802/8
Availability: 1
Price group: 29
NZ$ 37.70 *
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 619 PB8 317
Position: 808
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PB8 321
Position: 9
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 322
Position: 19
Availability: 10
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Clamping Pin
-
Spare part number: 1 619 PB8 323
Position: 22
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
collector
-
part
Spare part number: 1 619 PB8 324
Position: 23
Availability: 1
Price group: 17
NZ$ 7.96 *
Recommended retail price excluding GST
Slider
-
Spare part number: 1 619 PB8 325
Position: 24
Availability: 2
Price group: 16
NZ$ 6.59 *
Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 326
Position: 25
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Transmission
-
part
Spare part number: 1 619 PB8 327
Position: 826
Availability: 1
Price group: 55
NZ$ 629.28 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 335
Position: 27
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Channel
-
Spare part number: 1 619 PB8 336
Position: 28
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Clamping jaws
-
Spare part number: 1 619 PB8 337
Position: 29
Availability: 1
Price group: 31
NZ$ 47.12 *
Recommended retail price excluding GST
Clamping Sleeve
-
Spare part number: 1 619 PB8 338
Position: 30
Availability: 1
Price group: 29
NZ$ 37.70 *
Recommended retail price excluding GST
Cover Sleeve
-
Spare part number: 1 619 PB8 339
Position: 31
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Round-Neck Nut
-
Spare part number: 1 619 PB8 340
Position: 32
Availability: 1
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Hook
-
Spare part number: 1 619 PB8 341
Position: 33
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Pin
-
Spare part number: 1 619 PB8 342
Position: 34
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 343
Position: 35
Availability: 1
Price group: 21
NZ$ 13.06 *
Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 344
Position: 35/1
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 344
Position: 35/1
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Nut
-
Spare part number: 1 619 PB8 345
Position: 35/2
Availability: 3
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 346
Position: 35/3
Availability: 2
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 347
Position: 36
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Trigger
-
part
Spare part number: 1 619 PB8 348
Position: 37
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
EC motor
-
Spare part number: 1 619 PB8 350
Position: 802/1
Availability: 1
Price group: 37
NZ$ 89.14 *
Recommended retail price excluding GST
Led-Holder
-
Spare part number: 1 619 PB8 357
Position: 56
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Damper
-
Spare part number: 1 619 PB8 358
Position: 57
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Shim washer
-
Spare part number: 1 619 PB8 359
Position: 58
Availability: 2
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Damper
-
Spare part number: 1 619 PB8 360
Position: 59
Availability: 2
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Warning Label
-
Spare part number: 1 619 PB8 361
Position: 60
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 362
Position: 61
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Label
-
Spare part number: 1 619 PB8 363
Position: 62
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Nose Ø3.0/3.2MM / 1/8"
-
Spare part number: 1 619 PB8 364
Position: 651
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Nose Ø4MM / 5/32"
-
part
Spare part number: 1 619 PB8 365
Position: 652
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Nose Ø4.8/5.0MM / 3/16"
-
Spare part number: 1 619 PB8 366
Position: 653
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Nose Ø6.4MM / 1/4"
-
Spare part number: 1 619 PB8 367
Position: 654
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Single-Head Eng. Wrench
-
Spare part number: 1 619 PB8 368
Position: 656
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Nose
-
Spare part number: 1 619 PC3 702
Position: 657
Availability: 1
Price group: 18
NZ$ 9.14 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

Clip
-
Spare part number: 2 609 199 971
Position: 655
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
1
My spare part list

54 Parts found

Sort by
Description
Pos. 1 | Insulating Housing
1 619 PB8 307
-
NZ$ 37.70 *
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
1 619 PB8 321
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 19 | Pan head screw
1 619 PB8 322
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 22 | Clamping Pin
1 619 PB8 323
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 23 | collector
1 619 PB8 324
-
NZ$ 7.96 *
*Recommended retail price excluding GST
Pos. 24 | Slider
1 619 PB8 325
-
NZ$ 6.59 *
*Recommended retail price excluding GST
Pos. 25 | Pan head screw
1 619 PB8 326
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 27 | Compression Spring
1 619 PB8 335
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 28 | Channel
1 619 PB8 336
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 29 | Clamping jaws
1 619 PB8 337
-
NZ$ 47.12 *
*Recommended retail price excluding GST
Pos. 30 | Clamping Sleeve
1 619 PB8 338
-
NZ$ 37.70 *
*Recommended retail price excluding GST
Pos. 31 | Cover Sleeve
1 619 PB8 339
-
NZ$ 41.56 *
*Recommended retail price excluding GST
Pos. 32 | Round-Neck Nut
1 619 PB8 340
-
NZ$ 10.51 *
*Recommended retail price excluding GST
Pos. 33 | Hook
1 619 PB8 341
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 34 | Pin
1 619 PB8 342
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 35 | Housing Set
1 619 PB8 343
-
NZ$ 13.06 *
*Recommended retail price excluding GST
Pos. 35/1 | Housing Set
1 619 PB8 344
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 35/2 | Nut
1 619 PB8 345
-
NZ$ 10.51 *
*Recommended retail price excluding GST
Pos. 35/3 | Pan head screw
1 619 PB8 346
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 36 | Compression Spring
1 619 PB8 347
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 37 | Trigger
1 619 PB8 348
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 38 | Electronic Module
1 619 PB6 096
-
NZ$ 153.07 *
*Recommended retail price excluding GST
Pos. 39 | Module
1 607 233 5NR
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 40/1 | Electronics Module
1 600 A02 5P4
-
NZ$ 52.46 *
*Recommended retail price excluding GST
Pos. 40/2 | Cell Cover
1 600 A02 51J
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 56 | Led-Holder
1 619 PB8 357
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 57 | Damper
1 619 PB8 358
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 58 | Shim washer
1 619 PB8 359
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 59 | Damper
1 619 PB8 360
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 60 | Warning Label
1 619 PB8 361
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 61 | Compression Spring
1 619 PB8 362
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 62 | Label
1 619 PB8 363
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MA
-
NZ$ 153.07 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack GBA 18V 2.0AH
1 607 A35 0MN
-
NZ$ 153.07 *
*Recommended retail price excluding GST
Pos. 91 | Battery Pack
1 617 S02 0T2
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 651 | Nose Ø3.0/3.2MM / 1/8"
1 619 PB8 364
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 652 | Nose Ø4MM / 5/32"
1 619 PB8 365
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 653 | Nose Ø4.8/5.0MM / 3/16"
1 619 PB8 366
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 654 | Nose Ø6.4MM / 1/4"
1 619 PB8 367
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 655 | Clip
2 609 199 971
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 656 | Single-Head Eng. Wrench
1 619 PB8 368
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 657 | Nose
1 619 PC3 702
-
NZ$ 9.14 *
*Recommended retail price excluding GST
Pos. 669 | Fast Charger AUS GAL 18V-40
2 607 226 255
-
NZ$ 133.65 *
*Recommended retail price excluding GST
Pos. 669 | Fast Charger
2 607 226 281
-
NZ$ 119.90 *
*Recommended retail price excluding GST
Pos. 802 | EC motor
1 619 PB8 308
-
NZ$ 153.07 *
*Recommended retail price excluding GST
Pos. 802/1 | EC motor
1 619 PB8 350
-
NZ$ 89.14 *
*Recommended retail price excluding GST
Pos. 802/3 | Mounting Bracket
1 619 PB8 311
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 802/4 | Pan head screw
1 619 PB8 312
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 802/5 | Planetary Gear Train
1 619 PB8 313
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 802/6 | Gear Housing
1 619 PB8 314
-
NZ$ 9.14 *
*Recommended retail price excluding GST
Pos. 802/7 | Pan head screw
1 619 PB8 315
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 802/8 | Mounting Bracket
1 619 PB8 316
-
NZ$ 37.70 *
*Recommended retail price excluding GST
Pos. 808 | Nameplate
1 619 PB8 317
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 826 | Transmission
1 619 PB8 327
-
NZ$ 629.28 *
*Recommended retail price excluding GST
* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 601 JK5 000
Image 1
Cell Cover
-
Spare part number: 1 600 A02 51J
Position: 40/2
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Electronics Module
-
Spare part number: 1 600 A02 5P4
Position: 40/1
Availability: 1
Price group: 32
NZ$ 52.46 *

Recommended retail price excluding GST
Module
-
Spare part number: 1 607 233 5NR
Position: 39
Availability: 1
Price group: 32
NZ$ 52.46 *

Recommended retail price excluding GST
-

Please click for futher details

Electronic Module
-
Spare part number: 1 619 PB6 096
Position: 38
Availability: 1
Price group: 43
NZ$ 153.07 *

Recommended retail price excluding GST
Insulating Housing
-
Spare part number: 1 619 PB8 307
Position: 1
Availability: 1
Price group: 29
NZ$ 37.70 *

Recommended retail price excluding GST
Insulating Housing
-
Spare part number: 1 619 PB8 307
Position: 1
Availability: 1
Price group: 29
NZ$ 37.70 *

Recommended retail price excluding GST
EC motor
-
part
Spare part number: 1 619 PB8 308
Position: 802
Availability: 1
Price group: 43
NZ$ 153.07 *

Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: 1 619 PB8 311
Position: 802/3
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 312
Position: 802/4
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Planetary Gear Train
-
Spare part number: 1 619 PB8 313
Position: 802/5
Availability: 3
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Gear Housing
-
Spare part number: 1 619 PB8 314
Position: 802/6
Availability: 1
Price group: 18
NZ$ 9.14 *

Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 315
Position: 802/7
Availability: 3
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Mounting Bracket
-
Spare part number: 1 619 PB8 316
Position: 802/8
Availability: 1
Price group: 29
NZ$ 37.70 *

Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 619 PB8 317
Position: 808
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Manufacturer's nameplate
-
Spare part number: 1 619 PB8 321
Position: 9
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 322
Position: 19
Availability: 10
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Clamping Pin
-
Spare part number: 1 619 PB8 323
Position: 22
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
collector
-
part
Spare part number: 1 619 PB8 324
Position: 23
Availability: 1
Price group: 17
NZ$ 7.96 *

Recommended retail price excluding GST
Slider
-
Spare part number: 1 619 PB8 325
Position: 24
Availability: 2
Price group: 16
NZ$ 6.59 *

Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 326
Position: 25
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Transmission
-
part
Spare part number: 1 619 PB8 327
Position: 826
Availability: 1
Price group: 55
NZ$ 629.28 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 335
Position: 27
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Channel
-
Spare part number: 1 619 PB8 336
Position: 28
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Clamping jaws
-
Spare part number: 1 619 PB8 337
Position: 29
Availability: 1
Price group: 31
NZ$ 47.12 *

Recommended retail price excluding GST
Clamping Sleeve
-
Spare part number: 1 619 PB8 338
Position: 30
Availability: 1
Price group: 29
NZ$ 37.70 *

Recommended retail price excluding GST
Cover Sleeve
-
Spare part number: 1 619 PB8 339
Position: 31
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Round-Neck Nut
-
Spare part number: 1 619 PB8 340
Position: 32
Availability: 1
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Hook
-
Spare part number: 1 619 PB8 341
Position: 33
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Pin
-
Spare part number: 1 619 PB8 342
Position: 34
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 343
Position: 35
Availability: 1
Price group: 21
NZ$ 13.06 *

Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 344
Position: 35/1
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Housing Set
-
Spare part number: 1 619 PB8 344
Position: 35/1
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Nut
-
Spare part number: 1 619 PB8 345
Position: 35/2
Availability: 3
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Pan head screw
-
Spare part number: 1 619 PB8 346
Position: 35/3
Availability: 2
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 347
Position: 36
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Trigger
-
part
Spare part number: 1 619 PB8 348
Position: 37
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
EC motor
-
Spare part number: 1 619 PB8 350
Position: 802/1
Availability: 1
Price group: 37
NZ$ 89.14 *

Recommended retail price excluding GST
Led-Holder
-
Spare part number: 1 619 PB8 357
Position: 56
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Damper
-
Spare part number: 1 619 PB8 358
Position: 57
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Shim washer
-
Spare part number: 1 619 PB8 359
Position: 58
Availability: 2
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Damper
-
Spare part number: 1 619 PB8 360
Position: 59
Availability: 2
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Warning Label
-
Spare part number: 1 619 PB8 361
Position: 60
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Compression Spring
-
Spare part number: 1 619 PB8 362
Position: 61
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Label
-
Spare part number: 1 619 PB8 363
Position: 62
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Nose Ø3.0/3.2MM / 1/8"
-
Spare part number: 1 619 PB8 364
Position: 651
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
Nose Ø4MM / 5/32"
-
part
Spare part number: 1 619 PB8 365
Position: 652
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
Nose Ø4.8/5.0MM / 3/16"
-
Spare part number: 1 619 PB8 366
Position: 653
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
Nose Ø6.4MM / 1/4"
-
Spare part number: 1 619 PB8 367
Position: 654
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
Single-Head Eng. Wrench
-
Spare part number: 1 619 PB8 368
Position: 656
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Nose
-
Spare part number: 1 619 PC3 702
Position: 657
Availability: 1
Price group: 18
NZ$ 9.14 *

Recommended retail price excluding GST
-

Please click for futher details

Clip
-
Spare part number: 2 609 199 971
Position: 655
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
