Cordless Angle Grinder
GWX 18V-10 PC | 3 601 GB0 700 | 18 V /
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 GB0 700

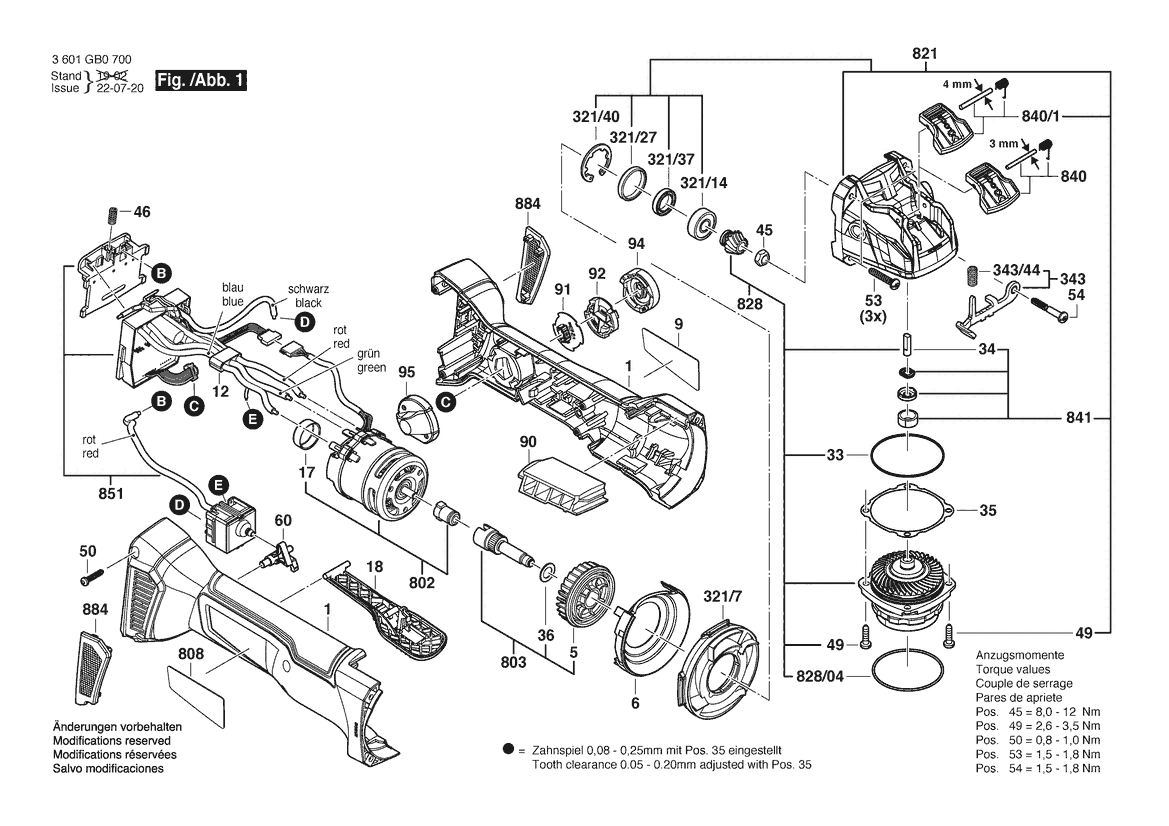

Image 1
Cover
-
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
O-Ring 46,0X1,1 MM
-
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Air Distributor
-
part
Spare part number: 1 600 591 05N
Position: 321/7
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
NZ$ 9.14 *
Recommended retail price excluding GST
Cover Panel
-
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Cover
-
Spare part number: 1 600 A00 P2N
Position: 90
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Switch-Pawl
-
part
Spare part number: 1 600 A00 R9F
Position: 18
Availability: 1
Price group: 16
NZ$ 6.59 *
Recommended retail price excluding GST
Reverse-Transfer Lever
-
part
Spare part number: 1 600 A00 R9L
Position: 60
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Ferrite
-
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Braking Element
-
part
Spare part number: 1 600 A01 2X9
Position: 34
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 601 11A 9BW
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
part
Spare part number: 1 601 11C 2V9
Position: 9
Availability: 1
Price group: 13
NZ$ 4.03 *
Recommended retail price excluding GST
Hex Nut M7, SW10
-
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Thread-forming tap. Screw
-
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *
Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST
Fan
-
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
NZ$ 4.66 *
Recommended retail price excluding GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
NZ$ 11.81 *
Recommended retail price excluding GST
Motor
-
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
NZ$ 188.25 *
Recommended retail price excluding GST
Bevel Gear Shaft
-
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
NZ$ 19.42 *
Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 D5J
Position: 828
Availability: 1
Price group: 39
NZ$ 111.97 *
Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 D5X
Position: 840
Availability: 1
Price group: 19
NZ$ 10.51 *
Recommended retail price excluding GST
Parts Set
-
Spare part number: 1 607 000 D5Z
Position: 841
Availability: 1
Price group: 17
NZ$ 7.96 *
Recommended retail price excluding GST
Electronics Module
-
part
Spare part number: 1 607 000 D90
Position: 851
Availability: 1
Price group: 47
NZ$ 238.35 *
Recommended retail price excluding GST
Gear Housing
-
part
Spare part number: 1 607 000 E9Z
Position: 821
Availability: 1
Price group: -
-
Lever
-
Spare part number: 1 607 000 EA6
Position: 840/1
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Electronics Module
-
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
NZ$ 24.20 *
Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
NZ$ 2.39 *
Recommended retail price excluding GST
Washer
-
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
NZ$ 1.60 *
Recommended retail price excluding GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 828/04
Availability: 1
Price group: 12
NZ$ 3.53 *
Recommended retail price excluding GST

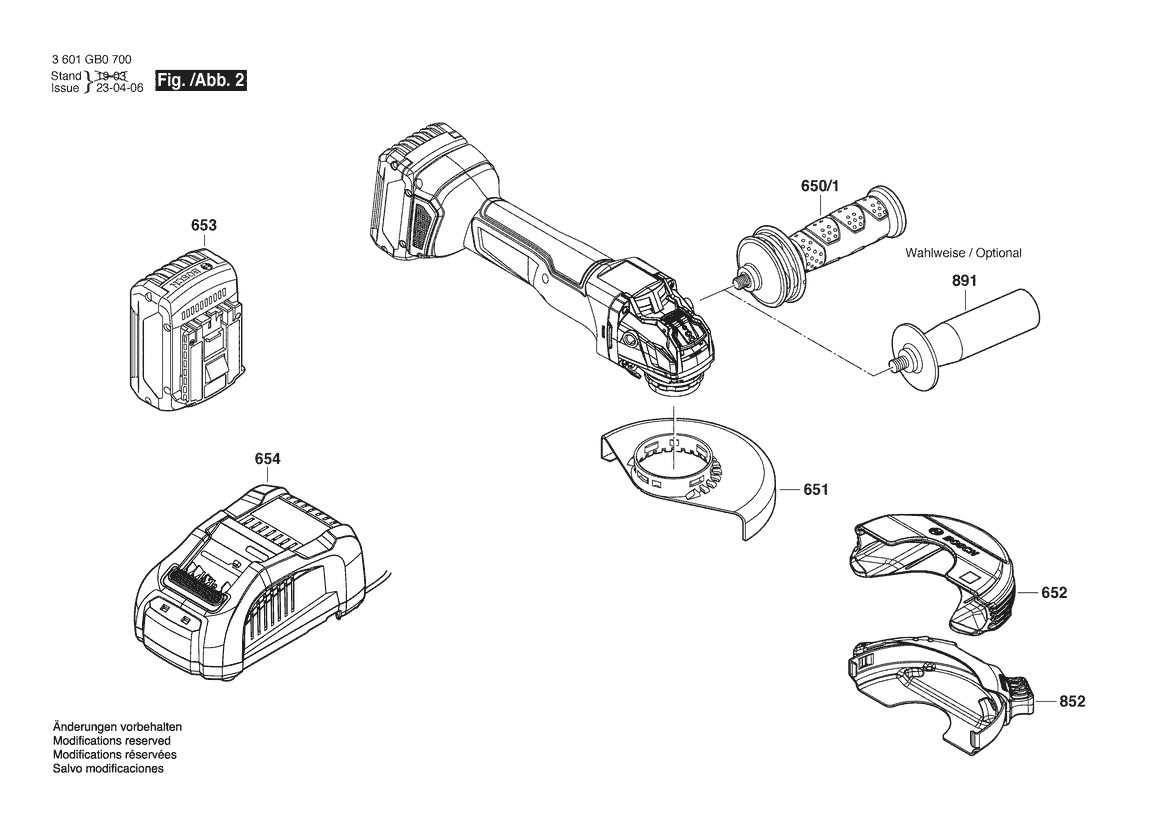

Image 1
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 852
Availability: 1
Price group: 24
NZ$ 19.42 *
Recommended retail price excluding GST
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 652
Availability: 1
Price group: 22
NZ$ 15.34 *
Recommended retail price excluding GST
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
NZ$ 15.34 *
Recommended retail price excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
NZ$ 5.57 *
Recommended retail price excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *
Recommended retail price excluding GST
Charger EU GAL 1880 CV 230/14,4-18V
-
part
Spare part number: 2 607 225 921
Position: 653
Availability: 1
Price group: 46
NZ$ 210.52 *
Recommended retail price excluding GST
Battery Pack
-
part
Spare part number: 2 607 337 069
Position: 654
Availability: 1
Price group: 45
NZ$ 188.25 *
Recommended retail price excluding GST
1
2
My spare part list

51 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 605 108 2EL
-
NZ$ 41.56 *
*Recommended retail price excluding GST
Pos. 5 | Fan
1 606 610 16E
-
NZ$ 4.66 *
*Recommended retail price excluding GST
Pos. 6 | Air-Deflector Ring
1 600 591 065
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 9 | Manufacturer's nameplate
1 601 11C 2V9
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 12 | Ferrite
1 600 A00 RK2
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 17 | Cover
1 600 100 P12
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 18 | Switch-Pawl
1 600 A00 R9F
-
NZ$ 6.59 *
*Recommended retail price excluding GST
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 34 | Braking Element
1 600 A01 2X9
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
-
NZ$ 4.03 *
*Recommended retail price excluding GST
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 36 | Washer
1 610 100 023
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 46 | Compression Spring
1 609 280 477
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 49 | Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
1 603 435 08X
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 50 | Thread-forming tap. Screw
1 603 435 071
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 60 | Reverse-Transfer Lever
1 600 A00 R9L
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 90 | Cover
1 600 A00 P2N
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 91 | Electronics Module
1 607 503 438
-
NZ$ 24.20 *
*Recommended retail price excluding GST
Pos. 92 | Cover Panel
1 600 A00 M53
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 94 | Cover
1 605 500 2BV
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 95 | Cover
1 600 A00 P1B
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 321/7 | Air Distributor
1 600 591 05N
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 321/14 | groove ball bearing 8X22X7
1 600 905 032
-
NZ$ 9.14 *
*Recommended retail price excluding GST
Pos. 321/27 | Rubber Ring
1 600 206 025
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 321/37 | Holder
1 600 A00 P17
-
NZ$ 1.60 *
*Recommended retail price excluding GST
Pos. 321/40 | Retaining clip
1 600 119 011
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 343 | Catch Lever
1 607 000 742
-
NZ$ 11.81 *
*Recommended retail price excluding GST
Pos. 343/44 | Compression Spring
1 604 611 042
-
NZ$ 2.39 *
*Recommended retail price excluding GST
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
NZ$ 17.26 *
*Recommended retail price excluding GST
Pos. 651 | Protective Cover
1 600 A02 5XR
-
NZ$ 15.34 *
*Recommended retail price excluding GST
Pos. 652 | Protective Cover
1 600 A02 1MH
-
NZ$ 15.34 *
*Recommended retail price excluding GST
Pos. 653 | Charger EU GAL 1880 CV 230/14,4-18V
2 607 225 921
-
NZ$ 210.52 *
*Recommended retail price excluding GST
Pos. 654 | Battery Pack
2 607 337 069
-
NZ$ 188.25 *
*Recommended retail price excluding GST
Pos. 802 | Motor
1 607 000 CA4
-
NZ$ 188.25 *
*Recommended retail price excluding GST
Pos. 803 | Bevel Gear Shaft
1 607 000 CA5
-
NZ$ 19.42 *
*Recommended retail price excluding GST
Pos. 808 | Nameplate
1 601 11A 9BW
-
-
Pos. 821 | Gear Housing
1 607 000 E9Z
-
-
Pos. 828 | Parts Set
1 607 000 D5J
-
NZ$ 111.97 *
*Recommended retail price excluding GST
Pos. 828/04 | O-Ring 47,0X1,5 MM
3 600 210 109
-
NZ$ 3.53 *
*Recommended retail price excluding GST
Pos. 840 | Parts Set
1 607 000 D5X
-
NZ$ 10.51 *
*Recommended retail price excluding GST
Pos. 840/1 | Lever
1 607 000 EA6
-
NZ$ 5.57 *
*Recommended retail price excluding GST
Pos. 841 | Parts Set
1 607 000 D5Z
-
NZ$ 7.96 *
*Recommended retail price excluding GST
Pos. 851 | Electronics Module
1 607 000 D90
-
NZ$ 238.35 *
*Recommended retail price excluding GST
Pos. 852 | Protective Cover
1 600 A02 059
-
NZ$ 19.42 *
*Recommended retail price excluding GST
Pos. 884 | Filter Unit
1 607 000 CA9
-
NZ$ 17.26 *
*Recommended retail price excluding GST
Pos. 891 | Auxiliary Handle
1 602 025 09T
-
NZ$ 5.57 *
*Recommended retail price excluding GST
* Recommended retail price excluding GST
Turn the device for 90 degrees.
3 601 GB0 700
Image 1
Cover
-
Spare part number: 1 600 100 P12
Position: 17
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Retaining clip
-
part
Spare part number: 1 600 119 011
Position: 321/40
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
-

Please click for futher details

Rubber Ring
-
part
Spare part number: 1 600 206 025
Position: 321/27
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
O-Ring 46,0X1,1 MM
-
part
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Air Distributor
-
part
Spare part number: 1 600 591 05N
Position: 321/7
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Air-Deflector Ring
-
part
Spare part number: 1 600 591 065
Position: 6
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
groove ball bearing 8X22X7
-
part
Spare part number: 1 600 905 032
Position: 321/14
Availability: 1
Price group: 18
NZ$ 9.14 *

Recommended retail price excluding GST
Cover Panel
-
Spare part number: 1 600 A00 M53
Position: 92
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Holder
-
Spare part number: 1 600 A00 P17
Position: 321/37
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 600 A00 P1B
Position: 95
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Cover
-
Spare part number: 1 600 A00 P2N
Position: 90
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Switch-Pawl
-
part
Spare part number: 1 600 A00 R9F
Position: 18
Availability: 1
Price group: 16
NZ$ 6.59 *

Recommended retail price excluding GST
Reverse-Transfer Lever
-
part
Spare part number: 1 600 A00 R9L
Position: 60
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Ferrite
-
Spare part number: 1 600 A00 RK2
Position: 12
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Braking Element
-
part
Spare part number: 1 600 A01 2X9
Position: 34
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Nameplate
-
Spare part number: 1 601 11A 9BW
Position: 808
Availability: 1
Price group: -
-

Manufacturer's nameplate
-
part
Spare part number: 1 601 11C 2V9
Position: 9
Availability: 1
Price group: 13
NZ$ 4.03 *

Recommended retail price excluding GST
Hex Nut M7, SW10
-
part
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Thread-forming tap. Screw
-
part
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Torx Oval-Head Screw
-
part
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Thread-forming tap. Screw M4X16-ST W/ PRECOTE 85-3
-
Spare part number: 1 603 435 08X
Position: 49
Availability: 4
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Motor Housing
-
Spare part number: 1 605 108 2EL
Position: 1
Availability: 1
Price group: 30
NZ$ 41.56 *

Recommended retail price excluding GST
Cover
-
part
Spare part number: 1 605 500 2BV
Position: 94
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Fan
-
Spare part number: 1 606 610 16E
Position: 5
Availability: 1
Price group: 14
NZ$ 4.66 *

Recommended retail price excluding GST
Catch Lever
-
part
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: 20
NZ$ 11.81 *

Recommended retail price excluding GST
Motor
-
part
Spare part number: 1 607 000 CA4
Position: 802
Availability: 1
Price group: 45
NZ$ 188.25 *

Recommended retail price excluding GST
Bevel Gear Shaft
-
part
Spare part number: 1 607 000 CA5
Position: 803
Availability: 1
Price group: 24
NZ$ 19.42 *

Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 D5J
Position: 828
Availability: 1
Price group: 39
NZ$ 111.97 *

Recommended retail price excluding GST
Parts Set
-
part
Spare part number: 1 607 000 D5X
Position: 840
Availability: 1
Price group: 19
NZ$ 10.51 *

Recommended retail price excluding GST
Parts Set
-
Spare part number: 1 607 000 D5Z
Position: 841
Availability: 1
Price group: 17
NZ$ 7.96 *

Recommended retail price excluding GST
Electronics Module
-
part
Spare part number: 1 607 000 D90
Position: 851
Availability: 1
Price group: 47
NZ$ 238.35 *

Recommended retail price excluding GST
Gear Housing
-
part
Spare part number: 1 607 000 E9Z
Position: 821
Availability: 1
Price group: -
-

Lever
-
Spare part number: 1 607 000 EA6
Position: 840/1
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Electronics Module
-
part
Spare part number: 1 607 503 438
Position: 91
Availability: 1
Price group: 26
NZ$ 24.20 *

Recommended retail price excluding GST
Compression Spring
-
part
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
NZ$ 2.39 *

Recommended retail price excluding GST
Washer
-
part
Spare part number: 1 610 100 023
Position: 36
Availability: 1
Price group: 10
NZ$ 1.60 *

Recommended retail price excluding GST
O-Ring 47,0X1,5 MM
-
part
Spare part number: 3 600 210 109
Position: 828/04
Availability: 1
Price group: 12
NZ$ 3.53 *

Recommended retail price excluding GST
Image 1
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 852
Availability: 1
Price group: 24
NZ$ 19.42 *

Recommended retail price excluding GST
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 652
Availability: 1
Price group: 22
NZ$ 15.34 *

Recommended retail price excluding GST
Protective Cover
-
Spare part number: 1 600 A02 5XR
Position: 651
Availability: 1
Price group: 22
NZ$ 15.34 *

Recommended retail price excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 09T
Position: 891
Availability: 1
Price group: 15
NZ$ 5.57 *

Recommended retail price excluding GST
Auxiliary Handle
-
part
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Filter Unit
-
part
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: 23
NZ$ 17.26 *

Recommended retail price excluding GST
Charger EU GAL 1880 CV 230/14,4-18V
-
part
Spare part number: 2 607 225 921
Position: 653
Availability: 1
Price group: 46
NZ$ 210.52 *

Recommended retail price excluding GST
Battery Pack
-
part
Spare part number: 2 607 337 069
Position: 654
Availability: 1
Price group: 45
NZ$ 188.25 *

Recommended retail price excluding GST
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
