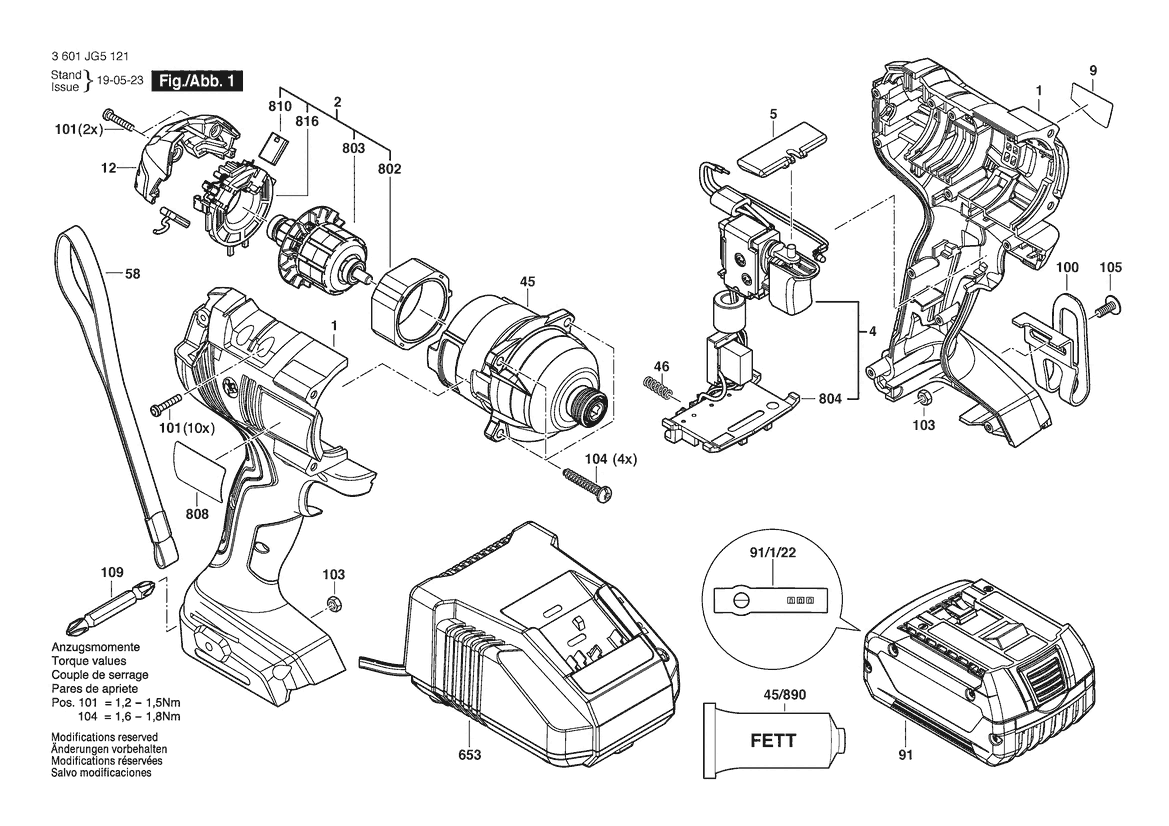

3 601 JG5 1L1
Grease Tube 45 ML
-
Spare part number: 1 600 A00 2NE
Position: 45/890
Availability: 1
Price group: -
-
Stator
-
Spare part number: 1 600 A00 3V5
Position: 802
Availability: 1
Price group: -
-
Brush Holder
-
Spare part number: 1 600 A01 1KB
Position: 816
Availability: 1
Price group: -
-
Rotor
-
Spare part number: 1 600 A01 5UW
Position: 803
Availability: 1
Price group: -
-
Housing
-
Spare part number: 1 600 A01 E10
Position: 1
Availability: 1
Price group: -
-
Housing
-
Spare part number: 1 600 A01 E10
Position: 1
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 72A
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 292
Position: 9
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 607 014 18R
Position: 810
Availability: 1
Price group: -
-
DC motor
-
Spare part number: 1 607 022 67M
Position: 2
Availability: 1
Price group: -
-
Battery Pack GBA 18V 1.5AH
-
Spare part number: 1 607 A35 0JR
Position: 91
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: -
-
Contact retainer
-
Spare part number: 1 609 280 478
Position: 804
Availability: 1
Price group: -
-
Sticker
-
Spare part number: 2 601 115 537
Position: 91/1/22
Availability: 1
Price group: -
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 104
Availability: 4
Price group: -
-
Electronic Module
-
Spare part number: 2 607 202 399
Position: 4
Availability: 1
Price group: -
-
Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
-
Spare part number: 2 607 226 283
Position: 653
Availability: 1
Price group: -
-
Strap
-
Spare part number: 2 609 100 301
Position: 58
Availability: 1
Price group: -
-
Button
-
Spare part number: 2 609 100 698
Position: 5
Availability: 1
Price group: -
-
Cover
-
Spare part number: 2 609 101 783
Position: 12
Availability: 1
Price group: -
-
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 101
Availability: 12
Price group: -
-
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 101
Availability: 12
Price group: -
-
Screw
-
Spare part number: 2 609 110 834
Position: 105
Availability: 1
Price group: -
-
Nut
-
Spare part number: 2 609 110 835
Position: 103
Availability: 2
Price group: -
-
Nut
-
Spare part number: 2 609 110 835
Position: 103
Availability: 2
Price group: -
-
Clip
-
Spare part number: 2 609 111 584
Position: 100
Availability: 1
Price group: -
-

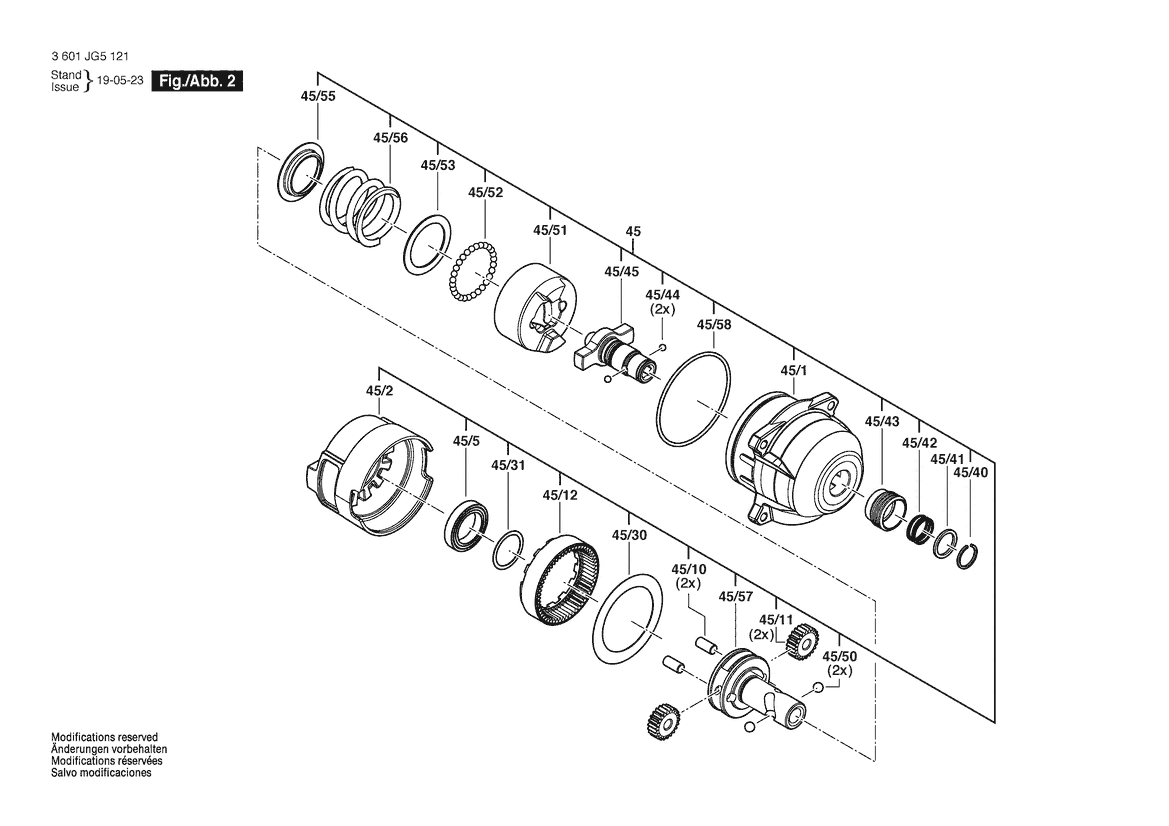

Gear Box
-
Spare part number: 2 609 199 999
Position: 45
Availability: 1
Price group: -
-
O-Ring
-
Spare part number: 1 600 210 07H
Position: 45/58
Availability: 1
Price group: -
-
Brush Holder
-
Spare part number: 1 600 A01 1KB
Position: 816
Availability: 1
Price group: -
-
Housing
-
Spare part number: 2 609 101 670
Position: 45/2
Availability: 1
Price group: -
-
Retaining ring
-
Spare part number: 2 609 110 329
Position: 45/41
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 2 609 110 330
Position: 45/42
Availability: 1
Price group: -
-
Ball
-
Spare part number: 2 609 110 331
Position: 45/44
Availability: 2
Price group: -
-
Ball
-
Spare part number: 2 609 110 331
Position: 45/52
Availability: 2
Price group: -
-
Clip
-
Spare part number: 2 609 110 336
Position: 45/40
Availability: 1
Price group: -
-
Ball Bearing
-
Spare part number: 2 609 110 807
Position: 45/5
Availability: 1
Price group: -
-
Pin
-
Spare part number: 2 609 110 808
Position: 45/10
Availability: 2
Price group: -
-
Washer
-
Spare part number: 2 609 110 811
Position: 45/30
Availability: 1
Price group: -
-
Washer
-
Spare part number: 2 609 110 812
Position: 45/31
Availability: 1
Price group: -
-
Sleeve
-
Spare part number: 2 609 110 814
Position: 45/43
Availability: 1
Price group: -
-
Ball
-
Spare part number: 2 609 110 818
Position: 45/50
Availability: 2
Price group: -
-
Washer
-
Spare part number: 2 609 110 820
Position: 45/53
Availability: 1
Price group: -
-
Washer
-
Spare part number: 2 609 110 821
Position: 45/55
Availability: 1
Price group: -
-
Planet Gear
-
Spare part number: 2 609 111 289
Position: 45/11
Availability: 2
Price group: -
-
Coupling Half
-
Spare part number: 2 609 112 139
Position: 45/45
Availability: 1
Price group: -
-
Ring Gear
-
Spare part number: 2 609 112 141
Position: 45/12
Availability: 1
Price group: -
-
Striker
-
Spare part number: 2 609 112 142
Position: 45/51
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 2 609 112 143
Position: 45/56
Availability: 1
Price group: -
-
Jack Shaft
-
Spare part number: 2 609 112 144
Position: 45/57
Availability: 1
Price group: -
-
Housing Assembly
-
Spare part number: 2 609 199 998
Position: 45/1
Availability: 1
Price group: -
-
Gear Box
-
Spare part number: 2 609 199 999
Position: 45
Availability: 1
Price group: -
-
1
2
Spare parts in list
45 Parts found
Sort by
Description
Pos. 1 | Housing
1 600 A01 E10
-
Pos. 2 | DC motor
1 607 022 67M
-
Pos. 4 | Electronic Module
2 607 202 399
-
Pos. 5 | Button
2 609 100 698
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 292
-
Pos. 12 | Cover
2 609 101 783
-
Pos. 45 | Gear Box
2 609 199 999
-
Pos. 45/1 | Housing Assembly
2 609 199 998
-
Pos. 45/2 | Housing
2 609 101 670
-
Pos. 45/5 | Ball Bearing
2 609 110 807
-
Pos. 45/10 | Pin
2 609 110 808
-
Pos. 45/11 | Planet Gear
2 609 111 289
-
Pos. 45/12 | Ring Gear
2 609 112 141
-
Pos. 45/30 | Washer
2 609 110 811
-
Pos. 45/31 | Washer
2 609 110 812
-
Pos. 45/40 | Clip
2 609 110 336
-
Pos. 45/41 | Retaining ring
2 609 110 329
-
Pos. 45/42 | Compression Spring
2 609 110 330
-
Pos. 45/43 | Sleeve
2 609 110 814
-
Pos. 45/44 | Ball
2 609 110 331
-
Pos. 45/45 | Coupling Half
2 609 112 139
-
Pos. 45/50 | Ball
2 609 110 818
-
Pos. 45/51 | Striker
2 609 112 142
-
Pos. 45/53 | Washer
2 609 110 820
-
Pos. 45/55 | Washer
2 609 110 821
-
Pos. 45/56 | Compression Spring
2 609 112 143
-
Pos. 45/57 | Jack Shaft
2 609 112 144
-
Pos. 45/58 | O-Ring
1 600 210 07H
-
Pos. 45/890 | Grease Tube 45 ML
1 600 A00 2NE
-
Pos. 46 | Compression Spring
1 609 280 477
-
Pos. 58 | Strap
2 609 100 301
-
Pos. 91 | Battery Pack GBA 18V 1.5AH
1 607 A35 0JR
-
Pos. 91/1/22 | Sticker
2 601 115 537
-
Pos. 100 | Clip
2 609 111 584
-
Pos. 101 | Torx Flat-Head Screw 3X16
2 609 110 201
-
Pos. 103 | Nut
2 609 110 835
-
Pos. 104 | Torx Oval-Head Screw 4X20
2 603 490 023
-
Pos. 105 | Screw
2 609 110 834
-
Pos. 653 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
2 607 226 283
-
Pos. 802 | Stator
1 600 A00 3V5
-
Pos. 803 | Rotor
1 600 A01 5UW
-
Pos. 804 | Contact retainer
1 609 280 478
-
Pos. 808 | Nameplate
1 601 11A 72A
-
Pos. 810 | Carbon-Brush Set
1 607 014 18R
-
Pos. 816 | Brush Holder
1 600 A01 1KB
-
