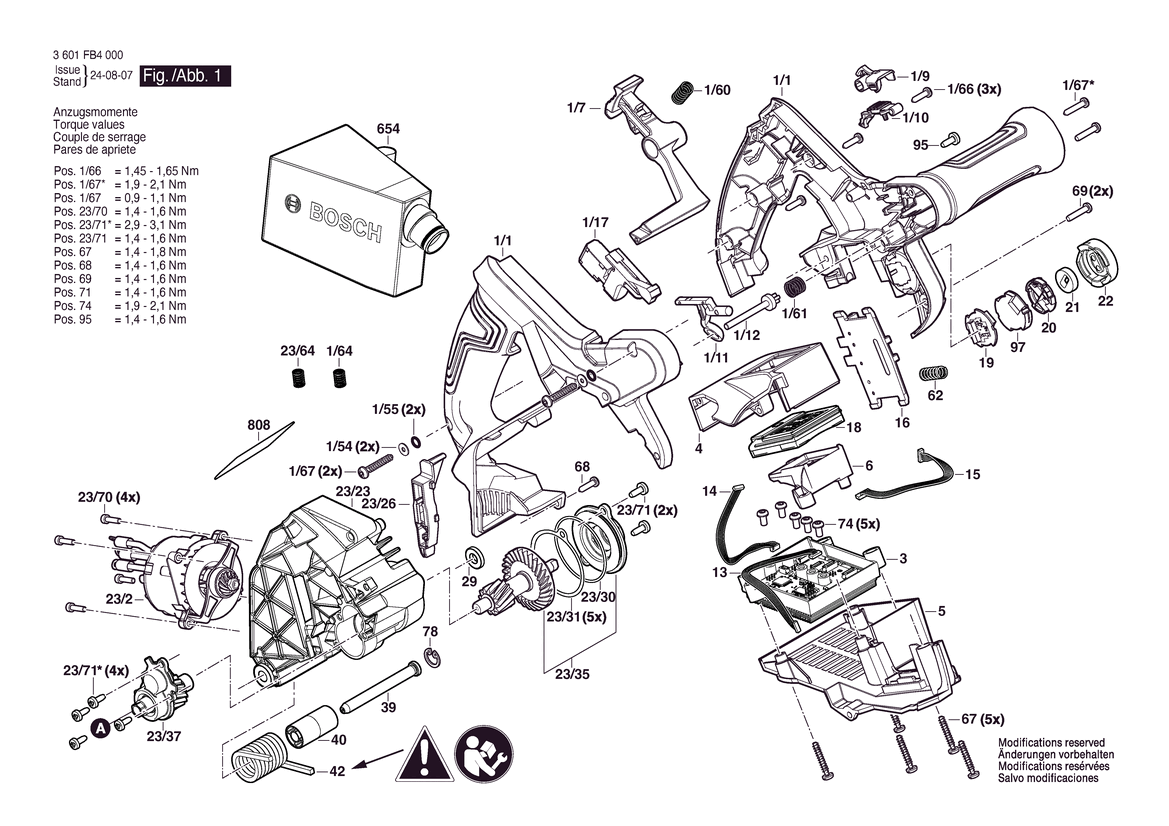

3 601 FB4 000
O-Ring
-
Spare part number: 1 600 210 094
Position: 1/54
Availability: 1
Price group: -
-
Bushing
-
Spare part number: 1 600 300 11H
Position: 40
Availability: 1
Price group: -
-
Rubber Sponge
-
Spare part number: 1 600 A00 M52
Position: 21
Availability: 1
Price group: -
-
Rejection Slide
-
Spare part number: 1 600 A01 305
Position: 23/26
Availability: 1
Price group: -
-
-
Please click for futher details
cover
-
Spare part number: 1 600 A01 35N
Position: 22
Availability: 1
Price group: -
-
Connecting Cable
-
Spare part number: 1 600 A01 3D5
Position: 15
Availability: 1
Price group: -
-
Connecting Cable
-
Spare part number: 1 600 A01 3D8
Position: 14
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 3WF
Position: 97
Availability: 1
Price group: -
-
Data cable
-
Spare part number: 1 600 A01 5F8
Position: 13
Availability: 1
Price group: -
-
Shim
-
Spare part number: 1 600 A01 5MM
Position: 29
Availability: 1
Price group: -
-
Support
-
Spare part number: 1 600 A01 5X0
Position: 6
Availability: 1
Price group: -
-
Contact Plate
-
Spare part number: 1 600 A01 61F
Position: 16
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 600 A01 6CZ
Position: 19
Availability: 1
Price group: -
-
Cover Panel
-
Spare part number: 1 600 A01 6ML
Position: 20
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 600 A01 9DG
Position: 1/60
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Shim Plate
-
Spare part number: 1 600 A01 UT1
Position: 1/55
Availability: 1
Price group: -
-
Jack Shaft
-
Spare part number: 1 600 A02 13M
Position: 23/35
Availability: 1
Price group: -
-
Output Shaft
-
Spare part number: 1 600 A02 13N
Position: 23/37
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 7ZZ
Position: 808
Availability: 1
Price group: -
-
Bearing bolt
-
Spare part number: 1 603 123 067
Position: 39
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 603 430 03T
Position: 74
Availability: 5
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 09S
Position: 95
Availability: 11
Price group: -
-
Coiled Spring
-
Spare part number: 1 604 651 01C
Position: 42
Availability: 1
Price group: -
-
Housing Base
-
Spare part number: 1 605 132 181
Position: 5
Availability: 1
Price group: -
-
Housing Cover
-
Spare part number: 1 605 132 182
Position: 4
Availability: 1
Price group: -
-
Dust Bag
-
Spare part number: 1 605 411 01V
Position: 654
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 605 806 64R
Position: 1/1
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 605 806 64R
Position: 1/1
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 1 605 806 64W
Position: 23/23
Availability: 1
Price group: -
-
DC motor
-
Spare part number: 1 607 022 66Y
Position: 23/2
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 233 5F7
Position: 3
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 233 5GD
Position: 18
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 62
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 619 X05 274
Position: 23/70
Availability: 4
Price group: -
-
Locking Slide
-
Spare part number: 2 602 026 200
Position: 1/7
Availability: 1
Price group: -
-
Selector Switch
-
Spare part number: 2 602 026 201
Position: 1/10
Availability: 1
Price group: -
-
Locking Lever
-
Spare part number: 2 602 051 004
Position: 1/9
Availability: 1
Price group: -
-
Rocker
-
Spare part number: 2 602 123 010
Position: 1/11
Availability: 1
Price group: -
-
Locking pin
-
Spare part number: 2 603 101 070
Position: 1/12
Availability: 1
Price group: -
-
Thread-forming tap. Screw
-
Spare part number: 2 603 410 051
Position: 69
Availability: 2
Price group: -
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 1/66
Availability: 3
Price group: -
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 1/67
Availability: 7
Price group: -
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 1/67
Availability: 7
Price group: -
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 67
Availability: 7
Price group: -
-
Compression Spring
-
Spare part number: 2 604 618 014
Position: 1/64
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 2 604 618 014
Position: 23/64
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 2 604 618 015
Position: 1/61
Availability: 1
Price group: -
-
Switch
-
Spare part number: 2 607 202 386
Position: 1/17
Availability: 1
Price group: -
-
Torx Oval-Head Screw M4X12
-
Spare part number: 2 610 386 516
Position: 23/71
Availability: 1
Price group: -
-
Torx Oval-Head Screw M4X12
-
Spare part number: 2 610 386 516
Position: 23/71
Availability: 1
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 68
Availability: 5
Price group: -
-
Spring retaining ring
-
Spare part number: 2 916 660 033
Position: 78
Availability: 1
Price group: -
-
O-Ring 42,0X1,0 MM
-
Spare part number: 3 600 210 136
Position: 23/30
Availability: 1
Price group: -
-

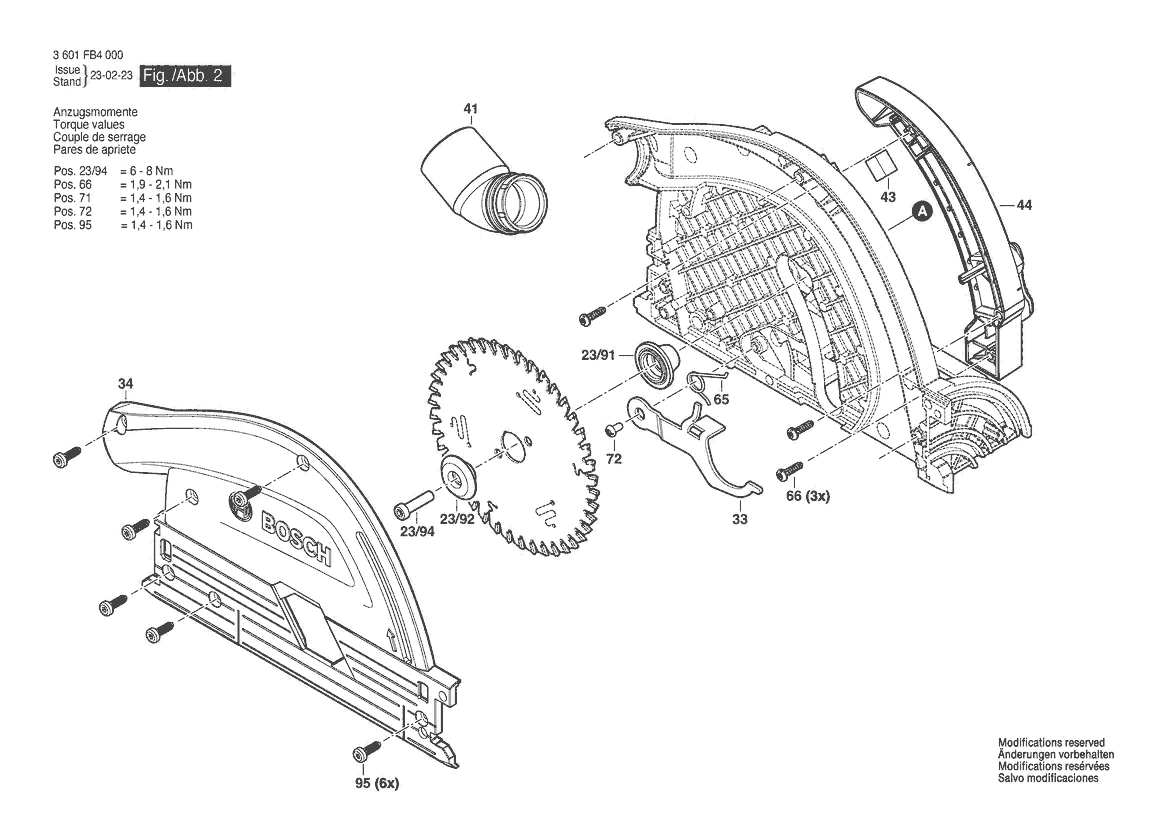

Guard Plate
-
Spare part number: 1 600 A01 300
Position: 33
Availability: 1
Price group: -
-
Torsion Spring
-
Spare part number: 1 600 A01 8U8
Position: 65
Availability: 1
Price group: -
-
Socket head cap screw
-
Spare part number: 1 600 A01 H00
Position: 23/94
Availability: 1
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 09S
Position: 95
Availability: 11
Price group: -
-
Housing Base
-
Spare part number: 1 605 132 181
Position: 5
Availability: 1
Price group: -
-
Depth gauge
-
Spare part number: 2 600 460 059
Position: 44
Availability: 1
Price group: -
-
Damper
-
Spare part number: 2 601 010 079
Position: 43
Availability: 1
Price group: -
-
Thread-forming tap. Screw M4X8
-
Spare part number: 2 603 410 048
Position: 72
Availability: 1
Price group: -
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 66
Availability: 3
Price group: -
-
Protection cover
-
Spare part number: 2 605 510 323
Position: 34
Availability: 1
Price group: -
-
Clamping-Flange
-
Spare part number: 2 605 719 049
Position: 23/91
Availability: 1
Price group: -
-
Clamping-Flange
-
Spare part number: 2 605 719 051
Position: 23/92
Availability: 1
Price group: -
-
Suction Socket
-
Spare part number: 2 605 730 067
Position: 41
Availability: 1
Price group: -
-

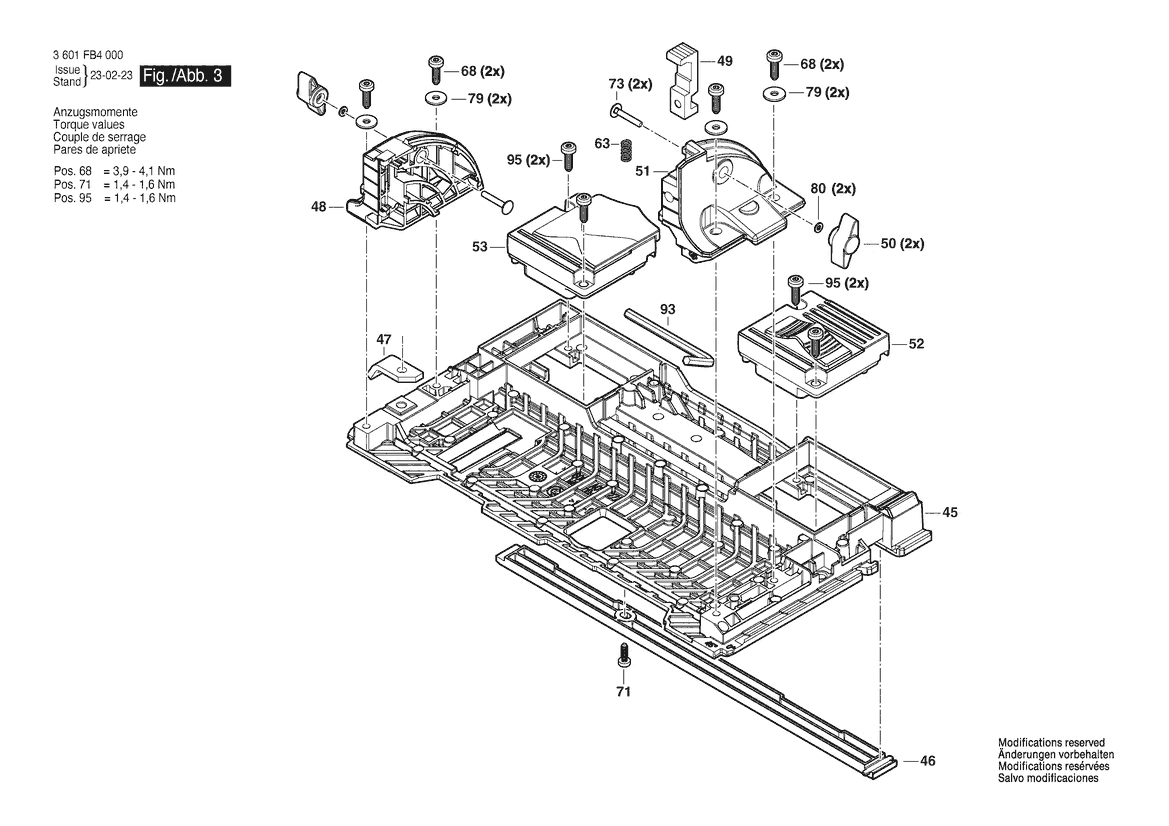

Base Plate
-
Spare part number: 1 600 A01 2ZA
Position: 45
Availability: 1
Price group: -
-
Carrier
-
Spare part number: 1 600 A01 2ZD
Position: 51
Availability: 1
Price group: -
-
Setting Device
-
Spare part number: 1 600 A01 2ZH
Position: 53
Availability: 1
Price group: -
-
Filling Piece
-
Spare part number: 1 600 A01 8TN
Position: 47
Availability: 1
Price group: -
-
Angle Lever
-
Spare part number: 1 600 A01 9N6
Position: 49
Availability: 1
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 09S
Position: 95
Availability: 11
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 09S
Position: 95
Availability: 11
Price group: -
-
Compression Spring
-
Spare part number: 1 604 612 00R
Position: 63
Availability: 1
Price group: -
-
Setting Device
-
Spare part number: 2 601 010 082
Position: 52
Availability: 1
Price group: -
-
Cover
-
Spare part number: 2 601 073 020
Position: 46
Availability: 1
Price group: -
-
Locking pin
-
Spare part number: 2 603 101 070
Position: 1/12
Availability: 1
Price group: -
-
Carrier
-
Spare part number: 2 605 730 068
Position: 48
Availability: 1
Price group: -
-
Hexagon Socket Screw Key 5 MM
-
Spare part number: 2 610 364 015
Position: 93
Availability: 1
Price group: -
-
Torx Oval-Head Screw M4X12
-
Spare part number: 2 610 386 516
Position: 71
Availability: 1
Price group: -
-
Hex Nut
-
Spare part number: 2 610 387 875
Position: 50
Availability: 2
Price group: -
-
Round-Head Bolt DIN 603-M6X40
-
Spare part number: 2 910 281 209
Position: 73
Availability: 2
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 68
Availability: 5
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 68
Availability: 5
Price group: -
-
Plain Washer DIN 9021-B 4,3-ST
-
Spare part number: 2 916 011 892
Position: 79
Availability: 4
Price group: -
-
Plain Washer DIN 9021-B 4,3-ST
-
Spare part number: 2 916 011 892
Position: 79
Availability: 4
Price group: -
-
Washer
-
Spare part number: 2 918 660 002
Position: 80
Availability: 2
Price group: -
-
1
2
3
Spare parts in list
76 Parts found
Sort by
Description
Pos. 1/1 | Handle
1 605 806 64R
-
Pos. 1/7 | Locking Slide
2 602 026 200
-
Pos. 1/9 | Locking Lever
2 602 051 004
-
Pos. 1/10 | Selector Switch
2 602 026 201
-
Pos. 1/11 | Rocker
2 602 123 010
-
Pos. 1/12 | Locking pin
2 603 101 070
-
Pos. 1/17 | Switch
2 607 202 386
-
Pos. 1/54 | O-Ring
1 600 210 094
-
Pos. 1/55 | Shim Plate
1 600 A01 UT1
-
Pos. 1/60 | Compression Spring
1 600 A01 9DG
-
Pos. 1/61 | Compression Spring
2 604 618 015
-
Pos. 1/64 | Compression Spring
2 604 618 014
-
Pos. 1/66 | Screw 4X16
2 603 490 022
-
Pos. 1/67 | Torx Oval-Head Screw 4X25
2 603 490 024
-
Pos. 3 | Electronic Module
1 607 233 5F7
-
Pos. 4 | Housing Cover
1 605 132 182
-
Pos. 5 | Housing Base
1 605 132 181
-
Pos. 6 | Support
1 600 A01 5X0
-
Pos. 13 | Data cable
1 600 A01 5F8
-
Pos. 14 | Connecting Cable
1 600 A01 3D8
-
Pos. 15 | Connecting Cable
1 600 A01 3D5
-
Pos. 16 | Contact Plate
1 600 A01 61F
-
Pos. 18 | Electronic Module
1 607 233 5GD
-
Pos. 19 | Electronics Module
1 600 A01 6CZ
-
Pos. 20 | Cover Panel
1 600 A01 6ML
-
Pos. 21 | Rubber Sponge
1 600 A00 M52
-
Pos. 22 | cover
1 600 A01 35N
-
Pos. 23/2 | DC motor
1 607 022 66Y
-
Pos. 23/23 | Gear Housing
1 605 806 64W
-
Pos. 23/26 | Rejection Slide
1 600 A01 305
-
Pos. 23/30 | O-Ring 42,0X1,0 MM
3 600 210 136
-
Pos. 23/31 | Shim
1 600 A01 31C
-
Pos. 23/31 | Shim
1 600 A01 9L6
-
Pos. 23/31 | Shim
1 600 A01 9L7
-
Pos. 23/31 | Shim
1 600 A01 9L8
-
Pos. 23/35 | Jack Shaft
1 600 A02 13M
-
Pos. 23/37 | Output Shaft
1 600 A02 13N
-
Pos. 23/70 | Screw
1 619 X05 274
-
Pos. 23/71 | Torx Oval-Head Screw M4X12
2 610 386 516
-
Pos. 23/91 | Clamping-Flange
2 605 719 049
-
Pos. 23/92 | Clamping-Flange
2 605 719 051
-
Pos. 23/94 | Socket head cap screw
1 600 A01 H00
-
Pos. 29 | Shim
1 600 A01 5MM
-
Pos. 33 | Guard Plate
1 600 A01 300
-
Pos. 34 | Protection cover
2 605 510 323
-
Pos. 39 | Bearing bolt
1 603 123 067
-
Pos. 40 | Bushing
1 600 300 11H
-
Pos. 41 | Suction Socket
2 605 730 067
-
Pos. 42 | Coiled Spring
1 604 651 01C
-
Pos. 43 | Damper
2 601 010 079
-
Pos. 44 | Depth gauge
2 600 460 059
-
Pos. 45 | Base Plate
1 600 A01 2ZA
-
Pos. 46 | Cover
2 601 073 020
-
Pos. 47 | Filling Piece
1 600 A01 8TN
-
Pos. 48 | Carrier
2 605 730 068
-
Pos. 49 | Angle Lever
1 600 A01 9N6
-
Pos. 50 | Hex Nut
2 610 387 875
-
Pos. 51 | Carrier
1 600 A01 2ZD
-
Pos. 52 | Setting Device
2 601 010 082
-
Pos. 53 | Setting Device
1 600 A01 2ZH
-
Pos. 62 | Compression Spring
1 609 280 477
-
Pos. 63 | Compression Spring
1 604 612 00R
-
Pos. 65 | Torsion Spring
1 600 A01 8U8
-
Pos. 68 | Thread-forming tap. Screw M4X16
2 914 491 410
-
Pos. 69 | Thread-forming tap. Screw
2 603 410 051
-
Pos. 72 | Thread-forming tap. Screw M4X8
2 603 410 048
-
Pos. 73 | Round-Head Bolt DIN 603-M6X40
2 910 281 209
-
Pos. 74 | Screw
1 603 430 03T
-
Pos. 78 | Spring retaining ring
2 916 660 033
-
Pos. 79 | Plain Washer DIN 9021-B 4,3-ST
2 916 011 892
-
Pos. 80 | Washer
2 918 660 002
-
Pos. 93 | Hexagon Socket Screw Key 5 MM
2 610 364 015
-
Pos. 95 | Torx Oval-Head Screw
1 603 435 09S
-
Pos. 97 | Electronics Module
1 600 A01 3WF
-
Pos. 654 | Dust Bag
1 605 411 01V
-
Pos. 808 | Nameplate
1 601 11A 7ZZ
-
* Prices shown are net prices including VAT
