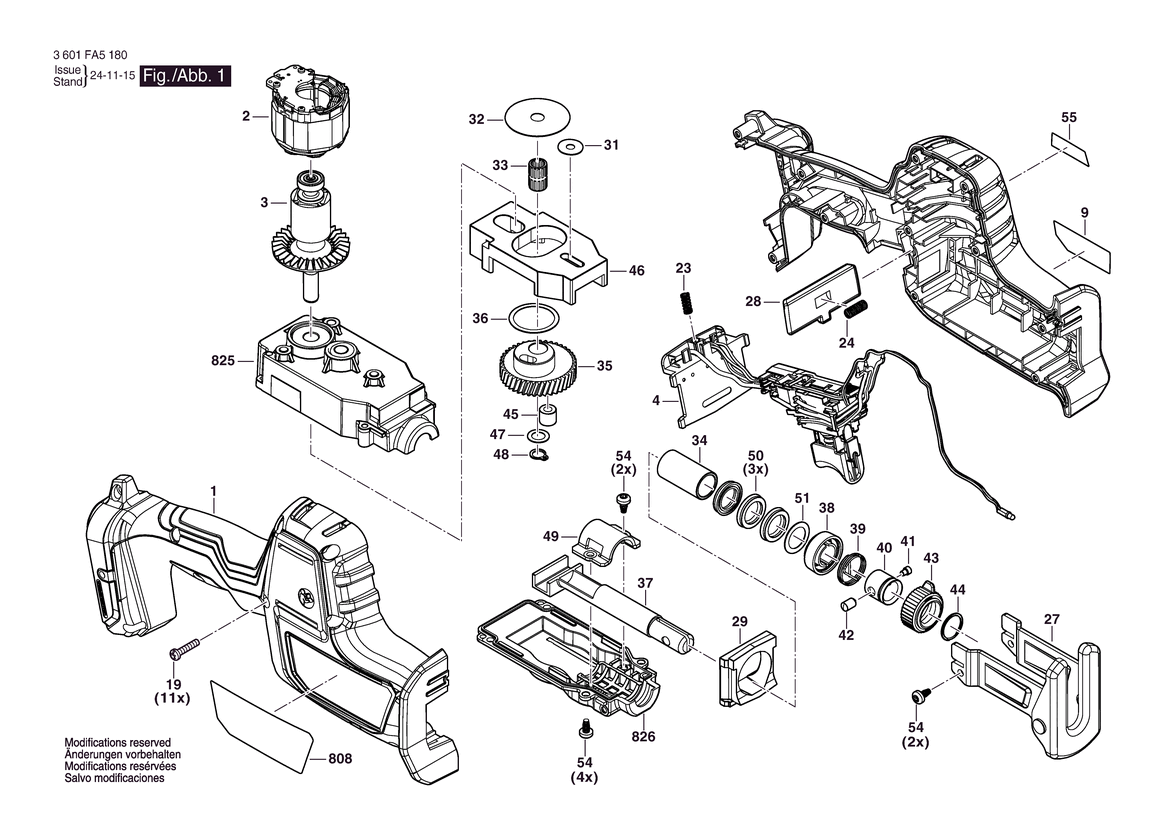

GSA 18V-24 - 3 601 FA5 1L0 | Product Detail Page | Power Tools

Pos. 2

Pos. 2 | Stator

1 619 PS1 797

Stator

1 619 PS1 797

Availability 1

Price group: -

Pos. 3

Pos. 3 | Rotor

1 619 PS1 798

Rotor

1 619 PS1 798

Availability 1

Price group: -

Pos. 4

Pos. 4 | Electronics Module

1 619 PS1 799

Electronics Module

1 619 PS1 799

Availability 1

Price group: -

Pos. 9

Pos. 9 | Manufacturer's nameplate

1 619 PS1 800

Manufacturer's nameplate

1 619 PS1 800

Availability 1

Price group: -

Pos. 19

Pos. 19 | Screw ST3,9X19

2 610 315 386

Screw ST3,9X19

2 610 315 386

Availability 11

Price group: -

Pos. 23

Pos. 23 | Compression Spring

1 609 280 477

Compression Spring

1 609 280 477

Availability 1

Price group: -

Pos. 24

Pos. 24 | Compression Spring

2 610 935 251

Compression Spring

2 610 935 251

Availability 1

Price group: -

Pos. 27

Pos. 27 | Supporting foot

1 619 PS1 801

Supporting foot

1 619 PS1 801

Availability 1

Price group: -

Pos. 28

Pos. 28 | Locking Lever

1 619 PS1 802

Locking Lever

1 619 PS1 802

Availability 1

Price group: -

Pos. 29

Pos. 29 | Protective Cover

1 619 PS1 803

Protective Cover

1 619 PS1 803

Availability 1

Price group: -

Pos. 31

Pos. 31 | Shim

1 619 PS1 804

Shim

1 619 PS1 804

Availability 1

Price group: -

Pos. 32

Pos. 32 | Shim

1 619 PS1 805

Shim

1 619 PS1 805

Availability 1

Price group: -

Pos. 33

Pos. 33 | Needle-Roller Assembly

2 600 913 040

Needle-Roller Assembly

2 600 913 040

Availability 1

Price group: -

Pos. 34

Pos. 34 | Bushing

1 619 PS1 806

Bushing

1 619 PS1 806

Availability 1

Price group: -

Pos. 35

Pos. 35 | Eccentric Cog Wheel

1 619 PS1 807

Eccentric Cog Wheel

1 619 PS1 807

Availability 1

Price group: -

Pos. 36

Pos. 36 | Washer

1 619 PS1 808

Washer

1 619 PS1 808

Availability 1

Price group: -

Pos. 37

Pos. 37 | Spindle

1 619 PS1 809

Spindle

1 619 PS1 809

Availability 1

Price group: -

Pos. 38

Pos. 38 | Spring Retainer

1 619 P08 611

Spring Retainer

1 619 P08 611

Availability 1

Price group: -

Pos. 39

Pos. 39 | Torsion Spring

1 619 P08 614

Torsion Spring

1 619 P08 614

Availability 1

Price group: -

Pos. 40

Pos. 40 | Control Sleeve

1 619 P08 616

Control Sleeve

1 619 P08 616

Availability 1

Price group: -

Pos. 41

Pos. 41 | Retaining Pin

1 619 P13 440

Retaining Pin

1 619 P13 440

Availability 1

Price group: -

Pos. 42

Pos. 42 | Detent Pin

1 619 PS1 810

Detent Pin

1 619 PS1 810

Availability 1

Price group: -

Pos. 43

Pos. 43 | Clamp ring

1 619 PS1 811

Clamp ring

1 619 PS1 811

Availability 1

Price group: -

Pos. 44

Pos. 44 | Retaining ring

1 619 P08 612

Retaining ring

1 619 P08 612

Availability 1

Price group: -

Pos. 45

Pos. 45 | Bushing

1 619 PS1 812

Bushing

1 619 PS1 812

Availability 1

Price group: -

Pos. 46

Pos. 46 | Counter Weight

1 619 PS1 813

Counter Weight

1 619 PS1 813

Availability 1

Price group: -

Pos. 47

Pos. 47 | Shim 0,5 MM

2 600 101 077

Shim 0,5 MM

2 600 101 077

Availability 1

Price group: -

Pos. 48

Pos. 48 | Spring retaining ring 8X0,8 N31A MR7

2 916 640 905

Spring retaining ring 8X0,8 N31A MR7

2 916 640 905

Availability 1

Price group: -

Pos. 49

Pos. 49 | bushing clamp

1 619 PS1 814

bushing clamp

1 619 PS1 814

Availability 1

Price group: -

Pos. 50

Pos. 50 | Shaft Seal

1 619 P12 117

Shaft Seal

1 619 P12 117

Availability 3

Price group: -

Pos. 51

Pos. 51 | Protective Washer

2 610 908 804

Protective Washer

2 610 908 804

Availability 1

Price group: -

Pos. 54

Pos. 54 | Thread-forming tap. Screw

2 914 492 405

Thread-forming tap. Screw

2 914 492 405

Availability 8

Price group: -

Pos. 55

Pos. 55 | Sticker

1 619 PS1 815

Sticker

1 619 PS1 815

Availability 1

Price group: -

Pos. 808

Pos. 808 | Nameplate

1 619 PS2 358

Nameplate

1 619 PS2 358

Availability 1

Price group: -

Pos. 825

Pos. 825 | Gear Housing

1 619 PS1 817

Gear Housing

1 619 PS1 817

Availability 1

Price group: -

Pos. 826

Pos. 826 | Gear Cover

1 619 PS1 818

Gear Cover

1 619 PS1 818

Availability 1

Price group: -
