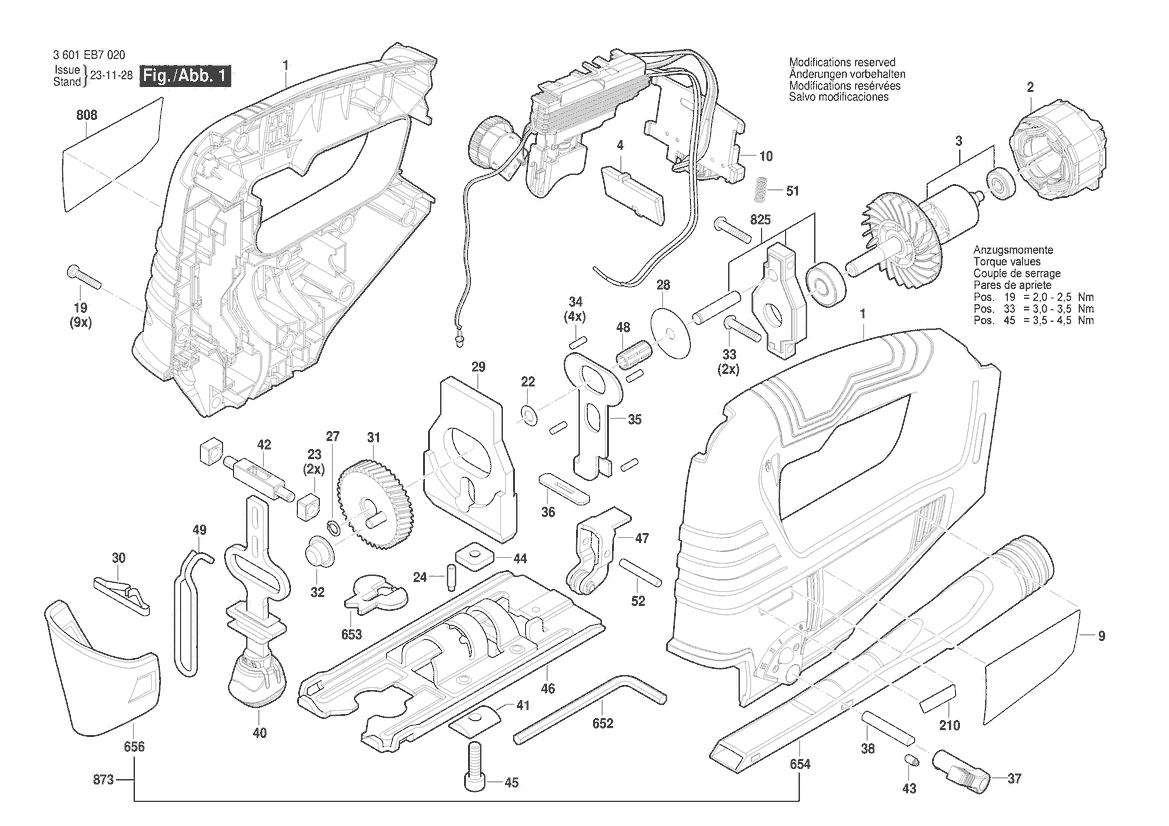

3 601 EB7 080
Compression Spring
-
Spare part number: 1 609 280 477
Position: 51
Availability: 1
Price group: -
-
Shim
-
Spare part number: 1 619 P01 396
Position: 28
Availability: 1
Price group: -
-
Control Shaft
-
Spare part number: 1 619 P07 156
Position: 38
Availability: 1
Price group: -
-
Bearing bolt
-
Spare part number: 1 619 P07 159
Position: 52
Availability: 1
Price group: -
-
fixing plate
-
Spare part number: 1 619 P07 163
Position: 44
Availability: 1
Price group: -
-
Counterweight
-
Spare part number: 1 619 P14 042
Position: 29
Availability: 1
Price group: -
-
Lifting Rod
-
Spare part number: 1 619 P14 045
Position: 40
Availability: 1
Price group: -
-
Plain bearing
-
Spare part number: 1 619 P14 049
Position: 42
Availability: 1
Price group: -
-
Fork Lever
-
Spare part number: 1 619 P14 052
Position: 35
Availability: 1
Price group: -
-
Change-Over Switch
-
Spare part number: 1 619 P14 053
Position: 37
Availability: 1
Price group: -
-
Insert
-
Spare part number: 1 619 P14 055
Position: 23
Availability: 2
Price group: -
-
Protecting Cover
-
Spare part number: 1 619 P14 058
Position: 49
Availability: 1
Price group: -
-
Coiled Spring
-
Spare part number: 1 619 P14 636
Position: 30
Availability: 1
Price group: -
-
Needle-Roller Assembly
-
Spare part number: 1 619 P14 677
Position: 48
Availability: 1
Price group: -
-
Shim
-
Spare part number: 1 619 P14 682
Position: 22
Availability: 1
Price group: -
-
Bracket
-
Spare part number: 1 619 P14 685
Position: 825
Availability: 1
Price group: -
-
Offset Screwdriver
-
Spare part number: 1 619 P16 361
Position: 652
Availability: 1
Price group: -
-
Roller Lever
-
Spare part number: 1 619 P16 757
Position: 47
Availability: 1
Price group: -
-
Housing Section
-
Spare part number: 1 619 P17 936
Position: 1
Availability: 1
Price group: -
-
Housing Section
-
Spare part number: 1 619 P17 936
Position: 1
Availability: 1
Price group: -
-
Stator
-
Spare part number: 1 619 P17 937
Position: 2
Availability: 1
Price group: -
-
Rotor
-
Spare part number: 1 619 P17 938
Position: 3
Availability: 1
Price group: -
-
Eccentric Cog Wheel
-
Spare part number: 1 619 P17 939
Position: 31
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 P17 940
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate GST 183-LI
-
Spare part number: 1 619 P17 941
Position: 9
Availability: 1
Price group: -
-
Base Plate
-
Spare part number: 1 619 P17 942
Position: 46
Availability: 1
Price group: -
-
Sticker
-
Spare part number: 1 619 P17 943
Position: 210
Availability: 1
Price group: -
-
Covering hood
-
Spare part number: 1 619 P17 944
Position: 656
Availability: 1
Price group: -
-
Adjusting Slide
-
Spare part number: 1 619 P18 159
Position: 4
Availability: 1
Price group: -
-
Profile Beading
-
Spare part number: 1 619 P18 424
Position: 41
Availability: 1
Price group: -
-
Suction Socket
-
Spare part number: 1 619 P18 654
Position: 873
Availability: 1
Price group: -
-
Seal
-
Spare part number: 1 619 X04 574
Position: 36
Availability: 1
Price group: -
-
Hex Socket Head Cap Screw
-
Spare part number: 1 619 X04 887
Position: 45
Availability: 1
Price group: -
-
Spring retaining ring
-
Spare part number: 1 619 X07 569
Position: 27
Availability: 1
Price group: -
-
Ratchet Cap
-
Spare part number: 1 619 X08 636
Position: 43
Availability: 1
Price group: -
-
Needle bearing
-
Spare part number: 2 600 914 022
Position: 32
Availability: 1
Price group: -
-
Splintering Protector
-
Spare part number: 2 601 016 065
Position: 653
Availability: 1
Price group: -
-
Detent Pin
-
Spare part number: 2 603 120 019
Position: 24
Availability: 1
Price group: -
-
Bearing bolt
-
Spare part number: 2 603 201 020
Position: 34
Availability: 4
Price group: -
-
Suction Nozzle
-
Spare part number: 2 605 730 055
Position: 654
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 2 607 202 599
Position: 10
Availability: 1
Price group: -
-
Cyl Head tapping screw
-
Spare part number: 2 609 110 610
Position: 33
Availability: 2
Price group: -
-
Screw ST3,9X19
-
Spare part number: 2 610 315 386
Position: 19
Availability: 9
Price group: -
-

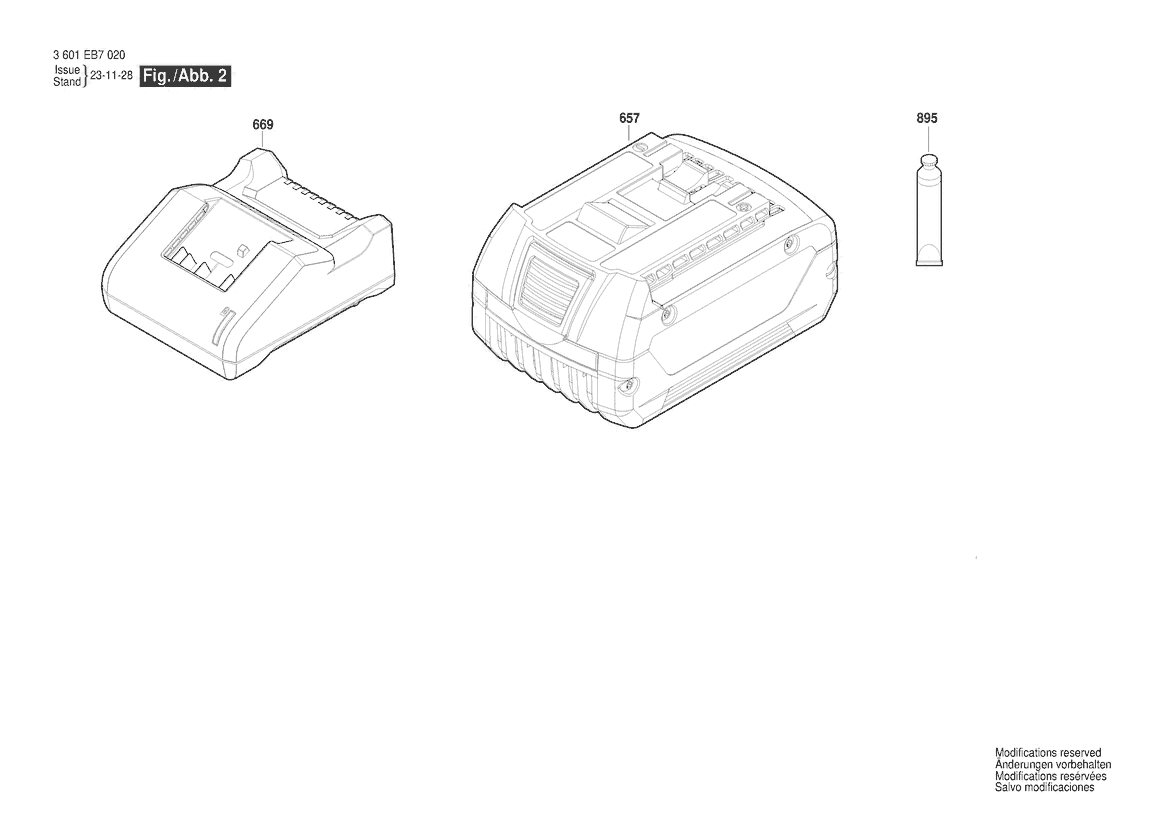

Battery Pack
-
Spare part number: 1 617 S02 0T1
Position: 657
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
Grease Tube ALBIDA
-
Spare part number: 3 605 430 003
Position: 895
Availability: 1
Price group: -
-
1
2
Spare parts in list
46 Parts found
Sort by
Description
Pos. 1 | Housing Section
1 619 P17 936
-
Pos. 2 | Stator
1 619 P17 937
-
Pos. 3 | Rotor
1 619 P17 938
-
Pos. 4 | Adjusting Slide
1 619 P18 159
-
Pos. 9 | Manufacturer's nameplate GST 183-LI
1 619 P17 941
-
Pos. 10 | Electronics Module
2 607 202 599
-
Pos. 19 | Screw ST3,9X19
2 610 315 386
-
Pos. 22 | Shim
1 619 P14 682
-
Pos. 23 | Insert
1 619 P14 055
-
Pos. 24 | Detent Pin
2 603 120 019
-
Pos. 27 | Spring retaining ring
1 619 X07 569
-
Pos. 28 | Shim
1 619 P01 396
-
Pos. 29 | Counterweight
1 619 P14 042
-
Pos. 30 | Coiled Spring
1 619 P14 636
-
Pos. 31 | Eccentric Cog Wheel
1 619 P17 939
-
Pos. 32 | Needle bearing
2 600 914 022
-
Pos. 33 | Cyl Head tapping screw
2 609 110 610
-
Pos. 34 | Bearing bolt
2 603 201 020
-
Pos. 35 | Fork Lever
1 619 P14 052
-
Pos. 36 | Seal
1 619 X04 574
-
Pos. 37 | Change-Over Switch
1 619 P14 053
-
Pos. 38 | Control Shaft
1 619 P07 156
-
Pos. 40 | Lifting Rod
1 619 P14 045
-
Pos. 41 | Profile Beading
1 619 P18 424
-
Pos. 42 | Plain bearing
1 619 P14 049
-
Pos. 43 | Ratchet Cap
1 619 X08 636
-
Pos. 44 | fixing plate
1 619 P07 163
-
Pos. 45 | Hex Socket Head Cap Screw
1 619 X04 887
-
Pos. 46 | Base Plate
1 619 P17 942
-
Pos. 47 | Roller Lever
1 619 P16 757
-
Pos. 48 | Needle-Roller Assembly
1 619 P14 677
-
Pos. 49 | Protecting Cover
1 619 P14 058
-
Pos. 51 | Compression Spring
1 609 280 477
-
Pos. 52 | Bearing bolt
1 619 P07 159
-
Pos. 210 | Sticker
1 619 P17 943
-
Pos. 652 | Offset Screwdriver
1 619 P16 361
-
Pos. 653 | Splintering Protector
2 601 016 065
-
Pos. 654 | Suction Nozzle
2 605 730 055
-
Pos. 656 | Covering hood
1 619 P17 944
-
Pos. 657 | Battery Pack
1 617 S02 0T1
-
Pos. 669 | Fast Charger CN GAL 18V-40
2 607 226 267
-
Pos. 669 | Fast Charger
2 607 226 297
-
Pos. 808 | Nameplate
1 619 P17 940
-
Pos. 825 | Bracket
1 619 P14 685
-
Pos. 873 | Suction Socket
1 619 P18 654
-
Pos. 895 | Grease Tube ALBIDA
3 605 430 003
-
* Prices shown are net prices including VAT
