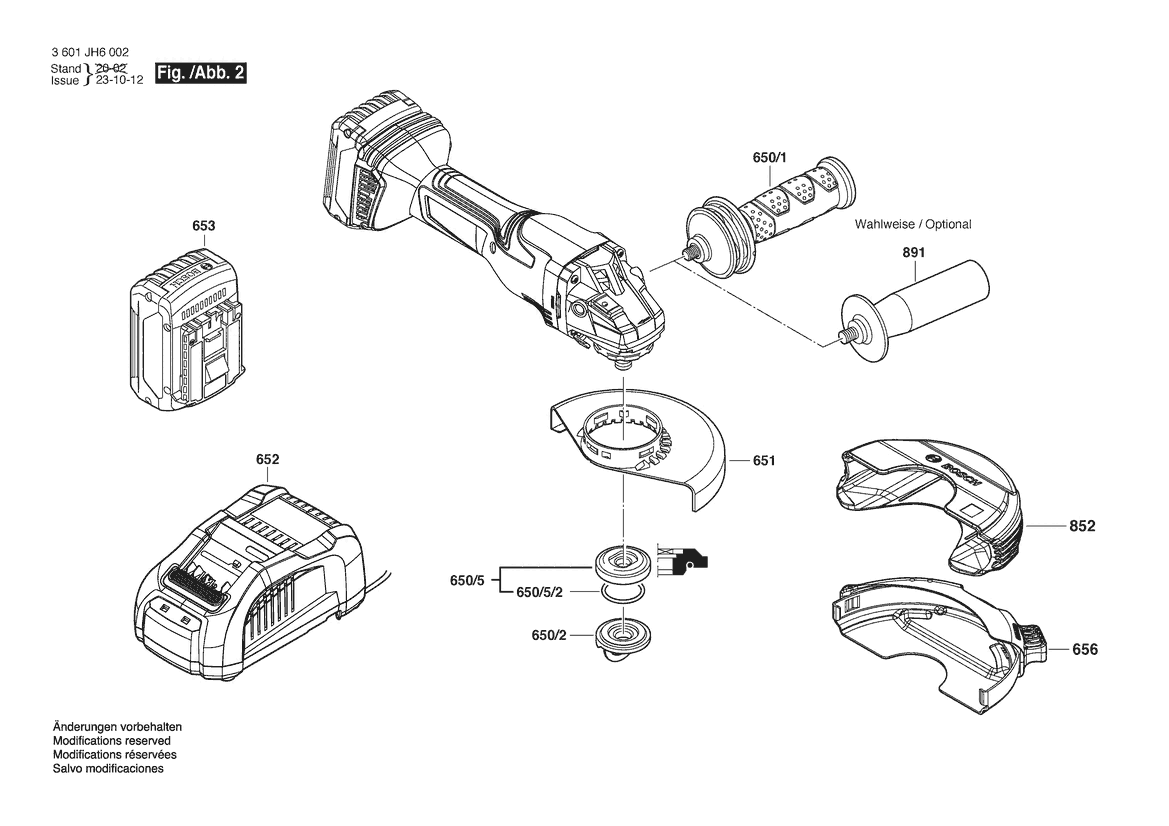

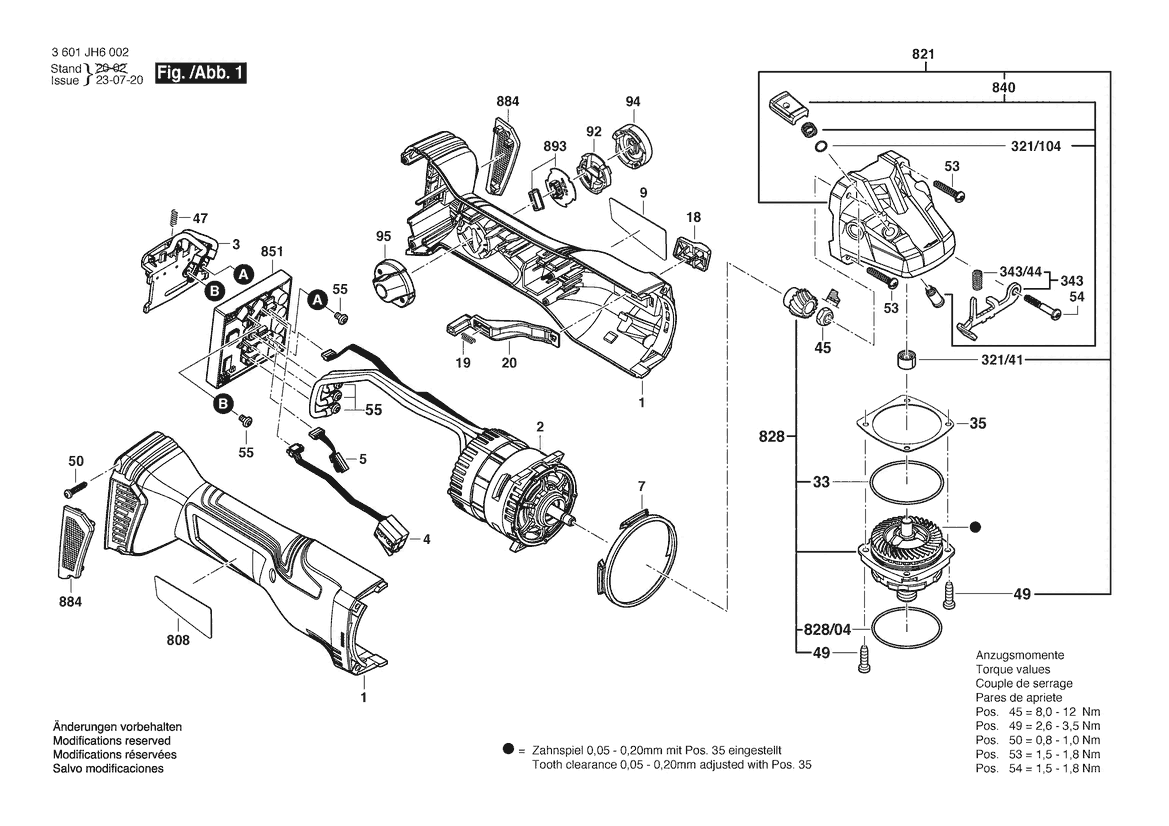

3 601 JH6 002
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Plain bearing
-
Spare part number: 1 600 200 029
Position: 321/41
Availability: 1
Price group: -
-
O-Ring 46,0X1,1 MM
-
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: -
-
O-Ring 4,5X1,0 MM BLUE
-
Spare part number: 1 600 210 044
Position: 321/104
Availability: 1
Price group: -
-
Switch Unit
-
Spare part number: 1 600 A01 6JC
Position: 4
Availability: 1
Price group: -
-
Cover Panel
-
Spare part number: 1 600 A01 6ML
Position: 92
Availability: 1
Price group: -
-
Switch Handle
-
Spare part number: 1 600 A01 6PW
Position: 18
Availability: 1
Price group: -
-
Switch Slide
-
Spare part number: 1 600 A01 6PX
Position: 20
Availability: 1
Price group: -
-
Cover Ring
-
Spare part number: 1 600 A01 6U4
Position: 7
Availability: 1
Price group: -
-
Ribbon cable
-
Spare part number: 1 600 A01 8Z2
Position: 5
Availability: 1
Price group: -
-
Dust-Protection Cover
-
Spare part number: 1 600 A01 9TY
Position: 95
Availability: 1
Price group: -
-
Contact Plate
-
Spare part number: 1 600 A02 4C4
Position: 3
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 601 11A 9C3
Position: 808
Availability: 1
Price group: -
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 2SE
Position: 9
Availability: 1
Price group: -
-
Hex Nut M7, SW10
-
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: -
-
Torx Oval-Head Screw 4X30
-
Spare part number: 1 603 414 026
Position: 54
Availability: 1
Price group: -
-
Screw
-
Spare part number: 1 603 430 03T
Position: 55
Availability: 5
Price group: -
-
Screw
-
Spare part number: 1 603 430 03T
Position: 55
Availability: 5
Price group: -
-
Screw
-
Spare part number: 1 603 430 03T
Position: 55
Availability: 5
Price group: -
-
Thread-forming tap. Screw
-
Spare part number: 1 603 435 071
Position: 50
Availability: 4
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: -
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 078
Position: 53
Availability: 3
Price group: -
-
Compression Spring
-
Spare part number: 1 604 611 042
Position: 343/44
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 604 612 03M
Position: 19
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 605 108 2JL
Position: 1
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 605 108 2JL
Position: 1
Availability: 1
Price group: -
-
Cover
-
Spare part number: 1 605 500 2FA
Position: 94
Availability: 1
Price group: -
-
Catch Lever
-
Spare part number: 1 607 000 742
Position: 343
Availability: 1
Price group: -
-
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: -
-
Filter Unit
-
Spare part number: 1 607 000 CA9
Position: 884
Availability: 1
Price group: -
-
Push-Button
-
Spare part number: 1 607 000 D7Y
Position: 840
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 1 607 000 D81
Position: 821
Availability: 1
Price group: -
-
Bearing Flange
-
Spare part number: 1 607 000 D83
Position: 828
Availability: 1
Price group: -
-
Electronics Module
-
Spare part number: 1 607 000 D91
Position: 893
Availability: 1
Price group: -
-
Electronic Module
-
Spare part number: 1 607 000 EB2
Position: 851
Availability: 1
Price group: -
-
DC motor
-
Spare part number: 1 607 022 661
Position: 2
Availability: 1
Price group: -
-
Compression Spring
-
Spare part number: 1 609 280 477
Position: 47
Availability: 1
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: -
-
Thread-forming tap. Screw M4X16
-
Spare part number: 2 914 491 410
Position: 49
Availability: 4
Price group: -
-
O-Ring 47,0X1,5 MM
-
Spare part number: 3 600 210 109
Position: 828/04
Availability: 1
Price group: -
-
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 055
Position: 650/5/2
Availability: 1
Price group: -
-
Quick Acting Flange
-
Spare part number: 1 600 A01 6DN
Position: 650/2
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 600 A02 059
Position: 656
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 600 A02 1MH
Position: 852
Availability: 1
Price group: -
-
Protective Cover
-
Spare part number: 1 600 A02 E9M
Position: 651
Availability: 1
Price group: -
-
Auxiliary Handle
-
Spare part number: 1 602 025 0A0
Position: 650/1
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 605 108 2JL
Position: 1
Availability: 1
Price group: -
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 650/5
Availability: 1
Price group: -
-
1
2
Spare parts in list
44 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 605 108 2JL
-
Pos. 2 | DC motor
1 607 022 661
-
Pos. 3 | Contact Plate
1 600 A02 4C4
-
Pos. 4 | Switch Unit
1 600 A01 6JC
-
Pos. 5 | Ribbon cable
1 600 A01 8Z2
-
Pos. 7 | Cover Ring
1 600 A01 6U4
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 2SE
-
Pos. 18 | Switch Handle
1 600 A01 6PW
-
Pos. 19 | Compression Spring
1 604 612 03M
-
Pos. 20 | Switch Slide
1 600 A01 6PX
-
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
-
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
-
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
-
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
Pos. 47 | Compression Spring
1 609 280 477
-
Pos. 49 | Thread-forming tap. Screw M4X16
2 914 491 410
-
Pos. 50 | Thread-forming tap. Screw
1 603 435 071
-
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
-
Pos. 54 | Torx Oval-Head Screw 4X30
1 603 414 026
-
Pos. 55 | Screw
1 603 430 03T
-
Pos. 92 | Cover Panel
1 600 A01 6ML
-
Pos. 94 | Cover
1 605 500 2FA
-
Pos. 95 | Dust-Protection Cover
1 600 A01 9TY
-
Pos. 321/41 | Plain bearing
1 600 200 029
-
Pos. 321/104 | O-Ring 4,5X1,0 MM BLUE
1 600 210 044
-
Pos. 343 | Catch Lever
1 607 000 742
-
Pos. 343/44 | Compression Spring
1 604 611 042
-
Pos. 650/1 | Auxiliary Handle
1 602 025 0A0
-
Pos. 650/2 | Quick Acting Flange
1 600 A01 6DN
-
Pos. 650/5/2 | O-Ring 20,35X1,78 MM
1 600 210 055
-
Pos. 650/5 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 651 | Protective Cover
1 600 A02 E9M
-
Pos. 656 | Protective Cover
1 600 A02 059
-
Pos. 808 | Nameplate
1 601 11A 9C3
-
Pos. 821 | Gear Housing
1 607 000 D81
-
Pos. 828 | Bearing Flange
1 607 000 D83
-
Pos. 828/04 | O-Ring 47,0X1,5 MM
3 600 210 109
-
Pos. 840 | Push-Button
1 607 000 D7Y
-
Pos. 851 | Electronic Module
1 607 000 EB2
-
Pos. 852 | Protective Cover
1 600 A02 1MH
-
Pos. 884 | Filter Unit
1 607 000 CA9
-
Pos. 893 | Electronics Module
1 607 000 D91
-
* Prices shown are net prices including VAT
