3 601 HB7 0K0
Rubber Ring 7 MM WIDE
-
Spare part number: 1 600 206 020
Position: 38
Availability: 1
Price group: -
-
O-Ring 8,0X1,0 MM
-
Spare part number: 1 600 210 045
Position: 29
Availability: 1
Price group: -
-
Rotary shaft lip seal 18,7 MM RED
-
Spare part number: 1 600 290 013
Position: 33
Availability: 1
Price group: -
-
Air Distributor
-
Spare part number: 1 600 591 035
Position: 30
Availability: 1
Price group: -
-
-
Please click for futher details
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 011
Position: 813
Availability: 1
Price group: -
-
groove ball bearing 10X35X11
-
Spare part number: 1 600 905 023
Position: 814
Availability: 1
Price group: -
-
Sealing Plate
-
Spare part number: 1 601 006 011
Position: 68
Availability: 1
Price group: -
-
Fastening Clamp
-
Spare part number: 1 601 302 018
Position: 7
Availability: 1
Price group: -
-
Pickup Clip
-
Spare part number: 1 601 334 009
Position: 44
Availability: 2
Price group: -
-
Pickup Clip
-
Spare part number: 1 601 334 009
Position: 44
Availability: 2
Price group: -
-
Pan head screw M4X10 MM
-
Spare part number: 1 603 410 014
Position: 63
Availability: 2
Price group: -
-
Thread-forming tap. Screw TT M5X18 MM
-
Spare part number: 1 603 435 023
Position: 60
Availability: 3
Price group: -
-
Tapping Screw C4,8X63 MM
-
Spare part number: 1 603 435 024
Position: 62
Availability: 2
Price group: -
-
Plastic-Cutting Screw ST3,9X12
-
Spare part number: 1 603 435 042
Position: 64
Availability: 4
Price group: -
-
Plastic-Cutting Screw ST3,9X12
-
Spare part number: 1 603 435 042
Position: 64
Availability: 4
Price group: -
-
Plastic-Cutting Screw ST3,9X12
-
Spare part number: 1 603 435 042
Position: 64
Availability: 4
Price group: -
-
Plastic-Cutting Screw ST3,9X12
-
Spare part number: 1 603 435 042
Position: 64
Availability: 4
Price group: -
-

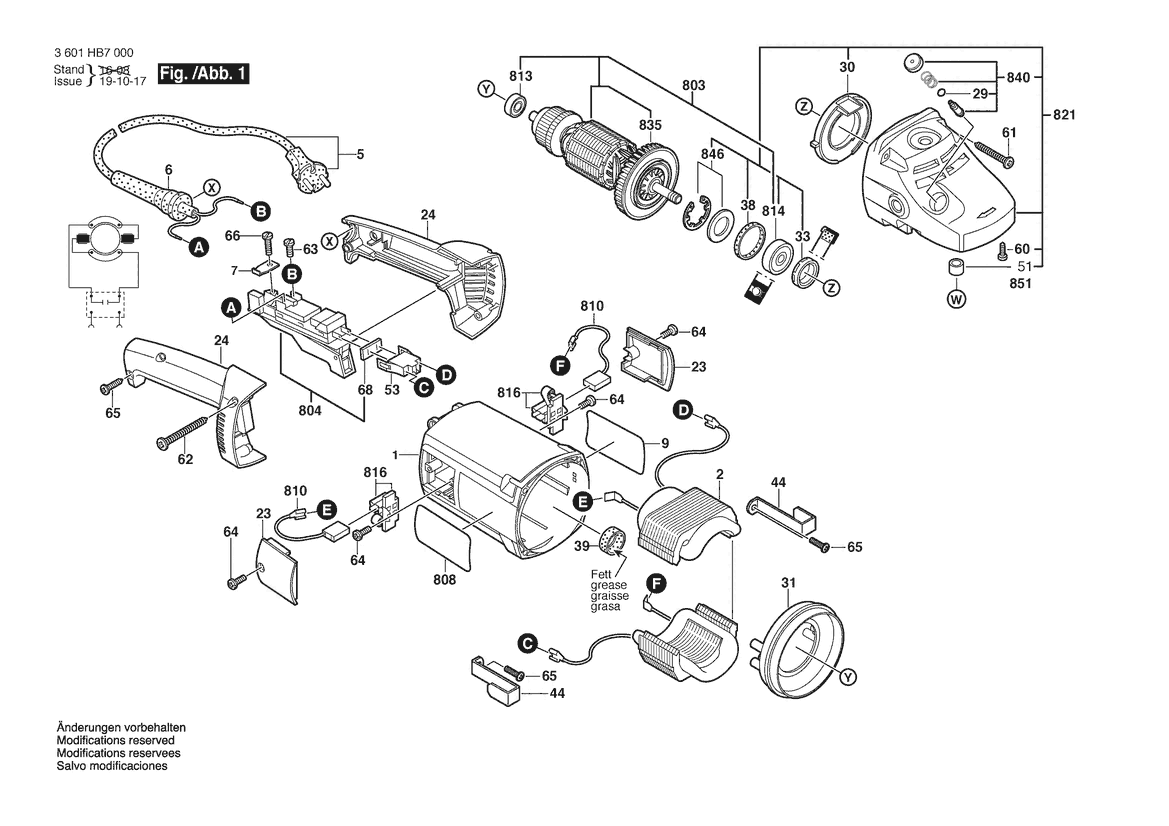

Armature 220-240V
-
Spare part number: 1 604 011 252
Position: 803
Availability: 1
Price group: -
-
Field 220-240V
-
Spare part number: 1 604 220 380
Position: 2
Availability: 1
Price group: -
-
Brush Holder
-
Spare part number: 1 604 336 048
Position: 816
Availability: 2
Price group: -
-
Brush Holder
-
Spare part number: 1 604 336 048
Position: 816
Availability: 2
Price group: -
-
Socket Housing
-
Spare part number: 1 605 190 068
Position: 53
Availability: 1
Price group: -
-
Fan
-
Spare part number: 1 606 610 127
Position: 835
Availability: 1
Price group: -
-
Retaining Washer
-
Spare part number: 1 607 000 342
Position: 846
Availability: 1
Price group: -
-
Push-Button
-
Spare part number: 1 607 000 354
Position: 840
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 607 014 171
Position: 810
Availability: 1
Price group: -
-
Carbon-Brush Set
-
Spare part number: 1 607 014 171
Position: 810
Availability: 1
Price group: -
-
Motor Housing
-
Spare part number: 1 619 P09 887
Position: 1
Availability: 1
Price group: -
-
Manufacturer's nameplate GWS 2000
-
Spare part number: 1 619 P13 489
Position: 9
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 619 P13 504
Position: 24
Availability: 1
Price group: -
-
Handle
-
Spare part number: 1 619 P13 504
Position: 24
Availability: 1
Price group: -
-
Power supply cord
-
Spare part number: 1 619 P13 813
Position: 5
Availability: 1
Price group: -
-
Gear Housing
-
Spare part number: 1 619 P14 183
Position: 821
Availability: 1
Price group: -
-
Switch
-
Spare part number: 1 619 P14 186
Position: 804
Availability: 1
Price group: -
-
Rubber Ring
-
Spare part number: 1 619 P14 249
Position: 39
Availability: 1
Price group: -
-
Sealing cap
-
Spare part number: 1 619 P14 320
Position: 23
Availability: 2
Price group: -
-
Sealing cap
-
Spare part number: 1 619 P14 320
Position: 23
Availability: 2
Price group: -
-
Air-Deflector Ring
-
Spare part number: 1 619 P17 209
Position: 31
Availability: 1
Price group: -
-
Nameplate
-
Spare part number: 1 619 P31 769
Position: 808
Availability: 1
Price group: -
-
-
Please click for futher details
Needle-Roller Bearing Ø14 MM
-
Spare part number: 2 600 910 001
Position: 51
Availability: 1
Price group: -
-
Tapping Screw DIN 7971-ST3,9X16-F
-
Spare part number: 2 910 211 019
Position: 66
Availability: 1
Price group: -
-
Tapping Screw DIN 7981-3,9X19-C-Z-ST
-
Spare part number: 2 912 401 020
Position: 65
Availability: 4
Price group: -
-
Tapping Screw DIN 7981-3,9X19-C-Z-ST
-
Spare part number: 2 912 401 020
Position: 65
Availability: 4
Price group: -
-
Tapping Screw DIN 7981-3,9X19-C-Z-ST
-
Spare part number: 2 912 401 020
Position: 65
Availability: 4
Price group: -
-
Tapping Screw DIN 7981-4,8X38-C-Z-ST
-
Spare part number: 2 912 401 038
Position: 61
Availability: 4
Price group: -
-
Spring retaining ring
-
Spare part number: 1 600 119 010
Position: 822/22/48
Availability: 1
Price group: -
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Felt Washer
-
Spare part number: 1 600 205 034
Position: 35
Availability: 1
Price group: -
-
O-Ring 79,0X1,78 MM
-
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: -
-
O-Ring 79,0X1,78 MM
-
Spare part number: 1 600 210 033
Position: 28
Availability: 1
Price group: -
-
Retaining snap ring
-
Spare part number: 1 600 290 019
Position: 32
Availability: 1
Price group: -
-
Seal Ring BLACK
-
Spare part number: 1 600 290 036
Position: 37
Availability: 1
Price group: -
-
groove ball bearing 17X40X12
-
Spare part number: 1 600 905 026
Position: 822/22/50
Availability: 1
Price group: -
-
Hex Nut M10, SW14
-
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: -
-
Hex Nut M10, SW14
-
Spare part number: 1 603 300 019
Position: 45
Availability: 1
Price group: -
-
Thread-forming tap. Screw TT M5X18 MM
-
Spare part number: 1 603 435 023
Position: 60
Availability: 3
Price group: -
-
Thread-forming tap. Screw TT M5X18 MM
-
Spare part number: 1 603 435 023
Position: 60
Availability: 3
Price group: -
-
Stopper
-
Spare part number: 1 619 P06 597
Position: 882
Availability: 1
Price group: -
-
Stopper
-
Spare part number: 1 619 P06 597
Position: 882
Availability: 1
Price group: -
-

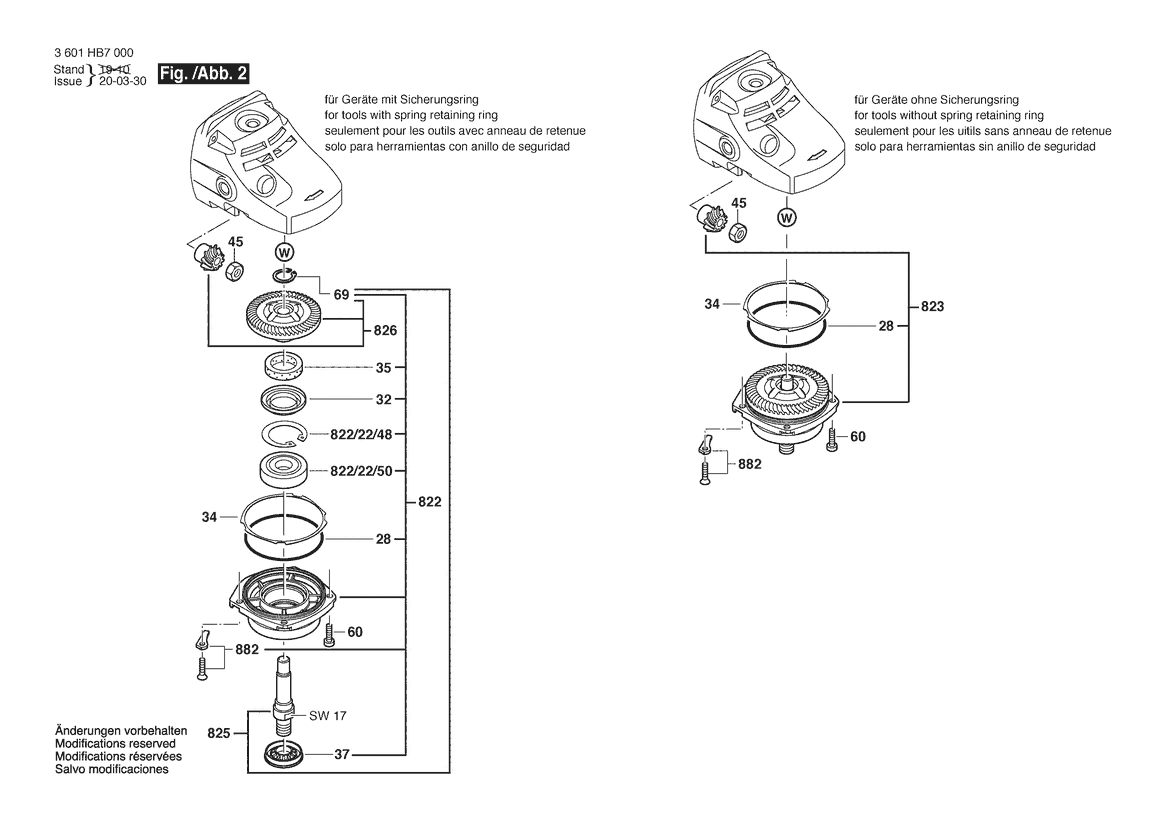

Grinding Spindle
-
Spare part number: 1 619 P15 297
Position: 825
Availability: 1
Price group: -
-
Bearing Flange Ø180 MM
-
Spare part number: 1 619 P15 298
Position: 822
Availability: 1
Price group: -
-
Bevel Gear Set Ø180 MM
-
Spare part number: 1 619 P15 405
Position: 826
Availability: 1
Price group: -
-
Bearing Flange Ø180 MM
-
Spare part number: 1 619 P15 624
Position: 823
Availability: 1
Price group: -
-
Air-Deflector Ring
-
Spare part number: 1 619 P17 209
Position: 31
Availability: 1
Price group: -
-
Spring retaining ring
-
Spare part number: 2 916 650 905
Position: 69
Availability: 1
Price group: -
-
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 039
Position: 890
Availability: 1
Price group: -
-

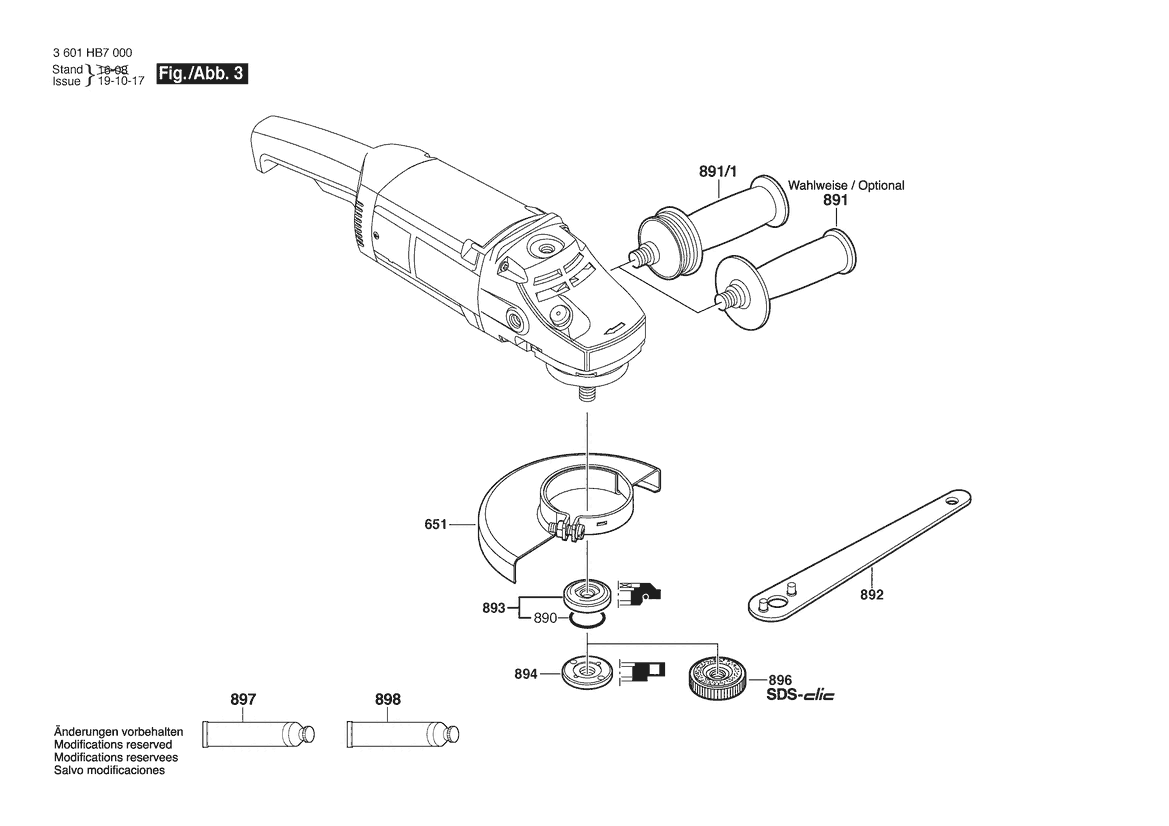

Protective Cover Ø180 MM
-
Spare part number: 1 600 A00 XL9
Position: 651
Availability: 1
Price group: -
-
Fast Locking Flange
-
Spare part number: 1 600 A01 6PP
Position: 896
Availability: 1
Price group: -
-
Auxiliary Handle
-
Spare part number: 1 602 025 09Z
Position: 891/1
Availability: 1
Price group: -
-
Auxiliary Handle
-
Spare part number: 1 602 025 0A1
Position: 891
Availability: 1
Price group: -
-
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 894
Availability: 1
Price group: -
-
Thread-forming tap. Screw TT M5X18 MM
-
Spare part number: 1 603 435 023
Position: 60
Availability: 3
Price group: -
-
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 897
Availability: 1
Price group: -
-
Pin-Type Face-Wrench
-
Spare part number: 1 607 950 061
Position: 892
Availability: 1
Price group: -
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 898
Availability: 1
Price group: -
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 893
Availability: 1
Price group: -
-
1
2
3
Spare parts in list
67 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 619 P09 887
-
Pos. 2 | Field 220-240V
1 604 220 380
-
Pos. 5 | Power supply cord
1 619 P13 813
-
Pos. 6 | Grommet Ø10,5-Ø11,0X100 MM
1 600 703 036
-
Pos. 6 | Grommet Ø8,7-Ø9,6X76 MM
2 600 703 019
-
Pos. 7 | Fastening Clamp
1 601 302 018
-
Pos. 9 | Manufacturer's nameplate GWS 2000
1 619 P13 489
-
Pos. 23 | Sealing cap
1 619 P14 320
-
Pos. 24 | Handle
1 619 P13 504
-
Pos. 28 | O-Ring 79,0X1,78 MM
1 600 210 033
-
Pos. 29 | O-Ring 8,0X1,0 MM
1 600 210 045
-
Pos. 30 | Air Distributor
1 600 591 035
-
Pos. 31 | Air-Deflector Ring
1 619 P17 209
-
Pos. 32 | Retaining snap ring
1 600 290 019
-
Pos. 33 | Rotary shaft lip seal 18,7 MM RED
1 600 290 013
-
Pos. 34 | Shim 0,15 MM THICK
1 600 190 020
-
Pos. 34 | Shim 0,3 MM THICK
1 600 190 021
-
Pos. 34 | Shim 0,1 MM THICK
1 600 190 022
-
Pos. 34 | Shim 0,2 MM THICK
1 600 190 037
-
Pos. 34 | Shim 0,25 MM THICK
1 600 190 038
-
Pos. 34 | Shim 0,35 MM THICK
1 600 190 039
-
Pos. 34 | Shim 0,4 MM THICK
1 600 190 040
-
Pos. 35 | Felt Washer
1 600 205 034
-
Pos. 37 | Seal Ring BLACK
1 600 290 036
-
Pos. 38 | Rubber Ring 7 MM WIDE
1 600 206 020
-
Pos. 39 | Rubber Ring
1 619 P14 249
-
Pos. 44 | Pickup Clip
1 601 334 009
-
Pos. 45 | Hex Nut M10, SW14
1 603 300 019
-
Pos. 51 | Needle-Roller Bearing Ø14 MM
2 600 910 001
-
Pos. 53 | Socket Housing
1 605 190 068
-
Pos. 60 | Thread-forming tap. Screw TT M5X18 MM
1 603 435 023
-
Pos. 61 | Tapping Screw DIN 7981-4,8X38-C-Z-ST
2 912 401 038
-
Pos. 62 | Tapping Screw C4,8X63 MM
1 603 435 024
-
Pos. 63 | Pan head screw M4X10 MM
1 603 410 014
-
Pos. 64 | Plastic-Cutting Screw ST3,9X12
1 603 435 042
-
Pos. 65 | Tapping Screw DIN 7981-3,9X19-C-Z-ST
2 912 401 020
-
Pos. 66 | Tapping Screw DIN 7971-ST3,9X16-F
2 910 211 019
-
Pos. 68 | Sealing Plate
1 601 006 011
-
Pos. 69 | Spring retaining ring
2 916 650 905
-
Pos. 651 | Protective Cover Ø180 MM
1 600 A00 XL9
-
Pos. 803 | Armature 220-240V
1 604 011 252
-
Pos. 804 | Switch
1 619 P14 186
-
Pos. 808 | Nameplate
1 619 P31 769
-
Pos. 810 | Carbon-Brush Set
1 607 014 171
-
Pos. 813 | groove ball bearing 8X22X7
1 600 905 011
-
Pos. 814 | groove ball bearing 10X35X11
1 600 905 023
-
Pos. 816 | Brush Holder
1 604 336 048
-
Pos. 821 | Gear Housing
1 619 P14 183
-
Pos. 822 | Bearing Flange Ø180 MM
1 619 P15 298
-
Pos. 822/22/48 | Spring retaining ring
1 600 119 010
-
Pos. 822/22/50 | groove ball bearing 17X40X12
1 600 905 026
-
Pos. 823 | Bearing Flange Ø180 MM
1 619 P15 624
-
Pos. 825 | Grinding Spindle
1 619 P15 297
-
Pos. 826 | Bevel Gear Set Ø180 MM
1 619 P15 405
-
Pos. 835 | Fan
1 606 610 127
-
Pos. 840 | Push-Button
1 607 000 354
-
Pos. 846 | Retaining Washer
1 607 000 342
-
Pos. 882 | Stopper
1 619 P06 597
-
Pos. 890 | O-Ring 20,35X1,78 MM
1 600 210 039
-
Pos. 891 | Auxiliary Handle
1 602 025 0A1
-
Pos. 891/1 | Auxiliary Handle
1 602 025 09Z
-
Pos. 892 | Pin-Type Face-Wrench
1 607 950 061
-
Pos. 893 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 894 | Round Nut M14
1 603 345 043
-
Pos. 896 | Fast Locking Flange
1 600 A01 6PP
-
Pos. 897 | Grease Tube 225 ML
1 605 430 003
-
Pos. 898 | Grease Tube 225 ML
1 615 430 020
-
* Prices shown are net prices including VAT
