Rotary Hammer
GBH 2-26 RE | 0 611 251 706 | 240 V / 020 - MY
0 611 251 706

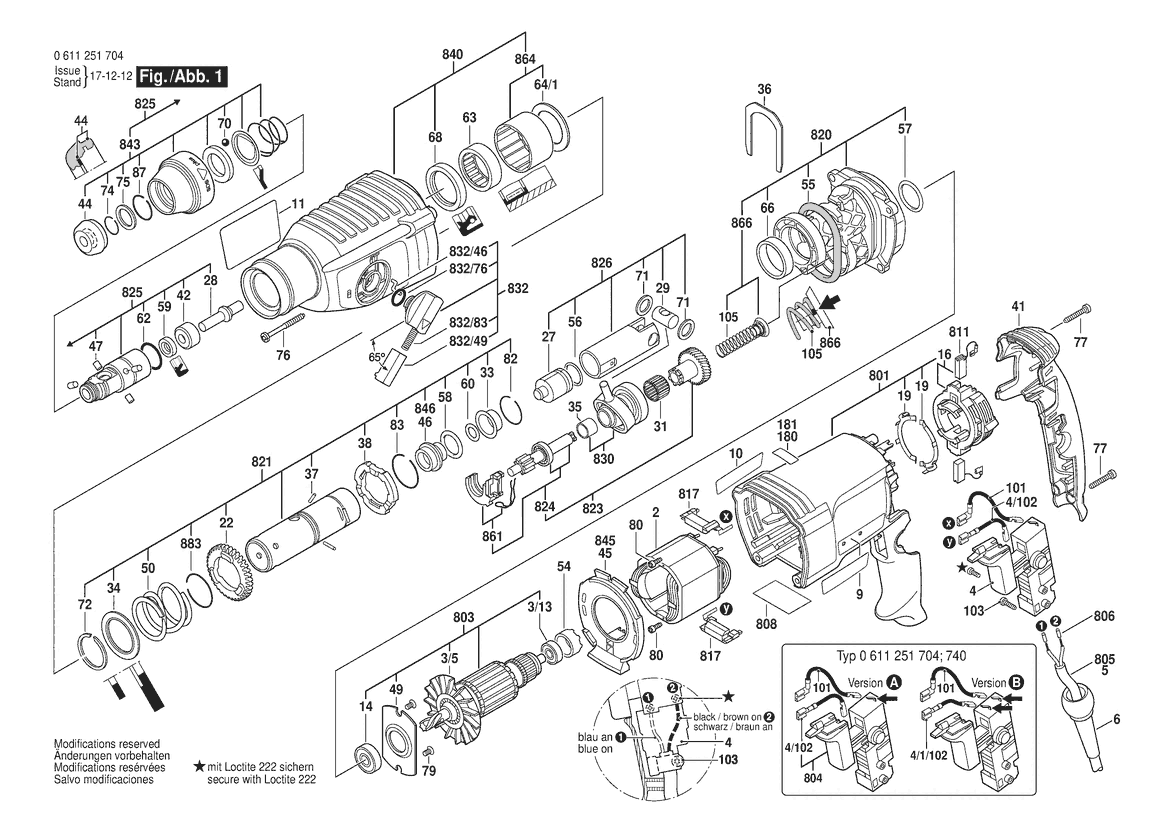

Image 1
Grommet Ø7,3-Ø8,6X66 MM
-
part
Spare part number: 1 600 703 034
Position: 6
Availability: 1
Price group: 13
3.26 S$*
Prices shown are net prices excluding VAT
Adapter module
-
part
Spare part number: 1 600 A00 32J
Position: 817
Availability: 2
Price group: 11
3.26 S$*
Prices shown are net prices excluding VAT
Adapter module
-
part
Spare part number: 1 600 A00 32J
Position: 817
Availability: 2
Price group: 11
3.26 S$*
Prices shown are net prices excluding VAT
Drive bearing
-
part
Spare part number: 1 600 A01 U33
Position: 830
Availability: 1
Price group: 29
14.50 S$*
Prices shown are net prices excluding VAT
Hammer Piston
-
part
Spare part number: 1 600 A01 U34
Position: 826
Availability: 1
Price group: 29
25.00 S$*
Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
part
Spare part number: 1 603 430 00A
Position: 76
Availability: 4
Price group: 10
0.32 S$*
Prices shown are net prices excluding VAT
Retaining ring
-
Spare part number: 1 604 601 027
Position: 72
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Retaining ring A22 DIN 7993
-
part
Spare part number: 1 604 601 028
Position: 83
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Retaining ring A22 DIN 7993
-
part
Spare part number: 1 604 601 028
Position: 883
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Switch
-
Spare part number: 1 607 200 32D
Position: 4
Availability: 1
Price group: 25
21.84 S$*
Prices shown are net prices excluding VAT
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
1.26 S$*
Prices shown are net prices excluding VAT
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
1.26 S$*
Prices shown are net prices excluding VAT
Retaining Washer
-
Spare part number: 1 610 101 629
Position: 75
Availability: 2
Price group: 10
0.64 S$*
Prices shown are net prices excluding VAT
Thrust Ring
-
Spare part number: 1 610 102 073
Position: 42
Availability: 1
Price group: 17
4.41 S$*
Prices shown are net prices excluding VAT
Catch Disk
-
Spare part number: 1 610 190 048
Position: 38
Availability: 1
Price group: 17
5.99 S$*
Prices shown are net prices excluding VAT
Supporting Disc
-
part
Spare part number: 1 610 190 060
Position: 64/1
Availability: 1
Price group: 12
1.47 S$*
Prices shown are net prices excluding VAT
Supporting Disc
-
Spare part number: 1 610 190 067
Position: 34
Availability: 1
Price group: 12
1.40 S$*
Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 610 202 021
Position: 66
Availability: 1
Price group: 13
2.21 S$*
Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 610 202 024
Position: 35
Availability: 1
Price group: 17
3.61 S$*
Prices shown are net prices excluding VAT
O-Ring 10,5X2,7 MM
-
Spare part number: 1 610 210 046
Position: 832/76
Availability: 1
Price group: 12
0.50 S$*
Prices shown are net prices excluding VAT
O-Ring 24,0X2,5 MM
-
Spare part number: 1 610 210 068
Position: 57
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
O-Ring 9,0X3,5 MM
-
part
Spare part number: 1 610 210 176
Position: 60
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
O-Ring
-
Spare part number: 1 610 210 178
Position: 58
Availability: 1
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
O-Ring
-
part
Spare part number: 1 610 210 179
Position: 62
Availability: 1
Price group: 13
2.21 S$*
Prices shown are net prices excluding VAT
Rotary shaft lip seal
-
part
Spare part number: 1 610 283 035
Position: 59
Availability: 1
Price group: 18
5.99 S$*
Prices shown are net prices excluding VAT
Rotary shaft lip seal
-
part
Spare part number: 1 610 283 036
Position: 68
Availability: 1
Price group: 20
8.19 S$*
Prices shown are net prices excluding VAT
Seal Ring 53,0X7,0 MM
-
Spare part number: 1 610 290 079
Position: 55
Availability: 1
Price group: 15
3.26 S$*
Prices shown are net prices excluding VAT
Striker
-
part
Spare part number: 1 610 311 018
Position: 27
Availability: 1
Price group: 28
21.32 S$*
Prices shown are net prices excluding VAT
Guide Bushing
-
part
Spare part number: 1 610 390 051
Position: 846
Availability: 1
Price group: 19
7.67 S$*
Prices shown are net prices excluding VAT
Rubber Bushing
-
part
Spare part number: 1 610 502 016
Position: 54
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Protective Cap
-
Spare part number: 1 610 508 047
Position: 44
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
Air-Deflector Ring
-
Spare part number: 1 610 522 013
Position: 845
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
Holding Jacket
-
part
Spare part number: 1 610 590 014
Position: 33
Availability: 1
Price group: 12
3.26 S$*
Prices shown are net prices excluding VAT
groove ball bearing 7X19X6
-
Spare part number: 1 610 905 025
Position: 3/13
Availability: 1
Price group: 19
6.51 S$*
Prices shown are net prices excluding VAT
Needle bearing Ø30XØ37X12 MM
-
Spare part number: 1 610 910 063
Position: 63
Availability: 1
Price group: 18
7.14 S$*
Prices shown are net prices excluding VAT
Needle-Roller Assembly
-
part
Spare part number: 1 610 913 016
Position: 31
Availability: 1
Price group: 15
4.41 S$*
Prices shown are net prices excluding VAT
Holding Plate
-
part
Spare part number: 1 611 016 003
Position: 36
Availability: 1
Price group: 12
2.21 S$*
Prices shown are net prices excluding VAT
Reference Plate
-
Spare part number: 1 611 110 X42
Position: 11
Availability: 1
Price group: 15
2.54 S$*
Prices shown are net prices excluding VAT
Manufacturer's nameplate GBH 2-26 RE
-
part
Spare part number: 1 611 110 Z37
Position: 9
Availability: 1
Price group: 11
1.09 S$*
Prices shown are net prices excluding VAT
Manufacturer's nameplate GBH 2-26 RE
-
part
Spare part number: 1 611 110 Z38
Position: 10
Availability: 1
Price group: 11
1.09 S$*
Prices shown are net prices excluding VAT
Switch Contact
-
part
Spare part number: 1 611 329 024
Position: 19
Availability: 2
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Switch Contact
-
part
Spare part number: 1 611 329 024
Position: 19
Availability: 2
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Switch Button RED
-
Spare part number: 1 612 026 035
Position: 832/49
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
Clamp Handle BLACK
-
part
Spare part number: 1 612 026 037
Position: 832
Availability: 1
Price group: 22
8.51 S$*
Prices shown are net prices excluding VAT
Straight Pin DIN6325-2,5X12-RIKO
-
part
Spare part number: 1 613 100 019
Position: 37
Availability: 3
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Needle Roller
-
Spare part number: 1 613 100 030
Position: 47
Availability: 4
Price group: 14
3.26 S$*
Prices shown are net prices excluding VAT
Piston Pin
-
Spare part number: 1 613 105 012
Position: 29
Availability: 1
Price group: 15
3.78 S$*
Prices shown are net prices excluding VAT
Striker Pin
-
part
Spare part number: 1 613 124 081
Position: 28
Availability: 1
Price group: 22
9.87 S$*
Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
Spare part number: 1 613 435 023
Position: 79
Availability: 2
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Lens Head Screw 3X10 ST
-
part
Spare part number: 1 613 435 034
Position: 103
Availability: 1
Price group: 10
0.64 S$*
Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 1 613 435 043
Position: 80
Availability: 2
Price group: 10
0.64 S$*
Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 1 613 435 043
Position: 80
Availability: 2
Price group: 10
0.64 S$*
Prices shown are net prices excluding VAT
Field 240V
-
Spare part number: 1 614 220 127
Position: 2
Availability: 1
Price group: 32
14.39 S$*
Prices shown are net prices excluding VAT
Brush Plate
-
part
Spare part number: 1 614 336 061
Position: 16
Availability: 1
Price group: 28
6.51 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 015
Position: 4/102
Availability: 1
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 015
Position: 4/102
Availability: 1
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Retaining ring
-
Spare part number: 1 614 601 027
Position: 74
Availability: 1
Price group: 10
0.64 S$*
Prices shown are net prices excluding VAT
Retaining ring
-
part
Spare part number: 1 614 601 034
Position: 82
Availability: 1
Price group: 12
2.21 S$*
Prices shown are net prices excluding VAT
Compression Spring
-
Spare part number: 1 614 611 006
Position: 832/83
Availability: 1
Price group: 15
0.50 S$*
Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 020
Position: 50
Availability: 1
Price group: 14
2.10 S$*
Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 021
Position: 105
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 021
Position: 105
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 614 611 022
Position: 866
Availability: 1
Price group: 13
3.26 S$*
Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 614 611 022
Position: 866
Availability: 1
Price group: 13
3.26 S$*
Prices shown are net prices excluding VAT
Driver Pin
-
Spare part number: 1 614 690 002
Position: 832/46
Availability: 1
Price group: 11
1.09 S$*
Prices shown are net prices excluding VAT
Housing Cover BLUE
-
part
Spare part number: 1 615 500 343
Position: 41
Availability: 1
Price group: 21
9.87 S$*
Prices shown are net prices excluding VAT
End Shield
-
part
Spare part number: 1 615 700 044
Position: 49
Availability: 1
Price group: 12
2.21 S$*
Prices shown are net prices excluding VAT
Switching Element
-
part
Spare part number: 1 615 820 097
Position: 861
Availability: 1
Price group: 17
3.78 S$*
Prices shown are net prices excluding VAT
Cylindrical Gear
-
part
Spare part number: 1 616 312 004
Position: 22
Availability: 1
Price group: 24
10.92 S$*
Prices shown are net prices excluding VAT
Fan
-
part
Spare part number: 1 616 610 094
Position: 3/5
Availability: 1
Price group: 12
2.73 S$*
Prices shown are net prices excluding VAT
O-Ring
-
Spare part number: 1 616 B00 086
Position: 56
Availability: 1
Price group: 12
2.21 S$*
Prices shown are net prices excluding VAT
Carbon-Brush Set 220 V / 127 V
-
part
Spare part number: 1 617 000 525
Position: 811
Availability: 1
Price group: 23
2.52 S$*
Prices shown are net prices excluding VAT
Motor Housing BLUE
-
part
Spare part number: 1 617 000 558
Position: 801
Availability: 1
Price group: 32
54.60 S$*
Prices shown are net prices excluding VAT
Pipe
-
part
Spare part number: 1 617 000 564
Position: 821
Availability: 1
Price group: 41
104.79 S$*
Prices shown are net prices excluding VAT
Protection Sleeve
-
part
Spare part number: 1 617 000 582
Position: 843
Availability: 1
Price group: 23
14.18 S$*
Prices shown are net prices excluding VAT
Toothed Shaft
-
Spare part number: 1 617 000 589
Position: 824
Availability: 1
Price group: 36
21.42 S$*
Prices shown are net prices excluding VAT
Toothed Shaft
-
part
Spare part number: 1 617 000 597
Position: 823
Availability: 1
Price group: 38
18.38 S$*
Prices shown are net prices excluding VAT
Tool Holding Fixture
-
part
Spare part number: 1 617 000 598
Position: 825
Availability: 1
Price group: 39
16.38 S$*
Prices shown are net prices excluding VAT
Tool Holding Fixture
-
part
Spare part number: 1 617 000 598
Position: 825
Availability: 1
Price group: 39
16.38 S$*
Prices shown are net prices excluding VAT
Gear Housing
-
part
Spare part number: 1 617 000 599
Position: 840
Availability: 1
Price group: 38
24.05 S$*
Prices shown are net prices excluding VAT
Intermediate Flange
-
part
Spare part number: 1 617 000 6DX
Position: 820
Availability: 1
Price group: 32
44.73 S$*
Prices shown are net prices excluding VAT
Supporting Disc
-
part
Spare part number: 1 617 000 A07
Position: 864
Availability: 1
Price group: 23
8.72 S$*
Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 619 P02 215
Position: 808
Availability: 1
Price group: -
-
Armature set
-
Spare part number: 1 619 P10 005
Position: 803
Availability: 1
Price group: 40
21.84 S$*
Prices shown are net prices excluding VAT
Ball DIN 5401-Ø7MM-III-ST
-
Spare part number: 1 903 230 013
Position: 70
Availability: 1
Price group: 12
1.05 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X25
-
part
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X25
-
part
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
2.21 S$*
Prices shown are net prices excluding VAT
Retaining ring DIN 7993-A22
-
Spare part number: 2 916 540 012
Position: 87
Availability: 1
Price group: -
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
part
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
19.64 S$*
Prices shown are net prices excluding VAT

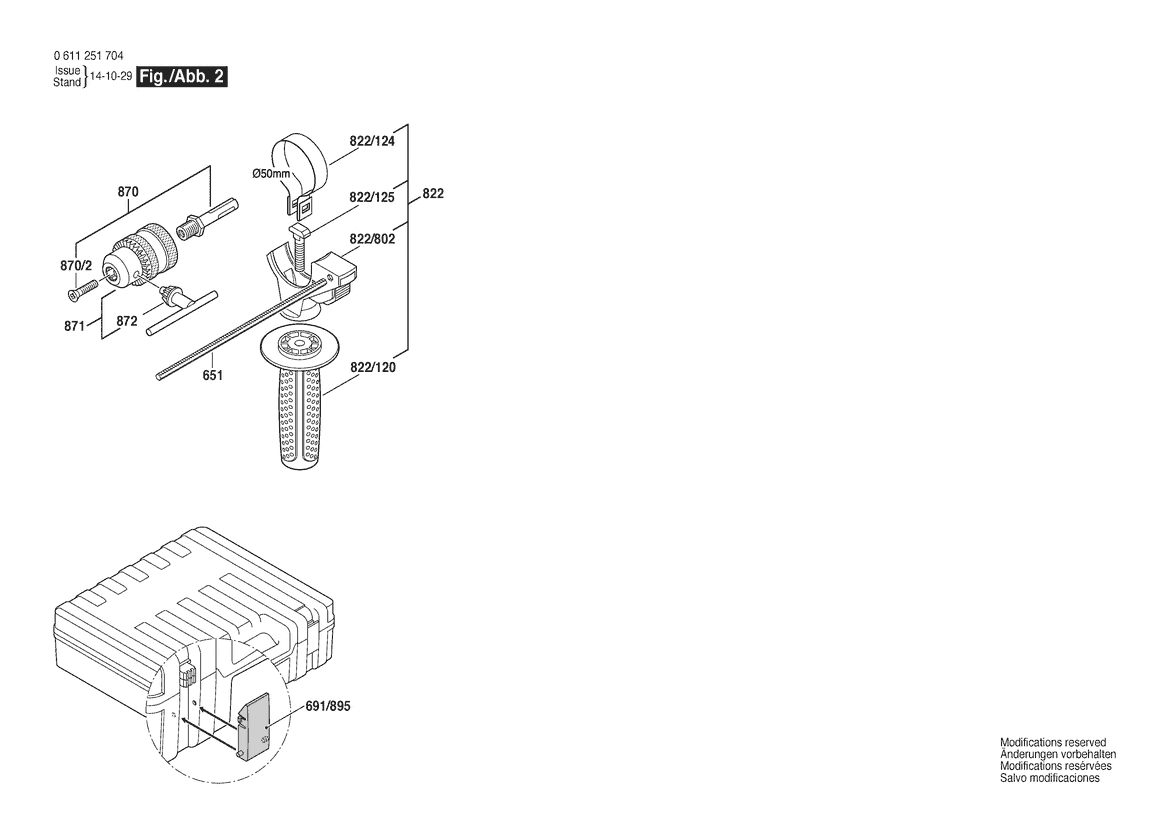

Image 1
Auxiliary Handle
-
Spare part number: 1 602 025 07H
Position: 822/120
Availability: 1
Price group: 23
4.20 S$*
Prices shown are net prices excluding VAT
Auxiliary Handle
-
part
Spare part number: 1 602 025 08X
Position: 822
Availability: 1
Price group: 28
24.57 S$*
Prices shown are net prices excluding VAT
Chuck
-
part
Spare part number: 1 608 571 088
Position: 871
Availability: 1
Price group: 32
23.47 S$*
Prices shown are net prices excluding VAT
Clamping Band Ø50 MM
-
part
Spare part number: 1 611 316 021
Position: 822/124
Availability: 1
Price group: 14
0.90 S$*
Prices shown are net prices excluding VAT
Depth-Gauge SW 6X210 MM
-
Spare part number: 1 613 001 009
Position: 651
Availability: 1
Price group: 15
1.40 S$*
Prices shown are net prices excluding VAT
T-Head Bolt M8X40 MM
-
Spare part number: 1 613 490 002
Position: 822/125
Availability: 1
Price group: 16
2.21 S$*
Prices shown are net prices excluding VAT
Drill Chuck Shank 1/2", SDS-PLUS
-
Spare part number: 1 613 523 011
Position: 870
Availability: 1
Price group: -
-
-

Please click for futher details

-

Please click for futher details

Support clamp
-
part
Spare part number: 1 617 000 475
Position: 822/802
Availability: 1
Price group: 22
7.00 S$*
Prices shown are net prices excluding VAT
Countersunk-Head Screw M6X27-KØ11 LEFTHAND THREADS
-
Spare part number: 2 603 421 207
Position: 870/2
Availability: 1
Price group: 11
1.09 S$*
Prices shown are net prices excluding VAT
Chuck Wrench SG2
-
part
Spare part number: 2 607 950 007
Position: 872
Availability: 1
Price group: 19
4.94 S$*
Prices shown are net prices excluding VAT
1
2
My Spare parts list

92 Parts found

Description
Pos. 2 | Field 240V
1 614 220 127
-
14.39 S$*
*Prices shown are net prices excluding VAT
Pos. 3/5 | Fan
1 616 610 094
-
2.73 S$*
*Prices shown are net prices excluding VAT
Pos. 3/13 | groove ball bearing 7X19X6
1 610 905 025
-
6.51 S$*
*Prices shown are net prices excluding VAT
Pos. 4 | Switch
1 607 200 32D
-
21.84 S$*
*Prices shown are net prices excluding VAT
Pos. 4/102 | Connecting Cable
1 614 449 015
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 5 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
3 604 460 084
-
19.64 S$*
*Prices shown are net prices excluding VAT
Pos. 6 | Grommet Ø7,3-Ø8,6X66 MM
1 600 703 034
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate GBH 2-26 RE
1 611 110 Z37
-
1.09 S$*
*Prices shown are net prices excluding VAT
Pos. 10 | Manufacturer's nameplate GBH 2-26 RE
1 611 110 Z38
-
1.09 S$*
*Prices shown are net prices excluding VAT
Pos. 11 | Reference Plate
1 611 110 X42
-
2.54 S$*
*Prices shown are net prices excluding VAT
Pos. 16 | Brush Plate
1 614 336 061
-
6.51 S$*
*Prices shown are net prices excluding VAT
Pos. 19 | Switch Contact
1 611 329 024
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 22 | Cylindrical Gear
1 616 312 004
-
10.92 S$*
*Prices shown are net prices excluding VAT
Pos. 27 | Striker
1 610 311 018
-
21.32 S$*
*Prices shown are net prices excluding VAT
Pos. 28 | Striker Pin
1 613 124 081
-
9.87 S$*
*Prices shown are net prices excluding VAT
Pos. 29 | Piston Pin
1 613 105 012
-
3.78 S$*
*Prices shown are net prices excluding VAT
Pos. 31 | Needle-Roller Assembly
1 610 913 016
-
4.41 S$*
*Prices shown are net prices excluding VAT
Pos. 33 | Holding Jacket
1 610 590 014
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 34 | Supporting Disc
1 610 190 067
-
1.40 S$*
*Prices shown are net prices excluding VAT
Pos. 35 | Plain bearing
1 610 202 024
-
3.61 S$*
*Prices shown are net prices excluding VAT
Pos. 36 | Holding Plate
1 611 016 003
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 37 | Straight Pin DIN6325-2,5X12-RIKO
1 613 100 019
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 38 | Catch Disk
1 610 190 048
-
5.99 S$*
*Prices shown are net prices excluding VAT
Pos. 41 | Housing Cover BLUE
1 615 500 343
-
9.87 S$*
*Prices shown are net prices excluding VAT
Pos. 42 | Thrust Ring
1 610 102 073
-
4.41 S$*
*Prices shown are net prices excluding VAT
Pos. 44 | Protective Cap
1 610 508 047
-
2.73 S$*
*Prices shown are net prices excluding VAT
Pos. 47 | Needle Roller
1 613 100 030
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 49 | End Shield
1 615 700 044
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 50 | Compression Spring
1 614 611 020
-
2.10 S$*
*Prices shown are net prices excluding VAT
Pos. 54 | Rubber Bushing
1 610 502 016
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 55 | Seal Ring 53,0X7,0 MM
1 610 290 079
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 56 | O-Ring
1 616 B00 086
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 57 | O-Ring 24,0X2,5 MM
1 610 210 068
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 58 | O-Ring
1 610 210 178
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 59 | Rotary shaft lip seal
1 610 283 035
-
5.99 S$*
*Prices shown are net prices excluding VAT
Pos. 60 | O-Ring 9,0X3,5 MM
1 610 210 176
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 62 | O-Ring
1 610 210 179
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 63 | Needle bearing Ø30XØ37X12 MM
1 610 910 063
-
7.14 S$*
*Prices shown are net prices excluding VAT
Pos. 64/1 | Supporting Disc
1 610 190 060
-
1.47 S$*
*Prices shown are net prices excluding VAT
Pos. 66 | Plain bearing
1 610 202 021
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 68 | Rotary shaft lip seal
1 610 283 036
-
8.19 S$*
*Prices shown are net prices excluding VAT
Pos. 70 | Ball DIN 5401-Ø7MM-III-ST
1 903 230 013
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 71 | Shim washer 1,2 MM THICK
1 610 101 011
-
1.26 S$*
*Prices shown are net prices excluding VAT
Pos. 72 | Retaining ring
1 604 601 027
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 74 | Retaining ring
1 614 601 027
-
0.64 S$*
*Prices shown are net prices excluding VAT
Pos. 75 | Retaining Washer
1 610 101 629
-
0.64 S$*
*Prices shown are net prices excluding VAT
Pos. 76 | Thread-forming tap. Screw
1 603 430 00A
-
0.32 S$*
*Prices shown are net prices excluding VAT
Pos. 77 | Torx Oval-Head Screw 4X25
2 603 490 024
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 79 | Thread-forming tap. Screw
1 613 435 023
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 80 | Screw
1 613 435 043
-
0.64 S$*
*Prices shown are net prices excluding VAT
Pos. 82 | Retaining ring
1 614 601 034
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 83 | Retaining ring A22 DIN 7993
1 604 601 028
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 87 | Retaining ring DIN 7993-A22
2 916 540 012
-
-
Pos. 101 | Connecting Cable
1 614 449 014
-
2.73 S$*
*Prices shown are net prices excluding VAT
Pos. 103 | Lens Head Screw 3X10 ST
1 613 435 034
-
0.64 S$*
*Prices shown are net prices excluding VAT
Pos. 105 | Compression Spring
1 614 611 021
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 651 | Depth-Gauge SW 6X210 MM
1 613 001 009
-
1.40 S$*
*Prices shown are net prices excluding VAT
Pos. 691/895 | Lock for 1 615 438 486+...358+...367
1 615 438 409
-
4.54 S$*
*Prices shown are net prices excluding VAT
Pos. 691/895 | Lock for 1 615 438 429 + 1 615 438 430
1 615 438 431
-
4.54 S$*
*Prices shown are net prices excluding VAT
Pos. 801 | Motor Housing BLUE
1 617 000 558
-
54.60 S$*
*Prices shown are net prices excluding VAT
Pos. 803 | Armature set
1 619 P10 005
-
21.84 S$*
*Prices shown are net prices excluding VAT
Pos. 808 | Nameplate
1 619 P02 215
-
-
Pos. 811 | Carbon-Brush Set 220 V / 127 V
1 617 000 525
-
2.52 S$*
*Prices shown are net prices excluding VAT
Pos. 817 | Adapter module
1 600 A00 32J
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 820 | Intermediate Flange
1 617 000 6DX
-
44.73 S$*
*Prices shown are net prices excluding VAT
Pos. 821 | Pipe
1 617 000 564
-
104.79 S$*
*Prices shown are net prices excluding VAT
Pos. 822 | Auxiliary Handle
1 602 025 08X
-
24.57 S$*
*Prices shown are net prices excluding VAT
Pos. 822/120 | Auxiliary Handle
1 602 025 07H
-
4.20 S$*
*Prices shown are net prices excluding VAT
Pos. 822/124 | Clamping Band Ø50 MM
1 611 316 021
-
0.90 S$*
*Prices shown are net prices excluding VAT
Pos. 822/125 | T-Head Bolt M8X40 MM
1 613 490 002
-
2.21 S$*
*Prices shown are net prices excluding VAT
Pos. 822/802 | Support clamp
1 617 000 475
-
7.00 S$*
*Prices shown are net prices excluding VAT
Pos. 823 | Toothed Shaft
1 617 000 597
-
18.38 S$*
*Prices shown are net prices excluding VAT
Pos. 824 | Toothed Shaft
1 617 000 589
-
21.42 S$*
*Prices shown are net prices excluding VAT
Pos. 825 | Tool Holding Fixture
1 617 000 598
-
16.38 S$*
*Prices shown are net prices excluding VAT
Pos. 826 | Hammer Piston
1 600 A01 U34
-
25.00 S$*
*Prices shown are net prices excluding VAT
Pos. 830 | Drive bearing
1 600 A01 U33
-
14.50 S$*
*Prices shown are net prices excluding VAT
Pos. 832 | Clamp Handle BLACK
1 612 026 037
-
8.51 S$*
*Prices shown are net prices excluding VAT
Pos. 832/46 | Driver Pin
1 614 690 002
-
1.09 S$*
*Prices shown are net prices excluding VAT
Pos. 832/49 | Switch Button RED
1 612 026 035
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 832/76 | O-Ring 10,5X2,7 MM
1 610 210 046
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 832/83 | Compression Spring
1 614 611 006
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 840 | Gear Housing
1 617 000 599
-
24.05 S$*
*Prices shown are net prices excluding VAT
Pos. 843 | Protection Sleeve
1 617 000 582
-
14.18 S$*
*Prices shown are net prices excluding VAT
Pos. 845 | Air-Deflector Ring
1 610 522 013
-
2.73 S$*
*Prices shown are net prices excluding VAT
Pos. 846 | Guide Bushing
1 610 390 051
-
7.67 S$*
*Prices shown are net prices excluding VAT
Pos. 861 | Switching Element
1 615 820 097
-
3.78 S$*
*Prices shown are net prices excluding VAT
Pos. 864 | Supporting Disc
1 617 000 A07
-
8.72 S$*
*Prices shown are net prices excluding VAT
Pos. 866 | Plain bearing
1 614 611 022
-
3.26 S$*
*Prices shown are net prices excluding VAT
Pos. 870 | Drill Chuck Shank 1/2", SDS-PLUS
1 613 523 011
-
-
Pos. 870/2 | Countersunk-Head Screw M6X27-KØ11 LEFTHAND THREADS
2 603 421 207
-
1.09 S$*
*Prices shown are net prices excluding VAT
Pos. 871 | Chuck
1 608 571 088
-
23.47 S$*
*Prices shown are net prices excluding VAT
Pos. 872 | Chuck Wrench SG2
2 607 950 007
-
4.94 S$*
*Prices shown are net prices excluding VAT

* Prices shown are net prices excluding VAT
Turn the device for 90 degrees.
0 611 251 706
Image 1
Grommet Ø7,3-Ø8,6X66 MM
-
part
Spare part number: 1 600 703 034
Position: 6
Availability: 1
Price group: 13
3.26 S$*

Prices shown are net prices excluding VAT
Adapter module
-
part
Spare part number: 1 600 A00 32J
Position: 817
Availability: 2
Price group: 11
3.26 S$*

Prices shown are net prices excluding VAT
Adapter module
-
part
Spare part number: 1 600 A00 32J
Position: 817
Availability: 2
Price group: 11
3.26 S$*

Prices shown are net prices excluding VAT
Drive bearing
-
part
Spare part number: 1 600 A01 U33
Position: 830
Availability: 1
Price group: 29
14.50 S$*

Prices shown are net prices excluding VAT
Hammer Piston
-
part
Spare part number: 1 600 A01 U34
Position: 826
Availability: 1
Price group: 29
25.00 S$*

Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
part
Spare part number: 1 603 430 00A
Position: 76
Availability: 4
Price group: 10
0.32 S$*

Prices shown are net prices excluding VAT
Retaining ring
-
Spare part number: 1 604 601 027
Position: 72
Availability: 1
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
Retaining ring A22 DIN 7993
-
part
Spare part number: 1 604 601 028
Position: 83
Availability: 1
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
Retaining ring A22 DIN 7993
-
part
Spare part number: 1 604 601 028
Position: 883
Availability: 1
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
Switch
-
Spare part number: 1 607 200 32D
Position: 4
Availability: 1
Price group: 25
21.84 S$*

Prices shown are net prices excluding VAT
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
1.26 S$*

Prices shown are net prices excluding VAT
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
1.26 S$*

Prices shown are net prices excluding VAT
Retaining Washer
-
Spare part number: 1 610 101 629
Position: 75
Availability: 2
Price group: 10
0.64 S$*

Prices shown are net prices excluding VAT
Thrust Ring
-
Spare part number: 1 610 102 073
Position: 42
Availability: 1
Price group: 17
4.41 S$*

Prices shown are net prices excluding VAT
Catch Disk
-
Spare part number: 1 610 190 048
Position: 38
Availability: 1
Price group: 17
5.99 S$*

Prices shown are net prices excluding VAT
Supporting Disc
-
part
Spare part number: 1 610 190 060
Position: 64/1
Availability: 1
Price group: 12
1.47 S$*

Prices shown are net prices excluding VAT
Supporting Disc
-
Spare part number: 1 610 190 067
Position: 34
Availability: 1
Price group: 12
1.40 S$*

Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 610 202 021
Position: 66
Availability: 1
Price group: 13
2.21 S$*

Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 610 202 024
Position: 35
Availability: 1
Price group: 17
3.61 S$*

Prices shown are net prices excluding VAT
O-Ring 10,5X2,7 MM
-
Spare part number: 1 610 210 046
Position: 832/76
Availability: 1
Price group: 12
0.50 S$*

Prices shown are net prices excluding VAT
O-Ring 24,0X2,5 MM
-
Spare part number: 1 610 210 068
Position: 57
Availability: 1
Price group: 11
1.68 S$*

Prices shown are net prices excluding VAT
O-Ring 9,0X3,5 MM
-
part
Spare part number: 1 610 210 176
Position: 60
Availability: 1
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
O-Ring
-
Spare part number: 1 610 210 178
Position: 58
Availability: 1
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
O-Ring
-
part
Spare part number: 1 610 210 179
Position: 62
Availability: 1
Price group: 13
2.21 S$*

Prices shown are net prices excluding VAT
Rotary shaft lip seal
-
part
Spare part number: 1 610 283 035
Position: 59
Availability: 1
Price group: 18
5.99 S$*

Prices shown are net prices excluding VAT
Rotary shaft lip seal
-
part
Spare part number: 1 610 283 036
Position: 68
Availability: 1
Price group: 20
8.19 S$*

Prices shown are net prices excluding VAT
Seal Ring 53,0X7,0 MM
-
Spare part number: 1 610 290 079
Position: 55
Availability: 1
Price group: 15
3.26 S$*

Prices shown are net prices excluding VAT
Striker
-
part
Spare part number: 1 610 311 018
Position: 27
Availability: 1
Price group: 28
21.32 S$*

Prices shown are net prices excluding VAT
Guide Bushing
-
part
Spare part number: 1 610 390 051
Position: 846
Availability: 1
Price group: 19
7.67 S$*

Prices shown are net prices excluding VAT
Rubber Bushing
-
part
Spare part number: 1 610 502 016
Position: 54
Availability: 1
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
Protective Cap
-
Spare part number: 1 610 508 047
Position: 44
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
Air-Deflector Ring
-
Spare part number: 1 610 522 013
Position: 845
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
Holding Jacket
-
part
Spare part number: 1 610 590 014
Position: 33
Availability: 1
Price group: 12
3.26 S$*

Prices shown are net prices excluding VAT
groove ball bearing 7X19X6
-
Spare part number: 1 610 905 025
Position: 3/13
Availability: 1
Price group: 19
6.51 S$*

Prices shown are net prices excluding VAT
Needle bearing Ø30XØ37X12 MM
-
Spare part number: 1 610 910 063
Position: 63
Availability: 1
Price group: 18
7.14 S$*

Prices shown are net prices excluding VAT
Needle-Roller Assembly
-
part
Spare part number: 1 610 913 016
Position: 31
Availability: 1
Price group: 15
4.41 S$*

Prices shown are net prices excluding VAT
Holding Plate
-
part
Spare part number: 1 611 016 003
Position: 36
Availability: 1
Price group: 12
2.21 S$*

Prices shown are net prices excluding VAT
Reference Plate
-
Spare part number: 1 611 110 X42
Position: 11
Availability: 1
Price group: 15
2.54 S$*

Prices shown are net prices excluding VAT
Manufacturer's nameplate GBH 2-26 RE
-
part
Spare part number: 1 611 110 Z37
Position: 9
Availability: 1
Price group: 11
1.09 S$*

Prices shown are net prices excluding VAT
Manufacturer's nameplate GBH 2-26 RE
-
part
Spare part number: 1 611 110 Z38
Position: 10
Availability: 1
Price group: 11
1.09 S$*

Prices shown are net prices excluding VAT
Switch Contact
-
part
Spare part number: 1 611 329 024
Position: 19
Availability: 2
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Switch Contact
-
part
Spare part number: 1 611 329 024
Position: 19
Availability: 2
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Switch Button RED
-
Spare part number: 1 612 026 035
Position: 832/49
Availability: 1
Price group: 11
1.68 S$*

Prices shown are net prices excluding VAT
Clamp Handle BLACK
-
part
Spare part number: 1 612 026 037
Position: 832
Availability: 1
Price group: 22
8.51 S$*

Prices shown are net prices excluding VAT
Straight Pin DIN6325-2,5X12-RIKO
-
part
Spare part number: 1 613 100 019
Position: 37
Availability: 3
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Needle Roller
-
Spare part number: 1 613 100 030
Position: 47
Availability: 4
Price group: 14
3.26 S$*

Prices shown are net prices excluding VAT
Piston Pin
-
Spare part number: 1 613 105 012
Position: 29
Availability: 1
Price group: 15
3.78 S$*

Prices shown are net prices excluding VAT
Striker Pin
-
part
Spare part number: 1 613 124 081
Position: 28
Availability: 1
Price group: 22
9.87 S$*

Prices shown are net prices excluding VAT
Thread-forming tap. Screw
-
Spare part number: 1 613 435 023
Position: 79
Availability: 2
Price group: 10
1.05 S$*

Prices shown are net prices excluding VAT
Lens Head Screw 3X10 ST
-
part
Spare part number: 1 613 435 034
Position: 103
Availability: 1
Price group: 10
0.64 S$*

Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 1 613 435 043
Position: 80
Availability: 2
Price group: 10
0.64 S$*

Prices shown are net prices excluding VAT
Screw
-
part
Spare part number: 1 613 435 043
Position: 80
Availability: 2
Price group: 10
0.64 S$*

Prices shown are net prices excluding VAT
Field 240V
-
Spare part number: 1 614 220 127
Position: 2
Availability: 1
Price group: 32
14.39 S$*

Prices shown are net prices excluding VAT
Brush Plate
-
part
Spare part number: 1 614 336 061
Position: 16
Availability: 1
Price group: 28
6.51 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 015
Position: 4/102
Availability: 1
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 614 449 015
Position: 4/102
Availability: 1
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Retaining ring
-
Spare part number: 1 614 601 027
Position: 74
Availability: 1
Price group: 10
0.64 S$*

Prices shown are net prices excluding VAT
Retaining ring
-
part
Spare part number: 1 614 601 034
Position: 82
Availability: 1
Price group: 12
2.21 S$*

Prices shown are net prices excluding VAT
Compression Spring
-
Spare part number: 1 614 611 006
Position: 832/83
Availability: 1
Price group: 15
0.50 S$*

Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 020
Position: 50
Availability: 1
Price group: 14
2.10 S$*

Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 021
Position: 105
Availability: 1
Price group: 11
1.68 S$*

Prices shown are net prices excluding VAT
Compression Spring
-
part
Spare part number: 1 614 611 021
Position: 105
Availability: 1
Price group: 11
1.68 S$*

Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 614 611 022
Position: 866
Availability: 1
Price group: 13
3.26 S$*

Prices shown are net prices excluding VAT
Plain bearing
-
part
Spare part number: 1 614 611 022
Position: 866
Availability: 1
Price group: 13
3.26 S$*

Prices shown are net prices excluding VAT
Driver Pin
-
Spare part number: 1 614 690 002
Position: 832/46
Availability: 1
Price group: 11
1.09 S$*

Prices shown are net prices excluding VAT
Housing Cover BLUE
-
part
Spare part number: 1 615 500 343
Position: 41
Availability: 1
Price group: 21
9.87 S$*

Prices shown are net prices excluding VAT
End Shield
-
part
Spare part number: 1 615 700 044
Position: 49
Availability: 1
Price group: 12
2.21 S$*

Prices shown are net prices excluding VAT
Switching Element
-
part
Spare part number: 1 615 820 097
Position: 861
Availability: 1
Price group: 17
3.78 S$*

Prices shown are net prices excluding VAT
Cylindrical Gear
-
part
Spare part number: 1 616 312 004
Position: 22
Availability: 1
Price group: 24
10.92 S$*

Prices shown are net prices excluding VAT
Fan
-
part
Spare part number: 1 616 610 094
Position: 3/5
Availability: 1
Price group: 12
2.73 S$*

Prices shown are net prices excluding VAT
O-Ring
-
Spare part number: 1 616 B00 086
Position: 56
Availability: 1
Price group: 12
2.21 S$*

Prices shown are net prices excluding VAT
Carbon-Brush Set 220 V / 127 V
-
part
Spare part number: 1 617 000 525
Position: 811
Availability: 1
Price group: 23
2.52 S$*

Prices shown are net prices excluding VAT
Motor Housing BLUE
-
part
Spare part number: 1 617 000 558
Position: 801
Availability: 1
Price group: 32
54.60 S$*

Prices shown are net prices excluding VAT
Pipe
-
part
Spare part number: 1 617 000 564
Position: 821
Availability: 1
Price group: 41
104.79 S$*

Prices shown are net prices excluding VAT
Protection Sleeve
-
part
Spare part number: 1 617 000 582
Position: 843
Availability: 1
Price group: 23
14.18 S$*

Prices shown are net prices excluding VAT
Toothed Shaft
-
Spare part number: 1 617 000 589
Position: 824
Availability: 1
Price group: 36
21.42 S$*

Prices shown are net prices excluding VAT
Toothed Shaft
-
part
Spare part number: 1 617 000 597
Position: 823
Availability: 1
Price group: 38
18.38 S$*

Prices shown are net prices excluding VAT
Tool Holding Fixture
-
part
Spare part number: 1 617 000 598
Position: 825
Availability: 1
Price group: 39
16.38 S$*

Prices shown are net prices excluding VAT
Tool Holding Fixture
-
part
Spare part number: 1 617 000 598
Position: 825
Availability: 1
Price group: 39
16.38 S$*

Prices shown are net prices excluding VAT
Gear Housing
-
part
Spare part number: 1 617 000 599
Position: 840
Availability: 1
Price group: 38
24.05 S$*

Prices shown are net prices excluding VAT
Intermediate Flange
-
part
Spare part number: 1 617 000 6DX
Position: 820
Availability: 1
Price group: 32
44.73 S$*

Prices shown are net prices excluding VAT
Supporting Disc
-
part
Spare part number: 1 617 000 A07
Position: 864
Availability: 1
Price group: 23
8.72 S$*

Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 619 P02 215
Position: 808
Availability: 1
Price group: -
-

Armature set
-
Spare part number: 1 619 P10 005
Position: 803
Availability: 1
Price group: 40
21.84 S$*

Prices shown are net prices excluding VAT
Ball DIN 5401-Ø7MM-III-ST
-
Spare part number: 1 903 230 013
Position: 70
Availability: 1
Price group: 12
1.05 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X25
-
part
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw 4X25
-
part
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
2.21 S$*

Prices shown are net prices excluding VAT
Retaining ring DIN 7993-A22
-
Spare part number: 2 916 540 012
Position: 87
Availability: 1
Price group: -
-

Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
part
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
19.64 S$*

Prices shown are net prices excluding VAT
Image 1
Auxiliary Handle
-
Spare part number: 1 602 025 07H
Position: 822/120
Availability: 1
Price group: 23
4.20 S$*

Prices shown are net prices excluding VAT
Auxiliary Handle
-
part
Spare part number: 1 602 025 08X
Position: 822
Availability: 1
Price group: 28
24.57 S$*

Prices shown are net prices excluding VAT
Chuck
-
part
Spare part number: 1 608 571 088
Position: 871
Availability: 1
Price group: 32
23.47 S$*

Prices shown are net prices excluding VAT
Clamping Band Ø50 MM
-
part
Spare part number: 1 611 316 021
Position: 822/124
Availability: 1
Price group: 14
0.90 S$*

Prices shown are net prices excluding VAT
Depth-Gauge SW 6X210 MM
-
Spare part number: 1 613 001 009
Position: 651
Availability: 1
Price group: 15
1.40 S$*

Prices shown are net prices excluding VAT
T-Head Bolt M8X40 MM
-
Spare part number: 1 613 490 002
Position: 822/125
Availability: 1
Price group: 16
2.21 S$*

Prices shown are net prices excluding VAT
Drill Chuck Shank 1/2", SDS-PLUS
-
Spare part number: 1 613 523 011
Position: 870
Availability: 1
Price group: -
-

-

Please click for futher details

Support clamp
-
part
Spare part number: 1 617 000 475
Position: 822/802
Availability: 1
Price group: 22
7.00 S$*

Prices shown are net prices excluding VAT
Countersunk-Head Screw M6X27-KØ11 LEFTHAND THREADS
-
Spare part number: 2 603 421 207
Position: 870/2
Availability: 1
Price group: 11
1.09 S$*

Prices shown are net prices excluding VAT
Chuck Wrench SG2
-
part
Spare part number: 2 607 950 007
Position: 872
Availability: 1
Price group: 19
4.94 S$*

Prices shown are net prices excluding VAT
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
