Random orbital sander
GEX 125 | 3 601 CA8 0L0 | 240 V / 020 - MY
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing

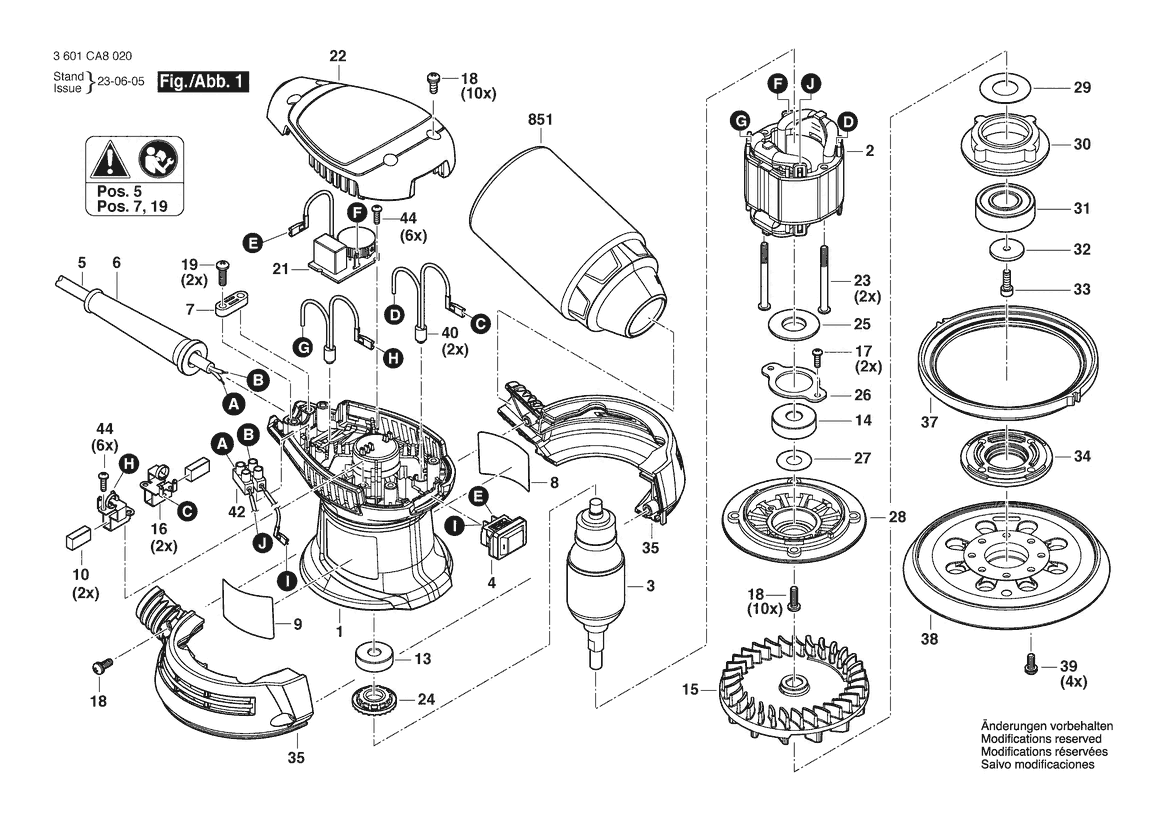

3 601 CA8 0L0
Image 1
Housing
-
Spare part number: 1 619 PC0 206
Position: 1
Availability: 1
Price group: 28
8.30 S$*
Prices shown are net prices excluding VAT
Stator
-
Spare part number: 1 619 PC0 207
Position: 2
Availability: 1
Price group: 32
15.00 S$*
Prices shown are net prices excluding VAT
Armature
-
Spare part number: 1 619 PC0 208
Position: 3
Availability: 1
Price group: 36
23.00 S$*
Prices shown are net prices excluding VAT
Switch
-
Spare part number: 1 619 PC0 209
Position: 4
Availability: 1
Price group: 18
2.50 S$*
Prices shown are net prices excluding VAT
Grommet
-
Spare part number: 1 619 PC0 211
Position: 6
Availability: 1
Price group: 11
0.70 S$*
Prices shown are net prices excluding VAT
Cable Clip
-
Spare part number: 1 619 PC0 212
Position: 7
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Manufacturer's nameplate
-
Spare part number: 1 619 PC0 214
Position: 9
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Carbon Brush
-
Spare part number: 1 619 PC0 215
Position: 10
Availability: 2
Price group: 18
2.30 S$*
Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 216
Position: 13
Availability: 1
Price group: 15
1.60 S$*
Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 217
Position: 14
Availability: 1
Price group: 17
2.30 S$*
Prices shown are net prices excluding VAT
Fan
-
Spare part number: 1 619 PC0 218
Position: 15
Availability: 1
Price group: 29
10.00 S$*
Prices shown are net prices excluding VAT
Brush Holder
-
Spare part number: 1 619 PC0 219
Position: 16
Availability: 2
Price group: 13
1.00 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 220
Position: 17
Availability: 6
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 222
Position: 19
Availability: 2
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Electronics Module
-
Spare part number: 1 619 PC0 223
Position: 21
Availability: 1
Price group: 27
7.60 S$*
Prices shown are net prices excluding VAT
Housing Cover
-
Spare part number: 1 619 PC0 224
Position: 22
Availability: 1
Price group: 22
4.40 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 225
Position: 23
Availability: 2
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Bearing cover
-
Spare part number: 1 619 PC0 226
Position: 24
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 227
Position: 25
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Bearing cover
-
Spare part number: 1 619 PC0 228
Position: 26
Availability: 1
Price group: 10
0.60 S$*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 229
Position: 27
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Housing Cover
-
Spare part number: 1 619 PC0 230
Position: 28
Availability: 1
Price group: 17
2.20 S$*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 231
Position: 29
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Bearing Flange
-
Spare part number: 1 619 PC0 232
Position: 30
Availability: 1
Price group: 21
3.50 S$*
Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 233
Position: 31
Availability: 1
Price group: 22
4.50 S$*
Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 234
Position: 32
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 235
Position: 33
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Cover
-
Spare part number: 1 619 PC0 236
Position: 34
Availability: 1
Price group: 11
0.70 S$*
Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 619 PC0 237
Position: 35
Availability: 1
Price group: 23
5.10 S$*
Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 619 PC0 237
Position: 35
Availability: 1
Price group: 23
5.10 S$*
Prices shown are net prices excluding VAT
Friction Ring
-
Spare part number: 1 619 PC0 239
Position: 37
Availability: 1
Price group: 20
3.30 S$*
Prices shown are net prices excluding VAT
Backing Pad
-
Spare part number: 1 619 PC0 240
Position: 38
Availability: 1
Price group: 30
11.00 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 241
Position: 39
Availability: 4
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 619 PC0 242
Position: 42
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Dust container
-
Spare part number: 1 619 PC0 243
Position: 851
Availability: 1
Price group: 23
4.70 S$*
Prices shown are net prices excluding VAT
Power supply cord
-
Spare part number: 1 619 PC1 108
Position: 5
Availability: 1
Price group: 28
8.80 S$*
Prices shown are net prices excluding VAT
Rod choke
-
Spare part number: 1 619 PC1 125
Position: 40
Availability: 2
Price group: 10
0.60 S$*
Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 619 PC1 136
Position: 8
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC1 602
Position: 44
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC1 602
Position: 44
Availability: 1
Price group: 10
0.50 S$*
Prices shown are net prices excluding VAT
1
My Spare parts list

39 Parts found

Sort by
Description
Pos. 1 | Housing
1 619 PC0 206
-
8.30 S$*
*Prices shown are net prices excluding VAT
Pos. 2 | Stator
1 619 PC0 207
-
15.00 S$*
*Prices shown are net prices excluding VAT
Pos. 3 | Armature
1 619 PC0 208
-
23.00 S$*
*Prices shown are net prices excluding VAT
Pos. 4 | Switch
1 619 PC0 209
-
2.50 S$*
*Prices shown are net prices excluding VAT
Pos. 5 | Power supply cord
1 619 PC1 108
-
8.80 S$*
*Prices shown are net prices excluding VAT
Pos. 6 | Grommet
1 619 PC0 211
-
0.70 S$*
*Prices shown are net prices excluding VAT
Pos. 7 | Cable Clip
1 619 PC0 212
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 8 | Nameplate
1 619 PC1 136
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate
1 619 PC0 214
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 10 | Carbon Brush
1 619 PC0 215
-
2.30 S$*
*Prices shown are net prices excluding VAT
Pos. 13 | groove ball bearing
1 619 PC0 216
-
1.60 S$*
*Prices shown are net prices excluding VAT
Pos. 14 | groove ball bearing
1 619 PC0 217
-
2.30 S$*
*Prices shown are net prices excluding VAT
Pos. 15 | Fan
1 619 PC0 218
-
10.00 S$*
*Prices shown are net prices excluding VAT
Pos. 16 | Brush Holder
1 619 PC0 219
-
1.00 S$*
*Prices shown are net prices excluding VAT
Pos. 17 | Torx Oval-Head Screw
1 619 PC0 220
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 18 | Torx Oval-Head Screw
1 619 PC0 221
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 19 | Torx Oval-Head Screw
1 619 PC0 222
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 21 | Electronics Module
1 619 PC0 223
-
7.60 S$*
*Prices shown are net prices excluding VAT
Pos. 22 | Housing Cover
1 619 PC0 224
-
4.40 S$*
*Prices shown are net prices excluding VAT
Pos. 23 | Torx Oval-Head Screw
1 619 PC0 225
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 24 | Bearing cover
1 619 PC0 226
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 25 | Washer
1 619 PC0 227
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 26 | Bearing cover
1 619 PC0 228
-
0.60 S$*
*Prices shown are net prices excluding VAT
Pos. 27 | Washer
1 619 PC0 229
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 28 | Housing Cover
1 619 PC0 230
-
2.20 S$*
*Prices shown are net prices excluding VAT
Pos. 29 | Washer
1 619 PC0 231
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 30 | Bearing Flange
1 619 PC0 232
-
3.50 S$*
*Prices shown are net prices excluding VAT
Pos. 31 | groove ball bearing
1 619 PC0 233
-
4.50 S$*
*Prices shown are net prices excluding VAT
Pos. 32 | Washer
1 619 PC0 234
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 33 | Torx Oval-Head Screw
1 619 PC0 235
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 34 | Cover
1 619 PC0 236
-
0.70 S$*
*Prices shown are net prices excluding VAT
Pos. 35 | Housing
1 619 PC0 237
-
5.10 S$*
*Prices shown are net prices excluding VAT
Pos. 37 | Friction Ring
1 619 PC0 239
-
3.30 S$*
*Prices shown are net prices excluding VAT
Pos. 38 | Backing Pad
1 619 PC0 240
-
11.00 S$*
*Prices shown are net prices excluding VAT
Pos. 39 | Torx Oval-Head Screw
1 619 PC0 241
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 40 | Rod choke
1 619 PC1 125
-
0.60 S$*
*Prices shown are net prices excluding VAT
Pos. 42 | Connecting Cable
1 619 PC0 242
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 44 | Torx Oval-Head Screw
1 619 PC1 602
-
0.50 S$*
*Prices shown are net prices excluding VAT
Pos. 851 | Dust container
1 619 PC0 243
-
4.70 S$*
*Prices shown are net prices excluding VAT
* Prices shown are net prices excluding VAT
Turn the device for 90 degrees.
3 601 CA8 0L0
Image 1
Housing
-
Spare part number: 1 619 PC0 206
Position: 1
Availability: 1
Price group: 28
8.30 S$*

Prices shown are net prices excluding VAT
Stator
-
Spare part number: 1 619 PC0 207
Position: 2
Availability: 1
Price group: 32
15.00 S$*

Prices shown are net prices excluding VAT
Armature
-
Spare part number: 1 619 PC0 208
Position: 3
Availability: 1
Price group: 36
23.00 S$*

Prices shown are net prices excluding VAT
Switch
-
Spare part number: 1 619 PC0 209
Position: 4
Availability: 1
Price group: 18
2.50 S$*

Prices shown are net prices excluding VAT
Grommet
-
Spare part number: 1 619 PC0 211
Position: 6
Availability: 1
Price group: 11
0.70 S$*

Prices shown are net prices excluding VAT
Cable Clip
-
Spare part number: 1 619 PC0 212
Position: 7
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Manufacturer's nameplate
-
Spare part number: 1 619 PC0 214
Position: 9
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Carbon Brush
-
Spare part number: 1 619 PC0 215
Position: 10
Availability: 2
Price group: 18
2.30 S$*

Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 216
Position: 13
Availability: 1
Price group: 15
1.60 S$*

Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 217
Position: 14
Availability: 1
Price group: 17
2.30 S$*

Prices shown are net prices excluding VAT
Fan
-
Spare part number: 1 619 PC0 218
Position: 15
Availability: 1
Price group: 29
10.00 S$*

Prices shown are net prices excluding VAT
Brush Holder
-
Spare part number: 1 619 PC0 219
Position: 16
Availability: 2
Price group: 13
1.00 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 220
Position: 17
Availability: 6
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 221
Position: 18
Availability: 10
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 222
Position: 19
Availability: 2
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Electronics Module
-
Spare part number: 1 619 PC0 223
Position: 21
Availability: 1
Price group: 27
7.60 S$*

Prices shown are net prices excluding VAT
Housing Cover
-
Spare part number: 1 619 PC0 224
Position: 22
Availability: 1
Price group: 22
4.40 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 225
Position: 23
Availability: 2
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Bearing cover
-
Spare part number: 1 619 PC0 226
Position: 24
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 227
Position: 25
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Bearing cover
-
Spare part number: 1 619 PC0 228
Position: 26
Availability: 1
Price group: 10
0.60 S$*

Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 229
Position: 27
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Housing Cover
-
Spare part number: 1 619 PC0 230
Position: 28
Availability: 1
Price group: 17
2.20 S$*

Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 231
Position: 29
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Bearing Flange
-
Spare part number: 1 619 PC0 232
Position: 30
Availability: 1
Price group: 21
3.50 S$*

Prices shown are net prices excluding VAT
groove ball bearing
-
Spare part number: 1 619 PC0 233
Position: 31
Availability: 1
Price group: 22
4.50 S$*

Prices shown are net prices excluding VAT
Washer
-
Spare part number: 1 619 PC0 234
Position: 32
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 235
Position: 33
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Cover
-
Spare part number: 1 619 PC0 236
Position: 34
Availability: 1
Price group: 11
0.70 S$*

Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 619 PC0 237
Position: 35
Availability: 1
Price group: 23
5.10 S$*

Prices shown are net prices excluding VAT
Housing
-
Spare part number: 1 619 PC0 237
Position: 35
Availability: 1
Price group: 23
5.10 S$*

Prices shown are net prices excluding VAT
Friction Ring
-
Spare part number: 1 619 PC0 239
Position: 37
Availability: 1
Price group: 20
3.30 S$*

Prices shown are net prices excluding VAT
Backing Pad
-
Spare part number: 1 619 PC0 240
Position: 38
Availability: 1
Price group: 30
11.00 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC0 241
Position: 39
Availability: 4
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Connecting Cable
-
Spare part number: 1 619 PC0 242
Position: 42
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Dust container
-
Spare part number: 1 619 PC0 243
Position: 851
Availability: 1
Price group: 23
4.70 S$*

Prices shown are net prices excluding VAT
Power supply cord
-
Spare part number: 1 619 PC1 108
Position: 5
Availability: 1
Price group: 28
8.80 S$*

Prices shown are net prices excluding VAT
Rod choke
-
Spare part number: 1 619 PC1 125
Position: 40
Availability: 2
Price group: 10
0.60 S$*

Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 619 PC1 136
Position: 8
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC1 602
Position: 44
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
Torx Oval-Head Screw
-
Spare part number: 1 619 PC1 602
Position: 44
Availability: 1
Price group: 10
0.50 S$*

Prices shown are net prices excluding VAT
1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
