GPO 12 CE - 3 601 C89 0J0 | Product Detail Page | Power Tools

16.38 S$*

*Prices shown are net prices excluding VAT

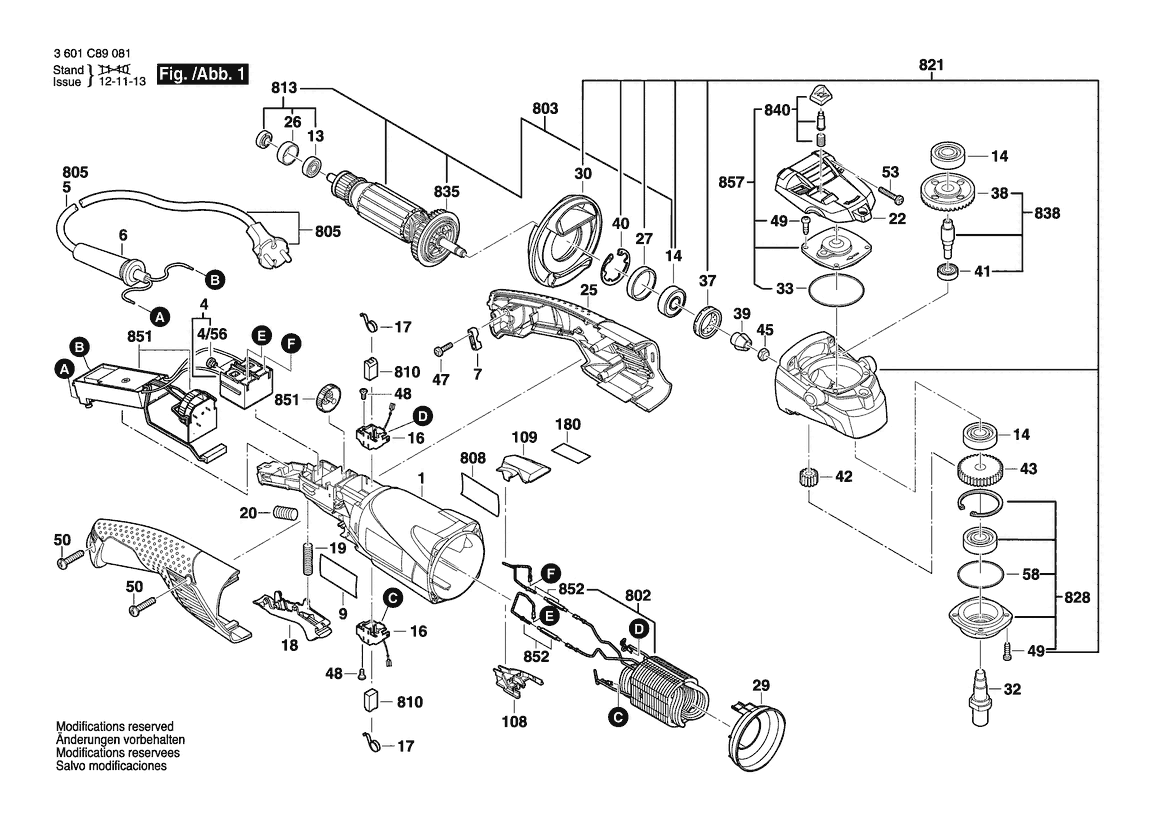

Pos. 4

Pos. 4 | Switch Assembly

1 607 200 257

Switch Assembly

1 607 200 257

17.43 S$*

Availability 1

Price group: 32

17.43 S$*

*Prices shown are net prices excluding VAT

Pos. 4/56

Pos. 4/56 | Lens Head Screw

1 603 415 004

Lens Head Screw

1 603 415 004

1.05 S$*

Availability 2

Price group: 11

1.05 S$*

*Prices shown are net prices excluding VAT

Pos. 5

Pos. 5 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F

1 604 460 144

Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F

1 604 460 144

21.53 S$*

Availability 1

Price group: 35

21.53 S$*

*Prices shown are net prices excluding VAT

Pos. 6

Pos. 6 | Grommet Ø 8,6MM

1 619 P14 643

Grommet Ø 8,6MM

1 619 P14 643

2.21 S$*

Availability 1

Price group: 11

2.21 S$*

*Prices shown are net prices excluding VAT

Pos. 7

Pos. 7 | Cable Clip

2 601 035 001

Cable Clip

2 601 035 001

0.63 S$*

Availability 1

Price group: 11

0.63 S$*

*Prices shown are net prices excluding VAT

Pos. 9

Pos. 9 | Manufacturer's nameplate GPO 12 CE

1 619 P07 981

Manufacturer's nameplate GPO 12 CE

1 619 P07 981

1.74 S$*

Availability 1

Price group: 13

1.74 S$*

*Prices shown are net prices excluding VAT

Pos. 13

Pos. 13 | Ball Bearing 7X19X6

2 600 905 032

Ball Bearing 7X19X6

2 600 905 032

6.51 S$*

Availability 1

Price group: 17

6.51 S$*

*Prices shown are net prices excluding VAT

Pos. 14

Pos. 14 | groove ball bearing 8X22X7

1 600 905 032

groove ball bearing 8X22X7

1 600 905 032

3.98 S$*

Availability 3

Price group: 18

3.98 S$*

*Prices shown are net prices excluding VAT

Pos. 16

Pos. 16 | Brush Holder WITH DISCONNECTING DEVICE

1 601 323 023

Brush Holder WITH DISCONNECTING DEVICE

1 601 323 023

3.78 S$*

Availability 2

Price group: 15

3.78 S$*

*Prices shown are net prices excluding VAT

Pos. 17

Pos. 17 | Spiral Spring

1 604 652 013

Spiral Spring

1 604 652 013

0.90 S$*

Availability 2

Price group: 11

0.90 S$*

*Prices shown are net prices excluding VAT

Pos. 18

Pos. 18 | Switch Button

1 619 P09 274

Switch Button

1 619 P09 274

1.47 S$*

Availability 1

Price group: 12

1.47 S$*

*Prices shown are net prices excluding VAT

Pos. 19

Pos. 19 | Compression Spring

1 604 611 041

Compression Spring

1 604 611 041

1.09 S$*

Availability 1

Price group: 11

1.09 S$*

*Prices shown are net prices excluding VAT

Pos. 20

Pos. 20 | Compression Spring

3 604 611 039

Compression Spring

3 604 611 039

1.09 S$*

Availability 1

Price group: 11

1.09 S$*

*Prices shown are net prices excluding VAT

Pos. 22

Pos. 22 | plastic covering

1 619 P07 907

plastic covering

1 619 P07 907

2.03 S$*

Availability 1

Price group: 14

2.03 S$*

*Prices shown are net prices excluding VAT

Pos. 25

Pos. 25 | Handle

1 600 A01 N0J

Handle

1 600 A01 N0J

9.92 S$*

Availability 1

Price group: 25

9.92 S$*

*Prices shown are net prices excluding VAT

Pos. 26

Pos. 26 | Rubber Ring

1 600 206 036

Rubber Ring

1 600 206 036

0.50 S$*

Availability 1

Price group: 11

0.50 S$*

*Prices shown are net prices excluding VAT

Pos. 27

Pos. 27 | Rubber Ring

1 600 206 025

Rubber Ring

1 600 206 025

0.60 S$*

Availability 1

Price group: 12

0.60 S$*

*Prices shown are net prices excluding VAT

Pos. 29

Pos. 29 | Air-Deflector Ring

1 600 591 025

Air-Deflector Ring

1 600 591 025

2.73 S$*

Availability 1

Price group: 13

2.73 S$*

*Prices shown are net prices excluding VAT

Pos. 30

Pos. 30 | Air-Deflector Ring

1 600 591 014

Air-Deflector Ring

1 600 591 014

3.26 S$*

Availability 1

Price group: 13

3.26 S$*

*Prices shown are net prices excluding VAT

Pos. 32

Pos. 32 | Grinding Spindle

1 619 P07 906

Grinding Spindle

1 619 P07 906

16.38 S$*

Availability 1

Price group: 28

16.38 S$*

*Prices shown are net prices excluding VAT

Pos. 33

Pos. 33 | O-Ring 46,0X1,1 MM

1 600 210 035

O-Ring 46,0X1,1 MM

1 600 210 035

1.20 S$*

Availability 1

Price group: 11

1.20 S$*

*Prices shown are net prices excluding VAT

Pos. 37

Pos. 37 | Rotary shaft lip seal

1 600 290 016

Rotary shaft lip seal

1 600 290 016

2.21 S$*

Availability 1

Price group: 13

2.21 S$*

*Prices shown are net prices excluding VAT

Pos. 38

Pos. 38 | Crown Gear

1 619 P07 918

Crown Gear

1 619 P07 918

6.00 S$*

Availability 1

Price group: 35

6.00 S$*

*Prices shown are net prices excluding VAT

Pos. 39

Pos. 39 | Bevel Gear

1 619 P07 919

Bevel Gear

1 619 P07 919

35.49 S$*

Availability 1

Price group: 32

35.49 S$*

*Prices shown are net prices excluding VAT

Pos. 40

Pos. 40 | Retaining clip

1 600 119 011

Retaining clip

1 600 119 011

1.40 S$*

Availability 1

Price group: 12

1.40 S$*

*Prices shown are net prices excluding VAT

Pos. 41

Pos. 41 | groove ball bearing

1 619 P08 829

groove ball bearing

1 619 P08 829

5.46 S$*

Availability 1

Price group: 19

5.46 S$*

*Prices shown are net prices excluding VAT

Pos. 42

Pos. 42 | Cylindrical Gear

1 619 P07 912

Cylindrical Gear

1 619 P07 912

3.20 S$*

Availability 1

Price group: 31

3.20 S$*

*Prices shown are net prices excluding VAT

Pos. 43

Pos. 43 | Cylindrical Gear

1 619 P07 911

Cylindrical Gear

1 619 P07 911

22.89 S$*

Availability 1

Price group: 31

22.89 S$*

*Prices shown are net prices excluding VAT

Pos. 45

Pos. 45 | Hex Nut M7, SW10

1 603 300 016

Hex Nut M7, SW10

1 603 300 016

0.90 S$*

Availability 1

Price group: 11

0.90 S$*

*Prices shown are net prices excluding VAT

Pos. 47

Pos. 47 | Screw

1 619 P00 029

Screw

1 619 P00 029

0.64 S$*

Availability 2

Price group: 10

0.64 S$*

*Prices shown are net prices excluding VAT

Pos. 48

Pos. 48 | Tapping Screw DIN7981-ST2,9X9,5C-Z

2 912 401 005

Tapping Screw DIN7981-ST2,9X9,5C-Z

2 912 401 005

1.05 S$*

Availability 2

Price group: 10

1.05 S$*

*Prices shown are net prices excluding VAT

Pos. 49

Pos. 49 | Thread-forming tap. Screw

1 619 P08 825

Thread-forming tap. Screw

1 619 P08 825

0.64 S$*

Availability 9

Price group: 10

0.64 S$*

*Prices shown are net prices excluding VAT

Pos. 50

Pos. 50 | Torx Oval-Head Screw 4X20

1 619 P00 105

Torx Oval-Head Screw 4X20

1 619 P00 105

0.80 S$*

Availability 3

Price group: 11

0.80 S$*

*Prices shown are net prices excluding VAT

Pos. 53

Pos. 53 | Torx Oval-Head Screw 4X25

1 619 P01 066

Torx Oval-Head Screw 4X25

1 619 P01 066

0.53 S$*

Availability 4

Price group: 10

0.53 S$*

*Prices shown are net prices excluding VAT

Pos. 58

Pos. 58 | O-Ring 39,0X1,1 MM

1 619 P07 915

O-Ring 39,0X1,1 MM

1 619 P07 915

0.64 S$*

Availability 1

Price group: 10

0.64 S$*

*Prices shown are net prices excluding VAT

Pos. 108

Pos. 108 | Cover BLACK

1 605 500 258

Cover BLACK

1 605 500 258

2.73 S$*

Availability 1

Price group: 13

2.73 S$*

*Prices shown are net prices excluding VAT

Pos. 109

Pos. 109 | Cover BLACK

1 605 500 263

Cover BLACK

1 605 500 263

2.91 S$*

Availability 1

Price group: 16

2.91 S$*

*Prices shown are net prices excluding VAT

Pos. 802

Pos. 802 | Field 220-240V

1 604 220 417

Field 220-240V

1 604 220 417

47.46 S$*

Availability 1

Price group: 33

47.46 S$*

*Prices shown are net prices excluding VAT

Pos. 803

Pos. 803 | Armature With Fan 220-240V

1 619 P09 115

Armature With Fan 220-240V

1 619 P09 115

116.87 S$*

Availability 1

Price group: 41

116.87 S$*

*Prices shown are net prices excluding VAT

Pos. 808

Pos. 808 | Nameplate

1 619 P07 927

Nameplate

1 619 P07 927

Availability 1

Price group: -

Pos. 810

Pos. 810 | Carbon-Brush Set

1 607 014 176

Carbon-Brush Set

1 607 014 176

3.99 S$*

Availability 1

Price group: 25

3.99 S$*

*Prices shown are net prices excluding VAT

Pos. 813

Pos. 813 | Parts Set

1 607 000 378

Parts Set

1 607 000 378

6.51 S$*

Availability 1

Price group: 19

6.51 S$*

*Prices shown are net prices excluding VAT

Pos. 821

Pos. 821 | Gear Housing

1 619 P09 078

Gear Housing

1 619 P09 078

45.14 S$*

Availability 1

Price group: 38

45.14 S$*

*Prices shown are net prices excluding VAT

Pos. 828

Pos. 828 | Bearing Flange

1 619 P09 081

Bearing Flange

1 619 P09 081

30.56 S$*

Availability 1

Price group: 33

30.56 S$*

*Prices shown are net prices excluding VAT

Pos. 835

Pos. 835 | Fan

1 606 610 132

Fan

1 606 610 132

2.73 S$*

Availability 1

Price group: 12

2.73 S$*

*Prices shown are net prices excluding VAT

Pos. 838

Pos. 838 | Crown Gear

1 619 P09 080

Crown Gear

1 619 P09 080

55.65 S$*

Availability 1

Price group: 39

55.65 S$*

*Prices shown are net prices excluding VAT

Pos. 840

Pos. 840 | push button set

1 619 P09 082

push button set

1 619 P09 082

1.47 S$*

Availability 1

Price group: 12

1.47 S$*

*Prices shown are net prices excluding VAT

Pos. 851

Pos. 851 | Speed governor

1 607 233 256

Speed governor

1 607 233 256

116.87 S$*

Availability 1

Price group: 45

116.87 S$*

*Prices shown are net prices excluding VAT

Pos. 852

Pos. 852 | Connecting Cable

1 604 448 025

Connecting Cable

1 604 448 025

1.47 S$*

Availability 1

Price group: 12

1.47 S$*

*Prices shown are net prices excluding VAT

Pos. 857

Pos. 857 | Gear Cover

1 619 P09 079

Gear Cover

1 619 P09 079

14.09 S$*

Availability 1

Price group: 28

14.09 S$*

*Prices shown are net prices excluding VAT

Pos. 890

Pos. 890 | Handle

1 619 P07 563

Handle

1 619 P07 563

5.99 S$*

Availability 1

Price group: 31

5.99 S$*

*Prices shown are net prices excluding VAT

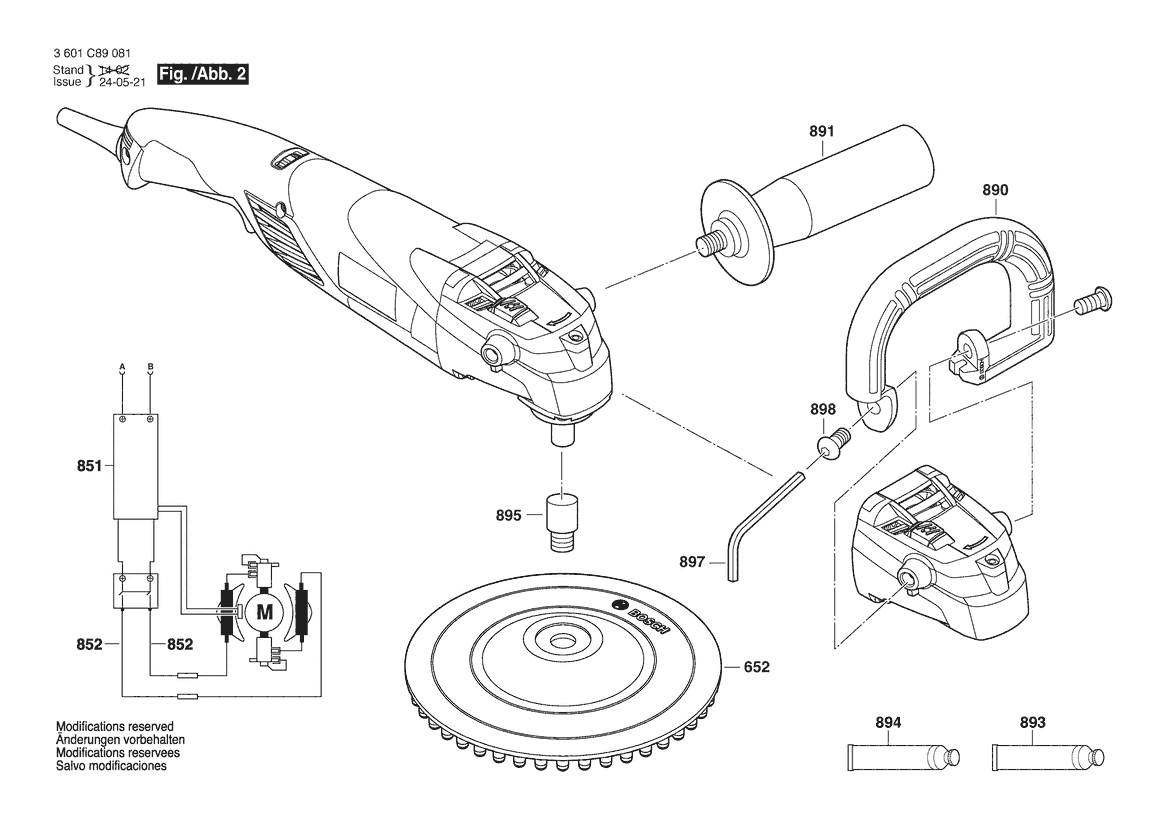

Pos. 891

Pos. 891 | Auxiliary Handle

1 602 025 09T

Auxiliary Handle

1 602 025 09T

2.54 S$*

Availability 1

Price group: 15

2.54 S$*

*Prices shown are net prices excluding VAT

Pos. 893

Pos. 893 | Grease Tube 225 ML

1 605 430 003

Grease Tube 225 ML

1 605 430 003

29.85 S$*

Availability 1

Price group: 34

29.85 S$*

*Prices shown are net prices excluding VAT

Pos. 894

Pos. 894 | Grease Tube 225 ML

1 615 430 020

Grease Tube 225 ML

1 615 430 020

28.00 S$*

Availability 1

Price group: 29

28.00 S$*

*Prices shown are net prices excluding VAT

Pos. 895

Pos. 895 | Socket-Outlet Adaptor

1 619 P07 614

Socket-Outlet Adaptor

1 619 P07 614

2.94 S$*

Availability 1

Price group: 16

2.94 S$*

*Prices shown are net prices excluding VAT

Pos. 897

Pos. 897 | Hex Screw Driver

1 619 P07 612

Hex Screw Driver

1 619 P07 612

2.03 S$*

Availability 1

Price group: 14

2.03 S$*

*Prices shown are net prices excluding VAT

Pos. 898

Pos. 898 | Hex Screw

1 619 P07 611

Hex Screw

1 619 P07 611

0.74 S$*

Availability 1

Price group: 15
