Cordl Perc Screwdr
GSB 12V-30 | 3 601 JG9 180 | 12 V / 009 - CN
3 601 JG9 180

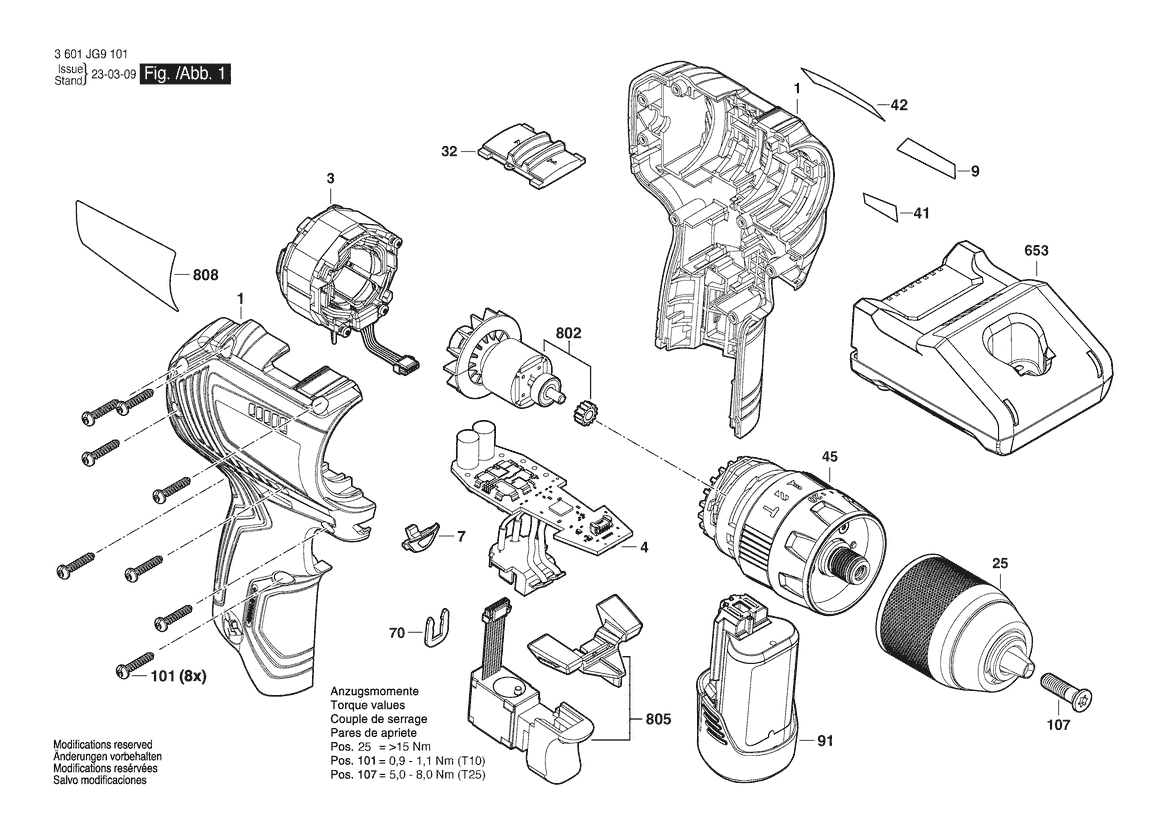

Image 1
Switchover Unit
-
part
Spare part number: 1 600 A01 2MM
Position: 32
Availability: 1
Price group: 10
1.05 S$*
Prices shown are net prices excluding VAT
Gear Box
-
part
Spare part number: 1 600 A01 2MP
Position: 45
Availability: 1
Price group: 32
25.10 S$*
Prices shown are net prices excluding VAT
Motor Spare Parts Set
-
part
Spare part number: 1 600 A01 C9M
Position: 802
Availability: 1
Price group: 28
11.45 S$*
Prices shown are net prices excluding VAT
Keyless Chuck
-
Spare part number: 1 600 A02 9MM
Position: 25
Availability: 1
Price group: 32
23.47 S$*
Prices shown are net prices excluding VAT
Nameplate
-
Spare part number: 1 601 11A 627
Position: 808
Availability: 1
Price group: 13
1.74 S$*
Prices shown are net prices excluding VAT
Sticker
-
part
Spare part number: 1 601 11C 25W
Position: 41
Availability: 1
Price group: 13
1.74 S$*
Prices shown are net prices excluding VAT
Sticker
-
part
Spare part number: 1 601 11C 2M4
Position: 42
Availability: 1
Price group: 13
1.74 S$*
Prices shown are net prices excluding VAT
Manufacturer's nameplate GSB12V-30
-
part
Spare part number: 1 601 11C 2RH
Position: 9
Availability: 1
Price group: 13
1.74 S$*
Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 1 605 806 5LV
Position: 1
Availability: 1
Price group: 22
9.87 S$*
Prices shown are net prices excluding VAT
Housing
-
part
Spare part number: 1 605 806 5LV
Position: 1
Availability: 1
Price group: 22
9.87 S$*
Prices shown are net prices excluding VAT
Switch
-
part
Spare part number: 1 607 200 37K
Position: 805
Availability: 1
Price group: 22
7.67 S$*
Prices shown are net prices excluding VAT
Electronic Module
-
part
Spare part number: 1 607 233 5EZ
Position: 4
Availability: 1
Price group: 35
46.94 S$*
Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

Stator
-
part
Spare part number: 1 619 P14 586
Position: 3
Availability: 1
Price group: 28
20.79 S$*
Prices shown are net prices excluding VAT
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
part
Spare part number: 2 603 421 229
Position: 107
Availability: 1
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

-

Please click for futher details

Lens
-
Spare part number: 2 609 101 035
Position: 7
Availability: 1
Price group: 12
0.32 S$*
Prices shown are net prices excluding VAT
Torx Flat-Head Screw 3X16
-
part
Spare part number: 2 609 110 201
Position: 101
Availability: 8
Price group: 12
0.53 S$*
Prices shown are net prices excluding VAT
Clip
-
part
Spare part number: 2 609 110 537
Position: 70
Availability: 2
Price group: 11
1.68 S$*
Prices shown are net prices excluding VAT
1
My Spare parts list

22 Parts found

Description
Pos. 1 | Housing
1 605 806 5LV
-
9.87 S$*
*Prices shown are net prices excluding VAT
Pos. 3 | Stator
1 619 P14 586
-
20.79 S$*
*Prices shown are net prices excluding VAT
Pos. 4 | Electronic Module
1 607 233 5EZ
-
46.94 S$*
*Prices shown are net prices excluding VAT
Pos. 7 | Lens
2 609 101 035
-
0.32 S$*
*Prices shown are net prices excluding VAT
Pos. 9 | Manufacturer's nameplate GSB12V-30
1 601 11C 2RH
-
1.74 S$*
*Prices shown are net prices excluding VAT
Pos. 25 | Keyless Chuck
1 600 A02 9MM
-
23.47 S$*
*Prices shown are net prices excluding VAT
Pos. 32 | Switchover Unit
1 600 A01 2MM
-
1.05 S$*
*Prices shown are net prices excluding VAT
Pos. 41 | Sticker
1 601 11C 25W
-
1.74 S$*
*Prices shown are net prices excluding VAT
Pos. 42 | Sticker
1 601 11C 2M4
-
1.74 S$*
*Prices shown are net prices excluding VAT
Pos. 45 | Gear Box
1 600 A01 2MP
-
25.10 S$*
*Prices shown are net prices excluding VAT
Pos. 70 | Clip
2 609 110 537
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack GBA 12V 2.0AH LI SCM
1 607 A35 0C5
-
50.00 S$*
*Prices shown are net prices excluding VAT
Pos. 91 | Battery Pack GBA 10.8V 2.0AH LI SCM
1 607 A35 0C9
-
55.65 S$*
*Prices shown are net prices excluding VAT
Pos. 101 | Torx Flat-Head Screw 3X16
2 609 110 201
-
0.53 S$*
*Prices shown are net prices excluding VAT
Pos. 107 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
1.68 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger EU GAL 12V-40
2 607 226 219
-
54.60 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger GAL 12V-40 220V-240V 10,8-12V 4A
2 607 226 221
-
46.94 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger CN GAL 12V-40
2 607 226 235
-
46.94 S$*
*Prices shown are net prices excluding VAT
Pos. 653 | Fast Charger
2 607 226 239
-
46.94 S$*
*Prices shown are net prices excluding VAT
Pos. 802 | Motor Spare Parts Set
1 600 A01 C9M
-
11.45 S$*
*Prices shown are net prices excluding VAT
Pos. 805 | Switch
1 607 200 37K
-
7.67 S$*
*Prices shown are net prices excluding VAT
Pos. 808 | Nameplate
1 601 11A 627
-
1.74 S$*
*Prices shown are net prices excluding VAT

* Prices shown are net prices excluding VAT
