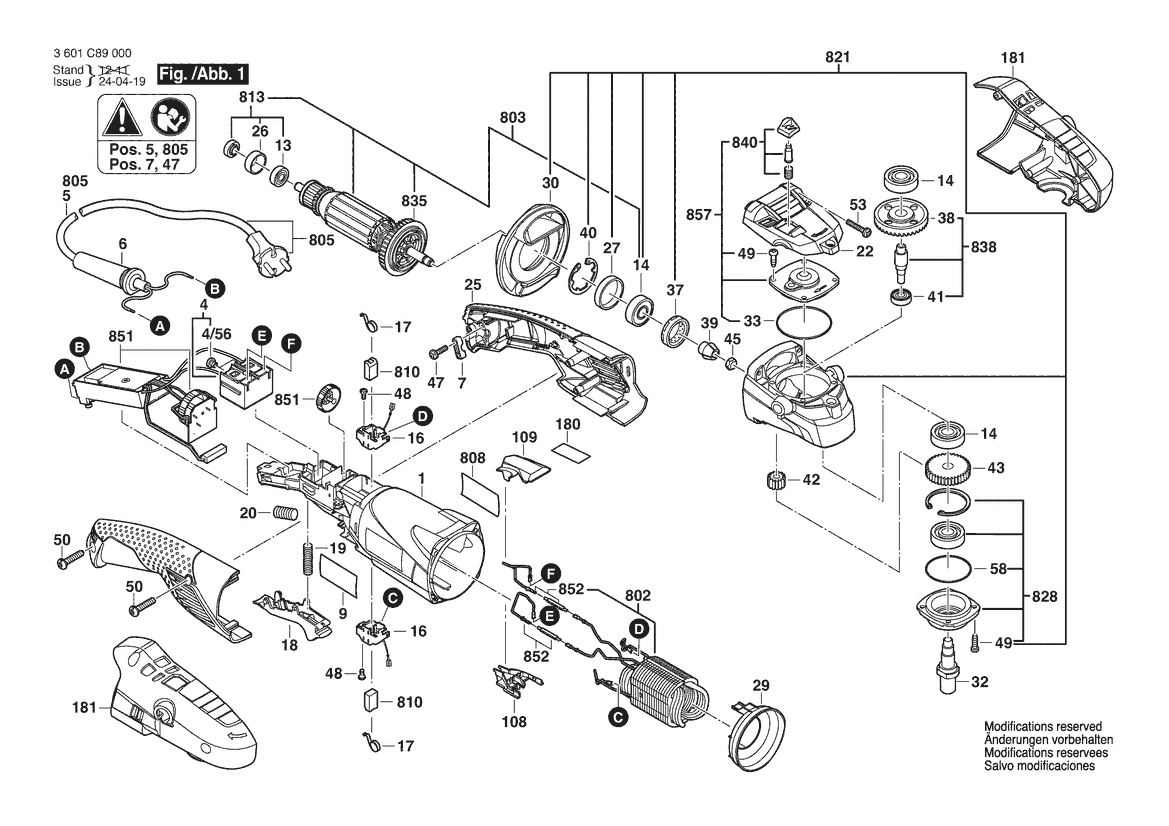

3 601 C89 000
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
1.434 TND*
All prices are recommended retail prices including VAT
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
1.426 TND*
All prices are recommended retail prices including VAT
Rubber Ring
-
Spare part number: 1 600 206 036
Position: 26
Availability: 1
Price group: 11
1.804 TND*
All prices are recommended retail prices including VAT
O-Ring 46,0X1,1 MM
-
Spare part number: 1 600 210 035
Position: 33
Availability: 1
Price group: 11
1.258 TND*
All prices are recommended retail prices including VAT
Rotary shaft lip seal
-
Spare part number: 1 600 290 016
Position: 37
Availability: 1
Price group: 13
25.89 TND*
All prices are recommended retail prices including VAT
Air-Deflector Ring
-
Spare part number: 1 600 591 014
Position: 30
Availability: 1
Price group: 13
4.512 TND*
All prices are recommended retail prices including VAT
Air-Deflector Ring
-
Spare part number: 1 600 591 025
Position: 29
Availability: 1
Price group: 13
3.51 TND*
All prices are recommended retail prices including VAT
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 032
Position: 14
Availability: 3
Price group: 18
9.153 TND*
All prices are recommended retail prices including VAT
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 032
Position: 14
Availability: 3
Price group: 18
9.153 TND*
All prices are recommended retail prices including VAT
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 032
Position: 14
Availability: 3
Price group: 18
9.153 TND*
All prices are recommended retail prices including VAT
Polishing Cap
-
Spare part number: 1 600 A00 0VM
Position: 181
Availability: 1
Price group: 29
8.601 TND*
All prices are recommended retail prices including VAT
Polishing Cap
-
Spare part number: 1 600 A00 0VM
Position: 181
Availability: 1
Price group: 29
8.601 TND*
All prices are recommended retail prices including VAT
Handle
-
Spare part number: 1 600 A01 N0J
Position: 25
Availability: 1
Price group: 25
19.23 TND*
All prices are recommended retail prices including VAT
Brush Holder WITH DISCONNECTING DEVICE
-
Spare part number: 1 601 323 023
Position: 16
Availability: 2
Price group: 15
1.245 TND*
All prices are recommended retail prices including VAT
Brush Holder WITH DISCONNECTING DEVICE
-
Spare part number: 1 601 323 023
Position: 16
Availability: 2
Price group: 15
1.245 TND*
All prices are recommended retail prices including VAT
Adjusting Slide
-
Spare part number: 1 602 319 024
Position: 18
Availability: 1
Price group: 12
3.007 TND*
All prices are recommended retail prices including VAT
Hex Nut M7, SW10
-
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
1.891 TND*
All prices are recommended retail prices including VAT
Lens Head Screw
-
Spare part number: 1 603 415 004
Position: 4/56
Availability: 2
Price group: 11
0.312 TND*
All prices are recommended retail prices including VAT
Field 220-240V
-
Spare part number: 1 604 220 417
Position: 802
Availability: 1
Price group: 33
156.696 TND*
All prices are recommended retail prices including VAT
Connecting Cable
-
Spare part number: 1 604 448 025
Position: 852
Availability: 1
Price group: 12
1.871 TND*
All prices are recommended retail prices including VAT
Connecting Cable
-
Spare part number: 1 604 448 025
Position: 852
Availability: 1
Price group: 12
1.871 TND*
All prices are recommended retail prices including VAT
Compression Spring
-
Spare part number: 1 604 611 041
Position: 19
Availability: 1
Price group: 11
0.312 TND*
All prices are recommended retail prices including VAT
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 17
Availability: 2
Price group: 11
2.197 TND*
All prices are recommended retail prices including VAT
Spiral Spring
-
Spare part number: 1 604 652 013
Position: 17
Availability: 2
Price group: 11
2.197 TND*
All prices are recommended retail prices including VAT
Motor Housing BLUE
-
Spare part number: 1 605 108 255
Position: 1
Availability: 1
Price group: 27
22.686 TND*
All prices are recommended retail prices including VAT
Cover BLACK
-
Spare part number: 1 605 500 258
Position: 108
Availability: 1
Price group: 13
0.312 TND*
All prices are recommended retail prices including VAT
Cover BLACK
-
Spare part number: 1 605 500 263
Position: 109
Availability: 1
Price group: 16
0.46 TND*
All prices are recommended retail prices including VAT
Fan
-
Spare part number: 1 606 610 132
Position: 835
Availability: 1
Price group: 12
0.739 TND*
All prices are recommended retail prices including VAT
Parts Set
-
Spare part number: 1 607 000 378
Position: 813
Availability: 1
Price group: 19
13.724 TND*
All prices are recommended retail prices including VAT
Power supply cord
-
Spare part number: 1 607 000 391
Position: 805
Availability: 1
Price group: 28
61.414 TND*
All prices are recommended retail prices including VAT
Power supply cord
-
Spare part number: 1 607 000 391
Position: 805
Availability: 1
Price group: 28
61.414 TND*
All prices are recommended retail prices including VAT
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Switch Assembly
-
Spare part number: 1 607 200 257
Position: 4
Availability: 1
Price group: 32
8.988 TND*
All prices are recommended retail prices including VAT
Speed governor
-
Spare part number: 1 607 233 256
Position: 851
Availability: 1
Price group: 45
150.029 TND*
All prices are recommended retail prices including VAT
Speed governor
-
Spare part number: 1 607 233 256
Position: 851
Availability: 1
Price group: 45
150.029 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 P00 029
Position: 47
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 1 619 P00 105
Position: 50
Availability: 3
Price group: 11
0.312 TND*
All prices are recommended retail prices including VAT
Torx Oval-Head Screw 4X20
-
Spare part number: 1 619 P00 105
Position: 50
Availability: 3
Price group: 11
0.312 TND*
All prices are recommended retail prices including VAT
Torx Oval-Head Screw 4X25
-
Spare part number: 1 619 P01 066
Position: 53
Availability: 4
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Grinding Spindle
-
Spare part number: 1 619 P07 906
Position: 32
Availability: 1
Price group: 28
5.714 TND*
All prices are recommended retail prices including VAT
plastic covering
-
Spare part number: 1 619 P07 907
Position: 22
Availability: 1
Price group: 14
0.616 TND*
All prices are recommended retail prices including VAT
Cylindrical Gear
-
Spare part number: 1 619 P07 911
Position: 43
Availability: 1
Price group: 31
4.096 TND*
All prices are recommended retail prices including VAT
Cylindrical Gear
-
Spare part number: 1 619 P07 912
Position: 42
Availability: 1
Price group: 31
3.53 TND*
All prices are recommended retail prices including VAT
O-Ring 39,0X1,1 MM
-
Spare part number: 1 619 P07 915
Position: 58
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Crown Gear
-
Spare part number: 1 619 P07 918
Position: 38
Availability: 1
Price group: 35
7.053 TND*
All prices are recommended retail prices including VAT
Bevel Gear
-
Spare part number: 1 619 P07 919
Position: 39
Availability: 1
Price group: 32
6.522 TND*
All prices are recommended retail prices including VAT
Manufacturer's nameplate GPO 14 PE
-
Spare part number: 1 619 P07 982
Position: 9
Availability: 1
Price group: 14
0.312 TND*
All prices are recommended retail prices including VAT
Thread-forming tap. Screw
-
Spare part number: 1 619 P08 825
Position: 49
Availability: 9
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Thread-forming tap. Screw
-
Spare part number: 1 619 P08 825
Position: 49
Availability: 9
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
groove ball bearing
-
Spare part number: 1 619 P08 829
Position: 41
Availability: 1
Price group: 19
16.263 TND*
All prices are recommended retail prices including VAT
Gear Housing
-
Spare part number: 1 619 P09 078
Position: 821
Availability: 1
Price group: 38
113.855 TND*
All prices are recommended retail prices including VAT
Gear Cover
-
Spare part number: 1 619 P09 079
Position: 857
Availability: 1
Price group: 28
9.861 TND*
All prices are recommended retail prices including VAT
Crown Gear
-
Spare part number: 1 619 P09 080
Position: 838
Availability: 1
Price group: 39
38.947 TND*
All prices are recommended retail prices including VAT
Bearing Flange
-
Spare part number: 1 619 P09 081
Position: 828
Availability: 1
Price group: 33
14.272 TND*
All prices are recommended retail prices including VAT
push button set
-
Spare part number: 1 619 P09 082
Position: 840
Availability: 1
Price group: 12
1.924 TND*
All prices are recommended retail prices including VAT
Armature With Fan 220-240V
-
Spare part number: 1 619 P09 115
Position: 803
Availability: 1
Price group: 41
107.002 TND*
All prices are recommended retail prices including VAT
Label
-
Spare part number: 1 619 P09 116
Position: 180
Availability: 1
Price group: 13
0.312 TND*
All prices are recommended retail prices including VAT
Grommet Ø 8,6MM
-
Spare part number: 1 619 P14 643
Position: 6
Availability: 1
Price group: 11
0.357 TND*
All prices are recommended retail prices including VAT
Nameplate
-
Spare part number: 1 619 PS4 354
Position: 808
Availability: 1
Price group: -
-
Ball Bearing 7X19X6
-
Spare part number: 2 600 905 032
Position: 13
Availability: 1
Price group: 17
6.262 TND*
All prices are recommended retail prices including VAT
Cable Clip
-
Spare part number: 2 601 035 001
Position: 7
Availability: 1
Price group: 11
0.446 TND*
All prices are recommended retail prices including VAT
Tapping Screw DIN7981-ST2,9X9,5C-Z
-
Spare part number: 2 912 401 005
Position: 48
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Tapping Screw DIN7981-ST2,9X9,5C-Z
-
Spare part number: 2 912 401 005
Position: 48
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Compression Spring
-
Spare part number: 3 604 611 039
Position: 20
Availability: 1
Price group: 11
0.436 TND*
All prices are recommended retail prices including VAT
Auxiliary Handle
-
Spare part number: 1 602 025 09T
Position: 650/1
Availability: 1
Price group: 15
4.994 TND*
All prices are recommended retail prices including VAT
Grease Tube 225 ML
-
Spare part number: 1 605 430 003
Position: 895
Availability: 1
Price group: 34
49.889 TND*
All prices are recommended retail prices including VAT
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 29
40.788 TND*
All prices are recommended retail prices including VAT
Handle
-
Spare part number: 1 619 P07 563
Position: 653
Availability: 1
Price group: 31
6.817 TND*
All prices are recommended retail prices including VAT
Hex Screw
-
Spare part number: 1 619 P07 611
Position: 650/8
Availability: 1
Price group: 15
0.563 TND*
All prices are recommended retail prices including VAT
Hex Screw Driver
-
Spare part number: 1 619 P07 612
Position: 650/7
Availability: 1
Price group: 14
1.183 TND*
All prices are recommended retail prices including VAT
Buffing Disc
-
Spare part number: 1 619 PS0 562
Position: 652
Availability: 1
Price group: -
-
1
2
Spare parts in cart
61 Parts found
Sort by
Description
Pos. 1 | Motor Housing BLUE
1 605 108 255
-
*All prices are recommended retail prices including VAT
Pos. 4 | Switch Assembly
1 607 200 257
-
*All prices are recommended retail prices including VAT
Pos. 4/56 | Lens Head Screw
1 603 415 004
-
*All prices are recommended retail prices including VAT
Pos. 6 | Grommet Ø 8,6MM
1 619 P14 643
-
*All prices are recommended retail prices including VAT
Pos. 7 | Cable Clip
2 601 035 001
-
*All prices are recommended retail prices including VAT
Pos. 9 | Manufacturer's nameplate GPO 14 PE
1 619 P07 982
-
*All prices are recommended retail prices including VAT
Pos. 13 | Ball Bearing 7X19X6
2 600 905 032
-
*All prices are recommended retail prices including VAT
Pos. 14 | groove ball bearing 8X22X7
1 600 905 032
-
*All prices are recommended retail prices including VAT
Pos. 16 | Brush Holder WITH DISCONNECTING DEVICE
1 601 323 023
-
*All prices are recommended retail prices including VAT
Pos. 17 | Spiral Spring
1 604 652 013
-
*All prices are recommended retail prices including VAT
Pos. 18 | Adjusting Slide
1 602 319 024
-
*All prices are recommended retail prices including VAT
Pos. 19 | Compression Spring
1 604 611 041
-
*All prices are recommended retail prices including VAT
Pos. 20 | Compression Spring
3 604 611 039
-
*All prices are recommended retail prices including VAT
Pos. 22 | plastic covering
1 619 P07 907
-
*All prices are recommended retail prices including VAT
Pos. 25 | Handle
1 600 A01 N0J
-
*All prices are recommended retail prices including VAT
Pos. 26 | Rubber Ring
1 600 206 036
-
*All prices are recommended retail prices including VAT
Pos. 27 | Rubber Ring
1 600 206 025
-
*All prices are recommended retail prices including VAT
Pos. 29 | Air-Deflector Ring
1 600 591 025
-
*All prices are recommended retail prices including VAT
Pos. 30 | Air-Deflector Ring
1 600 591 014
-
*All prices are recommended retail prices including VAT
Pos. 32 | Grinding Spindle
1 619 P07 906
-
*All prices are recommended retail prices including VAT
Pos. 33 | O-Ring 46,0X1,1 MM
1 600 210 035
-
*All prices are recommended retail prices including VAT
Pos. 37 | Rotary shaft lip seal
1 600 290 016
-
*All prices are recommended retail prices including VAT
Pos. 38 | Crown Gear
1 619 P07 918
-
*All prices are recommended retail prices including VAT
Pos. 39 | Bevel Gear
1 619 P07 919
-
*All prices are recommended retail prices including VAT
Pos. 40 | Retaining clip
1 600 119 011
-
*All prices are recommended retail prices including VAT
Pos. 41 | groove ball bearing
1 619 P08 829
-
*All prices are recommended retail prices including VAT
Pos. 42 | Cylindrical Gear
1 619 P07 912
-
*All prices are recommended retail prices including VAT
Pos. 43 | Cylindrical Gear
1 619 P07 911
-
*All prices are recommended retail prices including VAT
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
*All prices are recommended retail prices including VAT
Pos. 47 | Screw
1 619 P00 029
-
*All prices are recommended retail prices including VAT
Pos. 48 | Tapping Screw DIN7981-ST2,9X9,5C-Z
2 912 401 005
-
*All prices are recommended retail prices including VAT
Pos. 49 | Thread-forming tap. Screw
1 619 P08 825
-
*All prices are recommended retail prices including VAT
Pos. 50 | Torx Oval-Head Screw 4X20
1 619 P00 105
-
*All prices are recommended retail prices including VAT
Pos. 53 | Torx Oval-Head Screw 4X25
1 619 P01 066
-
*All prices are recommended retail prices including VAT
Pos. 58 | O-Ring 39,0X1,1 MM
1 619 P07 915
-
*All prices are recommended retail prices including VAT
Pos. 108 | Cover BLACK
1 605 500 258
-
*All prices are recommended retail prices including VAT
Pos. 109 | Cover BLACK
1 605 500 263
-
*All prices are recommended retail prices including VAT
Pos. 180 | Label
1 619 P09 116
-
*All prices are recommended retail prices including VAT
Pos. 181 | Polishing Cap
1 600 A00 0VM
-
*All prices are recommended retail prices including VAT
Pos. 650/1 | Auxiliary Handle
1 602 025 09T
-
*All prices are recommended retail prices including VAT
Pos. 650/7 | Hex Screw Driver
1 619 P07 612
-
*All prices are recommended retail prices including VAT
Pos. 650/8 | Hex Screw
1 619 P07 611
-
*All prices are recommended retail prices including VAT
Pos. 652 | Buffing Disc
1 619 PS0 562
-
Pos. 653 | Handle
1 619 P07 563
-
*All prices are recommended retail prices including VAT
Pos. 802 | Field 220-240V
1 604 220 417
-
*All prices are recommended retail prices including VAT
Pos. 803 | Armature With Fan 220-240V
1 619 P09 115
-
*All prices are recommended retail prices including VAT
Pos. 805 | Power supply cord
1 607 000 391
-
*All prices are recommended retail prices including VAT
Pos. 808 | Nameplate
1 619 PS4 354
-
Pos. 810 | Carbon-Brush Set KOHLEBÜRSTENSATZ 10 X 1 607 014 176
1 607 000 482
-
*All prices are recommended retail prices including VAT
Pos. 810 | Carbon-Brush Set
1 607 014 176
-
*All prices are recommended retail prices including VAT
Pos. 813 | Parts Set
1 607 000 378
-
*All prices are recommended retail prices including VAT
Pos. 821 | Gear Housing
1 619 P09 078
-
*All prices are recommended retail prices including VAT
Pos. 828 | Bearing Flange
1 619 P09 081
-
*All prices are recommended retail prices including VAT
Pos. 835 | Fan
1 606 610 132
-
*All prices are recommended retail prices including VAT
Pos. 838 | Crown Gear
1 619 P09 080
-
*All prices are recommended retail prices including VAT
Pos. 840 | push button set
1 619 P09 082
-
*All prices are recommended retail prices including VAT
Pos. 851 | Speed governor
1 607 233 256
-
*All prices are recommended retail prices including VAT
Pos. 852 | Connecting Cable
1 604 448 025
-
*All prices are recommended retail prices including VAT
Pos. 857 | Gear Cover
1 619 P09 079
-
*All prices are recommended retail prices including VAT
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
*All prices are recommended retail prices including VAT
Pos. 895 | Grease Tube 225 ML
1 605 430 003
-
*All prices are recommended retail prices including VAT
* All prices are recommended retail prices including VAT
