GSH 11 VC - 3 611 C36 000 | Product Detail Page | Power Tools

77.748 TND*

*All prices are recommended retail prices including VAT

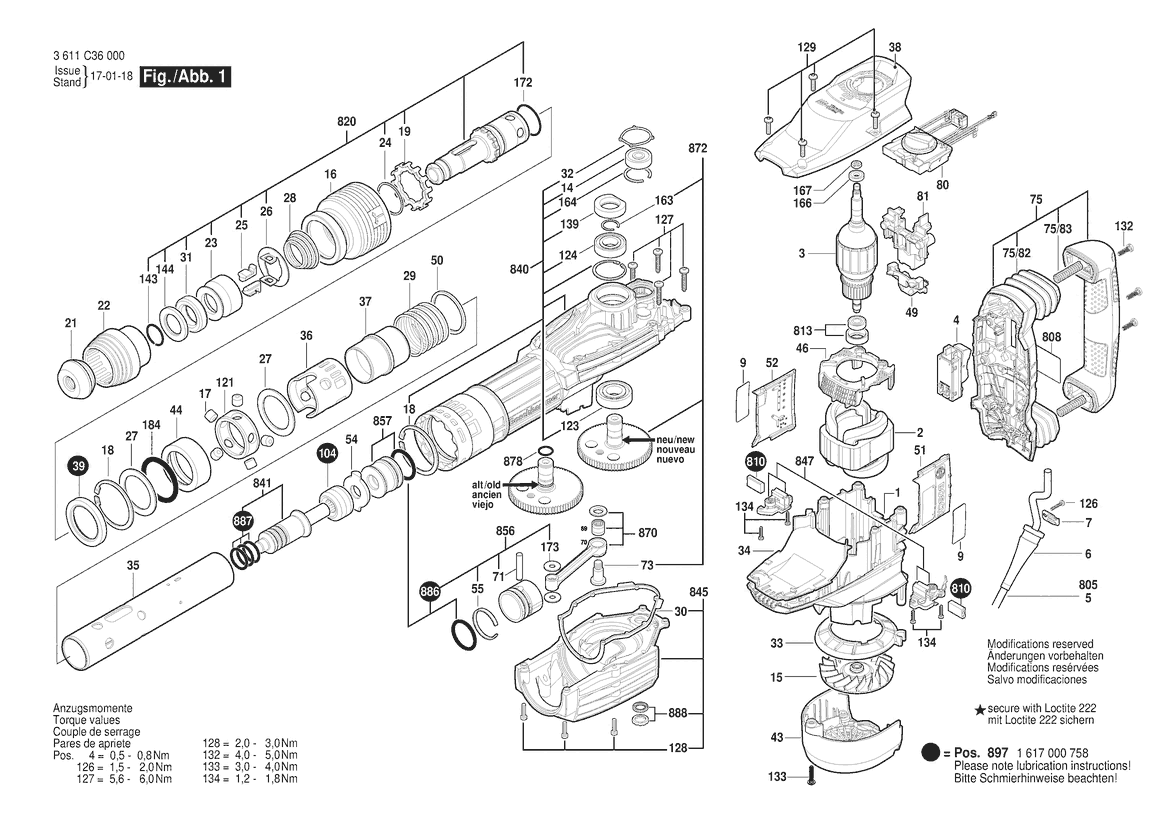

Pos. 2

Pos. 2 | Field 230V

1 604 220 52F

Field 230V

1 604 220 52F

197.602 TND*

Availability 1

Price group: 43

197.602 TND*

*All prices are recommended retail prices including VAT

Pos. 3

Pos. 3 | Armature 230V

1 614 011 120

Armature 230V

1 614 011 120

387.201 TND*

Availability 1

Price group: 48

387.201 TND*

*All prices are recommended retail prices including VAT

Pos. 4

Pos. 4 | Switch

1 607 200 244

Switch

1 607 200 244

66.06 TND*

Availability 1

Price group: 33

66.06 TND*

*All prices are recommended retail prices including VAT

Pos. 6

Pos. 6 | Grommet Ø9,7-Ø12X89 MM

1 610 703 053

Grommet Ø9,7-Ø12X89 MM

1 610 703 053

16.661 TND*

Availability 1

Price group: 13

16.661 TND*

*All prices are recommended retail prices including VAT

Pos. 7

Pos. 7 | Fastening Clamp

1 601 302 018

Fastening Clamp

1 601 302 018

3.113 TND*

Availability 1

Price group: 11

3.113 TND*

*All prices are recommended retail prices including VAT

Pos. 9

Pos. 9 | Manufacturer's nameplate

1 601 11C 0U4

Manufacturer's nameplate

1 601 11C 0U4

4.619 TND*

Availability 2

Price group: 13

4.619 TND*

*All prices are recommended retail prices including VAT

Pos. 14

Pos. 14 | groove ball bearing

1 600 905 028

groove ball bearing

1 600 905 028

24.086 TND*

Availability 1

Price group: 24

24.086 TND*

*All prices are recommended retail prices including VAT

Pos. 15

Pos. 15 | Fan

1 616 610 106

Fan

1 616 610 106

32.863 TND*

Availability 1

Price group: 25

32.863 TND*

*All prices are recommended retail prices including VAT

Pos. 16

Pos. 16 | Guide Sleeve

1 610 499 076

Guide Sleeve

1 610 499 076

12.106 TND*

Availability 1

Price group: 23

12.106 TND*

*All prices are recommended retail prices including VAT

Pos. 17

Pos. 17 | Locking Bolt

1 613 103 012

Locking Bolt

1 613 103 012

3.815 TND*

Availability 5

Price group: 13

3.815 TND*

*All prices are recommended retail prices including VAT

Pos. 18

Pos. 18 | Spring retaining ring

1 610 224 011

Spring retaining ring

1 610 224 011

1.261 TND*

Availability 2

Price group: 13

1.261 TND*

*All prices are recommended retail prices including VAT

Pos. 19

Pos. 19 | Carrier

1 616 490 071

Carrier

1 616 490 071

13.646 TND*

Availability 1

Price group: 16

13.646 TND*

*All prices are recommended retail prices including VAT

Pos. 21

Pos. 21 | Protective Cap

1 610 508 025

Protective Cap

1 610 508 025

6.051 TND*

Availability 1

Price group: 16

6.051 TND*

*All prices are recommended retail prices including VAT

Pos. 22

Pos. 22 | Protection Sleeve

1 610 499 078

Protection Sleeve

1 610 499 078

2.742 TND*

Availability 1

Price group: 17

2.742 TND*

*All prices are recommended retail prices including VAT

Pos. 23

Pos. 23 | Stop Sleeve

1 610 520 005

Stop Sleeve

1 610 520 005

9.899 TND*

Availability 1

Price group: 24

9.899 TND*

*All prices are recommended retail prices including VAT

Pos. 24

Pos. 24 | Retaining ring

1 614 601 020

Retaining ring

1 614 601 020

17.625 TND*

Availability 1

Price group: 11

17.625 TND*

*All prices are recommended retail prices including VAT

Pos. 25

Pos. 25 | Stopping Device

1 612 300 025

Stopping Device

1 612 300 025

12.417 TND*

Availability 2

Price group: 21

12.417 TND*

*All prices are recommended retail prices including VAT

Pos. 26

Pos. 26 | Indexing Disk

1 610 290 105

Indexing Disk

1 610 290 105

23.375 TND*

Availability 1

Price group: 15

23.375 TND*

*All prices are recommended retail prices including VAT

Pos. 27

Pos. 27 | Stop Disc

1 610 101 024

Stop Disc

1 610 101 024

2.379 TND*

Availability 2

Price group: 12

2.379 TND*

*All prices are recommended retail prices including VAT

Pos. 28

Pos. 28 | Conical helical spring

1 614 621 014

Conical helical spring

1 614 621 014

1.739 TND*

Availability 1

Price group: 13

1.739 TND*

*All prices are recommended retail prices including VAT

Pos. 29

Pos. 29 | Compression Spring

1 614 621 015

Compression Spring

1 614 621 015

4.304 TND*

Availability 1

Price group: 17

4.304 TND*

*All prices are recommended retail prices including VAT

Pos. 30

Pos. 30 | Sealing Frame

1 611 015 063

Sealing Frame

1 611 015 063

2.73 TND*

Availability 1

Price group: 19

2.73 TND*

*All prices are recommended retail prices including VAT

Pos. 31

Pos. 31 | Damping Ring

1 610 290 106

Damping Ring

1 610 290 106

25.292 TND*

Availability 1

Price group: 15

25.292 TND*

*All prices are recommended retail prices including VAT

Pos. 32

Pos. 32 | Sealing Frame

1 610 210 214

Sealing Frame

1 610 210 214

19.506 TND*

Availability 1

Price group: 11

19.506 TND*

*All prices are recommended retail prices including VAT

Pos. 33

Pos. 33 | Air-Deflector Ring

1 610 591 047

Air-Deflector Ring

1 610 591 047

22.036 TND*

Availability 1

Price group: 15

22.036 TND*

*All prices are recommended retail prices including VAT

Pos. 34

Pos. 34 | Air Path

1 610 591 048

Air Path

1 610 591 048

2.019 TND*

Availability 1

Price group: 14

2.019 TND*

*All prices are recommended retail prices including VAT

Pos. 35

Pos. 35 | Hammer Pipe

1 615 806 243

Hammer Pipe

1 615 806 243

185.73 TND*

Availability 1

Price group: 48

185.73 TND*

*All prices are recommended retail prices including VAT

Pos. 36

Pos. 36 | Perforated Ring

1 610 190 066

Perforated Ring

1 610 190 066

2.221 TND*

Availability 1

Price group: 17

2.221 TND*

*All prices are recommended retail prices including VAT

Pos. 37

Pos. 37 | Control Bushing

1 610 420 006

Control Bushing

1 610 420 006

14.657 TND*

Availability 1

Price group: 32

14.657 TND*

*All prices are recommended retail prices including VAT

Pos. 38

Pos. 38 | Covering hood

1 615 190 173

Covering hood

1 615 190 173

12.744 TND*

Availability 1

Price group: 29

12.744 TND*

*All prices are recommended retail prices including VAT

Pos. 39

Pos. 39 | Rotary shaft lip seal

1 610 283 052

Rotary shaft lip seal

1 610 283 052

1.899 TND*

Availability 1

Price group: 18

1.899 TND*

*All prices are recommended retail prices including VAT

Pos. 43

Pos. 43 | Brush-Cover

1 615 500 426

Brush-Cover

1 615 500 426

7.252 TND*

Availability 1

Price group: 21

7.252 TND*

*All prices are recommended retail prices including VAT

Pos. 44

Pos. 44 | Guide Sleeve

1 610 322 017

Guide Sleeve

1 610 322 017

62.512 TND*

Availability 1

Price group: 33

62.512 TND*

*All prices are recommended retail prices including VAT

Pos. 46

Pos. 46 | Holding-Down-Appliance

1 615 500 427

Holding-Down-Appliance

1 615 500 427

2.071 TND*

Availability 1

Price group: 16

2.071 TND*

*All prices are recommended retail prices including VAT

Pos. 49

Pos. 49 | Plug Holder

1 604 477 020

Plug Holder

1 604 477 020

43.109 TND*

Availability 1

Price group: 14

43.109 TND*

*All prices are recommended retail prices including VAT

Pos. 50

Pos. 50 | Stop Ring

1 610 206 028

Stop Ring

1 610 206 028

2.631 TND*

Availability 1

Price group: 17

2.631 TND*

*All prices are recommended retail prices including VAT

Pos. 51

Pos. 51 | Housing Cover

1 615 500 424

Housing Cover

1 615 500 424

1.756 TND*

Availability 1

Price group: 17

1.756 TND*

*All prices are recommended retail prices including VAT

Pos. 52

Pos. 52 | Housing Cover

1 615 500 425

Housing Cover

1 615 500 425

1.756 TND*

Availability 1

Price group: 17

1.756 TND*

*All prices are recommended retail prices including VAT

Pos. 54

Pos. 54 | Control Disc

1 610 190 069

Control Disc

1 610 190 069

32.192 TND*

Availability 1

Price group: 31

32.192 TND*

*All prices are recommended retail prices including VAT

Pos. 55

Pos. 55 | Retaining snap ring

1 610 500 024

Retaining snap ring

1 610 500 024

0.385 TND*

Availability 1

Price group: 11

0.385 TND*

*All prices are recommended retail prices including VAT

Pos. 71

Pos. 71 | Straight Pin

1 613 101 014

Straight Pin

1 613 101 014

24.345 TND*

Availability 1

Price group: 12

24.345 TND*

*All prices are recommended retail prices including VAT

Pos. 73

Pos. 73 | Eccentric Bolt

1 610 320 015

Eccentric Bolt

1 610 320 015

29.336 TND*

Availability 1

Price group: 26

29.336 TND*

*All prices are recommended retail prices including VAT

Pos. 75

Pos. 75 | Handle

1 615 132 132

Handle

1 615 132 132

138.827 TND*

Availability 1

Price group: 38

138.827 TND*

*All prices are recommended retail prices including VAT

Pos. 75/82

Pos. 75/82 | Bellows

1 610 415 003

Bellows

1 610 415 003

9.772 TND*

Availability 2

Price group: 26

9.772 TND*

*All prices are recommended retail prices including VAT

Pos. 75/83

Pos. 75/83 | Compression Spring

1 614 621 009

Compression Spring

1 614 621 009

6.441 TND*

Availability 2

Price group: 21

6.441 TND*

*All prices are recommended retail prices including VAT

Pos. 80

Pos. 80 | Speed governor

1 617 233 052

Speed governor

1 617 233 052

145.21 TND*

Availability 1

Price group: 40

145.21 TND*

*All prices are recommended retail prices including VAT

Pos. 81

Pos. 81 | Inserted Part

1 611 038 018

Inserted Part

1 611 038 018

3.206 TND*

Availability 1

Price group: 19

3.206 TND*

*All prices are recommended retail prices including VAT

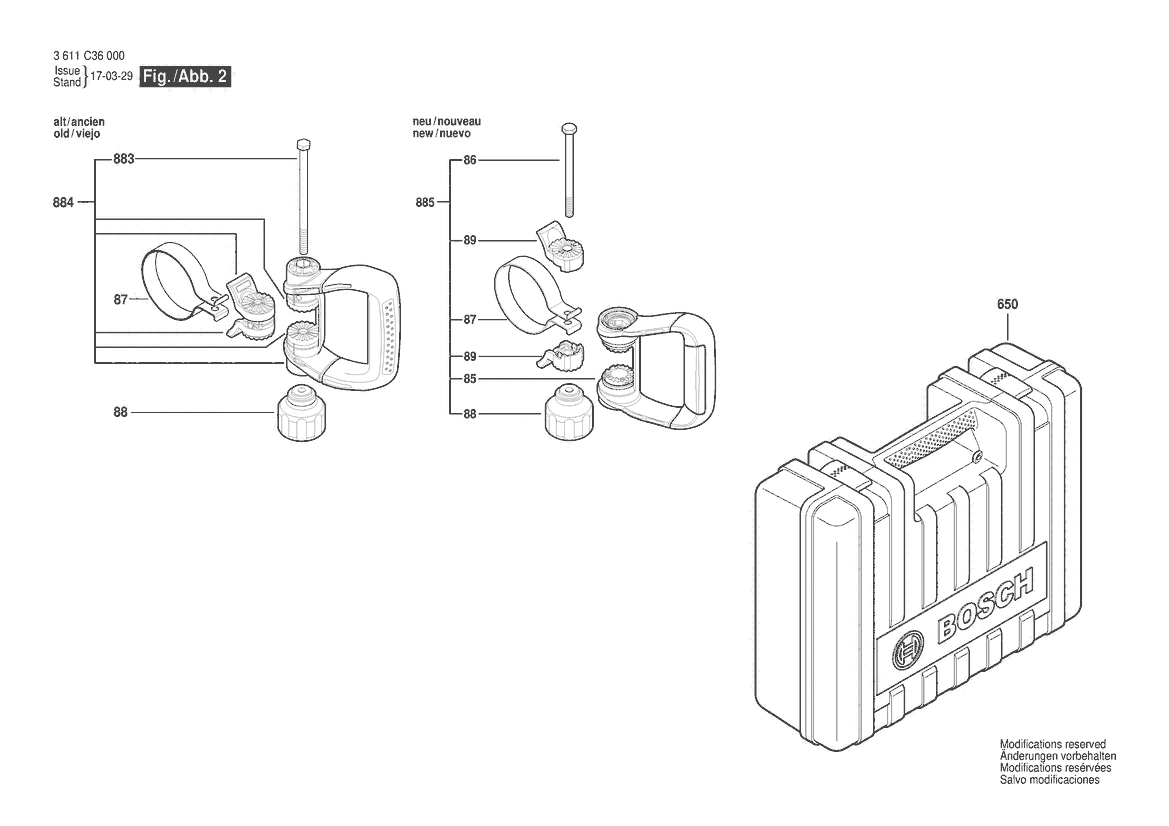

Pos. 85

Pos. 85 | Auxiliary Handle

1 602 025 081

Auxiliary Handle

1 602 025 081

14.281 TND*

Availability 1

Price group: 29

14.281 TND*

*All prices are recommended retail prices including VAT

Pos. 86

Pos. 86 | Hex Screw

2 911 021 267

Hex Screw

2 911 021 267

1.018 TND*

Availability 1

Price group: 15

1.018 TND*

*All prices are recommended retail prices including VAT

Pos. 87

Pos. 87 | Clamping Band

1 600 A01 BH0

Clamping Band

1 600 A01 BH0

35.623 TND*

Availability 1

Price group: 23

35.623 TND*

*All prices are recommended retail prices including VAT

Pos. 88

Pos. 88 | Star Knob

1 619 P16 922

Star Knob

1 619 P16 922

2.129 TND*

Availability 1

Price group: 15

2.129 TND*

*All prices are recommended retail prices including VAT

Pos. 89

Pos. 89 | Clamping Piece

1 600 A00 8BL

Clamping Piece

1 600 A00 8BL

0.90 TND*

Availability 2

Price group: 13

0.90 TND*

*All prices are recommended retail prices including VAT

Pos. 104

Pos. 104 | Damper

1 610 210 219

Damper

1 610 210 219

20.224 TND*

Availability 1

Price group: 37

20.224 TND*

*All prices are recommended retail prices including VAT

Pos. 121

Pos. 121 | Retaining snap ring

1 610 200 032

Retaining snap ring

1 610 200 032

14.427 TND*

Availability 1

Price group: 34

14.427 TND*

*All prices are recommended retail prices including VAT

Pos. 123

Pos. 123 | groove ball bearing 20X47X14

1 610 900 033

groove ball bearing 20X47X14

1 610 900 033

6.23 TND*

Availability 1

Price group: 22

6.23 TND*

*All prices are recommended retail prices including VAT

Pos. 124

Pos. 124 | groove ball bearing 20X42X12

1 610 900 034

groove ball bearing 20X42X12

1 610 900 034

36.963 TND*

Availability 1

Price group: 23

36.963 TND*

*All prices are recommended retail prices including VAT

Pos. 126

Pos. 126 | Torx Oval-Head Screw 4X20

2 603 490 023

Torx Oval-Head Screw 4X20

2 603 490 023

1.055 TND*

Availability 1

Price group: 10

1.055 TND*

*All prices are recommended retail prices including VAT

Pos. 127

Pos. 127 | Torx Oval-Head Screw 6X30

1 613 490 022

Torx Oval-Head Screw 6X30

1 613 490 022

0.415 TND*

Availability 4

Price group: 10

0.415 TND*

*All prices are recommended retail prices including VAT

Pos. 128

Pos. 128 | Torx socket button screw

1 613 414 026

Torx socket button screw

1 613 414 026

0.369 TND*

Availability 6

Price group: 13

0.369 TND*

*All prices are recommended retail prices including VAT

Pos. 129

Pos. 129 | Torx Oval-Head Screw M5X20

1 613 490 024

Torx Oval-Head Screw M5X20

1 613 490 024

0.346 TND*

Availability 6

Price group: 11

0.346 TND*

*All prices are recommended retail prices including VAT

Pos. 132

Pos. 132 | Torx Oval-Head Screw 6X20

1 613 490 025

Torx Oval-Head Screw 6X20

1 613 490 025

0.312 TND*

Availability 6

Price group: 12

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 133

Pos. 133 | Torx Oval-Head Screw 5X25

1 613 490 026

Torx Oval-Head Screw 5X25

1 613 490 026

0.312 TND*

Availability 3

Price group: 10

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 134

Pos. 134 | Torx Oval-Head Screw 3,5X16

1 613 490 027

Torx Oval-Head Screw 3,5X16

1 613 490 027

0.312 TND*

Availability 4

Price group: 10

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 139

Pos. 139 | Felt Washer

1 610 209 017

Felt Washer

1 610 209 017

1.21 TND*

Availability 1

Price group: 12

1.21 TND*

*All prices are recommended retail prices including VAT

Pos. 143

Pos. 143 | Retaining ring

1 614 601 071

Retaining ring

1 614 601 071

22.856 TND*

Availability 1

Price group: 12

22.856 TND*

*All prices are recommended retail prices including VAT

Pos. 144

Pos. 144 | Supporting Disc

1 610 101 023

Supporting Disc

1 610 101 023

34.817 TND*

Availability 1

Price group: 15

34.817 TND*

*All prices are recommended retail prices including VAT

Pos. 163

Pos. 163 | Spring retaining ring

1 610 224 012

Spring retaining ring

1 610 224 012

0.312 TND*

Availability 1

Price group: 10

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 164

Pos. 164 | Spring retaining ring

1 610 224 013

Spring retaining ring

1 610 224 013

0.516 TND*

Availability 1

Price group: 10

0.516 TND*

*All prices are recommended retail prices including VAT

Pos. 166

Pos. 166 | Solenoid Ring

1 610 209 011

Solenoid Ring

1 610 209 011

17.172 TND*

Availability 1

Price group: 18

17.172 TND*

*All prices are recommended retail prices including VAT

Pos. 167

Pos. 167 | Hex Nut DIN 439-BM8-04

2 915 050 107

Hex Nut DIN 439-BM8-04

2 915 050 107

30.656 TND*

Availability 1

Price group: 10

30.656 TND*

*All prices are recommended retail prices including VAT

Pos. 172

Pos. 172 | O-Ring

1 610 210 216

O-Ring

1 610 210 216

1.088 TND*

Availability 1

Price group: 12

1.088 TND*

*All prices are recommended retail prices including VAT

Pos. 173

Pos. 173 | Disc

1 610 100 021

Disc

1 610 100 021

0.312 TND*

Availability 2

Price group: 10

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 184

Pos. 184 | Damping Ring

1 610 210 218

Damping Ring

1 610 210 218

5.075 TND*

Availability 1

Price group: 20

5.075 TND*

*All prices are recommended retail prices including VAT

Pos. 650

Pos. 650 | Carrying Case

1 615 438 492

Carrying Case

1 615 438 492

168.761 TND*

Availability 1

Price group: 40

168.761 TND*

*All prices are recommended retail prices including VAT

Pos. 805

Pos. 805 | Power supply cord

1 617 000 723

Power supply cord

1 617 000 723

90.034 TND*

Availability 1

Price group: 32

90.034 TND*

*All prices are recommended retail prices including VAT

Pos. 808

Pos. 808 | Nameplate

1 601 11A 3H5

Nameplate

1 601 11A 3H5

4.948 TND*

Availability 1

Price group: 13

4.948 TND*

*All prices are recommended retail prices including VAT

Pos. 810

Pos. 810 | Carbon Brush

1 617 000 750

Carbon Brush

1 617 000 750

30.57 TND*

Availability 1

Price group: 28

30.57 TND*

*All prices are recommended retail prices including VAT

Pos. 813

Pos. 813 | groove ball bearing

1 617 000 744

groove ball bearing

1 617 000 744

41.695 TND*

Availability 1

Price group: 25

41.695 TND*

*All prices are recommended retail prices including VAT

Pos. 820

Pos. 820 | Toolholder

1 617 000 745

Toolholder

1 617 000 745

483.356 TND*

Availability 1

Price group: 47

483.356 TND*

*All prices are recommended retail prices including VAT

Pos. 840

Pos. 840 | Impact Mechanism Housing

1 617 000 746

Impact Mechanism Housing

1 617 000 746

337.498 TND*

Availability 1

Price group: 51

337.498 TND*

*All prices are recommended retail prices including VAT

Pos. 841

Pos. 841 | Striker Pin

1 617 000 747

Striker Pin

1 617 000 747

73.676 TND*

Availability 1

Price group: 40

73.676 TND*

*All prices are recommended retail prices including VAT

Pos. 845

Pos. 845 | Gear Cover

1 617 000 748

Gear Cover

1 617 000 748

330.701 TND*

Availability 1

Price group: 41

330.701 TND*

*All prices are recommended retail prices including VAT

Pos. 847

Pos. 847 | Brush Holder

1 617 000 749

Brush Holder

1 617 000 749

81.102 TND*

Availability 1

Price group: 32

81.102 TND*

*All prices are recommended retail prices including VAT

Pos. 856

Pos. 856 | Hammer Piston

1 617 000 751

Hammer Piston

1 617 000 751

61.159 TND*

Availability 1

Price group: 27

61.159 TND*

*All prices are recommended retail prices including VAT

Pos. 857

Pos. 857 | Striker

1 617 000 752

Striker

1 617 000 752

37.685 TND*

Availability 1

Price group: 34

37.685 TND*

*All prices are recommended retail prices including VAT

Pos. 870

Pos. 870 | Connecting Rod

1 617 000 753

Connecting Rod

1 617 000 753

129.757 TND*

Availability 1

Price group: 34

129.757 TND*

*All prices are recommended retail prices including VAT

Pos. 872

Pos. 872 | Eccentric Cog Wheel

1 600 A00 5A4

Eccentric Cog Wheel

1 600 A00 5A4

126.272 TND*

Availability 1

Price group: 43

126.272 TND*

*All prices are recommended retail prices including VAT

Pos. 878

Pos. 878 | O-Ring

1 610 210 215

O-Ring

1 610 210 215

0.312 TND*

Availability 1

Price group: 10

0.312 TND*

*All prices are recommended retail prices including VAT

Pos. 883

Pos. 883 | Hex Screw

1 613 490 019

Hex Screw

1 613 490 019

1.77 TND*

Availability 1

Price group: 13

1.77 TND*

*All prices are recommended retail prices including VAT

Pos. 884

Pos. 884 | Auxiliary Handle

1 602 025 08T

Auxiliary Handle

1 602 025 08T

33.05 TND*

Availability 1

Price group: 35

33.05 TND*

*All prices are recommended retail prices including VAT

Pos. 885

Pos. 885 | Auxiliary Handle

1 602 025 08J

Auxiliary Handle

1 602 025 08J

57.381 TND*

Availability 1

Price group: 39

57.381 TND*

*All prices are recommended retail prices including VAT

Pos. 886

Pos. 886 | O-Ring

1 617 000 755

O-Ring

1 617 000 755

24.201 TND*

Availability 1

Price group: 28

24.201 TND*

*All prices are recommended retail prices including VAT

Pos. 887

Pos. 887 | O-Ring

1 617 000 756

O-Ring

1 617 000 756

24.201 TND*

Availability 1

Price group: 22

24.201 TND*

*All prices are recommended retail prices including VAT

Pos. 888

Pos. 888 | Parts Set

1 617 000 757

Parts Set

1 617 000 757

23.317 TND*

Availability 1

Price group: 21

23.317 TND*

*All prices are recommended retail prices including VAT

Pos. 897

Pos. 897 | Wear and Tear Part Set

1 617 000 758

Wear and Tear Part Set

1 617 000 758

88.496 TND*

Availability 1

Price group: 40
