Universal Orbital Sander
GSS2300 | 3 601 B98 0K0 | 230 V / 026 - AS
Lubrication instructions
Product information
Print drawing

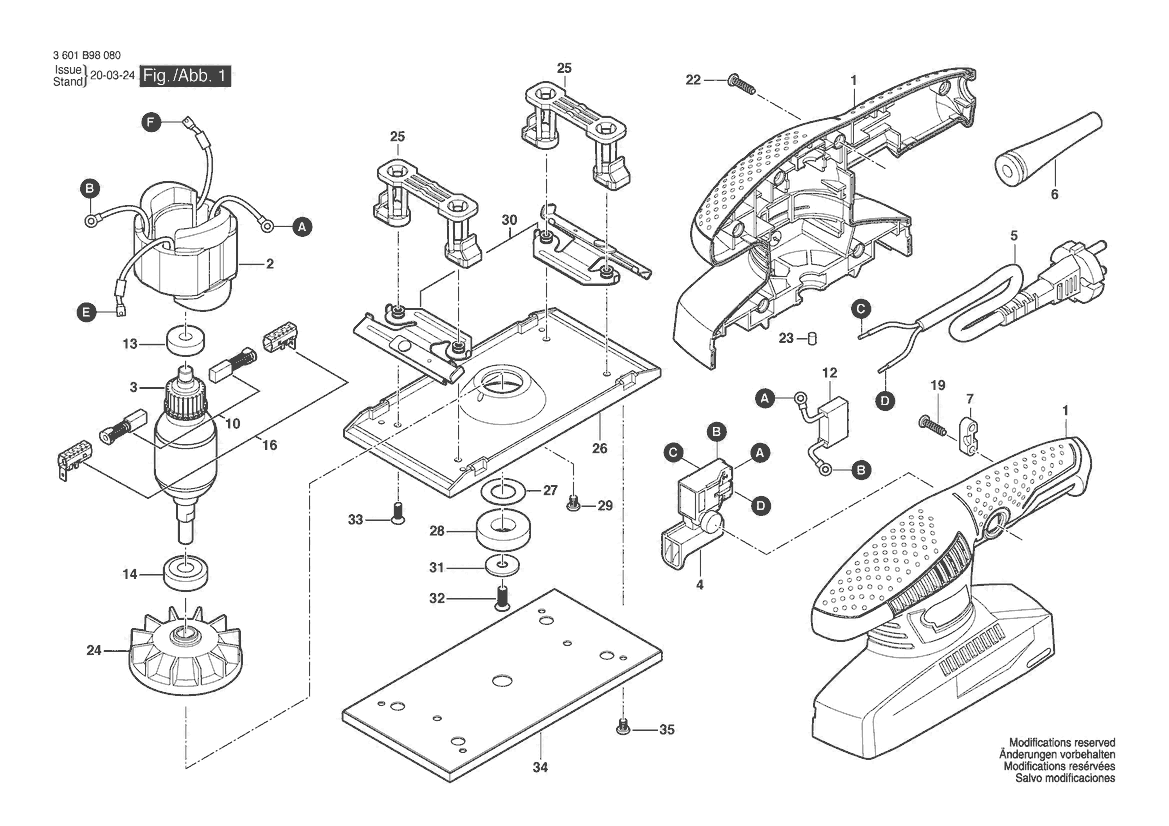

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 B98 0K0
Image 1
Support
-
Spare part number: 1 619 PA6 314
Position: 25
Availability: 2
Price group: 15
7.157 TND*
All prices are recommended retail prices including VAT
Support
-
Spare part number: 1 619 PA6 314
Position: 25
Availability: 2
Price group: 15
7.157 TND*
All prices are recommended retail prices including VAT
Housing Set
-
Spare part number: 1 619 PA7 626
Position: 1
Availability: 1
Price group: 28
18.822 TND*
All prices are recommended retail prices including VAT
Housing Set
-
Spare part number: 1 619 PA7 626
Position: 1
Availability: 1
Price group: 28
18.822 TND*
All prices are recommended retail prices including VAT
Field assembly 220-240V
-
Spare part number: 1 619 PA7 627
Position: 2
Availability: 1
Price group: 29
46.33 TND*
All prices are recommended retail prices including VAT
Armature 220-240V
-
Spare part number: 1 619 PA7 629
Position: 3
Availability: 1
Price group: 30
96.801 TND*
All prices are recommended retail prices including VAT
Switch
-
Spare part number: 1 619 PA7 631
Position: 4
Availability: 1
Price group: 20
7.02 TND*
All prices are recommended retail prices including VAT
Grommet
-
Spare part number: 1 619 PA7 633
Position: 6
Availability: 1
Price group: 10
0.639 TND*
All prices are recommended retail prices including VAT
Clip
-
Spare part number: 1 619 PA7 634
Position: 7
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Carbon-Brush Set
-
Spare part number: 1 619 PA7 635
Position: 10
Availability: 1
Price group: 20
12.96 TND*
All prices are recommended retail prices including VAT
Suppression Capacitor
-
Spare part number: 1 619 PA7 636
Position: 12
Availability: 1
Price group: 10
0.763 TND*
All prices are recommended retail prices including VAT
Bearing
-
Spare part number: 1 619 PA7 637
Position: 13
Availability: 1
Price group: 15
8.232 TND*
All prices are recommended retail prices including VAT
Bearing
-
Spare part number: 1 619 PA7 638
Position: 14
Availability: 1
Price group: 13
4.971 TND*
All prices are recommended retail prices including VAT
Carbon Brush Holder
-
Spare part number: 1 619 PA7 639
Position: 16
Availability: 1
Price group: 14
2.876 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 640
Position: 19
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 641
Position: 22
Availability: 6
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Rubber Pad
-
Spare part number: 1 619 PA7 642
Position: 23
Availability: 4
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Fan
-
Spare part number: 1 619 PA7 643
Position: 24
Availability: 1
Price group: 18
5.103 TND*
All prices are recommended retail prices including VAT
Baseplate
-
Spare part number: 1 619 PA7 644
Position: 26
Availability: 1
Price group: 23
42.352 TND*
All prices are recommended retail prices including VAT
Plain Washer
-
Spare part number: 1 619 PA7 645
Position: 27
Availability: 1
Price group: 10
0.32 TND*
All prices are recommended retail prices including VAT
Bearing
-
Spare part number: 1 619 PA7 646
Position: 28
Availability: 1
Price group: 16
8.816 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 647
Position: 29
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Clamp
-
Spare part number: 1 619 PA7 648
Position: 30
Availability: 1
Price group: 19
28.138 TND*
All prices are recommended retail prices including VAT
Plain Washer
-
Spare part number: 1 619 PA7 649
Position: 31
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 650
Position: 32
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 651
Position: 33
Availability: 4
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Foam Panel
-
Spare part number: 1 619 PA7 652
Position: 34
Availability: 1
Price group: 19
12.854 TND*
All prices are recommended retail prices including VAT
Screw
-
Spare part number: 1 619 PA7 653
Position: 35
Availability: 4
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Power supply cord
-
Spare part number: 1 619 PA7 801
Position: 5
Availability: 1
Price group: 21
7.659 TND*
All prices are recommended retail prices including VAT
1
Spare parts in cart

27 Parts found

Sort by
Description
Pos. 1 | Housing Set
1 619 PA7 626
-
18.822 TND*
*All prices are recommended retail prices including VAT
Pos. 2 | Field assembly 220-240V
1 619 PA7 627
-
46.33 TND*
*All prices are recommended retail prices including VAT
Pos. 3 | Armature 220-240V
1 619 PA7 629
-
96.801 TND*
*All prices are recommended retail prices including VAT
Pos. 4 | Switch
1 619 PA7 631
-
7.02 TND*
*All prices are recommended retail prices including VAT
Pos. 5 | Power supply cord
1 619 PA7 801
-
7.659 TND*
*All prices are recommended retail prices including VAT
Pos. 6 | Grommet
1 619 PA7 633
-
0.639 TND*
*All prices are recommended retail prices including VAT
Pos. 7 | Clip
1 619 PA7 634
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 10 | Carbon-Brush Set
1 619 PA7 635
-
12.96 TND*
*All prices are recommended retail prices including VAT
Pos. 12 | Suppression Capacitor
1 619 PA7 636
-
0.763 TND*
*All prices are recommended retail prices including VAT
Pos. 13 | Bearing
1 619 PA7 637
-
8.232 TND*
*All prices are recommended retail prices including VAT
Pos. 14 | Bearing
1 619 PA7 638
-
4.971 TND*
*All prices are recommended retail prices including VAT
Pos. 16 | Carbon Brush Holder
1 619 PA7 639
-
2.876 TND*
*All prices are recommended retail prices including VAT
Pos. 19 | Screw
1 619 PA7 640
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 22 | Screw
1 619 PA7 641
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 23 | Rubber Pad
1 619 PA7 642
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 24 | Fan
1 619 PA7 643
-
5.103 TND*
*All prices are recommended retail prices including VAT
Pos. 25 | Support
1 619 PA6 314
-
7.157 TND*
*All prices are recommended retail prices including VAT
Pos. 26 | Baseplate
1 619 PA7 644
-
42.352 TND*
*All prices are recommended retail prices including VAT
Pos. 27 | Plain Washer
1 619 PA7 645
-
0.32 TND*
*All prices are recommended retail prices including VAT
Pos. 28 | Bearing
1 619 PA7 646
-
8.816 TND*
*All prices are recommended retail prices including VAT
Pos. 29 | Screw
1 619 PA7 647
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 30 | Clamp
1 619 PA7 648
-
28.138 TND*
*All prices are recommended retail prices including VAT
Pos. 31 | Plain Washer
1 619 PA7 649
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 32 | Screw
1 619 PA7 650
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 33 | Screw
1 619 PA7 651
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 34 | Foam Panel
1 619 PA7 652
-
12.854 TND*
*All prices are recommended retail prices including VAT
Pos. 35 | Screw
1 619 PA7 653
-
0.312 TND*
*All prices are recommended retail prices including VAT
* All prices are recommended retail prices including VAT
