Angle Grinder
GWS 700 | 3 601 CA3 0K1 | 230 V / 023 - AFR
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 CA3 0K1

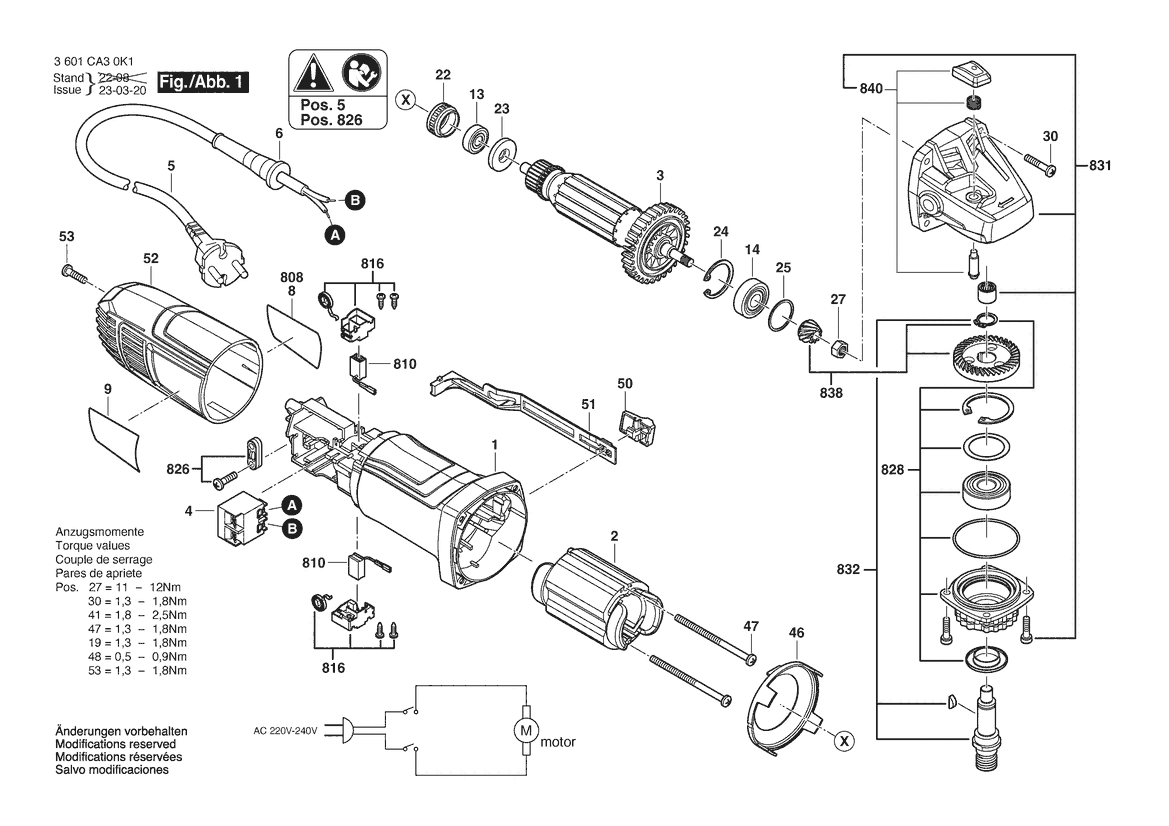

Image 1
Motor Housing
-
Spare part number: 1 619 PB4 405
Position: 1
Availability: 1
Price group: 17
24.201 TND*
All prices are recommended retail prices including VAT
Switch Button
-
Spare part number: 1 619 PB4 406
Position: 50
Availability: 1
Price group: 10
0.619 TND*
All prices are recommended retail prices including VAT
Housing Cover
-
Spare part number: 1 619 PB4 407
Position: 52
Availability: 1
Price group: 13
2.226 TND*
All prices are recommended retail prices including VAT
Adjusting Slide
-
Spare part number: 1 619 PB4 408
Position: 51
Availability: 1
Price group: 10
1.211 TND*
All prices are recommended retail prices including VAT
Armature
-
Spare part number: 1 619 PB4 412
Position: 3
Availability: 1
Price group: 28
31.031 TND*
All prices are recommended retail prices including VAT
Field
-
Spare part number: 1 619 PB4 413
Position: 2
Availability: 1
Price group: 26
27.539 TND*
All prices are recommended retail prices including VAT
On-Off Switch
-
Spare part number: 1 619 PB4 414
Position: 4
Availability: 1
Price group: 15
6.112 TND*
All prices are recommended retail prices including VAT
Power supply cord
-
Spare part number: 1 619 PB4 415
Position: 5
Availability: 1
Price group: 17
18.152 TND*
All prices are recommended retail prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB4 422
Position: 13
Availability: 1
Price group: 12
2.791 TND*
All prices are recommended retail prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB4 423
Position: 14
Availability: 1
Price group: 15
5.315 TND*
All prices are recommended retail prices including VAT
Air-Deflector Ring
-
Spare part number: 1 619 PB4 435
Position: 46
Availability: 1
Price group: 10
3.991 TND*
All prices are recommended retail prices including VAT
Manufacturer's nameplate
-
Spare part number: 1 619 PB4 436
Position: 9
Availability: 1
Price group: 13
0.621 TND*
All prices are recommended retail prices including VAT
Nameplate
-
Spare part number: 1 619 PB4 437
Position: 8
Availability: 1
Price group: 13
0.639 TND*
All prices are recommended retail prices including VAT
Intermediate Ring
-
Spare part number: 1 619 PB4 443
Position: 23
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Cord guard
-
Spare part number: 1 619 PB4 451
Position: 6
Availability: 1
Price group: 10
0.371 TND*
All prices are recommended retail prices including VAT
Rubber Ring
-
Spare part number: 1 619 PB4 452
Position: 22
Availability: 1
Price group: 11
2.163 TND*
All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 454
Position: 53
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 456
Position: 47
Availability: 2
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 458
Position: 30
Availability: 4
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Hex Nut
-
Spare part number: 1 619 PB4 460
Position: 27
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Spring retaining ring
-
Spare part number: 1 619 PB4 463
Position: 24
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
O-Ring
-
Spare part number: 1 619 PB4 469
Position: 25
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Pinion
-
Spare part number: 1 619 PB4 664
Position: 838
Availability: 1
Price group: 20
13.284 TND*
All prices are recommended retail prices including VAT
Push-Button
-
Spare part number: 1 619 PB4 665
Position: 840
Availability: 1
Price group: 11
0.825 TND*
All prices are recommended retail prices including VAT
Bearing Flange
-
Spare part number: 1 619 PB4 667
Position: 828
Availability: 1
Price group: 19
9.964 TND*
All prices are recommended retail prices including VAT
Drive Shaft
-
Spare part number: 1 619 PB4 668
Position: 832
Availability: 1
Price group: 13
10.80 TND*
All prices are recommended retail prices including VAT
Fastening Clamp
-
Spare part number: 1 619 PB4 669
Position: 826
Availability: 1
Price group: 10
0.312 TND*
All prices are recommended retail prices including VAT
Brush Holder
-
Spare part number: 1 619 PB4 671
Position: 816
Availability: 1
Price group: 11
6.786 TND*
All prices are recommended retail prices including VAT
Brush Holder
-
Spare part number: 1 619 PB4 671
Position: 816
Availability: 1
Price group: 11
6.786 TND*
All prices are recommended retail prices including VAT
Gear Housing
-
Spare part number: 1 619 PB4 673
Position: 831
Availability: 1
Price group: 21
13.728 TND*
All prices are recommended retail prices including VAT
Carbon Brush
-
part
Spare part number: 1 619 PB4 749
Position: 810
Availability: 1
Price group: 13
6.848 TND*
All prices are recommended retail prices including VAT
Carbon Brush
-
part
Spare part number: 1 619 PB4 749
Position: 810
Availability: 1
Price group: 13
6.848 TND*
All prices are recommended retail prices including VAT
Image 1
Housing Cover
-
Spare part number: 1 619 PB4 407
Position: 52
Availability: 1
Price group: 13
2.226 TND*
All prices are recommended retail prices including VAT
Auxiliary Handle
-
Spare part number: 1 619 PB4 409
Position: 655
Availability: 1
Price group: 12
1.732 TND*
All prices are recommended retail prices including VAT
Clamping Flange
-
Spare part number: 1 619 PB4 411
Position: 652
Availability: 1
Price group: 12
0.68 TND*
All prices are recommended retail prices including VAT
Pin-Type Face-Wrench
-
Spare part number: 1 619 PB4 434
Position: 654
Availability: 1
Price group: 16
0.691 TND*
All prices are recommended retail prices including VAT
Round Nut
-
Spare part number: 1 619 PB4 449
Position: 653
Availability: 1
Price group: 11
0.948 TND*
All prices are recommended retail prices including VAT
Protective Cover
-
Spare part number: 1 619 PB6 288
Position: 651
Availability: 1
Price group: 23
4.677 TND*
All prices are recommended retail prices including VAT
1
2
Spare parts in cart

35 Parts found

Sort by
Description
Pos. 1 | Motor Housing
1 619 PB4 405
-
24.201 TND*
*All prices are recommended retail prices including VAT
Pos. 2 | Field
1 619 PB4 413
-
27.539 TND*
*All prices are recommended retail prices including VAT
Pos. 3 | Armature
1 619 PB4 412
-
31.031 TND*
*All prices are recommended retail prices including VAT
Pos. 4 | On-Off Switch
1 619 PB4 414
-
6.112 TND*
*All prices are recommended retail prices including VAT
Pos. 5 | Power supply cord
1 619 PB4 415
-
18.152 TND*
*All prices are recommended retail prices including VAT
Pos. 6 | Cord guard
1 619 PB4 451
-
0.371 TND*
*All prices are recommended retail prices including VAT
Pos. 8 | Nameplate
1 619 PB4 437
-
0.639 TND*
*All prices are recommended retail prices including VAT
Pos. 9 | Manufacturer's nameplate
1 619 PB4 436
-
0.621 TND*
*All prices are recommended retail prices including VAT
Pos. 13 | groove ball bearing
1 619 PB4 422
-
2.791 TND*
*All prices are recommended retail prices including VAT
Pos. 14 | groove ball bearing
1 619 PB4 423
-
5.315 TND*
*All prices are recommended retail prices including VAT
Pos. 22 | Rubber Ring
1 619 PB4 452
-
2.163 TND*
*All prices are recommended retail prices including VAT
Pos. 23 | Intermediate Ring
1 619 PB4 443
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 24 | Spring retaining ring
1 619 PB4 463
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 25 | O-Ring
1 619 PB4 469
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 27 | Hex Nut
1 619 PB4 460
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 30 | Tapping Screw
1 619 PB4 458
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 46 | Air-Deflector Ring
1 619 PB4 435
-
3.991 TND*
*All prices are recommended retail prices including VAT
Pos. 47 | Tapping Screw
1 619 PB4 456
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 50 | Switch Button
1 619 PB4 406
-
0.619 TND*
*All prices are recommended retail prices including VAT
Pos. 51 | Adjusting Slide
1 619 PB4 408
-
1.211 TND*
*All prices are recommended retail prices including VAT
Pos. 52 | Housing Cover
1 619 PB4 407
-
2.226 TND*
*All prices are recommended retail prices including VAT
Pos. 53 | Tapping Screw
1 619 PB4 454
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 651 | Protective Cover
1 619 PB6 288
-
4.677 TND*
*All prices are recommended retail prices including VAT
Pos. 652 | Clamping Flange
1 619 PB4 411
-
0.68 TND*
*All prices are recommended retail prices including VAT
Pos. 653 | Round Nut
1 619 PB4 449
-
0.948 TND*
*All prices are recommended retail prices including VAT
Pos. 654 | Pin-Type Face-Wrench
1 619 PB4 434
-
0.691 TND*
*All prices are recommended retail prices including VAT
Pos. 655 | Auxiliary Handle
1 619 PB4 409
-
1.732 TND*
*All prices are recommended retail prices including VAT
Pos. 810 | Carbon Brush
1 619 PB4 749
-
6.848 TND*
*All prices are recommended retail prices including VAT
Pos. 816 | Brush Holder
1 619 PB4 671
-
6.786 TND*
*All prices are recommended retail prices including VAT
Pos. 826 | Fastening Clamp
1 619 PB4 669
-
0.312 TND*
*All prices are recommended retail prices including VAT
Pos. 828 | Bearing Flange
1 619 PB4 667
-
9.964 TND*
*All prices are recommended retail prices including VAT
Pos. 831 | Gear Housing
1 619 PB4 673
-
13.728 TND*
*All prices are recommended retail prices including VAT
Pos. 832 | Drive Shaft
1 619 PB4 668
-
10.80 TND*
*All prices are recommended retail prices including VAT
Pos. 838 | Pinion
1 619 PB4 664
-
13.284 TND*
*All prices are recommended retail prices including VAT
Pos. 840 | Push-Button
1 619 PB4 665
-
0.825 TND*
*All prices are recommended retail prices including VAT
* All prices are recommended retail prices including VAT
Turn the device for 90 degrees.
3 601 CA3 0K1
Image 1
Motor Housing
-
Spare part number: 1 619 PB4 405
Position: 1
Availability: 1
Price group: 17
24.201 TND*

All prices are recommended retail prices including VAT
Switch Button
-
Spare part number: 1 619 PB4 406
Position: 50
Availability: 1
Price group: 10
0.619 TND*

All prices are recommended retail prices including VAT
Housing Cover
-
Spare part number: 1 619 PB4 407
Position: 52
Availability: 1
Price group: 13
2.226 TND*

All prices are recommended retail prices including VAT
Adjusting Slide
-
Spare part number: 1 619 PB4 408
Position: 51
Availability: 1
Price group: 10
1.211 TND*

All prices are recommended retail prices including VAT
Armature
-
Spare part number: 1 619 PB4 412
Position: 3
Availability: 1
Price group: 28
31.031 TND*

All prices are recommended retail prices including VAT
Field
-
Spare part number: 1 619 PB4 413
Position: 2
Availability: 1
Price group: 26
27.539 TND*

All prices are recommended retail prices including VAT
On-Off Switch
-
Spare part number: 1 619 PB4 414
Position: 4
Availability: 1
Price group: 15
6.112 TND*

All prices are recommended retail prices including VAT
Power supply cord
-
Spare part number: 1 619 PB4 415
Position: 5
Availability: 1
Price group: 17
18.152 TND*

All prices are recommended retail prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB4 422
Position: 13
Availability: 1
Price group: 12
2.791 TND*

All prices are recommended retail prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB4 423
Position: 14
Availability: 1
Price group: 15
5.315 TND*

All prices are recommended retail prices including VAT
Air-Deflector Ring
-
Spare part number: 1 619 PB4 435
Position: 46
Availability: 1
Price group: 10
3.991 TND*

All prices are recommended retail prices including VAT
Manufacturer's nameplate
-
Spare part number: 1 619 PB4 436
Position: 9
Availability: 1
Price group: 13
0.621 TND*

All prices are recommended retail prices including VAT
Nameplate
-
Spare part number: 1 619 PB4 437
Position: 8
Availability: 1
Price group: 13
0.639 TND*

All prices are recommended retail prices including VAT
Intermediate Ring
-
Spare part number: 1 619 PB4 443
Position: 23
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Cord guard
-
Spare part number: 1 619 PB4 451
Position: 6
Availability: 1
Price group: 10
0.371 TND*

All prices are recommended retail prices including VAT
Rubber Ring
-
Spare part number: 1 619 PB4 452
Position: 22
Availability: 1
Price group: 11
2.163 TND*

All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 454
Position: 53
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 456
Position: 47
Availability: 2
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB4 458
Position: 30
Availability: 4
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Hex Nut
-
Spare part number: 1 619 PB4 460
Position: 27
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Spring retaining ring
-
Spare part number: 1 619 PB4 463
Position: 24
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
O-Ring
-
Spare part number: 1 619 PB4 469
Position: 25
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Pinion
-
Spare part number: 1 619 PB4 664
Position: 838
Availability: 1
Price group: 20
13.284 TND*

All prices are recommended retail prices including VAT
Push-Button
-
Spare part number: 1 619 PB4 665
Position: 840
Availability: 1
Price group: 11
0.825 TND*

All prices are recommended retail prices including VAT
Bearing Flange
-
Spare part number: 1 619 PB4 667
Position: 828
Availability: 1
Price group: 19
9.964 TND*

All prices are recommended retail prices including VAT
Drive Shaft
-
Spare part number: 1 619 PB4 668
Position: 832
Availability: 1
Price group: 13
10.80 TND*

All prices are recommended retail prices including VAT
Fastening Clamp
-
Spare part number: 1 619 PB4 669
Position: 826
Availability: 1
Price group: 10
0.312 TND*

All prices are recommended retail prices including VAT
Brush Holder
-
Spare part number: 1 619 PB4 671
Position: 816
Availability: 1
Price group: 11
6.786 TND*

All prices are recommended retail prices including VAT
Brush Holder
-
Spare part number: 1 619 PB4 671
Position: 816
Availability: 1
Price group: 11
6.786 TND*

All prices are recommended retail prices including VAT
Gear Housing
-
Spare part number: 1 619 PB4 673
Position: 831
Availability: 1
Price group: 21
13.728 TND*

All prices are recommended retail prices including VAT
Carbon Brush
-
part
Spare part number: 1 619 PB4 749
Position: 810
Availability: 1
Price group: 13
6.848 TND*

All prices are recommended retail prices including VAT
Carbon Brush
-
part
Spare part number: 1 619 PB4 749
Position: 810
Availability: 1
Price group: 13
6.848 TND*

All prices are recommended retail prices including VAT
Image 1
Housing Cover
-
Spare part number: 1 619 PB4 407
Position: 52
Availability: 1
Price group: 13
2.226 TND*

All prices are recommended retail prices including VAT
Auxiliary Handle
-
Spare part number: 1 619 PB4 409
Position: 655
Availability: 1
Price group: 12
1.732 TND*

All prices are recommended retail prices including VAT
Clamping Flange
-
Spare part number: 1 619 PB4 411
Position: 652
Availability: 1
Price group: 12
0.68 TND*

All prices are recommended retail prices including VAT
Pin-Type Face-Wrench
-
Spare part number: 1 619 PB4 434
Position: 654
Availability: 1
Price group: 16
0.691 TND*

All prices are recommended retail prices including VAT
Round Nut
-
Spare part number: 1 619 PB4 449
Position: 653
Availability: 1
Price group: 11
0.948 TND*

All prices are recommended retail prices including VAT
Protective Cover
-
Spare part number: 1 619 PB6 288
Position: 651
Availability: 1
Price group: 23
4.677 TND*

All prices are recommended retail prices including VAT
1
2
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
