3 601 E96 0K0
Power supply cord
-
Spare part number: 1 619 PA7 979
Position: 5
Availability: 1
Price group: -
-
Connecting Cable
-
Spare part number: 1 619 PA7 981
Position: 26
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Connecting Cable
-
Spare part number: 1 619 PA7 981
Position: 26
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Clamping Piece
-
Spare part number: 1 619 PA7 982
Position: 7
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Switch Kit
-
Spare part number: 1 619 PA7 983
Position: 4
Availability: 1
Price group: 22
100,000.00 D*
Prices shown are gross prices including VAT
Suppression Capacitor
-
Spare part number: 1 619 PA7 985
Position: 12
Availability: 1
Price group: 13
25,000.00 D*
Prices shown are gross prices including VAT
Handle
-
Spare part number: 1 619 PA7 986
Position: 22
Availability: 1
Price group: 16
41,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: 1 619 PA7 987
Position: 23
Availability: 1
Price group: 17
68,000.00 D*
Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PA7 988
Position: 24
Availability: 2
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PA7 988
Position: 24
Availability: 2
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Motor Housing
-
Spare part number: 1 619 PA7 989
Position: 1
Availability: 1
Price group: 31
295,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: 1 619 PA7 990
Position: 36
Availability: 1
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Field 220-240V
-
Spare part number: 1 619 PA7 991
Position: 2
Availability: 1
Price group: 29
265,000.00 D*
Prices shown are gross prices including VAT
Air-Deflector Ring
-
Spare part number: 1 619 PA7 992
Position: 25
Availability: 1
Price group: 11
19,000.00 D*
Prices shown are gross prices including VAT
Armature 220-240V
-
Spare part number: 1 619 PA7 993
Position: 3
Availability: 1
Price group: 31
300,000.00 D*
Prices shown are gross prices including VAT
groove ball bearing
-
Spare part number: 1 619 PA7 994
Position: 13
Availability: 1
Price group: 14
30,000.00 D*
Prices shown are gross prices including VAT
Carbon Brush Holder
-
Spare part number: 1 619 PA7 995
Position: 16
Availability: 2
Price group: 14
30,000.00 D*
Prices shown are gross prices including VAT
Carbon Brush Holder
-
Spare part number: 1 619 PA7 995
Position: 16
Availability: 2
Price group: 14
30,000.00 D*
Prices shown are gross prices including VAT
Bearing Flange
-
Spare part number: 1 619 PA7 997
Position: 828
Availability: 1
Price group: 27
165,000.00 D*
Prices shown are gross prices including VAT
groove ball bearing
-
Spare part number: 1 619 PA7 998
Position: 14
Availability: 1
Price group: 14
30,000.00 D*
Prices shown are gross prices including VAT
groove ball bearing
-
Spare part number: 1 619 PA7 999
Position: 27
Availability: 1
Price group: 15
35,000.00 D*
Prices shown are gross prices including VAT
Pulley
-
Spare part number: 1 619 PA8 000
Position: 29
Availability: 1
Price group: 14
27,000.00 D*
Prices shown are gross prices including VAT
Pulley
-
Spare part number: 1 619 PA8 001
Position: 30
Availability: 1
Price group: 14
28,000.00 D*
Prices shown are gross prices including VAT
Gear Cover
-
Spare part number: 1 619 PA8 003
Position: 32
Availability: 1
Price group: 14
26,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: 1 619 PA8 004
Position: 33
Availability: 1
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Adjustment Knob
-
Spare part number: 1 619 PA8 005
Position: 35
Availability: 1
Price group: 12
26,000.00 D*
Prices shown are gross prices including VAT
Cap Nut
-
Spare part number: 1 619 PA8 006
Position: 34
Availability: 1
Price group: 12
21,000.00 D*
Prices shown are gross prices including VAT
Retaining snap ring
-
Spare part number: 1 619 PA8 007
Position: 37
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Compression Spring
-
Spare part number: 1 619 PA8 008
Position: 38
Availability: 1
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Adjusting Plate
-
Spare part number: 1 619 PA8 009
Position: 39
Availability: 1
Price group: 22
121,000.00 D*
Prices shown are gross prices including VAT
Base Plate
-
Spare part number: 1 619 PA8 010
Position: 42
Availability: 1
Price group: 24
125,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PA8 011
Position: 40
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Knife Guard
-
Spare part number: 1 619 PA8 012
Position: 41
Availability: 1
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Cutting Head
-
Spare part number: 1 619 PA8 013
Position: 44
Availability: 1
Price group: 29
293,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: 1 619 PA8 026
Position: 6
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Bearing Flange
-
Spare part number: 1 619 PA8 035
Position: 28
Availability: 1
Price group: 24
120,000.00 D*
Prices shown are gross prices including VAT
Socket
-
Spare part number: 1 619 PA8 720
Position: 55
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PA8 722
Position: 57
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PB4 296
Position: 835
Availability: 1
Price group: -
-
V-Belt
-
Spare part number: 1 619 PB5 920
Position: 31
Availability: 1
Price group: -
-
groove ball bearing 7X19X6
-
Spare part number: 2 600 905 051
Position: 43
Availability: 1
Price group: 00
60,000.00 D*
Prices shown are gross prices including VAT
Stop Holding Device
-
Spare part number: 2 602 316 001
Position: 46
Availability: 2
Price group: 00
22,000.00 D*
Prices shown are gross prices including VAT
Stop Holding Device
-
Spare part number: 2 602 316 001
Position: 46
Availability: 2
Price group: 00
22,000.00 D*
Prices shown are gross prices including VAT
Square Nut M6
-
Spare part number: 2 603 320 004
Position: 56
Availability: 2
Price group: 00
16,000.00 D*
Prices shown are gross prices including VAT
Torx Oval-Head Screw
-
Spare part number: 2 603 433 001
Position: 47
Availability: 4
Price group: 00
19,000.00 D*
Prices shown are gross prices including VAT
Torx Oval-Head Screw
-
Spare part number: 2 603 433 001
Position: 47
Availability: 4
Price group: 00
19,000.00 D*
Prices shown are gross prices including VAT
Clamping jaws
-
Spare part number: 2 609 110 064
Position: 48
Availability: 2
Price group: 00
43,000.00 D*
Prices shown are gross prices including VAT
Clamping jaws
-
Spare part number: 2 609 110 064
Position: 48
Availability: 2
Price group: 00
43,000.00 D*
Prices shown are gross prices including VAT
Straining Screw
-
Spare part number: 2 609 110 084
Position: 49
Availability: 6
Price group: 00
11,000.00 D*
Prices shown are gross prices including VAT
Straining Screw
-
Spare part number: 2 609 110 084
Position: 49
Availability: 6
Price group: 00
11,000.00 D*
Prices shown are gross prices including VAT
Planing knife
-
Spare part number: 2 609 110 357
Position: 45
Availability: 2
Price group: 00
101,000.00 D*
Prices shown are gross prices including VAT
Planing knife
-
Spare part number: 2 609 110 357
Position: 45
Availability: 2
Price group: 00
101,000.00 D*
Prices shown are gross prices including VAT
Carbon Brush
-
Spare part number: 2 609 120 398
Position: 810
Availability: 1
Price group: 00
75,000.00 D*
Prices shown are gross prices including VAT
Carbon Brush
-
Spare part number: 2 609 120 398
Position: 810
Availability: 1
Price group: 00
75,000.00 D*
Prices shown are gross prices including VAT
Spring Washer
-
Spare part number: 2 916 069 088
Position: 58
Availability: 4
Price group: 00
17,000.00 D*
Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PA7 988
Position: 24
Availability: 2
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT

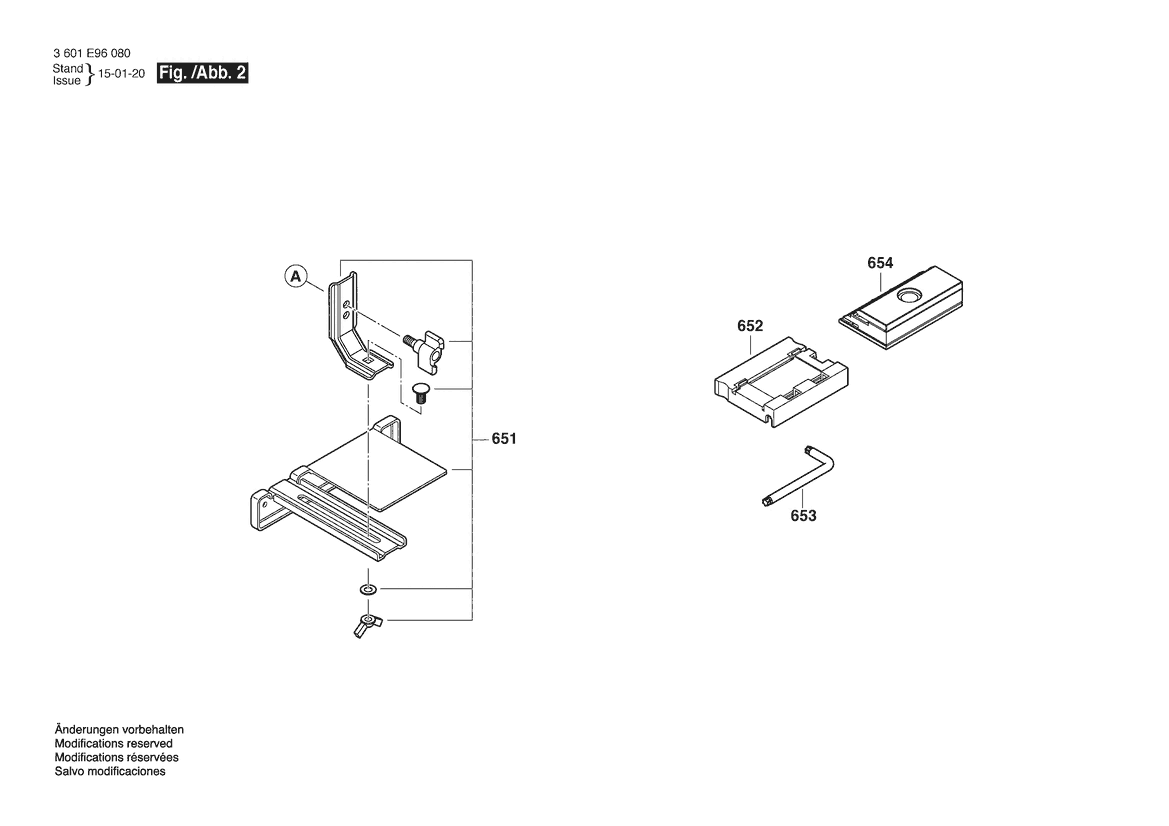

Guide Bracket
-
Spare part number: 1 619 PA8 020
Position: 651
Availability: 1
Price group: -
-
Hexagon-Socket Key
-
Spare part number: 2 607 950 025
Position: 653
Availability: 2
Price group: 00
28,000.00 D*
Prices shown are gross prices including VAT
Feeler Gauge
-
Spare part number: 2 607 970 002
Position: 652
Availability: 1
Price group: 00
51,000.00 D*
Prices shown are gross prices including VAT
Blade Sharpening Device
-
Spare part number: 2 608 133 002
Position: 654
Availability: 1
Price group: 00
94,000.00 D*
Prices shown are gross prices including VAT
1
2
Spare parts in cart
50 Parts found
Sort by
Description

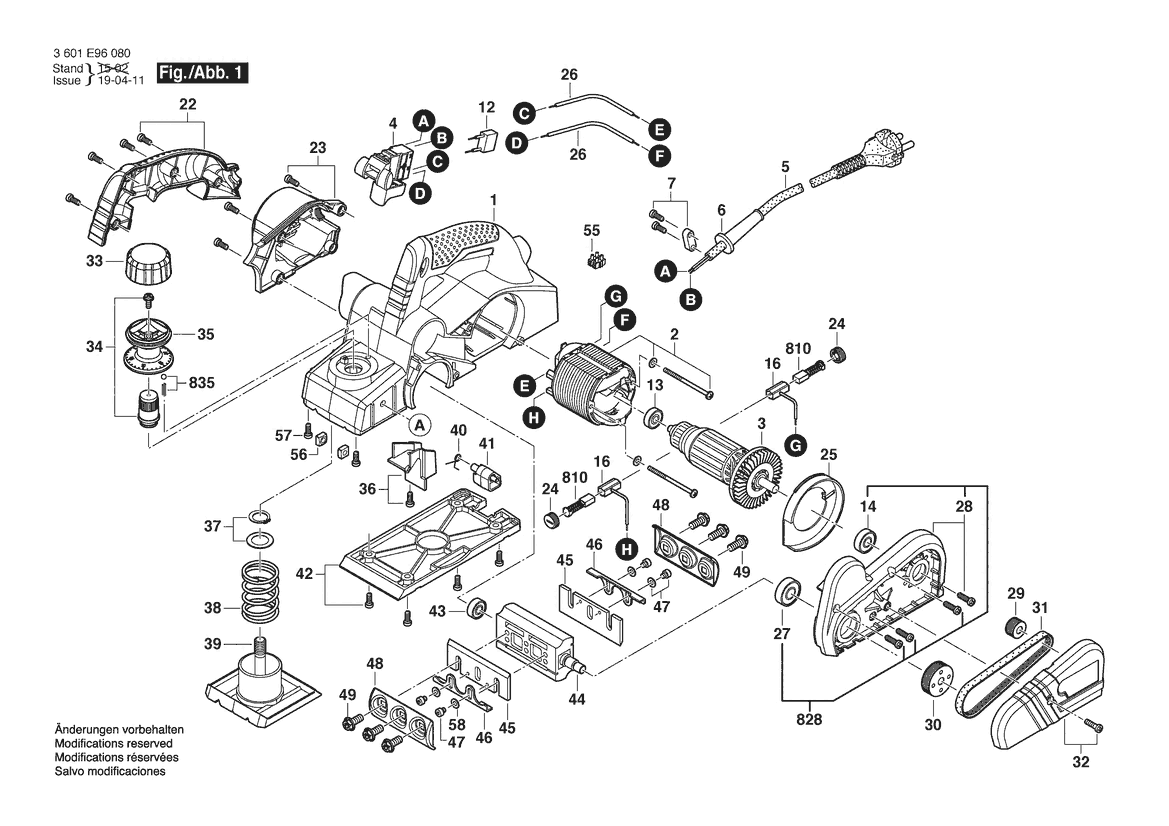

Pos. 1 | Motor Housing
1 619 PA7 989
-
*Prices shown are gross prices including VAT
Pos. 2 | Field 220-240V
1 619 PA7 991
-
*Prices shown are gross prices including VAT
Pos. 3 | Armature 220-240V
1 619 PA7 993
-
*Prices shown are gross prices including VAT
Pos. 4 | Switch Kit
1 619 PA7 983
-
*Prices shown are gross prices including VAT
Pos. 5 | Power supply cord
1 619 PA7 979
-
Pos. 6 | Grommet
1 619 PA8 026
-
*Prices shown are gross prices including VAT
Pos. 7 | Clamping Piece
1 619 PA7 982
-
*Prices shown are gross prices including VAT
Pos. 12 | Suppression Capacitor
1 619 PA7 985
-
*Prices shown are gross prices including VAT
Pos. 13 | groove ball bearing
1 619 PA7 994
-
*Prices shown are gross prices including VAT
Pos. 14 | groove ball bearing
1 619 PA7 998
-
*Prices shown are gross prices including VAT
Pos. 16 | Carbon Brush Holder
1 619 PA7 995
-
*Prices shown are gross prices including VAT
Pos. 22 | Handle
1 619 PA7 986
-
*Prices shown are gross prices including VAT
Pos. 23 | Cover
1 619 PA7 987
-
*Prices shown are gross prices including VAT
Pos. 24 | Brush-Cover
1 619 PA7 988
-
*Prices shown are gross prices including VAT
Pos. 25 | Air-Deflector Ring
1 619 PA7 992
-
*Prices shown are gross prices including VAT
Pos. 26 | Connecting Cable
1 619 PA7 981
-
*Prices shown are gross prices including VAT
Pos. 27 | groove ball bearing
1 619 PA7 999
-
*Prices shown are gross prices including VAT
Pos. 28 | Bearing Flange
1 619 PA8 035
-
*Prices shown are gross prices including VAT
Pos. 29 | Pulley
1 619 PA8 000
-
*Prices shown are gross prices including VAT
Pos. 30 | Pulley
1 619 PA8 001
-
*Prices shown are gross prices including VAT
Pos. 31 | V-Belt
1 619 PB5 920
-
Pos. 32 | Gear Cover
1 619 PA8 003
-
*Prices shown are gross prices including VAT
Pos. 33 | Cover
1 619 PA8 004
-
*Prices shown are gross prices including VAT
Pos. 34 | Cap Nut
1 619 PA8 006
-
*Prices shown are gross prices including VAT
Pos. 35 | Adjustment Knob
1 619 PA8 005
-
*Prices shown are gross prices including VAT
Pos. 36 | Cover
1 619 PA7 990
-
*Prices shown are gross prices including VAT
Pos. 37 | Retaining snap ring
1 619 PA8 007
-
*Prices shown are gross prices including VAT
Pos. 38 | Compression Spring
1 619 PA8 008
-
*Prices shown are gross prices including VAT
Pos. 39 | Adjusting Plate
1 619 PA8 009
-
*Prices shown are gross prices including VAT
Pos. 40 | Spring
1 619 PA8 011
-
*Prices shown are gross prices including VAT
Pos. 41 | Knife Guard
1 619 PA8 012
-
*Prices shown are gross prices including VAT
Pos. 42 | Base Plate
1 619 PA8 010
-
*Prices shown are gross prices including VAT
Pos. 43 | groove ball bearing 7X19X6
2 600 905 051
-
*Prices shown are gross prices including VAT
Pos. 44 | Cutting Head
1 619 PA8 013
-
*Prices shown are gross prices including VAT
Pos. 45 | Planing knife
2 609 110 357
-
*Prices shown are gross prices including VAT
Pos. 46 | Stop Holding Device
2 602 316 001
-
*Prices shown are gross prices including VAT
Pos. 47 | Torx Oval-Head Screw
2 603 433 001
-
*Prices shown are gross prices including VAT
Pos. 48 | Clamping jaws
2 609 110 064
-
*Prices shown are gross prices including VAT
Pos. 49 | Straining Screw
2 609 110 084
-
*Prices shown are gross prices including VAT
Pos. 55 | Socket
1 619 PA8 720
-
*Prices shown are gross prices including VAT
Pos. 56 | Square Nut M6
2 603 320 004
-
*Prices shown are gross prices including VAT
Pos. 57 | Screw
1 619 PA8 722
-
*Prices shown are gross prices including VAT
Pos. 58 | Spring Washer
2 916 069 088
-
*Prices shown are gross prices including VAT
Pos. 651 | Guide Bracket
1 619 PA8 020
-
Pos. 652 | Feeler Gauge
2 607 970 002
-
*Prices shown are gross prices including VAT
Pos. 653 | Hexagon-Socket Key
2 607 950 025
-
*Prices shown are gross prices including VAT
Pos. 654 | Blade Sharpening Device
2 608 133 002
-
*Prices shown are gross prices including VAT
Pos. 810 | Carbon Brush
2 609 120 398
-
*Prices shown are gross prices including VAT
Pos. 828 | Bearing Flange
1 619 PA7 997
-
*Prices shown are gross prices including VAT
Pos. 835 | Spring
1 619 PB4 296
-
* Prices shown are gross prices including VAT
