3 600 J10 4K0

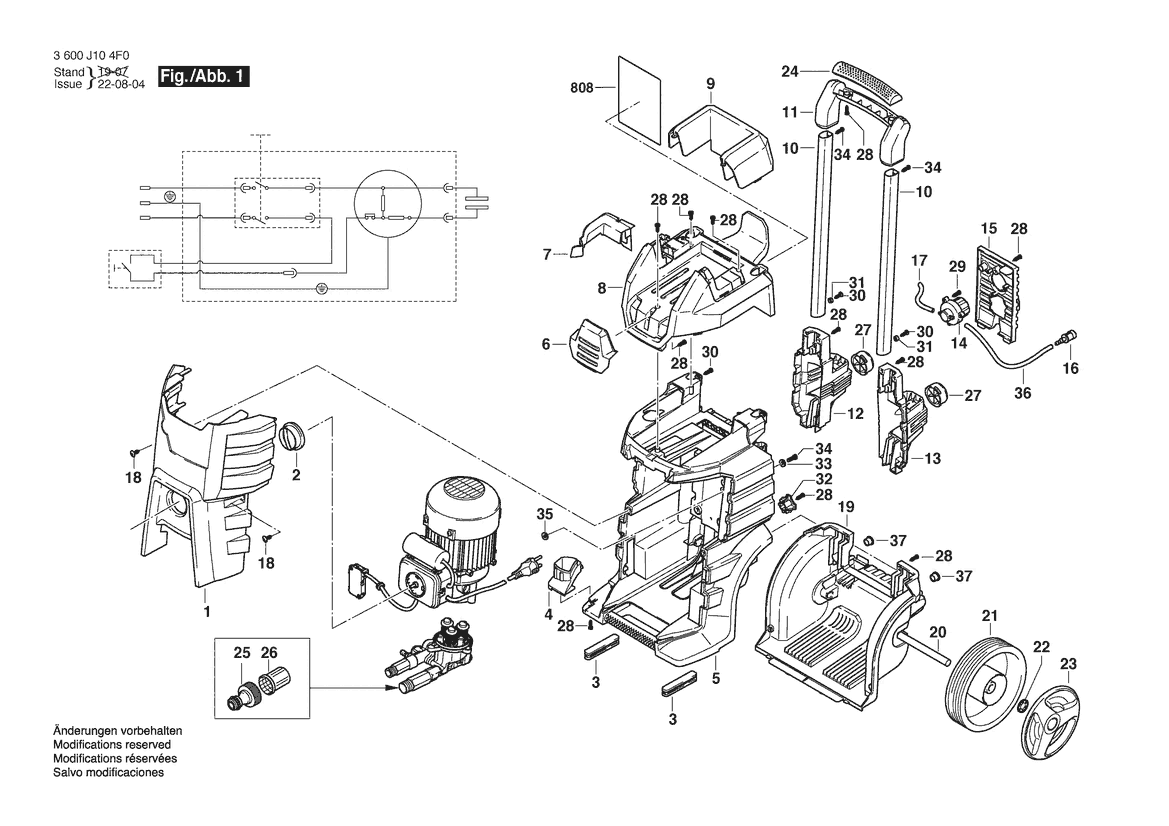

Nameplate
-
Spare part number: F 016 F05 909
Position: 808
Availability: 1
Price group: -
-
Wheel
-
Spare part number: F 016 F06 297
Position: 21
Availability: 2
Price group: -
-
Cover
-
Spare part number: F 016 F06 298
Position: 23
Availability: 2
Price group: -
-
Wheel Shaft
-
Spare part number: F 016 F06 339
Position: 20
Availability: 1
Price group: -
-
Knob
-
Spare part number: F 016 L72 008
Position: 2
Availability: 1
Price group: 17
55,000.00 D*
Prices shown are gross prices including VAT
Hose Coupling
-
Spare part number: F 016 L72 010
Position: 25
Availability: 1
Price group: 14
21,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 012
Position: 28
Availability: 15
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: F 016 L72 109
Position: 32
Availability: 1
Price group: 11
20,000.00 D*
Prices shown are gross prices including VAT
Rubber Base
-
Spare part number: F 016 L72 119
Position: 27
Availability: 2
Price group: 20
91,000.00 D*
Prices shown are gross prices including VAT
Rubber Base
-
Spare part number: F 016 L72 119
Position: 27
Availability: 2
Price group: 20
91,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L72 120
Position: 33
Availability: 4
Price group: 13
28,000.00 D*
Prices shown are gross prices including VAT
Safety Cover
-
Spare part number: F 016 L72 122
Position: 24
Availability: 1
Price group: 23
131,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 187
Position: 29
Availability: 3
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: F 016 L73 027
Position: 1
Availability: 1
Price group: 31
308,000.00 D*
Prices shown are gross prices including VAT
Rubber Base
-
Spare part number: F 016 L73 028
Position: 3
Availability: 2
Price group: 21
101,000.00 D*
Prices shown are gross prices including VAT
Rubber Base
-
Spare part number: F 016 L73 028
Position: 3
Availability: 2
Price group: 21
101,000.00 D*
Prices shown are gross prices including VAT
Accessory Deposit
-
Spare part number: F 016 L73 029
Position: 4
Availability: 1
Price group: 20
87,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: F 016 L73 030
Position: 5
Availability: 1
Price group: 38
768,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: F 016 L73 031
Position: 6
Availability: 1
Price group: 20
87,000.00 D*
Prices shown are gross prices including VAT
Hook
-
Spare part number: F 016 L73 032
Position: 7
Availability: 1
Price group: 17
59,000.00 D*
Prices shown are gross prices including VAT
Housing part
-
Spare part number: F 016 L73 033
Position: 8
Availability: 1
Price group: 30
273,000.00 D*
Prices shown are gross prices including VAT
Housing part
-
Spare part number: F 016 L73 034
Position: 9
Availability: 1
Price group: 27
203,000.00 D*
Prices shown are gross prices including VAT
Handle
-
Spare part number: F 016 L73 036
Position: 11
Availability: 1
Price group: 26
187,000.00 D*
Prices shown are gross prices including VAT
Accessory Deposit
-
Spare part number: F 016 L73 037
Position: 12
Availability: 1
Price group: 25
163,000.00 D*
Prices shown are gross prices including VAT
Accessory Deposit
-
Spare part number: F 016 L73 038
Position: 13
Availability: 1
Price group: 24
159,000.00 D*
Prices shown are gross prices including VAT
Adjustment Knob
-
Spare part number: F 016 L73 039
Position: 14
Availability: 1
Price group: 21
107,000.00 D*
Prices shown are gross prices including VAT
Cover Plate
-
Spare part number: F 016 L73 040
Position: 15
Availability: 1
Price group: 24
147,000.00 D*
Prices shown are gross prices including VAT
Water filter
-
Spare part number: F 016 L73 041
Position: 16
Availability: 1
Price group: 21
105,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: F 016 L73 044
Position: 19
Availability: 1
Price group: 30
280,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L73 047
Position: 22
Availability: 2
Price group: 14
37,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L73 051
Position: 31
Availability: 2
Price group: 15
47,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L73 051
Position: 31
Availability: 2
Price group: 15
47,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 053
Position: 18
Availability: 2
Price group: 11
11,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 053
Position: 18
Availability: 2
Price group: 11
11,000.00 D*
Prices shown are gross prices including VAT
Vibration Damper
-
Spare part number: F 016 L73 100
Position: 35
Availability: 4
Price group: 13
29,000.00 D*
Prices shown are gross prices including VAT
Suction Pipe
-
Spare part number: F 016 L73 239
Position: 17
Availability: 1
Price group: 15
42,000.00 D*
Prices shown are gross prices including VAT
Plug
-
Spare part number: F 016 L73 278
Position: 37
Availability: 1
Price group: 11
15,000.00 D*
Prices shown are gross prices including VAT
Plug
-
Spare part number: F 016 L73 278
Position: 37
Availability: 1
Price group: 11
15,000.00 D*
Prices shown are gross prices including VAT
Rod
-
Spare part number: F 016 L73 336
Position: 10
Availability: 2
Price group: 26
185,000.00 D*
Prices shown are gross prices including VAT
Rod
-
Spare part number: F 016 L73 336
Position: 10
Availability: 2
Price group: 26
185,000.00 D*
Prices shown are gross prices including VAT
Retaining Screw
-
Spare part number: F 016 L73 337
Position: 30
Availability: 4
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Retaining Screw
-
Spare part number: F 016 L73 337
Position: 30
Availability: 4
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Retaining Screw
-
Spare part number: F 016 L73 337
Position: 30
Availability: 4
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Suction Pipe
-
Spare part number: F 016 L73 338
Position: 36
Availability: 1
Price group: 17
54,000.00 D*
Prices shown are gross prices including VAT
Filter
-
Spare part number: F 016 L73 591
Position: 26
Availability: 1
Price group: 12
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 711
Position: 34
Availability: 6
Price group: 10
11,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 711
Position: 34
Availability: 6
Price group: 10
11,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 711
Position: 34
Availability: 6
Price group: 10
11,000.00 D*
Prices shown are gross prices including VAT

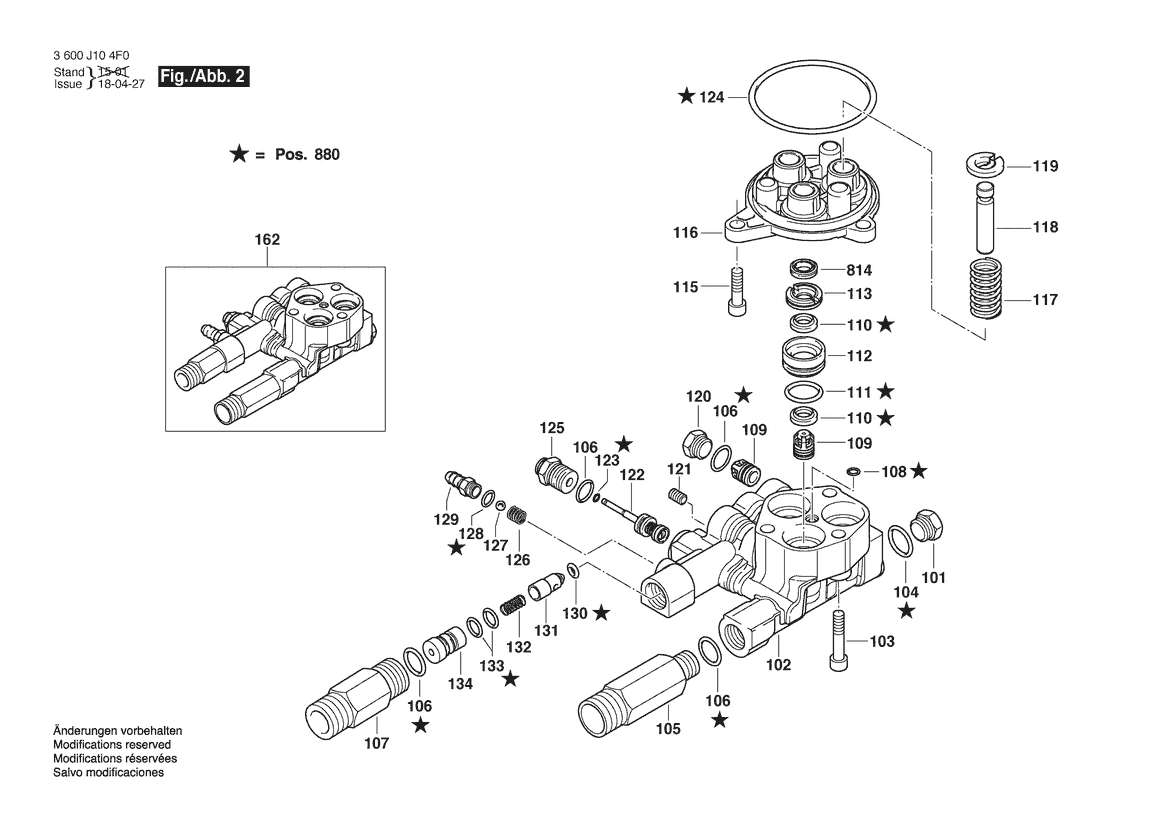

Piston 3 STÜCK
-
Spare part number: F 016 F04 323
Position: 118
Availability: 1
Price group: 28
174,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: F 016 F04 324
Position: 814
Availability: 1
Price group: 26
141,000.00 D*
Prices shown are gross prices including VAT
Adapter
-
Spare part number: F 016 F04 381
Position: 105
Availability: 1
Price group: 28
270,000.00 D*
Prices shown are gross prices including VAT
Adapter
-
Spare part number: F 016 F04 382
Position: 107
Availability: 1
Price group: 27
235,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 014
Position: 106
Availability: 6
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 014
Position: 106
Availability: 6
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 014
Position: 106
Availability: 6
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 014
Position: 106
Availability: 6
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Injector
-
Spare part number: F 016 L72 015
Position: 134
Availability: 1
Price group: 24
142,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 016
Position: 133
Availability: 2
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: F 016 L72 017
Position: 132
Availability: 1
Price group: 12
22,000.00 D*
Prices shown are gross prices including VAT
Valve Insert
-
Spare part number: F 016 L72 018
Position: 131
Availability: 1
Price group: 22
110,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 035
Position: 104
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 065
Position: 123
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: F 016 L72 072
Position: 126
Availability: 1
Price group: 11
7,000.00 D*
Prices shown are gross prices including VAT
Ball
-
Spare part number: F 016 L72 073
Position: 127
Availability: 1
Price group: 11
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 074
Position: 128
Availability: 1
Price group: 11
7,000.00 D*
Prices shown are gross prices including VAT
Plug
-
Spare part number: F 016 L72 124
Position: 101
Availability: 1
Price group: 19
74,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 126
Position: 103
Availability: 3
Price group: 12
21,000.00 D*
Prices shown are gross prices including VAT
Valve
-
Spare part number: F 016 L72 129
Position: 109
Availability: 6
Price group: 21
86,000.00 D*
Prices shown are gross prices including VAT
Valve
-
Spare part number: F 016 L72 129
Position: 109
Availability: 6
Price group: 21
86,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: F 016 L72 130
Position: 110
Availability: 6
Price group: 16
44,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: F 016 L72 130
Position: 110
Availability: 6
Price group: 16
44,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 131
Position: 111
Availability: 3
Price group: 11
7,000.00 D*
Prices shown are gross prices including VAT
Bushing
-
Spare part number: F 016 L72 132
Position: 112
Availability: 3
Price group: 24
144,000.00 D*
Prices shown are gross prices including VAT
Bushing
-
Spare part number: F 016 L72 133
Position: 113
Availability: 3
Price group: 20
76,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 134
Position: 115
Availability: 3
Price group: 14
33,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: F 016 L72 136
Position: 117
Availability: 3
Price group: 17
38,000.00 D*
Prices shown are gross prices including VAT
Wobble Plate
-
Spare part number: F 016 L72 137
Position: 119
Availability: 3
Price group: 13
16,000.00 D*
Prices shown are gross prices including VAT
Plug
-
Spare part number: F 016 L72 138
Position: 120
Availability: 3
Price group: 20
87,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: F 016 L72 140
Position: 122
Availability: 1
Price group: 31
366,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 141
Position: 124
Availability: 1
Price group: 11
17,000.00 D*
Prices shown are gross prices including VAT
Adapter
-
Spare part number: F 016 L72 142
Position: 125
Availability: 1
Price group: 24
146,000.00 D*
Prices shown are gross prices including VAT
Nipple
-
Spare part number: F 016 L72 143
Position: 129
Availability: 1
Price group: 19
71,000.00 D*
Prices shown are gross prices including VAT
Pump head
-
Spare part number: F 016 L73 054
Position: 102
Availability: 1
Price group: 34
366,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L73 055
Position: 108
Availability: 1
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Piston Guide
-
Spare part number: F 016 L73 057
Position: 116
Availability: 1
Price group: 27
161,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L73 058
Position: 121
Availability: 1
Price group: 21
103,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L73 059
Position: 130
Availability: 1
Price group: 13
28,000.00 D*
Prices shown are gross prices including VAT
Pump head
-
Spare part number: F 016 L73 060
Position: 162
Availability: 1
Price group: 48
1,200,000.00 D*
Prices shown are gross prices including VAT
Plug
-
Spare part number: F 016 L73 278
Position: 37
Availability: 1
Price group: 11
15,000.00 D*
Prices shown are gross prices including VAT
Wear and Tear Part Set
-
Spare part number: F 016 L73 387
Position: 880
Availability: 1
Price group: 29
181,000.00 D*
Prices shown are gross prices including VAT

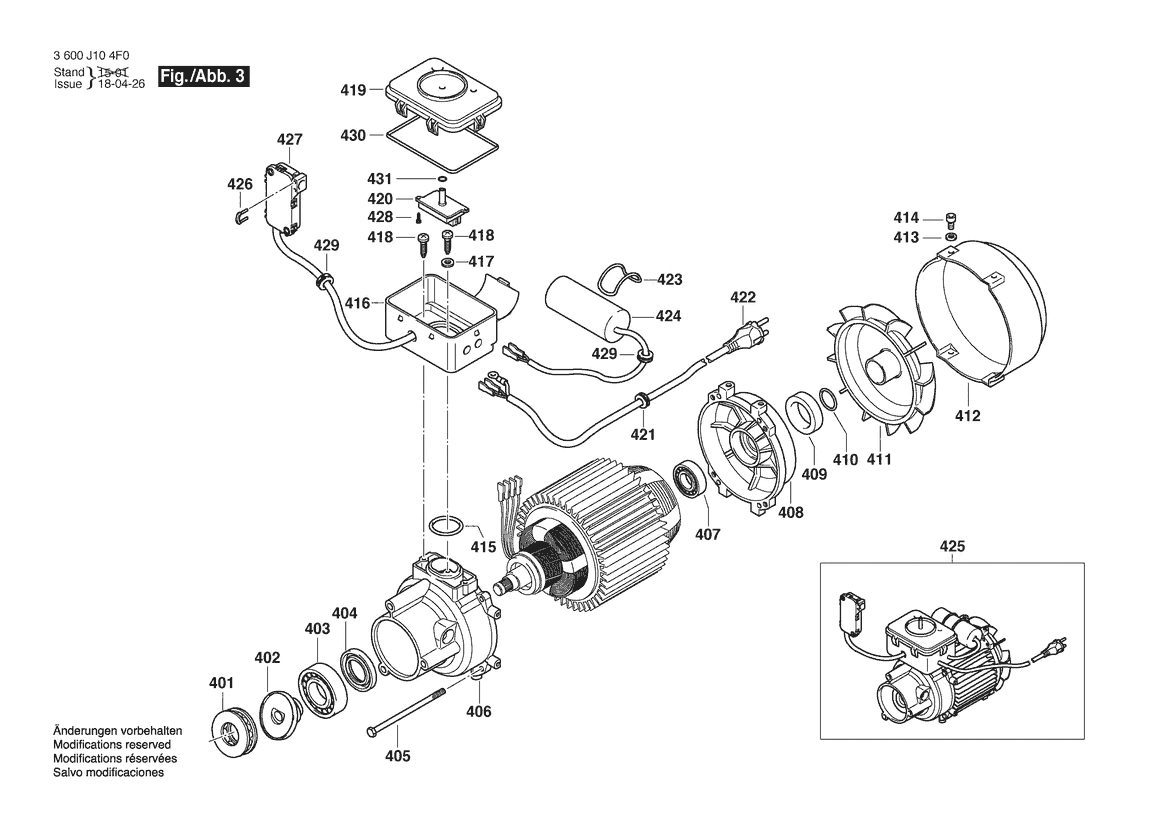

Condenser
-
Spare part number: F 016 F05 928
Position: 424
Availability: 1
Price group: -
-
Motor
-
Spare part number: F 016 F05 932
Position: 425
Availability: 1
Price group: -
-
Screw
-
Spare part number: F 016 L72 086
Position: 428
Availability: 2
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Switch
-
Spare part number: F 016 L72 087
Position: 420
Availability: 1
Price group: 27
180,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: F 016 L72 092
Position: 429
Availability: 2
Price group: 17
52,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: F 016 L72 092
Position: 429
Availability: 2
Price group: 17
52,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: F 016 L72 092
Position: 421
Availability: 2
Price group: 17
52,000.00 D*
Prices shown are gross prices including VAT
Clamp
-
Spare part number: F 016 L72 094
Position: 426
Availability: 1
Price group: 21
95,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: F 016 L72 130
Position: 110
Availability: 6
Price group: 16
44,000.00 D*
Prices shown are gross prices including VAT
Ball Bearing
-
Spare part number: F 016 L72 144
Position: 401
Availability: 1
Price group: 27
185,000.00 D*
Prices shown are gross prices including VAT
Ball Bearing
-
Spare part number: F 016 L72 146
Position: 403
Availability: 1
Price group: 28
210,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 148
Position: 405
Availability: 4
Price group: 14
27,000.00 D*
Prices shown are gross prices including VAT
Ball Bearing
-
Spare part number: F 016 L72 150
Position: 407
Availability: 1
Price group: 24
135,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: F 016 L72 151
Position: 408
Availability: 1
Price group: 28
242,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: F 016 L72 152
Position: 409
Availability: 1
Price group: 12
20,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 153
Position: 410
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Fan
-
Spare part number: F 016 L72 154
Position: 411
Availability: 1
Price group: 22
111,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L72 156
Position: 413
Availability: 2
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 157
Position: 414
Availability: 2
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 158
Position: 415
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Housing
-
Spare part number: F 016 L72 159
Position: 416
Availability: 1
Price group: 21
91,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: F 016 L72 160
Position: 417
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 161
Position: 418
Availability: 3
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: F 016 L72 161
Position: 418
Availability: 3
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 163
Position: 423
Availability: 1
Price group: 11
19,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 260
Position: 430
Availability: 1
Price group: 18
68,000.00 D*
Prices shown are gross prices including VAT
Wobble Plate
-
Spare part number: F 016 L73 062
Position: 402
Availability: 1
Price group: 24
144,000.00 D*
Prices shown are gross prices including VAT
Rotary shaft lip seal
-
Spare part number: F 016 L73 063
Position: 404
Availability: 1
Price group: 18
70,000.00 D*
Prices shown are gross prices including VAT
Pump Housing
-
Spare part number: F 016 L73 064
Position: 406
Availability: 1
Price group: 29
224,000.00 D*
Prices shown are gross prices including VAT
Air Duct
-
Spare part number: F 016 L73 065
Position: 412
Availability: 1
Price group: 24
147,000.00 D*
Prices shown are gross prices including VAT
Switch
-
Spare part number: F 016 L73 067
Position: 427
Availability: 1
Price group: 25
110,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: F 016 L73 339
Position: 419
Availability: 1
Price group: 20
91,000.00 D*
Prices shown are gross prices including VAT
Power supply cord
-
Spare part number: F 016 L73 340
Position: 422
Availability: 1
Price group: 32
263,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L73 343
Position: 431
Availability: 1
Price group: 10
7,000.00 D*
Prices shown are gross prices including VAT

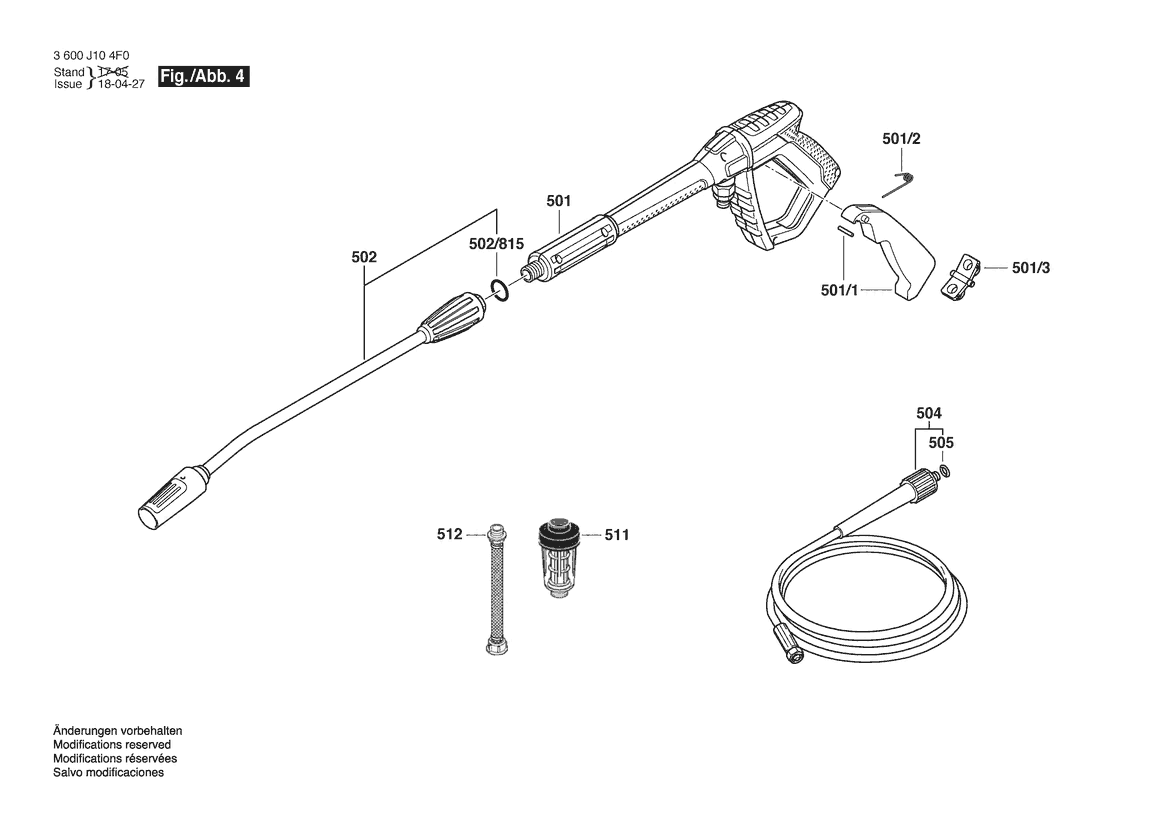

Trigger
-
Spare part number: 1 619 PA9 742
Position: 501/1
Availability: 1
Price group: 28
265,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PA9 743
Position: 501/2
Availability: 1
Price group: 21
124,000.00 D*
Prices shown are gross prices including VAT
Lock
-
Spare part number: 1 619 PA9 744
Position: 501/3
Availability: 1
Price group: 23
162,000.00 D*
Prices shown are gross prices including VAT
O-Ring 9,5X1,5
-
Spare part number: 1 619 PB2 119
Position: 502/815
Availability: 1
Price group: 12
8,000.00 D*
Prices shown are gross prices including VAT
Hose
-
Spare part number: F 016 F04 523
Position: 504
Availability: 1
Price group: 45
996,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: F 016 L72 099
Position: 505
Availability: 1
Price group: 10
10,000.00 D*
Prices shown are gross prices including VAT
Air Duct
-
Spare part number: F 016 L73 065
Position: 412
Availability: 1
Price group: 24
147,000.00 D*
Prices shown are gross prices including VAT
Trigger
-
Spare part number: F 016 L73 068
Position: 501
Availability: 1
Price group: 35
506,000.00 D*
Prices shown are gross prices including VAT
Wide Angle Nozzle
-
Spare part number: F 016 L73 069
Position: 502
Availability: 1
Price group: 35
503,000.00 D*
Prices shown are gross prices including VAT
Filter
-
Spare part number: F 016 L73 351
Position: 511
Availability: 1
Price group: 30
240,000.00 D*
Prices shown are gross prices including VAT
Hose
-
Spare part number: F 016 L73 352
Position: 512
Availability: 1
Price group: 30
240,000.00 D*
Prices shown are gross prices including VAT
1
2
3
4
Spare parts in cart
114 Parts found
Sort by
Description
Pos. 1 | Housing
F 016 L73 027
-
*Prices shown are gross prices including VAT
Pos. 2 | Knob
F 016 L72 008
-
*Prices shown are gross prices including VAT
Pos. 3 | Rubber Base
F 016 L73 028
-
*Prices shown are gross prices including VAT
Pos. 4 | Accessory Deposit
F 016 L73 029
-
*Prices shown are gross prices including VAT
Pos. 5 | Housing
F 016 L73 030
-
*Prices shown are gross prices including VAT
Pos. 6 | Cover
F 016 L73 031
-
*Prices shown are gross prices including VAT
Pos. 7 | Hook
F 016 L73 032
-
*Prices shown are gross prices including VAT
Pos. 8 | Housing part
F 016 L73 033
-
*Prices shown are gross prices including VAT
Pos. 9 | Housing part
F 016 L73 034
-
*Prices shown are gross prices including VAT
Pos. 10 | Rod
F 016 L73 336
-
*Prices shown are gross prices including VAT
Pos. 11 | Handle
F 016 L73 036
-
*Prices shown are gross prices including VAT
Pos. 12 | Accessory Deposit
F 016 L73 037
-
*Prices shown are gross prices including VAT
Pos. 13 | Accessory Deposit
F 016 L73 038
-
*Prices shown are gross prices including VAT
Pos. 14 | Adjustment Knob
F 016 L73 039
-
*Prices shown are gross prices including VAT
Pos. 15 | Cover Plate
F 016 L73 040
-
*Prices shown are gross prices including VAT
Pos. 16 | Water filter
F 016 L73 041
-
*Prices shown are gross prices including VAT
Pos. 17 | Suction Pipe
F 016 L73 239
-
*Prices shown are gross prices including VAT
Pos. 18 | Screw
F 016 L73 053
-
*Prices shown are gross prices including VAT
Pos. 19 | Housing
F 016 L73 044
-
*Prices shown are gross prices including VAT
Pos. 20 | Wheel Shaft
F 016 F06 339
-
Pos. 21 | Wheel
F 016 F06 297
-
Pos. 22 | Plain Washer
F 016 L73 047
-
*Prices shown are gross prices including VAT
Pos. 23 | Cover
F 016 F06 298
-
Pos. 24 | Safety Cover
F 016 L72 122
-
*Prices shown are gross prices including VAT
Pos. 25 | Hose Coupling
F 016 L72 010
-
*Prices shown are gross prices including VAT
Pos. 26 | Filter
F 016 L73 591
-
*Prices shown are gross prices including VAT
Pos. 27 | Rubber Base
F 016 L72 119
-
*Prices shown are gross prices including VAT
Pos. 28 | Screw
F 016 L72 012
-
*Prices shown are gross prices including VAT
Pos. 29 | Screw
F 016 L72 187
-
*Prices shown are gross prices including VAT
Pos. 30 | Retaining Screw
F 016 L73 337
-
*Prices shown are gross prices including VAT
Pos. 31 | Plain Washer
F 016 L73 051
-
*Prices shown are gross prices including VAT
Pos. 32 | Grommet
F 016 L72 109
-
*Prices shown are gross prices including VAT
Pos. 33 | Plain Washer
F 016 L72 120
-
*Prices shown are gross prices including VAT
Pos. 34 | Screw
F 016 L73 711
-
*Prices shown are gross prices including VAT
Pos. 35 | Vibration Damper
F 016 L73 100
-
*Prices shown are gross prices including VAT
Pos. 36 | Suction Pipe
F 016 L73 338
-
*Prices shown are gross prices including VAT
Pos. 37 | Plug
F 016 L73 278
-
*Prices shown are gross prices including VAT
Pos. 101 | Plug
F 016 L72 124
-
*Prices shown are gross prices including VAT
Pos. 102 | Pump head
F 016 L73 054
-
*Prices shown are gross prices including VAT
Pos. 103 | Screw
F 016 L72 126
-
*Prices shown are gross prices including VAT
Pos. 104 | O-Ring
F 016 L72 035
-
*Prices shown are gross prices including VAT
Pos. 105 | Adapter
F 016 F04 381
-
*Prices shown are gross prices including VAT
Pos. 106 | O-Ring
F 016 L72 014
-
*Prices shown are gross prices including VAT
Pos. 107 | Adapter
F 016 F04 382
-
*Prices shown are gross prices including VAT
Pos. 108 | O-Ring
F 016 L73 055
-
*Prices shown are gross prices including VAT
Pos. 109 | Valve
F 016 L72 129
-
*Prices shown are gross prices including VAT
Pos. 110 | Seal
F 016 L72 130
-
*Prices shown are gross prices including VAT
Pos. 111 | O-Ring
F 016 L72 131
-
*Prices shown are gross prices including VAT
Pos. 112 | Bushing
F 016 L72 132
-
*Prices shown are gross prices including VAT
Pos. 113 | Bushing
F 016 L72 133
-
*Prices shown are gross prices including VAT
Pos. 115 | Screw
F 016 L72 134
-
*Prices shown are gross prices including VAT
Pos. 116 | Piston Guide
F 016 L73 057
-
*Prices shown are gross prices including VAT
Pos. 117 | Spring
F 016 L72 136
-
*Prices shown are gross prices including VAT
Pos. 118 | Piston 3 STÜCK
F 016 F04 323
-
*Prices shown are gross prices including VAT
Pos. 119 | Wobble Plate
F 016 L72 137
-
*Prices shown are gross prices including VAT
Pos. 120 | Plug
F 016 L72 138
-
*Prices shown are gross prices including VAT
Pos. 121 | Screw
F 016 L73 058
-
*Prices shown are gross prices including VAT
Pos. 122 | Spring
F 016 L72 140
-
*Prices shown are gross prices including VAT
Pos. 123 | O-Ring
F 016 L72 065
-
*Prices shown are gross prices including VAT
Pos. 124 | O-Ring
F 016 L72 141
-
*Prices shown are gross prices including VAT
Pos. 125 | Adapter
F 016 L72 142
-
*Prices shown are gross prices including VAT
Pos. 126 | Spring
F 016 L72 072
-
*Prices shown are gross prices including VAT
Pos. 127 | Ball
F 016 L72 073
-
*Prices shown are gross prices including VAT
Pos. 128 | O-Ring
F 016 L72 074
-
*Prices shown are gross prices including VAT
Pos. 129 | Nipple
F 016 L72 143
-
*Prices shown are gross prices including VAT
Pos. 130 | O-Ring
F 016 L73 059
-
*Prices shown are gross prices including VAT
Pos. 131 | Valve Insert
F 016 L72 018
-
*Prices shown are gross prices including VAT
Pos. 132 | Spring
F 016 L72 017
-
*Prices shown are gross prices including VAT
Pos. 133 | O-Ring
F 016 L72 016
-
*Prices shown are gross prices including VAT
Pos. 134 | Injector
F 016 L72 015
-
*Prices shown are gross prices including VAT
Pos. 162 | Pump head
F 016 L73 060
-
*Prices shown are gross prices including VAT
Pos. 401 | Ball Bearing
F 016 L72 144
-
*Prices shown are gross prices including VAT
Pos. 402 | Wobble Plate
F 016 L73 062
-
*Prices shown are gross prices including VAT
Pos. 403 | Ball Bearing
F 016 L72 146
-
*Prices shown are gross prices including VAT
Pos. 404 | Rotary shaft lip seal
F 016 L73 063
-
*Prices shown are gross prices including VAT
Pos. 405 | Screw
F 016 L72 148
-
*Prices shown are gross prices including VAT
Pos. 406 | Pump Housing
F 016 L73 064
-
*Prices shown are gross prices including VAT
Pos. 407 | Ball Bearing
F 016 L72 150
-
*Prices shown are gross prices including VAT
Pos. 408 | Cover
F 016 L72 151
-
*Prices shown are gross prices including VAT
Pos. 409 | Seal
F 016 L72 152
-
*Prices shown are gross prices including VAT
Pos. 410 | O-Ring
F 016 L72 153
-
*Prices shown are gross prices including VAT
Pos. 411 | Fan
F 016 L72 154
-
*Prices shown are gross prices including VAT
Pos. 412 | Air Duct
F 016 L73 065
-
*Prices shown are gross prices including VAT
Pos. 413 | Plain Washer
F 016 L72 156
-
*Prices shown are gross prices including VAT
Pos. 414 | Screw
F 016 L72 157
-
*Prices shown are gross prices including VAT
Pos. 415 | O-Ring
F 016 L72 158
-
*Prices shown are gross prices including VAT
Pos. 416 | Housing
F 016 L72 159
-
*Prices shown are gross prices including VAT
Pos. 417 | Plain Washer
F 016 L72 160
-
*Prices shown are gross prices including VAT
Pos. 418 | Screw
F 016 L72 161
-
*Prices shown are gross prices including VAT
Pos. 419 | Cover
F 016 L73 339
-
*Prices shown are gross prices including VAT
Pos. 420 | Switch
F 016 L72 087
-
*Prices shown are gross prices including VAT
Pos. 422 | Power supply cord
F 016 L73 340
-
*Prices shown are gross prices including VAT
Pos. 423 | O-Ring
F 016 L72 163
-
*Prices shown are gross prices including VAT
Pos. 424 | Condenser
F 016 F05 928
-
Pos. 425 | Motor
F 016 F05 932
-
Pos. 426 | Clamp
F 016 L72 094
-
*Prices shown are gross prices including VAT
Pos. 427 | Switch
F 016 L73 067
-
*Prices shown are gross prices including VAT
Pos. 428 | Screw
F 016 L72 086
-
*Prices shown are gross prices including VAT
Pos. 429 | Grommet
F 016 L72 092
-
*Prices shown are gross prices including VAT
Pos. 430 | O-Ring
F 016 L72 260
-
*Prices shown are gross prices including VAT
Pos. 431 | O-Ring
F 016 L73 343
-
*Prices shown are gross prices including VAT
Pos. 501 | Trigger
F 016 L73 068
-
*Prices shown are gross prices including VAT
Pos. 501/1 | Trigger
1 619 PA9 742
-
*Prices shown are gross prices including VAT
Pos. 501/2 | Spring
1 619 PA9 743
-
*Prices shown are gross prices including VAT
Pos. 501/3 | Lock
1 619 PA9 744
-
*Prices shown are gross prices including VAT
Pos. 502 | Wide Angle Nozzle
F 016 L73 069
-
*Prices shown are gross prices including VAT
Pos. 502/815 | O-Ring 9,5X1,5
1 619 PB2 119
-
*Prices shown are gross prices including VAT
Pos. 504 | Hose
F 016 F04 523
-
*Prices shown are gross prices including VAT
Pos. 505 | O-Ring
F 016 L72 099
-
*Prices shown are gross prices including VAT
Pos. 511 | Filter
F 016 L73 351
-
*Prices shown are gross prices including VAT
Pos. 512 | Hose
F 016 L73 352
-
*Prices shown are gross prices including VAT
Pos. 808 | Nameplate
F 016 F05 909
-
Pos. 814 | Seal
F 016 F04 324
-
*Prices shown are gross prices including VAT
Pos. 880 | Wear and Tear Part Set
F 016 L73 387
-
*Prices shown are gross prices including VAT
* Prices shown are gross prices including VAT
