Universal Angle Polisher
GPO 950 | 3 601 CA2 0K0 | 230 V / 026 - AS
Lubrication instructions
Product information
Print drawing

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 CA2 0K0

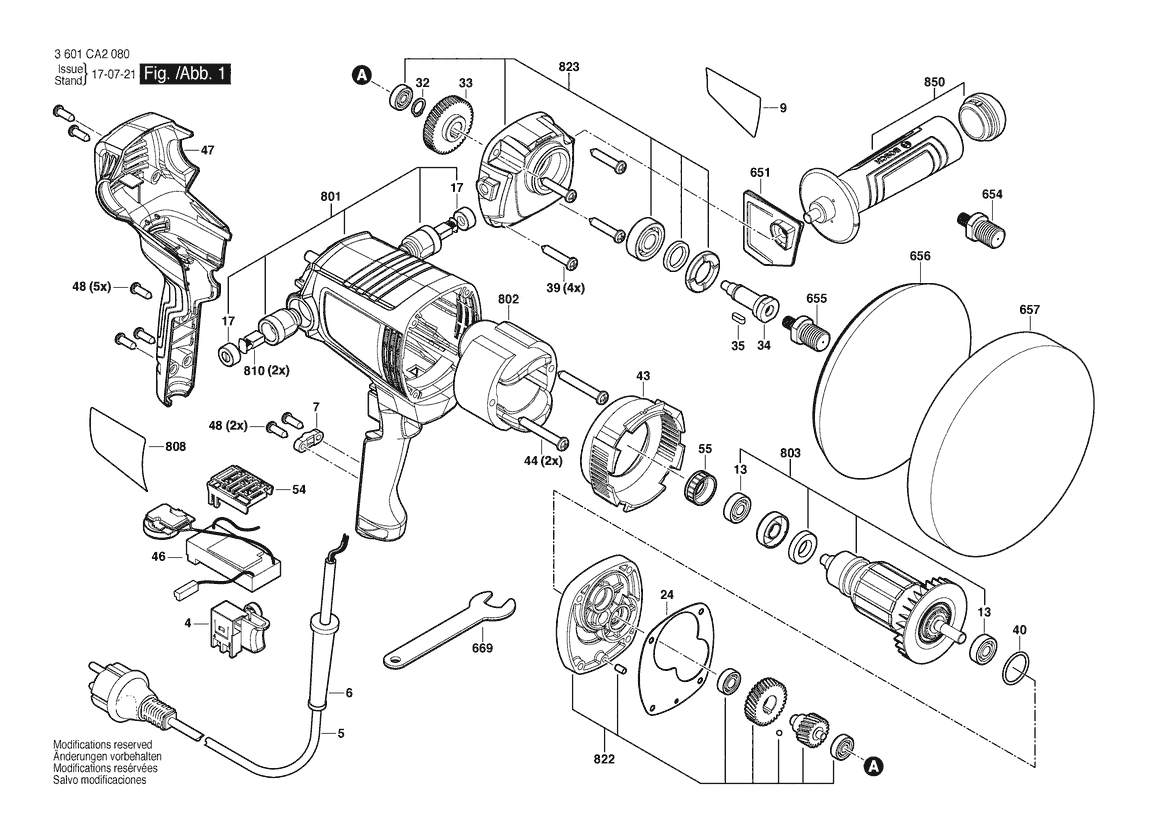

Image 1
Speed governor
-
Spare part number: 1 607 233 5EL
Position: 46
Availability: 1
Price group: 37
709,000.00 D*
Prices shown are gross prices including VAT
Switch
-
Spare part number: 1 619 PB1 744
Position: 4
Availability: 1
Price group: 22
105,000.00 D*
Prices shown are gross prices including VAT
Grommet
-
Spare part number: 1 619 PB1 746
Position: 6
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Fastening Clamp
-
Spare part number: 1 619 PB1 747
Position: 7
Availability: 1
Price group: 10
167,000.00 D*
Prices shown are gross prices including VAT
Manufacturer's nameplate GPO 950
-
Spare part number: 1 619 PB1 749
Position: 9
Availability: 1
Price group: -
-
Ball Bearing
-
Spare part number: 1 619 PB1 751
Position: 13
Availability: 2
Price group: 14
35,000.00 D*
Prices shown are gross prices including VAT
Ball Bearing
-
Spare part number: 1 619 PB1 751
Position: 13
Availability: 2
Price group: 14
35,000.00 D*
Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PB1 753
Position: 17
Availability: 2
Price group: 10
16,000.00 D*
Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PB1 753
Position: 17
Availability: 2
Price group: 10
16,000.00 D*
Prices shown are gross prices including VAT
Seal
-
Spare part number: 1 619 PB1 756
Position: 24
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Retaining ring
-
Spare part number: 1 619 PB1 763
Position: 32
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Gear
-
Spare part number: 1 619 PB1 764
Position: 33
Availability: 1
Price group: 19
86,000.00 D*
Prices shown are gross prices including VAT
Grinding Spindle
-
Spare part number: 1 619 PB1 765
Position: 34
Availability: 1
Price group: 16
58,000.00 D*
Prices shown are gross prices including VAT
Key
-
Spare part number: 1 619 PB1 766
Position: 35
Availability: 1
Price group: 10
151,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 770
Position: 39
Availability: 4
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: 1 619 PB1 771
Position: 40
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Air-Deflector Ring
-
Spare part number: 1 619 PB1 774
Position: 43
Availability: 1
Price group: 11
20,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 775
Position: 44
Availability: 2
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Housing Cover
-
Spare part number: 1 619 PB1 778
Position: 47
Availability: 1
Price group: 19
87,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 779
Position: 48
Availability: 7
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 779
Position: 48
Availability: 7
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Power supply cord
-
Spare part number: 1 619 PB1 936
Position: 5
Availability: 1
Price group: 24
167,000.00 D*
Prices shown are gross prices including VAT
Guard Plate
-
Spare part number: 1 619 PB1 947
Position: 651
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Adapter Insert
-
part
Spare part number: 1 619 PB1 950
Position: 654
Availability: 1
Price group: 18
75,000.00 D*
Prices shown are gross prices including VAT
Adapter Insert
-
Spare part number: 1 619 PB1 951
Position: 655
Availability: 1
Price group: 18
75,000.00 D*
Prices shown are gross prices including VAT
Mounting Bracket
-
Spare part number: 1 619 PB1 952
Position: 54
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Intermediate Ring
-
Spare part number: 1 619 PB1 953
Position: 55
Availability: 1
Price group: 10
15,000.00 D*
Prices shown are gross prices including VAT
Supporting Disc
-
part
Spare part number: 1 619 PB1 954
Position: 656
Availability: 1
Price group: 22
131,000.00 D*
Prices shown are gross prices including VAT
Polishing Sponge
-
part
Spare part number: 1 619 PB1 966
Position: 657
Availability: 1
Price group: 20
101,000.00 D*
Prices shown are gross prices including VAT
Assembly Wrench
-
Spare part number: 1 619 PB1 967
Position: 669
Availability: 2
Price group: 11
20,000.00 D*
Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB1 968
Position: 801
Availability: 1
Price group: 22
141,000.00 D*
Prices shown are gross prices including VAT
Field
-
Spare part number: 1 619 PB1 969
Position: 802
Availability: 1
Price group: 29
250,000.00 D*
Prices shown are gross prices including VAT
Armature
-
Spare part number: 1 619 PB1 970
Position: 803
Availability: 1
Price group: 35
560,000.00 D*
Prices shown are gross prices including VAT
Carbon-Brush Set
-
Spare part number: 1 619 PB1 971
Position: 810
Availability: 1
Price group: 15
40,000.00 D*
Prices shown are gross prices including VAT
Bearing cover
-
Spare part number: 1 619 PB1 972
Position: 822
Availability: 1
Price group: 30
290,000.00 D*
Prices shown are gross prices including VAT
Gear Housing
-
Spare part number: 1 619 PB1 973
Position: 823
Availability: 1
Price group: 28
224,000.00 D*
Prices shown are gross prices including VAT
Auxiliary Handle
-
Spare part number: 1 619 PB1 974
Position: 850
Availability: 1
Price group: 18
58,000.00 D*
Prices shown are gross prices including VAT
Nameplate
-
Spare part number: 1 619 PB2 283
Position: 808
Availability: 1
Price group: -
-
1
Spare parts in cart

35 Parts found

Sort by
Description
Pos. 4 | Switch
1 619 PB1 744
-
105,000.00 D*
*Prices shown are gross prices including VAT
Pos. 5 | Power supply cord
1 619 PB1 936
-
167,000.00 D*
*Prices shown are gross prices including VAT
Pos. 6 | Grommet
1 619 PB1 746
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 7 | Fastening Clamp
1 619 PB1 747
-
167,000.00 D*
*Prices shown are gross prices including VAT
Pos. 9 | Manufacturer's nameplate GPO 950
1 619 PB1 749
-
-
Pos. 13 | Ball Bearing
1 619 PB1 751
-
35,000.00 D*
*Prices shown are gross prices including VAT
Pos. 17 | Brush-Cover
1 619 PB1 753
-
16,000.00 D*
*Prices shown are gross prices including VAT
Pos. 24 | Seal
1 619 PB1 756
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 32 | Retaining ring
1 619 PB1 763
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 33 | Gear
1 619 PB1 764
-
86,000.00 D*
*Prices shown are gross prices including VAT
Pos. 34 | Grinding Spindle
1 619 PB1 765
-
58,000.00 D*
*Prices shown are gross prices including VAT
Pos. 35 | Key
1 619 PB1 766
-
151,000.00 D*
*Prices shown are gross prices including VAT
Pos. 39 | Tapping Screw
1 619 PB1 770
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 40 | O-Ring
1 619 PB1 771
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 43 | Air-Deflector Ring
1 619 PB1 774
-
20,000.00 D*
*Prices shown are gross prices including VAT
Pos. 44 | Tapping Screw
1 619 PB1 775
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 46 | Speed governor
1 607 233 5EL
-
709,000.00 D*
*Prices shown are gross prices including VAT
Pos. 47 | Housing Cover
1 619 PB1 778
-
87,000.00 D*
*Prices shown are gross prices including VAT
Pos. 48 | Tapping Screw
1 619 PB1 779
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 54 | Mounting Bracket
1 619 PB1 952
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 55 | Intermediate Ring
1 619 PB1 953
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 651 | Guard Plate
1 619 PB1 947
-
15,000.00 D*
*Prices shown are gross prices including VAT
Pos. 654 | Adapter Insert
1 619 PB1 950
-
75,000.00 D*
*Prices shown are gross prices including VAT
Pos. 655 | Adapter Insert
1 619 PB1 951
-
75,000.00 D*
*Prices shown are gross prices including VAT
Pos. 656 | Supporting Disc
1 619 PB1 954
-
131,000.00 D*
*Prices shown are gross prices including VAT
Pos. 657 | Polishing Sponge
1 619 PB1 966
-
101,000.00 D*
*Prices shown are gross prices including VAT
Pos. 669 | Assembly Wrench
1 619 PB1 967
-
20,000.00 D*
*Prices shown are gross prices including VAT
Pos. 801 | Housing Assembly
1 619 PB1 968
-
141,000.00 D*
*Prices shown are gross prices including VAT
Pos. 802 | Field
1 619 PB1 969
-
250,000.00 D*
*Prices shown are gross prices including VAT
Pos. 803 | Armature
1 619 PB1 970
-
560,000.00 D*
*Prices shown are gross prices including VAT
Pos. 808 | Nameplate
1 619 PB2 283
-
-
Pos. 810 | Carbon-Brush Set
1 619 PB1 971
-
40,000.00 D*
*Prices shown are gross prices including VAT
Pos. 822 | Bearing cover
1 619 PB1 972
-
290,000.00 D*
*Prices shown are gross prices including VAT
Pos. 823 | Gear Housing
1 619 PB1 973
-
224,000.00 D*
*Prices shown are gross prices including VAT
Pos. 850 | Auxiliary Handle
1 619 PB1 974
-
58,000.00 D*
*Prices shown are gross prices including VAT
* Prices shown are gross prices including VAT
Turn the device for 90 degrees.
3 601 CA2 0K0
Image 1
Speed governor
-
Spare part number: 1 607 233 5EL
Position: 46
Availability: 1
Price group: 37
709,000.00 D*

Prices shown are gross prices including VAT
Switch
-
Spare part number: 1 619 PB1 744
Position: 4
Availability: 1
Price group: 22
105,000.00 D*

Prices shown are gross prices including VAT
Grommet
-
Spare part number: 1 619 PB1 746
Position: 6
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Fastening Clamp
-
Spare part number: 1 619 PB1 747
Position: 7
Availability: 1
Price group: 10
167,000.00 D*

Prices shown are gross prices including VAT
Manufacturer's nameplate GPO 950
-
Spare part number: 1 619 PB1 749
Position: 9
Availability: 1
Price group: -
-

Ball Bearing
-
Spare part number: 1 619 PB1 751
Position: 13
Availability: 2
Price group: 14
35,000.00 D*

Prices shown are gross prices including VAT
Ball Bearing
-
Spare part number: 1 619 PB1 751
Position: 13
Availability: 2
Price group: 14
35,000.00 D*

Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PB1 753
Position: 17
Availability: 2
Price group: 10
16,000.00 D*

Prices shown are gross prices including VAT
Brush-Cover
-
Spare part number: 1 619 PB1 753
Position: 17
Availability: 2
Price group: 10
16,000.00 D*

Prices shown are gross prices including VAT
Seal
-
Spare part number: 1 619 PB1 756
Position: 24
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Retaining ring
-
Spare part number: 1 619 PB1 763
Position: 32
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Gear
-
Spare part number: 1 619 PB1 764
Position: 33
Availability: 1
Price group: 19
86,000.00 D*

Prices shown are gross prices including VAT
Grinding Spindle
-
Spare part number: 1 619 PB1 765
Position: 34
Availability: 1
Price group: 16
58,000.00 D*

Prices shown are gross prices including VAT
Key
-
Spare part number: 1 619 PB1 766
Position: 35
Availability: 1
Price group: 10
151,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 770
Position: 39
Availability: 4
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
O-Ring
-
Spare part number: 1 619 PB1 771
Position: 40
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Air-Deflector Ring
-
Spare part number: 1 619 PB1 774
Position: 43
Availability: 1
Price group: 11
20,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 775
Position: 44
Availability: 2
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Housing Cover
-
Spare part number: 1 619 PB1 778
Position: 47
Availability: 1
Price group: 19
87,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 779
Position: 48
Availability: 7
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB1 779
Position: 48
Availability: 7
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Power supply cord
-
Spare part number: 1 619 PB1 936
Position: 5
Availability: 1
Price group: 24
167,000.00 D*

Prices shown are gross prices including VAT
Guard Plate
-
Spare part number: 1 619 PB1 947
Position: 651
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Adapter Insert
-
part
Spare part number: 1 619 PB1 950
Position: 654
Availability: 1
Price group: 18
75,000.00 D*

Prices shown are gross prices including VAT
Adapter Insert
-
Spare part number: 1 619 PB1 951
Position: 655
Availability: 1
Price group: 18
75,000.00 D*

Prices shown are gross prices including VAT
Mounting Bracket
-
Spare part number: 1 619 PB1 952
Position: 54
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Intermediate Ring
-
Spare part number: 1 619 PB1 953
Position: 55
Availability: 1
Price group: 10
15,000.00 D*

Prices shown are gross prices including VAT
Supporting Disc
-
part
Spare part number: 1 619 PB1 954
Position: 656
Availability: 1
Price group: 22
131,000.00 D*

Prices shown are gross prices including VAT
Polishing Sponge
-
part
Spare part number: 1 619 PB1 966
Position: 657
Availability: 1
Price group: 20
101,000.00 D*

Prices shown are gross prices including VAT
Assembly Wrench
-
Spare part number: 1 619 PB1 967
Position: 669
Availability: 2
Price group: 11
20,000.00 D*

Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB1 968
Position: 801
Availability: 1
Price group: 22
141,000.00 D*

Prices shown are gross prices including VAT
Field
-
Spare part number: 1 619 PB1 969
Position: 802
Availability: 1
Price group: 29
250,000.00 D*

Prices shown are gross prices including VAT
Armature
-
Spare part number: 1 619 PB1 970
Position: 803
Availability: 1
Price group: 35
560,000.00 D*

Prices shown are gross prices including VAT
Carbon-Brush Set
-
Spare part number: 1 619 PB1 971
Position: 810
Availability: 1
Price group: 15
40,000.00 D*

Prices shown are gross prices including VAT
Bearing cover
-
Spare part number: 1 619 PB1 972
Position: 822
Availability: 1
Price group: 30
290,000.00 D*

Prices shown are gross prices including VAT
Gear Housing
-
Spare part number: 1 619 PB1 973
Position: 823
Availability: 1
Price group: 28
224,000.00 D*

Prices shown are gross prices including VAT
Auxiliary Handle
-
Spare part number: 1 619 PB1 974
Position: 850
Availability: 1
Price group: 18
58,000.00 D*

Prices shown are gross prices including VAT
Nameplate
-
Spare part number: 1 619 PB2 283
Position: 808
Availability: 1
Price group: -
-

1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
