Cordl Reciprocating Saw
GSA 185-LI | 3 601 FC0 0L0 | 18 V / 026 - AS
Lubrication instructions
Product information
Print drawing

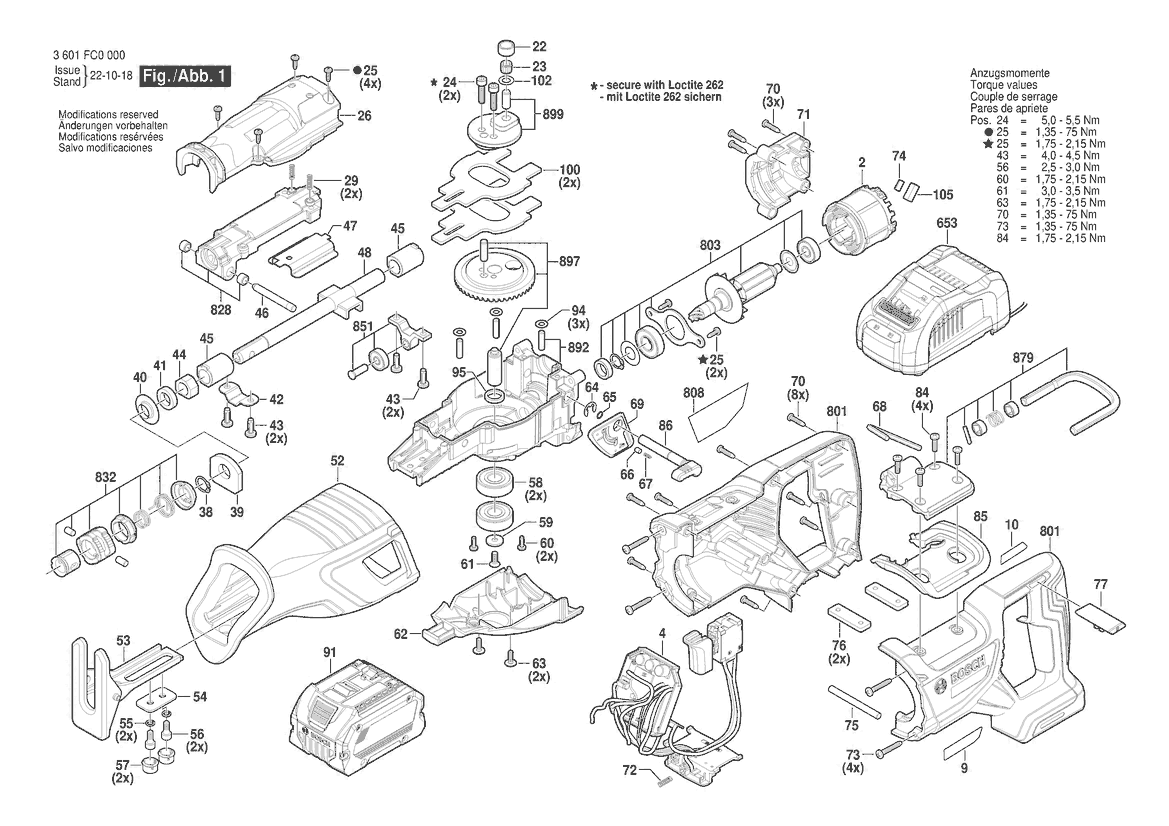

To select an item please click on the position number in the illustration or select the item via the part list below the drawing
3 601 FC0 0L0
Image 1
-

Please click for futher details

-

Please click for futher details

Stator
-
Spare part number: 1 619 PB7 516
Position: 2
Availability: 1
Price group: 29
361,000.00 D*
Prices shown are gross prices including VAT
Electronics Module
-
Spare part number: 1 619 PB7 518
Position: 4
Availability: 1
Price group: 46
1,510,000.00 D*
Prices shown are gross prices including VAT
Roller Drum
-
Spare part number: 1 619 PB7 526
Position: 22
Availability: 1
Price group: 13
36,000.00 D*
Prices shown are gross prices including VAT
Needle bearing
-
Spare part number: 1 619 PB7 527
Position: 23
Availability: 1
Price group: 14
35,000.00 D*
Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 528
Position: 24
Availability: 2
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 529
Position: 25
Availability: 6
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 529
Position: 25
Availability: 6
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Gear Cover
-
Spare part number: 1 619 PB7 530
Position: 26
Availability: 1
Price group: 17
61,000.00 D*
Prices shown are gross prices including VAT
Compression Spring
-
part
Spare part number: 1 619 PB7 533
Position: 29
Availability: 2
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Circlip
-
Spare part number: 1 619 PB7 542
Position: 38
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Seal Ring
-
Spare part number: 1 619 PB7 543
Position: 39
Availability: 1
Price group: 12
25,000.00 D*
Prices shown are gross prices including VAT
Flange
-
Spare part number: 1 619 PB7 544
Position: 40
Availability: 1
Price group: 10
8,000.00 D*
Prices shown are gross prices including VAT
Felt seal ring
-
Spare part number: 1 619 PB7 545
Position: 41
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Clamping Plate
-
Spare part number: 1 619 PB7 546
Position: 42
Availability: 1
Price group: 12
18,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 547
Position: 43
Availability: 4
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 547
Position: 43
Availability: 4
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Seal Ring
-
Spare part number: 1 619 PB7 548
Position: 44
Availability: 1
Price group: 11
18,000.00 D*
Prices shown are gross prices including VAT
Guide Sleeve
-
Spare part number: 1 619 PB7 549
Position: 45
Availability: 2
Price group: 14
46,000.00 D*
Prices shown are gross prices including VAT
Guide Sleeve
-
Spare part number: 1 619 PB7 549
Position: 45
Availability: 2
Price group: 14
46,000.00 D*
Prices shown are gross prices including VAT
Pin
-
Spare part number: 1 619 PB7 550
Position: 46
Availability: 1
Price group: 12
27,000.00 D*
Prices shown are gross prices including VAT
Aligning plate
-
Spare part number: 1 619 PB7 551
Position: 47
Availability: 1
Price group: 12
26,000.00 D*
Prices shown are gross prices including VAT
Plunger Bar
-
Spare part number: 1 619 PB7 552
Position: 48
Availability: 1
Price group: 35
668,000.00 D*
Prices shown are gross prices including VAT
Holding Sleeve
-
Spare part number: 1 619 PB7 556
Position: 52
Availability: 1
Price group: 28
315,000.00 D*
Prices shown are gross prices including VAT
Base Plate
-
Spare part number: 1 619 PB7 557
Position: 53
Availability: 1
Price group: 26
208,000.00 D*
Prices shown are gross prices including VAT
Clamp block
-
Spare part number: 1 619 PB7 558
Position: 54
Availability: 1
Price group: 11
12,000.00 D*
Prices shown are gross prices including VAT
Spring Washer
-
Spare part number: 1 619 PB7 559
Position: 55
Availability: 2
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 560
Position: 56
Availability: 2
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Cover
-
Spare part number: 1 619 PB7 561
Position: 57
Availability: 2
Price group: 11
9,000.00 D*
Prices shown are gross prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB7 562
Position: 58
Availability: 2
Price group: 19
80,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: 1 619 PB7 563
Position: 59
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 564
Position: 60
Availability: 2
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Countersunk-Head Screw
-
Spare part number: 1 619 PB7 565
Position: 61
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Support
-
Spare part number: 1 619 PB7 566
Position: 62
Availability: 1
Price group: 17
70,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 567
Position: 63
Availability: 2
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Circlip
-
Spare part number: 1 619 PB7 568
Position: 64
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
O-Ring
-
Spare part number: 1 619 PB7 569
Position: 65
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Cap
-
Spare part number: 1 619 PB7 570
Position: 66
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PB7 571
Position: 67
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Hexagon Socket Screw Key
-
Spare part number: 1 619 PB7 572
Position: 68
Availability: 1
Price group: 12
13,000.00 D*
Prices shown are gross prices including VAT
Indicator Plate
-
Spare part number: 1 619 PB7 573
Position: 69
Availability: 1
Price group: 14
42,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 574
Position: 70
Availability: 11
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 574
Position: 70
Availability: 11
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Motor cover
-
Spare part number: 1 619 PB7 575
Position: 71
Availability: 1
Price group: 16
65,000.00 D*
Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PB7 576
Position: 72
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 577
Position: 73
Availability: 4
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Rubber Bar
-
Spare part number: 1 619 PB7 578
Position: 74
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Piston Pin
-
Spare part number: 1 619 PB7 579
Position: 75
Availability: 1
Price group: 11
11,000.00 D*
Prices shown are gross prices including VAT
Connecting Plate
-
Spare part number: 1 619 PB7 580
Position: 76
Availability: 2
Price group: 13
34,000.00 D*
Prices shown are gross prices including VAT
Locking Level
-
Spare part number: 1 619 PB7 581
Position: 77
Availability: 1
Price group: 11
17,000.00 D*
Prices shown are gross prices including VAT
Cross Recessed-Head Screw
-
Spare part number: 1 619 PB7 588
Position: 84
Availability: 4
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Base Plate
-
Spare part number: 1 619 PB7 589
Position: 85
Availability: 1
Price group: 12
27,000.00 D*
Prices shown are gross prices including VAT
Control Knob
-
Spare part number: 1 619 PB7 590
Position: 86
Availability: 1
Price group: 18
88,000.00 D*
Prices shown are gross prices including VAT
Washer
-
Spare part number: 1 619 PB7 598
Position: 94
Availability: 3
Price group: -
-
Plain Washer
-
Spare part number: 1 619 PB7 599
Position: 95
Availability: 1
Price group: 11
16,000.00 D*
Prices shown are gross prices including VAT
Balance Weights
-
Spare part number: 1 619 PB7 604
Position: 100
Availability: 2
Price group: 23
156,000.00 D*
Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: 1 619 PB7 606
Position: 102
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB7 609
Position: 801
Availability: 1
Price group: 32
451,000.00 D*
Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB7 609
Position: 801
Availability: 1
Price group: 32
451,000.00 D*
Prices shown are gross prices including VAT
Armature assembly
-
Spare part number: 1 619 PB7 610
Position: 803
Availability: 1
Price group: 43
1,290,000.00 D*
Prices shown are gross prices including VAT
Pendulum assembly
-
Spare part number: 1 619 PB7 611
Position: 828
Availability: 1
Price group: 28
239,000.00 D*
Prices shown are gross prices including VAT
Toolholder
-
Spare part number: 1 619 PB7 612
Position: 832
Availability: 1
Price group: 33
492,000.00 D*
Prices shown are gross prices including VAT
Bearing set
-
Spare part number: 1 619 PB7 613
Position: 851
Availability: 1
Price group: 25
165,000.00 D*
Prices shown are gross prices including VAT
Assembly Hook
-
Spare part number: 1 619 PB7 614
Position: 879
Availability: 1
Price group: 23
147,000.00 D*
Prices shown are gross prices including VAT
Gear Housing
-
Spare part number: 1 619 PB7 615
Position: 892
Availability: 1
Price group: 32
440,000.00 D*
Prices shown are gross prices including VAT
Bevel Gear Set
-
Spare part number: 1 619 PB7 616
Position: 897
Availability: 1
Price group: 32
444,000.00 D*
Prices shown are gross prices including VAT
Eccentric Unit
-
Spare part number: 1 619 PB7 617
Position: 899
Availability: 1
Price group: 23
159,000.00 D*
Prices shown are gross prices including VAT
Rubber Plug
-
Spare part number: 1 619 PB8 776
Position: 105
Availability: 1
Price group: 10
9,000.00 D*
Prices shown are gross prices including VAT
Label
-
Spare part number: 1 619 PB9 245
Position: 9
Availability: 1
Price group: 11
11,000.00 D*
Prices shown are gross prices including VAT
Label
-
Spare part number: 1 619 PB9 258
Position: 10
Availability: 1
Price group: 11
10,000.00 D*
Prices shown are gross prices including VAT
Nameplate
-
Spare part number: 1 619 PB9 262
Position: 808
Availability: 1
Price group: -
-
1
Spare parts in cart

67 Parts found

Sort by
Description
Pos. 2 | Stator
1 619 PB7 516
-
361,000.00 D*
*Prices shown are gross prices including VAT
Pos. 4 | Electronics Module
1 619 PB7 518
-
1,510,000.00 D*
*Prices shown are gross prices including VAT
Pos. 9 | Label
1 619 PB9 245
-
11,000.00 D*
*Prices shown are gross prices including VAT
Pos. 10 | Label
1 619 PB9 258
-
10,000.00 D*
*Prices shown are gross prices including VAT
Pos. 22 | Roller Drum
1 619 PB7 526
-
36,000.00 D*
*Prices shown are gross prices including VAT
Pos. 23 | Needle bearing
1 619 PB7 527
-
35,000.00 D*
*Prices shown are gross prices including VAT
Pos. 24 | Hex Socket Head Cap Screw
1 619 PB7 528
-
8,000.00 D*
*Prices shown are gross prices including VAT
Pos. 25 | Screw
1 619 PB7 529
-
8,000.00 D*
*Prices shown are gross prices including VAT
Pos. 26 | Gear Cover
1 619 PB7 530
-
61,000.00 D*
*Prices shown are gross prices including VAT
Pos. 29 | Compression Spring
1 619 PB7 533
-
8,000.00 D*
*Prices shown are gross prices including VAT
Pos. 38 | Circlip
1 619 PB7 542
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 39 | Seal Ring
1 619 PB7 543
-
25,000.00 D*
*Prices shown are gross prices including VAT
Pos. 40 | Flange
1 619 PB7 544
-
8,000.00 D*
*Prices shown are gross prices including VAT
Pos. 41 | Felt seal ring
1 619 PB7 545
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 42 | Clamping Plate
1 619 PB7 546
-
18,000.00 D*
*Prices shown are gross prices including VAT
Pos. 43 | Screw
1 619 PB7 547
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 44 | Seal Ring
1 619 PB7 548
-
18,000.00 D*
*Prices shown are gross prices including VAT
Pos. 45 | Guide Sleeve
1 619 PB7 549
-
46,000.00 D*
*Prices shown are gross prices including VAT
Pos. 46 | Pin
1 619 PB7 550
-
27,000.00 D*
*Prices shown are gross prices including VAT
Pos. 47 | Aligning plate
1 619 PB7 551
-
26,000.00 D*
*Prices shown are gross prices including VAT
Pos. 48 | Plunger Bar
1 619 PB7 552
-
668,000.00 D*
*Prices shown are gross prices including VAT
Pos. 52 | Holding Sleeve
1 619 PB7 556
-
315,000.00 D*
*Prices shown are gross prices including VAT
Pos. 53 | Base Plate
1 619 PB7 557
-
208,000.00 D*
*Prices shown are gross prices including VAT
Pos. 54 | Clamp block
1 619 PB7 558
-
12,000.00 D*
*Prices shown are gross prices including VAT
Pos. 55 | Spring Washer
1 619 PB7 559
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 56 | Hex Socket Head Cap Screw
1 619 PB7 560
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 57 | Cover
1 619 PB7 561
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 58 | groove ball bearing
1 619 PB7 562
-
80,000.00 D*
*Prices shown are gross prices including VAT
Pos. 59 | Plain Washer
1 619 PB7 563
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 60 | Hex Socket Head Cap Screw
1 619 PB7 564
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 61 | Countersunk-Head Screw
1 619 PB7 565
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 62 | Support
1 619 PB7 566
-
70,000.00 D*
*Prices shown are gross prices including VAT
Pos. 63 | Tapping Screw
1 619 PB7 567
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 64 | Circlip
1 619 PB7 568
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 65 | O-Ring
1 619 PB7 569
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 66 | Cap
1 619 PB7 570
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 67 | Spring
1 619 PB7 571
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 68 | Hexagon Socket Screw Key
1 619 PB7 572
-
13,000.00 D*
*Prices shown are gross prices including VAT
Pos. 69 | Indicator Plate
1 619 PB7 573
-
42,000.00 D*
*Prices shown are gross prices including VAT
Pos. 70 | Tapping Screw
1 619 PB7 574
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 71 | Motor cover
1 619 PB7 575
-
65,000.00 D*
*Prices shown are gross prices including VAT
Pos. 72 | Spring
1 619 PB7 576
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 73 | Tapping Screw
1 619 PB7 577
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 74 | Rubber Bar
1 619 PB7 578
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 75 | Piston Pin
1 619 PB7 579
-
11,000.00 D*
*Prices shown are gross prices including VAT
Pos. 76 | Connecting Plate
1 619 PB7 580
-
34,000.00 D*
*Prices shown are gross prices including VAT
Pos. 77 | Locking Level
1 619 PB7 581
-
17,000.00 D*
*Prices shown are gross prices including VAT
Pos. 84 | Cross Recessed-Head Screw
1 619 PB7 588
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 85 | Base Plate
1 619 PB7 589
-
27,000.00 D*
*Prices shown are gross prices including VAT
Pos. 86 | Control Knob
1 619 PB7 590
-
88,000.00 D*
*Prices shown are gross prices including VAT
Pos. 91 | Battery Pack
1 607 A35 0LR
-
-
Pos. 91 | Battery Pack
1 617 S01 9K0
-
-
Pos. 94 | Washer
1 619 PB7 598
-
-
Pos. 95 | Plain Washer
1 619 PB7 599
-
16,000.00 D*
*Prices shown are gross prices including VAT
Pos. 100 | Balance Weights
1 619 PB7 604
-
156,000.00 D*
*Prices shown are gross prices including VAT
Pos. 102 | Plain Washer
1 619 PB7 606
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 105 | Rubber Plug
1 619 PB8 776
-
9,000.00 D*
*Prices shown are gross prices including VAT
Pos. 801 | Housing Assembly
1 619 PB7 609
-
451,000.00 D*
*Prices shown are gross prices including VAT
Pos. 803 | Armature assembly
1 619 PB7 610
-
1,290,000.00 D*
*Prices shown are gross prices including VAT
Pos. 808 | Nameplate
1 619 PB9 262
-
-
Pos. 828 | Pendulum assembly
1 619 PB7 611
-
239,000.00 D*
*Prices shown are gross prices including VAT
Pos. 832 | Toolholder
1 619 PB7 612
-
492,000.00 D*
*Prices shown are gross prices including VAT
Pos. 851 | Bearing set
1 619 PB7 613
-
165,000.00 D*
*Prices shown are gross prices including VAT
Pos. 879 | Assembly Hook
1 619 PB7 614
-
147,000.00 D*
*Prices shown are gross prices including VAT
Pos. 892 | Gear Housing
1 619 PB7 615
-
440,000.00 D*
*Prices shown are gross prices including VAT
Pos. 897 | Bevel Gear Set
1 619 PB7 616
-
444,000.00 D*
*Prices shown are gross prices including VAT
Pos. 899 | Eccentric Unit
1 619 PB7 617
-
159,000.00 D*
*Prices shown are gross prices including VAT
* Prices shown are gross prices including VAT
Turn the device for 90 degrees.
3 601 FC0 0L0
Image 1
-

Please click for futher details

Stator
-
Spare part number: 1 619 PB7 516
Position: 2
Availability: 1
Price group: 29
361,000.00 D*

Prices shown are gross prices including VAT
Electronics Module
-
Spare part number: 1 619 PB7 518
Position: 4
Availability: 1
Price group: 46
1,510,000.00 D*

Prices shown are gross prices including VAT
Roller Drum
-
Spare part number: 1 619 PB7 526
Position: 22
Availability: 1
Price group: 13
36,000.00 D*

Prices shown are gross prices including VAT
Needle bearing
-
Spare part number: 1 619 PB7 527
Position: 23
Availability: 1
Price group: 14
35,000.00 D*

Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 528
Position: 24
Availability: 2
Price group: 10
8,000.00 D*

Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 529
Position: 25
Availability: 6
Price group: 10
8,000.00 D*

Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 529
Position: 25
Availability: 6
Price group: 10
8,000.00 D*

Prices shown are gross prices including VAT
Gear Cover
-
Spare part number: 1 619 PB7 530
Position: 26
Availability: 1
Price group: 17
61,000.00 D*

Prices shown are gross prices including VAT
Compression Spring
-
part
Spare part number: 1 619 PB7 533
Position: 29
Availability: 2
Price group: 10
8,000.00 D*

Prices shown are gross prices including VAT
Circlip
-
Spare part number: 1 619 PB7 542
Position: 38
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Seal Ring
-
Spare part number: 1 619 PB7 543
Position: 39
Availability: 1
Price group: 12
25,000.00 D*

Prices shown are gross prices including VAT
Flange
-
Spare part number: 1 619 PB7 544
Position: 40
Availability: 1
Price group: 10
8,000.00 D*

Prices shown are gross prices including VAT
Felt seal ring
-
Spare part number: 1 619 PB7 545
Position: 41
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Clamping Plate
-
Spare part number: 1 619 PB7 546
Position: 42
Availability: 1
Price group: 12
18,000.00 D*

Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 547
Position: 43
Availability: 4
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Screw
-
Spare part number: 1 619 PB7 547
Position: 43
Availability: 4
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Seal Ring
-
Spare part number: 1 619 PB7 548
Position: 44
Availability: 1
Price group: 11
18,000.00 D*

Prices shown are gross prices including VAT
Guide Sleeve
-
Spare part number: 1 619 PB7 549
Position: 45
Availability: 2
Price group: 14
46,000.00 D*

Prices shown are gross prices including VAT
Guide Sleeve
-
Spare part number: 1 619 PB7 549
Position: 45
Availability: 2
Price group: 14
46,000.00 D*

Prices shown are gross prices including VAT
Pin
-
Spare part number: 1 619 PB7 550
Position: 46
Availability: 1
Price group: 12
27,000.00 D*

Prices shown are gross prices including VAT
Aligning plate
-
Spare part number: 1 619 PB7 551
Position: 47
Availability: 1
Price group: 12
26,000.00 D*

Prices shown are gross prices including VAT
Plunger Bar
-
Spare part number: 1 619 PB7 552
Position: 48
Availability: 1
Price group: 35
668,000.00 D*

Prices shown are gross prices including VAT
Holding Sleeve
-
Spare part number: 1 619 PB7 556
Position: 52
Availability: 1
Price group: 28
315,000.00 D*

Prices shown are gross prices including VAT
Base Plate
-
Spare part number: 1 619 PB7 557
Position: 53
Availability: 1
Price group: 26
208,000.00 D*

Prices shown are gross prices including VAT
Clamp block
-
Spare part number: 1 619 PB7 558
Position: 54
Availability: 1
Price group: 11
12,000.00 D*

Prices shown are gross prices including VAT
Spring Washer
-
Spare part number: 1 619 PB7 559
Position: 55
Availability: 2
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 560
Position: 56
Availability: 2
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Cover
-
Spare part number: 1 619 PB7 561
Position: 57
Availability: 2
Price group: 11
9,000.00 D*

Prices shown are gross prices including VAT
groove ball bearing
-
Spare part number: 1 619 PB7 562
Position: 58
Availability: 2
Price group: 19
80,000.00 D*

Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: 1 619 PB7 563
Position: 59
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Hex Socket Head Cap Screw
-
Spare part number: 1 619 PB7 564
Position: 60
Availability: 2
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Countersunk-Head Screw
-
Spare part number: 1 619 PB7 565
Position: 61
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Support
-
Spare part number: 1 619 PB7 566
Position: 62
Availability: 1
Price group: 17
70,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 567
Position: 63
Availability: 2
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Circlip
-
Spare part number: 1 619 PB7 568
Position: 64
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
O-Ring
-
Spare part number: 1 619 PB7 569
Position: 65
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Cap
-
Spare part number: 1 619 PB7 570
Position: 66
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PB7 571
Position: 67
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Hexagon Socket Screw Key
-
Spare part number: 1 619 PB7 572
Position: 68
Availability: 1
Price group: 12
13,000.00 D*

Prices shown are gross prices including VAT
Indicator Plate
-
Spare part number: 1 619 PB7 573
Position: 69
Availability: 1
Price group: 14
42,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 574
Position: 70
Availability: 11
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 574
Position: 70
Availability: 11
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Motor cover
-
Spare part number: 1 619 PB7 575
Position: 71
Availability: 1
Price group: 16
65,000.00 D*

Prices shown are gross prices including VAT
Spring
-
Spare part number: 1 619 PB7 576
Position: 72
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Tapping Screw
-
Spare part number: 1 619 PB7 577
Position: 73
Availability: 4
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Rubber Bar
-
Spare part number: 1 619 PB7 578
Position: 74
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Piston Pin
-
Spare part number: 1 619 PB7 579
Position: 75
Availability: 1
Price group: 11
11,000.00 D*

Prices shown are gross prices including VAT
Connecting Plate
-
Spare part number: 1 619 PB7 580
Position: 76
Availability: 2
Price group: 13
34,000.00 D*

Prices shown are gross prices including VAT
Locking Level
-
Spare part number: 1 619 PB7 581
Position: 77
Availability: 1
Price group: 11
17,000.00 D*

Prices shown are gross prices including VAT
Cross Recessed-Head Screw
-
Spare part number: 1 619 PB7 588
Position: 84
Availability: 4
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Base Plate
-
Spare part number: 1 619 PB7 589
Position: 85
Availability: 1
Price group: 12
27,000.00 D*

Prices shown are gross prices including VAT
Control Knob
-
Spare part number: 1 619 PB7 590
Position: 86
Availability: 1
Price group: 18
88,000.00 D*

Prices shown are gross prices including VAT
Washer
-
Spare part number: 1 619 PB7 598
Position: 94
Availability: 3
Price group: -
-

Plain Washer
-
Spare part number: 1 619 PB7 599
Position: 95
Availability: 1
Price group: 11
16,000.00 D*

Prices shown are gross prices including VAT
Balance Weights
-
Spare part number: 1 619 PB7 604
Position: 100
Availability: 2
Price group: 23
156,000.00 D*

Prices shown are gross prices including VAT
Plain Washer
-
Spare part number: 1 619 PB7 606
Position: 102
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB7 609
Position: 801
Availability: 1
Price group: 32
451,000.00 D*

Prices shown are gross prices including VAT
Housing Assembly
-
Spare part number: 1 619 PB7 609
Position: 801
Availability: 1
Price group: 32
451,000.00 D*

Prices shown are gross prices including VAT
Armature assembly
-
Spare part number: 1 619 PB7 610
Position: 803
Availability: 1
Price group: 43
1,290,000.00 D*

Prices shown are gross prices including VAT
Pendulum assembly
-
Spare part number: 1 619 PB7 611
Position: 828
Availability: 1
Price group: 28
239,000.00 D*

Prices shown are gross prices including VAT
Toolholder
-
Spare part number: 1 619 PB7 612
Position: 832
Availability: 1
Price group: 33
492,000.00 D*

Prices shown are gross prices including VAT
Bearing set
-
Spare part number: 1 619 PB7 613
Position: 851
Availability: 1
Price group: 25
165,000.00 D*

Prices shown are gross prices including VAT
Assembly Hook
-
Spare part number: 1 619 PB7 614
Position: 879
Availability: 1
Price group: 23
147,000.00 D*

Prices shown are gross prices including VAT
Gear Housing
-
Spare part number: 1 619 PB7 615
Position: 892
Availability: 1
Price group: 32
440,000.00 D*

Prices shown are gross prices including VAT
Bevel Gear Set
-
Spare part number: 1 619 PB7 616
Position: 897
Availability: 1
Price group: 32
444,000.00 D*

Prices shown are gross prices including VAT
Eccentric Unit
-
Spare part number: 1 619 PB7 617
Position: 899
Availability: 1
Price group: 23
159,000.00 D*

Prices shown are gross prices including VAT
Rubber Plug
-
Spare part number: 1 619 PB8 776
Position: 105
Availability: 1
Price group: 10
9,000.00 D*

Prices shown are gross prices including VAT
Label
-
Spare part number: 1 619 PB9 245
Position: 9
Availability: 1
Price group: 11
11,000.00 D*

Prices shown are gross prices including VAT
Label
-
Spare part number: 1 619 PB9 258
Position: 10
Availability: 1
Price group: 11
10,000.00 D*

Prices shown are gross prices including VAT
Nameplate
-
Spare part number: 1 619 PB9 262
Position: 808
Availability: 1
Price group: -
-

1
Warning
A selection of part numbers is available. Please click the respective button in the spare part list
Warning
To select this item click the checkbox. Note: This position number does not appear on the illustration
Warning
No spare part listed
