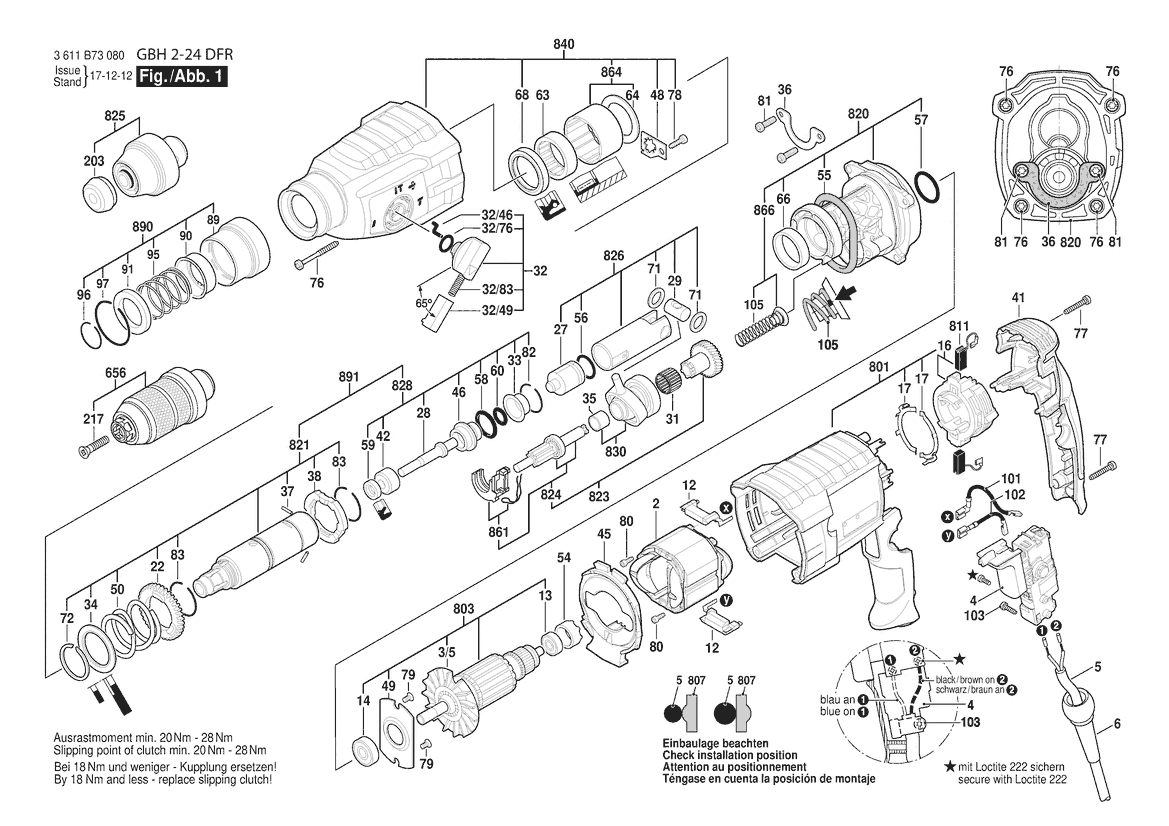

3 611 B73 0L1
Grommet Ø7,3-Ø8,6X66 MM
-
Spare part number: 1 600 703 034
Position: 6
Availability: 1
Price group: 13
-
Shaft Seal
-
Spare part number: 1 600 A00 9VC
Position: 59
Availability: 1
Price group: 14
-
Keyless Chuck
-
Spare part number: 1 600 A01 V5D
Position: 656
Availability: 1
Price group: 41
-
Retaining ring
-
Spare part number: 1 604 601 027
Position: 72
Availability: 1
Price group: 10
-
Retaining ring A22 DIN 7993
-
Spare part number: 1 604 601 028
Position: 83
Availability: 2
Price group: 10
-
Retaining ring A22 DIN 7993
-
Spare part number: 1 604 601 028
Position: 83
Availability: 2
Price group: 10
-
Switch
-
Spare part number: 1 607 200 32D
Position: 4
Availability: 1
Price group: 25
-
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
-
Shim washer 1,2 MM THICK
-
Spare part number: 1 610 101 011
Position: 71
Availability: 2
Price group: 11
-
Thrust Ring
-
Spare part number: 1 610 102 073
Position: 42
Availability: 1
Price group: 17
-
Catch Disk
-
Spare part number: 1 610 190 048
Position: 38
Availability: 1
Price group: 17
-
Supporting Disc
-
Spare part number: 1 610 190 060
Position: 64
Availability: 1
Price group: 12
-
Supporting Disc
-
Spare part number: 1 610 190 067
Position: 34
Availability: 1
Price group: 12
-
Backup ring
-
Spare part number: 1 610 200 025
Position: 91
Availability: 1
Price group: 17
-
Plain bearing
-
Spare part number: 1 610 202 021
Position: 66
Availability: 1
Price group: 13
-
O-Ring 10,5X2,7 MM
-
Spare part number: 1 610 210 046
Position: 32/76
Availability: 1
Price group: 12
-
O-Ring 24,0X2,5 MM
-
Spare part number: 1 610 210 068
Position: 57
Availability: 1
Price group: 11
-
O-Ring 9,0X3,5 MM
-
Spare part number: 1 610 210 176
Position: 60
Availability: 1
Price group: 10
-
O-Ring
-
Spare part number: 1 610 210 178
Position: 58
Availability: 1
Price group: 11
-
Rotary shaft lip seal
-
Spare part number: 1 610 283 036
Position: 68
Availability: 1
Price group: 20
-
Striker
-
Spare part number: 1 610 311 018
Position: 27
Availability: 1
Price group: 28
-
Guide Sleeve
-
Spare part number: 1 610 499 059
Position: 89
Availability: 1
Price group: 16
-
Rubber Bushing
-
Spare part number: 1 610 502 016
Position: 54
Availability: 1
Price group: 10
-
Protective Cap
-
Spare part number: 1 610 508 047
Position: 203
Availability: 1
Price group: 12
-
Holding Jacket
-
Spare part number: 1 610 590 014
Position: 33
Availability: 1
Price group: 12
-
Collar Sleeve
-
Spare part number: 1 610 590 016
Position: 90
Availability: 1
Price group: 16
-
groove ball bearing 7X19X6
-
Spare part number: 1 610 905 032
Position: 13
Availability: 1
Price group: 17
-
Needle bearing Ø30XØ37X12 MM
-
Spare part number: 1 610 910 063
Position: 63
Availability: 1
Price group: 18
-
Needle-Roller Assembly
-
Spare part number: 1 610 913 016
Position: 31
Availability: 1
Price group: 15
-
Tab Washer
-
Spare part number: 1 611 098 008
Position: 48
Availability: 1
Price group: 12
-
Switch Button RED
-
Spare part number: 1 612 026 035
Position: 32/49
Availability: 1
Price group: 11
-
Clamp Handle BLACK
-
Spare part number: 1 612 026 157
Position: 32
Availability: 1
Price group: 24
-
Straight Pin DIN6325-2,5X12-RIKO
-
Spare part number: 1 613 100 019
Position: 37
Availability: 3
Price group: 11
-
Piston Pin
-
Spare part number: 1 613 105 012
Position: 29
Availability: 1
Price group: 15
-
Striker Pin
-
Spare part number: 1 613 124 082
Position: 28
Availability: 1
Price group: 28
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 022
Position: 76
Availability: 4
Price group: 11
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 022
Position: 76
Availability: 4
Price group: 11
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 022
Position: 76
Availability: 4
Price group: 11
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 022
Position: 76
Availability: 4
Price group: 11
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 022
Position: 76
Availability: 4
Price group: 11
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 023
Position: 79
Availability: 2
Price group: 10
-
Thread-forming tap. Screw
-
Spare part number: 1 613 435 023
Position: 79
Availability: 2
Price group: 10
-
Thread-forming tap. Screw M5X16-TORX,T25 SILVER
-
Spare part number: 1 613 435 029
Position: 81
Availability: 2
Price group: 10
-
Thread-forming tap. Screw M5X16-TORX,T25 SILVER
-
Spare part number: 1 613 435 029
Position: 81
Availability: 2
Price group: 10
-
Thread-forming tap. Screw M5X16-TORX,T25 SILVER
-
Spare part number: 1 613 435 029
Position: 81
Availability: 2
Price group: 10
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 103
Availability: 1
Price group: 10
-
Connecting Cable
-
Spare part number: 1 614 449 014
Position: 101
Availability: 1
Price group: 12
-
Connecting Cable
-
Spare part number: 1 614 449 015
Position: 102
Availability: 1
Price group: 11
-
Suppression Filter
-
Spare part number: 1 614 465 011
Position: 12
Availability: 2
Price group: 19
-
Suppression Filter
-
Spare part number: 1 614 465 011
Position: 12
Availability: 2
Price group: 19
-
Retaining ring
-
Spare part number: 1 614 601 034
Position: 82
Availability: 1
Price group: 12
-
Retaining ring
-
Spare part number: 1 614 601 046
Position: 96
Availability: 1
Price group: 11
-
Retaining ring
-
Spare part number: 1 614 601 047
Position: 97
Availability: 1
Price group: 11
-
Compression Spring
-
Spare part number: 1 614 611 006
Position: 32/83
Availability: 1
Price group: 15
-
Compression Spring
-
Spare part number: 1 614 611 020
Position: 50
Availability: 1
Price group: 14
-
Compression Spring
-
Spare part number: 1 614 611 021
Position: 105
Availability: 1
Price group: 11
-
Plain bearing
-
Spare part number: 1 614 611 022
Position: 866
Availability: 1
Price group: 13
-
Compression Spring
-
Spare part number: 1 614 643 016
Position: 95
Availability: 1
Price group: 12
-
End Shield
-
Spare part number: 1 615 700 044
Position: 49
Availability: 1
Price group: 12
-
Bearing Holder
-
Spare part number: 1 615 808 106
Position: 36
Availability: 1
Price group: 11
-
Bearing Holder
-
Spare part number: 1 615 808 106
Position: 36
Availability: 1
Price group: 11
-
Drive bearing
-
Spare part number: 1 615 819 028
Position: 830
Availability: 1
Price group: 31
-
Cylindrical Gear
-
Spare part number: 1 616 312 004
Position: 22
Availability: 1
Price group: 24
-
O-Ring
-
Spare part number: 1 616 B00 086
Position: 56
Availability: 1
Price group: 12
-
Guide Bushing
-
Spare part number: 1 616 B10 047
Position: 46
Availability: 1
Price group: 17
-
Plain bearing
-
Spare part number: 1 616 B10 325
Position: 35
Availability: 1
Price group: 11
-
Switch Contact
-
Spare part number: 1 616 B10 337
Position: 17
Availability: 1
Price group: 11
-
Switch Contact
-
Spare part number: 1 616 B10 337
Position: 17
Availability: 1
Price group: 11
-
Carbon-Brush Set 220 V / 127 V
-
Spare part number: 1 617 000 525
Position: 811
Availability: 1
Price group: 23
-
Hammer Piston
-
Spare part number: 1 617 000 557
Position: 826
Availability: 1
Price group: 31
-
Hammer Pipe
-
Spare part number: 1 617 000 6CS
Position: 891
Availability: 1
Price group: 44
-
Tool Holding Fixture
-
Spare part number: 1 617 000 895
Position: 825
Availability: 1
Price group: 36
-
Supporting Disc
-
Spare part number: 1 617 000 A07
Position: 864
Availability: 1
Price group: 23
-
Guide Sleeve
-
Spare part number: 1 617 000 V41
Position: 890
Availability: 1
Price group: 23
-
Pipe
-
Spare part number: 1 617 000 V42
Position: 821
Availability: 1
Price group: 41
-
Striker Pin
-
Spare part number: 1 617 000 V43
Position: 828
Availability: 1
Price group: 36
-
Thread-forming tap. Screw
-
Spare part number: 1 619 P08 803
Position: 80
Availability: 2
Price group: 10
-
Thread-forming tap. Screw
-
Spare part number: 1 619 P08 803
Position: 80
Availability: 2
Price group: 10
-
Driver Pin
-
Spare part number: 1 619 P09 571
Position: 32/46
Availability: 1
Price group: 10
-
Field 230V
-
Spare part number: 1 619 P11 998
Position: 2
Availability: 1
Price group: 28
-
Fan
-
Spare part number: 1 619 P12 021
Position: 3/5
Availability: 1
Price group: 12
-
Housing Cover
-
Spare part number: 1 619 P12 191
Position: 41
Availability: 1
Price group: 19
-
Air-Deflector Ring
-
Spare part number: 1 619 P12 192
Position: 45
Availability: 1
Price group: 12
-
Armature 230V
-
Spare part number: 1 619 P13 450
Position: 803
Availability: 1
Price group: 33
-
Intermediate Flange
-
Spare part number: 1 619 P13 451
Position: 820
Availability: 1
Price group: 28
-
Intermediate Flange
-
Spare part number: 1 619 P13 451
Position: 820
Availability: 1
Price group: 28
-
Motor Housing BLUE
-
Spare part number: 1 619 P13 454
Position: 801
Availability: 1
Price group: 31
-
Toothed Shaft
-
Spare part number: 1 619 P13 456
Position: 823
Availability: 1
Price group: 30
-
Toothed Shaft
-
Spare part number: 1 619 P13 457
Position: 824
Availability: 1
Price group: 25
-
Switching Element
-
Spare part number: 1 619 P13 460
Position: 861
Availability: 1
Price group: 12
-
Gear Housing
-
Spare part number: 1 619 P13 463
Position: 840
Availability: 1
Price group: 30
-
Ball Bearing
-
Spare part number: 1 619 P15 694
Position: 14
Availability: 1
Price group: 13
-
Brush Plate
-
Spare part number: 1 619 P16 871
Position: 16
Availability: 1
Price group: 24
-
O-Ring
-
Spare part number: 1 619 P18 144
Position: 55
Availability: 1
Price group: 10
-
Cable Clip
-
Spare part number: 2 601 035 001
Position: 807
Availability: 1
Price group: 11
-
Cable Clip
-
Spare part number: 2 601 035 001
Position: 807
Availability: 1
Price group: 11
-
Countersunk-Head Screw M6X23 LEFTHAND THREADS
-
Spare part number: 2 603 421 229
Position: 217
Availability: 1
Price group: 11
-
Screw 4X16
-
Spare part number: 2 603 490 022
Position: 78
Availability: 1
Price group: 10
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
-
Torx Oval-Head Screw 4X25
-
Spare part number: 2 603 490 024
Position: 77
Availability: 3
Price group: 11
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
-

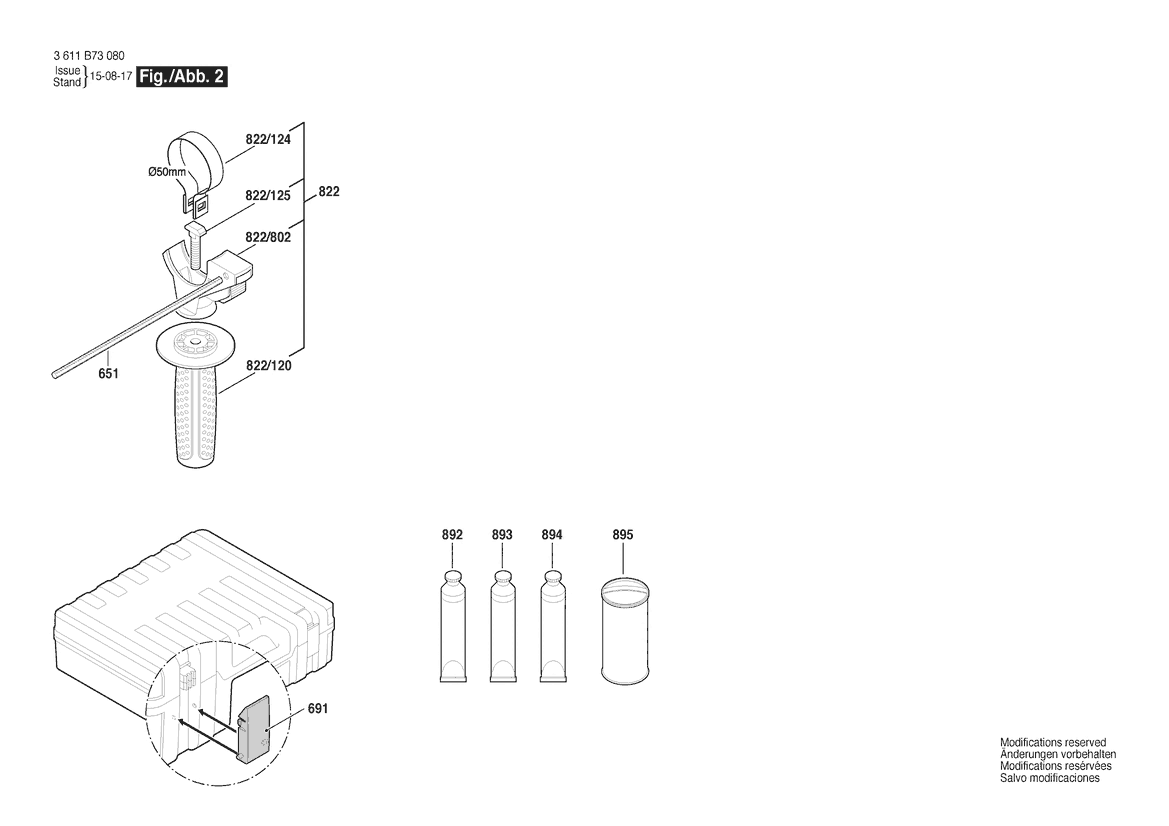

Auxiliary Handle
-
Spare part number: 1 602 025 07H
Position: 822/120
Availability: 1
Price group: 23
-
Auxiliary Handle
-
Spare part number: 1 602 025 08X
Position: 822
Availability: 1
Price group: 28
-
Clamping Band Ø50 MM
-
Spare part number: 1 611 316 021
Position: 822/124
Availability: 1
Price group: 14
-
Depth-Gauge SW 6X210 MM
-
Spare part number: 1 613 001 009
Position: 651
Availability: 1
Price group: 15
-
T-Head Bolt M8X40 MM
-
Spare part number: 1 613 490 002
Position: 822/125
Availability: 1
Price group: 16
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 001
Position: 892
Availability: 1
Price group: 31
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 002
Position: 893
Availability: 1
Price group: 37
-
Oil Reservoir 1000 ML
-
Spare part number: 1 615 430 019
Position: 895
Availability: 1
Price group: 40
-
Grease Tube 225 ML
-
Spare part number: 1 615 430 020
Position: 894
Availability: 1
Price group: 29
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Support clamp
-
Spare part number: 1 617 000 475
Position: 822/802
Availability: 1
Price group: 22
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
-
Spare part number: 3 604 460 084
Position: 5
Availability: 1
Price group: 30
-
1
2
Spare parts in cart
98 Parts found
Sort by
Description
Pos. 2 | Field 230V
1 619 P11 998
-
Pos. 3/5 | Fan
1 619 P12 021
-
Pos. 4 | Switch
1 607 200 32D
-
Pos. 5 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 RN-F
3 604 460 084
-
Pos. 6 | Grommet Ø7,3-Ø8,6X66 MM
1 600 703 034
-
Pos. 12 | Suppression Filter
1 614 465 011
-
Pos. 13 | groove ball bearing 7X19X6
1 610 905 032
-
Pos. 14 | Ball Bearing
1 619 P15 694
-
Pos. 16 | Brush Plate
1 619 P16 871
-
Pos. 17 | Switch Contact
1 616 B10 337
-
Pos. 22 | Cylindrical Gear
1 616 312 004
-
Pos. 27 | Striker
1 610 311 018
-
Pos. 28 | Striker Pin
1 613 124 082
-
Pos. 29 | Piston Pin
1 613 105 012
-
Pos. 31 | Needle-Roller Assembly
1 610 913 016
-
Pos. 32 | Clamp Handle BLACK
1 612 026 157
-
Pos. 32/46 | Driver Pin
1 619 P09 571
-
Pos. 32/49 | Switch Button RED
1 612 026 035
-
Pos. 32/76 | O-Ring 10,5X2,7 MM
1 610 210 046
-
Pos. 32/83 | Compression Spring
1 614 611 006
-
Pos. 33 | Holding Jacket
1 610 590 014
-
Pos. 34 | Supporting Disc
1 610 190 067
-
Pos. 35 | Plain bearing
1 616 B10 325
-
Pos. 36 | Bearing Holder
1 615 808 106
-
Pos. 37 | Straight Pin DIN6325-2,5X12-RIKO
1 613 100 019
-
Pos. 38 | Catch Disk
1 610 190 048
-
Pos. 41 | Housing Cover
1 619 P12 191
-
Pos. 42 | Thrust Ring
1 610 102 073
-
Pos. 45 | Air-Deflector Ring
1 619 P12 192
-
Pos. 46 | Guide Bushing
1 616 B10 047
-
Pos. 48 | Tab Washer
1 611 098 008
-
Pos. 49 | End Shield
1 615 700 044
-
Pos. 50 | Compression Spring
1 614 611 020
-
Pos. 54 | Rubber Bushing
1 610 502 016
-
Pos. 55 | O-Ring
1 619 P18 144
-
Pos. 56 | O-Ring
1 616 B00 086
-
Pos. 57 | O-Ring 24,0X2,5 MM
1 610 210 068
-
Pos. 58 | O-Ring
1 610 210 178
-
Pos. 59 | Shaft Seal
1 600 A00 9VC
-
Pos. 60 | O-Ring 9,0X3,5 MM
1 610 210 176
-
Pos. 63 | Needle bearing Ø30XØ37X12 MM
1 610 910 063
-
Pos. 64 | Supporting Disc
1 610 190 060
-
Pos. 66 | Plain bearing
1 610 202 021
-
Pos. 68 | Rotary shaft lip seal
1 610 283 036
-
Pos. 71 | Shim washer 1,2 MM THICK
1 610 101 011
-
Pos. 72 | Retaining ring
1 604 601 027
-
Pos. 76 | Thread-forming tap. Screw
1 613 435 022
-
Pos. 77 | Torx Oval-Head Screw 4X25
2 603 490 024
-
Pos. 78 | Screw 4X16
2 603 490 022
-
Pos. 79 | Thread-forming tap. Screw
1 613 435 023
-
Pos. 80 | Thread-forming tap. Screw
1 619 P08 803
-
Pos. 81 | Thread-forming tap. Screw M5X16-TORX,T25 SILVER
1 613 435 029
-
Pos. 82 | Retaining ring
1 614 601 034
-
Pos. 83 | Retaining ring A22 DIN 7993
1 604 601 028
-
Pos. 89 | Guide Sleeve
1 610 499 059
-
Pos. 90 | Collar Sleeve
1 610 590 016
-
Pos. 91 | Backup ring
1 610 200 025
-
Pos. 95 | Compression Spring
1 614 643 016
-
Pos. 96 | Retaining ring
1 614 601 046
-
Pos. 97 | Retaining ring
1 614 601 047
-
Pos. 101 | Connecting Cable
1 614 449 014
-
Pos. 102 | Connecting Cable
1 614 449 015
-
Pos. 103 | Lens Head Screw 3X10 ST
1 613 435 034
-
Pos. 105 | Compression Spring
1 614 611 021
-
Pos. 203 | Protective Cap
1 610 508 047
-
Pos. 217 | Countersunk-Head Screw M6X23 LEFTHAND THREADS
2 603 421 229
-
Pos. 651 | Depth-Gauge SW 6X210 MM
1 613 001 009
-
Pos. 656 | Keyless Chuck
1 600 A01 V5D
-
Pos. 691 | Lock for 1 615 438 486+...358+...367
1 615 438 409
-
Pos. 691 | Lock for 1 615 438 395
1 615 438 426
-
Pos. 691 | Lock for 1 615 438 429 + 1 615 438 430
1 615 438 431
-
Pos. 801 | Motor Housing BLUE
1 619 P13 454
-
Pos. 803 | Armature 230V
1 619 P13 450
-
Pos. 807 | Cable Clip
2 601 035 001
-
Pos. 811 | Carbon-Brush Set 220 V / 127 V
1 617 000 525
-
Pos. 820 | Intermediate Flange
1 619 P13 451
-
Pos. 821 | Pipe
1 617 000 V42
-
Pos. 822 | Auxiliary Handle
1 602 025 08X
-
Pos. 822/120 | Auxiliary Handle
1 602 025 07H
-
Pos. 822/124 | Clamping Band Ø50 MM
1 611 316 021
-
Pos. 822/125 | T-Head Bolt M8X40 MM
1 613 490 002
-
Pos. 822/802 | Support clamp
1 617 000 475
-
Pos. 823 | Toothed Shaft
1 619 P13 456
-
Pos. 824 | Toothed Shaft
1 619 P13 457
-
Pos. 825 | Tool Holding Fixture
1 617 000 895
-
Pos. 826 | Hammer Piston
1 617 000 557
-
Pos. 828 | Striker Pin
1 617 000 V43
-
Pos. 830 | Drive bearing
1 615 819 028
-
Pos. 840 | Gear Housing
1 619 P13 463
-
Pos. 861 | Switching Element
1 619 P13 460
-
Pos. 864 | Supporting Disc
1 617 000 A07
-
Pos. 866 | Plain bearing
1 614 611 022
-
Pos. 890 | Guide Sleeve
1 617 000 V41
-
Pos. 891 | Hammer Pipe
1 617 000 6CS
-
Pos. 892 | Grease Tube 225 ML
1 615 430 001
-
Pos. 893 | Grease Tube 225 ML
1 615 430 002
-
Pos. 894 | Grease Tube 225 ML
1 615 430 020
-
Pos. 895 | Oil Reservoir 1000 ML
1 615 430 019
-
