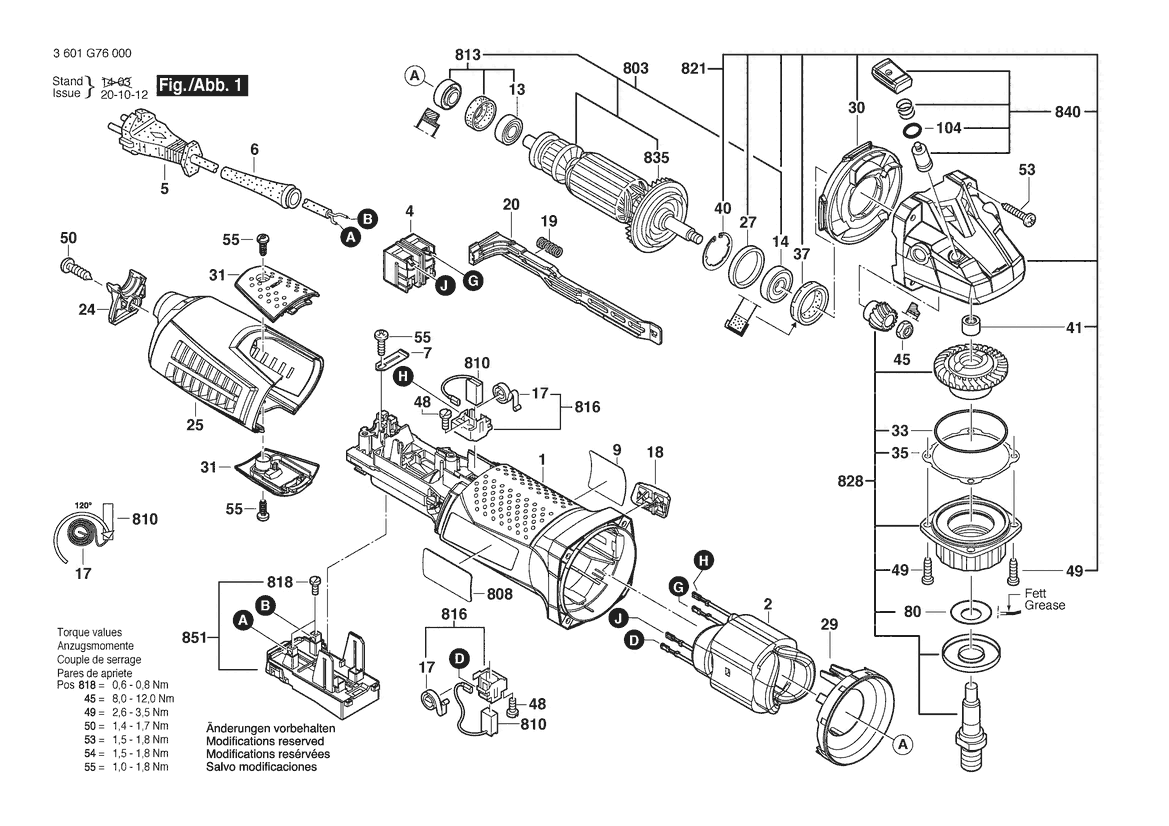

3 601 G76 070
Retaining clip
-
Spare part number: 1 600 119 011
Position: 40
Availability: 1
Price group: 12
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Rubber Ring
-
Spare part number: 1 600 206 025
Position: 27
Availability: 1
Price group: 12
-
O-Ring 4,5X1,0 MM BLUE
-
Spare part number: 1 600 210 044
Position: 104
Availability: 1
Price group: 10
-
Rotary shaft lip seal
-
Spare part number: 1 600 290 016
Position: 37
Availability: 1
Price group: 13
-
Air-Deflector Ring
-
Spare part number: 1 600 591 047
Position: 29
Availability: 1
Price group: 12
-
Air Distributor
-
Spare part number: 1 600 591 048
Position: 30
Availability: 1
Price group: 13
-
Grommet
-
Spare part number: 1 600 703 042
Position: 6
Availability: 1
Price group: 13
-
groove ball bearing 8X22X7
-
Spare part number: 1 600 905 032
Position: 14
Availability: 1
Price group: 18
-
Needle bearing Ø8XØ12X8 MM
-
Spare part number: 1 600 910 018
Position: 41
Availability: 1
Price group: 17
-
Nameplate
-
Spare part number: 1 601 11A D2C
Position: 808
Availability: 1
Price group: -
-
Fastening Clamp
-
Spare part number: 1 601 302 017
Position: 7
Availability: 1
Price group: 10
-
Switch Handle
-
Spare part number: 1 602 026 091
Position: 18
Availability: 1
Price group: 10
-
Adjusting Slide
-
Spare part number: 1 602 319 026
Position: 20
Availability: 1
Price group: 11
-
Hex Nut M7, SW10
-
Spare part number: 1 603 300 016
Position: 45
Availability: 1
Price group: 11
-
Torx Oval-Head Screw
-
Spare part number: 1 603 435 078
Position: 53
Availability: 4
Price group: 10
-
Compression Spring
-
Spare part number: 1 604 611 031
Position: 19
Availability: 1
Price group: 14
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 17
Availability: 2
Price group: 10
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 17
Availability: 2
Price group: 10
-
Spiral Spring
-
Spare part number: 1 604 652 021
Position: 17
Availability: 2
Price group: 10
-
Motor Housing
-
Spare part number: 1 605 108 283
Position: 1
Availability: 1
Price group: 27
-
Cover
-
Spare part number: 1 605 500 274
Position: 24
Availability: 1
Price group: 14
-
Housing Cover
-
Spare part number: 1 605 500 276
Position: 25
Availability: 1
Price group: 21
-
Brush-Cover
-
Spare part number: 1 605 500 277
Position: 31
Availability: 2
Price group: 12
-
Brush-Cover
-
Spare part number: 1 605 500 277
Position: 31
Availability: 2
Price group: 12
-
Fan
-
Spare part number: 1 606 610 132
Position: 835
Availability: 1
Price group: 12
-
Bearing Flange
-
Spare part number: 1 607 000 D9D
Position: 828
Availability: 1
Price group: 41
-
Field
-
Spare part number: 1 607 000 F0B
Position: 2
Availability: 1
Price group: 32
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
Carbon-Brush Set
-
Spare part number: 1 607 000 V37
Position: 810
Availability: 1
Price group: 26
-
Push-Button
-
Spare part number: 1 607 000 V41
Position: 840
Availability: 1
Price group: 16
-
Pan head screw
-
Spare part number: 1 607 000 V42
Position: 818
Availability: 1
Price group: 10
-
Brush Holder
-
Spare part number: 1 607 000 V43
Position: 816
Availability: 2
Price group: 15
-
Brush Holder
-
Spare part number: 1 607 000 V43
Position: 816
Availability: 2
Price group: 15
-
Switch
-
Spare part number: 1 607 200 256
Position: 4
Availability: 1
Price group: 24
-
Speed governor
-
Spare part number: 1 607 233 5JJ
Position: 851
Availability: 1
Price group: 35
-
groove ball bearing 7X19X6
-
Spare part number: 1 610 905 025
Position: 13
Availability: 1
Price group: 19
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 48
Availability: 2
Price group: 10
-
Lens Head Screw 3X10 ST
-
Spare part number: 1 613 435 034
Position: 48
Availability: 2
Price group: 10
-
Cover Disc
-
Spare part number: 1 619 P09 390
Position: 80
Availability: 1
Price group: 12
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X12
-
Spare part number: 2 603 490 021
Position: 55
Availability: 3
Price group: 10
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 50
Availability: 1
Price group: 10
-
Power supply cord GB 230V 4,15M 2 X 1,0MM H05 RN-F
-
Spare part number: 2 604 460 244
Position: 5
Availability: 1
Price group: 32
-
O-Ring 46,0X1,1 MM RED
-
Spare part number: 3 600 210 124
Position: 33
Availability: 1
Price group: 14
-
Manufacturer's nameplate
-
Spare part number: 3 601 110 605
Position: 9
Availability: 1
Price group: 13
-
Torx Oval-Head Screw
-
Spare part number: 3 603 435 047
Position: 49
Availability: 4
Price group: 13
-
Torx Oval-Head Screw
-
Spare part number: 3 603 435 047
Position: 49
Availability: 4
Price group: 13
-
Armature With Fan 230V
-
Spare part number: 3 607 031 750
Position: 803
Availability: 1
Price group: 47
-
groove ball bearing
-
Spare part number: 3 607 031 751
Position: 813
Availability: 1
Price group: 30
-
Gear Housing
-
Spare part number: 3 607 031 752
Position: 821
Availability: 1
Price group: 44
-
O-Ring 20,35X1,78 MM
-
Spare part number: 1 600 210 055
Position: 202/2
Availability: 1
Price group: 10
-
Air Distributor
-
Spare part number: 1 600 591 048
Position: 30
Availability: 1
Price group: 13
-
Fast Locking Flange
-
Spare part number: 1 600 A01 6PP
Position: 896
Availability: 1
Price group: 36
-
Round Nut M14
-
Spare part number: 1 603 345 043
Position: 203
Availability: 1
Price group: 21
-
Switch
-
Spare part number: 1 607 200 256
Position: 4
Availability: 1
Price group: 24
-
Speed governor
-
Spare part number: 1 607 233 5JJ
Position: 851
Availability: 1
Price group: 35
-
Hex Screw
-
Spare part number: 1 619 P07 611
Position: 207
Availability: 2
Price group: 15
-
Hex Screw
-
Spare part number: 1 619 P07 611
Position: 207
Availability: 2
Price group: 15
-
Clamping Flange Ø22,3XØ42 MM
-
Spare part number: 2 605 703 014
Position: 202
Availability: 1
Price group: 20
-
Plain Washer DIN 125-A10,5-ST
-
Spare part number: 2 916 011 017
Position: 208
Availability: 2
Price group: 11
-
Plain Washer DIN 125-A10,5-ST
-
Spare part number: 2 916 011 017
Position: 208
Availability: 2
Price group: 11
-
Reference Plate
-
Spare part number: 3 601 119 236
Position: 205
Availability: 1
Price group: 15
-
Handle
-
Spare part number: 3 602 025 029
Position: 206
Availability: 1
Price group: 34
-
Torx Oval-Head Screw
-
Spare part number: 3 603 435 047
Position: 49
Availability: 4
Price group: 13
-
Suction Hood
-
Spare part number: 3 605 510 062
Position: 210
Availability: 1
Price group: 39
-
Strap-Shaped Handle
-
Spare part number: 3 607 031 755
Position: 866
Availability: 1
Price group: 36
-
Strap-Shaped Handle
-
Spare part number: 3 607 031 755
Position: 866
Availability: 1
Price group: 36
-
Strip brush
-
Spare part number: 3 607 031 874
Position: 829
Availability: 1
Price group: 37
-
Pin-Type Face-Wrench
-
Spare part number: 3 607 950 016
Position: 650
Availability: 1
Price group: 26
-
Diamond Cup Wheel
-
Spare part number: 3 608 600 014
Position: 897
Availability: 1
Price group: 34
-
1
2
Spare parts in cart
59 Parts found
Sort by
Description
Pos. 1 | Motor Housing
1 605 108 283
-
Pos. 2 | Field
1 607 000 F0B
-
Pos. 4 | Switch
1 607 200 256
-
Pos. 5 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 RN-F
2 604 460 244
-
Pos. 6 | Grommet
1 600 703 042
-
Pos. 7 | Fastening Clamp
1 601 302 017
-
Pos. 9 | Manufacturer's nameplate
3 601 110 605
-
Pos. 13 | groove ball bearing 7X19X6
1 610 905 025
-
Pos. 14 | groove ball bearing 8X22X7
1 600 905 032
-
Pos. 17 | Spiral Spring
1 604 652 021
-
Pos. 18 | Switch Handle
1 602 026 091
-
Pos. 19 | Compression Spring
1 604 611 031
-
Pos. 20 | Adjusting Slide
1 602 319 026
-
Pos. 24 | Cover
1 605 500 274
-
Pos. 25 | Housing Cover
1 605 500 276
-
Pos. 27 | Rubber Ring
1 600 206 025
-
Pos. 29 | Air-Deflector Ring
1 600 591 047
-
Pos. 30 | Air Distributor
1 600 591 048
-
Pos. 31 | Brush-Cover
1 605 500 277
-
Pos. 33 | O-Ring 46,0X1,1 MM RED
3 600 210 124
-
Pos. 35 | Shim 0,1 MM THICK
1 600 136 013
-
Pos. 35 | Shim 0,2 MM THICK
1 600 136 014
-
Pos. 35 | Shim 0,3 MM THICK
1 600 136 015
-
Pos. 35 | Shim 0,15 MM THICK
1 600 136 020
-
Pos. 37 | Rotary shaft lip seal
1 600 290 016
-
Pos. 40 | Retaining clip
1 600 119 011
-
Pos. 41 | Needle bearing Ø8XØ12X8 MM
1 600 910 018
-
Pos. 45 | Hex Nut M7, SW10
1 603 300 016
-
Pos. 48 | Lens Head Screw 3X10 ST
1 613 435 034
-
Pos. 49 | Torx Oval-Head Screw
3 603 435 047
-
Pos. 50 | Torx Oval-Head Screw 4X20
2 603 490 023
-
Pos. 53 | Torx Oval-Head Screw
1 603 435 078
-
Pos. 55 | Torx Oval-Head Screw 4X12
2 603 490 021
-
Pos. 80 | Cover Disc
1 619 P09 390
-
Pos. 104 | O-Ring 4,5X1,0 MM BLUE
1 600 210 044
-
Pos. 202 | Clamping Flange Ø22,3XØ42 MM
2 605 703 014
-
Pos. 202/2 | O-Ring 20,35X1,78 MM
1 600 210 055
-
Pos. 203 | Round Nut M14
1 603 345 043
-
Pos. 205 | Reference Plate
3 601 119 236
-
Pos. 206 | Handle
3 602 025 029
-
Pos. 207 | Hex Screw
1 619 P07 611
-
Pos. 208 | Plain Washer DIN 125-A10,5-ST
2 916 011 017
-
Pos. 210 | Suction Hood
3 605 510 062
-
Pos. 650 | Pin-Type Face-Wrench
3 607 950 016
-
Pos. 803 | Armature With Fan 230V
3 607 031 750
-
Pos. 808 | Nameplate
1 601 11A D2C
-
Pos. 810 | Carbon-Brush Set
1 607 000 V37
-
Pos. 813 | groove ball bearing
3 607 031 751
-
Pos. 816 | Brush Holder
1 607 000 V43
-
Pos. 818 | Pan head screw
1 607 000 V42
-
Pos. 821 | Gear Housing
3 607 031 752
-
Pos. 828 | Bearing Flange
1 607 000 D9D
-
Pos. 829 | Strip brush
3 607 031 874
-
Pos. 835 | Fan
1 606 610 132
-
Pos. 840 | Push-Button
1 607 000 V41
-
Pos. 851 | Speed governor
1 607 233 5JJ
-
Pos. 866 | Strap-Shaped Handle
3 607 031 755
-
Pos. 896 | Fast Locking Flange
1 600 A01 6PP
-
Pos. 897 | Diamond Cup Wheel
3 608 600 014
-
