3 601 JG5 2L0
Grease Tube 45 ML
-
Spare part number: 1 600 A00 2NE
Position: 45/890
Availability: 1
Price group: 32
-
Stator
-
Spare part number: 1 600 A00 3V5
Position: 802
Availability: 1
Price group: 30
-
Gear Box
-
Spare part number: 1 600 A00 N60
Position: 45
Availability: 1
Price group: 43
-
Brush Holder
-
Spare part number: 1 600 A01 1KB
Position: 816
Availability: 1
Price group: 26
-
Electronics Module
-
Spare part number: 1 600 A01 31F
Position: 4
Availability: 1
Price group: 40
-
Rotor
-
Spare part number: 1 600 A01 5UW
Position: 803
Availability: 1
Price group: 34
-
Nameplate
-
Spare part number: 1 601 11A 5FS
Position: 808
Availability: 1
Price group: 13
-
Manufacturer's nameplate
-
Spare part number: 1 601 11C 297
Position: 9
Availability: 1
Price group: 13
-
Carbon-Brush Set
-
Spare part number: 1 607 014 18R
Position: 810
Availability: 1
Price group: 21
-
DC motor
-
Spare part number: 1 607 022 67M
Position: 2
Availability: 1
Price group: 41
-
-
Please click for futher details
Compression Spring
-
Spare part number: 1 609 280 477
Position: 46
Availability: 1
Price group: 11
-
Contact retainer
-
Spare part number: 1 609 280 478
Position: 804
Availability: 1
Price group: 24
-
Sticker
-
Spare part number: 2 601 115 537
Position: 91/1/22
Availability: 1
Price group: 11
-
Torx Oval-Head Screw 4X20
-
Spare part number: 2 603 490 023
Position: 104
Availability: 4
Price group: 10
-
-
Please click for futher details
-
Please click for futher details
-
Please click for futher details
Strap
-
Spare part number: 2 609 100 301
Position: 58
Availability: 1
Price group: 13
-
Button
-
Spare part number: 2 609 100 698
Position: 5
Availability: 1
Price group: 14
-
Housing
-
Spare part number: 2 609 101 686
Position: 1
Availability: 1
Price group: 28
-
Housing
-
Spare part number: 2 609 101 686
Position: 1
Availability: 1
Price group: 28
-
Cover
-
Spare part number: 2 609 101 783
Position: 12
Availability: 1
Price group: 12
-
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 101
Availability: 12
Price group: 12
-
Torx Flat-Head Screw 3X16
-
Spare part number: 2 609 110 201
Position: 101
Availability: 12
Price group: 12
-
Screwdriver Blade
-
Spare part number: 2 609 110 342
Position: 109
Availability: 1
Price group: 13
-
Screw
-
Spare part number: 2 609 110 834
Position: 105
Availability: 1
Price group: 11
-
Nut
-
Spare part number: 2 609 110 835
Position: 103
Availability: 2
Price group: 11
-
Nut
-
Spare part number: 2 609 110 835
Position: 103
Availability: 2
Price group: 11
-
Clip
-
Spare part number: 2 609 111 584
Position: 100
Availability: 1
Price group: 15
-
O-Ring
-
Spare part number: 1 600 210 07H
Position: 45/58
Availability: 1
Price group: 10
-
Stator
-
Spare part number: 1 600 A00 3V5
Position: 802
Availability: 1
Price group: 30
-
Gear Box
-
Spare part number: 1 600 A00 N60
Position: 45
Availability: 1
Price group: 43
-
Housing Assembly
-
Spare part number: 1 600 A01 SH5
Position: 45/1
Availability: 1
Price group: 36
-
Housing
-
Spare part number: 2 609 101 670
Position: 45/2
Availability: 1
Price group: 12
-
Ball
-
Spare part number: 2 609 110 331
Position: 45/52
Availability: 28
Price group: 10
-
Ball Bearing
-
Spare part number: 2 609 110 807
Position: 45/5
Availability: 1
Price group: 15
-
Pin
-
Spare part number: 2 609 110 808
Position: 45/10
Availability: 2
Price group: 10
-
Washer
-
Spare part number: 2 609 110 811
Position: 45/30
Availability: 1
Price group: 10
-
Washer
-
Spare part number: 2 609 110 812
Position: 45/31
Availability: 1
Price group: 10
-
Ball
-
Spare part number: 2 609 110 818
Position: 45/50
Availability: 2
Price group: 10
-
Washer
-
Spare part number: 2 609 110 820
Position: 45/53
Availability: 1
Price group: 10
-
Washer
-
Spare part number: 2 609 110 821
Position: 45/55
Availability: 1
Price group: 10
-
Metal Ring
-
Spare part number: 2 609 111 262
Position: 45/47
Availability: 1
Price group: 14
-
Planet Gear
-
Spare part number: 2 609 111 289
Position: 45/11
Availability: 2
Price group: 15
-
Ring Gear
-
Spare part number: 2 609 112 141
Position: 45/12
Availability: 1
Price group: 13
-
Striker
-
Spare part number: 2 609 112 142
Position: 45/51
Availability: 1
Price group: 24
-
Compression Spring
-
Spare part number: 2 609 112 143
Position: 45/56
Availability: 1
Price group: 17
-
Jack Shaft
-
Spare part number: 2 609 112 144
Position: 45/57
Availability: 1
Price group: 26
-
Rubber Ring
-
Spare part number: 2 609 170 157
Position: 45/46
Availability: 1
Price group: 13
-
Sleeve
-
Spare part number: 2 609 170 185
Position: 45/48
Availability: 1
Price group: 14
-
1
2
Spare parts in cart
46 Parts found
Sort by
Description

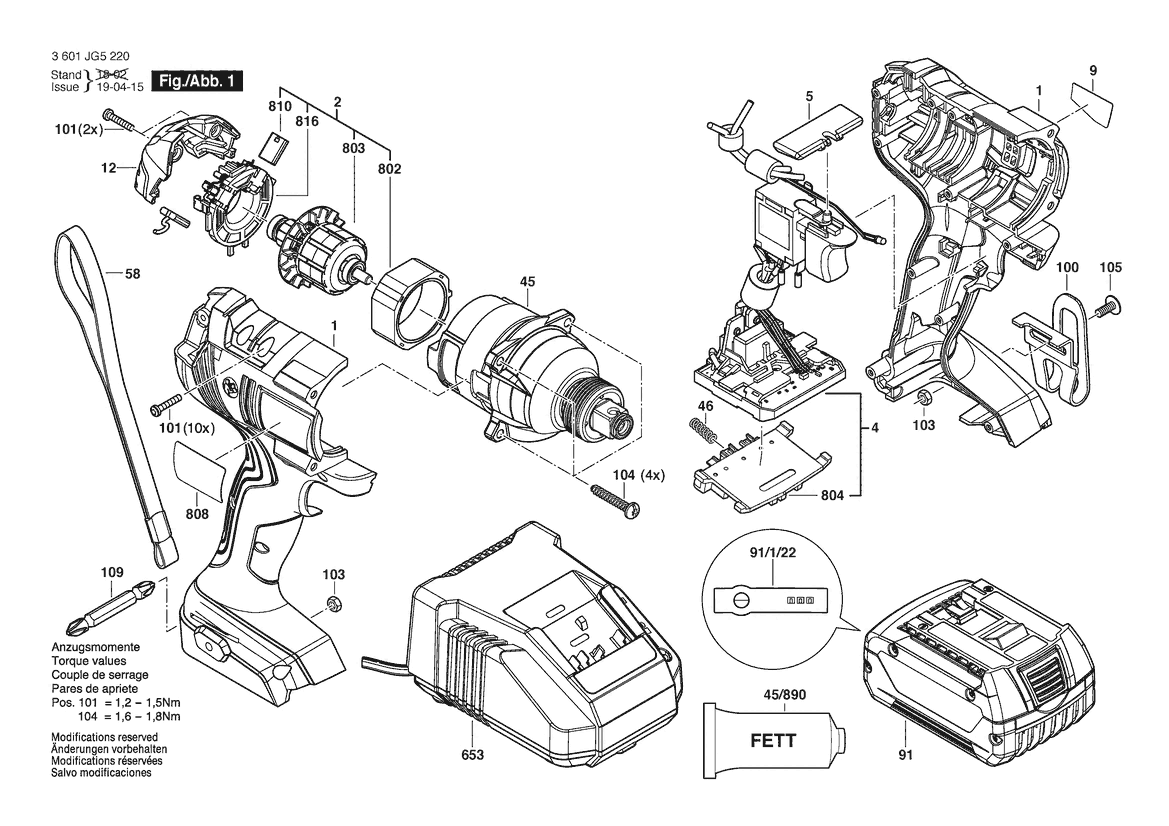

Pos. 1 | Housing
2 609 101 686
-
Pos. 2 | DC motor
1 607 022 67M
-
Pos. 4 | Electronics Module
1 600 A01 31F
-
Pos. 5 | Button
2 609 100 698
-
Pos. 9 | Manufacturer's nameplate
1 601 11C 297
-
Pos. 12 | Cover
2 609 101 783
-

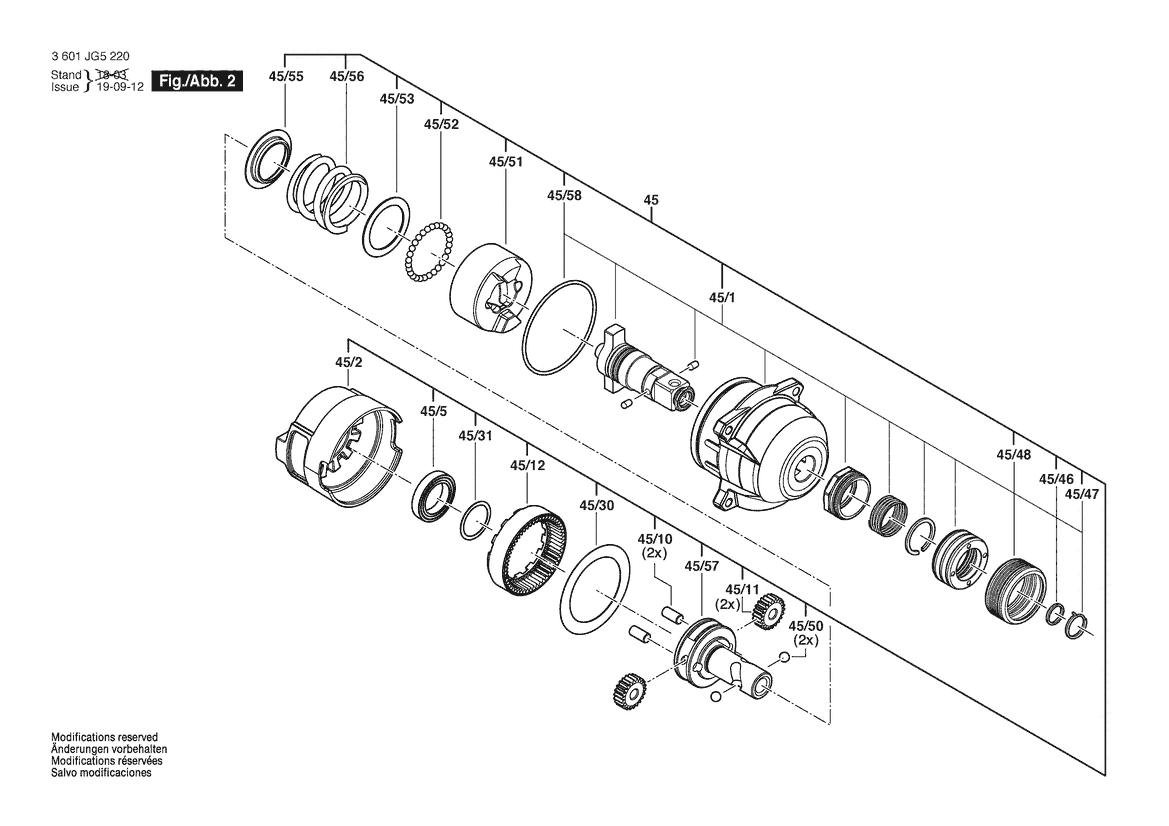

Pos. 45 | Gear Box
1 600 A00 N60
-
Pos. 45/1 | Housing Assembly
1 600 A01 SH5
-
Pos. 45/2 | Housing
2 609 101 670
-
Pos. 45/5 | Ball Bearing
2 609 110 807
-
Pos. 45/10 | Pin
2 609 110 808
-
Pos. 45/11 | Planet Gear
2 609 111 289
-
Pos. 45/12 | Ring Gear
2 609 112 141
-
Pos. 45/30 | Washer
2 609 110 811
-
Pos. 45/31 | Washer
2 609 110 812
-
Pos. 45/46 | Rubber Ring
2 609 170 157
-
Pos. 45/47 | Metal Ring
2 609 111 262
-
Pos. 45/48 | Sleeve
2 609 170 185
-
Pos. 45/50 | Ball
2 609 110 818
-
Pos. 45/51 | Striker
2 609 112 142
-
Pos. 45/52 | Ball
2 609 110 331
-
Pos. 45/53 | Washer
2 609 110 820
-
Pos. 45/55 | Washer
2 609 110 821
-
Pos. 45/56 | Compression Spring
2 609 112 143
-
Pos. 45/57 | Jack Shaft
2 609 112 144
-
Pos. 45/58 | O-Ring
1 600 210 07H
-
Pos. 45/890 | Grease Tube 45 ML
1 600 A00 2NE
-
Pos. 46 | Compression Spring
1 609 280 477
-
Pos. 58 | Strap
2 609 100 301
-
Pos. 91 | Battery Pack GBA 18V 4.0AH
1 607 A35 0M0
-
Pos. 91 | Slide-In Accu Package
2 607 336 803
-
Pos. 91/1/22 | Sticker
2 601 115 537
-
Pos. 100 | Clip
2 609 111 584
-
Pos. 101 | Torx Flat-Head Screw 3X16
2 609 110 201
-
Pos. 103 | Nut
2 609 110 835
-
Pos. 104 | Torx Oval-Head Screw 4X20
2 603 490 023
-
Pos. 105 | Screw
2 609 110 834
-
Pos. 109 | Screwdriver Blade
2 609 110 342
-
Pos. 653 | Charger
2 607 225 923
-
Pos. 653 | Fast Charger UK GAL 18V-20 220-240V / 2A / 12-18V
2 607 226 283
-
Pos. 802 | Stator
1 600 A00 3V5
-
Pos. 803 | Rotor
1 600 A01 5UW
-
Pos. 804 | Contact retainer
1 609 280 478
-
Pos. 808 | Nameplate
1 601 11A 5FS
-
Pos. 810 | Carbon-Brush Set
1 607 014 18R
-
Pos. 816 | Brush Holder
1 600 A01 1KB
-
